Android 左右側滑示例

Android 左右側滑示例

Android 左右側滑示例。可以自已設置側滑的效果，我在這裡實現是左右都可以。側滑出來的界面可以啟動activity，或者加載view。側滑效果是用了碎片規則來處理的。詳細注釋在代碼裡面，先看實現效果圖，再看項目結構以及資源文件分布。代碼只貼部分，提供本文源碼下載鏈接。

源碼下載：點擊

1、實現效果圖

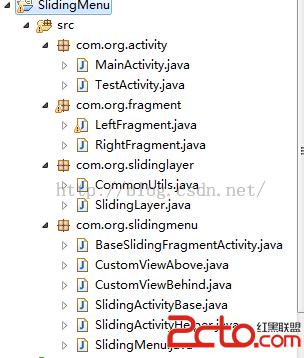

2、項目結構圖

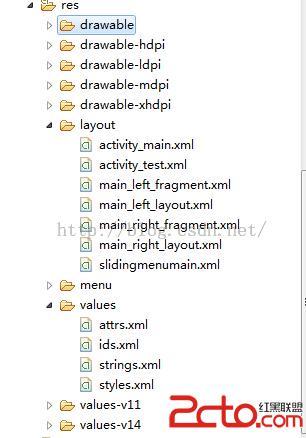

3、資源分布圖

4、LeftFragment

package com.org.fragment;

import com.org.activity.R;
import com.org.activity.TestActivity;
import android.content.Intent;
import android.os.Bundle;
import android.support.v4.app.Fragment;
import android.view.LayoutInflater;
import android.view.View;
import android.view.ViewGroup;
import android.view.View.OnClickListener;

public class LeftFragment extends Fragment implements OnClickListener{
	private LayoutInflater mInflater;

	@Override
	public View onCreateView(LayoutInflater inflater, ViewGroup container,
			Bundle savedInstanceState) {
		View view = inflater.inflate(R.layout.main_left_fragment, container,
				false);
		initView(view);
		return view;
	}

	@Override
	public void onCreate(Bundle savedInstanceState) {
		super.onCreate(savedInstanceState);
	}

	@Override
	public void onResume() {
		super.onResume();
	}

	private void initView(View view) {
		//要從getactivity獲取 Context上下文句柄，用來加載其他需要的view布局
		mInflater = LayoutInflater.from(getActivity());

		view.findViewById(R.id.button1).setOnClickListener(this);

	}

	@Override
	public void onClick(View v) {
		switch (v.getId()) {
		case R.id.button1:
			//在碎片處理中啟動activity
			Intent toChatIntent = new Intent(getActivity(),
					TestActivity.class);
			startActivity(toChatIntent);
			break;

		default:
			break;
		}

	}


}

5、RightFragment

package com.org.fragment;

import com.org.activity.R;
import com.org.slidinglayer.SlidingLayer;
import com.org.slidinglayer.SlidingLayer.OnInteractListener;

import android.os.Bundle;
import android.support.v4.app.Fragment;
import android.view.LayoutInflater;
import android.view.View;
import android.view.View.OnClickListener;
import android.view.ViewGroup;
import android.widget.TextView;

public class RightFragment extends Fragment implements OnClickListener ,OnInteractListener{
	private LayoutInflater mInflater;
	private SlidingLayer mSlidingLayer;

	private View mTestView;

	@Override
	public void onCreate(Bundle savedInstanceState) {
		// TODO Auto-generated method stub
		super.onCreate(savedInstanceState);
	}

	@Override
	public View onCreateView(LayoutInflater inflater, ViewGroup container,
			Bundle savedInstanceState) {
		View view = inflater.inflate(R.layout.main_right_fragment, container,
				false);
		initView(view);
		return view;
	}


	private void initView(View view) {
		view.findViewById(R.id.button1).setOnClickListener(this);

		//RightFragment裡面的頁面的滑動的實現類
		mSlidingLayer = (SlidingLayer) view.findViewById(R.id.right_sliding_layer);
		mSlidingLayer.setOnInteractListener(this);

		//要從getactivity獲取 Context上下文句柄
		mInflater = LayoutInflater.from(getActivity());

		//顯示測試的view頁面，通過LayoutInflater加載view的頁面
		mTestView = mInflater.inflate(R.layout.activity_test, null);
		//是誰的view就用誰的mTestView.findViewById
		TextView testTextView = (TextView)mTestView.findViewById(R.id.textView1);
		testTextView.setText(測試顯示view);
	}



	@Override
	public void onClick(View v) {
		switch (v.getId()) {
		case R.id.button1:
			mSlidingLayer.removeAllViews();// 先移除所有的view,不然會報錯
			if (!mSlidingLayer.isOpened()) {
				mSlidingLayer.addView(mTestView);
				mSlidingLayer.openLayer(true);
			}
			break;
		default:
			break;
		}
	}



	@Override
	public void onOpen() {
		// TODO Auto-generated method stub

	}

	@Override
	public void onClose() {
		// TODO Auto-generated method stub

	}

	@Override
	public void onOpened() {
		// TODO Auto-generated method stub

	}

	@Override
	public void onClosed() {
		// TODO Auto-generated method stub
		mSlidingLayer.removeAllViews();
	}

}

6、MainActivity

package com.org.activity;

import com.org.fragment.LeftFragment;
import com.org.fragment.RightFragment;
import com.org.slidingmenu.BaseSlidingFragmentActivity;
import com.org.slidingmenu.SlidingMenu;
import android.content.Context;
import android.os.Bundle;
import android.support.v4.app.Fragment;
import android.support.v4.app.FragmentTransaction;
import android.util.DisplayMetrics;
import android.view.View;
import android.view.View.OnClickListener;
import android.view.Window;
import android.widget.Button;
import android.widget.Toast;

public class MainActivity extends BaseSlidingFragmentActivity implements OnClickListener{
	protected SlidingMenu mSlidingMenu;
	@Override
	public void onCreate(Bundle savedInstanceState) {
		super.onCreate(savedInstanceState);
		requestWindowFeature(Window.FEATURE_NO_TITLE);

		initSlidingMenu();
		setContentView(R.layout.activity_main);
		initView(savedInstanceState);
	}

	private void initSlidingMenu() {
		//這個是設置進去，通過按鍵實現加載的默認布局，然後用碎片替換掉 ，只有這樣才有LeftFragment控制
		setBehindContentView(R.layout.main_left_layout);// 設置左菜單

		//這個都是碎片處理規則，替換掉main_left_fragment布局，通過左滑實現此布局
		//若是沒有這個，加載布局只是默認的main_left_fragment
		FragmentTransaction mFragementTransaction = getSupportFragmentManager()
				.beginTransaction();
		Fragment mFrag = new LeftFragment();
		mFragementTransaction.replace(R.id.main_left_fragment, mFrag);
		mFragementTransaction.commit();

		// customize the SlidingMenu
		DisplayMetrics dm = new DisplayMetrics();
		getWindowManager().getDefaultDisplay().getMetrics(dm);
		int mScreenWidth = dm.widthPixels;// 獲取屏幕分辨率寬度

		mSlidingMenu = getSlidingMenu();
		mSlidingMenu.setMode(SlidingMenu.LEFT_RIGHT);// 設置是左滑還是右滑，還是左右都可以滑，我這裡左右都可以滑
		mSlidingMenu.setShadowWidth(mScreenWidth / 40);// 設置陰影寬度
		mSlidingMenu.setBehindOffset(mScreenWidth / 8);// 設置菜單寬度
		mSlidingMenu.setFadeDegree(0.35f);// 設置淡入淡出的比例
		mSlidingMenu.setTouchModeAbove(SlidingMenu.TOUCHMODE_MARGIN);
		mSlidingMenu.setShadowDrawable(R.drawable.slidingmenu_shadow);// 設置左菜單陰影圖片
		mSlidingMenu.setSecondaryShadowDrawable(R.drawable.right_shadow);// 設置右菜單陰影圖片
		mSlidingMenu.setFadeEnabled(true);// 設置滑動時菜單的是否淡入淡出
		mSlidingMenu.setBehindScrollScale(0.333f);// 設置滑動時拖拽效果
	}

	private void initView(Bundle savedInstanceState) {
		//這個是設置進去，通過按鍵實現加載的默認布局，然後用碎片替換掉
		mSlidingMenu.setSecondaryMenu(R.layout.main_right_layout);

		//這個都是碎片處理規則，替換掉main_right_fragment布局，通過右滑實現此布局
		//若是沒有這個，加載布局只是默認的main_right_fragment
		FragmentTransaction mFragementTransaction = getSupportFragmentManager()
				.beginTransaction();
		Fragment mFrag = new RightFragment();
		mFragementTransaction.replace(R.id.main_right_fragment, mFrag);
		mFragementTransaction.commit();

		((Button) findViewById(R.id.buttonLeft)).setOnClickListener(this);
		((Button) findViewById(R.id.buttonRight)).setOnClickListener(this);
	}

	@Override
	public void onClick(View v) {

		switch (v.getId()) {
		case R.id.buttonLeft:
			mSlidingMenu.showMenu(true);
			break;
		case R.id.buttonRight:
			mSlidingMenu.showSecondaryMenu(true);
			break;
		default:
			break;
		}
	}

	/**
	 * 連續按兩次返回鍵就退出
	 */
	private long firstTime;

	@Override
	public void onBackPressed() {
		// TODO Auto-generated method stub
		if (System.currentTimeMillis() - firstTime < 3000) {
			finish();
		} else {
			firstTime = System.currentTimeMillis();
			showShort(this, 再按一次退出！);
		}
	}

	static Toast toast;
	public static void showShort(Context context, String message) {
		if (null == toast) {
			toast = Toast.makeText(context, message, Toast.LENGTH_SHORT);
			// toast.setGravity(Gravity.CENTER, 0, 0);
		} else {
			toast.setText(message);
		}
		toast.show();
	}
}
