Android編程實現泡泡聊天界面實例詳解(附源碼)

本文實例講述了Android編程實現泡泡聊天界面的方法。分享給大家供大家參考，具體如下：

昨天寫了個界面，實現了Android泡泡聊天界面。運行結果如下，點擊發送按鈕，屏幕就顯示Text的內容。

我也是在網上的一份源碼的基礎上更改的，整個泡泡界面的實現要點：

（1）主界面其實就是一個List View

（2）文字顯示界面其實就使用了android:background="@drawable/incoming"這個東西。背景圖片的格式是xxx.9.png，專門用來縮放的，不然顯示效果非常差。

（3）自定義了一個adapter,當然是繼承android.widget.BaseAdapter，重寫了getView的方法。

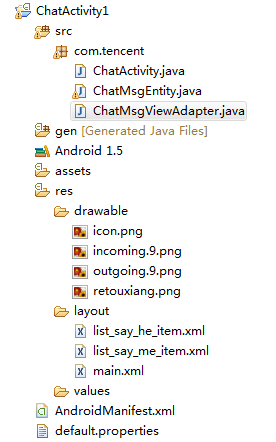

整個工程分布如下：

主activity: ChatActivity如下：

package com.tencent;
import android.app.Activity;
import android.os.Bundle;
import android.util.Log;
import android.view.View;
import android.view.View.OnClickListener;
import android.widget.Button;
import android.widget.EditText;
import android.widget.ListView;
import java.util.ArrayList;
import java.util.Calendar;
public class ChatActivity extends Activity {
  private static final String TAG = ChatActivity.class.getSimpleName();;
  private ListView talkView;
  private Button messageButton;
  private EditText messageText;
  // private ChatMsgViewAdapter myAdapter;
  private ArrayList<ChatMsgEntity> list = new ArrayList<ChatMsgEntity>();
  public void onCreate(Bundle savedInstanceState) {
    Log.v(TAG, "onCreate >>>>>>");
    super.onCreate(savedInstanceState);
    setContentView(R.layout.main);
    talkView = (ListView) findViewById(R.id.list);
    messageButton = (Button) findViewById(R.id.MessageButton);
    messageText = (EditText) findViewById(R.id.MessageText);
    OnClickListener messageButtonListener = new OnClickListener() {
      @Override
      public void onClick(View arg0) {
        // TODO Auto-generated method stub
        Log.v(TAG, "onclick >>>>>>>>");
        String name = getName();
        String date = getDate();
        String msgText = getText();
        int RId = R.layout.list_say_he_item;
        ChatMsgEntity newMessage = new ChatMsgEntity(name, date, msgText, RId);
        list.add(newMessage);
        // list.add(d0);
        talkView.setAdapter(new ChatMsgViewAdapter(ChatActivity.this, list));
        messageText.setText("");
        // myAdapter.notifyDataSetChanged();
      }
    };
    messageButton.setOnClickListener(messageButtonListener);
  }
  // shuold be redefine in the future
  private String getName() {
    return getResources().getString(R.string.myDisplayName);
  }
  // shuold be redefine in the future
  private String getDate() {
    Calendar c = Calendar.getInstance();
    String date = String.valueOf(c.get(Calendar.YEAR)) + "-"
        + String.valueOf(c.get(Calendar.MONTH)) + "-" + c.get(c.get(Calendar.DAY_OF_MONTH));
    return date;
  }
  // shuold be redefine in the future
  private String getText() {
    return messageText.getText().toString();
  }
  public void onDestroy() {
    Log.v(TAG, "onDestroy>>>>>>");
    // list = null;
    super.onDestroy();
  }
}

顯示消息體的定義

package com.tencent;
public class ChatMsgEntity {
  private static final String TAG = ChatMsgEntity.class.getSimpleName();
  private String name;
  private String date;
  private String text;
  private int layoutID;
  public String getName() {
    return name;
  }
  public void setName(String name) {
    this.name = name;
  }
  public String getDate() {
    return date;
  }
  public void setDate(String date) {
    this.date = date;
  }
  public String getText() {
    return text;
  }
  public void setText(String text) {
    this.text = text;
  }
  public int getLayoutID() {
    return layoutID;
  }
  public void setLayoutID(int layoutID) {
    this.layoutID = layoutID;
  }
  public ChatMsgEntity() {
  }
  public ChatMsgEntity(String name, String date, String text, int layoutID) {
    super();
    this.name = name;
    this.date = date;
    this.text = text;
    this.layoutID = layoutID;
  }
}

ChatMsgViewAdapter定義如下：

package com.tencent;
import android.content.Context;
import android.database.DataSetObserver;
import android.util.Log;
import android.view.LayoutInflater;
import android.view.View;
import android.view.ViewGroup;
import android.widget.BaseAdapter;
import android.widget.LinearLayout;
import android.widget.TextView;
import java.util.ArrayList;
public class ChatMsgViewAdapter extends BaseAdapter {
  private static final String TAG = ChatMsgViewAdapter.class.getSimpleName();
  private ArrayList<ChatMsgEntity> coll;
  private Context ctx;
  public ChatMsgViewAdapter(Context context, ArrayList<ChatMsgEntity> coll) {
    ctx = context;
    this.coll = coll;
  }
  public boolean areAllItemsEnabled() {
    return false;
  }
  public boolean isEnabled(int arg0) {
    return false;
  }
  public int getCount() {
    return coll.size();
  }
  public Object getItem(int position) {
    return coll.get(position);
  }
  public long getItemId(int position) {
    return position;
  }
  public int getItemViewType(int position) {
    return position;
  }
  public View getView(int position, View convertView, ViewGroup parent) {
    Log.v(TAG, "getView>>>>>>>");
    ChatMsgEntity entity = coll.get(position);
    int itemLayout = entity.getLayoutID();
    LinearLayout layout = new LinearLayout(ctx);
    LayoutInflater vi = (LayoutInflater) ctx.getSystemService(Context.LAYOUT_INFLATER_SERVICE);
    vi.inflate(itemLayout, layout, true);
    TextView tvName = (TextView) layout.findViewById(R.id.messagedetail_row_name);
    tvName.setText(entity.getName());
    TextView tvDate = (TextView) layout.findViewById(R.id.messagedetail_row_date);
    tvDate.setText(entity.getDate());
    TextView tvText = (TextView) layout.findViewById(R.id.messagedetail_row_text);
    tvText.setText(entity.getText());
    return layout;
  }
  public int getViewTypeCount() {
    return coll.size();
  }
  public boolean hasStableIds() {
    return false;
  }
  public boolean isEmpty() {
    return false;
  }
  public void registerDataSetObserver(DataSetObserver observer) {
  }
  public void unregisterDataSetObserver(DataSetObserver observer) {
  }
}

布局文件看得我比較痛苦，這個布局文件不好搞啊，呵呵

完整實例代碼代碼點擊此處本站下載。

希望本文所述對大家Android程序設計有所幫助。
