roid 6.0的源碼剖析， 本文深度剖析Binder IPC過程, 這絕對是一篇匠心巨作，從Java framework到Native，再到Linux Kernel，帶你全程看Binder通信過程.
Android內核是基於Linux系統, 而Linux現存多種進程間IPC方式:管道, 消息隊列, 共享內存, 套接字, 信號量, 信號. 為什麼Android非要用Binder來進行進程間通信呢.
從我個人的理解角度, 曾嘗試著在知乎回答同樣一個問題 為什麼Android要采用Binder作為IPC機制？.
這是我第一次認認真真地在知乎上回答問題, 收到很多網友的點贊與回復, 讓我很受鼓舞, 也決心分享更多優先地文章回報讀者和粉絲, 為Android圈貢獻自己的微薄之力.

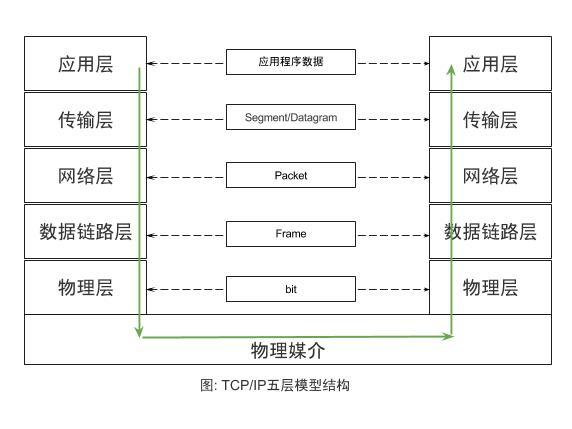

在說到Binder架構之前, 先簡單說說大家熟悉的TCP/IP的五層通信體系結構:
這是經典的五層TPC/IP協議體系, 這樣分層設計的思想, 讓每一個子問題都設計成一個獨立的協議, 這協議的設計/分析/實現/測試都變得更加簡單:

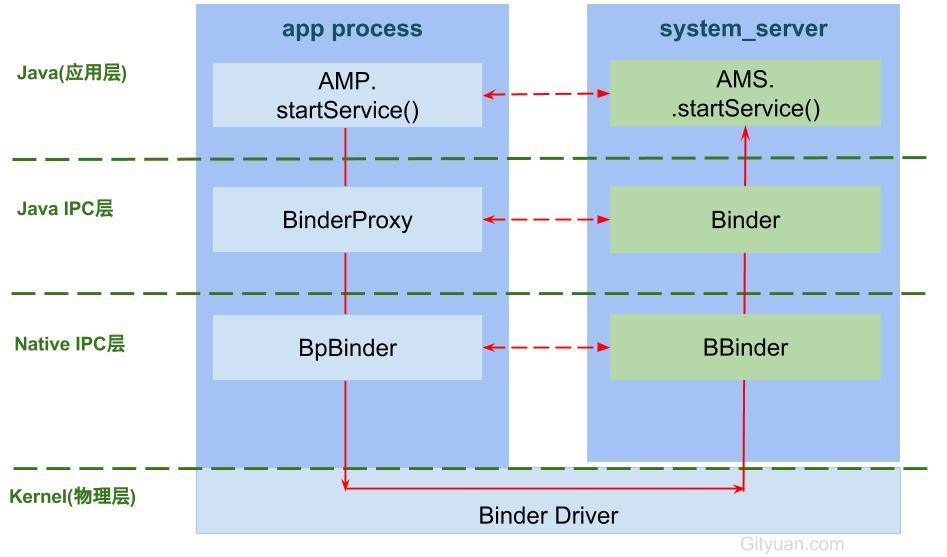

Binder架構也是采用分層架構設計, 每一層都有其不同的功能:
前面通過一個Binder系列-開篇來從源碼講解了Binder的各個層面, 但是Binder牽涉頗為廣泛, 幾乎是整個Android架構的頂梁柱, 雖說用了十幾篇文章來闡述Binder的各個過程.
但依然還是沒有將Binder IPC(進程間通信)的過程徹底說透.
Binder系統如此龐大, 那麼這裡需要尋求一個出發點來穿針引線, 一窺視Binder全貌. 那麼本文將從全新的視角,以startService流程分析為例子來說說Binder所其作用.

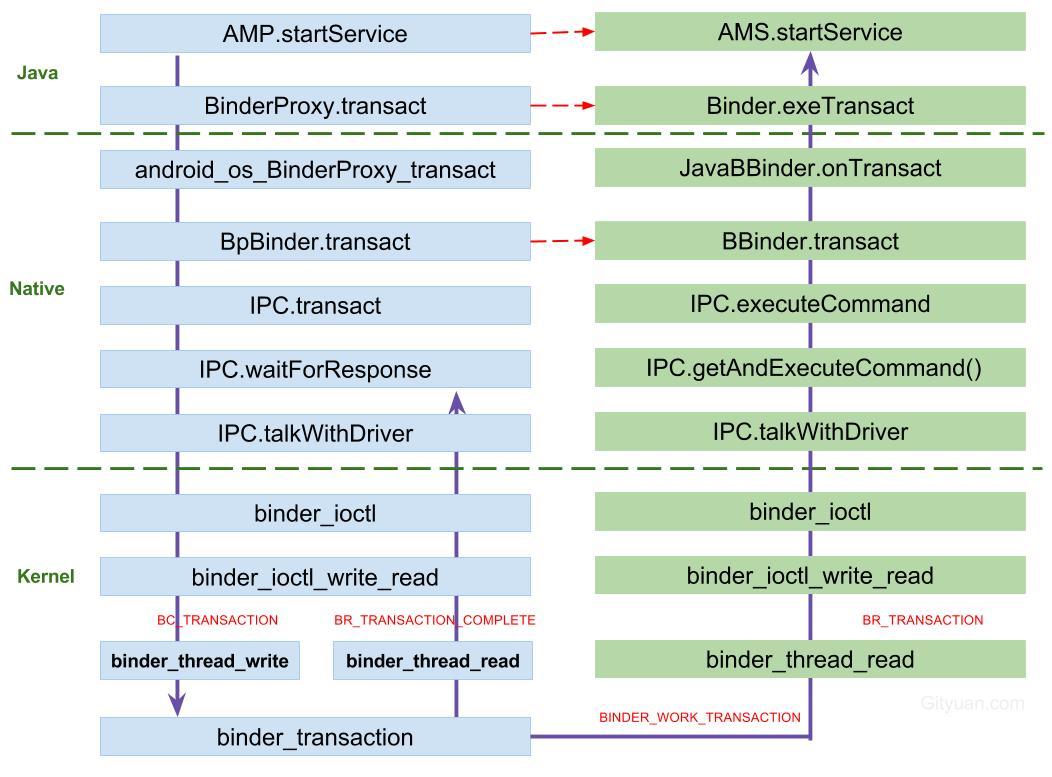

首先在發起方進程調用AMP.startService，經過binder驅動，最終調用系統進程AMS.startService,如下圖:
AMP和AMN都是實現了IActivityManager接口,AMS繼承於AMN. 其中AMP作為Binder的客戶端,運行在各個app所在進程, AMN(或AMS)運行在系統進程system_server.

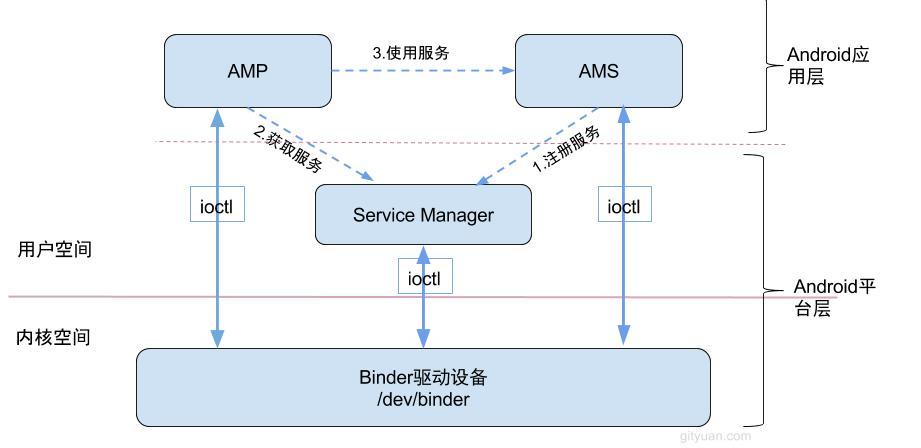

Binder通信采用C/S架構，從組件視角來說，包含Client、Server、ServiceManager以及binder驅動，其中ServiceManager用於管理系統中的各種服務。下面說說startService過程所涉及的Binder對象的架構圖：
可以看出無論是注冊服務和獲取服務的過程都需要ServiceManager，需要注意的是此處的Service Manager是指Native層的ServiceManager（C++），並非指framework層的ServiceManager(Java)。ServiceManager是整個Binder通信機制的大管家，是Android進程間通信機制Binder的守護進程，Client端和Server端通信時都需要先獲取Service Manager接口，才能開始通信服務, 當然查找懂啊目標信息可以緩存起來則不需要每次都向ServiceManager請求。
圖中Client/Server/ServiceManage之間的相互通信都是基於Binder機制。既然基於Binder機制通信，那麼同樣也是C/S架構，則圖中的3大步驟都有相應的Client端與Server端。
圖中的Client,Server,Service Manager之間交互都是虛線表示，是由於它們彼此之間不是直接交互的，而是都通過與Binder Driver進行交互的，從而實現IPC通信方式。其中Binder驅動位於內核空間，Client,Server,Service Manager位於用戶空間。Binder驅動和Service Manager可以看做是Android平台的基礎架構，而Client和Server是Android的應用層.
這3大過程每一次都是一個完整的Binder IPC過程, 接下來從源碼角度, 僅介紹第3過程使用服務, 即展開AMP.startService是如何調用到AMS.startService的過程.
Tips: 如果你只想了解大致過程,並不打算細扣源碼, 那麼你可以略過通信過程源碼分析, 僅看本文第一段落和最後段落也能對Binder所有理解.
[-> ActivityManagerNative.java ::ActivityManagerProxy]
public ComponentName startService(IApplicationThread caller, Intent service,
String resolvedType, String callingPackage, int userId) throws RemoteException
{
//獲取或創建Parcel對象【見小節2.2】
Parcel data = Parcel.obtain();
Parcel reply = Parcel.obtain();
data.writeInterfaceToken(IActivityManager.descriptor);
data.writeStrongBinder(caller != null ? caller.asBinder() : null);
service.writeToParcel(data, 0);
//寫入Parcel數據 【見小節2.3】
data.writeString(resolvedType);
data.writeString(callingPackage);
data.writeInt(userId);
//通過Binder傳遞數據【見小節2.5】
mRemote.transact(START_SERVICE_TRANSACTION, data, reply, 0);
//讀取應答消息的異常情況
reply.readException();
//根據reply數據來創建ComponentName對象
ComponentName res = ComponentName.readFromParcel(reply);
//【見小節2.2.3】
data.recycle();
reply.recycle();
return res;
}
主要功能:
[-> Parcel.java]
public static Parcel obtain() {
final Parcel[] pool = sOwnedPool;
synchronized (pool) {
Parcel p;
//POOL_SIZE = 6
for (int i=0; i<POOL_SIZE; i++) {
p = pool[i];
if (p != null) {
pool[i] = null;
return p;
}
}
}
//當緩存池沒有現成的Parcel對象，則直接創建[見流程2.2.1]
return new Parcel(0);
}
sOwnedPool是一個大小為6，存放著parcel對象的緩存池,這樣設計的目標是用於節省每次都創建Parcel對象的開銷。obtain()方法的作用：
sOwnedPool中查詢是否存在緩存Parcel對象，當存在則直接返回該對象;[-> Parcel.java]
private Parcel(long nativePtr) {
//初始化本地指針
init(nativePtr);
}
private void init(long nativePtr) {
if (nativePtr != 0) {
mNativePtr = nativePtr;
mOwnsNativeParcelObject = false;
} else {
// 首次創建,進入該分支[見流程2.2.2]
mNativePtr = nativeCreate();
mOwnsNativeParcelObject = true;
}
}
nativeCreate這是native方法,經過JNI進入native層, 調用android_os_Parcel_create()方法.
[-> android_os_Parcel.cpp]
static jlong android_os_Parcel_create(JNIEnv* env, jclass clazz)
{
Parcel* parcel = new Parcel();
return reinterpret_cast<jlong>(parcel);
}
創建C++層的Parcel對象, 該對象指針強制轉換為long型, 並保存到Java層的mNativePtr對象. 創建完Parcel對象利用Parcel對象寫數據. 接下來以writeString為例.
public final void recycle() {
//釋放native parcel對象
freeBuffer();
final Parcel[] pool;
//根據情況來選擇加入相應池
if (mOwnsNativeParcelObject) {
pool = sOwnedPool;
} else {
mNativePtr = 0;
pool = sHolderPool;
}
synchronized (pool) {
for (int i=0; i<POOL_SIZE; i++) {
if (pool[i] == null) {
pool[i] = this;
return;
}
}
}
}
將不再使用的Parcel對象放入緩存池，可回收重復利用，當緩存池已滿則不再加入緩存池。這裡有兩個Parcel線程池,mOwnsNativeParcelObject變量來決定:
mOwnsNativeParcelObject=true, 即調用不帶參數obtain()方法獲取的對象, 回收時會放入sOwnedPool對象池;mOwnsNativeParcelObject=false, 即調用帶nativePtr參數的obtain(long)方法獲取的對象, 回收時會放入sHolderPool對象池;[-> Parcel.java]
public final void writeString(String val) {
//[見流程2.3.1]
nativeWriteString(mNativePtr, val);
}
[-> android_os_Parcel.cpp]
static void android_os_Parcel_writeString(JNIEnv* env, jclass clazz, jlong nativePtr, jstring val)
{
Parcel* parcel = reinterpret_cast<Parcel*>(nativePtr);
if (parcel != NULL) {
status_t err = NO_MEMORY;
if (val) {
const jchar* str = env->GetStringCritical(val, 0);
if (str) {
//[見流程2.3.2]
err = parcel->writeString16(
reinterpret_cast<const char16_t*>(str),
env->GetStringLength(val));
env->ReleaseStringCritical(val, str);
}
} else {
err = parcel->writeString16(NULL, 0);
}
if (err != NO_ERROR) {
signalExceptionForError(env, clazz, err);
}
}
}
[-> Parcel.cpp]
status_t Parcel::writeString16(const char16_t* str, size_t len)
{
if (str == NULL) return writeInt32(-1);
status_t err = writeInt32(len);
if (err == NO_ERROR) {
len *= sizeof(char16_t);
uint8_t* data = (uint8_t*)writeInplace(len+sizeof(char16_t));
if (data) {
//數據拷貝到data所指向的位置
memcpy(data, str, len);
*reinterpret_cast<char16_t*>(data+len) = 0;
return NO_ERROR;
}
err = mError;
}
return err;
}
Tips: 除了writeString(),在Parcel.java中大量的native方法, 都是調用android_os_Parcel.cpp相對應的方法, 該方法再調用Parcel.cpp中對應的方法.
調用流程: Parcel.java –> android_os_Parcel.cpp –> Parcel.cpp.
/frameworks/base/core/java/android/os/Parcel.java
/frameworks/base/core/jni/android_os_Parcel.cpp
/frameworks/native/libs/binder/Parcel.cpp
簡單說,就是
mRemote的出生,要出先說說ActivityManagerProxy對象(簡稱AMP)創建說起, AMP是通過ActivityManagerNative.getDefault()來獲取的.
[-> ActivityManagerNative.java]
static public IActivityManager getDefault() {
// [見流程2.4.2]
return gDefault.get();
}
gDefault的數據類型為Singleton<IActivityManager>, 這是一個單例模式, 接下來看看Singleto.get()的過程
public abstract class Singleton<IActivityManager> {
public final IActivityManager get() {
synchronized (this) {
if (mInstance == null) {
//首次調用create()來獲取AMP對象[見流程2.4.3]
mInstance = create();
}
return mInstance;
}
}
}
首次調用時需要創建,創建完之後保持到mInstance對象,之後可直接使用.
private static final Singleton<IActivityManager> gDefault = new Singleton<IActivityManager>() {
protected IActivityManager create() {
//獲取名為"activity"的服務
IBinder b = ServiceManager.getService("activity");
//創建AMP對象[見流程2.4.4]
IActivityManager am = asInterface(b);
return am;
}
};
文章Binder系列7—framework層分析，可知ServiceManager.getService(“activity”)返回的是指向目標服務AMS的代理對象BinderProxy對象，由該代理對象可以找到目標服務AMS所在進程
[-> ActivityManagerNative.java]
public abstract class ActivityManagerNative extends Binder implements IActivityManager
{
static public IActivityManager asInterface(IBinder obj) {
if (obj == null) {
return null;
}
//此處obj = BinderProxy, descriptor = "android.app.IActivityManager"; [見流程2.4.5]
IActivityManager in = (IActivityManager)obj.queryLocalInterface(descriptor);
if (in != null) { //此處為null
return in;
}
//[見流程2.4.6]
return new ActivityManagerProxy(obj);
}
...
}
此時obj為BinderProxy對象, 記錄著遠程進程system_server中AMS服務的binder線程的handle.
[Binder.java]
public class Binder implements IBinder {
//對於Binder對象的調用,則返回值不為空
public IInterface queryLocalInterface(String descriptor) {
//mDescriptor的初始化在attachInterface()過程中賦值
if (mDescriptor.equals(descriptor)) {
return mOwner;
}
return null;
}
}
//由上一小節[2.4.4]調用的流程便是此處,返回Null
final class BinderProxy implements IBinder {
//BinderProxy對象的調用, 則返回值為空
public IInterface queryLocalInterface(String descriptor) {
return null;
}
}
對於Binder IPC的過程中, 同一個進程的調用則會是asInterface()方法返回的便是本地的Binder對象;對於不同進程的調用則會是遠程代理對象BinderProxy.
[-> ActivityManagerNative.java :: AMP]
class ActivityManagerProxy implements IActivityManager
{
public ActivityManagerProxy(IBinder remote)
{
mRemote = remote;
}
}
可知mRemote便是指向AMS服務的BinderProxy對象。
[-> Binder.java ::BinderProxy]
final class BinderProxy implements IBinder {
public boolean transact(int code, Parcel data, Parcel reply, int flags) throws RemoteException {
//用於檢測Parcel大小是否大於800k
Binder.checkParcel(this, code, data, "Unreasonably large binder buffer");
//【見2.6】
return transactNative(code, data, reply, flags);
}
}
mRemote.transact()方法中的code=START_SERVICE_TRANSACTION, data保存了descriptor，caller, intent, resolvedType, callingPackage, userId這6項信息。
transactNative是native方法，經過jni調用android_os_BinderProxy_transact方法。
[-> android_util_Binder.cpp]
static jboolean android_os_BinderProxy_transact(JNIEnv* env, jobject obj,
jint code, jobject dataObj, jobject replyObj, jint flags)
{
...
//將java Parcel轉為c++ Parcel
Parcel* data = parcelForJavaObject(env, dataObj);
Parcel* reply = parcelForJavaObject(env, replyObj);
//gBinderProxyOffsets.mObject中保存的是new BpBinder(handle)對象
IBinder* target = (IBinder*) env->GetLongField(obj, gBinderProxyOffsets.mObject);
...
//此處便是BpBinder::transact()【見小節2.7】
status_t err = target->transact(code, *data, reply, flags);
...
//最後根據transact執行具體情況，拋出相應的Exception
signalExceptionForError(env, obj, err, true , data->dataSize());
return JNI_FALSE;
}
gBinderProxyOffsets.mObject中保存的是BpBinder對象, 這是開機時Zygote調用AndroidRuntime::startReg方法來完成jni方法的注冊.
其中register_android_os_Binder()過程就有一個初始並注冊BinderProxy的操作,完成gBinderProxyOffsets的賦值過程. 接下來就進入該方法.
[-> BpBinder.cpp]
status_t BpBinder::transact(
uint32_t code, const Parcel& data, Parcel* reply, uint32_t flags)
{
if (mAlive) {
// 【見小節2.8】
status_t status = IPCThreadState::self()->transact(
mHandle, code, data, reply, flags);
if (status == DEAD_OBJECT) mAlive = 0;
return status;
}
return DEAD_OBJECT;
}
IPCThreadState::self()采用單例模式，保證每個線程只有一個實例對象。
[-> IPCThreadState.cpp]
status_t IPCThreadState::transact(int32_t handle,
uint32_t code, const Parcel& data,
Parcel* reply, uint32_t flags)
{
status_t err = data.errorCheck(); //數據錯誤檢查
flags |= TF_ACCEPT_FDS;
....
if (err == NO_ERROR) {
// 傳輸數據 【見小節2.9】
err = writeTransactionData(BC_TRANSACTION, flags, handle, code, data, NULL);
}
if (err != NO_ERROR) {
if (reply) reply->setError(err);
return (mLastError = err);
}
// 默認情況下,都是采用非oneway的方式, 也就是需要等待服務端的返回結果
if ((flags & TF_ONE_WAY) == 0) {
if (reply) {
//reply對象不為空 【見小節2.10】
err = waitForResponse(reply);
}else {
Parcel fakeReply;
err = waitForResponse(&fakeReply);
}
} else {
err = waitForResponse(NULL, NULL);
}
return err;
}
transact主要過程:
mOut寫入數據，此時mIn還沒有數據；mIn, 則根據收到的不同響應嗎，執行相應的操作。此處調用waitForResponse根據是否有設置TF_ONE_WAY的標記:
[-> IPCThreadState.cpp]
status_t IPCThreadState::writeTransactionData(int32_t cmd, uint32_t binderFlags,
int32_t handle, uint32_t code, const Parcel& data, status_t* statusBuffer)
{
binder_transaction_data tr;
tr.target.ptr = 0;
tr.target.handle = handle; // handle指向AMS
tr.code = code; // START_SERVICE_TRANSACTION
tr.flags = binderFlags; // 0
tr.cookie = 0;
tr.sender_pid = 0;
tr.sender_euid = 0;
const status_t err = data.errorCheck();
if (err == NO_ERROR) {
// data為startService相關信息
tr.data_size = data.ipcDataSize(); // mDataSize
tr.data.ptr.buffer = data.ipcData(); // mData指針
tr.offsets_size = data.ipcObjectsCount()*sizeof(binder_size_t); //mObjectsSize
tr.data.ptr.offsets = data.ipcObjects(); //mObjects指針
}
...
mOut.writeInt32(cmd); //cmd = BC_TRANSACTION
mOut.write(&tr, sizeof(tr)); //寫入binder_transaction_data數據
return NO_ERROR;
}
將數據寫入mOut
status_t IPCThreadState::waitForResponse(Parcel *reply, status_t *acquireResult)
{
int32_t cmd;
int32_t err;
while (1) {
if ((err=talkWithDriver()) < NO_ERROR) break; // 【見小節2.11】
err = mIn.errorCheck();
if (err < NO_ERROR) break; //當存在error則退出循環
if (mIn.dataAvail() == 0) continue; //mIn有數據則往下執行
cmd = mIn.readInt32();
switch (cmd) {
case BR_TRANSACTION_COMPLETE: ... goto finish;
case BR_DEAD_REPLY: ... goto finish;
case BR_FAILED_REPLY: ... goto finish;
case BR_REPLY: ... goto finish;
default:
err = executeCommand(cmd); //【見小節2.10.1】
if (err != NO_ERROR) goto finish;
break;
}
}
finish:
if (err != NO_ERROR) {
if (reply) reply->setError(err); //將發送的錯誤代碼返回給最初的調用者
}
return err;
}

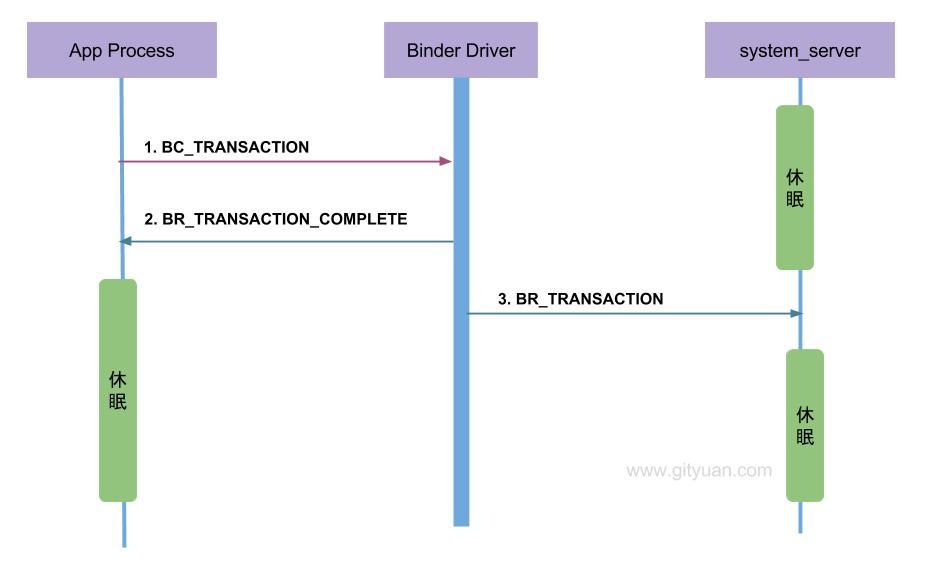

在這個過程中, 常見的幾個BR_命令:

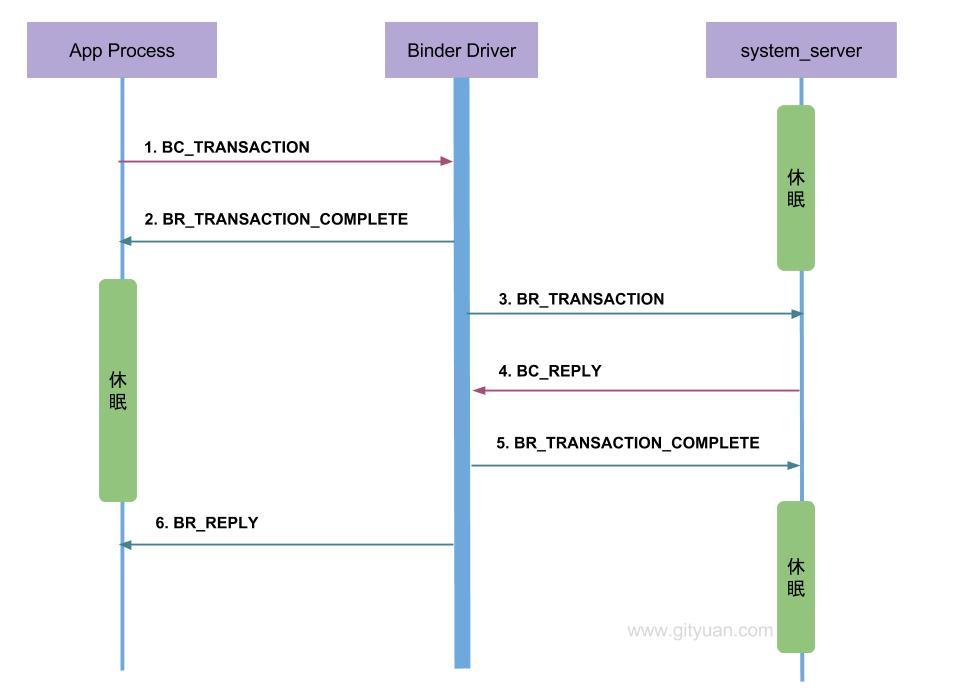

規律: BC_TRANSACTION + BC_REPLY = BR_TRANSACTION_COMPLETE + BR_DEAD_REPLY + BR_FAILED_REPLY
status_t IPCThreadState::executeCommand(int32_t cmd)
{
BBinder* obj;
RefBase::weakref_type* refs;
status_t result = NO_ERROR;
switch ((uint32_t)cmd) {
case BR_ERROR: ...
case BR_OK: ...
case BR_ACQUIRE: ...
case BR_RELEASE: ...
case BR_INCREFS: ...
case BR_TRANSACTION: ... //Binder驅動向Server端發送消息
case BR_DEAD_BINDER: ...
case BR_CLEAR_DEATH_NOTIFICATION_DONE: ...
case BR_NOOP: ...
case BR_SPAWN_LOOPER: ... //創建新binder線程
default: ...
}
}
處於剩余的BR_命令.
//mOut有數據，mIn還沒有數據。doReceive默認值為true
status_t IPCThreadState::talkWithDriver(bool doReceive)
{
binder_write_read bwr;
const bool needRead = mIn.dataPosition() >= mIn.dataSize();
const size_t outAvail = (!doReceive || needRead) ? mOut.dataSize() : 0;
bwr.write_size = outAvail;
bwr.write_buffer = (uintptr_t)mOut.data();
if (doReceive && needRead) {
//接收數據緩沖區信息的填充。當收到驅動的數據，則寫入mIn
bwr.read_size = mIn.dataCapacity();
bwr.read_buffer = (uintptr_t)mIn.data();
} else {
bwr.read_size = 0;
bwr.read_buffer = 0;
}
// 當同時沒有輸入和輸出數據則直接返回
if ((bwr.write_size == 0) && (bwr.read_size == 0)) return NO_ERROR;
bwr.write_consumed = 0;
bwr.read_consumed = 0;
status_t err;
do {
//ioctl不停的讀寫操作，經過syscall，進入Binder驅動。調用Binder_ioctl【小節3.1】
if (ioctl(mProcess->mDriverFD, BINDER_WRITE_READ, &bwr) >= 0)
err = NO_ERROR;
else
err = -errno;
...
} while (err == -EINTR);
if (err >= NO_ERROR) {
if (bwr.write_consumed > 0) {
if (bwr.write_consumed < mOut.dataSize())
mOut.remove(0, bwr.write_consumed);
else
mOut.setDataSize(0);
}
if (bwr.read_consumed > 0) {
mIn.setDataSize(bwr.read_consumed);
mIn.setDataPosition(0);
}
return NO_ERROR;
}
return err;
}
binder_write_read結構體用來與Binder設備交換數據的結構, 通過ioctl與mDriverFD通信，是真正與Binder驅動進行數據讀寫交互的過程。 ioctl()方法經過syscall最終調用到Binder_ioctl()方法.
[-> Binder.c]
由【小節2.11】傳遞過出來的參數 cmd=BINDER_WRITE_READ
static long binder_ioctl(struct file *filp, unsigned int cmd, unsigned long arg)
{
int ret;
struct binder_proc *proc = filp->private_data;
struct binder_thread *thread;
//當binder_stop_on_user_error>=2時，則該線程加入等待隊列並進入休眠狀態. 該值默認為0
ret = wait_event_interruptible(binder_user_error_wait, binder_stop_on_user_error < 2);
...
binder_lock(__func__);
//查找或創建binder_thread結構體
thread = binder_get_thread(proc);
...
switch (cmd) {
case BINDER_WRITE_READ:
//【見小節3.2】
ret = binder_ioctl_write_read(filp, cmd, arg, thread);
break;
...
}
ret = 0;
err:
if (thread)
thread->looper &= ~BINDER_LOOPER_STATE_NEED_RETURN;
binder_unlock(__func__);
wait_event_interruptible(binder_user_error_wait, binder_stop_on_user_error < 2);
return ret;
}
首先,根據傳遞過來的文件句柄指針獲取相應的binder_proc結構體, 再從中查找binder_thread,如果當前線程已經加入到proc的線程隊列則直接返回，
如果不存在則創建binder_thread，並將當前線程添加到當前的proc.
static int binder_ioctl_write_read(struct file *filp,
unsigned int cmd, unsigned long arg,
struct binder_thread *thread)
{
int ret = 0;
struct binder_proc *proc = filp->private_data;
unsigned int size = _IOC_SIZE(cmd);
void __user *ubuf = (void __user *)arg;
struct binder_write_read bwr;
if (size != sizeof(struct binder_write_read)) {
ret = -EINVAL;
goto out;
}
//將用戶空間bwr結構體拷貝到內核空間
if (copy_from_user(&bwr, ubuf, sizeof(bwr))) {
ret = -EFAULT;
goto out;
}
if (bwr.write_size > 0) {
//將數據放入目標進程【見小節3.3】
ret = binder_thread_write(proc, thread,
bwr.write_buffer,
bwr.write_size,
&bwr.write_consumed);
//當執行失敗，則直接將內核bwr結構體寫回用戶空間，並跳出該方法
if (ret < 0) {
bwr.read_consumed = 0;
if (copy_to_user_preempt_disabled(ubuf, &bwr, sizeof(bwr)))
ret = -EFAULT;
goto out;
}
}
if (bwr.read_size > 0) {
//讀取自己隊列的數據 【見小節3.5】
ret = binder_thread_read(proc, thread, bwr.read_buffer,
bwr.read_size,
&bwr.read_consumed,
filp->f_flags & O_NONBLOCK);
//當進程的todo隊列有數據,則喚醒在該隊列等待的進程
if (!list_empty(&proc->todo))
wake_up_interruptible(&proc->wait);
//當執行失敗，則直接將內核bwr結構體寫回用戶空間，並跳出該方法
if (ret < 0) {
if (copy_to_user_preempt_disabled(ubuf, &bwr, sizeof(bwr)))
ret = -EFAULT;
goto out;
}
}
if (copy_to_user(ubuf, &bwr, sizeof(bwr))) {
ret = -EFAULT;
goto out;
}
out:
return ret;
}
此時arg是一個binder_write_read結構體，mOut數據保存在write_buffer，所以write_size>0，但此時read_size=0。首先,將用戶空間bwr結構體拷貝到內核空間,然後執行binder_thread_write()操作.
static int binder_thread_write(struct binder_proc *proc,
struct binder_thread *thread,
binder_uintptr_t binder_buffer, size_t size,
binder_size_t *consumed)
{
uint32_t cmd;
void __user *buffer = (void __user *)(uintptr_t)binder_buffer;
void __user *ptr = buffer + *consumed;
void __user *end = buffer + size;
while (ptr < end && thread->return_error == BR_OK) {
//拷貝用戶空間的cmd命令，此時為BC_TRANSACTION
if (get_user(cmd, (uint32_t __user *)ptr)) -EFAULT;
ptr += sizeof(uint32_t);
switch (cmd) {
case BC_TRANSACTION:
case BC_REPLY: {
struct binder_transaction_data tr;
//拷貝用戶空間的binder_transaction_data
if (copy_from_user(&tr, ptr, sizeof(tr))) return -EFAULT;
ptr += sizeof(tr);
// 見小節3.4】
binder_transaction(proc, thread, &tr, cmd == BC_REPLY);
break;
}
...
}
*consumed = ptr - buffer;
}
return 0;
}
不斷從binder_buffer所指向的地址獲取cmd, 當只有BC_TRANSACTION或者BC_REPLY時, 則調用binder_transaction()來處理事務.
發送的是BC_TRANSACTION時，此時reply=0。
static void binder_transaction(struct binder_proc *proc,
struct binder_thread *thread,
struct binder_transaction_data *tr, int reply){
struct binder_transaction *t;
struct binder_work *tcomplete;
binder_size_t *offp, *off_end;
binder_size_t off_min;
struct binder_proc *target_proc;
struct binder_thread *target_thread = NULL;
struct binder_node *target_node = NULL;
struct list_head *target_list;
wait_queue_head_t *target_wait;
struct binder_transaction *in_reply_to = NULL;
if (reply) {
...
}else {
if (tr->target.handle) {
struct binder_ref *ref;
// 由handle 找到相應 binder_ref, 由binder_ref 找到相應 binder_node
ref = binder_get_ref(proc, tr->target.handle);
target_node = ref->node;
} else {
target_node = binder_context_mgr_node;
}
// 由binder_node 找到相應 binder_proc
target_proc = target_node->proc;
}
if (target_thread) {
e->to_thread = target_thread->pid;
target_list = &target_thread->todo;
target_wait = &target_thread->wait;
} else {
//首次執行target_thread為空
target_list = &target_proc->todo;
target_wait = &target_proc->wait;
}
t = kzalloc(sizeof(*t), GFP_KERNEL);
tcomplete = kzalloc(sizeof(*tcomplete), GFP_KERNEL);
//非oneway的通信方式，把當前thread保存到transaction的from字段
if (!reply && !(tr->flags & TF_ONE_WAY))
t->from = thread;
else
t->from = NULL;
t->sender_euid = task_euid(proc->tsk);
t->to_proc = target_proc; //此次通信目標進程為system_server
t->to_thread = target_thread;
t->code = tr->code; //此次通信code = START_SERVICE_TRANSACTION
t->flags = tr->flags; // 此次通信flags = 0
t->priority = task_nice(current);
//從目標進程中分配內存空間
t->buffer = binder_alloc_buf(target_proc, tr->data_size,
tr->offsets_size, !reply && (t->flags & TF_ONE_WAY));
t->buffer->allow_user_free = 0;
t->buffer->transaction = t;
t->buffer->target_node = target_node;
if (target_node)
binder_inc_node(target_node, 1, 0, NULL); //引用計數加1
offp = (binder_size_t *)(t->buffer->data + ALIGN(tr->data_size, sizeof(void *)));
//分別拷貝用戶空間的binder_transaction_data中ptr.buffer和ptr.offsets到內核
copy_from_user(t->buffer->data, (const void __user *)(uintptr_t)tr->data.ptr.buffer, tr->data_size);
copy_from_user(offp, (const void __user *)(uintptr_t)tr->data.ptr.offsets, tr->offsets_size);
off_end = (void *)offp + tr->offsets_size;
for (; offp < off_end; offp++) {
struct flat_binder_object *fp;
fp = (struct flat_binder_object *)(t->buffer->data + *offp);
off_min = *offp + sizeof(struct flat_binder_object);
switch (fp->type) {
...
case BINDER_TYPE_HANDLE:
case BINDER_TYPE_WEAK_HANDLE: {
//處理引用計數情況
struct binder_ref *ref = binder_get_ref(proc, fp->handle);
if (ref->node->proc == target_proc) {
if (fp->type == BINDER_TYPE_HANDLE)
fp->type = BINDER_TYPE_BINDER;
else
fp->type = BINDER_TYPE_WEAK_BINDER;
fp->binder = ref->node->ptr;
fp->cookie = ref->node->cookie;
binder_inc_node(ref->node, fp->type == BINDER_TYPE_BINDER, 0, NULL);
} else {
struct binder_ref *new_ref;
new_ref = binder_get_ref_for_node(target_proc, ref->node);
fp->handle = new_ref->desc;
binder_inc_ref(new_ref, fp->type == BINDER_TYPE_HANDLE, NULL);
}
} break;
...
default:
return_error = BR_FAILED_REPLY;
goto err_bad_object_type;
}
}
if (reply) {
binder_pop_transaction(target_thread, in_reply_to);
} else if (!(t->flags & TF_ONE_WAY)) {
//非reply 且 非oneway,則設置事務棧信息
t->need_reply = 1;
t->from_parent = thread->transaction_stack;
thread->transaction_stack = t;
} else {
//非reply 且 oneway,則加入異步todo隊列
if (target_node->has_async_transaction) {
target_list = &target_node->async_todo;
target_wait = NULL;
} else
target_node->has_async_transaction = 1;
}
//將新事務添加到目標隊列
t->work.type = BINDER_WORK_TRANSACTION;
list_add_tail(&t->work.entry, target_list);
//將BINDER_WORK_TRANSACTION_COMPLETE添加到當前線程的todo隊列
tcomplete->type = BINDER_WORK_TRANSACTION_COMPLETE;
list_add_tail(&tcomplete->entry, &thread->todo);
if (target_wait)
wake_up_interruptible(target_wait); //喚醒等待隊列
return;
}
主要功能:
1. 查詢目標進程的過程： handle -> binder_ref -> binder_node -> binder_proc
2. 將`BINDER_WORK_TRANSACTION`添加到目標隊列target_list, 首次發起事務則目標隊列為`target_proc->todo`, reply事務時則為`target_thread->todo`; oneway的非reply事務,則為`target_node->async_todo`.
3. 將`BINDER_WORK_TRANSACTION_COMPLETE`添加到當前線程的todo隊列
此時當前線程的todo隊列已經有事務, 接下來便會進入binder_thread_read（）來處理相關的事務.
#### 3.5 binder_thread_read
```java
binder_thread_read（）{
//當已使用字節數為0時，將BR_NOOP響應碼放入指針ptr
if (*consumed == 0) {
if (put_user(BR_NOOP, (uint32_t __user *)ptr))
return -EFAULT;
ptr += sizeof(uint32_t);
}
retry:
//todo隊列有數據,則為false
wait_for_proc_work = thread->transaction_stack == NULL &&
list_empty(&thread->todo);
if (wait_for_proc_work) {
if (non_block) {
...
} else
//當todo隊列沒有數據,則線程便在此處等待數據的到來
ret = wait_event_freezable_exclusive(proc->wait, binder_has_proc_work(proc, thread));
} else {
if (non_block) {
...
} else
//進入此分支, 當線程沒有todo隊列沒有數據, 則進入當前線程wait隊列等待
ret = wait_event_freezable(thread->wait, binder_has_thread_work(thread));
}
if (ret)
return ret; //對於非阻塞的調用，直接返回
while (1) {
uint32_t cmd;
struct binder_transaction_data tr;
struct binder_work *w;
struct binder_transaction *t = NULL;
//先考慮從線程todo隊列獲取事務數據
if (!list_empty(&thread->todo)) {
w = list_first_entry(&thread->todo, struct binder_work, entry);
// 線程todo隊列沒有數據, 則從進程todo對獲取事務數據
} else if (!list_empty(&proc->todo) && wait_for_proc_work) {
w = list_first_entry(&proc->todo, struct binder_work, entry);
} else {
//沒有數據,則返回retry
if (ptr - buffer == 4 &&
!(thread->looper & BINDER_LOOPER_STATE_NEED_RETURN))
goto retry;
break;
}
switch (w->type) {
case BINDER_WORK_TRANSACTION:
//獲取transaction數據
t = container_of(w, struct binder_transaction, work);
break;
case BINDER_WORK_TRANSACTION_COMPLETE:
cmd = BR_TRANSACTION_COMPLETE;
//將BR_TRANSACTION_COMPLETE寫入*ptr.
put_user(cmd, (uint32_t __user *)ptr)；
list_del(&w->entry);
kfree(w);
break;
case BINDER_WORK_NODE: ... break;
case BINDER_WORK_DEAD_BINDER:
case BINDER_WORK_DEAD_BINDER_AND_CLEAR:
case BINDER_WORK_CLEAR_DEATH_NOTIFICATION: ... break;
}
if (!t)
continue; //只有BINDER_WORK_TRANSACTION命令才能繼續往下執行
if (t->buffer->target_node) {
//獲取目標node
struct binder_node *target_node = t->buffer->target_node;
tr.target.ptr = target_node->ptr;
tr.cookie = target_node->cookie;
t->saved_priority = task_nice(current);
...
cmd = BR_TRANSACTION; //設置命令為BR_TRANSACTION
} else {
tr.target.ptr = NULL;
tr.cookie = NULL;
cmd = BR_REPLY; //設置命令為BR_REPLY
}
tr.code = t->code;
tr.flags = t->flags;
tr.sender_euid = t->sender_euid;
if (t->from) {
struct task_struct *sender = t->from->proc->tsk;
tr.sender_pid = task_tgid_nr_ns(sender,
current->nsproxy->pid_ns);
} else {
tr.sender_pid = 0;
}
tr.data_size = t->buffer->data_size;
tr.offsets_size = t->buffer->offsets_size;
tr.data.ptr.buffer = (void *)t->buffer->data +
proc->user_buffer_offset;
tr.data.ptr.offsets = tr.data.ptr.buffer +
ALIGN(t->buffer->data_size,
sizeof(void *));
//將cmd和數據寫回用戶空間
if (put_user(cmd, (uint32_t __user *)ptr))
return -EFAULT;
ptr += sizeof(uint32_t);
if (copy_to_user(ptr, &tr, sizeof(tr)))
return -EFAULT;
ptr += sizeof(tr);
list_del(&t->work.entry);
t->buffer->allow_user_free = 1;
if (cmd == BR_TRANSACTION && !(t->flags & TF_ONE_WAY)) {
t->to_parent = thread->transaction_stack;
t->to_thread = thread;
thread->transaction_stack = t;
} else {
t->buffer->transaction = NULL;
kfree(t); //通信完成,則運行釋放
}
break;
}
done:
*consumed = ptr - buffer;
//當滿足請求線程加已准備線程數等於0，已啟動線程數小於最大線程數(15)，
//且looper狀態為已注冊或已進入時創建新的線程。
if (proc->requested_threads + proc->ready_threads == 0 &&
proc->requested_threads_started < proc->max_threads &&
(thread->looper & (BINDER_LOOPER_STATE_REGISTERED |
BINDER_LOOPER_STATE_ENTERED))) {
proc->requested_threads++;
// 生成BR_SPAWN_LOOPER命令，用於創建新的線程
put_user(BR_SPAWN_LOOPER, (uint32_t __user *)buffer)；
}
return 0;
}
BINDER_WORK_TRANSACTION_COMPLETE寫入當前線程.mIn.對於startService過程, 顯然沒有指定oneway的方式,那麼發起者進程還會繼續停留在waitForResponse()方法,等待收到BR_REPLY消息. 由於在前面binder_transaction過程中,除了向自己所在線程寫入了BINDER_WORK_TRANSACTION_COMPLETE, 還向目標進程(此處為system_server)寫入了BINDER_WORK_TRANSACTION命令. 而此時system_server進程的binder線程一旦空閒便是停留在binder_thread_read()方法來處理進程/線程新的事務, 收到的是BINDER_WORK_TRANSACTION命令, 經過binder_thread_read()後生成命令BR_TRANSACTION.同樣的流程.
接下來,從system_server的binder線程一直的執行流: IPC.joinThreadPool –> IPC.getAndExecuteCommand() -> IPC.talkWithDriver() ,但talkWithDriver收到事務之後, 便進入IPC.executeCommand(), 接下來,從executeCommand說起.
status_t IPCThreadState::executeCommand(int32_t cmd)
{
BBinder* obj;
RefBase::weakref_type* refs;
status_t result = NO_ERROR;
switch ((uint32_t)cmd) {
...
case BR_TRANSACTION:
{
binder_transaction_data tr;
result = mIn.read(&tr, sizeof(tr)); //讀取mIn數據
if (result != NO_ERROR) break;
Parcel buffer;
buffer.ipcSetDataReference(
reinterpret_cast<const uint8_t*>(tr.data.ptr.buffer),
tr.data_size,
reinterpret_cast<const binder_size_t*>(tr.data.ptr.offsets),
tr.offsets_size/sizeof(binder_size_t), freeBuffer, this);
const pid_t origPid = mCallingPid;
const uid_t origUid = mCallingUid;
const int32_t origStrictModePolicy = mStrictModePolicy;
const int32_t origTransactionBinderFlags = mLastTransactionBinderFlags;
mCallingPid = tr.sender_pid;
mCallingUid = tr.sender_euid;
mLastTransactionBinderFlags = tr.flags;
int curPrio = getpriority(PRIO_PROCESS, mMyThreadId);
if (gDisableBackgroundScheduling) {
... //不進入此分支
} else {
if (curPrio >= ANDROID_PRIORITY_BACKGROUND) {
set_sched_policy(mMyThreadId, SP_BACKGROUND);
}
}
Parcel reply;
status_t error;
if (tr.target.ptr) {
//嘗試通過弱引用獲取強引用
if (reinterpret_cast<RefBase::weakref_type*>(
tr.target.ptr)->attemptIncStrong(this)) {
// tr.cookie裡存放的是BBinder子類JavaBBinder [見流程4.3]
error = reinterpret_cast<BBinder*>(tr.cookie)->transact(tr.code, buffer,
&reply, tr.flags);
reinterpret_cast<BBinder*>(tr.cookie)->decStrong(this);
} else {
error = UNKNOWN_TRANSACTION;
}
} else {
error = the_context_object->transact(tr.code, buffer, &reply, tr.flags);
}
if ((tr.flags & TF_ONE_WAY) == 0) {
if (error < NO_ERROR) reply.setError(error);
sendReply(reply, 0);
}
...
}
break;
...
}
if (result != NO_ERROR) {
mLastError = result;
}
return result;
}
[-> Binder.cpp ::BBinder ]
status_t BBinder::transact(
uint32_t code, const Parcel& data, Parcel* reply, uint32_t flags)
{
data.setDataPosition(0);
status_t err = NO_ERROR;
switch (code) {
case PING_TRANSACTION:
reply->writeInt32(pingBinder());
break;
default:
err = onTransact(code, data, reply, flags); //【見流程4.4】
break;
}
if (reply != NULL) {
reply->setDataPosition(0);
}
return err;
}
[-> android_util_Binder.cpp]
virtual status_t onTransact(
uint32_t code, const Parcel& data, Parcel* reply, uint32_t flags = 0)
{
JNIEnv* env = javavm_to_jnienv(mVM);
IPCThreadState* thread_state = IPCThreadState::self();
//調用Binder.execTransact [見流程4.5]
jboolean res = env->CallBooleanMethod(mObject, gBinderOffsets.mExecTransact,
code, reinterpret_cast<jlong>(&data), reinterpret_cast<jlong>(reply), flags);
jthrowable excep = env->ExceptionOccurred();
if (excep) {
res = JNI_FALSE;
//發生異常, 則清理JNI本地引用
env->DeleteLocalRef(excep);
}
...
return res != JNI_FALSE ? NO_ERROR : UNKNOWN_TRANSACTION;
}
還記得AndroidRuntime::startReg過程嗎, 其中有一個過程便是register_android_os_Binder(),該過程會把gBinderOffsets.mExecTransact便是Binder.java中的execTransact()方法.詳見見Binder系列7—framework層分析文章中的第二節初始化的過程.
另外,此處mObject是在服務注冊addService過程,會調用writeStrongBinder方法, 將Binder對象傳入了JavaBBinder構造函數的參數, 最終賦值給mObject. 在本次通信過程中Object為ActivityManagerNative對象.
此處斗轉星移, 從C++代碼回到了Java代碼. 進入AMN.execTransact, 由於AMN繼續於Binder對象, 接下來進入Binder.execTransact
[Binder.java]
private boolean execTransact(int code, long dataObj, long replyObj,
int flags) {
Parcel data = Parcel.obtain(dataObj);
Parcel reply = Parcel.obtain(replyObj);
boolean res;
try {
// 調用子類AMN.onTransact方法 [見流程4.6]
res = onTransact(code, data, reply, flags);
} catch (RemoteException e) {
if ((flags & FLAG_ONEWAY) != 0) {
...
} else {
//非oneway的方式,則會將異常寫回reply
reply.setDataPosition(0);
reply.writeException(e);
}
res = true;
} catch (RuntimeException e) {
if ((flags & FLAG_ONEWAY) != 0) {
...
} else {
reply.setDataPosition(0);
reply.writeException(e);
}
res = true;
} catch (OutOfMemoryError e) {
RuntimeException re = new RuntimeException("Out of memory", e);
reply.setDataPosition(0);
reply.writeException(re);
res = true;
}
reply.recycle();
data.recycle();
return res;
}
當發生RemoteException, RuntimeException, OutOfMemoryError, 對於非oneway的情況下都會把異常傳遞給調用者.
[-> ActivityManagerNative.java]
public boolean onTransact(int code, Parcel data, Parcel reply, int flags)
throws RemoteException {
switch (code) {
...
case START_SERVICE_TRANSACTION: {
data.enforceInterface(IActivityManager.descriptor);
IBinder b = data.readStrongBinder();
//生成ApplicationThreadNative的代理對象，即ApplicationThreadProxy對象
IApplicationThread app = ApplicationThreadNative.asInterface(b);
Intent service = Intent.CREATOR.createFromParcel(data);
String resolvedType = data.readString();
String callingPackage = data.readString();
int userId = data.readInt();
//調用ActivityManagerService的startService()方法【見流程4.7】
ComponentName cn = startService(app, service, resolvedType, callingPackage, userId);
reply.writeNoException();
ComponentName.writeToParcel(cn, reply);
return true;
}
}
public ComponentName startService(IApplicationThread caller, Intent service,
String resolvedType, String callingPackage, int userId)
throws TransactionTooLargeException {
synchronized(this) {
...
ComponentName res = mServices.startServiceLocked(caller, service,
resolvedType, callingPid, callingUid, callingPackage, userId);
Binder.restoreCallingIdentity(origId);
return res;
}
}
歷經千山萬水, 總算是進入了AMS.startService. 當system_server收到BR_TRANSACTION的過程後, 再經歷一個類似的過程,將事件告知app所在進程service啟動完成.過程基本一致,此處就不再展開.
本文詳細地介紹如何從AMP.startService是如何通過Binder一步步調用進入到system_server進程的AMS.startService. 整個過程涉及Java framework, native, kernel driver各個層面知識. 僅僅一個Binder IPC調用, 就花費了如此大篇幅來講解, 可見系統之龐大. 整個過程的調用流程:
從通信流程角度來看整個過程:
前面第二至第四段落,主要講解過程 BC_TRANSACTION –> BR_TRANSACTION_COMPLETE –> BR_TRANSACTION.
有興趣的同學可以再看看後面3個事務的處理:BC_REPLY –> BR_TRANSACTION_COMPLETE –> BR_REPLY,這兩個流程基本是一致的.
從通信協議的角度來看這個過程:
BC_TRANSACTION和BC_REPLY, 所有Binder Driver向Binder客戶端或者服務端發送的命令則都是以BR_開頭, 例如本文中的BR_TRANSACTION和BR_REPLY.BC_TRANSACTION或者BC_REPLY時, 才調用binder_transaction()來處理事務. 並且都會回應調用者一個BINDER_WORK_TRANSACTION_COMPLETE事務, 經過binder_thread_read()會轉變成BR_TRANSACTION_COMPLETE.上圖是非oneway通信過程的協議圖, 下圖則是對於oneway場景下的通信協議圖:
當收到BR_TRANSACTION_COMPLETE則程序返回,有人可能覺得好奇,為何oneway怎麼還要等待回應消息? 我舉個例子,你就明白了.
你(app進程)要給遠方的家人(system_server進程)郵寄一封信(transaction), 你需要通過郵寄員(Binder Driver)來完成.整個過程如下:
BC_TRANSACTION);BR_TRANSACTION_COMPLETE). 這樣你才放心知道郵遞員已確定接收信, 否則就這樣走了,信到底有沒有交到郵遞員手裡都不知道,這樣的通信實在太讓人不省心, 長時間收不到遠方家人的回信, 無法得知是在路的中途信件丟失呢,還是壓根就沒有交到郵遞員的手裡. 所以說oneway也得知道信是投遞狀態是否成功.BR_TRANSACTION);當你收到回執(BR_TRANSACTION_COMPLETE)時心裡也不期待家人回信, 那麼這便是一次oneway的通信過程.
如果你希望家人回信, 那便是非oneway的過程,在上述步驟2後並不是直接返回,而是繼續等待著收到家人的回信, 經歷前3個步驟之後繼續執行:
BC_REPLY;BR_TRANSACTION_COMPLETE)給你家人;BR_REPLY)這便是一次完成的非oneway通信過程.
oneway與非oneway: 都是需要等待Binder Driver的回應消息BR_TRANSACTION_COMPLETE. 主要區別在於oneway的通信收到BR_TRANSACTION_COMPLETE則返回,而不會再等待BR_REPLY消息的到來.
理解 Android 進程啟動之全過程
一. 概述 Android系統將進程做得很友好的封裝,對於上層app開發者來說進程幾乎是透明的. 了解Android的朋友,一定知道Android四大組件,但對於
一個簡單易用的 Android 導航欄TitleBar
一個簡單易用的導航欄TitleBar，可以輕松實現IOS導航欄的各種效果整個代碼全部集中在TitleBar.java中，所有控件都動態生成，動態布局。不需要引用任
Android 適配多種 ROM 的快捷方式
快捷方式 應該來說 很多人都做過，我們就來看一下基本的快捷方式 是怎麼實現的，會有什麼問題？ 首先 肯定要獲取權限： <!-- 添加快捷方式 -->
如何在 Android 應用中使用 FontAwesome 圖標
這篇教程中，我將向你演示如何在安卓項目中使用 FontAwesome 圖標集合。FontAwesome 可以節省許多時間，原因如下： 首先，你不需要擔心不同手機上
