Android 仿微信朋友圈點贊和評論彈出框功能

貢獻/下載源碼：https://github.com/mmlovesyy/PopupWindowDemo

本文簡單模仿微信朋友圈的點贊和評論彈出框，布局等細節請忽略，著重實現彈出框、發評論，及彈出位置的控制。

1. 微信彈出框

微信朋友圈的點贊和評論功能，有2個組成部分：

點擊左下角的“更多”按鈕，彈出對話框；

點擊評論，彈出輸入框，添加評論並在頁面中實時顯示；

微信朋友圈點贊和評論功能

2. 實際效果

本文將建一個 ListView，在其 Item 中簡單模仿微信的布局，然後著重實現彈出窗，並能發評論，忽略具體布局細節。具體效果如下：

3. 知識點清單

ListView

自定義 Adapter，重寫 getView()方法；

PopupWindow

彈出框使用PopupWindow實現，這是點贊和評論的載體，具體要涉及 PopupWindow 點擊非窗口位置和再次點擊消失以及顯示位置的問題（根據相應更多按鈕的位置確定 PopupWindow 的顯示位置，關於 PopupWindow 的顯示位置，可以參考我的另一篇文章 Android PopupWindow 的顯示位置）；

LayoutInflater

使用LayoutInflater 動態加載PopupWindow 的布局，關於 LayoutInflater 的更多知識，參見我的另一篇博客 Android LayoutInflater ；

Activity 和 Item 的雙向通信

通過自定義 OnCommentListener() 來實現 MainActivity（具體來說是屏幕底部評論框中的輸入的內容）和 ItemView（動態的獲得上述輸入的評論內容並展示在該ItemView 中） 的通信，更多知識參見我的另一篇博客《 燕過留聲：由 Activity 和 Fragment 的通信方法想到的》;

自定義控件

ListView 中的每個 Item 是一個自定義的 ItemView，記得要重寫構造方法，否則會拋出 Android.view.InflateException 異常；

如果想實現微信評論那樣用戶名和內容回復文字字體顏色不同，而且點擊評論用戶名觸發頁面跳轉等功能，請參見 《布局優化技巧筆記》 之 ClickableSpan 章節；

4. 美工素材

由於 .apk 本質上是個壓縮包，我們可以通過解壓得到該 .apk 文件的圖片素材和布局文件，更多獲得素材的方法參見我的另一篇博文 如何獲得Android素材圖片。通過這種方式得到顏色、更多按鈕的樣式等素材，僅供學習之用，請勿做侵犯版權之事。尊重知識版權既是大勢所趨，也是終將使每個開發者受益的事。

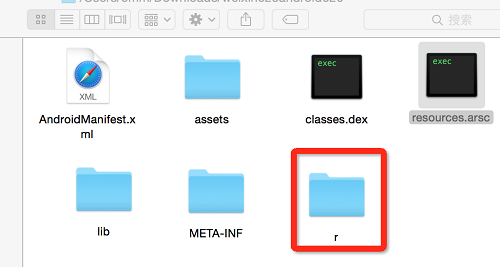

文件夾r裡存放圖片

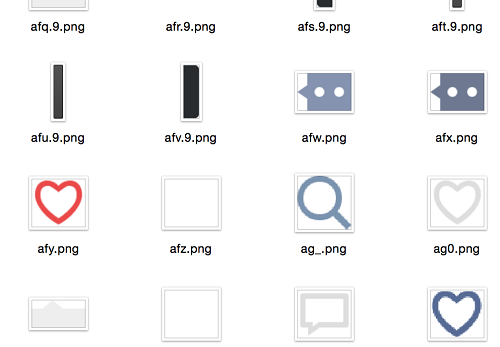

找到更多按鈕

5. 關鍵代碼

開發環境：Android Studio 1.4.1 for Mac + ADT 21 + JDK 1.8.0。

MainAcitivity.Java

package main.zhaizu.com.popupwindowdemo;
import android.content.Context;
import android.os.Bundle;
import android.support.v7.app.AppCompatActivity;
import android.text.TextUtils;
import android.view.LayoutInflater;
import android.view.View;
import android.view.ViewGroup;
import android.widget.BaseAdapter;
import android.widget.EditText;
import android.widget.ListView;
import java.util.ArrayList;
import java.util.HashMap;
import java.util.Iterator;
import java.util.Map;
import main.zhaizu.com.popupwindowdemo.model.Comment;
import main.zhaizu.com.popupwindowdemo.model.Item;
import main.zhaizu.com.popupwindowdemo.ui.ItemView;
public class MainActivity extends AppCompatActivity {
private ListView mListView;
private View mCommentView;
private MyAdapter myAdapter;
@Override
protected void onCreate(Bundle savedInstanceState) {
super.onCreate(savedInstanceState);
setContentView(R.layout.activity_main);
mListView = (ListView) findViewById(R.id.listview);
myAdapter = new MyAdapter(this, getData());
mListView.setAdapter(myAdapter);
mCommentView = findViewById(R.id.comment_view);
}
// build data
private ArrayList<Item> getData() {
int ITEM_COUNT = 20;
ArrayList<Item> data = new ArrayList<>();
data.add(new Item(R.drawable.xiaona, "薄荷栗", "我學過跆拳道，都給我跪下唱征服", "昨天"));
data.add(new Item(R.drawable.xueyan, "欣然", "走遍天涯海角，唯有我家風景最好，啊哈哈", "昨天"));
data.add(new Item(R.drawable.leishao, "陳磊_CL", "老子以後要當行長的，都來找我借錢吧，now", "昨天"));
data.add(new Item(R.drawable.yuhong, "永恆依然", "房子車子都到碗裡來", "昨天"));
data.add(new Item(R.drawable.lanshan, "藍珊", "你們這群傻×，我笑而不語", "昨天"));
return data;
}
// custom adapter
private class MyAdapter extends BaseAdapter implements ItemView.OnCommentListener {
private Context context;
private ArrayList<Item> mData;
private Map<Integer, ItemView> mCachedViews = new HashMap<>();
public MyAdapter(Context context, ArrayList<Item> mData) {
this.context = context;
this.mData = mData;
}
@Override
public int getCount() {
return mData.size();
}
@Override
public Object getItem(int position) {
return mData.get(position);
}
@Override
public long getItemId(int position) {
return position;
}
@Override
public View getView(int position, View convertView, ViewGroup parent) {
View view;
if (convertView != null) {
view = convertView;
} else {
LayoutInflater inflater = (LayoutInflater) context.getSystemService(Context.LAYOUT_INFLATER_SERVICE);
view = inflater.inflate(R.layout.listview_item, null, false);
}
if (view instanceof ItemView) {
Item data = (Item) getItem(position);
((ItemView) view).setData(data);
((ItemView) view).setPosition(position);
((ItemView) view).setCommentListener(this);
cacheView(position, (ItemView) view);
}
return view;
}
@Override
public void onComment(int position) {
showCommentView(position);
}
private void cacheView(int position, ItemView view) {
Iterator<Map.Entry<Integer, ItemView>> entries = mCachedViews.entrySet().iterator();
while (entries.hasNext()) {
Map.Entry<Integer, ItemView> entry = entries.next();
if (entry.getValue() == view && entry.getKey() != position) {
mCachedViews.remove(entry.getKey());
break;
}
}
mCachedViews.put(position, view);
}
private void showCommentView(final int position) {
mCommentView.setVisibility(View.VISIBLE);
mCommentView.findViewById(R.id.submit).setOnClickListener(new View.OnClickListener() {
@Override
public void onClick(View v) {
EditText et = (EditText) mCommentView.findViewById(R.id.edit);
String s = et.getText().toString();
if (!TextUtils.isEmpty(s)) {
// update model
Comment comment = new Comment(s);
mData.get(position).getComments().add(comment);
// update view maybe
ItemView itemView = mCachedViews.get(position);
if (itemView != null && position == itemView.getPosition()) {
itemView.addComment();
}
et.setText("");
mCommentView.setVisibility(View.GONE);
}
}
});
}
}
}

ItemView.java

package main.zhaizu.com.popupwindowdemo.ui;
import android.content.Context;
import android.graphics.drawable.BitmapDrawable;
import android.graphics.drawable.ColorDrawable;
import android.util.AttributeSet;
import android.view.LayoutInflater;
import android.view.View;
import android.view.ViewGroup;
import android.widget.ImageView;
import android.widget.LinearLayout;
import android.widget.PopupWindow;
import android.widget.TextView;
import main.zhaizu.com.popupwindowdemo.R;
import main.zhaizu.com.popupwindowdemo.model.Comment;
import main.zhaizu.com.popupwindowdemo.model.Item;
/**
* Created by cmm on 15/10/31.
*/
public class ItemView extends LinearLayout implements View.OnClickListener {
private int mPosition;
private Item mData;
private ImageView mPortraitView;
private TextView mUserNameView;
private TextView mContentView;
private TextView mCreatedAtView;
private LinearLayout mCommentLayout;
private View mMoreView;
private PopupWindow mMorePopupWindow;
private int mShowMorePopupWindowWidth;
private int mShowMorePopupWindowHeight;
private OnCommentListener mCommentListener;
public ItemView(Context context) {
super(context);
}
public ItemView(Context context, AttributeSet attrs) {
super(context, attrs);
}
public interface OnCommentListener {
void onComment(int position);
}
@Override
protected void onFinishInflate() {
super.onFinishInflate();
mPortraitView = (ImageView) findViewById(R.id.portrait);
mUserNameView = (TextView) findViewById(R.id.nick_name);
mContentView = (TextView) findViewById(R.id.content);
mCreatedAtView = (TextView) findViewById(R.id.created_at);
mCommentLayout = (LinearLayout) findViewById(R.id.comment_layout);
mMoreView = findViewById(R.id.more_btn);
}
public void setPosition(int mPosition) {
this.mPosition = mPosition;
}
public void setCommentListener(OnCommentListener l) {
this.mCommentListener = l;
}
public void setData(Item data) {
mData = data;
mPortraitView.setImageResource(data.getPortraitId());
mUserNameView.setText(data.getNickName());
mContentView.setText(data.getContent());
updateComment();
mMoreView.setOnClickListener(this);
}
/**
* 彈出點贊和評論框
*
* @param moreBtnView
*/
private void showMore(View moreBtnView) {
if (mMorePopupWindow == null) {
LayoutInflater li = (LayoutInflater) getContext().getSystemService(Context.LAYOUT_INFLATER_SERVICE);
View content = li.inflate(R.layout.layout_more, null, false);
mMorePopupWindow = new PopupWindow(content, ViewGroup.LayoutParams.WRAP_CONTENT,
ViewGroup.LayoutParams.WRAP_CONTENT);
mMorePopupWindow.setBackgroundDrawable(new BitmapDrawable());
mMorePopupWindow.setOutsideTouchable(true);
mMorePopupWindow.setTouchable(true);
content.measure(View.MeasureSpec.UNSPECIFIED, View.MeasureSpec.UNSPECIFIED);
mShowMorePopupWindowWidth = content.getMeasuredWidth();
mShowMorePopupWindowHeight = content.getMeasuredHeight();
View parent = mMorePopupWindow.getContentView();
TextView like = (TextView) parent.findViewById(R.id.like);
TextView comment = (TextView) parent.findViewById(R.id.comment);
// 點贊的監聽器
comment.setOnClickListener(this);
}
if (mMorePopupWindow.isShowing()) {
mMorePopupWindow.dismiss();
} else {
int heightMoreBtnView = moreBtnView.getHeight();
mMorePopupWindow.showAsDropDown(moreBtnView, -mShowMorePopupWindowWidth,
-(mShowMorePopupWindowHeight + heightMoreBtnView) / 2);
}
}
private void updateComment() {
if (mData.hasComment()) {
mCommentLayout.removeAllViews();
mCommentLayout.setVisibility(View.VISIBLE);
for (Comment c : mData.getComments()) {
TextView t = new TextView(getContext());
t.setLayoutParams(new LinearLayout.LayoutParams(new ViewGroup.LayoutParams(ViewGroup.LayoutParams.WRAP_CONTENT, ViewGroup.LayoutParams.WRAP_CONTENT)));
t.setBackgroundColor(getResources().getColor(R.color.colorCommentLayoutBg));
t.setTextSize(16);
t.setPadding(5, 2, 0, 3);
t.setLineSpacing(3, (float) 1.5);
t.setText(c.getComment());
mCommentLayout.addView(t);
}
} else {
mCommentLayout.setVisibility(View.GONE);
}
}
@Override
public void onClick(View v) {
int id = v.getId();
if (id == R.id.more_btn) {
showMore(v);
} else if (id == R.id.comment) {
if (mCommentListener != null) {
mCommentListener.onComment(mPosition);
if (mMorePopupWindow != null && mMorePopupWindow.isShowing()) {
mMorePopupWindow.dismiss();
}
}
}
}
public int getPosition() {
return mPosition;
}
public void addComment() {
updateComment();
}
}

以上所述是小編給大家介紹的Android 仿微信朋友圈點贊和評論彈出框功能，希望對大家有所幫助，如果大家有任何疑問請給我留言，小編會及時回復大家的。在此也非常感謝大家對本站網站的支持！
