Android自定義豎直方向SeekBar多色進度條

編輯：關於Android編程

寫在前面

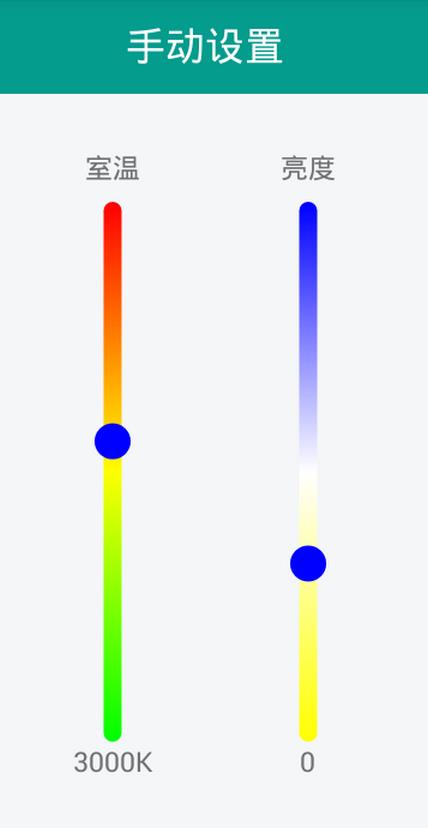

因為有這樣的一個場景，需要實現豎直方向的多色進度條，然後在網上也找了下，沒看到符合需要的，於是自定義了一個，效果如下：

具體實現

本來想定義水平的，然後旋轉一下，後來發現還不如直接定義豎直方向來的直接，就直接在豎直方向畫了下。

首先講一下思路，就是通過繼承View，然後通過onDraw()方法進行繪制。具體繪制的時候，需要處理一些小細節。

比如，我們需要畫一個圓形的滑動塊，那麼我們的背景色帶就不能把整個寬度占滿，要不然，小圓塊只能和色帶一樣寬了，效果不是很好看，所以在繪制的時候應該把背景畫的寬度小於View的實際寬度。

接下來我要貼代碼了：

 @Override
 protected void onDraw(Canvas canvas) {
  super.onDraw(canvas);
  int h = getMeasuredHeight();
  int w = getMeasuredWidth();
  mRadius = (float) w/2;
  sLeft = w * 0.25f; // 背景左邊緣坐標
  sRight = w * 0.75f;// 背景右邊緣坐標
  sTop = 0;
  sBottom = h;
  sWidth = sRight - sLeft; // 背景寬度
  sHeight = sBottom - sTop; // 背景高度
  x = (float) w/2;//圓心的x坐標
  y = (float) (1-0.01*progress)*sHeight;//圓心y坐標
  drawBackground(canvas);
  drawCircle(canvas);
  paint.reset();
 }

再看下畫背景：

private void drawBackground(Canvas canvas){
  RectF rectBlackBg = new RectF(sLeft, sTop, sRight, sBottom);
  linearGradient=new LinearGradient(sLeft,sTop,sWidth,sHeight,colorArray,null, Shader.TileMode.MIRROR);
  paint.setAntiAlias(true);
  paint.setStyle(Paint.Style.FILL);
  //設置渲染器
  paint.setShader(linearGradient);
  canvas.drawRoundRect(rectBlackBg, sWidth/2, sWidth/2, paint);
}

這裡使用LinearGradient實現多種顏色漸變，默認初始化定義如下:

 private int endColor=Color.WHITE;
 private int thumbColor=Color.BLACK;
 private int thumbBorderColor=Color.WHITE;
 private int colorArray[]={startColor, middleColor, endColor};

然後看下畫圓的操作：

 private void drawCircle(Canvas canvas){
  Paint thumbPaint = new Paint();
  y = y < mRadius ? mRadius : y;//判斷thumb邊界
  y = y > sHeight-mRadius ? sHeight-mRadius : y;
  thumbPaint.setAntiAlias(true);
  thumbPaint.setStyle(Paint.Style.FILL);
  thumbPaint.setColor(thumbColor);
  canvas.drawCircle(x, y, mRadius, thumbPaint);
  thumbPaint.setStyle(Paint.Style.STROKE);
  thumbPaint.setColor(thumbBorderColor);
  thumbPaint.setStrokeWidth(2);
  canvas.drawCircle(x, y, mRadius, thumbPaint);
 }

這裡通過畫布畫了一個圓形，內部填充和外邊沿。
上面的過程已經可以使效果展示出來了，但是無法操作，我們還需要給它加上事件才行：

 @Override
 public boolean onTouchEvent(MotionEvent event) {
  this.y = event.getY();
  progress= (sHeight-y)/sHeight*100;
  switch(event.getAction()) {
   case MotionEvent.ACTION_DOWN:
    break;
   case MotionEvent.ACTION_UP:
    if (onStateChangeListener!=null){
     onStateChangeListener.onStopTrackingTouch(this, progress);
    }
    break;
   case MotionEvent.ACTION_MOVE:
    if (onStateChangeListener!=null){
     onStateChangeListener.OnStateChangeListener(this, progress);
    }
    setProgress(progress);
    this.invalidate();
    break;
  }

  return true;
 }
 public interface OnStateChangeListener{
  void OnStateChangeListener(View view, float progress);
  void onStopTrackingTouch(View view, float progress);
 }

 public void setOnStateChangeListener(OnStateChangeListener onStateChangeListener){
  this.onStateChangeListener=onStateChangeListener;
 }

這裡寫了個回調接口，然後我們在Activity中就可以接收到相應的滑動進度，進而進行操作，當然，這裡我們還得再加一個方法，以便改變seekbar的狀態：

 public void setProgress(float progress) {
  this.progress = progress;
  invalidate();
 }

到這裡，功能基本就OK了，然後我們可以在Activity中去使用它了,下面是布局中的引用：

<?xml version="1.0" encoding="utf-8"?>
<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
    android:orientation="vertical"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    android:background="@color/bgColor"
 >
 <include layout="@layout/bar_simple_title" />

 <LinearLayout
  android:layout_width="match_parent"
  android:layout_height="match_parent"
  android:orientation="horizontal"
  android:gravity="center"
  >

  <RelativeLayout
   android:layout_marginTop="20dp"
   android:layout_width="wrap_content"
   android:layout_height="match_parent"
   android:layout_marginRight="35dp"
   >
   <TextView
    android:id="@+id/tv_inner_temper"
    android:layout_width="wrap_content"
    android:layout_height="wrap_content"
    android:text="@string/inner_temperature"
    android:layout_centerHorizontal="true"
    />

   <com.tfxiaozi.widget.VerticalColorSeekBar
    android:id="@+id/vpb_inner_temper"
    android:layout_width="20dp"
    android:layout_height="300dp"
    android:layout_centerHorizontal="true"
    android:layout_marginTop="30dp"/>

   <TextView
    android:id="@+id/tv_current_temper"
    android:layout_below="@id/vpb_inner_temper"
    android:layout_width="wrap_content"
    android:layout_height="wrap_content"
    android:text="@string/current_temperature"
    />
  </RelativeLayout>
  <RelativeLayout
   android:layout_marginLeft="35dp"
   android:layout_marginTop="20dp"
   android:layout_width="wrap_content"
   android:layout_height="match_parent"
   >
   <TextView
    android:id="@+id/tv_brightness"
    android:layout_width="wrap_content"
    android:layout_height="wrap_content"
    android:text="@string/brightness"
    android:layout_centerHorizontal="true"
    />

   <com.tfxiaozi.widget.VerticalColorSeekBar
    android:id="@+id/vpb_brightness"
    android:layout_width="20dp"
    android:layout_height="300dp"
    android:layout_centerHorizontal="true"
    android:layout_marginTop="30dp"/>

   <TextView
    android:id="@+id/tv_current_brightness"
    android:layout_below="@id/vpb_brightness"
    android:layout_width="wrap_content"
    android:layout_height="wrap_content"
    android:layout_centerHorizontal="true"
    android:text="0"
    />
  </RelativeLayout>
 </LinearLayout>
</LinearLayout>

怎麼使用就很簡單了：

package com.tfxiaozi.activity.setting;
import android.graphics.Color;
import android.os.Bundle;
import android.view.View;
import android.widget.ImageView;
import android.widget.TextView;

import com.tfxiaozi.R;
import com.tfxiaozi.activity.BaseActivity;
import com.tfxiaozi.utils.ToastUtils;
import com.tfxiaozi.widget.VerticalColorSeekBar;

/**
 * Created by dongqiang on 2016/10/16.
 */
public class ManualSettingActivity extends BaseActivity implements View.OnClickListener, VerticalColorSeekBar.OnStateChangeListener {

 private TextView tvCurrentTemper, tvCurrentBrightness, tvMainTitle;
 private ImageView ivBack;
 private VerticalColorSeekBar vpbInnerTemper;
 private VerticalColorSeekBar vpbBrightness;

 @Override
 protected void onCreate(Bundle savedInstanceState) {
  super.onCreate(savedInstanceState);
  setContentView(R.layout.activity_manual_setting);
  initViews();
  initEvents();
  initData();
 }

 private void initViews() {
  tvMainTitle = (TextView) findViewById(R.id.title_main_text);
  tvMainTitle.setText(getString(R.string.manual_setting));
  tvMainTitle.setVisibility(View.VISIBLE);
  ivBack = (ImageView) findViewById(R.id.title_back);
  ivBack.setVisibility(View.VISIBLE);

  tvCurrentTemper = (TextView) findViewById(R.id.tv_current_temper);
  tvCurrentBrightness = (TextView) findViewById(R.id.tv_current_brightness);
  vpbInnerTemper = (VerticalColorSeekBar)findViewById(R.id.vpb_inner_temper);
  vpbBrightness = (VerticalColorSeekBar) findViewById(R.id.vpb_brightness);
  vpbInnerTemper.setColor(Color.RED, Color.YELLOW, Color.GREEN, Color.BLUE, Color.TRANSPARENT);
  vpbBrightness.setColor(Color.BLUE, Color.WHITE, Color.YELLOW, Color.BLUE, Color.TRANSPARENT);
 }

 private void initEvents() {
  ivBack.setOnClickListener(this);
  vpbInnerTemper.setOnStateChangeListener(this);
  vpbBrightness.setOnStateChangeListener(this);
 }

 private void initData() {
  vpbInnerTemper.setProgress(50);
  vpbBrightness.setProgress(70);
 }

 @Override
 public void onClick(View v) {
  switch (v.getId()) {
   case R.id.title_back:
    finish();
    break;
  }
 }

 @Override
 public void OnStateChangeListener(View view, float progress) {

 }

 @Override
 public void onStopTrackingTouch(View view, float progress) {
  int viewId = view.getId();
  switch (viewId) {
   case R.id.vpb_inner_temper:
    if (progress < 0) {
     progress = 0;
    }
    if(progress > 100) {
     progress = 100;
    }
    ToastUtils.showShort(this, "progress= " + progress);
    break;

   case R.id.vpb_brightness:
    if (progress < 0) {
     progress = 0;
    }
    if(progress > 100) {
     progress = 100;
    }
    ToastUtils.showShort(this, "progress1= " + progress);
    break;
  }

 }
}

到這裡就結束了，最後還是附上自定義View的整個代碼吧：

package com.tfxiaozi.widget;

import android.content.Context;
import android.graphics.Canvas;
import android.graphics.Color;
import android.graphics.LinearGradient;
import android.graphics.Paint;
import android.graphics.RectF;
import android.graphics.Shader;
import android.util.AttributeSet;
import android.util.Log;
import android.view.MotionEvent;
import android.view.View;

/**
 * Created by dongqiang on 2016/10/21.
 */
public class VerticalColorSeekBar extends View{

 private static final String TAG = VerticalColorSeekBar.class.getSimpleName();
 private int startColor= Color.BLACK;
 private int middleColor = Color.GRAY;
 private int endColor=Color.WHITE;
 private int thumbColor=Color.BLACK;
 private int thumbBorderColor=Color.WHITE;
 private int colorArray[]={startColor, middleColor, endColor};
 private float x,y;
 private float mRadius;
 private float progress;
 private float maxCount = 100f;
 private float sLeft, sTop, sRight, sBottom;
 private float sWidth,sHeight;
 private LinearGradient linearGradient;
 private Paint paint = new Paint();
 protected OnStateChangeListener onStateChangeListener;

 public VerticalColorSeekBar(Context context) {
  this(context, null);
 }

 public VerticalColorSeekBar(Context context, AttributeSet attrs) {
  super(context, attrs);
 }

 @Override
 protected synchronized void onMeasure(int widthMeasureSpec, int heightMeasureSpec) {
  super.onMeasure(widthMeasureSpec, heightMeasureSpec);
  setMeasuredDimension(getMeasuredWidth(), getMeasuredHeight());
 }

 public void setColor(int startColor,int middleColor, int endColor,int thumbColor,int thumbBorderColor){
  this.startColor= startColor;
  this.middleColor = middleColor;
  this.endColor= endColor;
  this.thumbColor= thumbColor;
  this.thumbBorderColor= thumbBorderColor;
  colorArray[0] = startColor;
  colorArray[1] = middleColor;
  colorArray[2] = endColor;
 }


 @Override
 protected void onDraw(Canvas canvas) {
  super.onDraw(canvas);
  int h = getMeasuredHeight();
  int w = getMeasuredWidth();
  mRadius = (float) w/2;
  sLeft = w * 0.25f; // 背景左邊緣坐標
  sRight = w * 0.75f;// 背景右邊緣坐標
  sTop = 0;
  sBottom = h;
  sWidth = sRight - sLeft; // 背景寬度
  sHeight = sBottom - sTop; // 背景高度
  x = (float) w/2;//圓心的x坐標
  y = (float) (1-0.01*progress)*sHeight;//圓心y坐標
  drawBackground(canvas);
  drawCircle(canvas);
  paint.reset();
 }

 private void drawBackground(Canvas canvas){
  RectF rectBlackBg = new RectF(sLeft, sTop, sRight, sBottom);
  linearGradient=new LinearGradient(sLeft,sTop,sWidth,sHeight,colorArray,null, Shader.TileMode.MIRROR);
  paint.setAntiAlias(true);
  paint.setStyle(Paint.Style.FILL);
  //設置渲染器
  paint.setShader(linearGradient);
  canvas.drawRoundRect(rectBlackBg, sWidth/2, sWidth/2, paint);
 }

 private void drawCircle(Canvas canvas){
  Paint thumbPaint = new Paint();
  y = y < mRadius ? mRadius : y;//判斷thumb邊界
  y = y > sHeight-mRadius ? sHeight-mRadius : y;
  thumbPaint.setAntiAlias(true);
  thumbPaint.setStyle(Paint.Style.FILL);
  thumbPaint.setColor(thumbColor);
  canvas.drawCircle(x, y, mRadius, thumbPaint);
  thumbPaint.setStyle(Paint.Style.STROKE);
  thumbPaint.setColor(thumbBorderColor);
  thumbPaint.setStrokeWidth(2);
  canvas.drawCircle(x, y, mRadius, thumbPaint);
 }

 @Override
 public boolean onTouchEvent(MotionEvent event) {
  this.y = event.getY();
  progress= (sHeight-y)/sHeight*100;
  switch(event.getAction()) {
   case MotionEvent.ACTION_DOWN:
    break;
   case MotionEvent.ACTION_UP:
    if (onStateChangeListener!=null){
     onStateChangeListener.onStopTrackingTouch(this, progress);
    }
    break;
   case MotionEvent.ACTION_MOVE:
    if (onStateChangeListener!=null){
     onStateChangeListener.OnStateChangeListener(this, progress);
    }
    setProgress(progress);
    this.invalidate();
    break;
  }

  return true;
 }


 public interface OnStateChangeListener{
  void OnStateChangeListener(View view, float progress);
  void onStopTrackingTouch(View view, float progress);
 }

 public void setOnStateChangeListener(OnStateChangeListener onStateChangeListener){
  this.onStateChangeListener=onStateChangeListener;
 }

 public void setProgress(float progress) {
  this.progress = progress;
  invalidate();
 }
}

結束

到這裡就真的結束啦，就當記錄一下吧，然後也希望幫到有需要的人。有更好的實現也可以告訴我哈~

以上就是本文的全部內容，希望對大家的學習有所幫助，也希望大家多多支持本站。

  1. 上一頁:
  2. 下一頁:
關於Android編程
Android編程入門Android技術基礎Android資訊關於Android編程Android開發Android開發環境Android開發實例
相關文章
熱門文章
android 支持發送空短信 Android-studio+Genymotion模擬器的聯合使用 Android中設置RadioButton詳解 Android Rsa數據加解密的介紹與使用示例 android快捷方式shortcut 管理 Android6.0 顯示系統（四） 圖像顯示相關
淺談Android系統的基本體系結構與內存管理優化

Android運行環境一覽Android基於linux內核，面向移動終端
Android實現動態向Gallery中添加圖片及倒影與3D效果示例

本文實例講述了Android實現動態向Gallery中添加圖片及倒影與3
android的消息處理機制——Looper，Handler，Message

這篇文章有一半是copy別人的，站在巨人的肩膀上，我們才能看得更高更遠.
Fragment重疊問題引發的思考

Fragment重疊問題相信很多開發者都遇到個這個問題，也解決個這個問題
閱讀排行版
Copyright © Android教程網 All Rights Reserved
