Android 消息處理機制2(從源碼分析)

下面介紹 “豬腳光環的” : Handler 、Message 、MessageQueue Looper。並以Java 程序模擬安卓的消息處理機制

Handler 在前面已經介紹過了，從創建Handler 實例順籐摸瓜…

Handler 原理

Handler 封裝了消息的發送 （— > 發給誰） 【默認指向自己】 Handler 的依賴對象 Looper 意為：輪詢 . 其內部包含了一個消息隊列也就是 MessageQueue ,MessageQueue 封裝了消息( Message)的載體 所有Handler 發送的信息都走向這個消息隊列

兩大用途

There are two main uses for a Handler: (1) to schedule messages and runnables to be executed as some point in the future; and (2) to enqueue an action to be performed on a different thread than your own.

Handler 的源碼分析

...
public Handler() {
        if (FIND_POTENTIAL_LEAKS) {
            final Class klass = getClass();
            if ((klass.isAnonymousClass() || klass.isMemberClass() || klass.isLocalClass()) &&
                    (klass.getModifiers() & Modifier.STATIC) == 0) {
                Log.w(TAG, "The following Handler class should be static or leaks might occur: " +
                    klass.getCanonicalName());
            }
        }

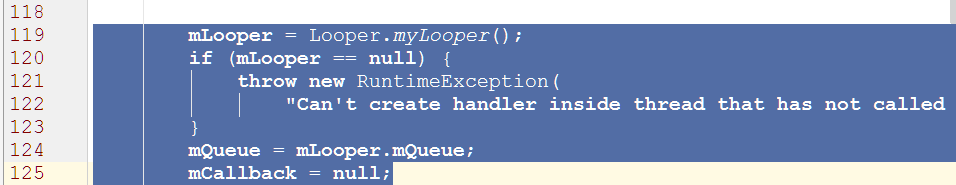

        mLooper = Looper.myLooper(); //進行關聯
        if (mLooper == null) {
            throw new RuntimeException(
                "Can't create handler inside thread that has not called Looper.prepare()");
        }
        mQueue = mLooper.mQueue;
        mCallback = null;
    }

    ...

由源碼得出：

Post：Post允許把一個Runnable對象入隊到消息隊列中。它的方法有：post(Runnable),postAtTime(Runnable,long),postDelayed(Runnable,long).
sendMessage：sendMessage允許把一個包含消息數據的Message對象壓入到消息隊列中。它的方法有：sendEmptyMessage(int), sendMessage(Message).sendMessageAtTime(Message,long).sendMessageDelayed(Message,long)。
　　從上面的各種方法可以看出，不管是post還是sendMessage都具有多種方法，它們可以設定Runnable對象和Message對象被入隊到消息隊列中，是立即執行還是延遲執行。

Looper 原理

本質是一個死循環 不斷地從 MessageQueue 中取出數據，有消息就取出，沒消息就阻塞。

Looper中重要的方法：

static void loop()
Run the message queue in this thread.

為什麼Handler 內部要與 Looper 進行關聯？

不關聯Handler 如何向MessageQueue 發送Message呢

總的來說： Handler 負責發送消息，Looper 負責接收消息並把消息回傳給 Handler , 而 MessageQueue 是就是存儲 Message 的容器

Framework 源碼簡析

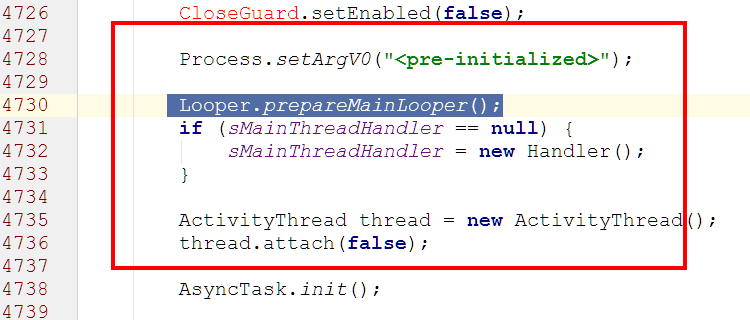

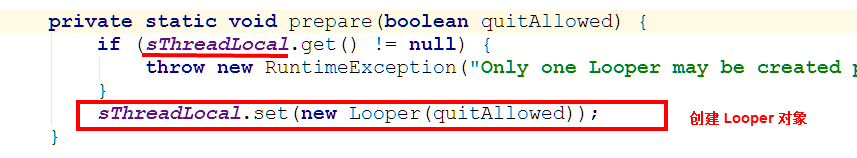

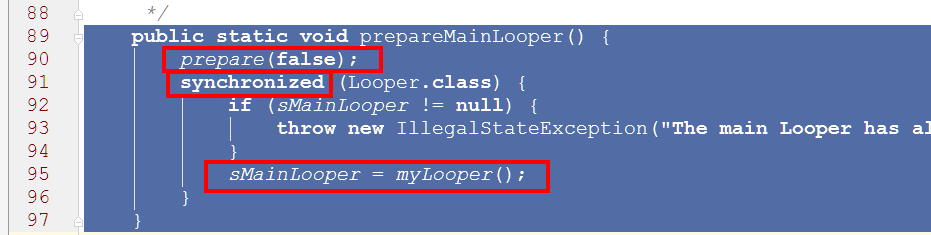

UI 線程 ActivityThread 創建 Looper Message







new LoZ喎?/kf/ware/vc/" target="_blank" class="keylink">vcGVyKCk7ILrz1/bBy8TH0Kmy2df3xNijvzwvcD4NCjxwPjxpbWcgYWx0PQ=="這裡寫圖片描述" src="/uploadfile/Collfiles/20160912/201609120928371073.png" title="\" />

如何取出 當前線程關聯的 Looper 對象？

public static Looper myLooper() {
        return sThreadLocal.get();
}

Handler 發送消息到 MessageQueue （消息入列）

Handler取出 當前線程關聯的 Looper 對象 是為了Looper 中MessageQueue 對象進行發送消息Message

Tips:對於Message對象，一般並不推薦直接使用它的構造方法得到，而是建議通過使用Message.obtain()這個靜態的方法或者Handler.obtainMessage()獲取。Message.obtain()會從消息池中獲取一個Message對象，如果消息池中是空的，才會使用構造方法實例化一個新Message，這樣有利於消息資源的利用。並不需要擔心消息池中的消息過多，它是有上限的，上限為10個。Handler.obtainMessage()具有多個重載方法，如果查看源碼，會發現其實Handler.obtainMessage()在內部也是調用的Message.obtain()。　　

Java 程序實現

下面代碼由 Framework 源碼拷貝出來進行分析，每一位安卓工程師都應該擁有一份 Framework 源碼，以便了解android.

ActivityThread (程序入口)

public class ActivityThread {

    public static void main(String[] args) {
        //初始化主線程的 Looper 對象
        Looper.prepareMainLooper();
        final Handler handler = new Handler() {
            @Override
            public void handleMessage(Message msg) {
                super.handleMessage(msg);
                System.out.println("接收到 what = " + msg.what);
                System.out.println("Thread " + Thread.currentThread().getName());
            }
        };
        handler.sendEmptyMessage(1);
        handler.sendEmptyMessage(2);
        new Thread(new Runnable() {
            @Override
            public void run() {
                handler.sendEmptyMessage(1001);
                try {
                    Thread.sleep(6000);
                } catch (InterruptedException e) {
                    e.printStackTrace();
                }
                //子線程 通過Handler 發送消息到主線程的消息隊列, 主線程處理該消息
                handler.sendEmptyMessage(1001);
            }
        }).start();

        new Thread(new Runnable() {
            @Override
            public void run() {
                try {
                    Thread.sleep(3000);
                } catch (InterruptedException e) {
                    e.printStackTrace();
                }

                handler.sendEmptyMessage(1000);
                handler.sendEmptyMessage(1000);
                handler.sendEmptyMessage(1000);
                handler.sendEmptyMessage(1000);
                handler.sendEmptyMessage(1000);

                //初始化 Looper
                Looper.prepare();
                final Handler handler = new Handler() {
                    @Override
                    public void handleMessage(Message msg) {
                        super.handleMessage(msg);
                        //子線程
                        System.out.println("接收到 what = " + msg.what);
                        System.out.println("Thread " + Thread.currentThread().getName());
                    }
                };

                handler.sendEmptyMessage(999);
                handler.sendEmptyMessage(9999);
                //輪詢
                Looper.loop();
            }
        }).start();
        //輪詢
        Looper.loop();
    }
}

Handler 代碼

package android.os;

/**
 * Created by system on 16/9/6.
 *
* 處理和分發消息 * */ public class Handler { final MessageQueue mQueue; final Looper mLooper; public Handler() { mLooper = Looper.myLooper(); if (mLooper == null) { throw new RuntimeException( "Can't create handler inside thread that has not called Looper.prepare()"); } mQueue = mLooper.mQueue; } public void handleMessage(Message msg) { } /** * Handle system messages here. */ public void dispatchMessage(Message msg) { if (msg != null) { handleMessage(msg); } } public final boolean sendEmptyMessage(int what) { Message msg = new Message(); msg.what = what; MessageQueue queue = mQueue; if (queue == null) { RuntimeException e = new RuntimeException( this + " sendMessageAtTime() called with no mQueue"); System.out.println(e.getMessage()); return false; } msg.target = this; return queue.enqueueMessage(msg); } }

Looper

package android.os;

/**
 * Created by system on 16/9/6.
 *
 *
 * 每開啟一條線程都應為之創建一個與該線程綁定 Looper 對象 ,以及 MessageQueue 隊列
 */
public class Looper {

    static final ThreadLocal sThreadLocal = new ThreadLocal();
    private static Looper sMainLooper;  // guarded by Looper.class

    final MessageQueue mQueue;
    final Thread mThread;

    private Looper() {
        mQueue = new MessageQueue();
        mThread = Thread.currentThread();
    }

    public static void prepare() {
        if (sThreadLocal.get() != null) {
            throw new RuntimeException("Only one Looper may be created per thread");
        }
        sThreadLocal.set(new Looper());
    }

    public static void prepareMainLooper() {
        prepare();
        synchronized (Looper.class) {
            if (sMainLooper != null) {
                throw new IllegalStateException("The main Looper has already been prepared.");
            }
            sMainLooper = myLooper();
        }
    }

    public static Looper myLooper() {
        return sThreadLocal.get();
    }

    public static void loop() {
        final Looper me = myLooper();
        if (me == null) {
            throw new RuntimeException("No Looper; Looper.prepare() wasn't called on this thread.");
        }
        final MessageQueue queue = me.mQueue;

        // Make sure the identity of this thread is that of the local process,
        // and keep track of what that identity token actually is.

        for (;;) {
            Message msg = queue.next(); // might block
            if (msg == null) {
                // No message indicates that the message queue is quitting.
                return;
            }

            //分發消息
            msg.target.dispatchMessage(msg);


        }
    }
}

Message

package android.os;

/**
 * Created by system on 16/9/6.
 *  消息
 *  由MessageQueue統一列隊，終由Handler處理。
 */
public class Message {

    public int what;

    /*package*/ Handler target;

    /*package*/ Runnable callback;

    // sometimes we store linked lists of these things
    /*package*/ Message next;


}

MessageQueue

package android.os;

/**
 * Created by system on 16/9/6.
 *
 * 消息隊列，用來存放Handler發送過來的消息(Message)，並按照FIFO規則執行
 * note:(將Message以鏈表的方式串聯起來的，等待Looper的輪詢)
 */
public class MessageQueue {
    Message mMessages;// 當前消息
    private static final Object lock = new Object();

    /**
     * 出列 FO (即取出隊頭的消息)
     * @return Message
     */
    Message next() {
        //沒有消息時 阻塞
        for (; ; ) {
            synchronized (this) {
                Message prevMsg = null;
                Message msg = mMessages;
                if (msg != null && msg.target == null) {
                    // Stalled by a barrier.  Find the next asynchronous message in the queue.
                    do {
                        prevMsg = msg;
                        msg = msg.next;
                    } while (msg != null);
                }
                if (msg != null) {

                    if (prevMsg != null) {
                        prevMsg.next = msg.next;
                    } else {
                        mMessages = msg.next; //成為隊頭
                    }
                    msg.next = null; //remove
                    return msg;
                }

            }
        }
    }

    /**
     * 消息入列  FIFO
     * @param msg
     * @return
     */
    boolean enqueueMessage(Message msg) {
        if (msg.target == null) {
            throw new IllegalArgumentException("Message must have a target.");
        }
        synchronized (this) {

            Message p = mMessages;

            if (p == null) {
                // New head, wake up the event queue if blocked.
                msg.next = p;
                mMessages = msg;

            } else {
                Message prev;
                for (; ; ) {
                    prev = p;
                    p = p.next;
                    if (p == null) {
                        break;
                    }

                }
                msg.next = p; // invariant: p == prev.next
                prev.next = msg; //成為鏈尾
            }

        }
        return true;
    }
}

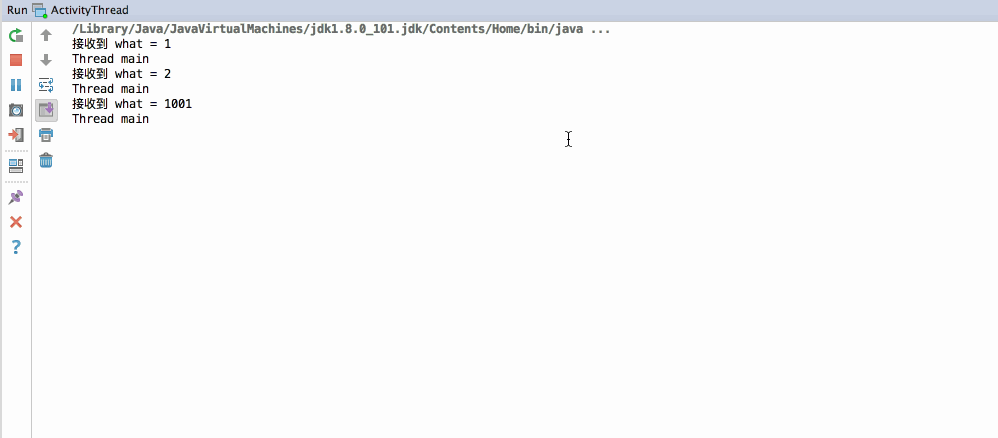

運行效果圖：
