ActivityManagerService啟動過程分析

之前講Android的View的繪制原理和流程的時候，講到過在Android調用setContentView之後，Android調用了一個prepreTravle的方法,這裡面就提到了ActivityManagerService。

ActivityManagerService提供的主要功能：
（1）統一調度各應用程序的Activity
（2）內存管理
（3）進程管理

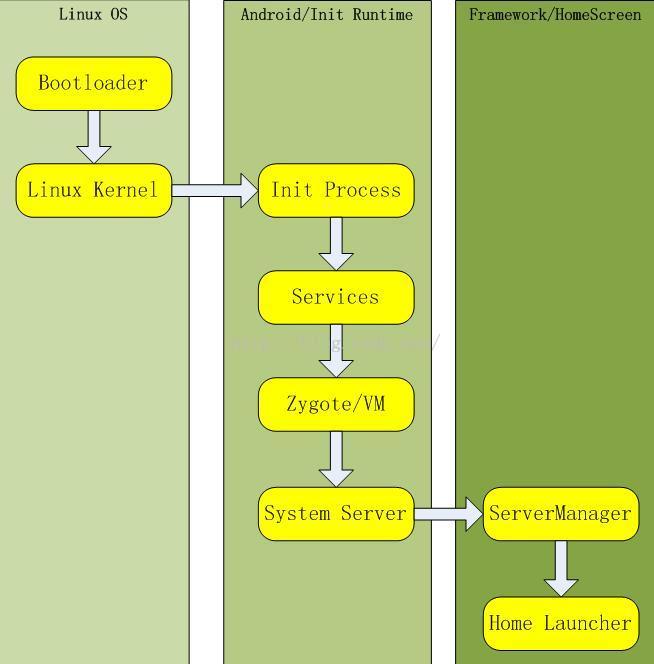

上一篇我們分析Android啟動過程的文章中我們分析到了SystemServer，當時我們只是簡單的描述了下，我們還是來看一張啟動的流程圖，

System Server代碼位於：//frameworks\base\services\java\com\android\server\SystemServer.java

我們來看一段啟動的代碼：



private void run() {

    // 准備SystemServer運行環境:設置線程優先級，創建主線層Looper，ActivityThread和SystemContext
    android.os.Process.setThreadPriority();
    Looper.prepareMainLooper();

    // 創建systemserver上進程的ActivityThread和SystemContext
    createSystemContext();

    // 增加SystemServiceManager：統一管理system services的創建，啟動和生命周期，多用戶切換
    mSystemServiceManager = new SystemServiceManager(mSystemContext);

    // Start services.

    // 1.創建AMS
    mActivityManagerService = mSystemServiceManager.startService(
            ActivityManagerService.Lifecycle.class).getService();


    // Start the Power Manager service
    mPowerManagerService = mSystemServiceManager.startService(PowerManagerService.class);


    // Start the package manager service
    mPackageManagerService = PackageManagerService.main();


    // 2.將SystemServer進程可加到AMS中調度管理
    mActivityManagerService.setSystemProcess();

    // 3.將相關provider運行在systemserver進程中：SettingsProvider
    mActivityManagerService.installSystemProviders();

    //
    final Watchdog watchdog = Watchdog.getInstance();
    watchdog.init(context, mActivityManagerService);

    // Start Window Manager
    wm = WindowManagerService.main();

    // 4.直接保存wms對象，與WMS交互
    mActivityManagerService.setWindowManager(wm);

    // 5.通過WMS 彈出“正在啟動應用”框
    // R.string.android_upgrading_starting_apps
    ActivityManagerNative.getDefault().showBootMessage();

    // 6. AMS作為Framework核心，做好准備就緒後就開始啟動應用層，和對AMS有依賴的服務
    mActivityManagerService.systemReady(new Runnable(){
        //啟動SystemUI
        startSystemUi(context);

        //啟動WatchDog監控核心服務狀態
        Watchdog.getInstance().start();

        //
        mmsServiceF.systemRunning();
    });

    // Loop forever.
    Looper.loop();
}

上面的6個步驟就是SystemServer中關於AMS的調用，完成AMS的創建和系統的初始化，以及與WMS交互等流程。



一、ActivityManagerService 創建過程

mActivityManagerService = mSystemServiceManager.startService(
　　　　　　　　　　　　ActivityManagerService.Lifecycle.class).getService();

通過SystemServiceManager這樣一個模板類來創建運行在SystemServer中的Framework服務。並將創建的服務統一保存在隊列管理。



public ActivityManagerService(Context systemContext) {

　　     // 1.系統Context 和 ActivityThread （將systemserver進程作為應用進程管理）
        mContext = systemContext;
        mFactoryTest = FactoryTest.getMode();
        mSystemThread = ActivityThread.currentActivityThread();

        // 2.AMS工作的線程和Handler，處理顯示相關的UiHandler  ---》知識點HandlerThread和Handler
        mHandlerThread = new ServiceThread(TAG,
            android.os.Process.THREAD_PRIORITY_FOREGROUND, false /*allowIo*/);
        mHandlerThread.start();
        mHandler = new MainHandler(mHandlerThread.getLooper());
        mUiHandler = new UiHandler();

        // 3. 廣播隊列BroadcastQueue初始化：前台廣播隊列和後台廣播隊列
        mFgBroadcastQueue = new BroadcastQueue(this, mHandler,"foreground", BROADCAST_FG_TIMEOUT, false);
        mBgBroadcastQueue = new BroadcastQueue(this, mHandler,"background", BROADCAST_BG_TIMEOUT, true);
        mBroadcastQueues[0] = mFgBroadcastQueue;
        mBroadcastQueues[1] = mBgBroadcastQueue;

        // 4. Service 和 Provider 管理
        mServices = new ActiveServices(this);
        mProviderMap = new ProviderMap(this);

        // 5.系統數據存放目錄：/data/system/
        File dataDir = Environment.getDataDirectory();
        File systemDir = new File(dataDir, "system");
        systemDir.mkdirs();


        // 電池狀態信息，進程狀態 和 應用權限管理
        mBatteryStatsService = new BatteryStatsService(systemDir, mHandler);
        mProcessStats = new ProcessStatsService(this, new File(systemDir, "procstats"));
        mAppOpsService = new AppOpsService(new File(systemDir, "appops.xml"), mHandler);

        // 6.多用戶管理
        mStartedUsers.put(UserHandle.USER_OWNER, new UserState(UserHandle.OWNER, true));
        mUserLru.add(UserHandle.USER_OWNER);
        updateStartedUserArrayLocked();

        // 7.最近任務，Activity，Task管理
        mRecentTasks = new RecentTasks(this);
        mStackSupervisor = new ActivityStackSupervisor(this, mRecentTasks);
        mTaskPersister = new TaskPersister(systemDir, mStackSupervisor, mRecentTasks);

        // 創建一個新線程，用於監控和定時更新系統CPU信息，30分鐘更新一次CPU和電池信息
        mProcessCpuTracker.init();
        mProcessCpuThread = new Thread("CpuTracker") {}

        // 加入Watchdog監控起來
        Watchdog.getInstance().addMonitor(this);
        Watchdog.getInstance().addThread(mHandler);
    }

二、將SystemServer進程可加到AMS中調度管理

mActivityManagerService.setSystemProcess(); mActivityManagerService將system扔到ams統一管理和調度

public void setSystemProcess() {
        // 將服務加入到ServiceManager中
        ServiceManager.addService(Context.ACTIVITY_SERVICE, this, true);
        ServiceManager.addService(ProcessStats.SERVICE_NAME, mProcessStats);
        ServiceManager.addService("meminfo", new MemBinder(this));
        ServiceManager.addService("gfxinfo", new GraphicsBinder(this));
        ServiceManager.addService("dbinfo", new DbBinder(this));

        // 設置application info LoadedApkinfo 有關 framework-res.apk
        ApplicationInfo info = mContext.getPackageManager().getApplicationInfo(
                    "android", STOCK_PM_FLAGS);
        mSystemThread.installSystemApplicationInfo(info, getClass().getClassLoader());

        //給SystemServer進程創建ProcessRecord，adj值，就是將SystemServer進程加入到AMS進程管理機制中，跟應用進程一致
        synchronized (this) {
            ProcessRecord app = newProcessRecordLocked(info, info.processName, false, 0);
            app.persistent = true;
            app.pid = MY_PID;
            app.maxAdj = ProcessList.SYSTEM_ADJ;
            app.makeActive(mSystemThread.getApplicationThread(), mProcessStats);
            synchronized (mPidsSelfLocked) {
                mPidsSelfLocked.put(app.pid, app);
            }
            updateLruProcessLocked(app, false, null);
            updateOomAdjLocked();
        }
    }

這一步就是給SystemServer進程創建ProcessRecord，adj值，就是將SystemServer進程加入到AMS進程管理。


三、創建運行在SystemServer進程中Provider

mActivityManagerService.installSystemProviders();



取出進程名為"system"，user_id為SYSTEM_UID的進程信息 ，生成運行在system進程中的providerInfo，並交給上下文的Provider。這段代碼的任務就是查詢與安裝Content Provider並且發布，其中查詢出來的provider為SettingsProvider



public final void installSystemProviders() {
        List providers;
        synchronized (this) {
            //取出進程名為"system"，user_id為SYSTEM_UID的進程信息
            ProcessRecord app = mProcessNames.get("system", Process.SYSTEM_UID);
            //生成運行在system進程中的providerInfo，表示一個Content Provider。
            providers = generateApplicationProvidersLocked(app);
            if (providers != null) {
                for (int i=providers.size()-1; i>=0; i--) {
                    ProviderInfo pi = (ProviderInfo)providers.get(i);
                    //過濾掉非系統apk
                    if ((pi.applicationInfo.flags&ApplicationInfo.FLAG_SYSTEM) == 0) {
                        Slog.w(TAG, "Not installing system proc provider " + pi.name
                                + ": not system .apk");
                        providers.remove(i);
                    }
                }
            }
        }
        if (providers != null) {
           //安裝provider
            mSystemThread.installSystemProviders(providers);
        }
        //監聽Settings數據庫變化。
        mCoreSettingsObserver = new CoreSettingsObserver(this);

        //mUsageStatsService.monitorPackages();

四、AMS systemReady過程



mActivityManagerService.systemReady();

發送ACTION_PRE_BOOT_COMPLETE方法，清理啟動的persistent進程，讀取Settings配置，運行runnable接口，啟動SystemUI，啟動persistent應用程序，啟動home，發送ACTION_BOOT_COMPLETE廣播



public void systemReady(final Runnable goingCallback) {
        synchronized(this) {
            if (mSystemReady) {
                goingCallback.run();
            }
            ……

            // 1.升級相關處理：發送PRE_BOOT_COMPLETED廣播 等待升級處理完成才能繼續
            // Check to see if there are any update receivers to run.
            if (!mDidUpdate) {
                // 等待升級完成，否則直接返回
                if (mWaitingUpdate) {
                    return;
                }
                // 發送PRE_BOOT_COMPLETED廣播
                final ArrayList doneReceivers = new ArrayList();
                mWaitingUpdate = deliverPreBootCompleted(new Runnable() {
                    // 等待所有接收PRE_BOOT_COMPLETED廣播者處理完畢
                    public void run() {
                        synchronized (ActivityManagerService.this) {
                            mDidUpdate = true;
                        }
                        showBootMessage(mContext.getText(
                                R.string.android_upgrading_complete),
                                false);

                        // 將系統版本號和處理過的廣播寫入文件：/data/system/called_pre_boots.dat文件
                        writeLastDonePreBootReceivers(doneReceivers);

                        // 繼續systemReady流程
                        systemReady(goingCallback);
                    }
                }, doneReceivers, UserHandle.USER_OWNER);

                if (mWaitingUpdate) {
                    return;
                }
                mDidUpdate = true;
            }

            mSystemReady = true;
        }

        // 2. 收集已經啟動的進程並殺死，除過persistent常駐進程
        ArrayList procsToKill = null;
        synchronized(mPidsSelfLocked) {
            for (int i=mPidsSelfLocked.size()-1; i>=0; i--) {
                ProcessRecord proc = mPidsSelfLocked.valueAt(i);
                if (!isAllowedWhileBooting(proc.info)){
                    if (procsToKill == null) {
                        procsToKill = new ArrayList();
                    }
                    procsToKill.add(proc);
                }
            }
        }

        synchronized(this) {
            if (procsToKill != null) {
                for (int i=procsToKill.size()-1; i>=0; i--) {
                    ProcessRecord proc = procsToKill.get(i);
                    Slog.i(TAG, "Removing system update proc: " + proc);
                    removeProcessLocked(proc, true, false, "system update done");
                }
            }

            // Now that we have cleaned up any update processes, we
            // are ready to start launching real processes and know that
            // we won't trample on them any more.
            mProcessesReady = true;
        }

        // 3.系統准備好後回調傳入的Runnable：
        if (goingCallback != null) goingCallback.run();

　　　　
　　　　　　// 4. 發送賬戶啟動的廣播，涉及多用戶
　　　　　　long ident = Binder.clearCallingIdentity();


　　　　　　Intent intent = new Intent(Intent.ACTION_USER_STARTED);
　　　　　　broadcastIntentLocked(intent);
　　　　　　intent = new Intent(Intent.ACTION_USER_STARTING);
　　　　　　broadcastIntentLocked(intent);


　　　　　　Binder.restoreCallingIdentity(ident);

        // 5. 啟動桌面Home Activity
        mBooting = true;
        startHomeActivityLocked(mCurrentUserId, "systemReady");
        mStackSupervisor.resumeTopActivitiesLocked();
  }
