ListView擴展上拉加載更多，下拉刷新

一、加載過程動態展示動畫

在APP的研發中，加載過程用動畫更改時間的消耗，增強用戶體驗。而有個更精細的加載過程動畫，會不斷從細節優化APP的體驗。且隨著APP與服務器交互的增多，加載狀態的表示占有越來越重要的地位。

當前使用Android幀動畫，應用較多數量圖片，形成“沙漏”計時器。

Android自定義控件主要有以下實現步驟：

1，定義屬性；

2，重寫構造方法，獲取屬性定義；

3，重寫OnDraw();

4，重寫OnMeasure()。

形成的自定義控件可與之前的Android自帶控件一樣使用。

加載狀態是一個自定義控件，但是其實現過程並沒有那麼復雜 @_@

類的實現：



public class ProgressBarLoading extends ProgressBar{

	private Context mContext;
	public ProgressBarLoading(Context context) {
		super(context);
		this.mContext = context;
		initViews();
	}

	public ProgressBarLoading(Context context, AttributeSet attrs) {
		super(context, attrs);
		this.mContext = context;
		initViews();
	}
	private void initViews() {
		checkProgressbarDrawable(R.anim.loading_anim, this);
	}



	/**
	 * 圖片幀動畫高版本適配方案
	 * @param @param resId
	 * @param @param p
	 * @author zhuanggy
	 * @date 2016-1-19
	 */
	private void checkProgressbarDrawable(int resId, ProgressBar p) {
		if (android.os.Build.VERSION.SDK_INT >= 23) {
			try {
				Drawable drawable = MainApplication.getInstance().getResources().getDrawable(resId);
				p.setIndeterminateDrawable(drawable);
				p.setIndeterminate(true);
				// p.requestLayout();
			} catch (Exception e) {
				e.printStackTrace();
			}
		}
	}
}

loading_anim.xml的實現：





以下是實現效果：

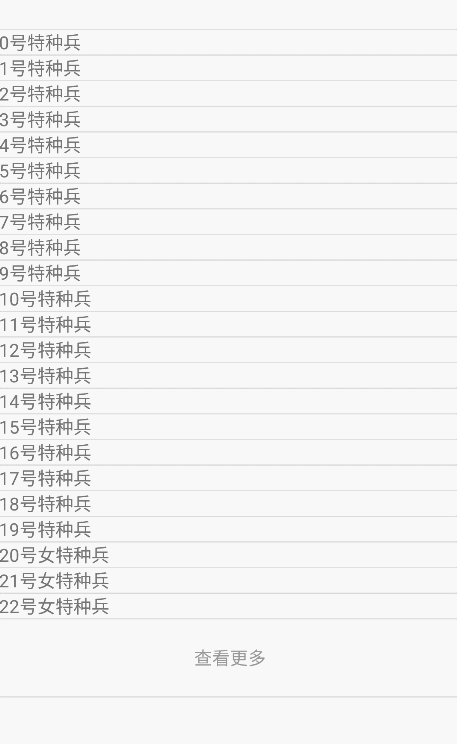

二、XlistView的使用

XlistView的源碼實現：



public class XListView extends ListView implements OnScrollListener {

    private float mLastY = -1; // save event y
    private Scroller mScroller; // used for scroll back
    private OnScrollListener mScrollListener; // user's scroll listener

    // the interface to trigger refresh and load more.
    private IXListViewListener mListViewListener;
    private IXListViewOnTouchListener mListviewTouchListener;

    // -- header view
    private XListViewHeader mHeaderView;
    // header view content, use it to calculate the Header's height. And hide it
    // when disable pull refresh.
    private RelativeLayout mHeaderViewContent;
    // private TextView mHeaderTimeView;
    private int mHeaderViewHeight; // header view's height
    private boolean mEnablePullRefresh = true;
    private boolean mPullRefreshing = false; // is refreashing.

    // -- footer view
    private XListViewFooter mFooterView;
    private boolean mEnablePullLoad;
    private boolean mPullLoading;
    private boolean mIsFooterReady = false;

    // total list items, used to detect is at the bottom of listview.
    private int mTotalItemCount;

    // for mScroller, scroll back from header or footer.
    private int mScrollBack;
    private final static int SCROLLBACK_HEADER = 0;
    private final static int SCROLLBACK_FOOTER = 1;

    private final static int SCROLL_DURATION = 400; // scroll back duration
    private final static int PULL_LOAD_MORE_DELTA = 50; // when pull up >= 50px
    // at bottom, trigger
    // load more.
    private final static float OFFSET_RADIO = 1.8f; // support iOS like pull
    // feature.

    /**
     * @param context
     */
    public XListView(Context context) {
        super(context);
        initWithContext(context);
    }

    public XListView(Context context, AttributeSet attrs) {
        super(context, attrs);
        initWithContext(context);
    }

    public XListView(Context context, AttributeSet attrs, int defStyle) {
        super(context, attrs, defStyle);
        initWithContext(context);
    }

    private void initWithContext(Context context) {
        mScroller = new Scroller(context, new DecelerateInterpolator());
        // XListView need the scroll event, and it will dispatch the event to
        // user's listener (as a proxy).
        super.setOnScrollListener(this);

        // init header view
        mHeaderView = new XListViewHeader(context);
        mHeaderViewContent = (RelativeLayout) mHeaderView.findViewById(R.id.xlistview_header_content);
        // mHeaderTimeView = (TextView)
        // mHeaderView.findViewById(R.id.xlistview_header_time);
        addHeaderView(mHeaderView);

        // init footer view
        mFooterView = new XListViewFooter(context);
        setFadingEdgeLength(0);// 去掉邊緣陰影
        // init header height
        mHeaderView.getViewTreeObserver().addOnGlobalLayoutListener(new OnGlobalLayoutListener() {
            @Override
            public void onGlobalLayout() {
                mHeaderViewHeight = mHeaderViewContent.getHeight();
                getViewTreeObserver().removeGlobalOnLayoutListener(this);
            }
        });

        // setFastScrollEnabled(true);
    }

    @Override
    public void setAdapter(ListAdapter adapter) {
        // make sure XListViewFooter is the last footer view, and only add once.
        if (mIsFooterReady == false) {
            mIsFooterReady = true;
            addFooterView(mFooterView);
        }
        super.setAdapter(adapter);
    }

    /**
     * enable or disable pull down refresh feature.
     *
     * @param enable
     */
    public void setPullRefreshEnable(boolean enable) {
        mEnablePullRefresh = enable;
        if (!mEnablePullRefresh) { // disable, hide the content
            mHeaderViewContent.setVisibility(View.INVISIBLE);
        } else {
            mHeaderViewContent.setVisibility(View.VISIBLE);
        }
    }

    /**
     * enable or disable pull up load more feature.
     *
     * @param enable
     */
    public void setPullLoadEnable(boolean enable) {
        mEnablePullLoad = enable;
        if (!mEnablePullLoad) {
            mPullLoading = false;
            mFooterView.hide();
            mFooterView.setOnClickListener(null);
        } else {
            mPullLoading = false;
            mFooterView.show();
            mFooterView.setState(XListViewFooter.STATE_NORMAL);
            // both "pull up" and "click" will invoke load more.
            mFooterView.setOnClickListener(new OnClickListener() {
                @Override
                public void onClick(View v) {
                    startLoadMore();
                }
            });
        }
    }

    /**
     * stop refresh, reset header view.
     */
    public void stopRefresh() {
        if (mPullRefreshing == true) {
            mPullRefreshing = false;
            resetHeaderHeight();
            mHeaderView.setState(XListViewHeader.STATE_NORMAL);
        }
    }

    /**
     * stop load more, reset footer view.
     */
    public void stopLoadMore() {
        Log.e("", "stopLoadMore");
        // if (mPullLoading) {// == true
        Log.e("", "完成載入.............");
        mPullLoading = false;
        mFooterView.setState(XListViewFooter.STATE_NORMAL);
        // }
    }

    public boolean isLoadingMore() {
        return mPullLoading;
    }

    public boolean isRefresh() {
        return mPullRefreshing;
    }

    /**
     * set last refresh time
     *
     * @param time
     */
    public void setRefreshTime(String time) {
        // mHeaderTimeView.setText(time);
    }

    private void invokeOnScrolling() {
        if (mScrollListener instanceof OnXScrollListener) {
            OnXScrollListener l = (OnXScrollListener) mScrollListener;
            l.onXScrolling(this);
        }
    }

    private void updateHeaderHeight(float delta) {
        Log.e("", "delta=" + delta);
        mHeaderView.setVisiableHeight((int) delta + mHeaderView.getVisiableHeight());
        if (mEnablePullRefresh && !mPullRefreshing) { // 未處於刷新狀態，更新箭頭
            if (mHeaderView.getVisiableHeight() > mHeaderViewHeight) {
                mHeaderView.setState(XListViewHeader.STATE_READY);
            } else {
                mHeaderView.setState(XListViewHeader.STATE_NORMAL);
            }
        }
        setSelection(0); // scroll to top each time
    }

    public void setHeadRefreshShowing() {
        if (mHeaderView.getState() != XListViewHeader.STATE_REFRESHING) {
            mEnablePullRefresh = true;
            mPullRefreshing = true;
            Log.e("", "mHeaderViewHeight=" + mHeaderViewHeight);
            // AbsListView.LayoutParams lp = (AbsListView.LayoutParams)
            // mHeaderView.getLayoutParams();
            // lp.height = 0;
            // mHeaderView.setLayoutParams(lp);
            mHeaderView.setVisiableHeight(mHeaderViewHeight);

            setSelection(0); // scroll to top each time
            mHeaderView.setState(XListViewHeader.STATE_REFRESHING);
            mScrollBack = SCROLLBACK_HEADER;
        }

        // mScroller.startScroll(0, mHeaderViewHeight, 0, -mHeaderViewHeight/2,
        // SCROLL_DURATION);
    }

    /**
     * reset header view's height.
     */
    private void resetHeaderHeight() {
        int height = mHeaderView.getVisiableHeight();
        if (height == 0) // not visible.
            return;
        // refreshing and header isn't shown fully. do nothing.
        if (mPullRefreshing && height <= mHeaderViewHeight) {
            return;
        }
        int finalHeight = 0; // default: scroll back to dismiss header.
        // is refreshing, just scroll back to show all the header.
        if (mPullRefreshing && height > mHeaderViewHeight) {
            finalHeight = mHeaderViewHeight;
        }
        mScrollBack = SCROLLBACK_HEADER;
        mScroller.startScroll(0, height, 0, finalHeight - height, SCROLL_DURATION);
        // trigger computeScroll
        invalidate();
    }

    private void updateFooterHeight(float delta) {
        int height = mFooterView.getBottomMargin() + (int) delta;

        Log.e("", "height=" + height);

        if (mEnablePullLoad && !mPullLoading) {
            if (height > PULL_LOAD_MORE_DELTA) { // height enough to invoke load
                // more.
                mFooterView.setState(XListViewFooter.STATE_READY);
            } else {
                mFooterView.setState(XListViewFooter.STATE_NORMAL);
            }
        }
        mFooterView.setBottomMargin(height);

        // setSelection(mTotalItemCount - 1); // scroll to bottom
    }

    private void resetFooterHeight() {
        int bottomMargin = mFooterView.getBottomMargin();
        if (bottomMargin > 0) {
            mScrollBack = SCROLLBACK_FOOTER;
            mScroller.startScroll(0, bottomMargin, 0, -bottomMargin, SCROLL_DURATION);
            invalidate();
        }
    }

    private void startLoadMore() {
        mFooterView.setState(XListViewFooter.STATE_LOADING);
        if (mListViewListener != null) {
            mListViewListener.onLoadMore();
        }
        if (mFooterView.getState() == XListViewFooter.STATE_LOADING) {
            mPullLoading = true;
        }
    }

    @Override
    public boolean onTouchEvent(MotionEvent ev) {
        if (mLastY == -1) {
            mLastY = ev.getRawY();
        }

        switch (ev.getAction()) {
            case MotionEvent.ACTION_DOWN:
                mLastY = ev.getRawY();
                if (mListviewTouchListener != null) {
                    mListviewTouchListener.onTouchDown();
                }
                break;
            case MotionEvent.ACTION_MOVE:
                final float deltaY = ev.getRawY() - mLastY;
                mLastY = ev.getRawY();
                if (getFirstVisiblePosition() == 0) {
                    // the first item is showing, header has shown or pull down.
                    if ((mHeaderView.getVisiableHeight() > 0 || deltaY > 0)) {
                        updateHeaderHeight(deltaY / OFFSET_RADIO);
                        invokeOnScrolling();
                    }

                } else if (getLastVisiblePosition() == mTotalItemCount - 1) {
                    // last item, already pulled up or want to pull up.
                    Log.e("", "mFooterView.getBottomMargin()=" + mFooterView.getBottomMargin() + "deltaY=" + deltaY);
                    if ((mFooterView.getBottomMargin() > 0 || deltaY < 0)) {
                        updateFooterHeight(-deltaY / OFFSET_RADIO);
                    } else {
                        if (!mPullLoading) {
                            mFooterView.setState(XListViewFooter.STATE_NORMAL);
                        }
                    }
                }
                break;
            default:
                mLastY = -1; // reset
                if (getFirstVisiblePosition() == 0) {
                    // invoke refresh
                    if (mEnablePullRefresh && mHeaderView.getVisiableHeight() > mHeaderViewHeight) {
                        mPullRefreshing = true;
                        mHeaderView.setState(XListViewHeader.STATE_REFRESHING);
                        if (mListViewListener != null) {
                            new Handler().postDelayed(new Runnable() {

                                @Override
                                public void run() {
                                    mListViewListener.onRefresh();
                                }
                            }, 1000);

                        }
                    }
                    resetHeaderHeight();
                    if (mFooterView.isShowingReady()) {// 上提時，如果列表不滿一頁，列表沒向上滑動，松開載入更多
                        startLoadMore();
                    }
                } else if (getLastVisiblePosition() == mTotalItemCount - 1) {
                    // invoke load more.
                    if (mEnablePullLoad && mFooterView.getBottomMargin() > PULL_LOAD_MORE_DELTA && mFooterView.isShowingReady()) {
                        startLoadMore();
                    }
                    resetFooterHeight();
                }
                break;
        }
        return super.onTouchEvent(ev);
    }

    @Override
    public void computeScroll() {
        if (mScroller.computeScrollOffset()) {
            if (mScrollBack == SCROLLBACK_HEADER) {
                mHeaderView.setVisiableHeight(mScroller.getCurrY());
            } else {
                mFooterView.setBottomMargin(mScroller.getCurrY());
            }
            postInvalidate();
            invokeOnScrolling();
        }
        super.computeScroll();
    }

    @Override
    public void onScrollStateChanged(AbsListView view, int scrollState) {
        if (mScrollListener != null) {
            mScrollListener.onScrollStateChanged(view, scrollState);
        }
    }

    @Override
    public void onScroll(AbsListView view, int firstVisibleItem, int visibleItemCount, int totalItemCount) {
        // send to user's listener
        mTotalItemCount = totalItemCount;
        if (mScrollListener != null) {
            mScrollListener.onScroll(view, firstVisibleItem, visibleItemCount, totalItemCount);
        }
    }

    public void setXListViewListener(IXListViewListener l) {
        mListViewListener = l;
    }

    public void setXListViewOnTouchListener(IXListViewOnTouchListener l) {
        mListviewTouchListener = l;
    }

    public void setXListViewOnScrollListener(OnXScrollListener l) {
        mScrollListener = l;
    }

    /**
     * you can listen ListView.OnScrollListener or this one. it will invoke
     * onXScrolling when header/footer scroll back.
     */
    public interface OnXScrollListener extends OnScrollListener {
        public void onXScrolling(View view);
    }

    /**
     * implements this interface to get refresh/load more event.
     */
    public interface IXListViewListener {
        public void onRefresh();

        public void onLoadMore();
    }

    public interface IXListViewOnTouchListener {
        public void onTouchDown();
    }
}

相比於其他控件實現，這裡還需要實現頭布局、尾布局。
以下是使用的xml文件：





不錯，這裡是展示效果：
