最近用到了AsyncTask，這玩意每個寫android程序的都會用，可是不見得每個人都能用的好。如果想要用好，那麼首先勢必對基本原理有個大概了解。其實網上對這類問題的說明已經很多很多了，這裡我就用自己的思維整理一下。
AsyncTask概述
AsyncTask是google公司封裝的一個輕量級的異步任務類。實際上它內部也是通過Thread + handler實現的。如果沒有AsyncTask類，我們完全可以用thread+handler來處理。這個時候就很可能自己回去封裝一下thread+handler了。正是因為這類需求很多，google就幫我們封裝了一下。其實我們也可以自己封裝，但是我相信99%程序員自己封裝的東西比不上google的。所以還是有必要學習一下AsyncTask。
AsyncTask相關的其他類
首先我們看一下AsyncTask用到了哪些主要的框架？注意，每個版本的sdk可能對AsyncTask的實現有所不同，我這裡用的是Android-23.
下面是從sdk裡面copy出來的AsyncTask一部分內容。
public abstract class AsyncTask {
private static final String LOG_TAG = "AsyncTask";
private static final int CPU_COUNT = Runtime.getRuntime().availableProcessors();
private static final int CORE_POOL_SIZE = CPU_COUNT + 1;
private static final int MAXIMUM_POOL_SIZE = CPU_COUNT * 2 + 1;
private static final int KEEP_ALIVE = 1;
private static final ThreadFactory sThreadFactory = new ThreadFactory() {
private final AtomicInteger mCount = new AtomicInteger(1);
public Thread newThread(Runnable r) {
return new Thread(r, "AsyncTask #" + mCount.getAndIncrement());
}
};
private static final BlockingQueue sPoolWorkQueue =
new LinkedBlockingQueue(128);
/**
* An {@link Executor} that can be used to execute tasks in parallel.
*/
public static final Executor THREAD_POOL_EXECUTOR
= new ThreadPoolExecutor(CORE_POOL_SIZE, MAXIMUM_POOL_SIZE, KEEP_ALIVE,
TimeUnit.SECONDS, sPoolWorkQueue, sThreadFactory);
/**
* An {@link Executor} that executes tasks one at a time in serial
* order. This serialization is global to a particular process.
*/
public static final Executor SERIAL_EXECUTOR = new SerialExecutor();
private static final int MESSAGE_POST_RESULT = 0x1;
private static final int MESSAGE_POST_PROGRESS = 0x2;
private static volatile Executor sDefaultExecutor = SERIAL_EXECUTOR;
private static InternalHandler sHandler;
private final WorkerRunnable mWorker;
private final FutureTask mFuture;
private volatile Status mStatus = Status.PENDING;
...
};
AsyncTask的數據成員主要有：
1. static Executor THREAD_POOL_EXECUTOR
2. static Executor SERIAL_EXECUTOR;
3. static Executor sDefaultExecutor; 這玩意默認指向了SERIAL_EXECUTOR。看源代碼就知道了：
private static volatile Executor sDefaultExecutor = SERIAL_EXECUTOR;
4. static InternalHandler sHandler;
5. WorkerRunnable mWorker;
6. FutureTask mFuture;
7. Status mStatus;
這7個是AsyncTask主要的數據成員，大部分功能都跟這些成員有關。主要上述7個數據成員中，前面4個都是靜態的。
THREAD_POOL_EXECUTOR & SERIAL_EXECUTOR
這兩個靜態實例的類分別是：ThreadPoolExecutor和SerialExecutor.
類結構看起來像：
其中SerialExecutor很簡單，全部代碼也就：
private static class SerialExecutor implements Executor {
final ArrayDeque mTasks = new ArrayDeque();
Runnable mActive;
public synchronized void execute(final Runnable r) {
mTasks.offer(new Runnable() {
public void run() {
try {
r.run();
} finally {
scheduleNext();
}
}
});
if (mActive == null) {
scheduleNext();
}
}
protected synchronized void scheduleNext() {
if ((mActive = mTasks.poll()) != null) {
THREAD_POOL_EXECUTOR.execute(mActive);
}
}
}
SerialExecutor是AsyncTask的一個內嵌類。超簡單，裡面就2個數據成員：mTasks和mActive。每次caller調用那個execute，就創建一個Runnable匿名內嵌類對象，這個對象存入mTasks，在匿名內嵌類的run函數裡面調用傳入參數r.run()。然後通過一個scheduleNext函數把mTasks裡面的所有對象通過THREAD_POOL_EXECUTOR.execute(mActive)執行一遍。說穿了，也就是說SerialExecutor類會把所有的任務丟入一個容器，之後把容器裡面的所有對象一個一個的排隊執行THREAD_POOL_EXECUTOR.execute(mActive);
ThreadPoolExecutor就相對復雜一點了。它有幾個比較重要的數據成員：核心線程數，最大線程數，緩存隊列。以下上AsyncTask的一部分代碼。
private static final int CPU_COUNT = Runtime.getRuntime().availableProcessors();
private static final int CORE_POOL_SIZE = CPU_COUNT + 1;
private static final int MAXIMUM_POOL_SIZE = CPU_COUNT * 2 + 1;
private static final int KEEP_ALIVE = 1;
private static final ThreadFactory sThreadFactory = new ThreadFactory() {
private final AtomicInteger mCount = new AtomicInteger(1);
public Thread newThread(Runnable r) {
return new Thread(r, "AsyncTask #" + mCount.getAndIncrement());
}
};
private static final BlockingQueue sPoolWorkQueue =
new LinkedBlockingQueue(128);
public static final Executor THREAD_POOL_EXECUTOR
= new ThreadPoolExecutor(CORE_POOL_SIZE, MAXIMUM_POOL_SIZE, KEEP_ALIVE,
TimeUnit.SECONDS, sPoolWorkQueue, sThreadFactory);
當創建ThreadPoolExecutor對象的時候，構造函數裡面第一個參數就是核心線程數量，這裡取得是CPU個數 + 1， 第二個參數是最大線程數量，這裡是CPU個數 * 2 + 1，第五個參數是緩沖區的隊列，這裡是個LinkedBlockingQueue，這個隊列的最大容量是128.
實際上ThreadPoolExecutor內部有個線程池概念。它的大概工作原理如下：
1. 如果正在運行的線程數量小於核心線程數量（由調用者設置，像AsyncTask就設置了cpu個數+1），那麼就新創建要給線程，來執行任務（execute的傳入參數）
2. 如果正在運行的線程數量大於等於核心線程數量，這個時候就分兩種情況：
a. 可以把任務丟進緩沖區，那就丟進去，等待空閒線程來執行。
b. 如果緩沖區滿了，那就看最大線程數 - 運行線程數是不是>0。如果 > 0, 就創建線程來運行新的任務。如果=0，那就丟出異常，也就是ThreadPoolExecutor不接受這個任務了。（所以使用ThreadPoolExecutor的時候需要注意異常，因為它有可能不接受任務）以下是ThreadPoolExecutor的execute代碼。
/**
* Executes the given task sometime in the future. The task
* may execute in a new thread or in an existing pooled thread.
*
* If the task cannot be submitted for execution, either because this
* executor has been shutdown or because its capacity has been reached,
* the task is handled by the current {@code RejectedExecutionHandler}.
*
* @param command the task to execute
* @throws RejectedExecutionException at discretion of
* {@code RejectedExecutionHandler}, if the task
* cannot be accepted for execution
* @throws NullPointerException if {@code command} is null
*/
public void execute(Runnable command) {
if (command == null)
throw new NullPointerException();
/*
* Proceed in 3 steps:
*
* 1. If fewer than corePoolSize threads are running, try to
* start a new thread with the given command as its first
* task. The call to addWorker atomically checks runState and
* workerCount, and so prevents false alarms that would add
* threads when it shouldn't, by returning false.
*
* 2. If a task can be successfully queued, then we still need
* to double-check whether we should have added a thread
* (because existing ones died since last checking) or that
* the pool shut down since entry into this method. So we
* recheck state and if necessary roll back the enqueuing if
* stopped, or start a new thread if there are none.
*
* 3. If we cannot queue task, then we try to add a new
* thread. If it fails, we know we are shut down or saturated
* and so reject the task.
*/
int c = ctl.get();
if (workerCountOf(c) < corePoolSize) {
if (addWorker(command, true))
return;
c = ctl.get();
}
if (isRunning(c) && workQueue.offer(command)) {
int recheck = ctl.get();
if (! isRunning(recheck) && remove(command))
reject(command);
else if (workerCountOf(recheck) == 0)
addWorker(null, false);
}
else if (!addWorker(command, false))
reject(command);
}
addWork也是蠻關鍵的一個函數，實現如下：大概就是可以的情況下，創建線程來執行任務。
private boolean addWorker(Runnable firstTask, boolean core) {
retry:
for (;;) {
int c = ctl.get();
int rs = runStateOf(c);
// Check if queue empty only if necessary.
if (rs >= SHUTDOWN &&
! (rs == SHUTDOWN &&
firstTask == null &&
! workQueue.isEmpty()))
return false;
for (;;) {
int wc = workerCountOf(c);
if (wc >= CAPACITY ||
wc >= (core ? corePoolSize : maximumPoolSize))
return false;
if (compareAndIncrementWorkerCount(c))
break retry;
c = ctl.get(); // Re-read ctl
if (runStateOf(c) != rs)
continue retry;
// else CAS failed due to workerCount change; retry inner loop
}
}
boolean workerStarted = false;
boolean workerAdded = false;
Worker w = null;
try {
w = new Worker(firstTask);
final Thread t = w.thread;
if (t != null) {
final ReentrantLock mainLock = this.mainLock;
mainLock.lock();
try {
// Recheck while holding lock.
// Back out on ThreadFactory failure or if
// shut down before lock acquired.
int rs = runStateOf(ctl.get());
if (rs < SHUTDOWN ||
(rs == SHUTDOWN && firstTask == null)) {
if (t.isAlive()) // precheck that t is startable
throw new IllegalThreadStateException();
workers.add(w);
int s = workers.size();
if (s > largestPoolSize)
largestPoolSize = s;
workerAdded = true;
}
} finally {
mainLock.unlock();
}
if (workerAdded) {
t.start();
workerStarted = true;
}
}
} finally {
if (! workerStarted)
addWorkerFailed(w);
}
return workerStarted;
}
那麼針對AsyncTask的情況，AsyncTask的任務是通過SerialExecutor來調用ThreadPoolExecutor的execute函數的，而SerialExecute已經通過要給容器控制任務一個一個執行了，所以這種情況下ThreadPoolExecutor只會有兩種情況；
1. 沒有任何線程在運行
2. 只有一個線程在運行，執行完一個任務就繼續執行SerialExecutor的容器裡面的下一個任務，如果有，就在當前線程裡面繼續執行，如果沒有線程結束或者空閒。當serialExecutor有新任務來的時候，就再啟動一個線程（或者用某個空閒線程）來執行任務。
總體來講，針對AsyncTask，它有個靜態數據成員SerialExecutor，
public static final Executor SERIAL_EXECUTOR = new SerialExecutor();
也就是說所有的AsyncTask對象，不管有多少個，都共享同一個SerialExecutor對象（因為它是個靜態成員）。
mWorker & mFuture

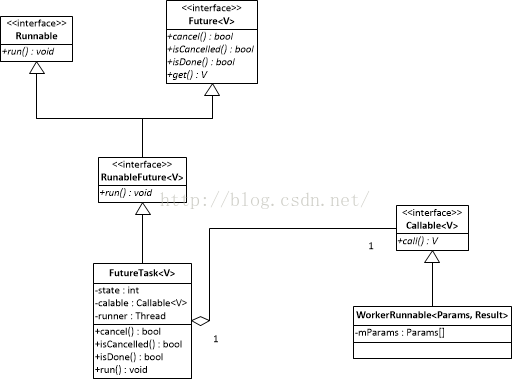

其實，這兩個家伙只是對Runnable和callback的一個封裝。結構圖：
具體細節我們不見得要去關心。當AsyncTask構造函數調用的時候，mWorker和mFuture會被創建，同時mWoker會被傳入到mFuture對象裡面去
public AsyncTask() {
mWorker = new WorkerRunnable() {
public Result call() throws Exception {
mTaskInvoked.set(true);
Process.setThreadPriority(Process.THREAD_PRIORITY_BACKGROUND);
//noinspection unchecked
Result result = doInBackground(mParams);
Binder.flushPendingCommands();
return postResult(result);
}
};
mFuture = new FutureTask(mWorker) {
@Override
protected void done() {
try {
postResultIfNotInvoked(get());
} catch (InterruptedException e) {
android.util.Log.w(LOG_TAG, e);
} catch (ExecutionException e) {
throw new RuntimeException("An error occurred while executing doInBackground()",
e.getCause());
} catch (CancellationException e) {
postResultIfNotInvoked(null);
}
}
};
}
這兩個家伙的定義如下；
WorkerRunnable mWorker;
FutureTask mFuture;
WorkerRunnable超簡單：
private static abstract class WorkerRunnable implements Callable {
Params[] mParams;
}
就放了個數據成員：Params[] mParams。
那麼整個流程大概是什麼樣子的呢？
1. 首先AsyncTask的構造函數會創建mWorker和mFuture。
2. 調用AsyncTask的execute過程如：
public final AsyncTask execute(Params... params) {
return executeOnExecutor(sDefaultExecutor, params);
}
public final AsyncTask executeOnExecutor(Executor exec,
Params... params) {
if (mStatus != Status.PENDING) {
switch (mStatus) {
case RUNNING:
throw new IllegalStateException("Cannot execute task:"
+ " the task is already running.");
case FINISHED:
throw new IllegalStateException("Cannot execute task:"
+ " the task has already been executed "
+ "(a task can be executed only once)");
}
}
mStatus = Status.RUNNING;
onPreExecute();
mWorker.mParams = params;
exec.execute(mFuture);
return this;
}
execute的函數params被丟到了mWorker裡面去，然後exec.execute(mFuture)執行任務，這裡exec是sDefaultExecutor，而sDefaultExecutor就是SerialExecutor，
（private static volatile Executor sDefaultExecutor = SERIAL_EXECUTOR;）
有關WorkerRunnable和FutureTask的具體封裝技巧，這裡不做過多的描述，有興趣可以自己去看，沒興趣就跳過。
調用例子
一個典型的調用如下：
AsyncTask asyncTask = new AsyncTask(){
@Override
protected String doInBackground(Void... param)
{
Log.v("AsyncTask", "doInBackground");
return "hello asyncTask";
}
@Override
public void onPostExecute(String response) {
// callback.onSendRequestFinished(JsonUtil.jsonToBean(response, mBeanType));
Toast.makeText(MainActivity.this, "result: " + response, Toast.LENGTH_LONG).show();
}
};
asyncTask.execute();

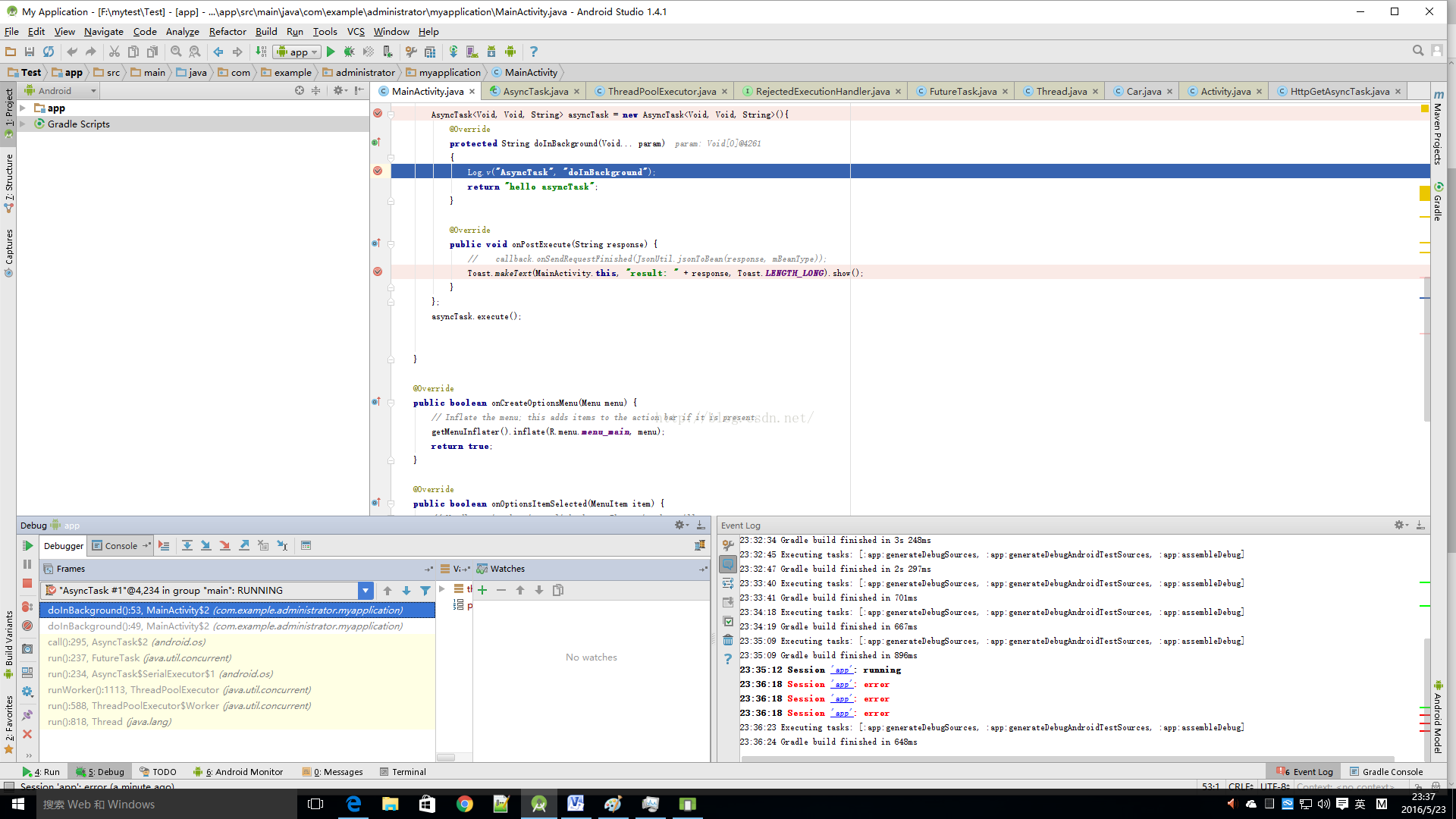

比如我們可以在onCreate裡面調用這段代碼。如果我們在doInBackground裡面下斷點，就會看到如下調用堆棧：
最終的doInBackground是在AsyncTask的構造函數裡面創建的匿名內嵌類裡面被調用的。
public AsyncTask() {
mWorker = new WorkerRunnable() {
public Result call() throws Exception {
mTaskInvoked.set(true);
Process.setThreadPriority(Process.THREAD_PRIORITY_BACKGROUND);
//noinspection unchecked
Result result = doInBackground(mParams);
Binder.flushPendingCommands();
return postResult(result);
}
};
mFuture = new FutureTask(mWorker) {
@Override
protected void done() {
try {
postResultIfNotInvoked(get());
} catch (InterruptedException e) {
android.util.Log.w(LOG_TAG, e);
} catch (ExecutionException e) {
throw new RuntimeException("An error occurred while executing doInBackground()",
e.getCause());
} catch (CancellationException e) {
postResultIfNotInvoked(null);
}
}
};
}
mWorker是WorkerRunnable的子類（匿名內嵌子類）對象，mWorker被傳給了mFuture，FutureTask的 callable就是mWorker。
public FutureTask(Callable callable) {
if (callable == null)
throw new NullPointerException();
this.callable = callable;
this.state = NEW; // ensure visibility of callable
}
mFuture被傳到了AsyncTask的execute裡面，mFuture實際上就是Runnable的一個子類，mFuture被被SerialExecute傳給ThreadPoolExecute來執行。大概流程：
1. ThreadPoolExecutor裡面的一個線程執行任務（mFuture）
2. FutureTask的run()會在線程裡面被執行
3. Future的run()裡面會嘗試獲得callable，然後調用callable的call()函數。callable就是mWorker，也就是WorkRunnable，而WorkRunnable實現了接口Callable，Callable裡面有個方法就是call(）。
public void run() {
if (state != NEW ||
!U.compareAndSwapObject(this, RUNNER, null, Thread.currentThread()))
return;
try {
Callable c = callable;
if (c != null && state == NEW) {
V result;
boolean ran;
try {
result = c.call();
ran = true;
} catch (Throwable ex) {
result = null;
ran = false;
setException(ex);
}
if (ran)
set(result);
}
} finally {
// runner must be non-null until state is settled to
// prevent concurrent calls to run()
runner = null;
// state must be re-read after nulling runner to prevent
// leaked interrupts
int s = state;
if (s >= INTERRUPTING)
handlePossibleCancellationInterrupt(s);
}
}
4. 這樣，mWorker是WorkerRunnable的子類對象，而且剛好實現了call函數，而call函數通過接口Callable在FutureTask的run()裡面被調用了。所以AsyncTask的構造函數裡面的匿名內嵌類裡面的call實現被ThreadPoolExecutor的線程調用了。也就是這段代碼：
mWorker = new WorkerRunnable() {
public Result call() throws Exception {
mTaskInvoked.set(true);
Process.setThreadPriority(Process.THREAD_PRIORITY_BACKGROUND);
//noinspection unchecked
Result result = doInBackground(mParams);
Binder.flushPendingCommands();
return postResult(result);
}
};
就這樣，AsyncTask的doInBackgroun被一個線程給調用了。
整個AsyncTask的大致流程就是這樣，當然還有其他一些內容，如cancel, onPreExecute, onPostExecute, onCancelled等等，還有ThreadPoolExecutor執行完任務後，怎麼通知主線程的等等問題。
畫了個總體類圖：可能不是很准確，但是可以看出各個類之間的關系，作為參考。
