在平時工作中，camera模塊是經常進行調試修改的模塊，所以熟悉camera的工作流程以及工作原理將會大大的提供工作效率，但對於整個android系統camera是個十分復雜的模塊，下面對camera的驅動加載進行分析。

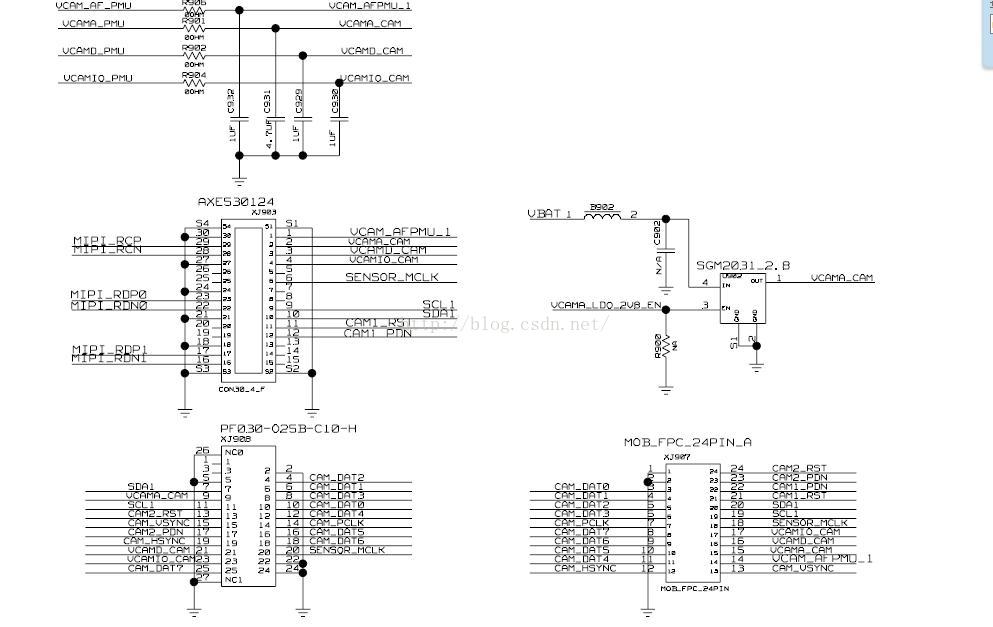

從上面可看出，連接 Camera 的pin引腳可大致分為以下幾類：
b) ：Standby/PowerDown信號，用於進入待機模式，降低功耗。
c) ：Mclk，即MasterClock 信號，是由 BB 端提供。a) ：Pclk，即 PixelClock 信號，由 MCLK 分頻得到，作為外部時鐘控制圖像傳輸幀率；
b) ：HSYNC，行同步信號，其上升沿表示新一列行圖像數據的開始；
c) ：VSYNC，幀同步信號，其下降沿表示新的一幀圖片的開始；
d) ：D0-D9 一共 10 根數據線（8/10 根等）。

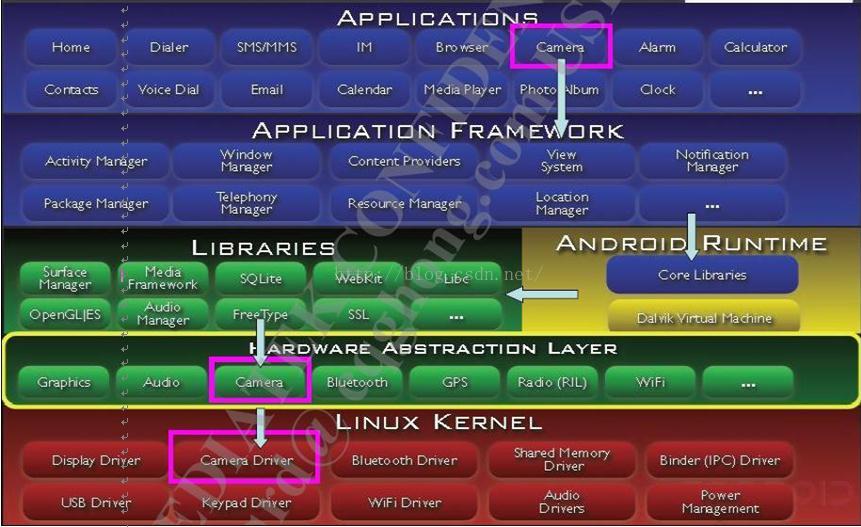

上圖的架構相信大家都有了一定的了解，android 將系統大致分為應用層、庫文件和硬件抽象層、Linux 內核三層。在底層的內核空間，Camera 的 driver 將其驅動起來以後，將硬件驅動的接口交給硬件抽象層，android 上層的 Camera 應用程序在 android 實時系統中的虛擬機中，加載 android 留給 Camera 公用的一些庫文件，調用硬件抽象層的接口來控制 Camera硬件來實現功能。當然，如果是 Raw 模式的 Camera，還需要在硬件抽象層調用一些參數來控制 Camera 的效果。
Kernel 部分主要有兩塊：一塊是image sensor 驅動，負責具體型號的sensor 的id 檢測，上電，以及在preview，capture,初始化，3A 等等功能設定時的寄存器配置。另一塊是isp driver，通過DMA 將sensor數據流上傳。
HAL層這邊主要分3 塊，一塊是imageio，主要是數據buffer上傳的pipe。一塊是drv，包含imgsensor 和isp 的hal 層控制。最後是feature io，包含各種3A 等性能配置。
#if 1 ///defined(CONFIG_VIDEO_CAPTURE_DRIVERS)
retval = platform_device_register(&sensor_dev);
if (retval != 0){
return retval;
}
#endif
static struct platform_device sensor_dev = {
.name = "image_sensor",
.id = -1,
};
image_sensor的platform類型驅動的device的name為"image_sensor"，而在linux中，所有的總線的driver與device都是通過name來與進行匹配的，platform總線也不例外，所以可以通過grep命令來查找camera注冊的總線中driver的注冊路徑為：mediatek/custom/common/kernel/imgsensor/src/kd_sensorlist.c，代碼為：
static struct platform_driver g_stCAMERA_HW_Driver = {
.probe = CAMERA_HW_probe,
.remove = CAMERA_HW_remove,
.suspend = CAMERA_HW_suspend,
.resume = CAMERA_HW_resume,
.driver = {
.name = "image_sensor",
.owner = THIS_MODULE,
}
};
下面就來看看image_sensorplatform的driver整個注冊流程是怎樣實現的。先來看看kd_sensorlist.c驅動文件的init人口函數：
/*=======================================================================
* CAMERA_HW_i2C_init()
*=======================================================================*/
static int __init CAMERA_HW_i2C_init(void)
{
struct proc_dir_entry *prEntry;
//i2c_register_board_info(CAMERA_I2C_BUSNUM, &kd_camera_dev, 1);
i2c_register_board_info(SUPPORT_I2C_BUS_NUM1, &i2c_devs1, 1); // 填充i2c的板極文件
//i2c_register_board_info(SUPPORT_I2C_BUS_NUM2, &i2c_devs2, 1);
if(platform_driver_register(&g_stCAMERA_HW_Driver)){ // 注冊platform總線的driver
PK_ERR("failed to register CAMERA_HW driver\n");
return -ENODEV;
}
//if(platform_driver_register(&g_stCAMERA_HW_Driver2)){
// PK_ERR("failed to register CAMERA_HW driver\n");
// return -ENODEV;
//}
//Register proc file for main sensor register debug
prEntry = create_proc_entry("driver/camsensor", 0, NULL); //在proc下創建driver/camsensor這個節點，用於前置攝像頭進行adb效果調試
if (prEntry) {
prEntry->read_proc = CAMERA_HW_DumpReg_To_Proc;
prEntry->write_proc = CAMERA_HW_Reg_Debug;
}
else {
PK_ERR("add /proc/driver/camsensor entry fail \n");
}
//Register proc file for sub sensor register debug
prEntry = create_proc_entry("driver/camsensor2", 0, NULL); //在proc下創建driver/camsensor2這個節點，用於後置攝像頭進行adb效果調試
if (prEntry) {
prEntry->read_proc = CAMERA_HW_DumpReg_To_Proc;
prEntry->write_proc = CAMERA_HW_Reg_Debug2;
}
else {
PK_ERR("add /proc/driver/camsensor2 entry fail \n");
}
atomic_set(&g_CamHWOpend, 0);
//atomic_set(&g_CamHWOpend2, 0);
atomic_set(&g_CamDrvOpenCnt, 0);
//atomic_set(&g_CamDrvOpenCnt2, 0);
atomic_set(&g_CamHWOpening, 0);
return 0;
}
CAMERA_HW_i2C_init函數主要做的是對I2C總線的版級文件進行了填充，然後注冊platform總線的driver，通過g_stCAMERA_HW_Driver結構體裡面的name來與device進行匹配。同時，在函數裡面還在proc目錄下創建了driver/camsensor和driver/camsensor2兩個節點，這樣做主要是方便sensor的IC原廠FAE利用adb進行效果調試的。
static struct platform_driver g_stCAMERA_HW_Driver = {
.probe = CAMERA_HW_probe,
.remove = CAMERA_HW_remove,
.suspend = CAMERA_HW_suspend,
.resume = CAMERA_HW_resume,
.driver = {
.name = "image_sensor",
.owner = THIS_MODULE,
}
};
g_stCAMERA_HW_Driver結構體中主要有probe、remove、suspend等接口的實現，probe接口為設備注冊的匹配函數，所以在在注冊了driver就會調用.probe = CAMERA_HW_probe進入CAMERA_HW_probe函數：
static int CAMERA_HW_probe(struct platform_device *pdev)
{
return i2c_add_driver(&CAMERA_HW_i2c_driver);
}
struct i2c_driver CAMERA_HW_i2c_driver = {
.probe = CAMERA_HW_i2c_probe,
.remove = CAMERA_HW_i2c_remove,
.driver.name = CAMERA_HW_DRVNAME1,
.id_table = CAMERA_HW_i2c_id,
};
CAMERA_HW_probe做的就是注冊一個i2c的driver，camera會掛載在I2C總線上，利用I2C進入寄存器的讀寫，所以，sensor驅動最終還是會注冊I2C設備，I2C總線的注冊其實跟platform總線的注冊大致相同，注冊完I2C driver後系統就會調用CAMERA_HW_i2c_driver結構體裡面的.probe = CAMERA_HW_i2c_probe：
static int CAMERA_HW_i2c_probe(struct i2c_client *client, const struct i2c_device_id *id)
{
int i4RetValue = 0;
PK_DBG("[CAMERA_HW] Attach I2C \n");
//get sensor i2c client
spin_lock(&kdsensor_drv_lock);
g_pstI2Cclient = client; //這裡是獲得我們的clientdevice，並且以platform方式進行注冊
//set I2C clock rate
g_pstI2Cclient->timing = 300;//200k
spin_unlock(&kdsensor_drv_lock);
//Register char driver
i4RetValue = RegisterCAMERA_HWCharDrv(); // 注冊字符驅動
if(i4RetValue){
PK_ERR("[CAMERA_HW] register char device failed!\n");
return i4RetValue;
}
//spin_lock_init(&g_CamHWLock);
PK_DBG("[CAMERA_HW] Attached!! \n");
return 0;
}
在CAMERA_HW_i2c_probe函數裡面主要就是調用了RegisterCAMERA_HWCharDrv函數來注冊一個字符驅動。
inline static int RegisterCAMERA_HWCharDrv(void)
{
struct device* sensor_device = NULL;
#if CAMERA_HW_DYNAMIC_ALLOCATE_DEVNO
if( alloc_chrdev_region(&g_CAMERA_HWdevno, 0, 1,CAMERA_HW_DRVNAME1) ) // 動態分配一個字符設備
{
PK_DBG("[CAMERA SENSOR] Allocate device no failed\n");
return -EAGAIN;
}
#else
if( register_chrdev_region( g_CAMERA_HWdevno , 1 , CAMERA_HW_DRVNAME1) ) // 靜態分配一個字符設備
{
PK_DBG("[CAMERA SENSOR] Register device no failed\n");
return -EAGAIN;
}
#endif
//Allocate driver
g_pCAMERA_HW_CharDrv = cdev_alloc(); // 申請一個cdev結構體
if(NULL == g_pCAMERA_HW_CharDrv)
{
unregister_chrdev_region(g_CAMERA_HWdevno, 1);
PK_DBG("[CAMERA SENSOR] Allocate mem for kobject failed\n");
return -ENOMEM;
}
//Attatch file operation.
cdev_init(g_pCAMERA_HW_CharDrv, &g_stCAMERA_HW_fops); //關聯到file_operation進入字符設備
g_pCAMERA_HW_CharDrv->owner = THIS_MODULE;
//Add to system
if(cdev_add(g_pCAMERA_HW_CharDrv, g_CAMERA_HWdevno, 1)) //將我們分配的字符設備，attach上file_operation添加到system
{
PK_DBG("[mt6516_IDP] Attatch file operation failed\n");
unregister_chrdev_region(g_CAMERA_HWdevno, 1);
return -EAGAIN;
}

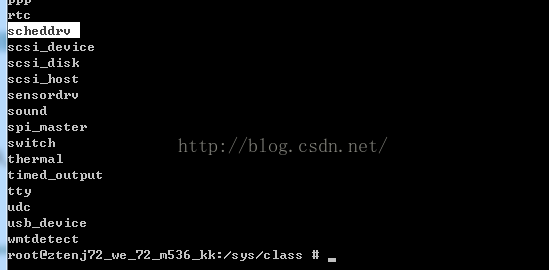

sensor_class = class_create(THIS_MODULE, "sensordrv"); //創建一個sensordrv類
if (IS_ERR(sensor_class)) {
int ret = PTR_ERR(sensor_class);
PK_DBG("Unable to create class, err = %d\n", ret);
return ret;
}
sensor_device = device_create(sensor_class, NULL, g_CAMERA_HWdevno, NULL, CAMERA_HW_DRVNAME1);
return 0;
}
linux驅動分為三大部分驅動，分別為字符驅動，塊驅動以及網絡驅動，而camera的模塊驅動為字符驅動，所以RegisterCAMERA_HWCharDrv函數主要是對camera_image進行字符驅動注冊，代碼開始先判斷是否定義了CAMERA_HW_DYNAMIC_ALLOCATE_DEVNO變量來判斷動態還是靜態分配一個字符設備，然後通過cdev_alloc申請了一個cdev結構體後，通過cdev_init將g_stCAMERA_HW_fops關聯到字符設備，這是這個函數往下走下去的關鍵。然後就是將我們分配的字符設備，attach上file_operation添加到sys，最後在sys/class目錄下創建一個sensordrv類，如下圖所示：
下面來看看g_stCAMERA_HW_fops結構體裡面的內容：
static const struct file_operations g_stCAMERA_HW_fops =
{
.owner = THIS_MODULE,
.open = CAMERA_HW_Open,
.release = CAMERA_HW_Release,
.unlocked_ioctl = CAMERA_HW_Ioctl
};
file_operations是為上層調用底層提供的接口，往往打開接口就是先打開open，那麼先來看看struct file_operations g_stCAMERA_HW_fops結構體中的open函數；
static int CAMERA_HW_Open(struct inode * a_pstInode, struct file * a_pstFile)
{
//reset once in multi-open
if ( atomic_read(&g_CamDrvOpenCnt) == 0) {
//default OFF state
//MUST have
//kdCISModulePowerOn(DUAL_CAMERA_MAIN_SENSOR,"",true,CAMERA_HW_DRVNAME1);
//kdCISModulePowerOn(DUAL_CAMERA_SUB_SENSOR,"",true,CAMERA_HW_DRVNAME1);
//kdCISModulePowerOn(DUAL_CAMERA_MAIN_2_SENSOR,"",true,CAMERA_HW_DRVNAME1);
//kdCISModulePowerOn(DUAL_CAMERA_MAIN_SENSOR,"",false,CAMERA_HW_DRVNAME1);
//kdCISModulePowerOn(DUAL_CAMERA_SUB_SENSOR,"",false,CAMERA_HW_DRVNAME1);
//kdCISModulePowerOn(DUAL_CAMERA_MAIN_2_SENSOR,"",false,CAMERA_HW_DRVNAME1);
}
//
atomic_inc(&g_CamDrvOpenCnt);
return 0;
}
整個函數就是對g_CamDrvOpenCnt變量進行了一個原子讀的過程，沒有進行別的操作。而上層跟驅動進行通訊主要是通過ioctl發送命令，然後進行數據傳輸，然後在看看.unlocked_ioctl= CAMERA_HW_Ioctl中的CAMERA_HW_Ioctl操作；
static long CAMERA_HW_Ioctl(
struct file * a_pstFile,
unsigned int a_u4Command,
unsigned long a_u4Param
)
{
int i4RetValue = 0;
void * pBuff = NULL;
u32 *pIdx = NULL;
mutex_lock(&kdCam_Mutex);
if(_IOC_NONE == _IOC_DIR(a_u4Command)) {
}
else {
pBuff = kmalloc(_IOC_SIZE(a_u4Command),GFP_KERNEL); //申請分配一個buffer
if(NULL == pBuff) {
PK_DBG("[CAMERA SENSOR] ioctl allocate mem failed\n");
i4RetValue = -ENOMEM;
goto CAMERA_HW_Ioctl_EXIT;
}
if(_IOC_WRITE & _IOC_DIR(a_u4Command)){ //判斷是否可寫
//將用戶傳遞過來的命令參數復制到內核空間，接下來我們會根據這個數據進行選擇
if(copy_from_user(pBuff , (void *) a_u4Param, _IOC_SIZE(a_u4Command))) {
kfree(pBuff);
PK_DBG("[CAMERA SENSOR] ioctl copy from user failed\n");
i4RetValue = -EFAULT;
goto CAMERA_HW_Ioctl_EXIT;
}
}
}
pIdx = (u32*)pBuff;
switch(a_u4Command) {
#if 0
case KDIMGSENSORIOC_X_POWER_ON:
i4RetValue = kdModulePowerOn((CAMERA_DUAL_CAMERA_SENSOR_ENUM) *pIdx, true, CAMERA_HW_DRVNAME);
break;
case KDIMGSENSORIOC_X_POWER_OFF:
i4RetValue = kdModulePowerOn((CAMERA_DUAL_CAMERA_SENSOR_ENUM) *pIdx, false, CAMERA_HW_DRVNAME);
break;
#endif
case KDIMGSENSORIOC_X_SET_DRIVER:
i4RetValue = kdSetDriver((unsigned int*)pBuff);
break;
case KDIMGSENSORIOC_T_OPEN:
i4RetValue = adopt_CAMERA_HW_Open();
break;
case KDIMGSENSORIOC_X_GETINFO:
i4RetValue = adopt_CAMERA_HW_GetInfo(pBuff);
break;
case KDIMGSENSORIOC_X_GETRESOLUTION:
i4RetValue = adopt_CAMERA_HW_GetResolution(pBuff);
break;
case KDIMGSENSORIOC_X_FEATURECONCTROL:
i4RetValue = adopt_CAMERA_HW_FeatureControl(pBuff);
break;
case KDIMGSENSORIOC_X_CONTROL:
i4RetValue = adopt_CAMERA_HW_Control(pBuff);
break;
case KDIMGSENSORIOC_T_CLOSE:
i4RetValue = adopt_CAMERA_HW_Close();
break;
case KDIMGSENSORIOC_T_CHECK_IS_ALIVE:
i4RetValue = adopt_CAMERA_HW_CheckIsAlive();
break;
case KDIMGSENSORIOC_X_GET_SOCKET_POS:
i4RetValue = kdGetSocketPostion((unsigned int*)pBuff);
break;
case KDIMGSENSORIOC_X_SET_I2CBUS:
//i4RetValue = kdSetI2CBusNum(*pIdx);
break;
case KDIMGSENSORIOC_X_RELEASE_I2C_TRIGGER_LOCK:
//i4RetValue = kdReleaseI2CTriggerLock();
break;
default :
PK_DBG("No such command \n");
i4RetValue = -EPERM;
break;
}
if(_IOC_READ & _IOC_DIR(a_u4Command)) {
if(copy_to_user((void __user *) a_u4Param , pBuff , _IOC_SIZE(a_u4Command))) {
kfree(pBuff);
PK_DBG("[CAMERA SENSOR] ioctl copy to user failed\n");
i4RetValue = -EFAULT;
goto CAMERA_HW_Ioctl_EXIT;
}
}
kfree(pBuff);
CAMERA_HW_Ioctl_EXIT:
mutex_unlock(&kdCam_Mutex);
return i4RetValue;
}
ioctl主要就是上層通過cmd命令來與底層進行通信，下面就看看這個比較重要的cmd命令：
a）：KDIMGSENSORIOC_T_OPEN命令：
case KDIMGSENSORIOC_T_OPEN:
i4RetValue = adopt_CAMERA_HW_Open();
break;
inline static int adopt_CAMERA_HW_Open(void)
{
UINT32 err = 0;
KD_IMGSENSOR_PROFILE_INIT();
if (atomic_read(&g_CamHWOpend) == 0 ) {
if (g_pSensorFunc) { //判斷我們imagesensor 操作函數指針是否為NULL，如果為NULL，報錯，因為我們就是靠這個操作函數集合去操作imagesensor 的
err = g_pSensorFunc->SensorOpen(); // 會調用到kd_MultiSensorFunc裡面的kd_MultiSensorOpen函數
if(ERROR_NONE != err) {
PK_DBG(" ERROR:SensorOpen(), turn off power \n");
kdModulePowerOn((CAMERA_DUAL_CAMERA_SENSOR_ENUM*) g_invokeSocketIdx, g_invokeSensorNameStr, false, CAMERA_HW_DRVNAME1);
}
}
else {
PK_DBG(" ERROR:NULL g_pSensorFunc\n");
}
KD_IMGSENSOR_PROFILE("SensorOpen");
}
else {
//PK_ERR("adopt_CAMERA_HW_Open Fail, g_CamHWOpend = %d,g_CamHWOpend2 = %d\n ",atomic_read(&g_CamHWOpend),atomic_read(&g_CamHWOpend2) );
PK_ERR("adopt_CAMERA_HW_Open Fail, g_CamHWOpend = %d\n ",atomic_read(&g_CamHWOpend) );
}
if (err == 0 ) {
atomic_set(&g_CamHWOpend, 1);
//atomic_set(&g_CamHWOpend2, 1);
}
return err?-EIO:err;
} /* adopt_CAMERA_HW_Open() */
g_pSensorFunc結構體的定義為staticMULTI_SENSOR_FUNCTION_STRUCT *g_pSensorFunc = &kd_MultiSensorFunc，它跟kd_MultiSensorFunc指向相同的地址，if (g_pSensorFunc)由這裡可以看出，上層調用ioctl命令時不可能先走KDIMGSENSORIOC_T_OPEN這個命令，因為此時g_pSensorFunc為NULL，還沒有賦值，由後面的代碼可以看到，ioctl先走的cmd命令是KDIMGSENSORIOC_X_SET_DRIVER。當g_pSensorFunc不為NULL時，就是執行這個err =g_pSensorFunc->SensorOpen();，這裡的SensorOpen函數指向的是kd_MultiSensorOpen函數。
MUINT32 kd_MultiSensorOpen ( void )
{
MUINT32 ret = ERROR_NONE;
MINT32 i = 0;
KD_MULTI_FUNCTION_ENTRY(); // 得到當前時間
for ( i = (KDIMGSENSOR_MAX_INVOKE_DRIVERS-1) ; i >= KDIMGSENSOR_INVOKE_DRIVER_0 ; i-- ) {
if ( g_bEnableDriver[i] && g_pInvokeSensorFunc[i] ) {
// turn on power
ret = kdCISModulePowerOn((CAMERA_DUAL_CAMERA_SENSOR_ENUM)g_invokeSocketIdx[i],(char*)g_invokeSensorNameStr[i],true,CAMERA_HW_DRVNAME1);
if ( ERROR_NONE != ret ) { // 上電
PK_ERR("[%s]",__FUNCTION__);
return ret;
}
//wait for power stable
mDELAY(10);
KD_IMGSENSOR_PROFILE("kdModulePowerOn");
ret = g_pInvokeSensorFunc[i]->SensorOpen(); //調用到模塊驅動中的open函數，g_pInvokeSensorFunc保存的值為模塊驅動中的SENSOR_FUNCTION_STRUCT SensorFuncGC2035這個結構體
if ( ERROR_NONE != ret ) {
kdCISModulePowerOn((CAMERA_DUAL_CAMERA_SENSOR_ENUM)g_invokeSocketIdx[i],(char*)g_invokeSensorNameStr[i],false,CAMERA_HW_DRVNAME1); // 掉電
PK_ERR("SensorOpen");
return ret;
}
}
}
KD_MULTI_FUNCTION_EXIT();
return ERROR_NONE;
}
g_bEnableDriver定義為一個bool型的變量，定義如下static BOOL g_bEnableDriver[KDIMGSENSOR_MAX_INVOKE_DRIVERS] ={FALSE,FALSE}，而g_pInvokeSensorFunc的定義為static SENSOR_FUNCTION_STRUCT*g_pInvokeSensorFunc[KDIMGSENSOR_MAX_INVOKE_DRIVERS] = {NULL,NULL};而g_pInvokeSensorFunc的地址跟模塊驅動中的SENSOR_FUNCTION_STRUCT SensorFuncGC2035這個地址指向是相同的，他是作為一個參數傳遞來被調用的，這兩個變量的實現都會在後面KDIMGSENSORIOC_X_SET_DRIVER命令調用時介紹的。當這兩個變量都為true時，就對sensor進行上電，然後就通過ret =g_pInvokeSensorFunc[i]->SensorOpen()進入到了模塊sensor驅動中的open函數。至於上電跟掉電函數kdCISModulePowerOn，在mediatek/custom/ztenj72_we_72_m536_kk/kernel/camera/camera/kd_camera_hw.c文件中，其實上電跟掉電時序就是配置一些GPIO口，然後在把camera的三路電壓按dateshell配置一下上掉電的時間。
b）：KDIMGSENSORIOC_X_SET_DRIVER命令：
case KDIMGSENSORIOC_X_SET_DRIVER:
i4RetValue = kdSetDriver((unsigned int*)pBuff);
break;
int kdSetDriver(unsigned int* pDrvIndex)
{
ACDK_KD_SENSOR_INIT_FUNCTION_STRUCT *pSensorList = NULL; // 這是一個保存cameraId跟cameraName的結構體
u32 drvIdx[KDIMGSENSOR_MAX_INVOKE_DRIVERS] = {0,0};
u32 i;
PK_XLOG_INFO("pDrvIndex:0x%08x/0x%08x \n",pDrvIndex[KDIMGSENSOR_INVOKE_DRIVER_0],pDrvIndex[KDIMGSENSOR_INVOKE_DRIVER_1]);
//set driver for MAIN or SUB sensor
if (0 != kdGetSensorInitFuncList(&pSensorList)) //調用這個函數，取得所有添加的sensor的結構的首地址
{
PK_ERR("ERROR:kdGetSensorInitFuncList()\n");
return -EIO;
}
for ( i = KDIMGSENSOR_INVOKE_DRIVER_0; i < KDIMGSENSOR_MAX_INVOKE_DRIVERS ; i++ ) {
//
spin_lock(&kdsensor_drv_lock);
g_bEnableDriver[i] = FALSE;
g_invokeSocketIdx[i] = (CAMERA_DUAL_CAMERA_SENSOR_ENUM)((pDrvIndex[i] & KDIMGSENSOR_DUAL_MASK_MSB)>>KDIMGSENSOR_DUAL_SHIFT); // 保存camera的sensorId
spin_unlock(&kdsensor_drv_lock);
drvIdx[i] = (pDrvIndex[i] & KDIMGSENSOR_DUAL_MASK_LSB);
//
if ( DUAL_CAMERA_NONE_SENSOR == g_invokeSocketIdx[i] ) { continue; }
//ToDo: remove print information
PK_XLOG_INFO("[kdSetDriver] i,g_invokeSocketIdx[%d] = %d :\n",i,i,drvIdx[i]);
PK_XLOG_INFO("[kdSetDriver] i,drvIdx[%d] = %d :\n",i,i,drvIdx[i]);
//
if ( MAX_NUM_OF_SUPPORT_SENSOR > drvIdx[i] ) {
if (NULL == pSensorList[drvIdx[i]].SensorInit) {
PK_ERR("ERROR:kdSetDriver()\n");
return -EIO;
}
pSensorList[drvIdx[i]].SensorInit(&g_pInvokeSensorFunc[i]);// 調用模塊驅動中的init函數，將模塊驅動裡面的SENSOR_FUNCTION_STRUCT SensorFuncOV2685值傳遞給g_pInvokeSensorFunc結構體
if (NULL == g_pInvokeSensorFunc[i]) {
PK_ERR("ERROR:NULL g_pSensorFunc[%d]\n",i);
return -EIO;
}
//
spin_lock(&kdsensor_drv_lock);
g_bEnableDriver[i] = TRUE;
g_CurrentInvokeCam = g_invokeSocketIdx[i];
spin_unlock(&kdsensor_drv_lock);
//get sensor name
memcpy((char*)g_invokeSensorNameStr[i],(char*)pSensorList[drvIdx[i]].drvname,sizeof(pSensorList[drvIdx[i]].drvname));
//return sensor ID
//pDrvIndex[0] = (unsigned int)pSensorList[drvIdx].SensorId;
PK_XLOG_INFO("[kdSetDriver] :[%d][%d][%d][%s][%d]\n",i,g_bEnableDriver[i],g_invokeSocketIdx[i],g_invokeSensorNameStr[i],sizeof(pSensorList[drvIdx[i]].drvname));
}
}
return 0;
}
kdSetDriver這個函數比較重要，上層調用底層的命令應該第一步就是調用這個命令的，函數開頭定義了一個ACDK_KD_SENSOR_INIT_FUNCTION_STRUCT *pSensorList = NULL;這樣的結構體，ACDK_KD_SENSOR_INIT_FUNCTION_STRUCT變量是為src/kd_sensorlist.h文件裡面保存sensor的ID，NAME以及init的結構體，if (0 !=kdGetSensorInitFuncList(&pSensorList))通過調用kdGetSensorInitFuncList函數，將pSensorList的首地址指向src/kd_sensorlist.h裡面ACDK_KD_SENSOR_INIT_FUNCTION_STRUCT變量的首地址。
UINT32 kdGetSensorInitFuncList(ACDK_KD_SENSOR_INIT_FUNCTION_STRUCT **ppSensorList)
{
if (NULL == ppSensorList)
{
PK_DBG("[kdGetSensorInitFuncList]ERROR: NULL ppSensorList\n");
return 1;
}
*ppSensorList = &kdSensorList[0]; // kdSensorList在kd_sensorlist.h文件裡面，就是保存cameraId，cameraNmae，模塊驅動人口函數的結構體
return 0;
}
調用了kdGetSensorInitFuncList後，代碼先將g_bEnableDriver置為FALSE，而這個變量就是在上面的open函數裡面出現過的。然後通過if (NULL ==pSensorList[drvIdx[i]].SensorInit)判斷模塊驅動的init函數是否為NULL，pSensorList[drvIdx[i]].SensorInit(&g_pInvokeSensorFunc[i]);傳遞&g_pInvokeSensorFunc[i]為參數，其中還是傳遞的地址，這就將g_pInvokeSensorFunc的首地址指向了模塊驅動函數中的UINT32 GC2035_YUV_SensorInit(PSENSOR_FUNCTION_STRUCT *pfFunc)這個函數，這就是上面kd_MultiSensorOpen中為什麼g_pInvokeSensorFunc可以直接調用模塊驅動中的open函數，其實就是在這裡實現的。當調用完成後，然後就將camera的ID，NAME等信息保存並將g_bEnableDriver[i]變量置為TRUE。
case KDIMGSENSORIOC_T_OPEN:
i4RetValue = adopt_CAMERA_HW_Open();
break;
inline static int adopt_CAMERA_HW_Open(void)
{
UINT32 err = 0;
KD_IMGSENSOR_PROFILE_INIT();
//power on sensor
//if ((atomic_read(&g_CamHWOpend) == 0) && (atomic_read(&g_CamHWOpend2) == 0)) {
if (atomic_read(&g_CamHWOpend) == 0 ) {
//move into SensorOpen() for 2on1 driver
// turn on power
//kdModulePowerOn((CAMERA_DUAL_CAMERA_SENSOR_ENUM*) g_invokeSocketIdx, g_invokeSensorNameStr,true, CAMERA_HW_DRVNAME);
//wait for power stable
//mDELAY(10);
//KD_IMGSENSOR_PROFILE("kdModulePowerOn");
//
if (g_pSensorFunc) {
err = g_pSensorFunc->SensorOpen();
if(ERROR_NONE != err) {
PK_DBG(" ERROR:SensorOpen(), turn off power \n");
kdModulePowerOn((CAMERA_DUAL_CAMERA_SENSOR_ENUM*) g_invokeSocketIdx, g_invokeSensorNameStr, false, CAMERA_HW_DRVNAME1);
}
}
else {
PK_DBG(" ERROR:NULL g_pSensorFunc\n");
}
KD_IMGSENSOR_PROFILE("SensorOpen");
}
else {
//PK_ERR("adopt_CAMERA_HW_Open Fail, g_CamHWOpend = %d,g_CamHWOpend2 = %d\n ",atomic_read(&g_CamHWOpend),atomic_read(&g_CamHWOpend2) );
PK_ERR("adopt_CAMERA_HW_Open Fail, g_CamHWOpend = %d\n ",atomic_read(&g_CamHWOpend) );
}
if (err == 0 ) {
atomic_set(&g_CamHWOpend, 1);
//atomic_set(&g_CamHWOpend2, 1);
}
return err?-EIO:err;
} /* adopt_CAMERA_HW_Open() */
KDIMGSENSORIOC_T_OPEN命令就是通過調用adopt_CAMERA_HW_Open函數，而adopt_CAMERA_HW_Open函數中會通過err =g_pSensorFunc->SensorOpen();調用到模塊驅動中的open函數。而在這裡就不一一介紹了，下面來看看你看驅動中的各個接口函數有什麼含義，以gc2035驅動為模板分析。
UINT32 GC2035_YUV_SensorInit(PSENSOR_FUNCTION_STRUCT *pfFunc)
{
/* To Do : Check Sensor status here */
if (pfFunc!=NULL)
*pfFunc=&SensorFuncGC2035;
return ERROR_NONE;
} /* Sensor
SENSOR_FUNCTION_STRUCT SensorFuncGC2035=
{
GC2035Open,
GC2035GetInfo,
GC2035GetResolution,
GC2035FeatureControl,
GC2035Control,
GC2035Close
};
GC2035Open：
UINT32 GC2035Open(void)
{
volatile signed char i;
kal_uint16 sensor_id=0;
zoom_factor = 0;
Sleep(10);
SENSORDB("GC2035Open\r\n");
// Read sensor ID to adjust I2C is OK?
for(i=0;i<3;i++)
{
sensor_id = (GC2035_read_cmos_sensor(0xf0) << 8) | GC2035_read_cmos_sensor(0xf1);
if(sensor_id != GC2035_SENSOR_ID) // GC2035_SENSOR_ID = 0x2035
{
return ERROR_SENSOR_CONNECT_FAIL;
}
}
SENSORDB("GC2035 Sensor Read ID OK \r\n");
GC2035_Sensor_Init();
GC2035_Write_More();
Preview_Shutter =GC2035_read_shutter();
return ERROR_NONE;
}
通過函數實現就可以看出來，這裡是在通過i2c控制imagesensor的register，讀取deivceid ,看是否鏈接上對應的imagesensor；
GC2035GetInfo：
UINT32 GC2035GetInfo(MSDK_SCENARIO_ID_ENUM ScenarioId,
MSDK_SENSOR_INFO_STRUCT *pSensorInfo,
MSDK_SENSOR_CONFIG_STRUCT *pSensorConfigData)
{
pSensorInfo->SensorPreviewResolutionX=GC2035_IMAGE_SENSOR_PV_WIDTH;
pSensorInfo->SensorPreviewResolutionY=GC2035_IMAGE_SENSOR_PV_HEIGHT;
pSensorInfo->SensorFullResolutionX=GC2035_IMAGE_SENSOR_FULL_WIDTH;
pSensorInfo->SensorFullResolutionY=GC2035_IMAGE_SENSOR_FULL_HEIGHT;
pSensorInfo->SensorCameraPreviewFrameRate=30;
pSensorInfo->SensorVideoFrameRate=30;
pSensorInfo->SensorStillCaptureFrameRate=10;
pSensorInfo->SensorWebCamCaptureFrameRate=15;
pSensorInfo->SensorResetActiveHigh=FALSE;
pSensorInfo->SensorResetDelayCount=1;
pSensorInfo->SensorOutputDataFormat=SENSOR_OUTPUT_FORMAT_YUYV;
pSensorInfo->SensorClockPolarity=SENSOR_CLOCK_POLARITY_LOW; /*??? */
pSensorInfo->SensorClockFallingPolarity=SENSOR_CLOCK_POLARITY_LOW;
pSensorInfo->SensorHsyncPolarity = SENSOR_CLOCK_POLARITY_LOW;
pSensorInfo->SensorVsyncPolarity = SENSOR_CLOCK_POLARITY_LOW;
pSensorInfo->SensorInterruptDelayLines = 1;
pSensorInfo->CaptureDelayFrame = 4;
pSensorInfo->PreviewDelayFrame = 1; // 2 betty
pSensorInfo->VideoDelayFrame = 0;
pSensorInfo->SensorMasterClockSwitch = 0;
pSensorInfo->SensorDrivingCurrent = ISP_DRIVING_6MA;
pSensorInfo->SensroInterfaceType=SENSOR_INTERFACE_TYPE_PARALLEL;
SENSORDB("GC2035GetInfo\r\n");
switch (ScenarioId)
{
case MSDK_SCENARIO_ID_CAMERA_PREVIEW:
case MSDK_SCENARIO_ID_VIDEO_PREVIEW:
pSensorInfo->SensorClockFreq=22;
pSensorInfo->SensorClockDividCount=3;
pSensorInfo->SensorClockRisingCount= 0;
pSensorInfo->SensorClockFallingCount= 2;
pSensorInfo->SensorPixelClockCount= 3;
pSensorInfo->SensorDataLatchCount= 2;
pSensorInfo->SensorGrabStartX = 2;
pSensorInfo->SensorGrabStartY = 2;
break;
case MSDK_SCENARIO_ID_CAMERA_CAPTURE_JPEG:
pSensorInfo->SensorClockFreq=22;
pSensorInfo->SensorClockDividCount=3;
pSensorInfo->SensorClockRisingCount= 0;
pSensorInfo->SensorClockFallingCount= 2;
pSensorInfo->SensorPixelClockCount= 3;
pSensorInfo->SensorDataLatchCount= 2;
pSensorInfo->SensorGrabStartX = 2;
pSensorInfo->SensorGrabStartY = 2;
break;
default:
pSensorInfo->SensorClockFreq=22;
pSensorInfo->SensorClockDividCount=3;
pSensorInfo->SensorClockRisingCount=0;
pSensorInfo->SensorClockFallingCount=2;
pSensorInfo->SensorPixelClockCount=3;
pSensorInfo->SensorDataLatchCount=2;
pSensorInfo->SensorGrabStartX = 2;
pSensorInfo->SensorGrabStartY = 2;
break;
}
memcpy(pSensorConfigData, &GC2035SensorConfigData, sizeof(MSDK_SENSOR_CONFIG_STRUCT));
return ERROR_NONE;
}
上面的函數一共傳遞進來了3個變量，第一個變量：是控制camera的工作模式，(拍照、攝像等等)第2個參數：主要設置imagesensor的頻率的(時鐘頻率、預覽頻率、以及同步頻率)；第3個參數同樣也是camera的設置，其實要看到底是在干嘛，只要看看這個參數是如何定義的就可以了。
GC2035GetResolution：
UINT32 GC2035GetResolution(MSDK_SENSOR_RESOLUTION_INFO_STRUCT *pSensorResolution)
{
SENSORDB("GC2035GetResolution\r\n");
pSensorResolution->SensorFullWidth=GC2035_IMAGE_SENSOR_FULL_WIDTH - 2 * IMAGE_SENSOR_START_GRAB_X;
pSensorResolution->SensorFullHeight=GC2035_IMAGE_SENSOR_FULL_HEIGHT - 2 * IMAGE_SENSOR_START_GRAB_Y;
pSensorResolution->SensorPreviewWidth=GC2035_IMAGE_SENSOR_PV_WIDTH - 2 * IMAGE_SENSOR_START_GRAB_X;
pSensorResolution->SensorPreviewHeight=GC2035_IMAGE_SENSOR_PV_HEIGHT - 2 * IMAGE_SENSOR_START_GRAB_Y;
pSensorResolution->SensorVideoWidth=GC2035_IMAGE_SENSOR_PV_WIDTH - 2 * IMAGE_SENSOR_START_GRAB_X;
pSensorResolution->SensorVideoHeight=GC2035_IMAGE_SENSOR_PV_HEIGHT - 2 * IMAGE_SENSOR_START_GRAB_Y;
return ERROR_NONE;
}
設置camera在預覽模式下的高度、寬度等；
GC2035FeatureControl：
UINT32 GC2035FeatureControl(MSDK_SENSOR_FEATURE_ENUM FeatureId,
UINT8 *pFeaturePara,UINT32 *pFeatureParaLen)
{
UINT16 *pFeatureReturnPara16=(UINT16 *) pFeaturePara;
UINT16 *pFeatureData16=(UINT16 *) pFeaturePara;
UINT32 *pFeatureReturnPara32=(UINT32 *) pFeaturePara;
UINT32 *pFeatureData32=(UINT32 *) pFeaturePara;
MSDK_SENSOR_CONFIG_STRUCT *pSensorConfigData=(MSDK_SENSOR_CONFIG_STRUCT *) pFeaturePara;
MSDK_SENSOR_REG_INFO_STRUCT *pSensorRegData=(MSDK_SENSOR_REG_INFO_STRUCT *) pFeaturePara;
switch (FeatureId)
{
case SENSOR_FEATURE_GET_RESOLUTION:
*pFeatureReturnPara16++=GC2035_IMAGE_SENSOR_FULL_WIDTH;
*pFeatureReturnPara16=GC2035_IMAGE_SENSOR_FULL_HEIGHT;
*pFeatureParaLen=4;
break;
case SENSOR_FEATURE_GET_PERIOD:
*pFeatureReturnPara16++=GC2035_IMAGE_SENSOR_PV_WIDTH;
*pFeatureReturnPara16=GC2035_IMAGE_SENSOR_PV_HEIGHT;
*pFeatureParaLen=4;
break;
case SENSOR_FEATURE_GET_PIXEL_CLOCK_FREQ:
//*pFeatureReturnPara32 = GC2035_sensor_pclk/10;
*pFeatureParaLen=4;
break;
case SENSOR_FEATURE_SET_ESHUTTER:
break;
case SENSOR_FEATURE_SET_NIGHTMODE:
GC2035_night_mode((BOOL) *pFeatureData16);
break;
case SENSOR_FEATURE_SET_GAIN:
case SENSOR_FEATURE_SET_FLASHLIGHT:
break;
case SENSOR_FEATURE_SET_ISP_MASTER_CLOCK_FREQ:
GC2035_isp_master_clock=*pFeatureData32;
break;
case SENSOR_FEATURE_SET_REGISTER:
GC2035_write_cmos_sensor(pSensorRegData->RegAddr, pSensorRegData->RegData);
break;
case SENSOR_FEATURE_GET_REGISTER:
pSensorRegData->RegData = GC2035_read_cmos_sensor(pSensorRegData->RegAddr);
break;
case SENSOR_FEATURE_GET_CONFIG_PARA:
memcpy(pSensorConfigData, &GC2035SensorConfigData, sizeof(MSDK_SENSOR_CONFIG_STRUCT));
*pFeatureParaLen=sizeof(MSDK_SENSOR_CONFIG_STRUCT);
break;
case SENSOR_FEATURE_SET_CCT_REGISTER:
case SENSOR_FEATURE_GET_CCT_REGISTER:
case SENSOR_FEATURE_SET_ENG_REGISTER:
case SENSOR_FEATURE_GET_ENG_REGISTER:
case SENSOR_FEATURE_GET_REGISTER_DEFAULT:
case SENSOR_FEATURE_CAMERA_PARA_TO_SENSOR:
case SENSOR_FEATURE_SENSOR_TO_CAMERA_PARA:
case SENSOR_FEATURE_GET_GROUP_INFO:
case SENSOR_FEATURE_GET_ITEM_INFO:
case SENSOR_FEATURE_SET_ITEM_INFO:
case SENSOR_FEATURE_GET_ENG_INFO:
break;
case SENSOR_FEATURE_GET_GROUP_COUNT:
*pFeatureReturnPara32++=0;
*pFeatureParaLen=4;
break;
case SENSOR_FEATURE_GET_LENS_DRIVER_ID:
// get the lens driver ID from EEPROM or just return LENS_DRIVER_ID_DO_NOT_CARE
// if EEPROM does not exist in camera module.
*pFeatureReturnPara32=LENS_DRIVER_ID_DO_NOT_CARE;
*pFeatureParaLen=4;
break;
case SENSOR_FEATURE_CHECK_SENSOR_ID:
GC2035_GetSensorID(pFeatureData32);
break;
case SENSOR_FEATURE_SET_YUV_CMD:
//printk("GC2035 YUV sensor Setting:%d, %d \n", *pFeatureData32, *(pFeatureData32+1));
GC2035YUVSensorSetting((FEATURE_ID)*pFeatureData32, *(pFeatureData32+1));
break;
case SENSOR_FEATURE_SET_VIDEO_MODE:
GC2035YUVSetVideoMode(*pFeatureData16);
break;
default:
break;
}
return ERROR_NONE;
}
這個是上層會提供featureid，底層通過這個id進行不同case的執行為para和paralen賦值：
GC2035Control：
UINT32 GC2035Control(MSDK_SCENARIO_ID_ENUM ScenarioId, MSDK_SENSOR_EXPOSURE_WINDOW_STRUCT *pImageWindow,
MSDK_SENSOR_CONFIG_STRUCT *pSensorConfigData)
{
switch (ScenarioId)
{
case MSDK_SCENARIO_ID_CAMERA_PREVIEW:
case MSDK_SCENARIO_ID_VIDEO_PREVIEW:
GC2035_sensor_cap_zsd = KAL_FALSE;
GC2035Preview(pImageWindow, pSensorConfigData);
break;
case MSDK_SCENARIO_ID_CAMERA_CAPTURE_JPEG:
GC2035_sensor_cap_zsd = KAL_FALSE;
GC2035Capture(pImageWindow, pSensorConfigData);
break;
case MSDK_SCENARIO_ID_CAMERA_ZSD:
GC2035_sensor_cap_zsd = KAL_TRUE;
GC2035Capture(pImageWindow, pSensorConfigData);
break;
default:
break;
}
return TRUE;
}
這個函數和上面一樣，也是提供控制的一個Interface。
GC2035Close：
UINT32 GC2035Close(void)
{
// CISModulePowerOn(FALSE);
SENSORDB("GC2035Close\r\n");
return ERROR_NONE;
}
這裡close沒有實現任何事情。
ES文件浏覽器連接電腦顯示登錄失敗
ES文件浏覽器連接電腦顯示登錄失敗。之前在連著電腦看著電視，不知道手機怎麼了，現在連接不上，還顯示登錄失敗。現在不知道怎麼辦。小編來給大家演示一下，當ES浏
Android開發仿映客送禮物效果
這裡寫鏈接內容仿映客送小禮物的特效，順便復習一下屬性動畫，話不多說先看效果圖。需求分析可以看到整個動畫有幾部分組成，那我們就把每個部分拆分出來各個擊破。1.要顯示那些內容
Android Accessibility使用及原理簡介
Accessibility是Android從API 4開始提供的一個功能，它主要目的是幫助一些因為有視覺，聽覺，身體障礙而無法完全使用觸摸屏或鈴聲等的用戶來使用Andro
融雲如何實現文件發送(高級進階)
干貨來啦~！ 想在聊天中發 小視頻？gif 動圖？ 發紅包？ 發 自定義表情？ 沒有問題！在融雲統統都可以實現！ 以上不管是 小視頻 還是 gif 還是 紅包 或者是 自
