扣丁音樂（三）——UI框架的實現

一丶PagerSlidingTabStrp運用

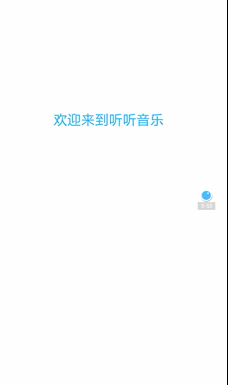

扣丁音樂1.0前部分（gif圖大小限制）演示：

視頻教程中是直接將PagerSlidingTabStrp例子的主頁面拿來做主頁面，並對相應用到的地方做出修改

修改一：

activity_main.xml

保留如下，其余控件刪除



<com.astuetz.pagerslidingtabstrip android:id="@+id/tabs" android:layout_width="match_parent" android:layout_height="48dip" android:background="@drawable/background_tabs">

<android.support.v4.view.viewpager android:id="@+id/pager" android:layout_width="match_parent" android:layout_height="wrap_content" android:layout_below="@+id/tabs" tools:context=".MainActivity"></android.support.v4.view.viewpager></com.astuetz.pagerslidingtabstrip>

修改二：

MainActivity.java

默認顏色

private int currentColor = 0xFFC74B46;

滑動項名字

private final String[] TITLES = { "我的音樂", "音樂館" };

滑動Fragment相關加載（作者目前階段的）

@Override
   public Fragment getItem(int position) {

      if(position==0){
         if(myMusicFragment==null){
            myMusicFragment = MyMusicFragment.newInstance();
         }
         return myMusicFragment;
      }else if(position==1){
         if(netMusicFragment==null){
            netMusicFragment = NetMusicFragment.newInstance();
         }
         return netMusicFragment;
      }
      return null;
   }

}

二丶MymusicFragment



由演示可以看到我的頁面比視頻上多一個跳轉頁，並沒有在MymusicFragment實現歌曲加載而是通過點擊跳轉，其實也就多一個頁面。

MymusicFragment.xml



<!--{cke_protected}{C}%3C!%2D%2D%3Fxml%20version%3D%221.0%22%20encoding%3D%22utf-8%22%3F%2D%2D%3E-->
<relativelayout xmlns:android="http://schemas.android.com/apk/res/android" android:layout_width="match_parent" android:layout_height="match_parent" android:background="@drawable/skin2">

    <relativelayout android:layout_width="wrap_content" android:layout_height="wrap_content" android:layout_margintop="10dp" android:background="#10ffffff">

        <linearlayout android:id="@+id/four_module" android:layout_width="match_parent" android:layout_height="wrap_content" android:layout_margintop="20dp" android:layout_marginbottom="20dp" android:orientation="horizontal">

            <linearlayout android:id="@+id/ll_local_songs" android:layout_width="wrap_content" android:layout_height="wrap_content" android:layout_weight="1" android:gravity="center" android:orientation="vertical">

                <imageview android:id="@+id/iv_local_songs" android:layout_width="wrap_content" android:layout_height="wrap_content" android:src="@drawable/local_songs">

                <textview android:id="@+id/tv_local_songs" android:layout_width="wrap_content" android:layout_height="wrap_content" android:text="@string/local_songs" android:paddingtop="10dp" android:textcolor="@color/white" android:textstyle="bold">

                <textview android:id="@+id/tv_songs_count" android:layout_width="wrap_content" android:layout_height="wrap_content" android:text="12" android:paddingtop="5dp" android:textcolor="@color/white">

            </textview></textview></imageview></linearlayout>

            <linearlayout android:id="@+id/ll_already_download" android:layout_width="wrap_content" android:layout_height="wrap_content" android:orientation="vertical" android:layout_weight="1" android:gravity="center">

                <imageview android:id="@+id/iv_already_download" android:layout_width="wrap_content" android:layout_height="wrap_content" android:src="@drawable/already_download">

                <textview android:id="@+id/tv_already_download" android:layout_width="wrap_content" android:layout_height="wrap_content" android:text="@string/already_download" android:paddingtop="10dp" android:textcolor="@color/white" android:textstyle="bold">

                <textview android:id="@+id/download_count" android:layout_width="wrap_content" android:layout_height="wrap_content" android:text="15" android:paddingtop="5dp" android:textcolor="@color/white">

            </textview></textview></imageview></linearlayout>

            <linearlayout android:id="@+id/ll_recent_played" android:layout_width="wrap_content" android:layout_height="wrap_content" android:orientation="vertical" android:layout_weight="1" android:gravity="center">

                <imageview android:id="@+id/iv_recent_played" android:layout_width="wrap_content" android:layout_height="wrap_content" android:src="@drawable/recent_played">

                <textview android:id="@+id/tv_recent_played" android:layout_width="wrap_content" android:layout_height="wrap_content" android:text="@string/recent_played" android:paddingtop="10dp" android:textcolor="@color/white" android:textstyle="bold">

                <textview android:id="@+id/tv_download_count" android:layout_width="wrap_content" android:layout_height="wrap_content" android:text="16" android:paddingtop="5dp" android:textcolor="@color/white">

            </textview></textview></imageview></linearlayout>

            <linearlayout android:id="@+id/ll_settings" android:layout_width="wrap_content" android:layout_height="wrap_content" android:layout_weight="1" android:gravity="center" android:orientation="vertical">

                <imageview android:id="@+id/iv_settings" android:layout_width="wrap_content" android:layout_height="wrap_content" android:src="@drawable/settings">

                <textview android:id="@+id/tv_settings" android:layout_width="wrap_content" android:layout_height="wrap_content" android:text="@string/settings" android:paddingtop="10dp" android:textcolor="@color/white" android:textstyle="bold">
            </textview></imageview></linearlayout>
        </linearlayout>
    </relativelayout>

</relativelayout>

MymusicFragment.java





public class MyMusicFragment extends Fragment implements View.OnClickListener{
    private LinearLayout layout_local_songs;
    private MainActivity mainActivity;
    /**
     * 初始化myMusicFragment,在MainActivity中調用
     * @return
     */
    public static MyMusicFragment newInstance(){
        MyMusicFragment myMusicFragment = new MyMusicFragment();
        return myMusicFragment;
    }

    @Override
    public View onCreateView(LayoutInflater inflater, ViewGroup container, Bundle savedInstanceState) {
        View view = inflater.inflate(R.layout.my_music_fragment,null);
        layout_local_songs = (LinearLayout)view.findViewById(R.id.ll_local_songs);
        layout_local_songs.setOnClickListener(this);
        return view;
    }

    @Override
    public void onClick(View view) {
        switch (view.getId()){
            case R.id.ll_local_songs:
                Intent intent = new Intent(getActivity(),LocalSongsActivity.class);
                startActivity(intent);
                break;
        }
    }
}

這裡由於目前功能只實現這麼多，數據寫的是虛擬的，也只完成對本地音樂列表的跳轉
