Android仿斗魚滑動登錄驗證

最近不是很忙,平常在家無聊時看看直播,總會看到一些新奇的驗證登錄方式,剛好自己也要熟悉一下新的開發工具android studio,所以打算自己實現一個.

一、確認需求

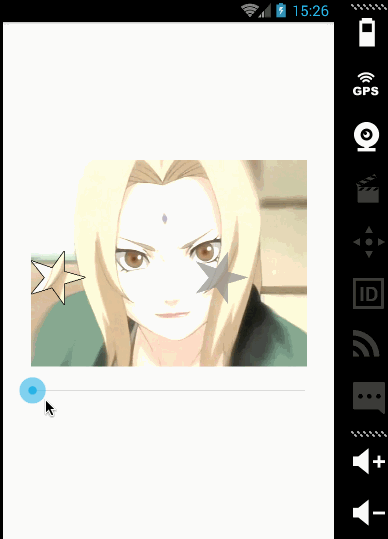

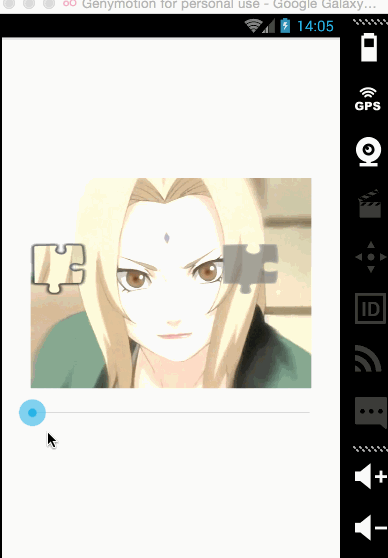

先看一下要到達的效果,如圖 :

滑塊圖片做的有點low,見諒.

分析一下,我們要實現這個功能需要什麼

首先需要一個滾動拖拽條,這個簡單,android系統給我們提供了原生SeekBar,裡邊的功能也比較齊全.

然後看一下我們重點要實現的功能,實現圖片上的驗證功能.我們分步來看

1.要在圖片上隨機位置顯示出一個陰影部分

2.要生成一個帶有邊框的並且符合陰影部分的驗證滑塊

3.生成的滑塊和陰影部分,角度隨機

4.生成的滑塊要隨著拖拽條一同滾動

5.驗證是否成功

二、思考解決方案

第一點,其實很簡單,我們只需要一張有透明度的陰影圖片,並且隨機生成一個坐標,遮擋住圖片即可.

第二點,可以用setXfermode中的圖像交叉模式來生成一個帶有邊框的滑塊.

第三點,可以通過改變圖像的matrix來實現對圖片的旋轉.

第四點,對外提供一個方法,來不斷改變滑塊的位置.

第五點,提供一個回調接口,來驗證是否成功.

三、代碼實現

有了上邊的思路,我們打算自定義一個DouYuView繼承自ImageView來實現功能.

先是創建一個attr文件定義一些自定義的屬性:


<?xml version="1.0" encoding="utf-8"?>
<resources>
    <!--滑塊的高度-->
    <attr name="unitHeight" format="dimension" />
    <!--滑塊的寬度-->
    <attr name="unitWidth" format="dimension" />
    <!--滑塊占圖片高度的比例-->
    <attr name="unitHeightScale" format="integer" />
    <!--滑塊占圖片寬度的比例-->
    <attr name="unitWidthScale" format="integer" />
    <!--滑塊邊框的圖片資源-->
    <attr name="unitShadeSrc" format="reference" />
    <!--陰影部分的圖片資源-->
    <attr name="unitShowSrc" format="reference" />
    <!--是否需要旋轉-->
    <attr name="needRotate" format="boolean" />
    <!--驗證時的誤差值-->
    <attr name="deviate" format="integer" />
    <declare-styleable name="DouYuView">
        <attr name="unitHeight" />
        <attr name="unitWidth" />
        <attr name="unitHeightScale" />
        <attr name="unitWidthScale" />
        <attr name="unitShadeSrc" />
        <attr name="unitShowSrc" />
        <attr name="needRotate" />
        <attr name="deviate" />
    </declare-styleable>
</resources>

代碼中的屬性及初始化

/**

* 定義畫筆

*/

private Paint mPaint;

/**

* 驗證的圖像

*/

private Bitmap mBitmap;

/**

* 驗證滑塊的高

*/

private int mUintHeight;

/**

* 驗證滑塊的寬

*/

private int mUintWidth;

/**

* 驗證滑塊寬占用整體圖片大小的比例,默認1/5

*/

private int mUnitWidthScale;

/**

* 驗證滑塊高度占用整體圖片大小的比例,默認1/4

*/

private int mUnitHeightScale;

/**

* 隨機生成滑塊的X坐標

*/

private int mUnitRandomX;

/**

* 隨機生成滑塊的Y坐標

*/

private int mUnitRandomY;

/***

* 滑塊移動的距離

*/

private float mUnitMoveDistance = 0;

/***

* 滑塊圖像

*/

private Bitmap mUnitBp;

/**

* 驗證位置圖像

*/

private Bitmap mShowBp;

/**

* 背景陰影圖像

*/

private Bitmap mShadeBp;

/**

* 是否需要旋轉

**/

private boolean needRotate;

/**

* 旋轉的角度

*/

private int rotate;

/**

* 判斷是否完成的偏差量，默認為10

*/

public int DEFAULT_DEVIATE;

/**

* 判斷是否重新繪制圖像

*/

private boolean isReSet = true;

public DouYuView(Context context, AttributeSet attrs, int defStyleAttr) {

super(context, attrs, defStyleAttr);

// 獲取自定義屬性

TypedArray ta = context.obtainStyledAttributes(attrs, R.styleable.DouYuView);

mUintWidth = ta.getDimensionPixelOffset(R.styleable.DouYuView_unitHeight, 0);

mUintHeight = ta.getDimensionPixelOffset(R.styleable.DouYuView_unitHeight, 0);

mUnitHeightScale = ta.getInteger(R.styleable.DouYuView_unitHeightScale, 4);

mUnitWidthScale = ta.getInteger(R.styleable.DouYuView_unitWidthScale, 5);

Drawable showBp = ta.getDrawable(R.styleable.DouYuView_unitShowSrc);

mShowBp = drawableToBitamp(showBp);

Drawable shadeBp = ta.getDrawable(R.styleable.DouYuView_unitShadeSrc);

mShadeBp = drawableToBitamp(shadeBp);

needRotate = ta.getBoolean(R.styleable.DouYuView_needRotate, true);

DEFAULT_DEVIATE = ta.getInteger(R.styleable.DouYuView_deviate, 10);

ta.recycle();

// 初始化

mPaint = new Paint();

mPaint.setAntiAlias(true);

if (needRotate) {

rotate = (int) (Math.random() * 3) * 90;

} else {

rotate = 0;

}

}

注釋寫的比較全,應該很好明白,然後我們需要獲取我們的圖片資源並且對圖片做一些處理,來使我們的圖片不會出現變形等情況.

/**

* drawable轉bitmap

*

* @param drawable

* @return

*/

private Bitmap drawableToBitamp(Drawable drawable) {

if (null == drawable) {

return null;

}

if (drawable instanceof BitmapDrawable) {

BitmapDrawable bd = (BitmapDrawable) drawable;

return bd.getBitmap();

}

int w = drawable.getIntrinsicWidth();

int h = drawable.getIntrinsicHeight();

Bitmap bitmap = Bitmap.createBitmap(w, h, Bitmap.Config.ARGB_8888);

Canvas canvas = new Canvas(bitmap);

drawable.setBounds(0, 0, w, h);

drawable.draw(canvas);

return bitmap;

}

/**

* 縮放圖片

*

* @param bp

* @param x

* @param y

* @return

*/

public static Bitmap handleBitmap(Bitmap bp, float x, float y) {

int w = bp.getWidth();

int h = bp.getHeight();

float sx = (float) x / w;

float sy = (float) y / h;

Matrix matrix = new Matrix();

matrix.postScale(sx, sy);

Bitmap resizeBmp = Bitmap.createBitmap(bp, 0, 0, w,

h, matrix, true);

return resizeBmp;

}

我們需要獲取到要驗證的圖片資源,然後需要通過縮放來使圖片和控件寬高保持一致,以免導致圖片顯示異常等問題.

獲取到圖片資源之後就可以去生成陰影部分和滑塊了,我們使用兩張圖片,需要注意的是第二張圖片邊框內部分使用白色,這次用兩張星星的圖片如下:

在生成陰影部分之前,需要隨機生成一個坐標點,代碼如下:

/**

* 隨機生成生成滑塊的XY坐標

*/

private void initUnitXY() {

mUnitRandomX = (int) (Math.random() * (mBitmap.getWidth() - mUintWidth));

mUnitRandomY = (int) (Math.random() * (mBitmap.getHeight() - mUintHeight));

// 防止生成的位置距離太近

if (mUnitRandomX <= mBitmap.getWidth() / 2) {

mUnitRandomX = mUnitRandomX + mBitmap.getWidth() / 4;

}

// 防止生成的X坐標截圖時導致異常

if (mUnitRandomX + mUintWidth > getWidth()) {

initUnitXY();

return;

}

}

獲取X坐標需要注意兩點,一點是如果X太小,可能驗證時我們滑動的距離太近,效果不太好,所以進行了判斷.另外,如果我們取到的X坐標過大,會導致截取滑塊時,截取異常.非別進行了處理.

算好了坐標值,就可以生成我們的陰影圖片和滑塊了

/**

* 創建遮擋的圖片(陰影部分)

*

* @return

*/

private Bitmap drawTargetBitmap() {

// 繪制圖片

Bitmap showB;

if (null != mShowBp) {

showB = handleBitmap(mShowBp, mUintWidth, mUintHeight);

} else {

showB = handleBitmap(BitmapFactory.decodeResource(getResources(), R.mipmap.puzzle_show), mUintWidth, mUintHeight);

}

// 如果需要旋轉圖片,進行旋轉，旋轉後為了保持和滑塊大小一致,需要重新縮放比例

if (needRotate) {

showB = handleBitmap(rotateBitmap(rotate, showB), mUintWidth, mUintHeight);

}

return showB;

}

需要注意的一點就是,如果需要隨機旋轉的時候,我們要重新去算一下陰影圖片的寬高,保持和滑塊一致.

繪制帶有邊框的滑塊

/**

* 創建結合的圖片(滑塊)

*

* @param bp

*/

private Bitmap drawResultBitmap(Bitmap bp) {

// 繪制圖片

Bitmap shadeB;

if (null != mShadeBp) {

shadeB = handleBitmap(mShadeBp, mUintWidth, mUintHeight);

} else {

shadeB = handleBitmap(BitmapFactory.decodeResource(getResources(), R.mipmap.puzzle_shade), mUintWidth, mUintHeight);

}

// 如果需要旋轉圖片,進行旋轉,旋轉後為了和畫布大小保持一致,避免出現圖像顯示不全,需要重新縮放比例

if (needRotate) {

shadeB = handleBitmap(rotateBitmap(rotate, shadeB), mUintWidth, mUintHeight);

}

Bitmap resultBmp = Bitmap.createBitmap(mUintWidth, mUintHeight,

Bitmap.Config.ARGB_8888);

Paint paint = new Paint();

paint.setAntiAlias(true);

Canvas canvas = new Canvas(resultBmp);

canvas.drawBitmap(shadeB, new Rect(0, 0, mUintWidth, mUintHeight),

new Rect(0, 0, mUintWidth, mUintHeight), paint);

// 選擇混合模式

paint.setXfermode(new PorterDuffXfermode(PorterDuff.Mode.MULTIPLY));

canvas.drawBitmap(bp, new Rect(0, 0, mUintWidth, mUintHeight),

new Rect(0, 0, mUintWidth, mUintHeight), paint);

return resultBmp;

}

同樣在旋轉完成後,需要重新去按照比例對滑塊進行縮放,不然會出現顯示不全的問題.

最後是繪制這些內容

@Override

protected void onDraw(Canvas canvas) {

super.onDraw(canvas);

if (isReSet) {

mBitmap = getBaseBitmap();

if (0 == mUintWidth) {

mUintWidth = mBitmap.getWidth() / mUnitWidthScale;

}

if (0 == mUintHeight) {

mUintHeight = mBitmap.getHeight() / mUnitHeightScale;

}

initUnitXY();

mUnitBp = Bitmap.createBitmap(mBitmap, mUnitRandomX, mUnitRandomY, mUintWidth, mUintHeight);

}

isReSet = false;

canvas.drawBitmap(drawTargetBitmap(), mUnitRandomX, mUnitRandomY, mPaint);

canvas.drawBitmap(drawResultBitmap(mUnitBp), mUnitMoveDistance, mUnitRandomY, mPaint);

}

准備工作基本完成了,接著需要提供一些方法來完成滑塊滑動、滑塊重置、驗證等功能.

/**

* 滑塊移動距離

*

* @param distance

*/

public void setUnitMoveDistance(float distance) {

mUnitMoveDistance = distance;

// 防止滑塊滑出圖片

if (mUnitMoveDistance > mBitmap.getWidth() - mUintWidth) {

mUnitMoveDistance = mBitmap.getWidth() - mUintWidth;

}

invalidate();

}

/**

* 重置

*/

public void reSet() {

isReSet = true;

mUnitMoveDistance = 0;

if (needRotate) {

rotate = (int) (Math.random() * 3) * 90;

} else {

rotate = 0;

}

invalidate();

}

/**

* 拼圖成功的回調

**/

interface onPuzzleListener {

public void onSuccess();

public void onFail();

}

/**

* 回調

*/

private onPuzzleListener mlistener;

/**

* 驗證是否拼接成功

*/

public void testPuzzle() {

if (Math.abs(mUnitMoveDistance - mUnitRandomX) <= DEFAULT_DEVIATE) {

if (null != mlistener) {

mlistener.onSuccess();

}

} else {

if (null != mlistener) {

mlistener.onFail();

}

}

}

四、完整代碼及使用

DouYuView:

import android.content.Context;

import android.content.res.TypedArray;

import android.graphics.Bitmap;

import android.graphics.BitmapFactory;

import android.graphics.Canvas;

import android.graphics.Matrix;

import android.graphics.Paint;

import android.graphics.PorterDuff;

import android.graphics.PorterDuffXfermode;

import android.graphics.Rect;

import android.graphics.RectF;

import android.graphics.drawable.BitmapDrawable;

import android.graphics.drawable.Drawable;

import android.util.AttributeSet;

import android.util.Log;

import android.widget.ImageView;

/**

* Created by junweiliu on 16/4/26.

*/

public class DouYuView extends ImageView {

/**

* 定義畫筆

*/

private Paint mPaint;

/**

* 驗證的圖像

*/

private Bitmap mBitmap;

/**

* 驗證滑塊的高

*/

private int mUintHeight;

/**

* 驗證滑塊的寬

*/

private int mUintWidth;

/**

* 驗證滑塊寬占用整體圖片大小的比例,默認1/5

*/

private int mUnitWidthScale;

/**

* 驗證滑塊高度占用整體圖片大小的比例,默認1/4

*/

private int mUnitHeightScale;

/**

* 隨機生成滑塊的X坐標

*/

private int mUnitRandomX;

/**

* 隨機生成滑塊的Y坐標

*/

private int mUnitRandomY;

/***

* 滑塊移動的距離

*/

private float mUnitMoveDistance = 0;

/***

* 滑塊圖像

*/

private Bitmap mUnitBp;

/**

* 驗證位置圖像

*/

private Bitmap mShowBp;

/**

* 背景陰影圖像

*/

private Bitmap mShadeBp;

/**

* 是否需要旋轉

**/

private boolean needRotate;

/**

* 旋轉的角度

*/

private int rotate;

/**

* 判斷是否完成的偏差量，默認為10

*/

public int DEFAULT_DEVIATE;

/**

* 判斷是否重新繪制圖像

*/

private boolean isReSet = true;

/**

* 拼圖成功的回調

**/

interface onPuzzleListener {

public void onSuccess();

public void onFail();

}

/**

* 回調

*/

private onPuzzleListener mlistener;

/**

* 設置回調

*

* @param listener

*/

public void setPuzzleListener(onPuzzleListener listener) {

this.mlistener = listener;

}

public DouYuView(Context context) {

this(context, null);

}

public DouYuView(Context context, AttributeSet attrs) {

this(context, attrs, 0);

}

public DouYuView(Context context, AttributeSet attrs, int defStyleAttr) {

super(context, attrs, defStyleAttr);

TypedArray ta = context.obtainStyledAttributes(attrs, R.styleable.DouYuView);

mUintWidth = ta.getDimensionPixelOffset(R.styleable.DouYuView_unitHeight, 0);

mUintHeight = ta.getDimensionPixelOffset(R.styleable.DouYuView_unitHeight, 0);

mUnitHeightScale = ta.getInteger(R.styleable.DouYuView_unitHeightScale, 4);

mUnitWidthScale = ta.getInteger(R.styleable.DouYuView_unitWidthScale, 5);

Drawable showBp = ta.getDrawable(R.styleable.DouYuView_unitShowSrc);

mShowBp = drawableToBitamp(showBp);

Drawable shadeBp = ta.getDrawable(R.styleable.DouYuView_unitShadeSrc);

mShadeBp = drawableToBitamp(shadeBp);

needRotate = ta.getBoolean(R.styleable.DouYuView_needRotate, true);

DEFAULT_DEVIATE = ta.getInteger(R.styleable.DouYuView_deviate, 10);

ta.recycle();

// 初始化

mPaint = new Paint();

mPaint.setAntiAlias(true);

if (needRotate) {

rotate = (int) (Math.random() * 3) * 90;

} else {

rotate = 0;

}

}

/**

* 隨機生成生成滑塊的XY坐標

*/

private void initUnitXY() {

mUnitRandomX = (int) (Math.random() * (mBitmap.getWidth() - mUintWidth));

mUnitRandomY = (int) (Math.random() * (mBitmap.getHeight() - mUintHeight));

// 防止生成的位置距離太近

if (mUnitRandomX <= mBitmap.getWidth() / 2) {

mUnitRandomX = mUnitRandomX + mBitmap.getWidth() / 4;

}

// 防止生成的X坐標截圖時導致異常

if (mUnitRandomX + mUintWidth > getWidth()) {

initUnitXY();

return;

}

}

@Override

protected void onDraw(Canvas canvas) {

super.onDraw(canvas);

if (isReSet) {

mBitmap = getBaseBitmap();

if (0 == mUintWidth) {

mUintWidth = mBitmap.getWidth() / mUnitWidthScale;

}

if (0 == mUintHeight) {

mUintHeight = mBitmap.getHeight() / mUnitHeightScale;

}

initUnitXY();

mUnitBp = Bitmap.createBitmap(mBitmap, mUnitRandomX, mUnitRandomY, mUintWidth, mUintHeight);

}

isReSet = false;

canvas.drawBitmap(drawTargetBitmap(), mUnitRandomX, mUnitRandomY, mPaint);

canvas.drawBitmap(drawResultBitmap(mUnitBp), mUnitMoveDistance, mUnitRandomY, mPaint);

}

/**

* 重置

*/

public void reSet() {

isReSet = true;

mUnitMoveDistance = 0;

if (needRotate) {

rotate = (int) (Math.random() * 3) * 90;

} else {

rotate = 0;

}

invalidate();

}

/**

* 獲取每次滑動的平均偏移值

*

* @return

*/

public float getAverageDistance(int max) {

return (float) (mBitmap.getWidth() - mUintWidth) / max;

}

/**

* 滑塊移動距離

*

* @param distance

*/

public void setUnitMoveDistance(float distance) {

mUnitMoveDistance = distance;

// 防止滑塊滑出圖片

if (mUnitMoveDistance > mBitmap.getWidth() - mUintWidth) {

mUnitMoveDistance = mBitmap.getWidth() - mUintWidth;

}

invalidate();

}

/**

* 驗證是否拼接成功

*/

public void testPuzzle() {

if (Math.abs(mUnitMoveDistance - mUnitRandomX) <= DEFAULT_DEVIATE) {

if (null != mlistener) {

mlistener.onSuccess();

}

} else {

if (null != mlistener) {

mlistener.onFail();

}

}

}

/**

* 創建遮擋的圖片(陰影部分)

*

* @return

*/

private Bitmap drawTargetBitmap() {

// 繪制圖片

Bitmap showB;

if (null != mShowBp) {

showB = handleBitmap(mShowBp, mUintWidth, mUintHeight);

} else {

showB = handleBitmap(BitmapFactory.decodeResource(getResources(), R.mipmap.puzzle_show), mUintWidth, mUintHeight);

}

// 如果需要旋轉圖片,進行旋轉，旋轉後為了保持和滑塊大小一致,需要重新縮放比例

if (needRotate) {

showB = handleBitmap(rotateBitmap(rotate, showB), mUintWidth, mUintHeight);

}

return showB;

}

/**

* 創建結合的圖片(滑塊)

*

* @param bp

*/

private Bitmap drawResultBitmap(Bitmap bp) {

// 繪制圖片

Bitmap shadeB;

if (null != mShadeBp) {

shadeB = handleBitmap(mShadeBp, mUintWidth, mUintHeight);

} else {

shadeB = handleBitmap(BitmapFactory.decodeResource(getResources(), R.mipmap.puzzle_shade), mUintWidth, mUintHeight);

}

// 如果需要旋轉圖片,進行旋轉,旋轉後為了和畫布大小保持一致,避免出現圖像顯示不全,需要重新縮放比例

if (needRotate) {

shadeB = handleBitmap(rotateBitmap(rotate, shadeB), mUintWidth, mUintHeight);

}

Bitmap resultBmp = Bitmap.createBitmap(mUintWidth, mUintHeight,

Bitmap.Config.ARGB_8888);

Paint paint = new Paint();

paint.setAntiAlias(true);

Canvas canvas = new Canvas(resultBmp);

canvas.drawBitmap(shadeB, new Rect(0, 0, mUintWidth, mUintHeight),

new Rect(0, 0, mUintWidth, mUintHeight), paint);

// 選擇交集去上層圖片

paint.setXfermode(new PorterDuffXfermode(PorterDuff.Mode.MULTIPLY));

canvas.drawBitmap(bp, new Rect(0, 0, mUintWidth, mUintHeight),

new Rect(0, 0, mUintWidth, mUintHeight), paint);

return resultBmp;

}

/**

* 獲取實際顯示的圖片

*

* @return

*/

public Bitmap getBaseBitmap() {

Bitmap b = drawableToBitamp(getDrawable());

float scaleX = 1.0f;

float scaleY = 1.0f;

// 如果圖片的寬或者高與view的寬高不匹配，計算出需要縮放的比例;縮放後的圖片的寬高，一定要大於我們view的寬高;所以我們這裡取大值;

scaleX = getWidth() * 1.0f / b.getWidth();

scaleY = getHeight() * 1.0f / b.getHeight();

Matrix matrix = new Matrix();

matrix.setScale(scaleX, scaleY);

Bitmap bd = Bitmap.createBitmap(b, 0, 0, b.getWidth(), b.getHeight(),

matrix, true);

return bd;

}

/**

* drawable轉bitmap

*

* @param drawable

* @return

*/

private Bitmap drawableToBitamp(Drawable drawable) {

if (null == drawable) {

return null;

}

if (drawable instanceof BitmapDrawable) {

BitmapDrawable bd = (BitmapDrawable) drawable;

return bd.getBitmap();

}

int w = drawable.getIntrinsicWidth();

int h = drawable.getIntrinsicHeight();

Bitmap bitmap = Bitmap.createBitmap(w, h, Bitmap.Config.ARGB_8888);

Canvas canvas = new Canvas(bitmap);

drawable.setBounds(0, 0, w, h);

drawable.draw(canvas);

return bitmap;

}

/**

* 縮放圖片

*

* @param bp

* @param x

* @param y

* @return

*/

public static Bitmap handleBitmap(Bitmap bp, float x, float y) {

int w = bp.getWidth();

int h = bp.getHeight();

float sx = (float) x / w;

float sy = (float) y / h;

Matrix matrix = new Matrix();

matrix.postScale(sx, sy);

Bitmap resizeBmp = Bitmap.createBitmap(bp, 0, 0, w,

h, matrix, true);

return resizeBmp;

}

/**

* 旋轉圖片

*

* @param degree

* @param bitmap

* @return

*/

public Bitmap rotateBitmap(int degree, Bitmap bitmap) {

Matrix matrix = new Matrix();

matrix.postRotate(degree);

Bitmap bm = Bitmap.createBitmap(bitmap, 0, 0, bitmap.getWidth(),

bitmap.getHeight(), matrix, true);

return bm;

}

}

MainActivity:

import android.app.Activity;

import android.support.v7.app.AppCompatActivity;

import android.os.Bundle;

import android.util.Log;

import android.widget.SeekBar;

import android.widget.Toast;

public class MainActivity extends Activity {

/**

* 滑塊

*/

private SeekBar mSeekBar;

/**

* 自定義的控件

*/

private DouYuView mDY;

@Override

protected void onCreate(Bundle savedInstanceState) {

super.onCreate(savedInstanceState);

setContentView(R.layout.activity_main);

initView();

}

private void initView() {

mDY = (DouYuView) findViewById(R.id.dy_v);

mSeekBar = (SeekBar) findViewById(R.id.sb_dy);

mSeekBar.setOnSeekBarChangeListener(new SeekBar.OnSeekBarChangeListener() {

@Override

public void onProgressChanged(SeekBar seekBar, int i, boolean b) {

// Log.e("main", "當前位置" + i);

mDY.setUnitMoveDistance(mDY.getAverageDistance(seekBar.getMax()) * i);

}

@Override

public void onStartTrackingTouch(SeekBar seekBar) {

}

@Override

public void onStopTrackingTouch(SeekBar seekBar) {

mDY.testPuzzle();

}

});

mDY.setPuzzleListener(new DouYuView.onPuzzleListener() {

@Override

public void onSuccess() {

// mSeekBar.setEnabled(false);

Toast.makeText(MainActivity.this, "驗證成功", Toast.LENGTH_SHORT).show();

mSeekBar.setProgress(0);

mDY.reSet();

}

@Override

public void onFail() {

Toast.makeText(MainActivity.this, "驗證失敗", Toast.LENGTH_SHORT).show();

mSeekBar.setProgress(0);

}

});

}

}

顯示的結果圖:
