android 第一次啟動滑動界面

一.滑動界面：

第一次啟動時除了啟動動畫外，可能還有著滑動功能介紹界面，現在記錄一下這種界面的實現方式，接著上篇啟動動畫之後的效果附加上。

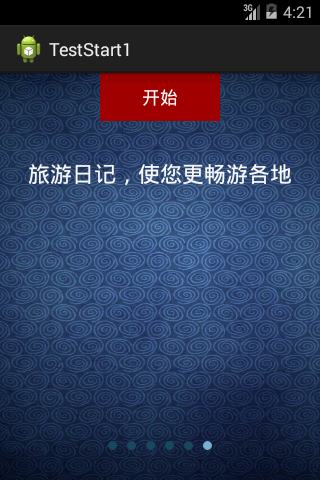

效果圖：



界面：



public class SlideActivity extends Activity{

		private ViewPager mViewPager;
		private ImageView mPage0;
		private ImageView mPage1;
		private ImageView mPage2;
		private ImageView mPage3;
		private ImageView mPage4;
		private ImageView mPage5;

	    @Override
	    public void onCreate(Bundle savedInstanceState) {
	        super.onCreate(savedInstanceState);
	        setContentView(R.layout.whatsnew_viewpager);
	        mViewPager = (ViewPager)findViewById(R.id.whatsnew_viewpager);
	        mViewPager.setOnPageChangeListener(new MyOnPageChangeListener());


	        mPage0 = (ImageView)findViewById(R.id.page0);
	        mPage1 = (ImageView)findViewById(R.id.page1);
	        mPage2 = (ImageView)findViewById(R.id.page2);
	        mPage3 = (ImageView)findViewById(R.id.page3);
	        mPage4 = (ImageView)findViewById(R.id.page4);
	        mPage5 = (ImageView)findViewById(R.id.page5);

	        //將要分頁顯示的View裝入數組中
	        LayoutInflater mLi = LayoutInflater.from(this);
	        View view1 = mLi.inflate(R.layout.whats1, null);
	        View view2 = mLi.inflate(R.layout.whats2, null);
	        View view3 = mLi.inflate(R.layout.whats3, null);
	        View view4 = mLi.inflate(R.layout.whats4, null);
	        View view5 = mLi.inflate(R.layout.whats5, null);
	        View view6 = mLi.inflate(R.layout.whats6, null);

	        //每個頁面的view數據
	        final ArrayList views = new ArrayList();
	        views.add(view1);
	        views.add(view2);
	        views.add(view3);
	        views.add(view4);
	        views.add(view5);
	        views.add(view6);

	        //填充ViewPager的數據適配器
	        PagerAdapter mPagerAdapter = new PagerAdapter() {

				@Override
				public boolean isViewFromObject(View arg0, Object arg1) {
					return arg0 == arg1;
				}

				@Override
				public int getCount() {
					return views.size();
				}

				@Override
				public void destroyItem(View container, int position, Object object) {
					((ViewPager)container).removeView(views.get(position));
				}



				@Override
				public Object instantiateItem(View container, int position) {
					((ViewPager)container).addView(views.get(position));
					return views.get(position);
				}
			};

			mViewPager.setAdapter(mPagerAdapter);
	    }


	    public class MyOnPageChangeListener implements OnPageChangeListener {
			@Override
			public void onPageSelected(int arg0) {
				switch (arg0) {
				case 0:
					mPage0.setImageDrawable(getResources().getDrawable(R.drawable.page_now));
					mPage1.setImageDrawable(getResources().getDrawable(R.drawable.page));
					break;
				case 1:
					mPage1.setImageDrawable(getResources().getDrawable(R.drawable.page_now));
					mPage0.setImageDrawable(getResources().getDrawable(R.drawable.page));
					mPage2.setImageDrawable(getResources().getDrawable(R.drawable.page));
					break;
				case 2:
					mPage2.setImageDrawable(getResources().getDrawable(R.drawable.page_now));
					mPage1.setImageDrawable(getResources().getDrawable(R.drawable.page));
					mPage3.setImageDrawable(getResources().getDrawable(R.drawable.page));
					break;
				case 3:
					mPage3.setImageDrawable(getResources().getDrawable(R.drawable.page_now));
					mPage4.setImageDrawable(getResources().getDrawable(R.drawable.page));
					mPage2.setImageDrawable(getResources().getDrawable(R.drawable.page));
					break;
				case 4:
					mPage4.setImageDrawable(getResources().getDrawable(R.drawable.page_now));
					mPage3.setImageDrawable(getResources().getDrawable(R.drawable.page));
					mPage5.setImageDrawable(getResources().getDrawable(R.drawable.page));
					break;
				case 5:
					mPage5.setImageDrawable(getResources().getDrawable(R.drawable.page_now));
					mPage4.setImageDrawable(getResources().getDrawable(R.drawable.page));
					break;
				}
				//animation.setFillAfter(true);// True:圖片停在動畫結束位置
				//animation.setDuration(300);
				//mPageImg.startAnimation(animation);
			}
			@Override
			public void onPageScrolled(int arg0, float arg1, int arg2) {
			}
			@Override
			public void onPageScrollStateChanged(int arg0) {
			}
		}
	    public void startbutton(View v) {
	      	Intent intent = new Intent();
			intent.setClass(SlideActivity.this,TestActivity.class);
			startActivity(intent);
			this.finish();
	      }
}



如果想要實現第一次啟動顯示，用SharedPreferences存儲下信息就行，每次啟動判斷下，就ok了。
