Android通訊錄管理三之短息獲取和發送短息

編輯：關於Android編程

前兩篇博客並分別講了獲取聯系人和通話記錄的知識，這篇主要介紹短信獲取知識，短信在通訊管理中應該說是一個難點，因為短信涉及到短息會話和短信詳情兩個部分，並且短信的數據量比較大，可以采用AsyncQueryHandler框架來查詢，同時采用CursorAdapter來綁定數據

\

\

其中短信中可以來獲取聯系人的頭像和姓名。這個在代碼工具類中有實現，如果聯系人存在，則顯示姓名，否則顯示號碼，如果聯系人頭像存在則顯示頭像，否則顯示默認頭像，如圖片所示。這兩部分功能在聯系人和通話記錄中均可以實現，有興趣的童鞋可以修改。

查詢框架



package cn.zxw.contact.utils;

import android.content.AsyncQueryHandler;

import android.content.ContentResolver;
import android.database.Cursor;
import android.support.v4.widget.CursorAdapter;
import android.util.Log;
/**
 * QueryHandler框架
 * @author zhan
 *
 */

public class QueryHandler extends AsyncQueryHandler {

	private static final String TAG = QueryHandler;

	public QueryHandler(ContentResolver cr) {
		super(cr);
	}

	@Override
	protected void onQueryComplete(int token, Object cookie, Cursor cursor) {
		super.onQueryComplete(token, cookie, cursor);

		String names[] = cursor.getColumnNames();
		for (String name : names) {
			Log.i(TAG, name);
		}
		// 查詢完成
		//
		if (cookie != null && cookie instanceof CursorAdapter) {
			// 把查詢出來的cursor結果設置給adapter
			CursorAdapter adapter = (CursorAdapter) cookie;
			adapter.changeCursor(cursor);
		}
	}
}
短信會話獲取





package cn.zxw.contact;

import cn.zxw.contact.utils.ContactsUtils;
import cn.zxw.contact.utils.QueryHandler;
import cn.zxw.contact.utils.TimeUtils;
import android.app.Activity;
import android.content.Context;
import android.content.Intent;
import android.database.Cursor;
import android.graphics.Bitmap;
import android.net.Uri;
import android.os.Bundle;
import android.support.v4.widget.CursorAdapter;
import android.text.TextUtils;
import android.view.LayoutInflater;
import android.view.View;
import android.view.ViewGroup;
import android.widget.AdapterView;
import android.widget.AdapterView.OnItemClickListener;
import android.widget.ImageView;
import android.widget.ListView;
import android.widget.TextView;

/**
 * 短信列表
 * 點擊短息列表中的條目會進入條目對應的短信詳情頁面
 * @author zhan
 *
 */
public class MsgActivity extends Activity implements OnItemClickListener {

	private ListView lv;
	public MyCursorAdapter adapter;
	// 查詢的結果集
	private String[] projection = new String[] { snippet,
			sms.thread_id as _id, msg_count, sms.address as address,
			sms.date as date };
	private final static int SINPPET_COLUMN_INDEX = 0;
	private final static int THREAD_ID_COLUMN_INDEX = 1;
	private final static int MSG_COUNT_COLUMN_INDEX = 2;
	private final static int ADDRESS_COLUMN_INDEX = 3;
	private final static int DATE_COLUMN_INDEX = 4;

	@Override
	protected void onCreate(Bundle savedInstanceState) {
		super.onCreate(savedInstanceState);
		setContentView(R.layout.activity_contacts_msg_calllog);
		lv = (ListView) findViewById(R.id.lv);

		adapter=new MyCursorAdapter(this, null);//初始化Adapter
		lv.setAdapter(adapter);
		startQuery();
		lv.setOnItemClickListener(this);
	}

	/**
	 * 執行查詢
	 */
	private void startQuery() {
		QueryHandler mQueryHandler = new QueryHandler(getContentResolver());
		// 執行查詢
		/**
		 * token唯一標識 cookie可以用來傳遞數據 上面的參數會傳遞給一個方法 onQueryComplete
		 */
		Uri uri = Uri.parse(content://sms/conversations);
		// mQueryHandler.startQuery(0, null, uri, projection, null,
		// null,date desc);
		mQueryHandler.startQuery(0, adapter, uri, projection, null, null,
				date desc);

	}

	// 自定義CursorAdapter
	private class MyCursorAdapter extends CursorAdapter {

		private LayoutInflater mInflater;

		public MyCursorAdapter(Context context, Cursor c) {
			super(context, c);
			mInflater = LayoutInflater.from(context);
		}

		// 創建條目
		@Override
		public View newView(Context context, Cursor cursor, ViewGroup parent) {
			View view = mInflater.inflate(R.layout.activity_msg_list_item,
					null);
			return view;
		}

		// 綁定條目
		@Override
		public void bindView(View view, Context context, Cursor cursor) {
			// 1.獲取條目
			// 2.獲取數據
			// 3.綁定數據
			ImageView iv_header = (ImageView) view.findViewById(R.id.iv_header);
			TextView tv_number = (TextView) view.findViewById(R.id.tv_number);
			TextView tv_body = (TextView) view.findViewById(R.id.tv_body);
			TextView tv_date = (TextView) view.findViewById(R.id.tv_date);
			// 由於Listview的數據顯示是通過適配器來控制的，所以到bindView方法中來控制checkbox 的顯示
			// 獲取數據
			int id = cursor.getInt(THREAD_ID_COLUMN_INDEX);
			String address = cursor.getString(ADDRESS_COLUMN_INDEX);
			int msg_count = cursor.getInt(MSG_COUNT_COLUMN_INDEX);
			long date = cursor.getLong(DATE_COLUMN_INDEX);
			String body = cursor.getString(SINPPET_COLUMN_INDEX);
			System.out.println(address);
			// 綁定數據
			String displayName = ContactsUtils.getContactNameByAddress(
					getApplicationContext(), address);
			if (TextUtils.isEmpty(displayName)) {
				// 未知聯系人
				iv_header.setImageResource(R.drawable.ic_launcher);
				tv_number.setText(address + ( + msg_count + ));
			} else {
				// 已知聯系人
				tv_number.setText(displayName + ( + msg_count + ));
				Bitmap bitmap = ContactsUtils.getContactPhotoByAddress(
						getApplicationContext(), address);
				if (bitmap == null) {
					iv_header.setImageResource(R.drawable.ic_launcher);
				} else {
					iv_header.setImageBitmap(bitmap);
				}
			}
			tv_body.setText(body);
			String dataStr = TimeUtils
					.formatDate(getApplicationContext(), date);
			tv_date.setText(dataStr);
		}

	}

	@Override
	public void onItemClick(AdapterView parent, View view, int position,
			long id) {
		//傳遞數據
		Cursor cursor = (Cursor) adapter.getItem(position);
		int _id = cursor.getInt(THREAD_ID_COLUMN_INDEX);
		String address=cursor.getString(ADDRESS_COLUMN_INDEX);
		String displayName=ContactsUtils.getContactNameByAddress(getApplicationContext(), address);
		//進入列表詳情頁面
		Intent intent=new Intent(this, MsgDetailActivity.class);
		intent.putExtra(_id, _id);
		intent.putExtra(address, address);
		intent.putExtra(displayName, displayName);

		startActivity(intent);
	}

}

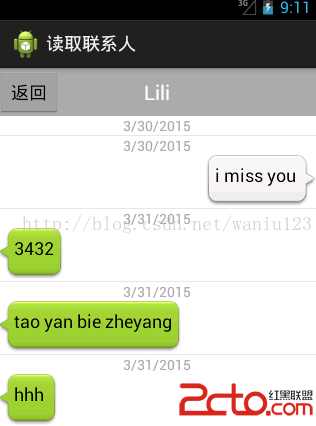

短信詳情頁面，可以實現發送短息





package cn.zxw.contact;

import cn.zxw.contact.utils.Constants;
import cn.zxw.contact.utils.ContactsMsgUtils;
import cn.zxw.contact.utils.QueryHandler;
import cn.zxw.contact.utils.TimeUtils;
import android.app.Activity;
import android.content.Context;
import android.content.Intent;
import android.database.Cursor;
import android.os.Bundle;
import android.support.v4.widget.CursorAdapter;
import android.text.TextUtils;
import android.view.View;
import android.view.View.OnClickListener;
import android.view.ViewGroup;
import android.widget.Button;
import android.widget.EditText;
import android.widget.ListView;
import android.widget.TextView;
import android.widget.Toast;

public class MsgDetailActivity extends Activity implements OnClickListener {
	private Button bt_back;
	private TextView tv_number;
	private ListView lv;
	private EditText et_msg_content;
	private Button bt_send;
	private int _id;
	private String address;
	private MyCursorAdapter adapter;
	private String[] projection=new String[]{
			_id,type,body,date
	};
	private final static int ID_COLUMN_INDEX=0;
	private final static int TYPE_COLUMN_INDEX=1;
	private final static int BODY_COLUMN_INDEX=2;
	private final static int DATE_COLUMN_INDEX=3;

	@Override
	protected void onCreate(Bundle savedInstanceState) {
		super.onCreate(savedInstanceState);
		setContentView(R.layout.activity_msg_list_detail);
		initView();
		startQuery();
	}


	public void initView() {
		bt_back = (Button) findViewById(R.id.bt_back);
		tv_number = (TextView) findViewById(R.id.tv_number);
		lv = (ListView) findViewById(R.id.lv);
		et_msg_content = (EditText) findViewById(R.id.et_msg_content);
		bt_send = (Button) findViewById(R.id.bt_send);
		bt_back.setOnClickListener(this);
		bt_send.setOnClickListener(this);
		Intent intent=getIntent();
		_id = intent.getIntExtra(_id, 0);
		address = intent.getStringExtra(address);
		String displayName=intent.getStringExtra(displayName);
		if (TextUtils.isEmpty(displayName)) {
			tv_number.setText(address);
		}else{
			tv_number.setText(displayName);
		}
		adapter = new MyCursorAdapter(this, null);
		lv.setAdapter(adapter);

	}


	public void startQuery() {
		//查詢
		QueryHandler mHandler=new QueryHandler(getContentResolver());
		//查詢指定會話id裡面的所有短信
		String selection=thread_id=?;
		String[] selectionArgs=new String[]{_id+};
		mHandler.startQuery(0, adapter, Constants.SMS_URI, projection, selection, selectionArgs, date asc);
	}

	private class MyCursorAdapter extends CursorAdapter{

		public MyCursorAdapter(Context context, Cursor c) {
			super(context, c);
		}

		@Override
		public View newView(Context context, Cursor cursor, ViewGroup viewGroup) {
			View view=getLayoutInflater().inflate(R.layout.activity_msg_detial_item, null);
			return view;
		}
		@Override
		public void bindView(View view, Context context, Cursor cursor) {
			TextView tv_date=(TextView) view.findViewById(R.id.tv_date);
			TextView tv_send=(TextView) view.findViewById(R.id.tv_send);
			TextView tv_receive=(TextView) view.findViewById(R.id.tv_receive);

			long date=cursor.getLong(DATE_COLUMN_INDEX);
			String body=cursor.getString(BODY_COLUMN_INDEX);
			int type=cursor.getInt(TYPE_COLUMN_INDEX);
			String str=TimeUtils.formatDate(getApplicationContext(), date);
			tv_date.setText(str);
			if (type==Constants.RECEIVE_TYPE) {
				//1表示接收
				tv_date.setVisibility(View.VISIBLE);
				tv_receive.setText(body);
				tv_send.setVisibility(View.GONE);
			}else if (type==Constants.SEND_TYPE) {
				//2表示發送
				tv_date.setVisibility(View.VISIBLE);
				tv_send.setVisibility(View.VISIBLE);
				tv_send.setText(body);
				tv_receive.setVisibility(View.GONE);
			}
		}
		/**
		 * 該方法一定會被系統調用
		 */
		@Override
		public void notifyDataSetChanged() {
			super.notifyDataSetChanged();
			//讓Listview滾動到最後面
			lv.setSelection(adapter.getCount()-1);
		}

	}

	@Override
	public void onClick(View v) {
		switch (v.getId()) {
		case R.id.bt_back:
			finish();//關閉當前activity
			break;
		case R.id.bt_send:
			// 獲取短息內容
			String content=et_msg_content.getText().toString().trim();
			if (TextUtils.isEmpty(content)) {
				//發送內容為空
				Toast.makeText(getApplicationContext(), 短信為空, 0).show();
			}else{
				ContactsMsgUtils.sendMsg(getApplicationContext(), address, content);
				//清空
				et_msg_content.setText();
				//短息發送成功後自動滾動到最後
			}
			break;

		default:
			break;
		}
	}

}
短信發送方法：





	/**
	 * 發送短信
	 * @param address
	 * @param content
	 */
	public static void sendMsg(Context context,String address,String content){
		SmsManager smsManager=SmsManager.getDefault();//如果短信太長，拆分短信
		ArrayList parts=smsManager.divideMessage(content);
		smsManager.sendMultipartTextMessage(address, null, parts, null, null);
		//手動存儲短信
		ContentResolver resolver=context.getContentResolver();
		Uri uri=Constants.SMS_URI;
		ContentValues values=new ContentValues();
		values.put(address, address);
		values.put(body, content);
		values.put(type, Constants.SEND_TYPE);
		values.put(date, System.currentTimeMillis());

		resolver.insert(uri, values);
	}
