Android 錄音與播放功能的簡單實例

 Android 錄音與播放功能的簡單實例

最近在研究Android中一些常用的功能，像地圖、拍照、錄音和播放的實現等等，還有一些側滑、動畫等是如何實現的。
今天就把錄音和播放的實現分享一下，錄音和播放比較簡單，利用android內部的類即可實現。

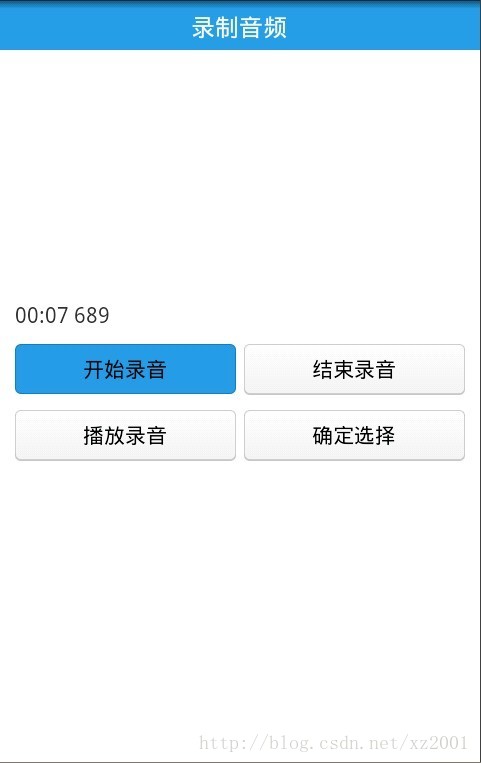

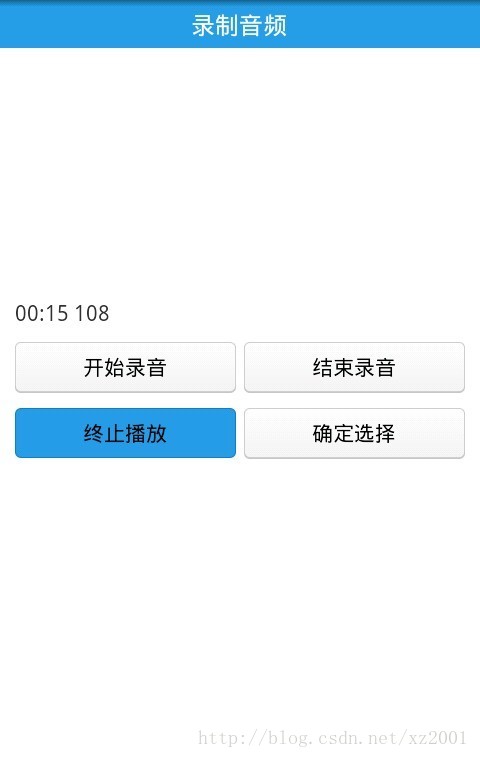

1、先看下運行後的界面：

以下三張圖分別是進入、錄音、播放時的。

2、Layout布局文件

<?xml version="1.0" encoding="utf-8"?>
<RelativeLayout xmlns:android="http://schemas.android.com/apk/res/android"
  android:layout_width="fill_parent"
  android:layout_height="fill_parent" >

  <TextView
    android:layout_width="match_parent"
    android:layout_height="wrap_content"
    android:layout_alignParentTop="true"
    android:background="@drawable/switcherbar_bg"
    android:gravity="center"
    android:text="@string/audio_record_title"
    android:textColor="#ffffff"
    android:textSize="16sp" />

  <LinearLayout
    android:layout_width="match_parent"
    android:layout_height="wrap_content"
    android:layout_centerInParent="true"
    android:orientation="vertical"
    android:paddingLeft="10dip"
    android:paddingRight="10dip" >

    <TextView
      android:id="@+id/audio_record_time"
      android:layout_width="match_parent"
      android:layout_height="wrap_content"
      android:text="00:00" />

    <LinearLayout
      android:layout_width="match_parent"
      android:layout_height="wrap_content"
      android:layout_marginTop="10dip"
      android:orientation="horizontal" >

      <Button
        android:id="@+id/audio_record_start"
        android:layout_width="0dip"
        android:layout_height="wrap_content"
        android:layout_weight="1"
        android:background="@drawable/searchbtn_normal"
        android:text="開始錄音"
        android:textSize="14sp" />

      <Button
        android:id="@+id/audio_record_stop"
        android:layout_width="0dip"
        android:layout_height="wrap_content"
        android:layout_marginLeft="5dip"
        android:layout_weight="1"
        android:background="@drawable/searchbtn_bg"
        android:text="結束錄音"
        android:textSize="14sp" />
    </LinearLayout>

    <LinearLayout
      android:layout_width="match_parent"
      android:layout_height="wrap_content"
      android:layout_marginTop="10dip"
      android:orientation="horizontal" >

      <Button
        android:id="@+id/audio_record_play"
        android:layout_width="0dip"
        android:layout_height="wrap_content"
        android:layout_weight="1"
        android:background="@drawable/searchbtn_normal"
        android:text="播放錄音"
        android:textSize="14sp" />

      <Button
        android:id="@+id/audio_record_select"
        android:layout_width="0dip"
        android:layout_height="wrap_content"
        android:layout_marginLeft="5dip"
        android:layout_weight="1"
        android:background="@drawable/searchbtn_bg"
        android:text="確定選擇"
        android:textSize="14sp" />
    </LinearLayout>
  </LinearLayout>

</RelativeLayout>

3 Activity類

錄音涉及到二個Activity，第一個Activity比較簡單，我這裡大概說下，其實就是有個按鈕，點擊後轉移第二個Activity，錄音返回後，在第一個Activity中獲取錄音的文件名、時長等。

第一個Activity部分代碼：

 // 錄音事件
  ksly_btn.setOnClickListener(new OnClickListener() {
    @Override
    public void onClick(View v) {
      Intent intent = new Intent(MaintainVisitEditActivity.this, AudioRecordActivity.class);
      intent.setAction(Intent.ACTION_VIEW);
      intent.putExtra("duration", entity.getVoiceDuration());
      intent.putExtra("fileName", entity.getVoiceRecord());
      startActivityForResult(intent, VOICE_RECODE);
    }
  });

@Override
protected void onActivityResult(int requestCode, int resultCode, Intent data) {
  super.onActivityResult(requestCode, resultCode, data);

  if (requestCode == VOICE_RECODE && resultCode == AudioRecordActivity.SUCCESS) {
    entity.setVoiceDuration(data.getLongExtra("duration", 0));// 時長
    entity.setVoiceRecord(data.getStringExtra("fileName"));// 文件名（絕對路徑）
    ksly_time.setText(DateTimeUtils.formatToMillisecond(entity.getVoiceDuration()));
  }
}

第二個Activity代碼：

這裡要注意一下，就是需要捕獲返回鍵，處理一下，就是點擊返回鍵時，也返回個狀態碼，以表示沒有錄音成功。

package com.whowii.ct.cm.activity;

import java.io.File;
import java.io.IOException;
import java.text.SimpleDateFormat;
import java.util.Date;
import java.util.Timer;
import java.util.TimerTask;

import android.app.Activity;
import android.content.Intent;
import android.media.MediaPlayer;
import android.media.MediaPlayer.OnCompletionListener;
import android.media.MediaRecorder;
import android.os.Bundle;
import android.os.Handler;
import android.os.Message;
import android.util.Log;
import android.view.KeyEvent;
import android.view.View;
import android.view.View.OnClickListener;
import android.view.Window;
import android.widget.Button;
import android.widget.TextView;
import android.widget.Toast;

import com.whowii.ct.cm.R;
import com.whowii.ct.cm.command.QueryParams;
import com.whowii.ct.cm.utils.DateTimeUtils;
import com.whowii.ct.cm.utils.SDCardUtils;

/**
 * 錄制音頻
 *
 * @author Administrator
 *
 */
public class AudioRecordActivity extends Activity {
  private TextView audio_record_time;
  private Button audio_record_start, audio_record_stop, audio_record_play, audio_record_select;
  private MediaRecorder mediaRecorder;
  private final String TAG = AudioRecordActivity.class.getSimpleName();
  private boolean isIdle = true;// 當前是否空閒，false：表示正在錄音
  private long startTime = 0, stopTime = 0, duration = 0;// 開始時間、結束時間、錄音時長
  private String fileName = null;// 存儲錄音文件的路徑
  private Timer timer = null;// Timer計時器
  public static final int SUCCESS = 1;// 錄制成功;
  public static final int FAILURE = 0;// 錄制失敗
  private MediaPlayer mediaPlayer;
  private TimerTask task = new TimerTask() {
    final Handler handler = new Handler() {
      public void handleMessage(Message message) {
        Bundle data = message.getData();
        audio_record_time.setText(DateTimeUtils.formatToMillisecond(data.getLong("time")));
      }
    };

    public void run() {
      Message message = new Message();
      long t = System.currentTimeMillis();
      Bundle data = new Bundle();
      data.putLong("time", t - startTime);
      message.setData(data);
      handler.sendMessage(message);
    }
  };

  protected void onCreate(Bundle savedInstanceState) {
    super.onCreate(savedInstanceState);
    requestWindowFeature(Window.FEATURE_NO_TITLE); // 設置無標題欄

    setContentView(R.layout.audio_record);
    mediaPlayer = new MediaPlayer();

    initControl();
    setListener();

    timer = new Timer(true);
    fileName = getIntent().getStringExtra("fileName");
    duration = getIntent().getLongExtra("duration", 0);
  }

  private void initControl() {
    audio_record_time = (TextView) findViewById(R.id.audio_record_time);
    audio_record_start = (Button) findViewById(R.id.audio_record_start);
    audio_record_stop = (Button) findViewById(R.id.audio_record_stop);
    audio_record_play = (Button) findViewById(R.id.audio_record_play);
    audio_record_select = (Button) findViewById(R.id.audio_record_select);
  }

  private void setListener() {
    // 播放完成事件
    mediaPlayer.setOnCompletionListener(new OnCompletionListener() {
      @Override
      public void onCompletion(MediaPlayer mp) {
        isIdle = true;
        audio_record_play.setText("播放錄音");
        audio_record_play.setBackgroundResource(R.drawable.searchinput_bg);
      }
    });
    // 開始錄音
    audio_record_start.setOnClickListener(new OnClickListener() {
      @Override
      public void onClick(View v) {
        if (!isIdle) {
          return;
        }
        if (!SDCardUtils.sdCardExists()) {
          Toast.makeText(AudioRecordActivity.this, "缺少SD卡，請先插入後再操作！", Toast.LENGTH_LONG).show();
          return;
        }
        audio_record_start.setText("開始錄音");
        audio_record_start.setEnabled(true);

        duration = 0;
        startTime = System.currentTimeMillis();
        fileName = QueryParams.CACHE_AUDIO_PATH;
        fileName += new SimpleDateFormat("yyyyMMdd_hhmmss").format(new Date(startTime)) + ".amr";
        File file = new File(fileName);

        mediaRecorder = new MediaRecorder();
        mediaRecorder.setOutputFile(file.getAbsolutePath());
        mediaRecorder.setAudioSource(MediaRecorder.AudioSource.MIC);
        mediaRecorder.setOutputFormat(MediaRecorder.OutputFormat.THREE_GPP);
        mediaRecorder.setAudioEncoder(MediaRecorder.AudioEncoder.AMR_NB);
        try {
          mediaRecorder.prepare();
          mediaRecorder.start();
          isIdle = false;
          audio_record_start.setBackgroundResource(R.drawable.searchbtn_pressed);
          timer.schedule(task, 0, 100);
        } catch (IOException e) {
          startTime = 0;
          Log.e(TAG, e.toString());
          Toast.makeText(AudioRecordActivity.this, "錄制時發生異常！", Toast.LENGTH_LONG).show();
        }
      }
    });
    // 結束錄音
    audio_record_stop.setOnClickListener(new OnClickListener() {
      @Override
      public void onClick(View v) {
        if (mediaRecorder != null) {
          stopTime = System.currentTimeMillis();
          duration = stopTime - startTime;
          timer.cancel();
          mediaRecorder.stop();
          mediaRecorder.release();
          mediaRecorder = null;
          audio_record_start.setBackgroundResource(R.drawable.searchbtn_normal);
          isIdle = true;
        }
      }
    });
    // 播放錄音
    audio_record_play.setOnClickListener(new OnClickListener() {
      @Override
      public void onClick(View v) {
        if (!isIdle) {
          return;
        }

        if (audio_record_play.getText().equals("播放錄音")) {
          if (fileName == null || fileName.equals("") || duration == 0) {
            Toast.makeText(AudioRecordActivity.this, "沒有錄音文件！", Toast.LENGTH_LONG).show();
            return;
          }

          try {
            mediaPlayer.reset();
            mediaPlayer.setDataSource(fileName);
            mediaPlayer.prepare();
            mediaPlayer.start();
            isIdle = false;
            audio_record_play.setText("終止播放");
            audio_record_play.setBackgroundResource(R.drawable.searchbtn_pressed);
          } catch (Exception e) {
            e.printStackTrace();
            Toast.makeText(AudioRecordActivity.this, "播放錄音時遇到錯誤！", Toast.LENGTH_LONG).show();
          }
        } else {
          if (mediaPlayer != null && mediaPlayer.isPlaying()) {
            mediaPlayer.stop();
            isIdle = true;
          }
          audio_record_play.setText("播放錄音");
          audio_record_play.setBackgroundResource(R.drawable.searchinput_bg);
        }
      }
    });
    // 確認選擇
    audio_record_select.setOnClickListener(new OnClickListener() {
      @Override
      public void onClick(View v) {
        if (fileName == null || fileName.equals("") || duration == 0) {
          Toast.makeText(AudioRecordActivity.this, "沒有錄音文件！", Toast.LENGTH_LONG).show();
          return;
        }

        Intent intent = new Intent();
        intent.putExtra("fileName", fileName);
        intent.putExtra("duration", duration);
        setResult(SUCCESS, intent);// 返回成功標識
        isIdle = true;
        if (mediaPlayer != null) {
          if (mediaPlayer.isPlaying()) {
            mediaPlayer.stop();
          }
          mediaPlayer = null;
        }
        finish();// 結束當前的activity,等於點擊返回按鈕
      }
    });
  }

  // 捕獲返回鍵，關閉當前頁面時返回失敗標識
  @Override
  public boolean onKeyDown(int keyCode, KeyEvent event) {
    if (keyCode == KeyEvent.KEYCODE_BACK) {
      setResult(FAILURE);
      isIdle = true;
      if (mediaPlayer != null) {
        if (mediaPlayer.isPlaying()) {
          mediaPlayer.stop();
        }
        mediaPlayer = null;
      }
      finish();
      return true;
    }
    return super.onKeyDown(keyCode, event);
  }

}

感謝閱讀，希望能幫助到大家，謝謝大家對本站的支持！
