Android自定義View實現水波紋引導動畫

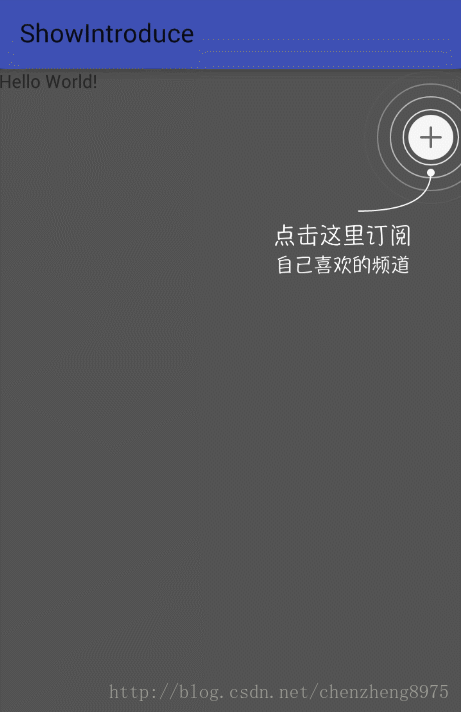

一、實現效果圖

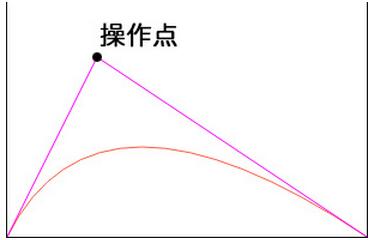

關於貝塞爾曲線

二、實現代碼

1.自定義view

package com.czhappy.showintroduce.view;

import android.content.Context;
import android.graphics.Bitmap;
import android.graphics.Canvas;
import android.graphics.Color;
import android.graphics.Paint;
import android.graphics.Path;
import android.util.AttributeSet;
import android.view.View;
import android.widget.RelativeLayout;

/**
 * Description: 水波紋動畫引導view
 * User: chenzheng
 * Date: 2017/1/14 0014
 * Time: 18:01
 */
public class RippleIntroView extends RelativeLayout implements Runnable {

 private int mMaxRadius = 70;
 private int mInterval = 20;
 private int count = 0;

 private Bitmap mCacheBitmap;
 private Paint mRipplePaint;
 private Paint mCirclePaint;
 private Path mArcPath;

 public RippleIntroView(Context context) {
  this(context, null);
 }

 public RippleIntroView(Context context, AttributeSet attrs) {
  this(context, attrs, 0);
 }

 public RippleIntroView(Context context, AttributeSet attrs, int defStyleAttr) {
  super(context, attrs, defStyleAttr);
  init();
 }

 private void init() {
  mRipplePaint = new Paint();
  mRipplePaint.setAntiAlias(true);
  mRipplePaint.setStyle(Paint.Style.STROKE);
  mRipplePaint.setColor(Color.WHITE);
  mRipplePaint.setStrokeWidth(2.f);

  mCirclePaint = new Paint();
  mCirclePaint.setAntiAlias(true);
  mCirclePaint.setStyle(Paint.Style.FILL);
  mCirclePaint.setColor(Color.WHITE);

  mArcPath = new Path();
 }

 /**
  * view大小變化時系統調用
  * @param w
  * @param h
  * @param oldw
  * @param oldh
  */
 @Override
 protected void onSizeChanged(int w, int h, int oldw, int oldh) {
  super.onSizeChanged(w, h, oldw, oldh);
  if (mCacheBitmap != null) {
   mCacheBitmap.recycle();
   mCacheBitmap = null;
  }
 }

 @Override
 protected void onDraw(Canvas canvas) {
  //獲取加號圖片view
  View mPlusChild = getChildAt(0);
  //獲取提示圖片view
  View mRefsChild = getChildAt(1);
  if (mPlusChild == null || mRefsChild == null) return;

  //獲取加號圖片大小
  final int pw = mPlusChild.getWidth();
  final int ph = mPlusChild.getHeight();

  //獲取提示圖片大小
  final int fw = mRefsChild.getWidth();
  final int fh = mRefsChild.getHeight();

  if (pw == 0 || ph == 0) return;

  //加號圖片中心點坐標
  final float px = mPlusChild.getX() + pw / 2;
  final float py = mPlusChild.getY() + ph / 2;
  //提示圖片左上角坐標
  final float fx = mRefsChild.getX();
  final float fy = mRefsChild.getY();

  final int rw = pw / 2;
  final int rh = ph / 2;

  if (mCacheBitmap == null) {
   mCacheBitmap = Bitmap.createBitmap(getWidth(), getHeight(), Bitmap.Config.ARGB_8888);
   Canvas cv = new Canvas(mCacheBitmap);
   super.onDraw(cv);

   //清空所有已經畫過的path至原始狀態
   mArcPath.reset();

   //起始輪廓點移至x，y坐標點,即加號圖片正下方再往下20位置
   mArcPath.moveTo(px, py + rh + mInterval);
   //設置二次貝塞爾，實現平滑曲線，前兩個參數為操作點坐標，後兩個參數為結束點坐標
   mArcPath.quadTo(px, fy - mInterval, fx + fw * 0.618f, fy - mInterval);
   //0~255，數值越小越透明
   mRipplePaint.setAlpha(255);
   cv.drawPath(mArcPath, mRipplePaint);
   //繪制半徑為6的實心圓點
   cv.drawCircle(px, py + rh + mInterval, 6, mCirclePaint);
  }

  //繪制背景圖片
  canvas.drawBitmap(mCacheBitmap, 0, 0, mCirclePaint);

  //保存畫布當前的狀態
  int save = canvas.save();
  for (int step = count; step <= mMaxRadius; step += mInterval) {
   //step越大越靠外就越透明
   mRipplePaint.setAlpha(255 * (mMaxRadius - step) / mMaxRadius);
   canvas.drawCircle(px, py, (float) (rw + step), mRipplePaint);
  }
  //恢復Canvas的狀態
  canvas.restoreToCount(save);
  //延遲80毫秒後開始運行
  postDelayed(this, 80);
 }

 @Override
 public void run() {
  //把run對象的引用從隊列裡拿出來，這樣，他就不會執行了，但 run 沒有銷毀
  removeCallbacks(this);
  count += 2;
  count %= mInterval;
  invalidate();//重繪
 }

 /**
  * 銷毀view時調用，收尾工作
  */
 @Override
 protected void onDetachedFromWindow() {
  super.onDetachedFromWindow();
  if (mCacheBitmap != null) {
   mCacheBitmap.recycle();
   mCacheBitmap = null;
  }
 }
}

2.MainActivity.java

package com.czhappy.showintroduce.activity;

import android.os.Bundle;
import android.support.v7.app.AppCompatActivity;
import android.view.View;
import android.view.ViewGroup;

import com.czhappy.showintroduce.R;

public class MainActivity extends AppCompatActivity {

 @Override
 protected void onCreate(Bundle savedInstanceState) {
  super.onCreate(savedInstanceState);
  setContentView(R.layout.activity_main);

  View view = findViewById(R.id.layout_ripple);
  view.setOnClickListener(new View.OnClickListener() {
   @Override
   public void onClick(View v) {
    ((ViewGroup) v.getParent()).removeView(v);
   }
  });
 }
}

3.activity_main.xml

<?xml version="1.0" encoding="utf-8"?>
<FrameLayout xmlns:android="http://schemas.android.com/apk/res/android"
 android:layout_width="match_parent"
 android:layout_height="match_parent">

 <TextView
  android:layout_width="wrap_content"
  android:layout_height="wrap_content"
  android:text="Hello World!" />

 <com.czhappy.showintroduce.view.RippleIntroView
  android:id="@+id/layout_ripple"
  android:layout_width="match_parent"
  android:layout_height="match_parent"
  android:clickable="true"
  android:fitsSystemWindows="true"
  android:background="#AA000000">

  <ImageView
   android:id="@+id/iv_plus"
   android:layout_marginTop="36dp"
   android:src="@mipmap/ic_add"
   android:layout_alignParentRight="true"
   android:layout_marginRight="6dp"
   android:layout_width="wrap_content"
   android:layout_height="wrap_content"/>

  <ImageView
   android:src="@mipmap/tips_subscribe"
   android:id="@+id/tv_title"
   android:layout_below="@id/iv_plus"
   android:layout_marginTop="50dp"
   android:layout_alignParentRight="true"
   android:layout_marginRight="40dp"
   android:layout_width="wrap_content"
   android:layout_height="wrap_content"/>

 </com.czhappy.showintroduce.view.RippleIntroView>

</FrameLayout>

三、源碼下載

http://xiazai.jb51.net/201701/yuanma/AndroidShowIntroduce(jb51.net).rar

以上就是本文的全部內容，希望對大家的學習有所幫助，也希望大家多多支持本站。
