Android仿支付寶支付密碼輸入框

本文實例為大家分享了Android實現一個仿支付寶支付密碼的輸入框，主要實現如下：

PasswordView.java

package com.jackie.alipay.password;

import android.annotation.TargetApi;
import android.content.Context;
import android.graphics.Canvas;
import android.graphics.Color;
import android.graphics.Paint;
import android.os.Build;
import android.util.AttributeSet;
import android.widget.EditText;
import android.widget.Toast;

/**
 * Created by Administrator on 2016/10/31.
 */

public class PasswordView extends EditText {
 private Paint mBorderPaint;  //外框畫筆
 private Paint mLinePaint;  //線的畫筆
 private Paint mPasswordPaint; //密碼畫筆
 private int mPasswordTextLength; //輸入密碼的長度
 private int mWidth;
 private int mHeight;

 private static final int PASSWORD_LENGTH = 6;//密碼的長度
 private static final int PASSWORD_RADIUS = 15;

 public PasswordView(Context context) {
  this(context, null);
 }

 public PasswordView(Context context, AttributeSet attrs) {
  this(context, attrs, 0);
 }

 public PasswordView(Context context, AttributeSet attrs, int defStyleAttr) {
  super(context, attrs, defStyleAttr);

  initView();
 }

 private void initView() {
  setFocusable(true);

  mBorderPaint = new Paint();
  mBorderPaint.setStrokeWidth(8);
  mBorderPaint.setColor(Color.WHITE);
  mBorderPaint.setStyle(Paint.Style.FILL);

  mLinePaint = new Paint();
  mLinePaint.setColor(Color.parseColor("#838B8B"));
  mLinePaint.setStrokeWidth(4);

  mPasswordPaint = new Paint();
  mPasswordPaint.setColor(Color.BLACK);
  mPasswordPaint.setStrokeWidth(12);
 }

 @Override
 protected void onDraw(Canvas canvas) {
  super.onDraw(canvas);

  mWidth = getMeasuredWidth();
  mHeight = getMeasuredHeight();

  drawRoundRect(canvas);
  drawLine(canvas);
  drawPassword(canvas);
 }

 /**
  * 繪制圓角矩形背景
  * @param canvas
  */
 @TargetApi(Build.VERSION_CODES.LOLLIPOP)
 private void drawRoundRect(Canvas canvas) {
  canvas.drawRoundRect(0, 0, mWidth, mHeight, 12, 12, mBorderPaint);

 }

 /**
  * 繪制分割線
  * @param canvas
  */
 private void drawLine(Canvas canvas) {
  for (int i = 1; i < PASSWORD_LENGTH; i++) {
   float x = mWidth * i / PASSWORD_LENGTH;
   canvas.drawLine(x, 12, x, mHeight - 12, mLinePaint);
  }
 }

 /**
  * 繪制密碼
  * @param canvas
  */
 private void drawPassword(Canvas canvas) {
  float cx, cy = mHeight / 2;
  float half = mWidth / PASSWORD_LENGTH / 2;
  for (int i = 0; i < mPasswordTextLength; i++) {
   cx = mWidth * i / PASSWORD_LENGTH + half;
   canvas.drawCircle(cx, cy, PASSWORD_RADIUS, mPasswordPaint);
  }
 }

 @Override
 protected void onTextChanged(CharSequence text, int start, int lengthBefore, int lengthAfter) {
  super.onTextChanged(text, start, lengthBefore, lengthAfter);

  mPasswordTextLength = text.toString().length();

  if (mPasswordTextLength == PASSWORD_LENGTH) {
   Toast.makeText(getContext(), "您設置的密碼為: " + text, Toast.LENGTH_SHORT).show();;
  }

  invalidate();
 }


 public void reset(){
  setText("");
  invalidate();
 }
}

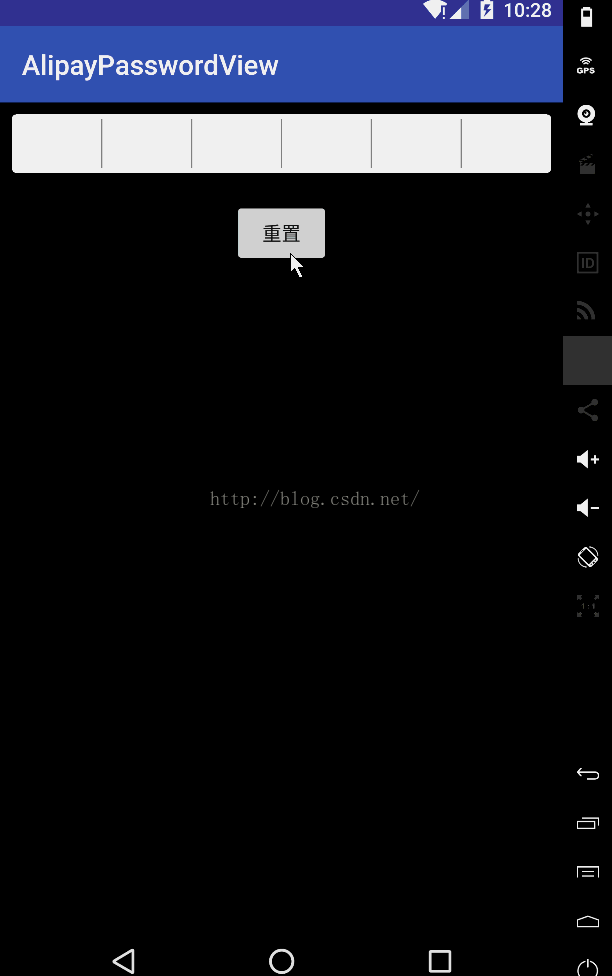

  效果圖如下：

以上就是本文的全部內容，希望對大家的學習有所幫助，也希望大家多多支持本站。
