Android用PopupWindow實現新浪微博的分組信息實例

最近看到新浪微博頂部欄的微博分組效果很炫，從網上查了一些資料明白原來是用PopupWindow實現的，今天自己也寫了一個例子實現了這種效果，希望對大家有幫助。

PopupWindow就是彈出窗口的意思，類似windows下面的開始按鈕。PopupWindow可以實現浮層效果，而且可以自定義顯示位置，出現和退出時的動畫.

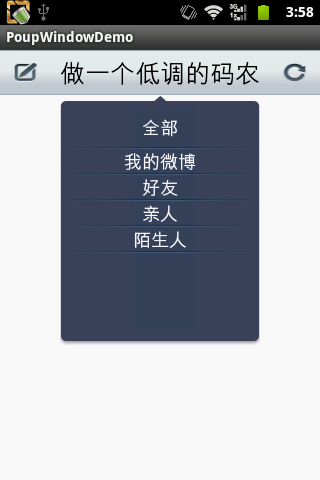

效果如下：

實現思路：

在一個PopupWindow裡放一個ListView，從而來達到分組信息的實現！

具體主要實現代碼：
group_list.xml:

<?xml version="1.0" encoding="utf-8"?>
<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
  android:layout_width="fill_parent"
  android:layout_height="fill_parent"
  android:layout_margin="0.0px"
  android:background="@drawable/group_bg"
  android:orientation="vertical"
  android:paddingLeft="0.0sp"
  android:paddingRight="0.0sp" >

  <TextView
    android:id="@+id/groupAll"

    android:layout_width="fill_parent"
    android:layout_height="@dimen/group_item_height"
    android:background="@drawable/grouplist_fixed_item_bg"
    android:gravity="center"
    android:text="全部" />

  <ImageView
    android:id="@+id/iv_group_list_bg_divider"
    android:layout_width="fill_parent"
    android:layout_height="wrap_content"
    android:layout_margin="0.0px"
    android:background="@drawable/group_divider"
    android:padding="0.0px" />

  <ListView
    android:id="@+id/lvGroup"
    android:layout_width="fill_parent"
    android:layout_height="fill_parent"
    android:layout_weight="0.0"
    android:cacheColorHint="#00000000"
    android:divider="@drawable/group_divider"
    android:dividerHeight="2.0px"
    android:drawSelectorOnTop="true"
    android:fadingEdgeLength="0.0sp"
    android:listSelector="@drawable/grouplist_item_bg" />

</LinearLayout>

group_item_view.xml:

<?xml version="1.0" encoding="utf-8"?>
<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
  android:layout_width="fill_parent"
  android:layout_height="@dimen/group_item_height"
  android:orientation="vertical" >

  <TextView
    android:id="@+id/groupItem"

    android:layout_width="fill_parent"
    android:layout_height="fill_parent"
    android:gravity="center" />

</LinearLayout>

Activity中的代碼：

package com.jiahui.popwindow;

import java.util.ArrayList;
import java.util.List;

import com.jiahui.adapter.GroupAdapter;

import android.app.Activity;
import android.content.Context;
import android.graphics.drawable.BitmapDrawable;
import android.os.Bundle;
import android.util.Log;
import android.view.LayoutInflater;
import android.view.View;
import android.view.WindowManager;
import android.widget.AdapterView;
import android.widget.AdapterView.OnItemClickListener;
import android.widget.ArrayAdapter;
import android.widget.Button;
import android.widget.ListView;
import android.widget.PopupWindow;
import android.widget.TextView;
import android.widget.Toast;

public class PoupWindowDemoActivity extends Activity {

  private PopupWindow popupWindow;

  private ListView lv_group;

  private View view;

  private View top_title;

  private TextView tvtitle;

  private List<String> groups;

  public void onCreate(Bundle savedInstanceState) {
    super.onCreate(savedInstanceState);
    setContentView(R.layout.main);

    top_title = this.findViewById(R.id.top_title);

    tvtitle = (TextView) top_title.findViewById(R.id.tvtitle);

    tvtitle.setText("做一個低調的碼農");

    tvtitle.setOnClickListener(new View.OnClickListener() {

      @Override
      public void onClick(View v) {
        showWindow(v);
      }
    });

  }

  /**
   * 顯示
   *
   * @param parent
   */
  private void showWindow(View parent) {

    if (popupWindow == null) {
      LayoutInflater layoutInflater = (LayoutInflater) getSystemService(Context.LAYOUT_INFLATER_SERVICE);

      view = layoutInflater.inflate(R.layout.group_list, null);

      lv_group = (ListView) view.findViewById(R.id.lvGroup);
      // 加載數據
      groups = new ArrayList<String>();
      groups.add("我的微博");
      groups.add("好友");
      groups.add("親人");
      groups.add("陌生人");

      GroupAdapter groupAdapter = new GroupAdapter(this, groups);
      lv_group.setAdapter(groupAdapter);
      // 創建一個PopuWidow對象
      popupWindow = new PopupWindow(view, 200, 250);
    }

    // 使其聚集
    popupWindow.setFocusable(true);
    // 設置允許在外點擊消失
    popupWindow.setOutsideTouchable(true);

    // 這個是為了點擊“返回Back”也能使其消失，並且並不會影響你的背景
    popupWindow.setBackgroundDrawable(new BitmapDrawable());
    WindowManager windowManager = (WindowManager) getSystemService(Context.WINDOW_SERVICE);
    // 顯示的位置為:屏幕的寬度的一半-PopupWindow的高度的一半
    int xPos = windowManager.getDefaultDisplay().getWidth() / 2
        - popupWindow.getWidth() / 2;

    Log.i("coder", "windowManager.getDefaultDisplay().getWidth()/2:"
        + windowManager.getDefaultDisplay().getWidth() / 2);
    //
    Log.i("coder", "popupWindow.getWidth()/2:" + popupWindow.getWidth() / 2);

    Log.i("coder", "xPos:" + xPos);

    popupWindow.showAsDropDown(parent, xPos, 0);

    lv_group.setOnItemClickListener(new OnItemClickListener() {

      @Override
      public void onItemClick(AdapterView<?> adapterView, View view,
          int position, long id) {

        Toast.makeText(PoupWindowDemoActivity.this,
            "groups.get(position)" + groups.get(position), 1000)
            .show();

        if (popupWindow != null) {
          popupWindow.dismiss();
        }
      }
    });
  }
}

以上就是本文的全部內容，希望對大家的學習有所幫助，也希望大家多多支持本站。
