Android自定義View實現QQ音樂中圓形旋轉碟子

QQ音樂中圓形旋轉碟子

思路分析：
1、在onMeasure中測量整個View的寬和高後，設置寬高
2、獲取我們res的圖片資源後，在ondraw方法中進行繪制圓形圖片
3、通過Handler發送Runnable來啟動旋轉線程（如果只想做圓形頭像的話，這步可以去掉）
4、在布局中使用我們的View

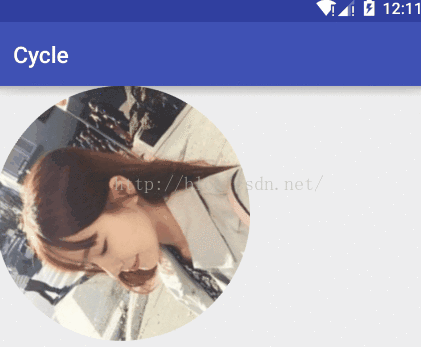

效果圖：

貼出我們的變量信息：

//view的寬和高
int mHeight = 0;
int mWidth = 0;
//圓形圖片
Bitmap bitmap = null;
//圓形圖片的真實半徑
int radius = 0;
//旋轉動畫的矩形
Matrix matrix = new Matrix();
//旋轉動畫的角度
int degrees = 0;

步驟一：測量整個View的寬和高後，設置寬高

@Override
protected void onMeasure(int widthMeasureSpec, int heightMeasureSpec) {
 super.onMeasure(widthMeasureSpec, heightMeasureSpec);
 //測量整個View的寬和高
 mWidth = measuredWidth(widthMeasureSpec);
 mHeight= measuredHeight(heightMeasureSpec);
 setMeasuredDimension(mWidth, mHeight);
}

private int measuredWidth(int widthMeasureSpec) {
 int Mode = MeasureSpec.getMode(widthMeasureSpec);
 int Size = MeasureSpec.getSize(widthMeasureSpec);
 if (Mode == MeasureSpec.EXACTLY) {
  mWidth = Size;
 } else {
  //由圖片決定寬度
  int value = getPaddingLeft() + getPaddingRight() + bitmap.getWidth();
  if (Mode == MeasureSpec.AT_MOST) {
   //由圖片和Padding決定寬度，但是不能超過View的寬
   mWidth = Math.min(value, Size);
  }
 }
 return mWidth;
}

private int measuredHeight(int heightMeasureSpec) {
 int Mode = MeasureSpec.getMode(heightMeasureSpec);
 int Size = MeasureSpec.getSize(heightMeasureSpec);
 if (Mode == MeasureSpec.EXACTLY) {
  mHeight = Size;
 } else {
  //由圖片決定高度
  int value = getPaddingTop() + getPaddingBottom() + bitmap.getHeight();
  if (Mode == MeasureSpec.AT_MOST) {
   //由圖片和Padding決定高度，但是不能超過View的高
   mHeight = Math.min(value, Size);
  }
 }
 return mHeight;
}

步驟二：獲取我們res的圖片資源後，在ondraw方法中進行繪制圓形圖片

//獲取res的圖片資源
bitmap = BitmapFactory.decodeResource(getResources(), R.drawable.icon);
@Override
protected void onDraw(Canvas canvas) {
 super.onDraw(canvas);
 canvas.concat(matrix);
 //真實的半徑必須是View的寬高最小值
 radius = Math.min(mWidth, mHeight);
 //如果圖片本身寬高太大，進行相應的縮放
 bitmap = Bitmap.createScaledBitmap(bitmap, radius, radius, false);
 //畫圓形圖片
 canvas.drawBitmap(createCircleImage(bitmap, radius), 0, 0, null);
 matrix.reset();
}

private Bitmap createCircleImage(Bitmap source, int radius) {
 Paint paint = new Paint();
 paint.setAntiAlias(true);
 Bitmap target = Bitmap.createBitmap(radius, radius, Bitmap.Config.ARGB_8888);
 //產生一個同樣大小的畫布
 Canvas canvas = new Canvas(target);
 //首先繪制圓形
 canvas.drawCircle(radius / 2, radius / 2, radius / 2, paint);
 //使用SRC_IN模式顯示後畫圖的交集處
 paint.setXfermode(new PorterDuffXfermode(PorterDuff.Mode.SRC_IN));
 //繪制圖片，從（0，0）畫
 canvas.drawBitmap(source, 0, 0, paint);
 return target;
}

步驟三：通過Handler發送Runnable來啟動旋轉線程

//開始旋轉
mHandler.post(runnable);
[java] view plain copy 在CODE上查看代碼片派生到我的代碼片
//-----------旋轉動畫-----------
Handler mHandler = new Handler();
Runnable runnable = new Runnable() {
 @Override
 public void run() {
  matrix.postRotate(degrees++, radius / 2, radius / 2);
  //重繪
  invalidate();
  mHandler.postDelayed(runnable, 50);
 }
};

步驟四：在布局中使用我們的View

<com.handsome.cycle.MyCycleView
 android:layout_width="wrap_content"
 android:layout_height="wrap_content" />

下面是整個類的源碼

public class MyCycleView extends View {

 //view的寬和高
 int mHeight = 0;
 int mWidth = 0;
 //圓形圖片
 Bitmap bitmap = null;
 //圓形圖片的真實半徑
 int radius = 0;
 //旋轉動畫的矩形
 Matrix matrix = new Matrix();
 //旋轉動畫的角度
 int degrees = 0;

 //-----------旋轉動畫-----------
 Handler mHandler = new Handler();
 Runnable runnable = new Runnable() {
  @Override
  public void run() {
   matrix.postRotate(degrees++, radius / 2, radius / 2);
   //重繪
   invalidate();
   mHandler.postDelayed(runnable, 50);
  }
 };

 public MyCycleView(Context context) {
  super(context);
  initView();
 }

 public MyCycleView(Context context, AttributeSet attrs) {
  super(context, attrs);
  initView();
 }

 public MyCycleView(Context context, AttributeSet attrs, int defStyleAttr) {
  super(context, attrs, defStyleAttr);
  initView();
 }

 public void initView() {
  //獲取res的圖片資源
  bitmap = BitmapFactory.decodeResource(getResources(), R.drawable.icon);
  //開始旋轉
  mHandler.post(runnable);
 }

 @Override
 protected void onMeasure(int widthMeasureSpec, int heightMeasureSpec) {
  super.onMeasure(widthMeasureSpec, heightMeasureSpec);
  //測量整個View的寬和高
  mWidth = measuredWidth(widthMeasureSpec);
  mHeight = measuredHeight(heightMeasureSpec);
  setMeasuredDimension(mWidth, mHeight);
 }

 private int measuredWidth(int widthMeasureSpec) {
  int Mode = MeasureSpec.getMode(widthMeasureSpec);
  int Size = MeasureSpec.getSize(widthMeasureSpec);
  if (Mode == MeasureSpec.EXACTLY) {
   mWidth = Size;
  } else {
   //由圖片決定寬度
   int value = getPaddingLeft() + getPaddingRight() + bitmap.getWidth();
   if (Mode == MeasureSpec.AT_MOST) {
    //由圖片和Padding決定寬度，但是不能超過View的寬
    mWidth = Math.min(value, Size);
   }
  }
  return mWidth;
 }

 private int measuredHeight(int heightMeasureSpec) {
  int Mode = MeasureSpec.getMode(heightMeasureSpec);
  int Size = MeasureSpec.getSize(heightMeasureSpec);
  if (Mode == MeasureSpec.EXACTLY) {
   mHeight = Size;
  } else {
   //由圖片決定高度
   int value = getPaddingTop() + getPaddingBottom() + bitmap.getHeight();
   if (Mode == MeasureSpec.AT_MOST) {
    //由圖片和Padding決定高度，但是不能超過View的高
    mHeight = Math.min(value, Size);
   }
  }
  return mHeight;
 }

 @Override
 protected void onDraw(Canvas canvas) {
  super.onDraw(canvas);
  canvas.concat(matrix);
  //真實的半徑必須是View的寬高最小值
  radius = Math.min(mWidth, mHeight);
  //如果圖片本身寬高太大，進行相應的縮放
  bitmap = Bitmap.createScaledBitmap(bitmap, radius, radius, false);
  //畫圓形圖片
  canvas.drawBitmap(createCircleImage(bitmap, radius), 0, 0, null);
  matrix.reset();
 }

 private Bitmap createCircleImage(Bitmap source, int radius) {
  Paint paint = new Paint();
  paint.setAntiAlias(true);
  Bitmap target = Bitmap.createBitmap(radius, radius, Bitmap.Config.ARGB_8888);
  //產生一個同樣大小的畫布
  Canvas canvas = new Canvas(target);
  //首先繪制圓形
  canvas.drawCircle(radius / 2, radius / 2, radius / 2, paint);
  //使用SRC_IN模式顯示後畫圖的交集處
  paint.setXfermode(new PorterDuffXfermode(PorterDuff.Mode.SRC_IN));
  //繪制圖片，從（0，0）畫
  canvas.drawBitmap(source, 0, 0, paint);
  return target;
 }
}

以上就是本文的全部內容，希望對大家的學習有所幫助，也希望大家多多支持本站。
