Android 圖片的顏色處理實例代碼

仿造美圖秀秀移動鼠標調整seekbar，調整圖片的顏色

項目布局如下：

<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
  xmlns:tools="http://schemas.android.com/tools"
  android:layout_width="match_parent"
  android:layout_height="match_parent"
  android:orientation="vertical"
  tools:context=".MainActivity" >

  <SeekBar
    android:id="@+id/sb1"
    android:layout_width="match_parent"
    android:layout_height="wrap_content"
    android:max="255" />

  <SeekBar
    android:id="@+id/sb2"
    android:layout_width="match_parent"
    android:layout_height="wrap_content"
    android:max="255" />

  <SeekBar
    android:id="@+id/sb3"
    android:layout_width="match_parent"
    android:layout_height="wrap_content"
    android:max="255" />

  <ImageView
    android:id="@+id/iv"
    android:layout_width="wrap_content"
    android:layout_height="wrap_content" />

</LinearLayout>

效果如下：

邏輯部分代碼如下：

package com.wuyudong.resize;

import android.os.Bundle;
import android.app.Activity;
import android.graphics.Bitmap;
import android.graphics.BitmapFactory;
import android.graphics.Canvas;
import android.graphics.Color;
import android.graphics.ColorMatrix;
import android.graphics.ColorMatrixColorFilter;
import android.graphics.Matrix;
import android.graphics.Paint;
import android.view.Menu;
import android.widget.ImageView;
import android.widget.SeekBar;
import android.widget.SeekBar.OnSeekBarChangeListener;

public class MainActivity extends Activity {

  private ImageView iv1;
  private SeekBar sb1, sb2, sb3;

  private Bitmap alterBitmap;
  private Canvas canvas;
  private Paint paint;

  @Override
  protected void onCreate(Bundle savedInstanceState) {
    super.onCreate(savedInstanceState);
    setContentView(R.layout.activity_main);

    iv1 = (ImageView) findViewById(R.id.iv);

    // 設置第一個bitmap的圖標
    final Bitmap bitmap1 = BitmapFactory.decodeResource(getResources(),
        R.drawable.ic_launcher);

    // 新建一個bitmap
    alterBitmap = Bitmap.createBitmap(bitmap1.getWidth(),
        bitmap1.getHeight(), bitmap1.getConfig());

    // 以alterBitmap為模板新建畫布
    canvas = new Canvas(alterBitmap);
    // 新建畫筆並設置屬性
    paint = new Paint();
    paint.setColor(Color.BLACK);

    // 新建矩陣
    final Matrix matrix = new Matrix();

    // 指定顏色矩陣
    final ColorMatrix cm = new ColorMatrix();

    /**
     * Set this colormatrix to identity:
     * [ 1 0 0 0 0  - red vector
     *  0 1 0 0 0  - green vector
     *  0 0 1 0 0  - blue vector
     *  0 0 0 1 0 ] - alpha vector
     */
    paint.setColorFilter(new ColorMatrixColorFilter(cm));

    paint.setAntiAlias(true);

    // 設置畫布
    canvas.drawBitmap(bitmap1, matrix, paint);
    iv1.setImageBitmap(alterBitmap);

    sb1 = (SeekBar) findViewById(R.id.sb1);
    sb2 = (SeekBar) findViewById(R.id.sb2);
    sb3 = (SeekBar) findViewById(R.id.sb3);

    sb1.setOnSeekBarChangeListener(new OnSeekBarChangeListener() {

      @Override
      public void onStopTrackingTouch(SeekBar seekBar) {
        int progress = seekBar.getProgress();
        cm.set(new float[]{
            progress/128.0f, 0, 0, 0, 0,
            0, 1, 0, 0, 0,
            0, 0, 1, 0, 0,
            0, 0, 0, 1, 0,
        });
        paint.setColorFilter(new ColorMatrixColorFilter(cm));
        canvas.drawBitmap(bitmap1, matrix, paint);
        iv1.setImageBitmap(alterBitmap);
      }

      @Override
      public void onStartTrackingTouch(SeekBar seekBar) {

      }

      @Override
      public void onProgressChanged(SeekBar seekBar, int progress,
          boolean fromUser) {

      }
    });
    sb2.setOnSeekBarChangeListener(new OnSeekBarChangeListener() {

      @Override
      public void onStopTrackingTouch(SeekBar seekBar) {
        int progress = seekBar.getProgress();
        cm.set(new float[]{
            progress/128.0f, 0, 0, 0, 0,
            0, 1, 0, 0, 0,
            0, 0, progress/128.0f, 0, 0,
            0, 0, 0, 1, 0,
        });
        paint.setColorFilter(new ColorMatrixColorFilter(cm));
        canvas.drawBitmap(bitmap1, matrix, paint);
        iv1.setImageBitmap(alterBitmap);
      }

      @Override
      public void onStartTrackingTouch(SeekBar seekBar) {

      }

      @Override
      public void onProgressChanged(SeekBar seekBar, int progress,
          boolean fromUser) {

      }
    });
    sb3.setOnSeekBarChangeListener(new OnSeekBarChangeListener() {

      @Override
      public void onStopTrackingTouch(SeekBar seekBar) {
        int progress = seekBar.getProgress();
        cm.set(new float[]{
            1, 0, 0, 0, 0,
            0, 1, 0, 0, 0,
            0, 0, progress/128.0f, 0, 0,
            0, 0, 0, 1, 0,
        });
        paint.setColorFilter(new ColorMatrixColorFilter(cm));
        canvas.drawBitmap(bitmap1, matrix, paint);
        iv1.setImageBitmap(alterBitmap);
      }

      @Override
      public void onStartTrackingTouch(SeekBar seekBar) {

      }

      @Override
      public void onProgressChanged(SeekBar seekBar, int progress,
          boolean fromUser) {

      }
    });
  }

}

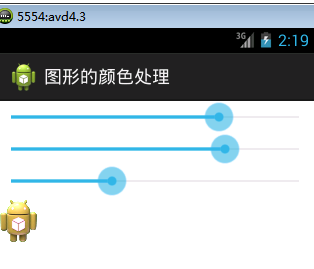

運行效果：
