Android App中ListView仿QQ實現滑動刪除效果的要點解析

本來准備在ListView的每個Item的布局上設置一個隱藏的Button，當滑動的時候顯示。但是因為每次只要存在一個Button，發現每個Item上的Button相互間不好控制。所以決定繼承ListView然後結合PopupWindow。
首先是布局文件：
delete_btn.xml：這裡只需要一個Button

<?xml version="1.0" encoding="utf-8"?>
<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
  android:layout_width="wrap_content"
  android:layout_height="wrap_content"
  android:orientation="vertical" >
   <Button
    android:id="@+id/id_item_btn"
    android:layout_width="60dp"
    android:singleLine="true"
    android:layout_height="wrap_content"
    android:text="刪除"
    android:background="@drawable/d_delete_btn"
    android:textColor="#ffffff"
    android:paddingLeft="15dp"
    android:paddingRight="15dp"
    android:layout_alignParentRight="true"
    android:layout_centerVertical="true"
    android:layout_marginRight="15dp"
    />
</LinearLayout>

主布局文件：activity_main.xml，ListView的每個Item的樣式直接使用了系統的android.R.layout.simple_list_item_1

<RelativeLayout xmlns:android="http://schemas.android.com/apk/res/android"
  xmlns:tools="http://schemas.android.com/tools"
  android:layout_width="match_parent"
  android:layout_height="match_parent" >

  <com.example.listviewitemslidedeletebtnshow.QQListView
    android:id="@+id/id_listview"
    android:layout_width="fill_parent"
    android:layout_height="wrap_content" >
  </com.example.listviewitemslidedeletebtnshow.QQListView>

</RelativeLayout>

接下來看看QQListView的實現：

package com.example.listviewitemslidedeletebtnshow;

import android.content.Context;
import android.util.AttributeSet;
import android.view.Gravity;
import android.view.LayoutInflater;
import android.view.MotionEvent;
import android.view.View;
import android.view.ViewConfiguration;
import android.widget.Button;
import android.widget.LinearLayout;
import android.widget.ListView;
import android.widget.PopupWindow;

public class QQListView extends ListView
{

  private static final String TAG = "QQlistView";

  // private static final int VELOCITY_SANP = 200;
  // private VelocityTracker mVelocityTracker;
  /**
   * 用戶滑動的最小距離
   */
  private int touchSlop;

  /**
   * 是否響應滑動
   */
  private boolean isSliding;

  /**
   * 手指按下時的x坐標
   */
  private int xDown;
  /**
   * 手指按下時的y坐標
   */
  private int yDown;
  /**
   * 手指移動時的x坐標
   */
  private int xMove;
  /**
   * 手指移動時的y坐標
   */
  private int yMove;

  private LayoutInflater mInflater;

  private PopupWindow mPopupWindow;
  private int mPopupWindowHeight;
  private int mPopupWindowWidth;

  private Button mDelBtn;
  /**
   * 為刪除按鈕提供一個回調接口
   */
  private DelButtonClickListener mListener;

  /**
   * 當前手指觸摸的View
   */
  private View mCurrentView;

  /**
   * 當前手指觸摸的位置
   */
  private int mCurrentViewPos;

  /**
   * 必要的一些初始化
   *
   * @param context
   * @param attrs
   */
  public QQListView(Context context, AttributeSet attrs)
  {
    super(context, attrs);

    mInflater = LayoutInflater.from(context);
    touchSlop = ViewConfiguration.get(context).getScaledTouchSlop();

    View view = mInflater.inflate(R.layout.delete_btn, null);
    mDelBtn = (Button) view.findViewById(R.id.id_item_btn);
    mPopupWindow = new PopupWindow(view, LinearLayout.LayoutParams.WRAP_CONTENT,
        LinearLayout.LayoutParams.WRAP_CONTENT);
    /**
     * 先調用下measure,否則拿不到寬和高
     */
    mPopupWindow.getContentView().measure(0, 0);
    mPopupWindowHeight = mPopupWindow.getContentView().getMeasuredHeight();
    mPopupWindowWidth = mPopupWindow.getContentView().getMeasuredWidth();
  }

  @Override
  public boolean dispatchTouchEvent(MotionEvent ev)
  {
    int action = ev.getAction();
    int x = (int) ev.getX();
    int y = (int) ev.getY();
    switch (action)
    {

    case MotionEvent.ACTION_DOWN:
      xDown = x;
      yDown = y;
      /**
       * 如果當前popupWindow顯示，則直接隱藏，然後屏蔽ListView的touch事件的下傳
       */
      if (mPopupWindow.isShowing())
      {
        dismissPopWindow();
        return false;
      }
      // 獲得當前手指按下時的item的位置
      mCurrentViewPos = pointToPosition(xDown, yDown);
      // 獲得當前手指按下時的item
      View view = getChildAt(mCurrentViewPos - getFirstVisiblePosition());
      mCurrentView = view;
      break;
    case MotionEvent.ACTION_MOVE:
      xMove = x;
      yMove = y;
      int dx = xMove - xDown;
      int dy = yMove - yDown;
      /**
       * 判斷是否是從右到左的滑動
       */
      if (xMove < xDown && Math.abs(dx) > touchSlop && Math.abs(dy) < touchSlop)
      {
        // Log.e(TAG, "touchslop = " + touchSlop + " , dx = " + dx +
        // " , dy = " + dy);
        isSliding = true;
      }
      break;
    }
    return super.dispatchTouchEvent(ev);
  }

  @Override
  public boolean onTouchEvent(MotionEvent ev)
  {
    int action = ev.getAction();
    /**
     * 如果是從右到左的滑動才相應
     */
    if (isSliding)
    {
      switch (action)
      {
      case MotionEvent.ACTION_MOVE:

        int[] location = new int[2];
        // 獲得當前item的位置x與y
        mCurrentView.getLocationOnScreen(location);
        // 設置popupWindow的動畫
        mPopupWindow.setAnimationStyle(R.style.popwindow_delete_btn_anim_style);
        mPopupWindow.update();
        mPopupWindow.showAtLocation(mCurrentView, Gravity.LEFT | Gravity.TOP,
            location[0] + mCurrentView.getWidth(), location[1] + mCurrentView.getHeight() / 2
                - mPopupWindowHeight / 2);
        // 設置刪除按鈕的回調
        mDelBtn.setOnClickListener(new OnClickListener()
        {
          @Override
          public void onClick(View v)
          {
            if (mListener != null)
            {
              mListener.clickHappend(mCurrentViewPos);
              mPopupWindow.dismiss();
            }
          }
        });
        // Log.e(TAG, "mPopupWindow.getHeight()=" + mPopupWindowHeight);

        break;
      case MotionEvent.ACTION_UP:
        isSliding = false;

      }
      // 相應滑動期間屏幕itemClick事件，避免發生沖突
      return true;
    }

    return super.onTouchEvent(ev);
  }

  /**
   * 隱藏popupWindow
   */
  private void dismissPopWindow()
  {
    if (mPopupWindow != null && mPopupWindow.isShowing())
    {
      mPopupWindow.dismiss();
    }
  }

  public void setDelButtonClickListener(DelButtonClickListener listener)
  {
    mListener = listener;
  }

  interface DelButtonClickListener
  {
    public void clickHappend(int position);
  }

}

代碼注釋寫得很詳細，簡單說一下，在dispatchTouchEvent中設置當前是否響應用戶滑動，然後在onTouchEvent中判斷是否響應，如果響應則popupWindow以動畫的形式展示出來。當然屏幕上如果存在PopupWindow則屏幕ListView的滾動與Item的點擊，以及從右到左滑動時屏幕Item的click事件。
接下來是MainActivity.java，這裡代碼很簡單不做介紹了。

package com.example.listviewitemslidedeletebtnshow;

import java.util.ArrayList;
import java.util.Arrays;
import java.util.List;

import android.app.Activity;
import android.os.Bundle;
import android.view.View;
import android.widget.AdapterView;
import android.widget.AdapterView.OnItemClickListener;
import android.widget.ArrayAdapter;
import android.widget.Toast;

import com.example.listviewitemslidedeletebtnshow.QQListView.DelButtonClickListener;

public class MainActivity extends Activity
{
  private QQListView mListView;
  private ArrayAdapter<String> mAdapter;
  private List<String> mDatas;

  @Override
  protected void onCreate(Bundle savedInstanceState)
  {
    super.onCreate(savedInstanceState);
    setContentView(R.layout.activity_main);

    mListView = (QQListView) findViewById(R.id.id_listview);
    // 不要直接Arrays.asList
    mDatas = new ArrayList<String>(Arrays.asList("HelloWorld", "Welcome", "Java", "Android", "Servlet", "Struts",
        "Hibernate", "Spring", "HTML5", "Javascript", "Lucene"));
    mAdapter = new ArrayAdapter<String>(this, android.R.layout.simple_list_item_1, mDatas);
    mListView.setAdapter(mAdapter);

    mListView.setDelButtonClickListener(new DelButtonClickListener()
    {
      @Override
      public void clickHappend(final int position)
      {
        Toast.makeText(MainActivity.this, position + " : " + mAdapter.getItem(position), 1).show();
        mAdapter.remove(mAdapter.getItem(position));
      }
    });

    mListView.setOnItemClickListener(new OnItemClickListener()
    {
      @Override
      public void onItemClick(AdapterView<?> parent, View view, int position, long id)
      {
        Toast.makeText(MainActivity.this, position + " : " + mAdapter.getItem(position), 1).show();
      }
    });
  }
}

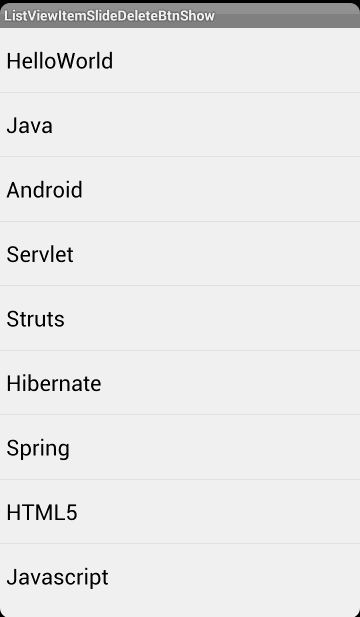

效果圖如下：樓主使用asm.jar以及gifcamera截的gif，由於button的動畫很短感覺截圖效果很卡不流暢，大家有什麼好的截圖，還望推薦。有興趣的還是下載源碼看看效果i。
