實例講解Android中ViewPager組件的一些進階使用技巧

編輯：關於Android編程

我們經常看到使用了ViewPager的App，在每頁上面都會有一個滑塊來標志當前處於哪一頁。在PagerView包裡有android.support.v4.view.PagerTitleStrip和android.support.v4.view.PagerTabStrip兩個組件，可以在布局文件中，作為ViewPager的子標簽，並設定相對與ViewPager的位置(比如頂部)。但這兩個組件都很丑，並且標題會隨著頁面一起滑動，所以一般都不用。

其實實現一個滑塊標志當前頁面也很簡單，大概需要兩步：

第一步 在布局文件ViewPager的上方放置一個ImageView組件，組件可以是圖片或是shape資源。注意需要把ImageView的scaleType屬性設為matrix，就是說該組件的位置和大小由一個變換矩陣來控制；

第二步 在Activity中為ViewPager組件添加OnPageChangeListener監聽器。在OnPageChangeListener裡設定matrix，用於控制指示滑塊ImageView的位置。該監聽器需要實現三個方法：

onPageScrollStateChanged：用於監聽滑動狀態的改變

onPageScrolled：用於監聽滑動的動作

onPageSeleted:用於監聽頁面的切換，即某個頁面被選中了作為當前頁面。

一般實現onPageSelected方法就可以，其他兩個方法可以空著。另外為了使頁面切換時滑塊也是平滑地滑動，可以給滑塊的ImageView指定一個TranslateAnimation動畫，指定動畫用setAnimation，TranlateAnimation也很簡單，有個構造函數是TranslateAnimation(int beginX,int endX,int beginY,int endY)，將運動矢量的起始位置和終止位置傳給它就好了。

下面我們來看五個具體的例子：


一 實現ViewPager（數據源為List<View>）

1.先在main.xml文件中添加一個ViewPager:

<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
  android:layout_width="match_parent"
  android:layout_height="match_parent" >

  <android.support.v4.view.ViewPager
    android:id="@+id/pager"
    android:layout_width="wrap_content"
    android:layout_height="wrap_content">
  </android.support.v4.view.ViewPager>

</LinearLayout>

2.創建三個View:

<?xml version="1.0" encoding="utf-8"?>
<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
  android:layout_width="match_parent"
  android:layout_height="match_parent"
  android:orientation="vertical" >

  <TextView
    android:id="@+id/txt1"
    android:layout_width="wrap_content"
    android:layout_height="wrap_content"
    android:layout_gravity="center"
    android:textSize="25dp"
    android:text="第一頁" >
  </TextView>

</LinearLayout>


<?xml version="1.0" encoding="utf-8"?>
<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
  android:layout_width="match_parent"
  android:layout_height="match_parent"
  android:orientation="vertical" >

  <TextView
    android:id="@+id/txt2"
    android:layout_width="wrap_content"
    android:layout_height="wrap_content"
    android:text="第二頁" >
  </TextView>

</LinearLayout>


<?xml version="1.0" encoding="utf-8"?>
<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
  android:layout_width="match_parent"
  android:layout_height="match_parent"
  android:orientation="vertical" >

  <TextView
    android:id="@+id/txt3"
    android:layout_width="wrap_content"
    android:layout_height="wrap_content"
    android:text="第三頁" >
  </TextView>

</LinearLayout>

3.創建一個ViewPager適配器類：

package com.yayun.viewpagerdemo;

import java.util.ArrayList;
import java.util.List;

import android.support.v4.view.PagerAdapter;
import android.view.View;
import android.view.ViewGroup;

public class ViewPagerAdapter extends PagerAdapter {
  private List<View> lViews=new ArrayList<View>();

  public ViewPagerAdapter(List<View> lViews){
    this.lViews=lViews;
  }

  @Override
  public int getCount() {
    return lViews.size();
  }

  @Override
  public boolean isViewFromObject(View arg0, Object arg1) {
    return arg0==arg1;
  }
  @Override
  public Object instantiateItem(ViewGroup container, int position) {
    container.addView(lViews.get(position));
    return lViews.get(position);
  }
  @Override
  public void destroyItem(ViewGroup container, int position, Object object) {
    container.removeView(lViews.get(position));
  }

}

4.MainActivity.java:

package com.yayun.viewpagerdemo;

import java.util.ArrayList;
import java.util.List;

import android.support.v7.app.ActionBarActivity;
import android.support.v7.app.ActionBar;
import android.support.v4.app.Fragment;
import android.support.v4.view.PagerAdapter;
import android.support.v4.view.ViewPager;
import android.os.Bundle;
import android.view.LayoutInflater;
import android.view.Menu;
import android.view.MenuItem;
import android.view.View;
import android.view.ViewGroup;
import android.view.Window;
import android.os.Build;

public class MainActivity extends ActionBarActivity {
  private ViewPager viewPager;
  private List<View> listViews=null;
  ViewPagerAdapter pagerAdapter;

  @Override
  protected void onCreate(Bundle savedInstanceState) {
    super.onCreate(savedInstanceState);
    requestWindowFeature(Window.FEATURE_NO_TITLE);
    setContentView(R.layout.activity_main);

    viewPager=(ViewPager) findViewById(R.id.pager);
    listViews=new ArrayList<View>();
    /**
     * 為Adapter創建數據源
     */
    View view1=View.inflate(this, R.layout.view1, null);
    View view2=View.inflate(this, R.layout.view2, null);
    View view3=View.inflate(this, R.layout.view3, null);
    listViews.add(view1);
    listViews.add(view2);
    listViews.add(view3);
    pagerAdapter=new ViewPagerAdapter(listViews) ;
    viewPager.setAdapter(pagerAdapter);

  }

}

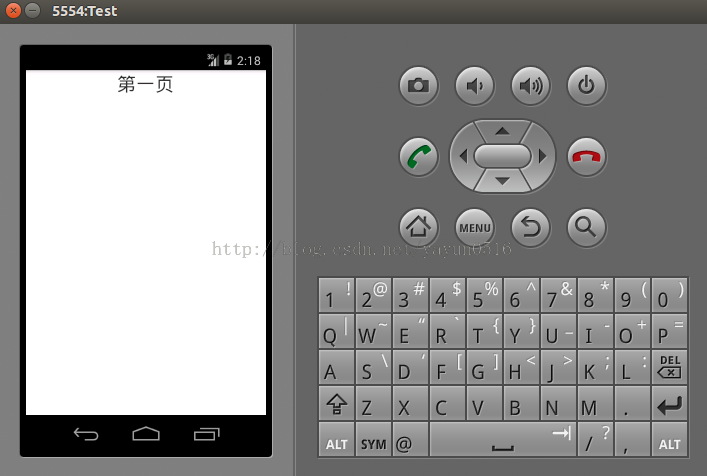

5.運行實例：

可以實現翻頁效果。

二 添加標題
1.我們需要更改main.xml文件：

<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
  android:layout_width="match_parent"
  android:layout_height="match_parent" >

  <android.support.v4.view.ViewPager
    android:id="@+id/pager"
    android:layout_width="wrap_content"
    android:layout_height="wrap_content"
    android:layout_gravity="center" >

    <android.support.v4.view.PagerTabStrip
      android:id="@+id/strip"
      android:layout_width="wrap_content"
      android:layout_height="wrap_content"
      android:layout_gravity="top" >
    </android.support.v4.view.PagerTabStrip>
  </android.support.v4.view.ViewPager>

</LinearLayout>

2.需要更改適配器文件：

package com.yayun.viewpagerdemo;

import java.util.ArrayList;
import java.util.List;

import android.support.v4.view.PagerAdapter;
import android.view.View;
import android.view.ViewGroup;

public class ViewPagerAdapter extends PagerAdapter {
  private List<View> lViews=new ArrayList<View>();
  private List<String> titleList=new ArrayList<String>();

  public ViewPagerAdapter(List<View> lViews,List<String> titleList){
    this.lViews=lViews;
    this.titleList=titleList;
  }

  @Override
  public int getCount() {
    return lViews.size();
  }

  @Override
  public boolean isViewFromObject(View arg0, Object arg1) {
    return arg0==arg1;
  }
  @Override
  public Object instantiateItem(ViewGroup container, int position) {
    container.addView(lViews.get(position));
    return lViews.get(position);
  }
  @Override
  public void destroyItem(ViewGroup container, int position, Object object) {
    container.removeView(lViews.get(position));
  }
  /**
   * 標題
   */
  @Override
  public CharSequence getPageTitle(int position) {
    // TODO Auto-generated method stub
    return titleList.get(position);
  }

}

3.需要更改MainActivity.java文件：

package com.yayun.viewpagerdemo;

import java.util.ArrayList;
import java.util.List;

import android.support.v7.app.ActionBarActivity;
import android.support.v7.app.ActionBar;
import android.support.v4.app.Fragment;
import android.support.v4.view.PagerAdapter;
import android.support.v4.view.PagerTabStrip;
import android.support.v4.view.ViewPager;
import android.os.Bundle;
import android.view.LayoutInflater;
import android.view.Menu;
import android.view.MenuItem;
import android.view.View;
import android.view.ViewGroup;
import android.view.Window;
import android.os.Build;

public class MainActivity extends ActionBarActivity {
  private ViewPager viewPager;
  private List<View> listViews=null;
  ViewPagerAdapter pagerAdapter;
  PagerTabStrip pagerTabStrip;
  private List<String> titleList;

  @Override
  protected void onCreate(Bundle savedInstanceState) {
    super.onCreate(savedInstanceState);
    requestWindowFeature(Window.FEATURE_NO_TITLE);
    setContentView(R.layout.activity_main);

    viewPager=(ViewPager) findViewById(R.id.pager);
    pagerTabStrip=(PagerTabStrip) findViewById(R.id.strip);
    listViews=new ArrayList<View>();
    titleList=new ArrayList<String>();
    titleList.add("第一頁");
    titleList.add("第二頁");
    titleList.add("第三頁");
    /**
     * 為Adapter創建數據源
     */
    View view1=View.inflate(this, R.layout.view1, null);
    View view2=View.inflate(this, R.layout.view2, null);
    View view3=View.inflate(this, R.layout.view3, null);
    listViews.add(view1);
    listViews.add(view2);
    listViews.add(view3);
    pagerAdapter=new ViewPagerAdapter(listViews,titleList) ;
    viewPager.setAdapter(pagerAdapter);

  }

}

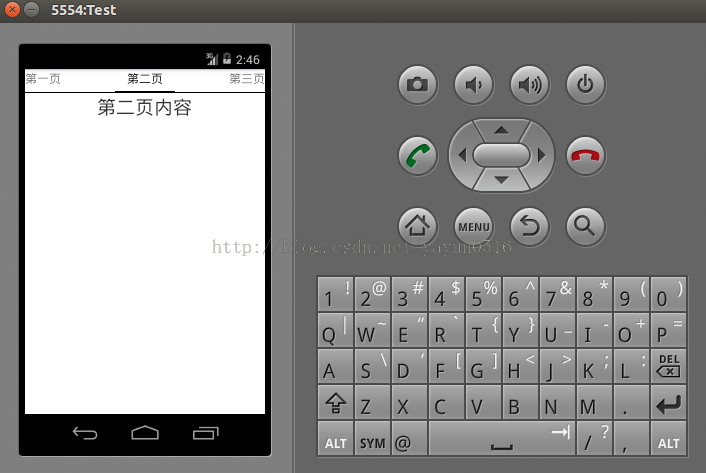

4.運行實例如下：


三 實現ViewPager(數據源為List<Fragment>)
1.首先我們要創建三個Fragment:

package com.yayun.viewpagerdemo;

import android.os.Bundle;
import android.support.v4.app.Fragment;
import android.view.LayoutInflater;
import android.view.View;
import android.view.ViewGroup;

public class Fragment1 extends Fragment {
  @Override
  public View onCreateView(LayoutInflater inflater, ViewGroup container,
      Bundle savedInstanceState) {
    return inflater.inflate(R.layout.view1, container, false);
  }

}

package com.yayun.viewpagerdemo;

import android.os.Bundle;
import android.support.v4.app.Fragment;
import android.view.LayoutInflater;
import android.view.View;
import android.view.ViewGroup;

public class Fragment2 extends Fragment {
  @Override
  public View onCreateView(LayoutInflater inflater, ViewGroup container,
      Bundle savedInstanceState) {
    return inflater.inflate(R.layout.view2, container, false);
  }

}

package com.yayun.viewpagerdemo;

import android.os.Bundle;
import android.support.v4.app.Fragment;
import android.view.LayoutInflater;
import android.view.View;
import android.view.ViewGroup;

public class Fragment3 extends Fragment {
  @Override
  public View onCreateView(LayoutInflater inflater, ViewGroup container,
      Bundle savedInstanceState) {
    return inflater.inflate(R.layout.view3, container, false);
  }

}

2.設置Adapter:

package com.yayun.viewpagerdemo;

import java.util.List;

import android.support.v4.app.Fragment;
import android.support.v4.app.FragmentManager;
import android.support.v4.app.FragmentPagerAdapter;

public class MyFragmentPagerAdapter extends FragmentPagerAdapter {
  List<Fragment> fragmentsList;
  List<String> titleList;

  public MyFragmentPagerAdapter(FragmentManager fm,List<Fragment> fragmentsList,List<String> titleList) {
    super(fm);
    this.fragmentsList=fragmentsList;
    this.titleList=titleList;
  }

  @Override
  public Fragment getItem(int arg0) {
    // TODO Auto-generated method stub
    return fragmentsList.get(arg0);
  }

  @Override
  public int getCount() {
    // TODO Auto-generated method stub
    return fragmentsList.size();
  }
@Override
/**
 * 添加標題
 */
public CharSequence getPageTitle(int position) {
  // TODO Auto-generated method stub
  return titleList.get(position);
}

}

3.MainActivity.java:

package com.yayun.viewpagerdemo;

import java.util.ArrayList;
import java.util.List;

import android.graphics.Color;
import android.os.Bundle;
import android.support.v4.app.Fragment;
import android.support.v4.view.PagerTabStrip;
import android.support.v4.view.ViewPager;
import android.support.v4.view.ViewPager.PageTransformer;
import android.support.v7.app.ActionBarActivity;
import android.view.View;
import android.view.Window;

public class MainActivity extends ActionBarActivity {
  private ViewPager viewPager;
  private List<View> listViews=null;
  ViewPagerAdapter pagerAdapter;
  PagerTabStrip pagerTabStrip;
  private List<String> titleList;
  private List<Fragment> fragmentsList;
  MyFragmentPagerAdapter myFragmentPagerAdapter;

  @Override
  protected void onCreate(Bundle savedInstanceState) {
    super.onCreate(savedInstanceState);
    requestWindowFeature(Window.FEATURE_NO_TITLE);
    setContentView(R.layout.activity_main);

    viewPager=(ViewPager) findViewById(R.id.pager);
    pagerTabStrip=(PagerTabStrip) findViewById(R.id.strip);

    /**
     * 設置PagerTabStrip屬性
     */
    pagerTabStrip.setBackgroundColor(Color.GREEN);
    pagerTabStrip.setDrawFullUnderline(false);
    pagerTabStrip.setTextColor(Color.WHITE);
    listViews=new ArrayList<View>();
    titleList=new ArrayList<String>();
    fragmentsList=new ArrayList<Fragment>();
    fragmentsList.add(new Fragment1());
    fragmentsList.add(new Fragment2());
    fragmentsList.add(new Fragment3());
    titleList.add("第一頁");
    titleList.add("第二頁");
    titleList.add("第三頁");
    /**
     * 為Adapter創建數據源
     */
    View view1=View.inflate(this, R.layout.view1, null);
    View view2=View.inflate(this, R.layout.view2, null);
    View view3=View.inflate(this, R.layout.view3, null);
    listViews.add(view1);
    listViews.add(view2);
    listViews.add(view3);
    pagerAdapter=new ViewPagerAdapter(listViews,titleList) ;
    myFragmentPagerAdapter=new MyFragmentPagerAdapter(getSupportFragmentManager(), fragmentsList, titleList);
    //viewPager.setAdapter(pagerAdapter);
    viewPager.setAdapter(myFragmentPagerAdapter);

  }

}

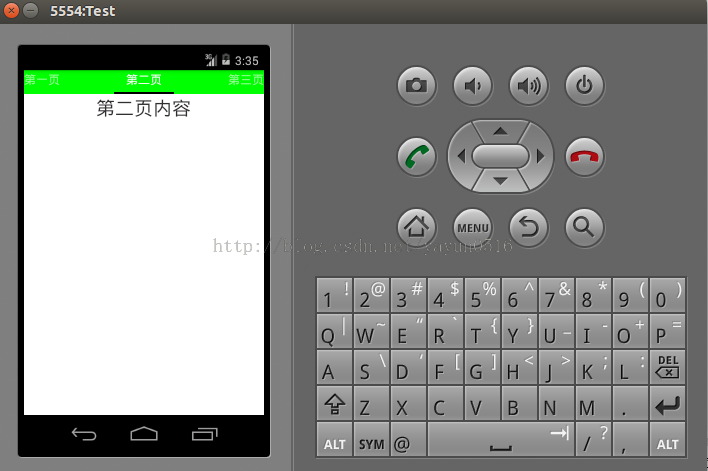

4.運行實例：


這種方法不會銷毀不在當前頁面的頁面，不能實現頁卡的創建和銷毀。

四 實現ViewPager(數據源為List<Fragment>實現FargmentStatePagerAdapter)常用
改變Adapter:

package com.yayun.viewpagerdemo;

import java.util.List;

import android.support.v4.app.Fragment;
import android.support.v4.app.FragmentManager;
import android.support.v4.app.FragmentPagerAdapter;
import android.support.v4.app.FragmentStatePagerAdapter;
import android.view.View;

public class MyFragmentPagerAdapter2 extends FragmentStatePagerAdapter {
  List<Fragment> fragmentsList;
  List<String> titleList;

  public MyFragmentPagerAdapter2(FragmentManager fm,List<Fragment> fragmentsList,List<String> titleList) {
    super(fm);
    this.fragmentsList=fragmentsList;
    this.titleList=titleList;
  }

  @Override
  public Fragment getItem(int arg0) {
    // TODO Auto-generated method stub
    return fragmentsList.get(arg0);
  }

  @Override
  public int getCount() {
    // TODO Auto-generated method stub
    return fragmentsList.size();
  }
@Override
/**
 * 添加標題
 */
public CharSequence getPageTitle(int position) {
  // TODO Auto-generated method stub
  return titleList.get(position);
}
@Override
public Object instantiateItem(View container, int position) {
  // TODO Auto-generated method stub
  return super.instantiateItem(container, position);
}
@Override
public void destroyItem(View container, int position, Object object) {
  // TODO Auto-generated method stub
  super.destroyItem(container, position, object);
}

}

將MainActivity.java中的Adapter換一下即可，它可以實現頁卡的創建和銷毀。

五  onPagerChangeListener 監聽使用
只需要修改MainActivity.java:

package com.yayun.viewpagerdemo;

import java.util.ArrayList;
import java.util.List;

import android.graphics.Color;
import android.os.Bundle;
import android.support.v4.app.Fragment;
import android.support.v4.view.PagerTabStrip;
import android.support.v4.view.ViewPager;
import android.support.v4.view.ViewPager.OnPageChangeListener;
import android.support.v4.view.ViewPager.PageTransformer;
import android.support.v7.app.ActionBarActivity;
import android.view.View;
import android.view.Window;
import android.widget.Toast;

public class MainActivity extends ActionBarActivity implements OnPageChangeListener {
  private ViewPager viewPager;
  private List<View> listViews=null;
  ViewPagerAdapter pagerAdapter;
  PagerTabStrip pagerTabStrip;
  private List<String> titleList;
  private List<Fragment> fragmentsList;
  MyFragmentPagerAdapter myFragmentPagerAdapter;

  @Override
  protected void onCreate(Bundle savedInstanceState) {
    super.onCreate(savedInstanceState);
    requestWindowFeature(Window.FEATURE_NO_TITLE);
    setContentView(R.layout.activity_main);

    viewPager=(ViewPager) findViewById(R.id.pager);
    pagerTabStrip=(PagerTabStrip) findViewById(R.id.strip);

    /**
     * 設置PagerTabStrip屬性
     */
    pagerTabStrip.setBackgroundColor(Color.GREEN);
    pagerTabStrip.setDrawFullUnderline(false);
    pagerTabStrip.setTextColor(Color.WHITE);
    listViews=new ArrayList<View>();
    titleList=new ArrayList<String>();
    fragmentsList=new ArrayList<Fragment>();
    fragmentsList.add(new Fragment1());
    fragmentsList.add(new Fragment2());
    fragmentsList.add(new Fragment3());
    titleList.add("第一頁");
    titleList.add("第二頁");
    titleList.add("第三頁");
    /**
     * 為Adapter創建數據源
     */
    View view1=View.inflate(this, R.layout.view1, null);
    View view2=View.inflate(this, R.layout.view2, null);
    View view3=View.inflate(this, R.layout.view3, null);
    listViews.add(view1);
    listViews.add(view2);
    listViews.add(view3);
    pagerAdapter=new ViewPagerAdapter(listViews,titleList) ;
    myFragmentPagerAdapter=new MyFragmentPagerAdapter(getSupportFragmentManager(), fragmentsList, titleList);
    //viewPager.setAdapter(pagerAdapter);
    viewPager.setAdapter(myFragmentPagerAdapter);
    viewPager.setOnPageChangeListener(this);//加載監聽器

  }

  @Override
  public void onPageScrollStateChanged(int arg0) {
    // TODO Auto-generated method stub

  }

  @Override
  public void onPageScrolled(int arg0, float arg1, int arg2) {
    // TODO Auto-generated method stub

  }

  @Override
  public void onPageSelected(int arg0) {
    Toast.makeText(this, "當前頁面為"+(arg0+1), Toast.LENGTH_SHORT).show();

  }

}

運行實例即可以顯示當前頁面標簽。

  1. 上一頁:
  2. 下一頁:
關於Android編程
Android編程入門Android技術基礎Android資訊關於Android編程Android開發Android開發環境Android開發實例
相關文章
熱門文章
Android Realm數據庫完美解析 Android實現卡片翻轉動畫 Android開發5：應用程序窗口小部件App Widgets的實現（附demo） Android開發筆記（一百一十三）測試工具 Android性能調優工具之 TraceView Android工程文件下assets文件夾與res文件夾的區別
Android創建和使用數據庫SQLIte

一、關系型數據庫SQLIte   &nbs
插件化接入百度地圖和高德地圖

我們的應用可能會用到地圖定位等功能，但是無論高德還是百度直接接入到應用中
事件分發系列—View中的dispatchTouchEvent和onTouchEvent分析

dispatchTouchEvent話不多說直接上源碼 /**

Android實現 通過手勢隨意縮放、移動ImageView圖片

先放上一張效果圖：在這裡，我對自己的筆記本全屏截圖，然後當作自定義Ima
閱讀排行版
Copyright © Android教程網 All Rights Reserved
