Android開發之TimePicker控件用法實例詳解

本文實例分析了Android開發之TimePicker控件用法。分享給大家供大家參考，具體如下：

新建項目：

New Android Project->
Project name:HelloSpinner
Build Target:Android 2.2
Application name:HelloSpinner
Package name:com.b510
Create Activity:MainActivity
Min SDK Version:9
Finish

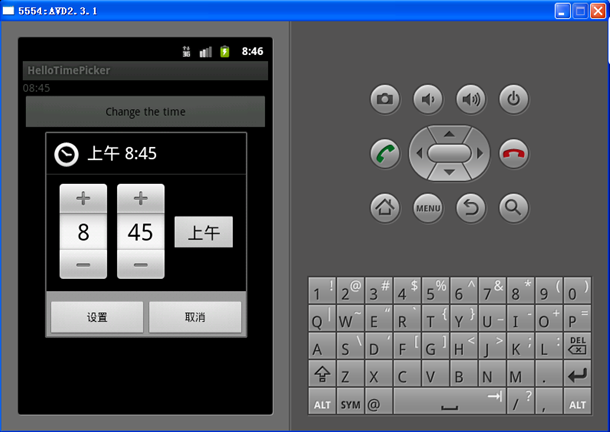

運行效果：

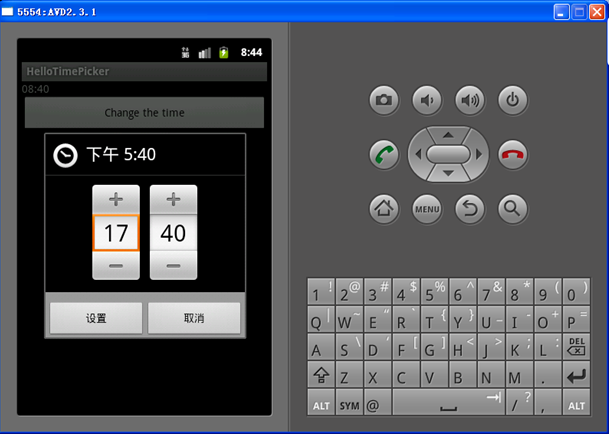

如果：

return new TimePickerDialog(this, mTimeSetListener, mHour, mMinute, false);

代碼部分：

MainActivity.java：

package com.b510;
import java.util.Calendar;
import android.app.Activity;
import android.app.Dialog;
import android.app.TimePickerDialog;
import android.os.Bundle;
import android.view.View;
import android.view.View.OnClickListener;
import android.widget.Button;
import android.widget.TextView;
import android.widget.TimePicker;
public class HelloTimePicker extends Activity {
  /* 顯示時間信息 */
  private TextView tvTimePickerDisplay;
  /* 設置時間按鈕 */
  private Button btnTimePicker;
  /* 小時 */
  private int mHour;
  /* 分鐘 */
  private int mMinute;
  /* 標識 dialog的id */
  static final int TIME_DIALOG_ID = 0;
  /** Called when the activity is first created. */
  @Override
  public void onCreate(Bundle savedInstanceState) {
    super.onCreate(savedInstanceState);
    setContentView(R.layout.main);
    this.tvTimePickerDisplay = (TextView) this
        .findViewById(R.id.tv_timepicker_display);
    this.btnTimePicker = (Button) findViewById(R.id.btn_timepicker);
    btnTimePicker.setOnClickListener(listener);
    // get the current time
    final Calendar c = Calendar.getInstance();
    mHour = c.get(Calendar.HOUR_OF_DAY);
    mMinute = c.get(Calendar.MINUTE);
    // display the current date
    updateDisplay();
  }
  private OnClickListener listener = new OnClickListener() {
    @Override
    public void onClick(View v) {
      showDialog(TIME_DIALOG_ID);
    }
  };
  // updates the time we display in the TextView
  private void updateDisplay() {
    tvTimePickerDisplay.setText(new StringBuilder().append(pad(mHour)).append(":")
        .append(pad(mMinute)));
  }
  private static String pad(int c) {
    if (c >= 10)
      return String.valueOf(c);
    else
      return "0" + String.valueOf(c);
  }
  // the callback received when the user "sets" the time in the dialog
  private TimePickerDialog.OnTimeSetListener mTimeSetListener = new TimePickerDialog.OnTimeSetListener() {
    public void onTimeSet(TimePicker view, int hourOfDay, int minute) {
      mHour = hourOfDay;
      mMinute = minute;
      updateDisplay();
    }
  };
  @Override
  protected Dialog onCreateDialog(int id) {
    switch (id) {
    case TIME_DIALOG_ID:
      return new TimePickerDialog(this, mTimeSetListener, mHour, mMinute,
          true);
    }
    return null;
  }
}

main.xml：

<?xml version="1.0" encoding="utf-8"?>
<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
  android:orientation="vertical"
  android:layout_width="fill_parent"
  android:layout_height="fill_parent"
  >
<TextView
  android:id="@+id/tv_timepicker_display"
  android:layout_width="fill_parent"
  android:layout_height="wrap_content"
/>
<Button
  android:id="@+id/btn_timepicker"
  android:layout_width="fill_parent"
  android:layout_height="wrap_content"
  android:text="Change the time"
/>
</LinearLayout>

更多關於Android相關內容感興趣的讀者可查看本站專題：《Android開發入門與進階教程》、《Android多媒體操作技巧匯總(音頻,視頻,錄音等)》、《Android基本組件用法總結》、《Android視圖View技巧總結》、《Android布局layout技巧總結》及《Android控件用法總結》

希望本文所述對大家Android程序設計有所幫助。
