基於anyrtc的sdk實現直播連麥互動

編輯：關於Android編程

前言

1.由於粘貼了較大的代碼，造成內容比較長，可能會花費您較長的時間。
2.項目裡面沒有做權限判斷，所以如果發現有頁面發生崩潰可能是權限沒有打開，請打開權限後再進行嘗試。
3.錄制的GIF畫質好差，真實環境很好。

一.有圖有真相

主播端 :　/uploadfile/2016/0919/20160919100731416.gif
游客端 :　/uploadfile/2016/0919/20160919100745416.gif

二.集成步驟，教你實現直播連麥互動

從github上Android" target="_blank">https://github.com/AnyRTC/RTMPCHybirdEngine-Android下載下來，導入AS，結構如下圖所示。

\

1.初始化RTMP引擎

MainActivity.java

RTMPCHybird.Inst().Init(getApplicationContext());
 RTMPCHybird.Inst().InitEngineWithAnyrtcInfo("你的開發者ID", "liveDemo", "LslMfUyvcW8hv6NgY0n8FOWf5t1K+YWpoMzRsqwkBiE", "d6ff4b7d1b549f497a0b94cf500fd549");

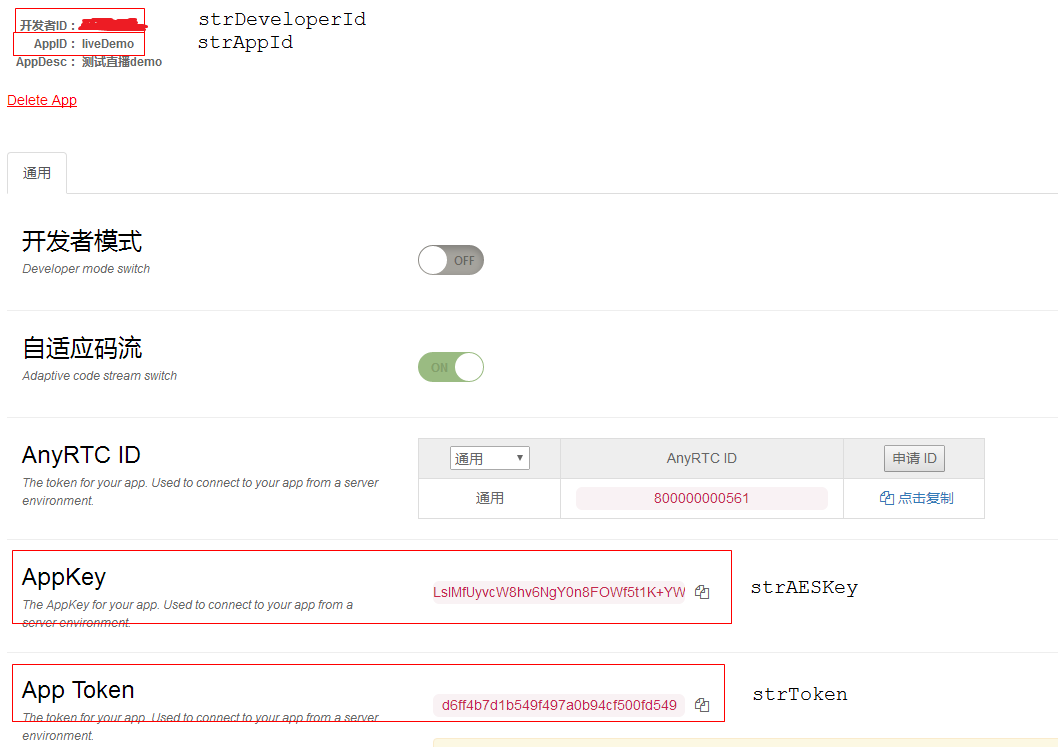

以上的四個參數可以在https://www.anyrtc.io注冊開發者賬號並創建一個應用可得，如下圖所示。你可以把它放在繼承Application的onCreate()方法中。

\

2.獲取直播列表，隨時隨地觀看主播

MainActivity.java

RTMPCHttpSDK.GetLiveList(this, RTMPCHybird.Inst().GetHttpAddr(), 你的開發者ID", "liveDemo",     "d6ff4b7d1b549f497a0b94cf500fd549", mRTMPCHttpCallback);

    private RTMPCHttpSDK.RTMPCHttpCallback mRTMPCHttpCallback = new RTMPCHttpSDK.RTMPCHttpCallback() {
        @Override
        public void OnRTMPCHttpOK(String strContent) {
            mRecyclerViewUtils.endRefreshing();
            try {
                listLive.clear();
                JSONObject liveJson = new JSONObject(strContent);
                JSONArray liveList = liveJson.getJSONArray("LiveList");
                JSONArray memberList = liveJson.getJSONArray("LiveMembers");
                for (int i = 0; i < liveList.length(); i++) {
                    LiveItemBean bean = new LiveItemBean();
                    JSONObject itemJson = new JSONObject(liveList.getString(i));
                    bean.setmHosterId(itemJson.getString("hosterId"));
                    bean.setmRtmpPullUrl(itemJson.getString("rtmp_url"));
                    bean.setmHlsUrl(itemJson.getString("hls_url"));
                    bean.setmLiveTopic(itemJson.getString("topic"));
                    bean.setmAnyrtcId(itemJson.getString("anyrtcId"));
                    bean.setmMemNumber(memberList.getInt(i));
                    listLive.add(bean);
                }
                mAdapter.setDatas(listLive);
            } catch (JSONException e) {
                e.printStackTrace();
            }
        }

        @Override
        public void OnRTMPCHttpFailed(int code) {

        }
    };

以上代碼可以獲取所有正在直播列表名單

3.發起直播，成就自己的直播夢
a.你可以自己設置推流地址和拉流地址，這裡我直接用他提供的地址了

RTMPUrlHelper.java

public class RTMPUrlHelper {
    /**
     * rtmp 推流地址
     */
    public static final String RTMP_PUSH_URL = "rtmp://192.168.7.207:1935/live/%s";
    /**
     * rtmp 拉流地址
     */
    public static final String RTMP_PULL_URL = "rtmp://192.168.7.207:1935/live/%s";
    /**
     * hls 地址
     */
    public static final String HLS_URL = "http://192.169.7.207/live/%s.m3u8";
    /**
     * 分享頁面url地址
     */
    public static final String SHARE_WEB_URL = "http://123.59.68.21/rtmpc-demo/?%s";
}
b.這裡要使用到你創建應用的anyrtcid、推流拉流hls地址、直播名稱。到這一步你已經離你的直播夢完成了一半了<(￣︶￣)>。

PreStartLiveActivity.java

String anyrtcId = RTMPCHttpSDK.getRandomString(12);
            String rtmpPushUrl = String.format(RTMPUrlHelper.RTMP_PUSH_URL, anyrtcId);
            String rtmpPullUrl = String.format(RTMPUrlHelper.RTMP_PULL_URL, anyrtcId);
            String hlsUrl = String.format(RTMPUrlHelper.HLS_URL, anyrtcId);
            JSONObject item = new JSONObject();
            try {
                item.put("hosterId", "hostID");
                item.put("rtmp_url", rtmpPullUrl);
                item.put("hls_url", hlsUrl);
                item.put("topic", topic);
                item.put("anyrtcId", anyrtcId);
            } catch (JSONException e) {
                e.printStackTrace();
            }
            Bundle bundle = new Bundle();
            bundle.putString("hosterId", "hostID");
            bundle.putString("rtmp_url", rtmpPushUrl);
            bundle.putString("hls_url", hlsUrl);
            bundle.putString("topic", topic);
            bundle.putString("andyrtcId", anyrtcId);
            bundle.putString("userData", item.toString());
            Intent intent = new Intent(this, HosterActivity.class);
            intent.putExtras(bundle);
            startActivity(intent);
4.你的直播夢就在此就要實現了，打起精神(⊙o⊙)哦
a.從上個Activity拿到傳過來的數據

HosterActivity.java

 mHosterId = getIntent().getExtras().getString("hosterId");
        mRtmpPushUrl = getIntent().getExtras().getString("rtmp_url");
        mAnyrtcId = getIntent().getExtras().getString("andyrtcId");
        mUserData = getIntent().getExtras().getString("userData");
        mHlsUrl = getIntent().getExtras().getString("hls_url");
        mTopic = getIntent().getExtras().getString("topic");

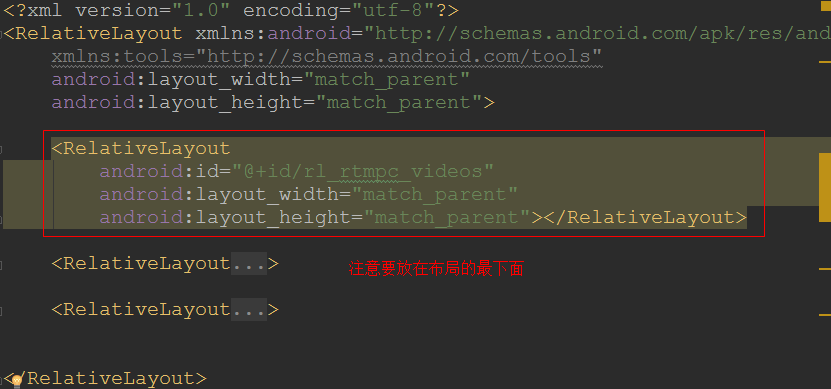

這裡的R.id.rl_rtmpc_videos表示打開手機攝像頭捕獲的像呈現的地方，如下圖所示。
HosterActivity.java

mVideoView = new RTMPCVideoView((RelativeLayout) findViewById(R.id.rl_rtmpc_videos), RTMPCHybird.Inst().Egl(), true);
        mVideoView.setBtnCloseEvent(mBtnVideoCloseEvent);
        mHosterKit = new RTMPCHosterKit(this, mHosterListener);

        {
            VideoRenderer render = mVideoView.OnRtcOpenLocalRender();
            mHosterKit.SetVideoCapturer(render.GetRenderPointer(), true);
        }

\

b.這裡是創建和音頻管理器，將照顧音頻路由，音頻模式，音頻設備枚舉等、存儲現有的音頻設置更改音頻模式達到最佳的VoIP性能。
           {
            // Create and audio manager that will take care of audio routing,
            // audio modes, audio device enumeration etc.
            mRtmpAudioManager = RTMPAudioManager.create(this, new Runnable() {
                // This method will be called each time the audio state (number
                // and
                // type of devices) has been changed.
                @Override
                public void run() {
                    onAudioManagerChangedState();
                }
            });
            // Store existing audio settings and change audio mode to
            // MODE_IN_COMMUNICATION for best possible VoIP performance.
            mRtmpAudioManager.init();
            mRtmpAudioManager.setAudioDevice(RTMPAudioManager.AudioDevice.SPEAKER_PHONE);
        }

        mStartRtmp = true;
        /**
         * 開始推流
         */
        mHosterKit.StartPushRtmpStream(mRtmpPushUrl);
        /**
         * 建立RTC連線連接
         */
        mHosterKit.OpenRTCLine(mAnyrtcId, mHosterId, mUserData);
c.主播的直播回調接口

mHosterKit = new RTMPCHosterKit(this, mHosterListener);
這句代碼是主播直播的回調接口，可以做連麥、取消連麥、接收消息和彈幕消息、實時觀看人數和人員上下線等。實用的操作一般再此實行。
HosterActivity.java

/**
     * 主播回調信息接口
     */
    private RTMPCAbstractHoster mHosterListener = new RTMPCAbstractHoster() {
        /**
         * rtmp連接成功
         */
        @Override
        public void OnRtmpStreamOKCallback() {
            HosterActivity.this.runOnUiThread(new Runnable() {
                @Override
                public void run() {
                    ((TextView) findViewById(R.id.txt_rtmp_connection_status)).setText(R.string.str_rtmp_connect_success);
                }
            });
        }

        /**
         * rtmp 重連次數
         * @param times 重連次數
         */
        @Override
        public void OnRtmpStreamReconnectingCallback(final int times) {
            HosterActivity.this.runOnUiThread(new Runnable() {
                @Override
                public void run() {
                    ((TextView) findViewById(R.id.txt_rtmp_connection_status)).setText(String.format(getString(R.string.str_reconnect_times), times));
                }
            });
        }

        /**
         * rtmp 推流狀態
         * @param delayMs 推流延時
         * @param netBand 推流碼流
         */
        @Override
        public void OnRtmpStreamStatusCallback(final int delayMs, final int netBand) {
            HosterActivity.this.runOnUiThread(new Runnable() {
                @Override
                public void run() {
                    ((TextView) findViewById(R.id.txt_rtmp_status)).setText(String.format(getString(R.string.str_rtmp_status), delayMs, netBand));
                }
            });
        }

        /**
         * rtmp推流失敗回調
         * @param code
         */
        @Override
        public void OnRtmpStreamFailedCallback(int code) {
            HosterActivity.this.runOnUiThread(new Runnable() {
                @Override
                public void run() {
                    ((TextView) findViewById(R.id.txt_rtmp_connection_status)).setTextColor(R.color.yellow);
                    ((TextView) findViewById(R.id.txt_rtmp_connection_status)).setText(R.string.str_rtmp_connect_failed);
                }
            });
        }

        /**
         * rtmp 推流關閉回調
         */
        @Override
        public void OnRtmpStreamClosedCallback() {
            finish();
        }

        /**
         * RTC 連接回調
         * @param code 0： 連接成功
         * @param strErr 原因
         */
        @Override
        public void OnRTCOpenLineResultCallback(final int code, String strErr) {
            HosterActivity.this.runOnUiThread(new Runnable() {
                @Override
                public void run() {
                    if (code == 0) {
                        ((TextView) findViewById(R.id.txt_rtc_connection_status)).setText(R.string.str_rtc_connect_success);
                    } else {
                        ((TextView) findViewById(R.id.txt_rtc_connection_status)).setTextColor(R.color.yellow);
                        ((TextView) findViewById(R.id.txt_rtc_connection_status)).setText(R.string.str_rtmp_connect_failed);
                    }
                }
            });
        }

        /**
         * 游客有申請連線回調
         *
         * @param strLivePeerID
         * @param strCustomID
         * @param strUserData
         */
        @Override
        public void OnRTCApplyToLineCallback(final String strLivePeerID, final String strCustomID, final String strUserData) {
            HosterActivity.this.runOnUiThread(new Runnable() {
                @Override
                public void run() {
                    ShowDialog(HosterActivity.this, strLivePeerID, strCustomID);
                }
            });
        }

        /**
         * 視頻連線超過4人時回調
         * @param strLivePeerID
         * @param strCustomID
         * @param strUserData
         */
        @Override
        public void OnRTCLineFullCallback(final String strLivePeerID, String strCustomID, String strUserData) {
            HosterActivity.this.runOnUiThread(new Runnable() {
                @Override
                public void run() {
                    Toast.makeText(HosterActivity.this, getString(R.string.str_connect_full), Toast.LENGTH_LONG).show();
                    mHosterKit.RejectRTCLine(strLivePeerID, true);
                }
            });
        }

        /**
         * 游客掛斷連線回調
         * @param strLivePeerID
         */
        @Override
        public void OnRTCCancelLineCallback(String strLivePeerID) {
            HosterActivity.this.runOnUiThread(new Runnable() {
                @Override
                public void run() {
                    Toast.makeText(HosterActivity.this, getString(R.string.str_line_disconnect), Toast.LENGTH_LONG).show();
                }
            });
        }

        /**
         * RTC 連接關閉回調
         * @param code 207：請去AnyRTC官網申請賬號,如有疑問請聯系客服!
         * @param strReason
         */
        @Override
        public void OnRTCLineClosedCallback(final int code, String strReason) {
            HosterActivity.this.runOnUiThread(new Runnable() {
                @Override
                public void run() {
                    if (code == 207) {
                        Toast.makeText(HosterActivity.this, getString(R.string.str_apply_anyrtc_account), Toast.LENGTH_LONG).show();
                        finish();
                    }
                }
            });
        }

        /**
         * 連線接通時的視頻圖像回調；
         * @param strLivePeerID
         */
        @Override
        public void OnRTCOpenVideoRenderCallback(final String strLivePeerID) {
            HosterActivity.this.runOnUiThread(new Runnable() {
                @Override
                public void run() {
                    final VideoRenderer render = mVideoView.OnRtcOpenRemoteRender(strLivePeerID);
                    if (null != render) {
                        mHosterKit.SetRTCVideoRender(strLivePeerID, render.GetRenderPointer());
                    }
                }
            });
        }

        /**
         * 連線關閉時的視頻圖像回調；
         * @param strLivePeerID
         */
        @Override
        public void OnRTCCloseVideoRenderCallback(final String strLivePeerID) {
            HosterActivity.this.runOnUiThread(new Runnable() {
                @Override
                public void run() {
                    mHosterKit.SetRTCVideoRender(strLivePeerID, 0);
                    mVideoView.OnRtcRemoveRemoteRender(strLivePeerID);
                }
            });
        }

        /**
         * 消息回調
         * @param strCustomID 消息的發送者id
         * @param strCustomName 消息的發送者昵稱
         * @param strCustomHeader 消息的發送者頭像url
         * @param strMessage 消息內容
         */
        @Override
        public void OnRTCUserMessageCallback(final String strCustomID, final String strCustomName, final String strCustomHeader, final String strMessage) {
            HosterActivity.this.runOnUiThread(new Runnable() {
                @Override
                public void run() {
                    addChatMessageList(new ChatMessageBean(strCustomID, strCustomName, "", strMessage));
                }
            });
        }

        /**
         * 彈幕回調
         * @param strCustomID 彈幕的發送者id
         * @param strCustomName 彈幕的發送者昵稱
         * @param strCustomHeader 彈幕的發送者頭像url
         * @param strBarrage 彈幕的內容
         */
        @Override
        public void OnRTCUserBarrageCallback(final String strCustomID, final String strCustomName, final String strCustomHeader, final String strBarrage) {
            HosterActivity.this.runOnUiThread(new Runnable() {
                @Override
                public void run() {
                    addChatMessageList(new ChatMessageBean(strCustomID, strCustomName, "", strBarrage));
                    IDanmakuItem item = new DanmakuItem(HosterActivity.this, new SpannableString(strBarrage), mDanmakuView.getWidth(), 0, R.color.yellow_normol, 18, 1);
                    mDanmakuView.addItemToHead(item);
                }
            });
        }

        /**
         * 直播觀看總人數回調
         * @param totalMembers 觀看總人數
         */
        @Override
        public void OnRTCMemberListWillUpdateCallback(final int totalMembers) {
            HosterActivity.this.runOnUiThread(new Runnable() {
                @Override
                public void run() {
                    ((TextView) findViewById(R.id.txt_watcher_number)).setText(String.format(getString(R.string.str_live_watcher_number), totalMembers));
                }
            });
        }

        /**
         * 人員上下線回調
         * @param strCustomID
         * @param strUserData
         */
        @Override
        public void OnRTCMemberCallback(final String strCustomID, final String strUserData) {
            HosterActivity.this.runOnUiThread(new Runnable() {
                @Override
                public void run() {
                    try {
                        JSONObject userData = new JSONObject(strUserData);
                        addChatMessageList(new ChatMessageBean(userData.getString("nickName"), "", userData.getString("headUrl"), ""));
                    } catch (JSONException e) {
                        e.printStackTrace();
                    }
                }
            });
        }

        @Override
        public void OnRTCMemberListUpdateDoneCallback() {

        }
    };
d.一些對應直播回調的方法

接下來就要說對應這些回調的方法了，這裡可以做關閉直播、直播分享、切換攝像頭和發送消息。
HosterActivity.java

public void OnBtnClicked(View btn) {
        if (btn.getId() == R.id.btn_close) {
            mStartRtmp = false;
            mHosterKit.StopRtmpStream();
            finish();
        } else if (btn.getId() == R.id.btn_copy_hls) {
            int index = mHlsUrl.lastIndexOf("/");
            int lastIndex = mHlsUrl.lastIndexOf(".");
            String shareUrl = String.format(RTMPUrlHelper.SHARE_WEB_URL, mHlsUrl.substring(index + 1, lastIndex));
            mShareHelper.shareWeiXin(mTopic, shareUrl);
        } else if (btn.getId() == R.id.btn_switch_camera) {
            mHosterKit.SwitchCamera();
        } else if (btn.getId() == R.id.btn_send_message) {
            String message = editMessage.getText().toString();
            editMessage.setText("");
            if (message.equals("")) {
                return;
            }
            if (mCheckBarrage.isChecked()) {
                mHosterKit.SendBarrage(mNickname, "", message);
                IDanmakuItem item = new DanmakuItem(HosterActivity.this, new SpannableString(message), mDanmakuView.getWidth(), 0, R.color.yellow_normol, 18, 1);
                mDanmakuView.addItemToHead(item);
            } else {
                mHosterKit.SendUserMsg(mNickname, "", message);
            }

            addChatMessageList(new ChatMessageBean(mNickname, mNickname, "", message));
        } else if (btn.getId() == R.id.iv_host_text) {
            btnChat.clearFocus();
            vaBottomBar.setDisplayedChild(1);
            editMessage.requestFocus();
            softKeyboardUtil.showKeyboard(HosterActivity.this, editMessage);
        }
    }
5.主播端的已經完成了，現在該輪到你的小伙伴們看你直播~(≧▽≦)/~啦啦啦
a.前面已經說了，我們可以實時獲取開啟直播的主播，點擊列表就可以觀看主播直播。

MainActivity.java

@Override
    public void onItemChildClick(ViewGroup viewGroup, View view, int i) {
        Intent it = new Intent(this, GuestActivity.class);
        Bundle bundle = new Bundle();
        bundle.putString("hls_url", listLive.get(i).getmHlsUrl());
        bundle.putString("rtmp_url", listLive.get(i).getmRtmpPullUrl());
        bundle.putString("anyrtcId", listLive.get(i).getmAnyrtcId());
        bundle.putString("userData", new JSONObject().toString());
        bundle.putString("topic", listLive.get(i).getmLiveTopic());
        it.putExtras(bundle);
        startActivity(it);
    }
b.再實現游客端這個項目基本上就完成了，是不是有點小激動？

與主播端一樣，拿上個Activity傳過來的數據，其實這裡代碼與主播端的代碼基本上可以說是一模一樣，看完之後你應該會有我這樣的體會。
GuestActivity.java

mNickname = ((HybirdApplication)HybirdApplication.app()).getmNickname();
        mRtmpPullUrl = getIntent().getExtras().getString("rtmp_url");
        mAnyrtcId = getIntent().getExtras().getString("anyrtcId");
        mHlsUrl = getIntent().getExtras().getString("hls_url");
        mGuestId = mNickname;//getIntent().getExtras().getString("guestId");

        mTopic = getIntent().getExtras().getString("topic");

mVideoView = new RTMPCVideoView((RelativeLayout) findViewById(R.id.rl_rtmpc_videos), RTMPCHybird.Inst().Egl(), false);

        mVideoView.setBtnCloseEvent(mBtnVideoCloseEvent);
        /**
         * 初始化rtmp播放器
         */
        mGuestKit = new RTMPCGuestKit(this, mGuestListener);
        VideoRenderer render = mVideoView.OnRtcOpenLocalRender();

        {
            // Create and audio manager that will take care of audio routing,
            // audio modes, audio device enumeration etc.
            mRtmpAudioManager = RTMPAudioManager.create(this, new Runnable() {
                // This method will be called each time the audio state (number
                // and
                // type of devices) has been changed.
                @Override
                public void run() {
                    onAudioManagerChangedState();
                }
            });
            // Store existing audio settings and change audio mode to
            // MODE_IN_COMMUNICATION for best possible VoIP performance.
            mRtmpAudioManager.init();
            mRtmpAudioManager.setAudioDevice(RTMPAudioManager.AudioDevice.SPEAKER_PHONE);
        }

        mUserData = new JSONObject();
        try {
            mUserData.put("nickName", mNickname);
            mUserData.put("headUrl", "");
        } catch (JSONException e) {
            e.printStackTrace();
        }

        /**
         * 開始播放rtmp流
         */
        mGuestKit.StartRtmpPlay(mRtmpPullUrl, render.GetRenderPointer());
        /**
         * 開啟RTC連線連接
         */
        mGuestKit.JoinRTCLine(mAnyrtcId, mGuestId, mUserData.toString());
c.觀看直播的回調接口

mGuestKit = new RTMPCGuestKit(this, mGuestListener);
這句代碼是觀看直播的回調接口，可以做申請連麥、斷開連麥、接收消息和彈幕消息、實時觀看人數和人員上下線等。實用的操作一般再此實行。
GuestActivity.java

/**
     * 觀看直播回調信息接口
     */
    private RTMPCAbstractGuest mGuestListener = new RTMPCAbstractGuest() {

        /**
         * rtmp 連接成功
         */
        @Override
        public void OnRtmplayerOKCallback() {
        }

        /**
         * rtmp 當前播放狀態
         * @param cacheTime 當前緩存時間
         * @param curBitrate 當前播放器碼流
         */
        @Override
        public void OnRtmplayerStatusCallback(int cacheTime, int curBitrate) {

        }

        /**
         * rtmp 播放緩沖區時長
         * @param time 緩沖時間
         */
        @Override
        public void OnRtmplayerCacheCallback(int time) {

        }

        /**
         * rtmp 播放器關閉
         * @param errcode
         */
        @Override
        public void OnRtmplayerClosedCallback(int errcode) {

        }

        /**
         * 游客RTC 狀態回調
         * @param code 回調響應碼：0：正常；101：主播未開啟直播；
         * @param strReason 原因描述
         */
        @Override
        public void OnRTCJoinLineResultCallback(final int code, String strReason) {
            GuestActivity.this.runOnUiThread(new Runnable() {
                @Override
                public void run() {
                    if (code == 0) {

                    } else if (code == 101) {
                        Toast.makeText(GuestActivity.this, R.string.str_hoster_not_live, Toast.LENGTH_LONG).show();
                        mHandler.sendEmptyMessageDelayed(CLOSED, 2000);
                    }
                }
            });
        }

        /**
         * 游客申請連線回調
         * @param code 0：申請連線成功；-1：主播拒絕連線
         */
        @Override
        public void OnRTCApplyLineResultCallback(final int code) {
            GuestActivity.this.runOnUiThread(new Runnable() {
                @Override
                public void run() {
                    if (code == 0) {
                        VideoRenderer render = mVideoView.OnRtcOpenRemoteRender("LocalCameraRender");
                        mGuestKit.SetVideoCapturer(render.GetRenderPointer(), true);
                    } else if (code == -1) {
                        Toast.makeText(GuestActivity.this, R.string.str_hoster_refused, Toast.LENGTH_LONG).show();
                        mStartLine = false;
                        mBtnConnect.setText(R.string.str_connect_hoster);
                    }
                }
            });
        }

        /**
         * 當與主播連線成功時，其他用戶連線回調
         * @param strLivePeerID
         * @param strCustomID
         * @param strUserData
         */
        @Override
        public void OnRTCOtherLineOpenCallback(String strLivePeerID, String strCustomID, String strUserData) {

        }

        /**
         * 其他用戶連線回調
         * @param strLivePeerID
         */
        @Override
        public void OnRTCOtherLineCloseCallback(String strLivePeerID) {

        }

        /**
         * 掛斷連線回調
         */
        @Override
        public void OnRTCHangupLineCallback() {
            //主播連線斷開
            GuestActivity.this.runOnUiThread(new Runnable() {
                @Override
                public void run() {
                    mGuestKit.HangupRTCLine();
                    mVideoView.OnRtcRemoveRemoteRender("LocalCameraRender");
                    mStartLine = false;
                    mBtnConnect.setText(R.string.str_connect_hoster);
                }
            });
        }

        /**
         * 主播已離開回調
         * @param code
         * @param strReason
         */
        @Override
        public void OnRTCLineLeaveCallback(int code, String strReason) {
            //主播關閉直播
            GuestActivity.this.runOnUiThread(new Runnable() {
                @Override
                public void run() {
                    Toast.makeText(GuestActivity.this, R.string.str_hoster_leave, Toast.LENGTH_LONG).show();
                    mHandler.sendEmptyMessageDelayed(CLOSED, 2000);
                }
            });
        }

        /**
         * 連線接通後回調
         * @param strLivePeerID
         */
        @Override
        public void OnRTCOpenVideoRenderCallback(final String strLivePeerID) {
            GuestActivity.this.runOnUiThread(new Runnable() {
                @Override
                public void run() {
                    final VideoRenderer render = mVideoView.OnRtcOpenRemoteRender(strLivePeerID);
                    mGuestKit.SetRTCVideoRender(strLivePeerID, render.GetRenderPointer());
                }
            });
        }

        /**
         * 連線關閉後圖像回調
         * @param strLivePeerID
         */
        @Override
        public void OnRTCCloseVideoRenderCallback(final String strLivePeerID) {
            GuestActivity.this.runOnUiThread(new Runnable() {
                @Override
                public void run() {
                    mGuestKit.SetRTCVideoRender(strLivePeerID, 0);
                    mVideoView.OnRtcRemoveRemoteRender(strLivePeerID);
                }
            });
        }

        /**
         * 消息回調
         * @param strCustomID 消息的發送者id
         * @param strCustomName 消息的發送者昵稱
         * @param strCustomHeader 消息的發送者頭像url
         * @param strMessage 消息內容
         */
        @Override
        public void OnRTCUserMessageCallback(final String strCustomID, final String strCustomName, final String strCustomHeader, final String strMessage) {
            GuestActivity.this.runOnUiThread(new Runnable() {
                @Override
                public void run() {
                    addChatMessageList(new ChatMessageBean(strCustomID, strCustomName, "", strMessage));
                }
            });
        }

        /**
         * 彈幕回調
         * @param strCustomID 彈幕的發送者id
         * @param strCustomName 彈幕的發送者昵稱
         * @param strCustomHeader 彈幕的發送者頭像url
         * @param strBarrage 彈幕的內容
         */
        @Override
        public void OnRTCUserBarrageCallback(final String strCustomID, final String strCustomName, final String strCustomHeader, final String strBarrage) {
            GuestActivity.this.runOnUiThread(new Runnable() {
                @Override
                public void run() {
                    addChatMessageList(new ChatMessageBean(strCustomID, strCustomName, "", strBarrage));
                    IDanmakuItem item = new DanmakuItem(GuestActivity.this, new SpannableString(strBarrage), mDanmakuView.getWidth(), 0, R.color.yellow_normol, 18, 1);
                    mDanmakuView.addItemToHead(item);
                }
            });
        }

        /**
         * 觀看直播的總人數回調
         * @param totalMembers 觀看直播的總人數
         */
        @Override
        public void OnRTCMemberListWillUpdateCallback(final int totalMembers) {
            GuestActivity.this.runOnUiThread(new Runnable() {
                @Override
                public void run() {
                    ((TextView) findViewById(R.id.txt_watcher_number)).setText(String.format(getString(R.string.str_live_watcher_number), totalMembers));
                }
            });
        }

        /**
         * 人員上下線回調
         * @param strCustomID
         * @param strUserData
         */
        @Override
        public void OnRTCMemberCallback(final String strCustomID, final String strUserData) {
            GuestActivity.this.runOnUiThread(new Runnable() {
                @Override
                public void run() {
                    try {
                        JSONObject userData = new JSONObject(strUserData);
                        addChatMessageList(new ChatMessageBean(userData.getString("nickName"), "", userData.getString("headUrl"), ""));
                    } catch (JSONException e) {
                        e.printStackTrace();
                    }
                }
            });
        }

        @Override
        public void OnRTCMemberListUpdateDoneCallback() {

        }
    };
d.一些對應觀看直播回調的方法

接下來就要說對應這些回調的方法了，這裡可以做直播分享、申請連麥、斷開連麥和發送消息。
GuestActivity.java

public void OnBtnClicked(View btn) {
        if(btn.getId() == R.id.btn_copy_hls) {
            int index = mHlsUrl.lastIndexOf("/");
            int lastIndex = mHlsUrl.lastIndexOf(".");
            String shareUrl = String.format(RTMPUrlHelper.SHARE_WEB_URL, mHlsUrl.substring(index + 1, lastIndex));
            mShareHelper.shareWeiXin(mTopic, shareUrl);
        } else if (btn.getId() == R.id.btn_line) {
            if (!mStartLine) {

                JSONObject json = new JSONObject();
                try {
                    json.put("guestId", mNickname);
                } catch (JSONException e) {
                    e.printStackTrace();
                }
                /**
                 * 向主播申請連線
                 */
                mGuestKit.ApplyRTCLine(json.toString());
                mStartLine = true;
                mBtnConnect.setText(R.string.str_hangup_connect);
            } else {
                /**
                 * 掛斷連線
                 */
                mGuestKit.HangupRTCLine();
                mVideoView.OnRtcRemoveRemoteRender("LocalCameraRender");
                mStartLine = false;
                mBtnConnect.setText(R.string.str_connect_hoster);
            }
        } else if (btn.getId() == R.id.btn_send_message) {
            String message = editMessage.getText().toString();
            editMessage.setText("");
            if (message.equals("")) {
                return;
            }
            if (mCheckBarrage.isChecked()) {
                mGuestKit.SendBarrage(mNickname, "", message);
                IDanmakuItem item = new DanmakuItem(GuestActivity.this, new SpannableString(message), mDanmakuView.getWidth(), 0, R.color.yellow_normol, 18, 1);
                mDanmakuView.addItemToHead(item);
            } else {
                mGuestKit.SendUserMsg(mNickname, "", message);
            }
            addChatMessageList(new ChatMessageBean(mNickname, mNickname, "", message));
        } else if (btn.getId() == R.id.iv_host_text) {
            btnChat.clearFocus();
            vaBottomBar.setDisplayedChild(1);
            editMessage.requestFocus();
            softKeyboardUtil.showKeyboard(GuestActivity.this, editMessage);
        }
    }
結束語

對於這個基於Anyrtc sdk的直播RTMPCHybirdEngine-Android核心的幾個類基本上介紹完成，我在此僅僅是大概介紹了幾點，可以讓你大概了解這個SDK的直播流程，方便您快速上手。

  1. 上一頁:
  2. 下一頁:
關於Android編程
Android編程入門Android技術基礎Android資訊關於Android編程Android開發Android開發環境Android開發實例
相關文章
熱門文章
android基礎2——android工程目錄結構 Android中常用的bitmap處理方法 android Accessibility service Android系統啟動-init篇 Android開發之用Bmob實現短信驗證碼功能 Android學習筆記(一)
Android點擊Button水波紋效果

先上圖，看看接下來我要向大家介紹的是個什麼東西，如下圖： publ
Android studio中快速try catch的快捷鍵

選擇要包裹的代碼塊，然後按下ctrl + alt + t

Android模擬器安裝APP出現INSTALL_FAILED_NO_MATCHING_ABIS錯誤解決方案

 Android模擬器安裝APP出現INSTALL_FAILE
Android四大視圖動畫圖文詳解

Android中的動畫分為視圖動畫(View Animation)、屬性
閱讀排行版
Copyright © Android教程網 All Rights Reserved
