自定義帶數字選擇的checkBox

編輯：關於Android編程

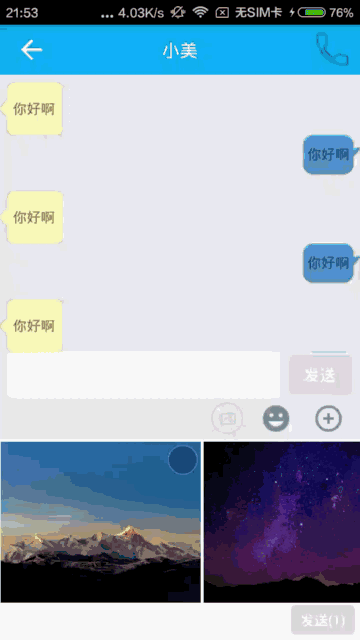

最近一直在做即時通訊，當然少不了發圖片了， 既然要發圖片，我連忙打開qq，看看qq發圖片是個什麼效果，看起來確實不錯，我就照著qq仿寫了一個，其中選擇圖片時，圖片的右上角有一個標記選了多少張圖片的數字，我一時興起就想自定義一個view來實現這種效果，雖然可以通過定義一個selector然後定義shape給textView去設置這個背景來實現，後面會提及一下，但是這種效果我想通過自定義控件來實現，先看一張效果圖。

\



第一種方式：通過selector的方式：photo_selector.xml



在布局文件中的textView





然後在Activity測試代碼





tv = (TextView) findViewById(R.id.tv_point);
    public void click1(View v) {
        tv.setEnabled(true);
        tv.setText("4");
    }
    public void click2(View v) {
        tv.setEnabled(false);
        tv.setText("");
    }
然後是兩個按鈕，點擊一個讓其選中，還有一個讓其不選中，到這裡基本效果是實現了，當給設置監聽事件時，發現當按下就不能再按下了，如果我想點擊自身TextView也能實現選擇和不選，貌似這種方式就不好使了





        tv.setOnClickListener(new View.OnClickListener() {
            @Override
            public void onClick(View v) {
                if (tv.isEnabled()) {
                    tv.setEnabled(false);
                }else {
                    tv.setEnabled(true);
                }
            }
        });


第二種方式：自定義View

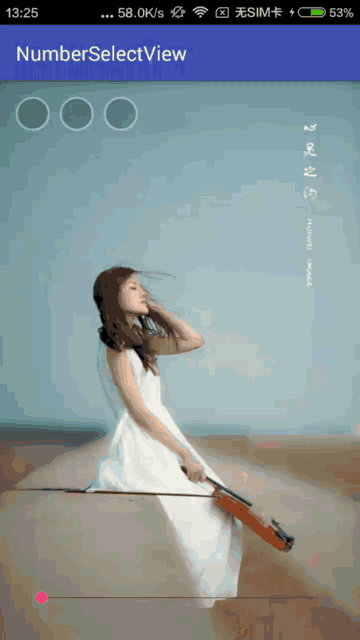

效果圖如下：

\

①自定義屬性：



        TypedArray typedArray = context.obtainStyledAttributes(attrs, R.styleable.NumberSelectView);
        mBackgroundColorNormal = typedArray.getColor(R.styleable.NumberSelectView_backgroundColorNormal, Color.parseColor("#33000000"));
        mBackgroundColorSelect = typedArray.getColor(R.styleable.NumberSelectView_getBackgroundColorSelect, Color.parseColor("#ff5f62"));
        mTextColor = typedArray.getColor(R.styleable.NumberSelectView_textColor, Color.parseColor("#FFFFFF"));
        mStrokeColor = typedArray.getColor(R.styleable.NumberSelectView_strokeColor, Color.parseColor("#66FFFFFF"));
        mStrokeWidth = typedArray.getDimension(R.styleable.NumberSelectView_strokeWidth, UIUtils.dp2px(context, 2.0f));
        mSolidRadius = typedArray.getDimension(R.styleable.NumberSelectView_solidRadius, UIUtils.dp2px(context, 15.0f));
        mTextSize = typedArray.getDimension(R.styleable.NumberSelectView_textSize, UIUtils.sp2px(context, 14.0f));
        text = typedArray.getString(R.styleable.NumberSelectView_text);
        typedArray.recycle();//回收很重要

attr.xml





②重新onMeasure方法



	@Override
    protected void onMeasure(int widthMeasureSpec, int heightMeasureSpec) {
        int exceptWidth = (int) ((mSolidRadius + mStrokeWidth) * 2) + getPaddingLeft() + getPaddingRight();
        int exceptHight = (int) ((mSolidRadius + mStrokeWidth) * 2) + getPaddingTop() + getPaddingBottom();
        widthMeasureSpec = MeasureSpec.makeMeasureSpec(exceptWidth, MeasureSpec.EXACTLY);
        heightMeasureSpec = MeasureSpec.makeMeasureSpec(exceptHight,MeasureSpec.EXACTLY);
        super.onMeasure(widthMeasureSpec, heightMeasureSpec);
    }
③重寫onDraw方法





    @Override
    protected void onDraw(Canvas canvas) {
        drawCircle(canvas);//畫實心圓
        drawRing(canvas);//畫圓環
        drawText(canvas);//畫文本
    }



（1）drawCircle方法



    private void drawCircle(Canvas canvas) {
        if (!isSelected) {
            canvas.drawCircle(mCenterX, mCenterY, mSolidRadius, mSolidPaint);
        } else {
            mSolidPaint.setColor(mBackgroundColorSelect);
            canvas.drawCircle(mCenterX, mCenterY, mSolidRadius, mSolidPaint);
            mSolidPaint.setColor(mBackgroundColorNormal);
        }

    }



（2）drawRing方法



    private void drawRing(Canvas canvas) {
        RectF rectF = new RectF();
        rectF.top = mCenterY - mRingRadius;
        rectF.bottom = mCenterY + mRingRadius;
        rectF.left = mCenterX - mRingRadius;
        rectF.right = mCenterX + mRingRadius;
        canvas.drawArc(rectF, 0, 360, false, mStrokePaint);
    }
（3）drawText方法





    private void drawText(Canvas canvas) {
        Rect bounds = new Rect();
        mTextPaint.getTextBounds(text, 0, text.length(), bounds);
        float x = (getMeasuredWidth() - bounds.width()) / 2;
        float y = (getMeasuredHeight() + bounds.height()) /2;
        if (isSelected) {
            canvas.drawText(text, x, y, mTextPaint);
        } else {
            canvas.drawText("", x, y, mTextPaint);
        }
    }



初始化方法



    /**
     * 初始化操作
     */
    private void init() {
        if(TextUtils.isEmpty(text)){
            text = "1";
        }

        mRingRadius = mSolidRadius + mStrokeWidth / 2;
        setClickable(true);
        setOnClickListener(new OnClickListener() {
            @Override
            public void onClick(View v) {
                if(listener != null){
                    listener.onClick(isSelected);
                }
                toggle();
            }
        });

        mStrokePaint = new Paint(Paint.ANTI_ALIAS_FLAG);
        mStrokePaint.setColor(mStrokeColor);
        mStrokePaint.setStyle(Paint.Style.STROKE);
        mStrokePaint.setStrokeWidth(mStrokeWidth);

        mSolidPaint = new Paint(Paint.ANTI_ALIAS_FLAG);
        mSolidPaint.setColor(mBackgroundColorNormal);
        mSolidPaint.setStyle(Paint.Style.FILL);

        mTextPaint = new Paint(Paint.ANTI_ALIAS_FLAG);
        mTextPaint.setColor(mTextColor);
        mTextPaint.setTextSize(mTextSize);
    }

完整的類NumberSelectView如下：





package com.cool.numberselectview;

import android.content.Context;
import android.content.res.TypedArray;
import android.graphics.Canvas;
import android.graphics.Color;
import android.graphics.Paint;
import android.graphics.Rect;
import android.graphics.RectF;
import android.text.TextUtils;
import android.util.AttributeSet;
import android.util.Log;
import android.view.View;

/**
 * Created by cool on 2016/9/27.
 */

public class NumberSelectView extends View {

    private int mBackgroundColorNormal;
    private int mBackgroundColorSelect;
    private int mTextColor;
    private int mStrokeColor;
    private float mStrokeWidth;
    private float mSolidRadius;//實心圓半徑
    private float mRingRadius;//圓環半徑
    private float mTextSize;

    private int mCenterX;//圓心x坐標
    private int mCenterY;//圓心y坐標

    private Paint mStrokePaint;//圓環畫筆
    private Paint mSolidPaint;//背景填充畫筆
    private Paint mTextPaint;//文字畫筆

    private String text;//要畫的數字
    private boolean isSelected;//是否已經被選上

    private OnOnStateChangeListener listener;

    public void setOnStateChangeListener(OnOnStateChangeListener listener) {
        this.listener = listener;
    }

    public interface OnOnStateChangeListener {
        void onClick(boolean isSelected);
    }



    public NumberSelectView(Context context) {
        this(context, null);
    }

    public NumberSelectView(Context context, AttributeSet attrs) {
        this(context, attrs, 0);
    }

    public NumberSelectView(Context context, AttributeSet attrs, int defStyleAttr) {
        super(context, attrs, defStyleAttr);
        TypedArray typedArray = context.obtainStyledAttributes(attrs, R.styleable.NumberSelectView);
        mBackgroundColorNormal = typedArray.getColor(R.styleable.NumberSelectView_backgroundColorNormal, Color.parseColor("#33000000"));
        mBackgroundColorSelect = typedArray.getColor(R.styleable.NumberSelectView_getBackgroundColorSelect, Color.parseColor("#ff5f62"));
        mTextColor = typedArray.getColor(R.styleable.NumberSelectView_textColor, Color.parseColor("#FFFFFF"));
        mStrokeColor = typedArray.getColor(R.styleable.NumberSelectView_strokeColor, Color.parseColor("#66FFFFFF"));
        mStrokeWidth = typedArray.getDimension(R.styleable.NumberSelectView_strokeWidth, UIUtils.dp2px(context, 2.0f));
        mSolidRadius = typedArray.getDimension(R.styleable.NumberSelectView_solidRadius, UIUtils.dp2px(context, 15.0f));
        mTextSize = typedArray.getDimension(R.styleable.NumberSelectView_textSize, UIUtils.sp2px(context, 14.0f));
        text = typedArray.getString(R.styleable.NumberSelectView_text);
        typedArray.recycle();//回收很重要
        init();
    }

    /**
     * 初始化操作
     */
    private void init() {
        if(TextUtils.isEmpty(text)){
            text = "1";
        }

        mRingRadius = mSolidRadius + mStrokeWidth / 2;
        setClickable(true);
        setOnClickListener(new OnClickListener() {
            @Override
            public void onClick(View v) {
                if(listener != null){
                    listener.onClick(isSelected);
                }
                toggle();
            }
        });

        mStrokePaint = new Paint(Paint.ANTI_ALIAS_FLAG);
        mStrokePaint.setColor(mStrokeColor);
        mStrokePaint.setStyle(Paint.Style.STROKE);
        mStrokePaint.setStrokeWidth(mStrokeWidth);

        mSolidPaint = new Paint(Paint.ANTI_ALIAS_FLAG);
        mSolidPaint.setColor(mBackgroundColorNormal);
        mSolidPaint.setStyle(Paint.Style.FILL);

        mTextPaint = new Paint(Paint.ANTI_ALIAS_FLAG);
        mTextPaint.setColor(mTextColor);
        mTextPaint.setTextSize(mTextSize);
    }

    @Override
    protected void onDraw(Canvas canvas) {
        drawCircle(canvas);//畫實心圓
        drawRing(canvas);//畫圓環
        drawText(canvas);//畫文本
    }

    private void drawText(Canvas canvas) {
        Rect bounds = new Rect();
        mTextPaint.getTextBounds(text, 0, text.length(), bounds);
        float x = (getMeasuredWidth() - bounds.width()) / 2;
        float y = (getMeasuredHeight() + bounds.height()) /2;
        if (isSelected) {
            canvas.drawText(text, x, y, mTextPaint);
        } else {
            canvas.drawText("", x, y, mTextPaint);
        }
    }

    private void drawRing(Canvas canvas) {
        RectF rectF = new RectF();
        rectF.top = mCenterY - mRingRadius;
        rectF.bottom = mCenterY + mRingRadius;
        rectF.left = mCenterX - mRingRadius;
        rectF.right = mCenterX + mRingRadius;
        canvas.drawArc(rectF, 0, 360, false, mStrokePaint);
    }

    private void drawCircle(Canvas canvas) {
        if (!isSelected) {
            canvas.drawCircle(mCenterX, mCenterY, mSolidRadius, mSolidPaint);
        } else {
            mSolidPaint.setColor(mBackgroundColorSelect);
            canvas.drawCircle(mCenterX, mCenterY, mSolidRadius, mSolidPaint);
            mSolidPaint.setColor(mBackgroundColorNormal);
        }

    }

    @Override
    protected void onMeasure(int widthMeasureSpec, int heightMeasureSpec) {
        int exceptWidth = (int) ((mSolidRadius + mStrokeWidth) * 2) + getPaddingLeft() + getPaddingRight();
        int exceptHight = (int) ((mSolidRadius + mStrokeWidth) * 2) + getPaddingTop() + getPaddingBottom();
        widthMeasureSpec = MeasureSpec.makeMeasureSpec(exceptWidth, MeasureSpec.EXACTLY);
        heightMeasureSpec = MeasureSpec.makeMeasureSpec(exceptHight,MeasureSpec.EXACTLY);
        super.onMeasure(widthMeasureSpec, heightMeasureSpec);
    }

    @Override
    protected void onSizeChanged(int w, int h, int oldw, int oldh) {
        mCenterX = w / 2;//獲取圓心x坐標
        mCenterY = h / 2;//獲取圓心y坐標
    }

    private void toggle() {
        isSelected = !isSelected;
        invalidate();
    }

    public void setViewText(String text,boolean isViewClick) {
        this.text = text;
        if(!isViewClick){
            if (TextUtils.isEmpty(text)) {
                isSelected = false;
            } else {
                isSelected = true;
            }
        }

        invalidate();
    }
    public String getViewText(){
        return text;
    }
    public boolean isViewSelected() {
        return isSelected;
    }
}
