Android開發學習之路--Service之初體驗

編輯：關於Android編程

android最後一個組件便是service了，終於學習到最後一個組件了，從年前的開發環境的搭建，到現在學到最後一個組件花了三周的時間，期間記錄的點點滴滴，照著書本學習編寫的代碼都受益匪淺，這裡要感謝第一行代碼這本書。三個星期除了三十和初一沒有學習，其余時間堅持每天學習一個知識點，總算慢慢地學習了個大概，接下去繼續學習其他的東西。說了這麼多還是開始學習Service組件吧。

Service從字面上理解就是服務的意思，也就是為應用程序提供服務，比如我們在播放一首歌的時候，我又想把它下載下來，那麼我們就可以把他交給Service去處理。播放歌曲是在後台運行的，那麼它也是個服務，還是來個例子吧。先新建工程ServiceTest。編寫布局如下：

<!--{cke_protected}{C}%3C!%2D%2D%3Fxml%20version%3D%221.0%22%20encoding%3D%22utf-8%22%3F%2D%2D%3E-->
<linearlayout xmlns:android="http://schemas.android.com/apk/res/android" xmlns:tools="http://schemas.android.com/tools" android:layout_width="match_parent" android:layout_height="match_parent" android:orientation="vertical" android:layout_margin="10dp" android:padding="10dp" tools:context="com.example.jared.servicetest.MainActivity"><button android:id="@+id/startService" android:text="啟動Service" android:layout_width="match_parent" android:layout_height="wrap_content" android:textallcaps="false"></button><button android:id="@+id/stopService" android:text="停止Service" android:layout_width="match_parent" android:layout_height="wrap_content" android:textallcaps="false"></button></linearlayout>
這裡實現了兩個按鈕啟動和停止Service。接著新建一個MyService類，繼承Service，代碼如下：
package com.example.jared.servicetest;

import android.app.Service;
import android.content.Intent;
import android.os.IBinder;
import android.support.annotation.Nullable;
import android.util.Log;
import android.widget.Toast;

/**
 * Created by jared on 16/2/18.
 */
public class MyService extends Service{

    private static final String TAG = "MyService";

    @Nullable
    @Override
    public IBinder onBind(Intent intent) {
        return null;
    }

    @Override
    public void onCreate() {
        super.onCreate();
        Log.d(TAG, "onCreate is called");
        Toast.makeText(MyService.this, "onCreate is called",Toast.LENGTH_SHORT).show();
    }

    @Override
    public int onStartCommand(Intent intent, int flags, int startId) {
        Log.d(TAG, "onStartCommand is called");
        Toast.makeText(MyService.this, "onStartCommand is called",Toast.LENGTH_SHORT).show();
        return super.onStartCommand(intent, flags, startId);
    }

    @Override
    public void onDestroy() {
        super.onDestroy();
        Log.d(TAG, "onDestroy is called");
        Toast.makeText(MyService.this, "onDestroy is called",Toast.LENGTH_SHORT).show();
    }
}
這裡重寫了onCreate方法，onStartCommand方法和onDestroy方法，這裡在各個方法裡加了些調試信息，接著我們再實現MainActivity的代碼：
package com.example.jared.servicetest;

import android.content.Intent;
import android.support.v7.app.AppCompatActivity;
import android.os.Bundle;
import android.view.View;
import android.widget.Button;

public class MainActivity extends AppCompatActivity {

    private Button mStartServiceBtn;
    private Button mStopServiceBtn;

    @Override
    protected void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.activity_main);

        mStartServiceBtn = (Button)findViewById(R.id.startService);
        mStopServiceBtn = (Button)findViewById(R.id.stopService);

        mStartServiceBtn.setOnClickListener(new myOnClickListener());
        mStopServiceBtn.setOnClickListener(new myOnClickListener());
    }

    private class myOnClickListener implements View.OnClickListener {
        @Override
        public void onClick(View view) {
            switch (view.getId()) {
                case R.id.startService:
                    Intent mStartIntent = new Intent(getApplicationContext(), MyService.class);
                    startService(mStartIntent);
                    break;
                case R.id.stopService:
                    Intent mSopIntent = new Intent(getApplicationContext(), MyService.class);
                    stopService(mSopIntent);
                    break;
                default:
                    break;
            }
        }
    }
}

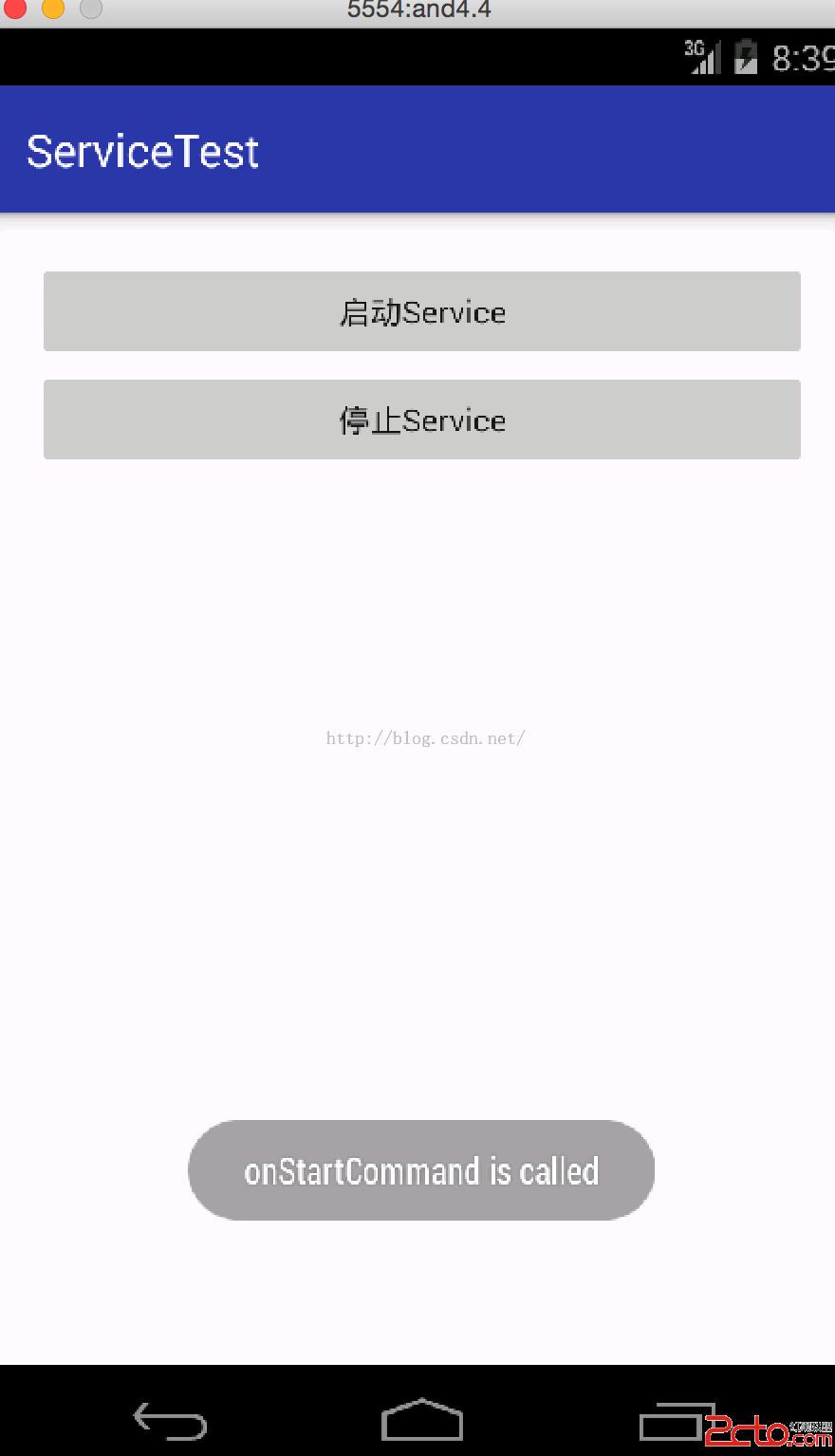

這裡當按start的時候啟動service，按stop的按鈕的時候停止服務。先來運行下看下效果，先啟動Service吧，效果如下：

\ \

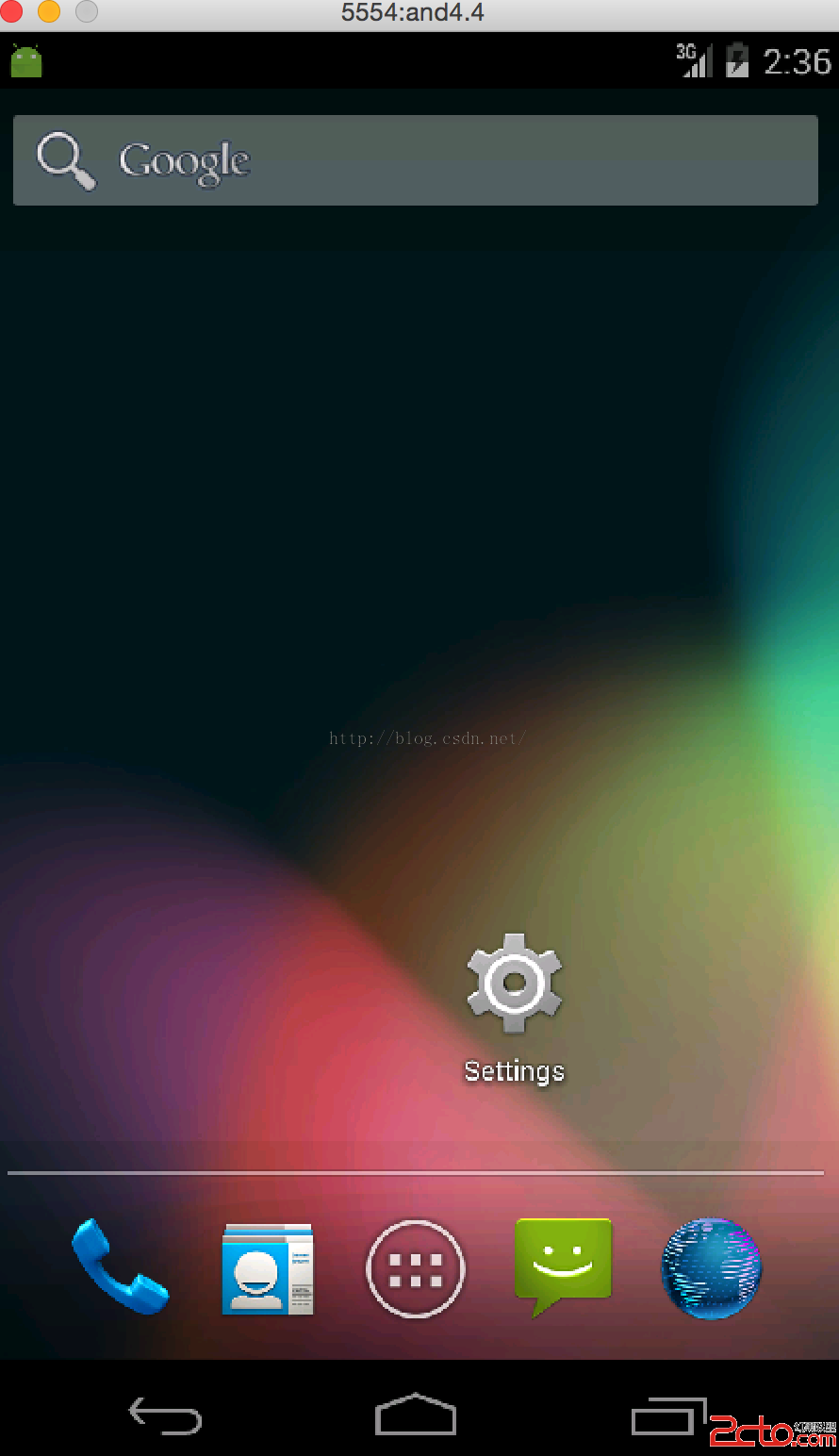

從上可知先調用了onCreate方法，然後調用onStartCommand方法。然後我們看下在運行著的服務，打開手機的setting下的apps裡的running：

\

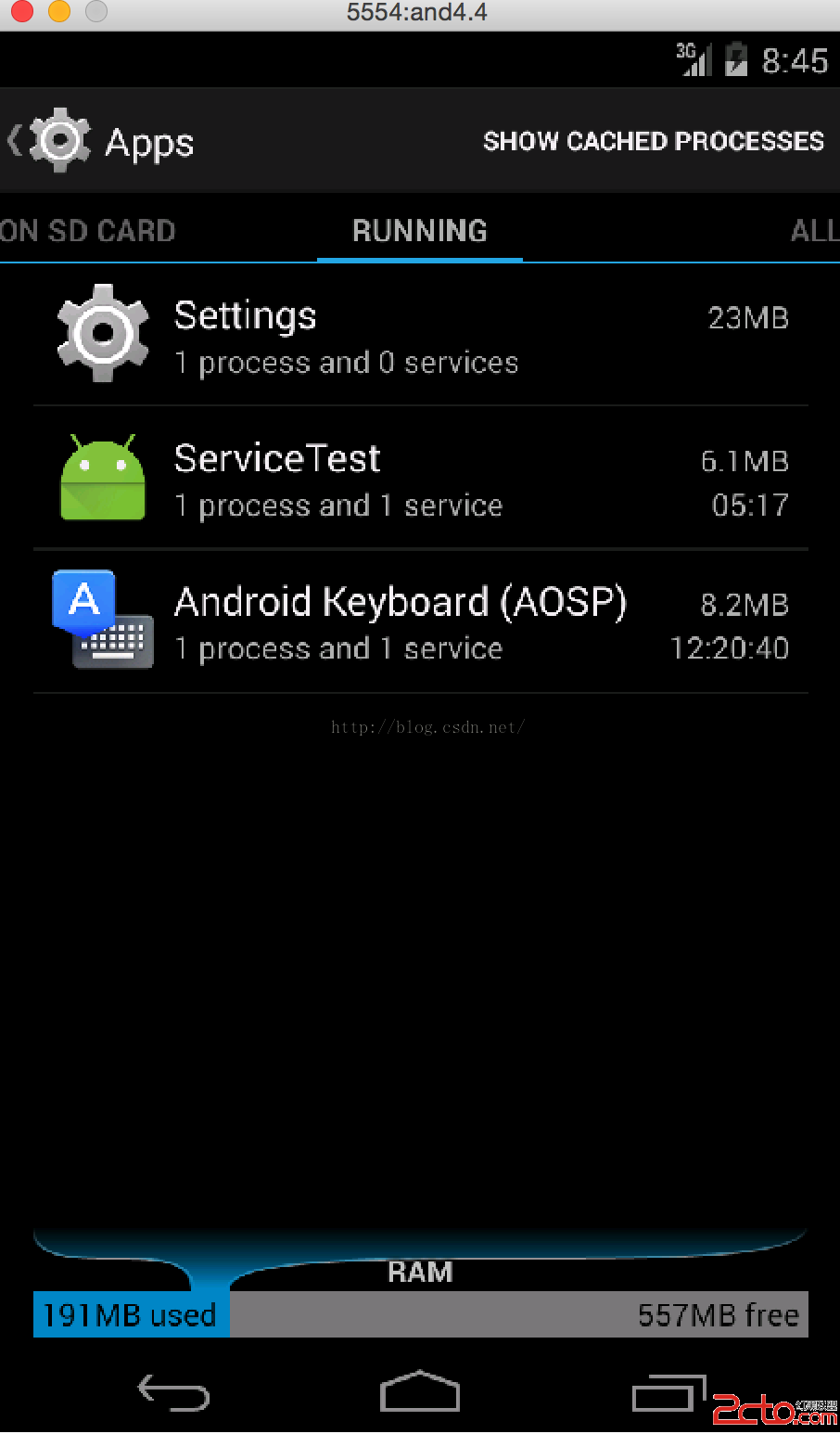

從圖可知ServiceTest已經在了，然後這個時候我們再點擊啟動Service的話，是不會再調用onCreate方法的，只會調用onStartCommand方法，只有stop了Service才可以，那我們先stop掉Service，效果如下：

\

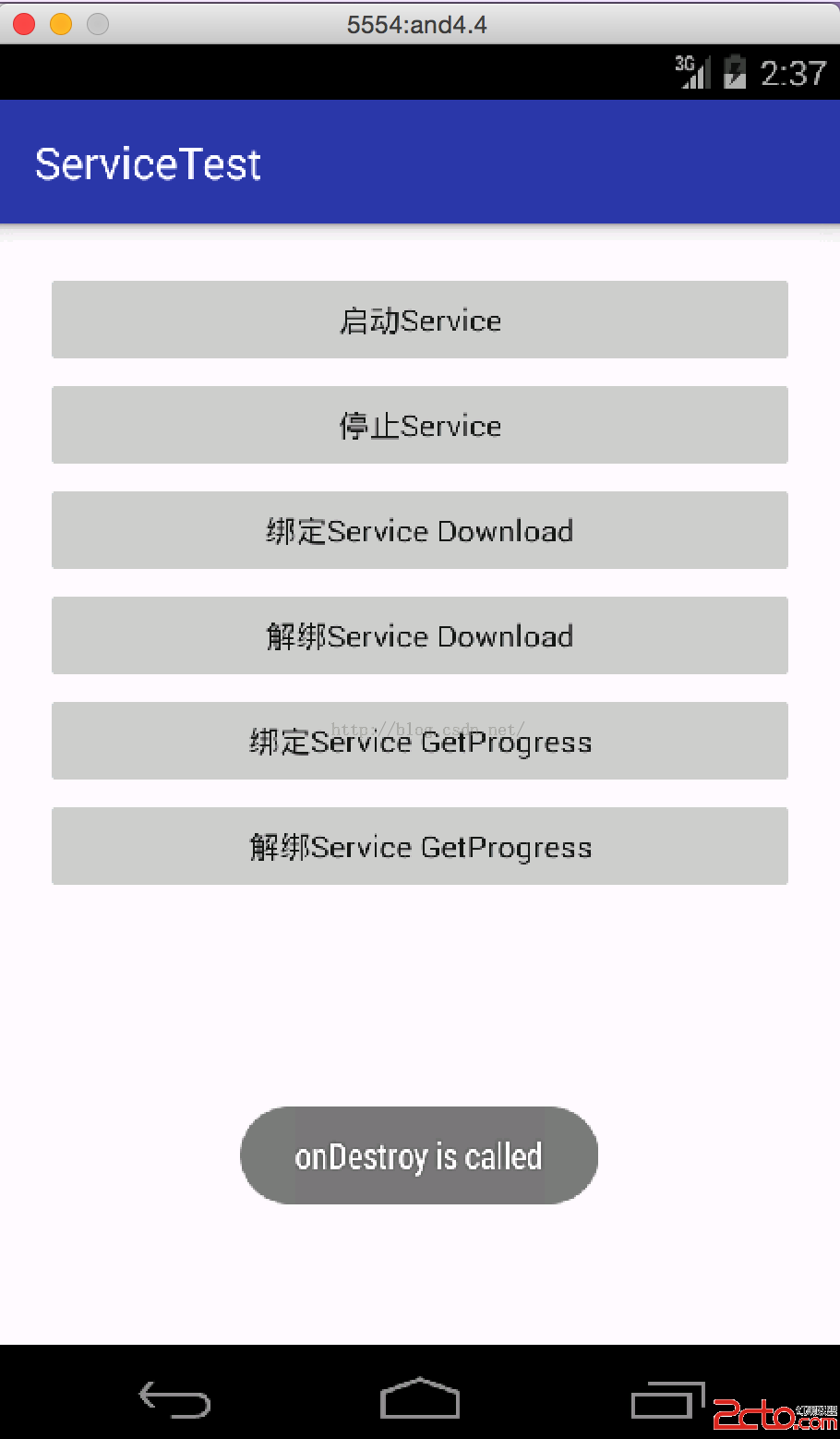

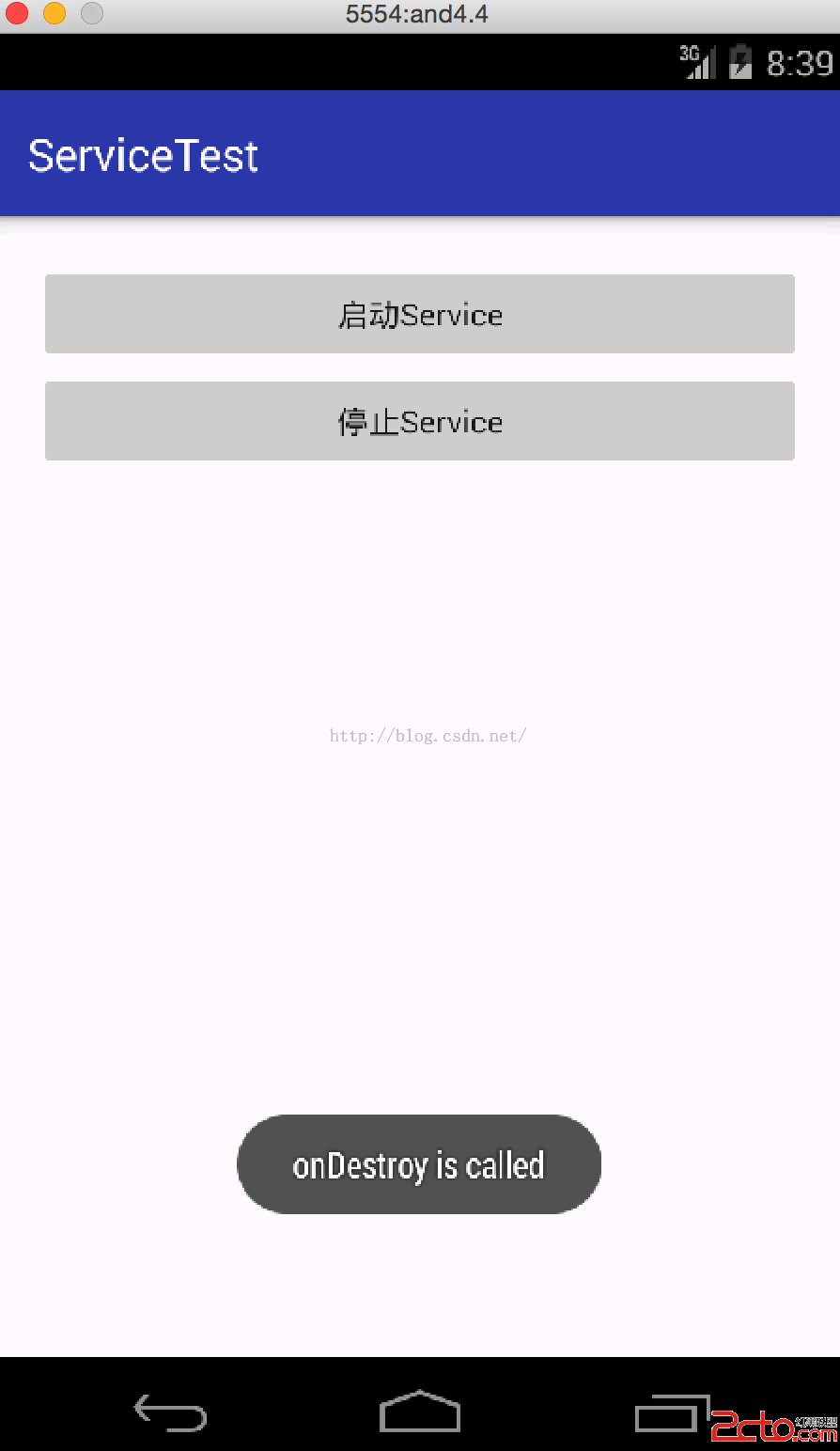

如圖調用了onDestroy方法。接著再啟動Service的話，就和上述一樣了。

上面代碼中還有個方法那就是onBind方法了，從字面可以理解到這個方法是把Activity和Service綁定了，那樣就可以通過Activity控制Service了。下面實現下代碼，修改layout如下：

<!--{cke_protected}{C}%3C!%2D%2D%3Fxml%20version%3D%221.0%22%20encoding%3D%22utf-8%22%3F%2D%2D%3E-->
<linearlayout xmlns:android="http://schemas.android.com/apk/res/android" xmlns:tools="http://schemas.android.com/tools" android:layout_width="match_parent" android:layout_height="match_parent" android:orientation="vertical" android:layout_margin="10dp" android:padding="10dp" tools:context="com.example.jared.servicetest.MainActivity"><button android:id="@+id/startService" android:text="啟動Service" android:layout_width="match_parent" android:layout_height="wrap_content" android:textallcaps="false"></button><button android:id="@+id/stopService" android:text="停止Service" android:layout_width="match_parent" android:layout_height="wrap_content" android:textallcaps="false"></button><button android:id="@+id/startDownloadService" android:text="綁定Service Download" android:layout_width="match_parent" android:layout_height="wrap_content" android:textallcaps="false"></button><button android:id="@+id/stopDownloadService" android:text="解綁Service Download" android:layout_width="match_parent" android:layout_height="wrap_content" android:textallcaps="false"></button><button android:id="@+id/startGetProgressService" android:text="綁定Service GetProgress" android:layout_width="match_parent" android:layout_height="wrap_content" android:textallcaps="false"></button><button android:id="@+id/stopGetProgressService" android:text="解綁Service GetProgress" android:layout_width="match_parent" android:layout_height="wrap_content" android:textallcaps="false"></button></linearlayout>

這裡添加了啟動下載的服務和獲取當前下載狀態的服務。Service中添加Binder，代碼如下：
package com.example.jared.servicetest;

import android.app.Service;
import android.content.Intent;
import android.os.Binder;
import android.os.IBinder;
import android.support.annotation.Nullable;
import android.util.Log;
import android.widget.Toast;

/**
 * Created by jared on 16/2/18.
 */
public class MyService extends Service{

    private static final String TAG = "MyService";

    private DownloadBinder mDownloadBinder = new DownloadBinder();

    class DownloadBinder extends Binder {
        private int progress = 0;
        public void startDownload() {
            Log.d(TAG, "startDownload is called");
            Toast.makeText(MyService.this, "startDownload is called",Toast.LENGTH_SHORT).show();
            progress = 0;
            new Thread(new Runnable(){
                @Override
                public void run() {
                    for (int i=0; i<=100; i++) {
                        try {
                            Thread.sleep(1000);
                            progress++;
                        } catch (InterruptedException e) {
                            e.printStackTrace();
                        }
                    }
                }
            }).start();
        }
        public int getProgress() {
            Log.d(TAG, "getProgress is called");
            Toast.makeText(MyService.this, "getProgress is called",Toast.LENGTH_SHORT).show();
            return progress;
        }
    }

    @Nullable
    @Override
    public IBinder onBind(Intent intent) {
        return mDownloadBinder;
    }

    @Override
    public void onCreate() {
        super.onCreate();
        Log.d(TAG, "onCreate is called");
        Toast.makeText(MyService.this, "onCreate is called",Toast.LENGTH_SHORT).show();
    }

    @Override
    public int onStartCommand(Intent intent, int flags, int startId) {
        Log.d(TAG, "onStartCommand is called");
        Toast.makeText(MyService.this, "onStartCommand is called",Toast.LENGTH_SHORT).show();
        return super.onStartCommand(intent, flags, startId);
    }

    @Override
    public void onDestroy() {
        super.onDestroy();
        Log.d(TAG, "onDestroy is called");
        Toast.makeText(MyService.this, "onDestroy is called",Toast.LENGTH_SHORT).show();
    }
}

這裡模擬了一個下載的過程，啟動下載後，線程每秒更新個數值，然後可以通過getProgress去獲取數值。接著修改MainActivity代碼如下：
package com.example.jared.servicetest;

import android.content.ComponentName;
import android.content.Intent;
import android.content.ServiceConnection;
import android.os.Bundle;
import android.os.IBinder;
import android.support.v7.app.AppCompatActivity;
import android.view.View;
import android.widget.Button;
import android.widget.Toast;

public class MainActivity extends AppCompatActivity {

    private Button mStartServiceBtn;
    private Button mStopServiceBtn;
    private Button mBindService1Btn;
    private Button mUnbindService1Btn;
    private Button mBindService2Btn;
    private Button mUnbindService2Btn;

    private MyService.DownloadBinder downloadBinder;

    @Override
    protected void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.activity_main);

        mStartServiceBtn = (Button)findViewById(R.id.startService);
        mStopServiceBtn = (Button)findViewById(R.id.stopService);
        mBindService1Btn = (Button)findViewById(R.id.startDownloadService);
        mUnbindService1Btn = (Button)findViewById(R.id.stopDownloadService);
        mBindService2Btn = (Button)findViewById(R.id.startGetProgressService);
        mUnbindService2Btn = (Button)findViewById(R.id.stopGetProgressService);

        mStartServiceBtn.setOnClickListener(new myOnClickListener());
        mStopServiceBtn.setOnClickListener(new myOnClickListener());
        mBindService1Btn.setOnClickListener(new myOnClickListener());
        mUnbindService1Btn.setOnClickListener(new myOnClickListener());
        mBindService2Btn.setOnClickListener(new myOnClickListener());
        mUnbindService2Btn.setOnClickListener(new myOnClickListener());
    }

    private class myOnClickListener implements View.OnClickListener {
        @Override
        public void onClick(View view) {
            switch (view.getId()) {
                case R.id.startService:
                    Intent mStartIntent = new Intent(getApplicationContext(), MyService.class);
                    startService(mStartIntent);
                    break;
                case R.id.stopService:
                    Intent mSopIntent = new Intent(getApplicationContext(), MyService.class);
                    stopService(mSopIntent);
                    break;
                case R.id.startDownloadService:
                    Intent mBindIntent = new Intent(getApplicationContext(), MyService.class);
                    bindService(mBindIntent, startDownloadInService, BIND_AUTO_CREATE);
                    break;
                case R.id.stopDownloadService:
                    unbindService(startDownloadInService);
                    break;
                case R.id.startGetProgressService:
                    Intent mGetProgress = new Intent(getApplicationContext(), MyService.class);
                    bindService(mGetProgress, getProgressInService, BIND_AUTO_CREATE);
                    break;
                case R.id.stopGetProgressService:
                    unbindService(getProgressInService);
                    break;
                default:
                    break;
            }
        }
    }

    private ServiceConnection startDownloadInService = new ServiceConnection() {
        @Override
        public void onServiceConnected(ComponentName componentName, IBinder iBinder) {
            downloadBinder = (MyService.DownloadBinder)iBinder;
            downloadBinder.startDownload();
        }

        @Override
        public void onServiceDisconnected(ComponentName componentName) {

        }
    };

    private ServiceConnection getProgressInService = new ServiceConnection() {
        @Override
        public void onServiceConnected(ComponentName componentName, IBinder iBinder) {
            downloadBinder = (MyService.DownloadBinder)iBinder;
            String progressValue = String.valueOf(downloadBinder.getProgress());
            Toast.makeText(getApplicationContext(), "ProgressNow is:"+progressValue, Toast.LENGTH_SHORT).show();
        }

        @Override
        public void onServiceDisconnected(ComponentName componentName) {

        }
    };
}
這裡實例化了ServiceConnection，當通過bindService方法的時候，會通過ServiceConnection的onServiceConnected方法來調用Service中剛創建的下載類的方法。運行看下效果，先啟動下載，再獲取progress，運行效果如下：

\\\

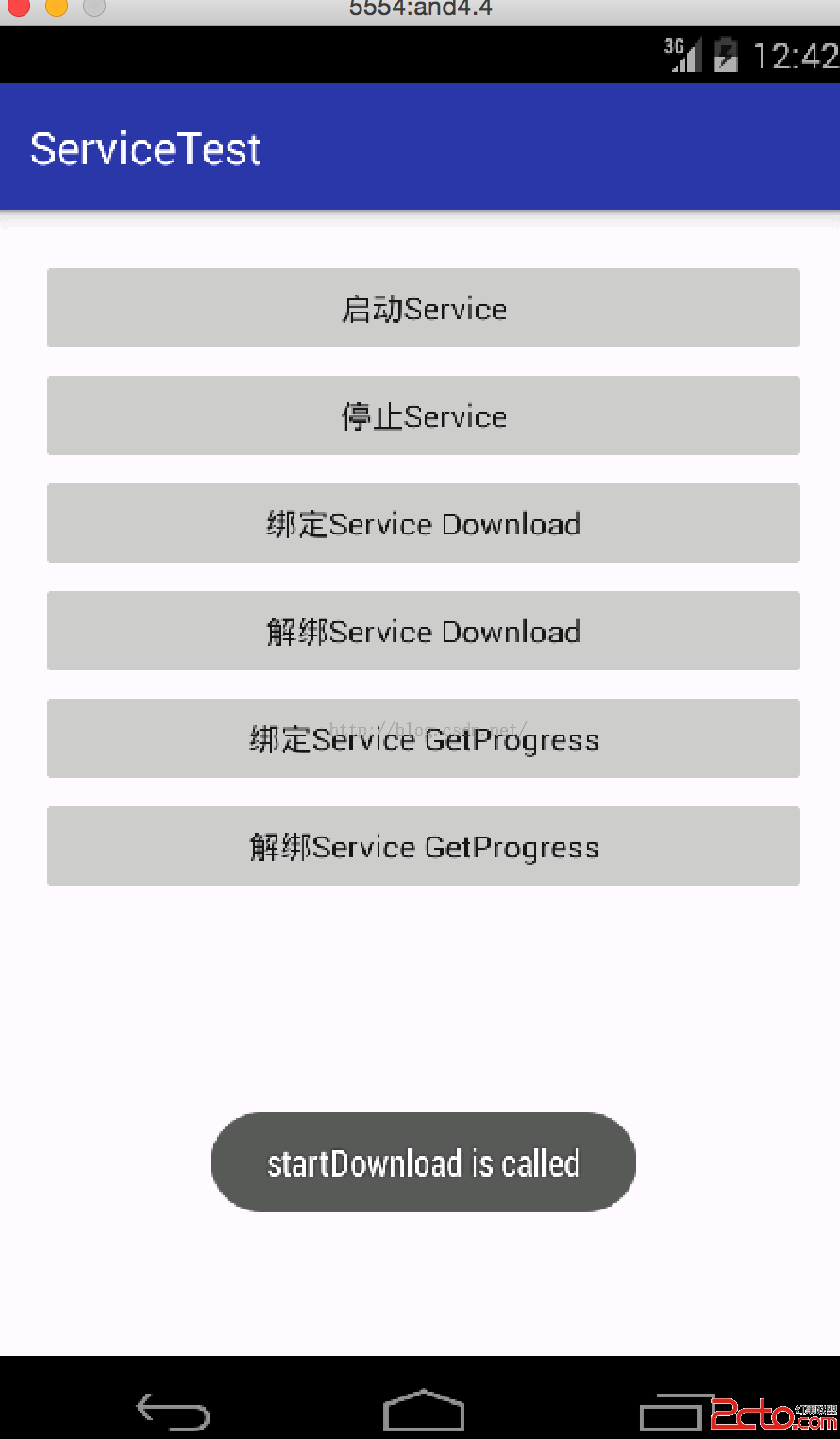

這裡要注意的是，服務是單例的，所謂單例就是只有一個實例，只能被new一次，不同進程也只能調用一次。當我們調用bind download的時候會直接調用Service的onCreate，當我們解綁的時候，也會調用Service的onDestroy方法。不過當我們調用了啟動Service，又調用了binder的話，那就得ubind和stop方法都得調用。

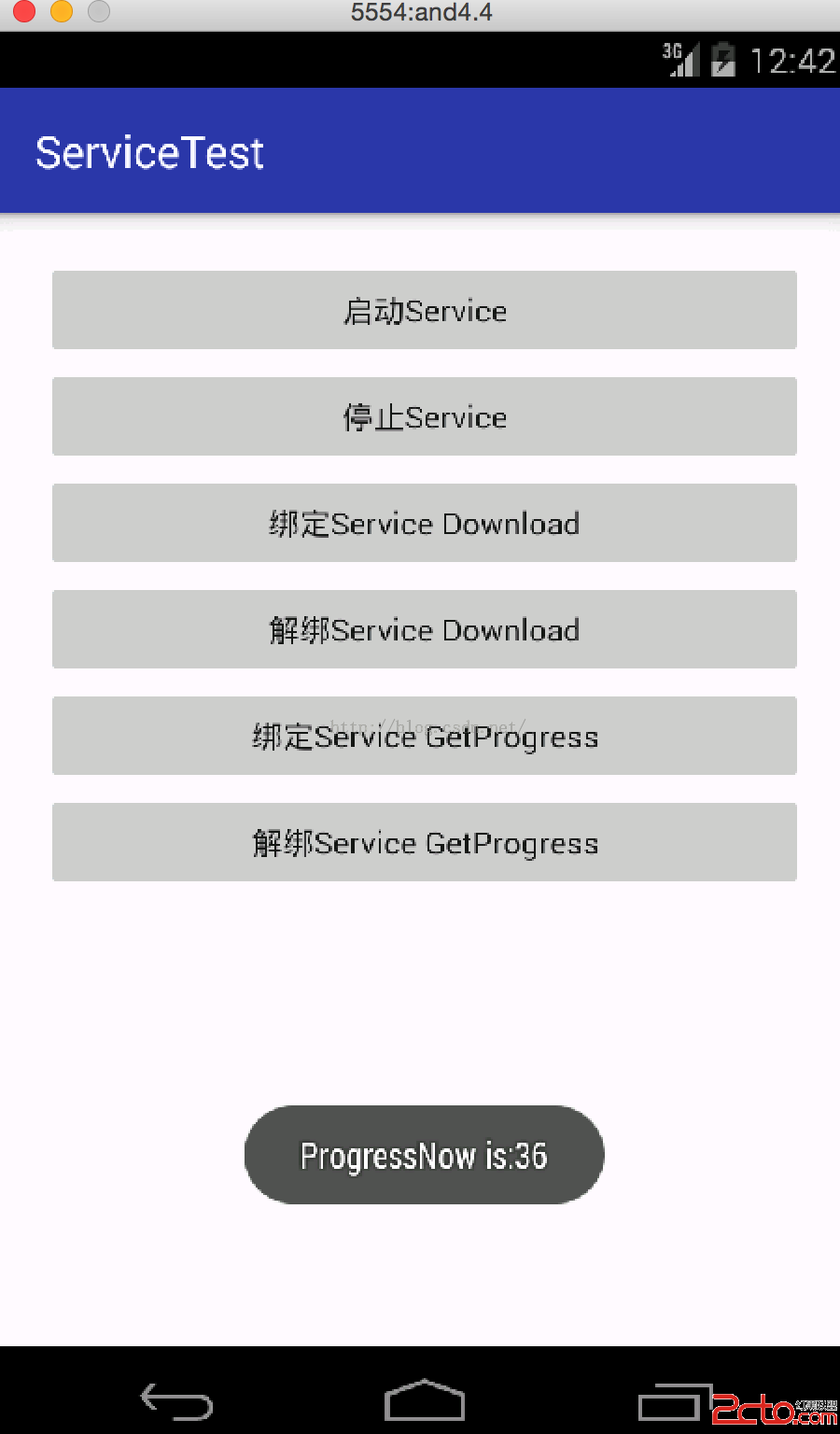

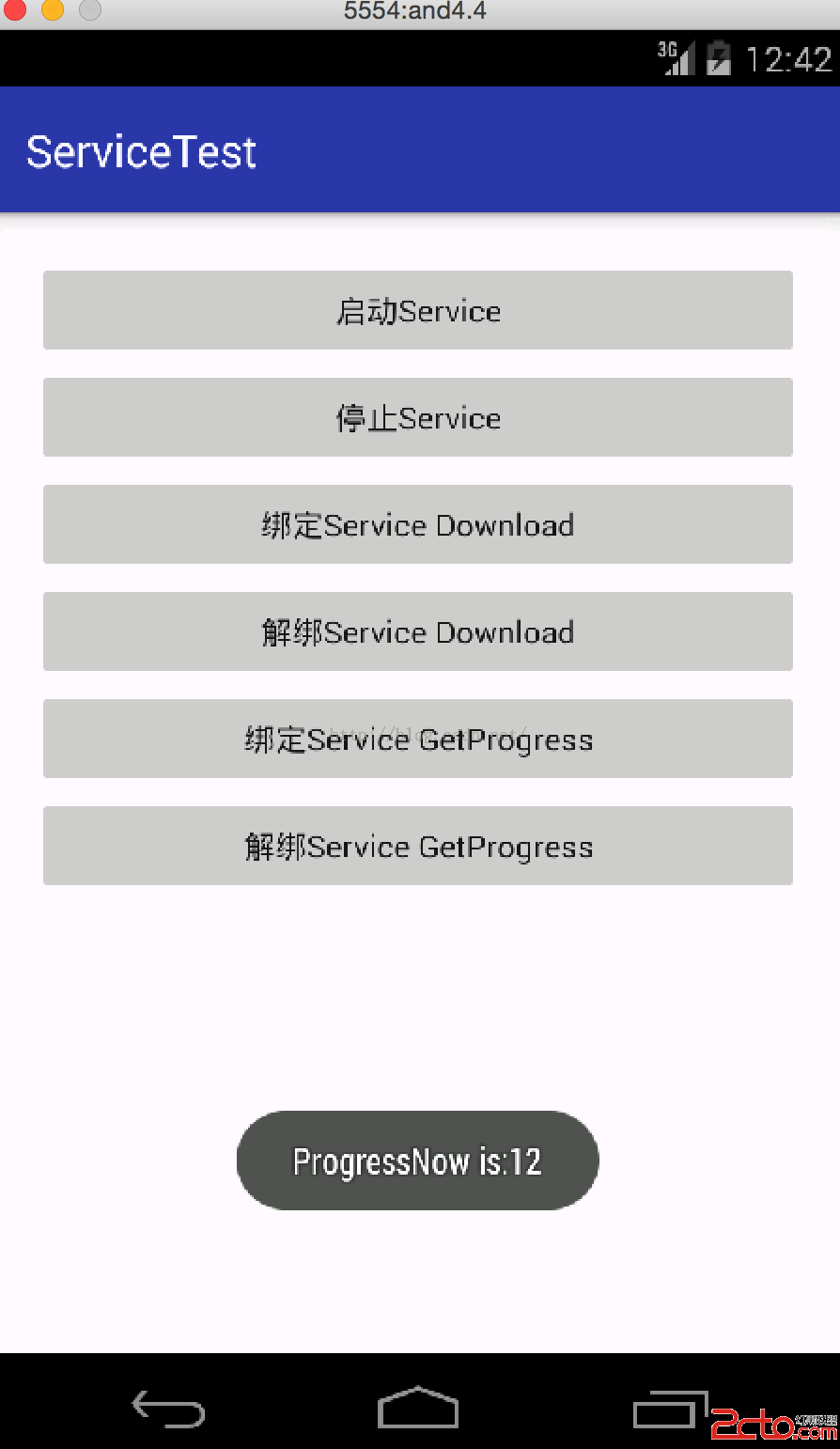

上述當我們獲取progress的時候，如果不解綁，那麼之後的都是無效的。只有獲取了一次，解綁了，再獲取才有效。

android系統當內存不夠的時候會自動回收優先級比較低的服務，所以為了讓服務可以一直保存運行狀態，而不會由於內存不足的原因導致被回收，就需要使用前台服務。前台服務就是一直運行並在狀態欄顯示，類似音樂播放器就會在狀態欄一直保存著。簡單修改Service代碼如下：

package com.example.jared.servicetest;

import android.app.PendingIntent;
import android.app.Service;
import android.content.Intent;
import android.os.Binder;
import android.os.IBinder;
import android.support.annotation.Nullable;
import android.support.v4.app.NotificationCompat;
import android.util.Log;
import android.widget.Toast;

/**
 * Created by jared on 16/2/18.
 */
public class MyService extends Service{

    private static final String TAG = "MyService";
    private static final int NOTIFICATION_ID = 1;

    private DownloadBinder mDownloadBinder = new DownloadBinder();

    class DownloadBinder extends Binder {
        private int progress = 0;
        public void startDownload() {
            Log.d(TAG, "startDownload is called");
            Toast.makeText(MyService.this, "startDownload is called",Toast.LENGTH_SHORT).show();
            progress = 0;
            new Thread(new Runnable(){
                @Override
                public void run() {
                    for (int i=0; i<=100; i++) {
                        try {
                            Thread.sleep(1000);
                            progress++;
                        } catch (InterruptedException e) {
                            e.printStackTrace();
                        }
                    }
                }
            }).start();
        }
        public int getProgress() {
            Log.d(TAG, "getProgress is called");
            Toast.makeText(MyService.this, "getProgress is called",Toast.LENGTH_SHORT).show();
            return progress;
        }
    }

    @Nullable
    @Override
    public IBinder onBind(Intent intent) {
        return mDownloadBinder;
    }

    @Override
    public void onCreate() {
        super.onCreate();
        Log.d(TAG, "onCreate is called");
        Toast.makeText(MyService.this, "onCreate is called",Toast.LENGTH_SHORT).show();
        NotificationCompat.Builder notification = new NotificationCompat.Builder(this);
        notification.setSmallIcon(R.mipmap.ic_launcher);
        notification.setContentTitle("前台服務");
        notification.setContentText("這是個前台服務");
        Intent intent = new Intent(this, MainActivity.class);
        PendingIntent pendingIntent = PendingIntent.getActivity(this, 0, intent, 0);
        notification.setContentIntent(pendingIntent);
        startForeground(NOTIFICATION_ID, notification.build());
    }

    @Override
    public int onStartCommand(Intent intent, int flags, int startId) {
        Log.d(TAG, "onStartCommand is called");
        Toast.makeText(MyService.this, "onStartCommand is called",Toast.LENGTH_SHORT).show();
        return super.onStartCommand(intent, flags, startId);
    }

    @Override
    public void onDestroy() {
        super.onDestroy();
        Log.d(TAG, "onDestroy is called");
        Toast.makeText(MyService.this, "onDestroy is called",Toast.LENGTH_SHORT).show();
        stopForeground(true);
    }
}

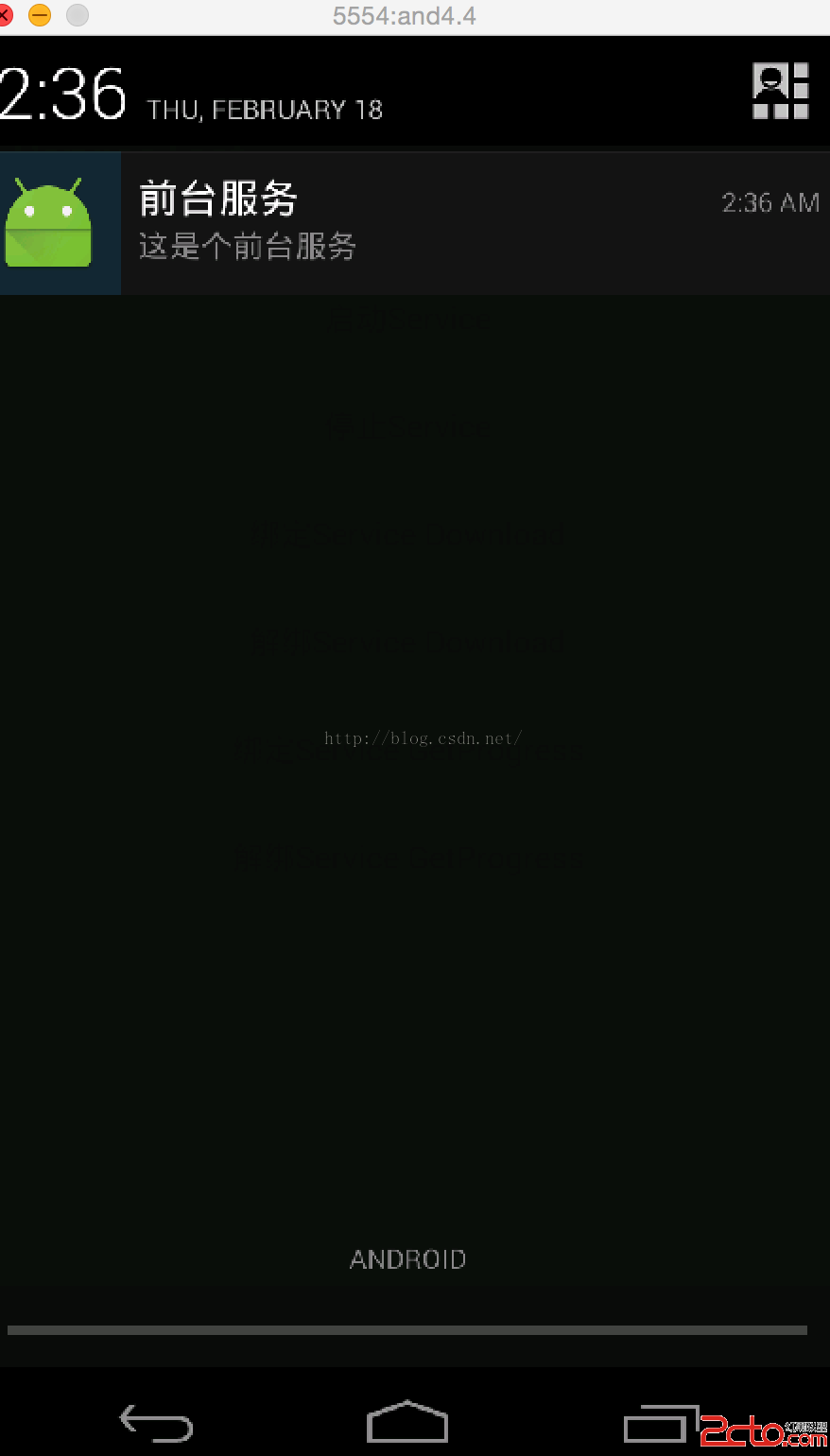

這裡用到了notification，然後通過startForegroid方法來啟動一個前台服務，運行看下效果：

\\ \

從上圖可知，當啟動了前台服務的時候，在狀態欄有個圖標顯示，當activity退出的時候，還是存在，只有當停止服務的時候才消失，那麼就可以理解了為什麼qq音樂退出了還在播放歌曲，還可以通過前台服務點擊進入app。其實就是這個道理了。

關於Service就先學習到這裡了。總算把Service學習好了。接下去繼續學習別的知識點了。

  1. 上一頁:
  2. 下一頁:
關於Android編程
Android編程入門Android技術基礎Android資訊關於Android編程Android開發Android開發環境Android開發實例
相關文章
熱門文章
Android check the net and go to the setting acvivity by intent android事件分發源碼解析（上） Android 刮刮卡實現效果 Android Stadio常用快捷鍵及基本設置 手機忘記開機密碼怎麼辦？ Android應用開發SharedPreferences存儲數據的使用方法
android編程之XML文件解析方法詳解(附源碼)

本文實例講述了android編程之XML文件解析方法。分享給大家供大家參
Android開發之開發者頭條APP(三)實現首頁

相關閱讀：Android開發之開發者頭條(一)啟動頁實現Android開
Android apk打包過程

概述android打包過程，下面這張圖取自Android開發權威指南，非
Android中實現淘寶購物車RecyclerView或LIstView的嵌套選擇的邏輯

使用了RecyclerView嵌套RecyclerView的方案。購物車
閱讀排行版
Copyright © Android教程網 All Rights Reserved
