android 自定義開關（SwitchButton）

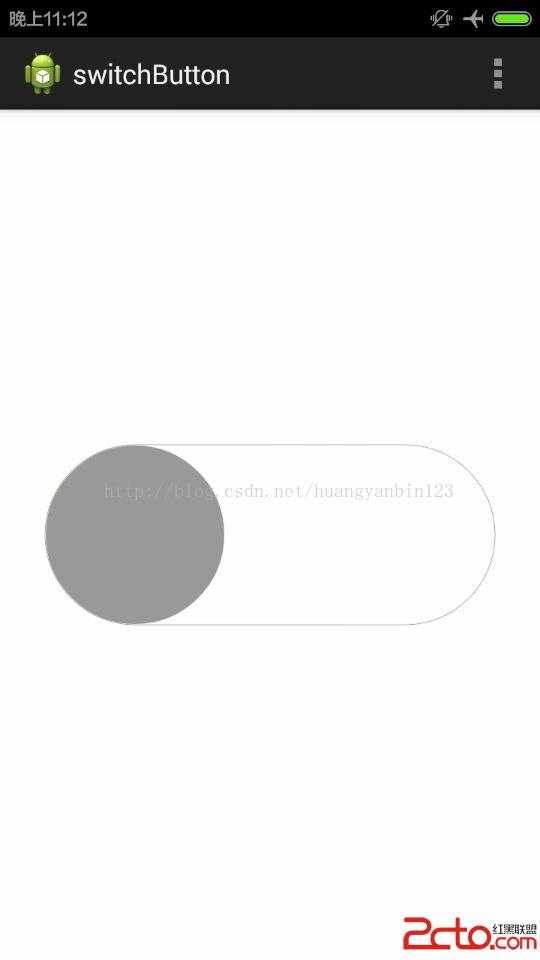

最近心血來潮，寫了一個自定義仿iPhone的開關。有需要的同學可以來下載啦。支持點擊自動滾動，速率可以自己根據需要修改。觸摸滾動，大小自定義，支持修改樣式。就不錄制動畫，就上傳了兩張圖給大家看看。

主要代碼：

package com.example.switchbutton;

import android.annotation.SuppressLint;
import android.content.Context;
import android.content.res.Resources;
import android.content.res.TypedArray;
import android.graphics.Canvas;
import android.graphics.Paint;
import android.graphics.RectF;
import android.os.Handler;
import android.util.AttributeSet;
import android.view.MotionEvent;
import android.view.View;
import android.view.ViewConfiguration;

public class SwitchButton extends View {

	public static final int DEFAULT_WIDTH = 100;
	public static final int DEFAULT_HEIGTH = 45;
	public static final int PER_POST_TIME = 20;
	public static final int CLICK = 0;
	public static final int LEFT  = 1;
	public static final int RIGHT  = 2;

	private int mSelectBg;
	private int mUnSelectBg;
	private int mBorderColor;
	private int mSelectCirlceColor;
	private int mUnSelectCircleColor;
	private boolean isChecked;
	private Paint mPaint;
	private int mWidth;
	private int mHeight;
	private int mClickTimeout;
	private int mTouchSlop;
	private float mAnimMove;
	private final float VELOCITY = 350;
	private float firstDownX;
	private float firstDownY;
	private float lastDownX;
	private int mCriclePostion;
	private int mStartCriclePos;
	private int mEndCirclePos;
	private boolean isScroll;
	private int status;
	private Handler mHander;
	private AnimRunnable mAnim;

	private OnCheckChangeListener mOnCheckChangeListener;


	public interface OnCheckChangeListener {

		void OnCheck(SwitchButton switchButton,boolean isChecked);
	}

	public SwitchButton(Context context, AttributeSet attrs) {
		super(context, attrs);
		Resources res = getResources();
		int defaultSelectBg = res.getColor(R.color.default_switch_button_select_bg);
		int defaultUnSelectBg = res.getColor(R.color.default_switch_button_unselect_bg);
		int defaultBorderColor = res.getColor(R.color.default_switch_button_border_color);
		int defaultSelectCircleColor = res.getColor(R.color.default_switch_button_select_color);
		int defaultUnSelectCircleColor = res.getColor(R.color.default_switch_button_unselect_color);
		TypedArray a = context.obtainStyledAttributes(attrs,R.styleable.SwitchButton);
		mSelectBg = a.getColor(R.styleable.SwitchButton_select_bg, defaultSelectBg);
		mUnSelectBg = a.getColor(R.styleable.SwitchButton_unselect_bg, defaultUnSelectBg);
		mBorderColor = a.getColor(R.styleable.SwitchButton_select_border_color, defaultBorderColor);
		mSelectCirlceColor = a.getColor(R.styleable.SwitchButton_select_cricle_color, defaultSelectCircleColor);
		mUnSelectCircleColor = a.getColor(R.styleable.SwitchButton_unselect_cricle_color, defaultUnSelectCircleColor);
		isChecked = a.getBoolean(R.styleable.SwitchButton_isChecked,false);
		a.recycle();
		initView(context);
	}

	private void initView(Context context) {

		mPaint = new Paint(Paint.ANTI_ALIAS_FLAG);
		final float density = getResources().getDisplayMetrics().density;
		mAnimMove = (int) (VELOCITY * density + 0.5f) / 150; //自動滾動速度
        mClickTimeout = ViewConfiguration.getPressedStateDuration()
                + ViewConfiguration.getTapTimeout();  //點擊時間
        mTouchSlop = ViewConfiguration.get(context).getScaledTouchSlop();//觸摸滾動Slop
        mHander = new Handler();
        mAnim = new AnimRunnable();
	}


	@SuppressLint("DrawAllocation")
	@Override
	protected void onDraw(Canvas canvas) {
		super.onDraw(canvas);

		mPaint.setColor(mBorderColor);
		mPaint.setStyle(Paint.Style.STROKE);
		RectF rect = new RectF(0, 0, mWidth, mHeight);
		canvas.drawRoundRect(rect, mHeight/2, mHeight/2, mPaint);
		mPaint.setColor(isChecked ? mSelectBg :mUnSelectBg);
		RectF innerRect = new RectF(1, 1, mWidth -1, mHeight -1);
		canvas.drawRoundRect(innerRect, mHeight/2 -1, mHeight/2 -1, mPaint);
		mPaint.setColor(isChecked ? mSelectCirlceColor : mUnSelectCircleColor);
		mPaint.setStyle(Paint.Style.FILL);
		canvas.drawCircle(mCriclePostion, mHeight/2, mHeight/2 -1, mPaint);
	}


	@Override
	public boolean onTouchEvent(MotionEvent event) {

		float x = event.getX();
		float y = event.getY();
		switch (event.getAction()) {
		case MotionEvent.ACTION_DOWN:
			if(isScroll){
				return false;
			}
			firstDownX = x;
			firstDownY = y;
			lastDownX = x;
			mCriclePostion = isChecked ? mEndCirclePos : mStartCriclePos;
			break;
		case MotionEvent.ACTION_MOVE:
			float delaX = x - lastDownX;
			setCriclePositon(delaX);
			lastDownX  = x;
			invalidate();
			break;
		case MotionEvent.ACTION_UP:
			float totalX = x - firstDownX;
			float totalY = y - firstDownY;
			float time = event.getEventTime() - event.getDownTime();
			if(totalX < mTouchSlop && totalY  mWidth -mHeight /2){
					mCriclePostion = mWidth -mHeight /2;
					stopView(true);
				}
			}
			invalidate();

		}
		//停止移動View
		private void stopView(boolean endChecked) {

			mHander.removeCallbacks(mAnim);
			isScroll = false;
			isChecked = endChecked;
			//回調監聽事件
			if(mOnCheckChangeListener != null){
				mOnCheckChangeListener.OnCheck(SwitchButton.this, isChecked);
			}
		}

	}

	//設置圓心的位置
	private synchronized void setCriclePositon(float delaX){

		int pos = (int) (mCriclePostion + delaX);
		if(pos < mHeight / 2){
			mCriclePostion =  mHeight / 2;
		}else if(pos > mWidth - mHeight /2){
			mCriclePostion =  mWidth - mHeight /2;
		}else{
			mCriclePostion = pos;
		}
	}

	@Override
	protected void onMeasure(int widthMeasureSpec, int heightMeasureSpec) {

		int widthMode = MeasureSpec.getMode(widthMeasureSpec);
		if(widthMode == MeasureSpec.UNSPECIFIED || widthMode == MeasureSpec.AT_MOST){
			mWidth = DEFAULT_WIDTH;
		}else{
			mWidth = MeasureSpec.getSize(widthMeasureSpec);
		}
		int heightMode = MeasureSpec.getMode(heightMeasureSpec);
		if(heightMode == MeasureSpec.UNSPECIFIED || heightMode == MeasureSpec.AT_MOST){
			mHeight = DEFAULT_HEIGTH;
		}else{
			mHeight = MeasureSpec.getSize(heightMeasureSpec);
		}
		mStartCriclePos = mHeight / 2;
		mEndCirclePos = mWidth - mHeight /2;
		mCriclePostion = isChecked ? mEndCirclePos :mStartCriclePos;
		setMeasuredDimension(mWidth, mHeight);
	}

	public boolean isChecked() {
		return isChecked;
	}

	public void setChecked(boolean isChecked) {

		this.isChecked = isChecked;
		invalidate();
	}



	public void setOnCheckChangeListener(OnCheckChangeListener onCheckChangeListener) {

		this.mOnCheckChangeListener = onCheckChangeListener;
	}


}

attrs：

下載地址：http://download.csdn.net/detail/huangyanbin123/8173521
