Android網絡收音機--使用Vitamio解碼（一）

前面講到Vitamio可以支持一些流媒體，在這裡就用Vitamio來播放網絡上的一些流媒體，如：mms、rtsp、http，參考前輩的一些文章來寫一個網絡收音機程序，對於界面的要求不高，要求實現一些實用的功能

程序目錄結構

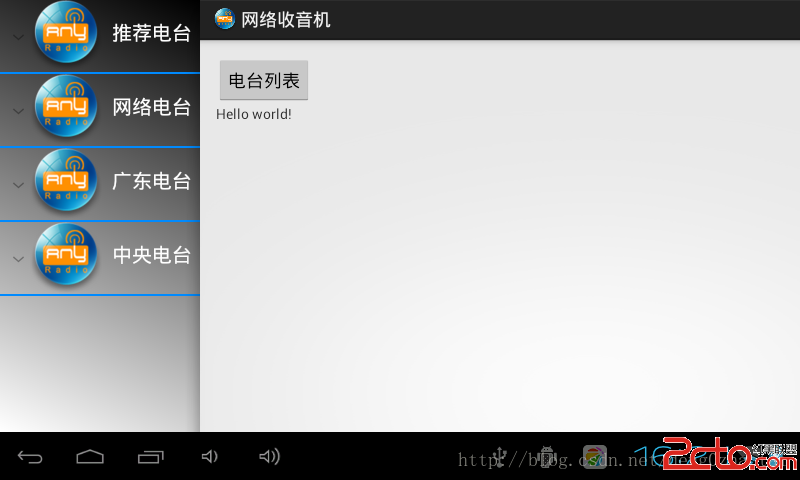

初期界面，左邊是用開源項目SlidingMenu，不清楚的可以參考：Android開源項目SlidingMenu的學習筆記

電台信息是通過XML來保存channel.xml，這裡只添加一部分，更詳細的可以參考文章最後的鏈接，自行添加



讀取XML數據放在NetRadioApp.java，使用兩個全局的變量來保存，方便其它類的使用





package com.dzt.netradio;

import java.io.InputStream;
import java.util.ArrayList;

import com.dzt.netradio.constant.GlobalConstants;
import com.dzt.netradio.domain.RadioChannelData;
import com.dzt.netradio.utils.XmlPullParserUtils;

import android.app.Application;

public class NetRadioApp extends Application {

	public static ArrayList ChannelTypeList = new ArrayList();
	public static ArrayList> finalChanneldata = new ArrayList>();

	@Override
	public void onCreate() {
		// TODO Auto-generated method stub
		super.onCreate();
		InputStream is = null;
		try {
			is = getResources().getAssets().open(channel.xml);
			XmlPullParserUtils.getRadioListData(is, ChannelTypeList,
					finalChanneldata);
		} catch (Exception e) {
			// TODO Auto-generated catch block
			GlobalConstants.print_i(NetRadioApp,
					onCreate Exception =  + e.toString());
			e.printStackTrace();
		}
	}

	@Override
	public void onLowMemory() {
		// TODO Auto-generated method stub
		super.onLowMemory();
		System.gc();
	}

}

在左側菜單中使用觀察者模式監聽點擊事件





public void setOnMenuListOnItemClickListener(
			OnMenuListOnItemClickListener listener) {
		mListener = listener;
	}

	public interface OnMenuListOnItemClickListener {

		public void onSelectItem(int groupPosition, int childPosition);
	}

	@Override
	public boolean onChildClick(ExpandableListView parent, View v,
			int groupPosition, int childPosition, long id) {
		// TODO Auto-generated method stub
		if (mListener != null) {
			mListener.onSelectItem(groupPosition, childPosition);
		}
		return false;
	}

在MainActivity.java類中設置監聽器，和設置Handler與Service通信





/**
	 * 選擇對應的Item
	 */
	@Override
	public void onSelectItem(int groupPosition, int childPosition) {
		// TODO Auto-generated method stub
		RadioChannelData channelData = NetRadioApp.finalChanneldata.get(
				groupPosition).get(childPosition);
		mName.setText(channelData.getChannelName());
		for (int i = 0; i < mUpdateHandler.size(); i++) {
			Handler h = mUpdateHandler.get(i);
			Message msg = h.obtainMessage();
			msg.what = GlobalConstants.SELECT_ITEM;
			Bundle data = new Bundle();
			data.putInt(groupPosition, groupPosition);
			data.putInt(childPosition, childPosition);
			msg.setData(data);
			h.sendMessage(msg);
		}
	}

	public static void addUpdateHandler(Handler handler) {
		mUpdateHandler.add(handler);
	}

	public static void removeUpdateHandler(Handler handler) {
		mUpdateHandler.remove(handler);
	}

在Service中處理播放PlayService.java





package com.dzt.netradio.player;

import java.io.IOException;

import io.vov.vitamio.MediaPlayer;
import io.vov.vitamio.MediaPlayer.OnBufferingUpdateListener;
import io.vov.vitamio.MediaPlayer.OnCompletionListener;
import io.vov.vitamio.MediaPlayer.OnPreparedListener;
import android.app.Service;
import android.content.Intent;
import android.os.Binder;
import android.os.Bundle;
import android.os.Handler;
import android.os.IBinder;
import android.os.Message;

import com.dzt.netradio.MainActivity;
import com.dzt.netradio.NetRadioApp;
import com.dzt.netradio.WeakHandler;
import com.dzt.netradio.constant.GlobalConstants;
import com.dzt.netradio.domain.RadioChannelData;

public class PlayService extends Service implements OnBufferingUpdateListener,
		OnCompletionListener, OnPreparedListener {

	private MediaPlayer mPlayer;

	public void MyMethod() {
		GlobalConstants.print_i(PlayService, MyMethod called);
	}

	public PlayService() {
	}

	@Override
	public IBinder onBind(Intent intent) {
		// TODO Auto-generated method stub
		return myBinder;
	}

	public class MyBinder extends Binder {

		public PlayService getService() {
			return PlayService.this;
		}
	}

	private MyBinder myBinder = new MyBinder();

	@Override
	public void onCreate() {
		// TODO Auto-generated method stub
		super.onCreate();
		MainActivity.addUpdateHandler(selectItemHandler);
		GlobalConstants.print_i(PlayService, onCreate called);
	}

	@Override
	public void onDestroy() {
		// TODO Auto-generated method stub
		MainActivity.removeUpdateHandler(selectItemHandler);
		if (mPlayer != null) {
			mPlayer.release();
			mPlayer = null;
		}
		super.onDestroy();
	}

	@Override
	public void onPrepared(MediaPlayer mp) {
		// TODO Auto-generated method stub
		GlobalConstants.print_i(PlayService, onPrepared called);
		if (mPlayer != null)
			mPlayer.start();// 開始播放
	}

	@Override
	public void onCompletion(MediaPlayer mp) {
		// TODO Auto-generated method stub
		GlobalConstants.print_i(PlayService, onCompletion called);
	}

	@Override
	public void onBufferingUpdate(MediaPlayer mp, int percent) {
		// TODO Auto-generated method stub
		// GlobalConstants.print_i(PlayService, onBufferingUpdate called);
	}

	private void playSelectItem(String url) {
		if (mPlayer == null) {
			try {
				mPlayer = new MediaPlayer(this);// 播放流媒體的對象
				mPlayer.setDataSource(url);// 設置流媒體的數據源
				mPlayer.prepare();
				mPlayer.setOnBufferingUpdateListener(this);
				mPlayer.setOnCompletionListener(this);
				mPlayer.setOnPreparedListener(this);
			} catch (Exception e) {
				GlobalConstants.print_i(PlayService, onCreate Exception =
						+ e.toString());
				e.printStackTrace();
			}
		} else {
			try {
				mPlayer.setDataSource(url);// 設置流媒體的數據源
			} catch (Exception e) {
				GlobalConstants.print_i(PlayService, onCreate Exception =
						+ e.toString());
				e.printStackTrace();
			}
		}

		GlobalConstants.print_i(PlayService, playSelectItem url =  + url);
	}

	private Handler selectItemHandler = new SelectItemHandler(this);

	private static class SelectItemHandler extends WeakHandler {

		public SelectItemHandler(PlayService owner) {
			super(owner);
			// TODO Auto-generated constructor stub
		}

		@Override
		public void handleMessage(Message msg) {
			// TODO Auto-generated method stub
			PlayService owner = getOwner();
			if (owner == null)
				return;
			switch (msg.what) {
			case GlobalConstants.SELECT_ITEM:
				Bundle data = msg.getData();
				int groupPosition = data.getInt(groupPosition);
				int childPosition = data.getInt(childPosition);
				RadioChannelData channelData = NetRadioApp.finalChanneldata
						.get(groupPosition).get(childPosition);
				owner.playSelectItem(channelData.getChannelURL());
				break;
			default:
				break;
			}
		}
	}

}

但只能播放一次，再點擊Item就不能播放或自動退出，還沒找到是什麼原因，在後續再解決這個問題Vitamio中的MediaPlayer與系統中的MediaPlayer非常相似，用起來也方便，比VLC要方便



相關代碼：http://download.csdn.net/detail/deng0zhaotai/7905367

參考文檔：

1、網絡電台地址（一）

2、網絡電台地址（二）

3、http://www.cnblogs.com/mythou/p/3231184.html
