Android開源項目SlidingMenu的學習筆記（二）

在前面已經介紹了SlidingMenu的用法：Android開源項目SlidingMenu的學習筆記（一），接下來再深入學習下，根據滑出項的Menu切換到對應的頁面

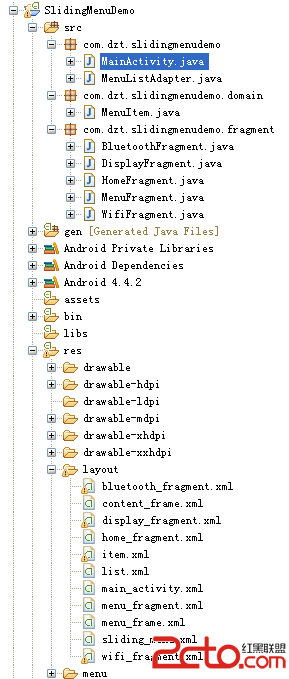

目錄結構：

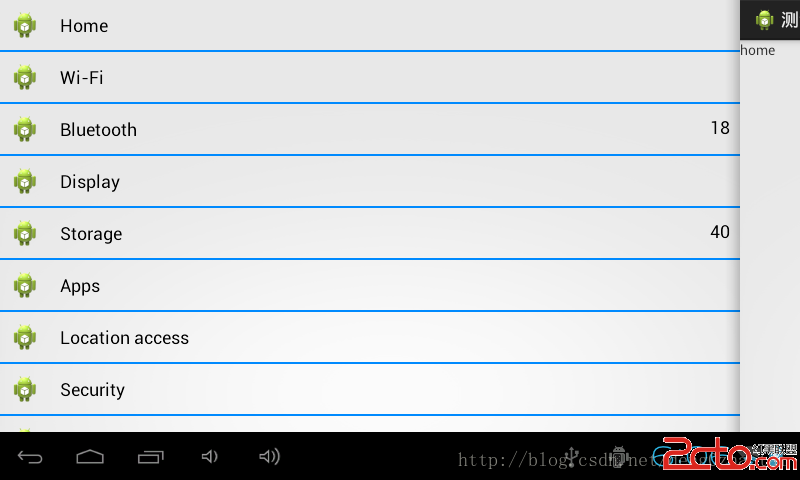

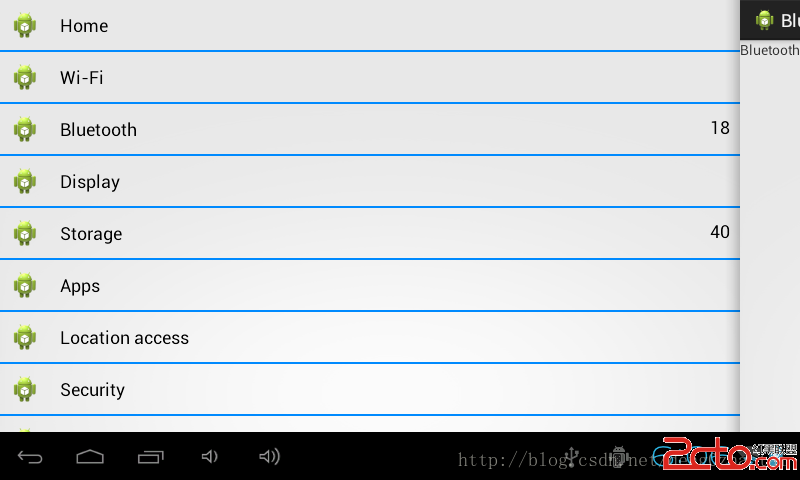

點擊Bluetooth可以切換到相應的界面

關鍵代碼

MainActivity.java



package com.dzt.slidingmenudemo;

import android.app.Fragment;
import android.app.FragmentManager;
import android.app.FragmentTransaction;
import android.os.Bundle;
import android.util.Log;

import com.dzt.slidingmenudemo.fragment.BluetoothFragment;
import com.dzt.slidingmenudemo.fragment.DisplayFragment;
import com.dzt.slidingmenudemo.fragment.HomeFragment;
import com.dzt.slidingmenudemo.fragment.MenuFragment;
import com.dzt.slidingmenudemo.fragment.WifiFragment;
import com.dzt.slidingmenudemo.fragment.MenuFragment.OnMenuListOnItemClickListener;
import com.slidingmenu.lib.SlidingMenu;
import com.slidingmenu.lib.app.SlidingActivity;

/**
 * 根據不同的Menu切換到相應的Fragment
 *
 * @author Administrator
 *
 */
public class MainActivity extends SlidingActivity implements
		OnMenuListOnItemClickListener {

	private SlidingMenu mChannelMenu;

	@Override
	public void onCreate(Bundle savedInstanceState) {
		// TODO Auto-generated method stub
		super.onCreate(savedInstanceState);
		// 設置標題欄的標題
		setTitle(測試SlidingMenu);
		setContentView(R.layout.content_frame);
		initChannelMenu();
	}

	private void initChannelMenu() {

		setBehindContentView(R.layout.menu_frame);
		// 創建SlidingMenu對象
		mChannelMenu = getSlidingMenu();
		// 設置側滑欄菜單位置，這裡在左邊。拉動菜單時，會從左邊彈出
		mChannelMenu.setMode(SlidingMenu.LEFT);
		// 設置觸摸的范圍，這裡設置全屏
		mChannelMenu.setTouchModeAbove(SlidingMenu.TOUCHMODE_FULLSCREEN);
		// 設置陰影的寬度，查看上面第二張效果圖，靠右邊的位置，有一個陰影過渡。就是這個東西
		mChannelMenu.setShadowWidthRes(R.dimen.shadow_width);
		// 這裡是陰影效果，可以設置圖片或者一個顏色過渡
		mChannelMenu.setShadowDrawable(R.drawable.shadow);
		// 設置後面間距，側滑欄和原來界面間距
		mChannelMenu.setBehindOffsetRes(R.dimen.slidingmenu_offset);
		// 邊框的角度，這裡指邊界地方
		mChannelMenu.setFadeDegree(0.35f);
		// 設置觸摸屏幕的模式
		mChannelMenu.setTouchModeAbove(SlidingMenu.TOUCHMODE_FULLSCREEN);
		// 設置SlidingMenu的內容
		FragmentTransaction fragmentTransaction = getFragmentManager()
				.beginTransaction();
		MenuFragment menuFragment = new MenuFragment();
		menuFragment.setOnMenuListOnItemClickListener(this);
		fragmentTransaction.replace(R.id.menu_frame, menuFragment);
		fragmentTransaction.replace(R.id.content_frame, new HomeFragment());
		fragmentTransaction.commit();
	}

	@Override
	public void onBackPressed() {
		if (mChannelMenu.isMenuShowing()) {
			// 隱藏SlidingMenu，這裡的Content就是我們的主Activity
			mChannelMenu.showContent();
		} else {
			super.onBackPressed();
		}
	}

	@Override
	public void onSelectItem(int position, String title) {
		// TODO Auto-generated method stub
		System.out.println(onSelectItem title =  + title);
		Fragment fragment = null;
		switch (position) {
		case 0:
			fragment = new HomeFragment();
			break;
		case 1:
			fragment = new WifiFragment();
			break;
		case 2:
			fragment = new BluetoothFragment();
			break;
		case 3:
			fragment = new DisplayFragment();
			break;
		default:
			break;
		}

		if (fragment != null) {
			FragmentManager fragmentManager = getFragmentManager();
			fragmentManager.beginTransaction()
					.replace(R.id.content_frame, fragment).commit();
			// update selected item and title, then close the drawer
			setTitle(title);
			mChannelMenu.showContent();
		} else {
			// error in creating fragment
			Log.e(MainActivity, Error in creating fragment);
		}
	}

}

滑出的Fragment MenuFragment.java





package com.dzt.slidingmenudemo.fragment;

import java.util.ArrayList;

import android.app.Fragment;
import android.os.Bundle;
import android.view.LayoutInflater;
import android.view.View;
import android.view.ViewGroup;
import android.widget.AdapterView;
import android.widget.AdapterView.OnItemClickListener;
import android.widget.ListView;

import com.dzt.slidingmenudemo.MenuListAdapter;
import com.dzt.slidingmenudemo.R;
import com.dzt.slidingmenudemo.domain.MenuItem;

public class MenuFragment extends Fragment implements OnItemClickListener {

	private ListView mLv;
	private String[] mMenuTitles;
	private ArrayList mMenuItem;
	private MenuListAdapter mAdapter;
	private OnMenuListOnItemClickListener mListener;

	public View onCreateView(LayoutInflater inflater, ViewGroup container,
			Bundle savedInstanceState) {
		View rootView = inflater.inflate(R.layout.menu_fragment, container,
				false);
		initWidgets(rootView);
		return rootView;
	}

	private void initWidgets(View rootView) {
		mLv = (ListView) rootView.findViewById(R.id.left_menu);
		mMenuTitles = getResources().getStringArray(R.array.menu_title);
		mMenuItem = new ArrayList();
		for (int i = 0; i < mMenuTitles.length; i++) {
			MenuItem item = null;
			if (i == 2) {
				item = new MenuItem(mMenuTitles[i], R.drawable.ic_launcher,
						18, true);
			} else if (i == 4) {
				item = new MenuItem(mMenuTitles[i], R.drawable.ic_launcher,
						40, true);
			} else {
				item = new MenuItem(mMenuTitles[i], R.drawable.ic_launcher);
			}
			mMenuItem.add(item);
		}
		mAdapter = new MenuListAdapter(getActivity(), mMenuItem);
		mLv.setAdapter(mAdapter);
		mLv.setOnItemClickListener(this);
	}

	@Override
	public void onItemClick(AdapterView parent, View view, int position,
			long id) {
		// TODO Auto-generated method stub
		mLv.setItemChecked(position, true);
		mLv.setSelection(position);
		if (mListener != null) {
			mListener.onSelectItem(position, mMenuTitles[position]);
		}
	}

	public void setOnMenuListOnItemClickListener(
			OnMenuListOnItemClickListener listener) {
		mListener = listener;
	}

	public interface OnMenuListOnItemClickListener {

		public void onSelectItem(int position, String title);
	}
}

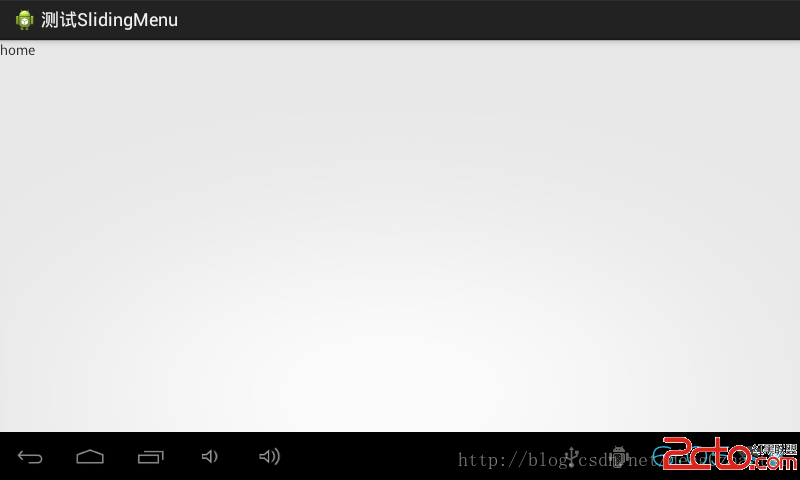

點擊Menu後，在MainActivity中實現了點擊的監聽器，就會切換到相應的頁面
