Android自定義View之組合控件 ---- LED數字時鐘

先上圖

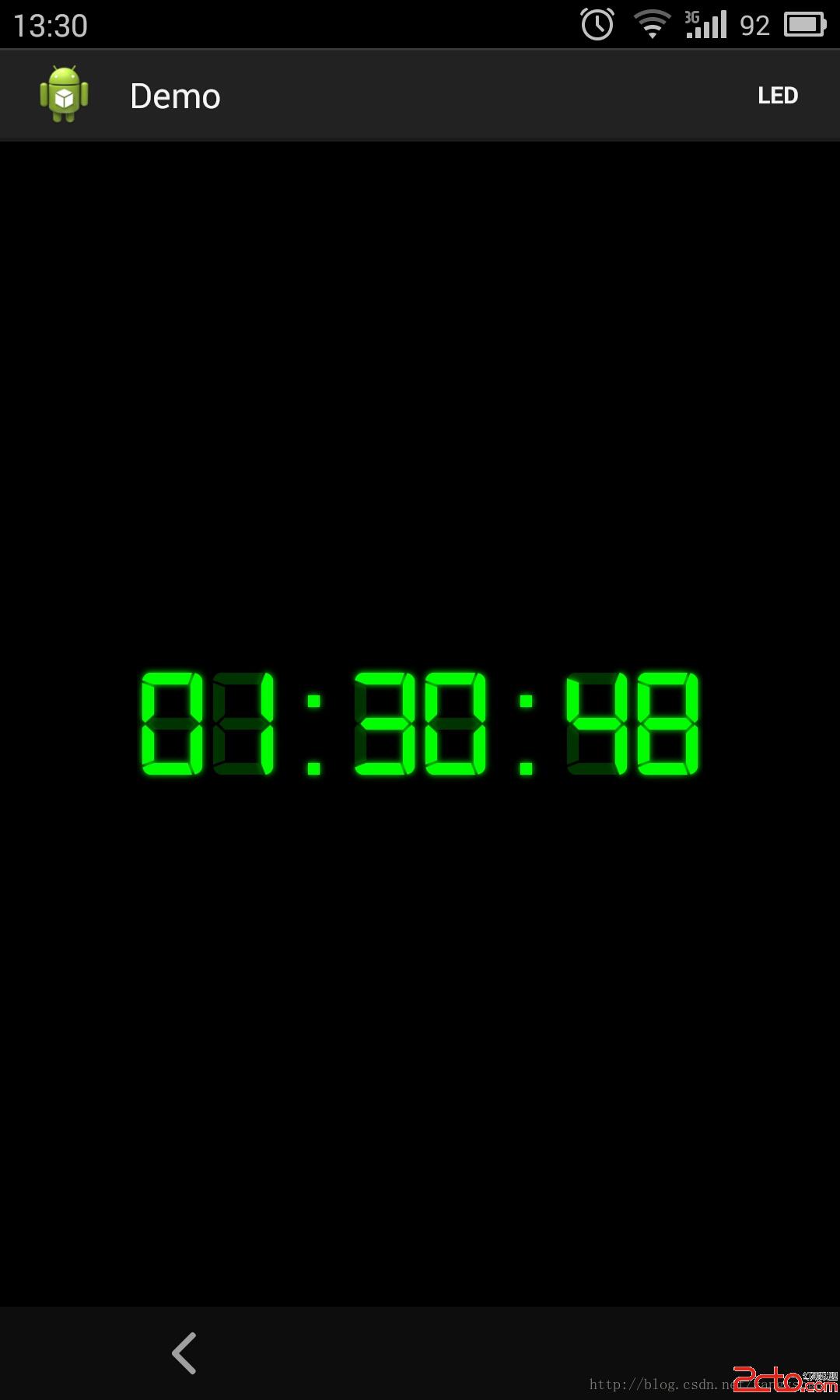

LEDView效果如圖所示。

之前看到一篇博客使用兩個TextView實現了該效果，於是我想用自定義控件的方式實現一個LEDView，使用時即可直接使用該控件。

采用組合控件的方式，將兩個TextView疊放在一起，再使用digital-7.ttf字體來顯示數據，從而達到LED的效果。代碼如下：

LEDView.class



package ione.zy.demo;

import java.io.File;
import java.util.Calendar;
import java.util.Date;
import java.util.TimeZone;

import android.annotation.SuppressLint;
import android.content.Context;
import android.content.res.AssetManager;
import android.graphics.Typeface;
import android.os.Handler;
import android.util.AttributeSet;
import android.view.LayoutInflater;
import android.view.View;
import android.widget.LinearLayout;
import android.widget.TextView;

public class LEDView extends LinearLayout {

	private TextView timeView;
	private TextView bgView;
	private static final String FONT_DIGITAL_7 = fonts + File.separator
			+ digital-7.ttf;

	private static final String DATE_FORMAT = %02d:%02d:%02d;
	private static final int REFRESH_DELAY = 500;

	private final Handler mHandler = new Handler();
	private final Runnable mTimeRefresher = new Runnable() {

		@Override
		public void run() {
			Calendar calendar = Calendar.getInstance(TimeZone
					.getTimeZone(GMT+8));
			final Date d = new Date();
			calendar.setTime(d);

			timeView.setText(String.format(DATE_FORMAT,
					calendar.get(Calendar.HOUR), calendar.get(Calendar.MINUTE),
					calendar.get(Calendar.SECOND)));
			mHandler.postDelayed(this, REFRESH_DELAY);
		}
	};

	@SuppressLint(NewApi)
	public LEDView(Context context, AttributeSet attrs, int defStyle) {
		super(context, attrs, defStyle);
		init(context);
	}

	public LEDView(Context context, AttributeSet attrs) {
		super(context, attrs);
		init(context);
	}

	public LEDView(Context context) {
		super(context);
		init(context);
	}

	private void init(Context context) {
		LayoutInflater layoutInflater = LayoutInflater.from(context);

		View view = layoutInflater.inflate(R.layout.ledview, this);
		timeView = (TextView) view.findViewById(R.id.ledview_clock_time);
		bgView = (TextView) view.findViewById(R.id.ledview_clock_bg);
		AssetManager assets = context.getAssets();
		final Typeface font = Typeface.createFromAsset(assets, FONT_DIGITAL_7);
		timeView.setTypeface(font);// 設置字體
		bgView.setTypeface(font);// 設置字體

	}

	public void start() {
		mHandler.post(mTimeRefresher);
	}

	public void stop() {
		mHandler.removeCallbacks(mTimeRefresher);
	}
}

ledview.xml文件









控件使用Demo



package ione.zy.demo;

import android.os.Build;
import android.os.Bundle;
import android.view.Menu;
import android.annotation.SuppressLint;
import android.annotation.TargetApi;
import android.app.ActionBar;
import android.app.Activity;

@TargetApi(Build.VERSION_CODES.HONEYCOMB)
public class LEDActivity extends Activity {

	private LEDView ledView;

	@SuppressLint(NewApi)
	@Override
	protected void onCreate(Bundle savedInstanceState) {
		super.onCreate(savedInstanceState);
		setContentView(R.layout.activity_led);
		ledView = (LEDView) findViewById(R.id.ledview);

		  ActionBar actionBar = getActionBar();
		  actionBar.setDisplayHomeAsUpEnabled(true);
	}

	@Override
	protected void onResume() {
		super.onResume();
		ledView.start();
	}

	@Override
	protected void onStop() {
		super.onStop();
		ledView.stop();
	}

	@Override
	public boolean onCreateOptionsMenu(Menu menu) {
		getMenuInflater().inflate(R.menu.activity_led, menu);
		return true;
	}

}

activity_led.xml
