Android中如何搭建一個WebServer

今天終於把老大交代的任務搞完了，感覺收獲挺多的，所以就寫一篇來記錄一下吧，首先還是來看一下，老大們的需求

需求：

希望移動端的用戶標識(IMEI)和HTML頁面的用戶標識(Cookie)連接起來，其中HTML頁面可能是用戶使用PC訪問指定的html頁面也有可能是移動端使用浏覽器訪問html頁面

技術解決：

運用移動設備的系統特型，用Apps的Service監聽本地的網絡端口，當局域網內或本機的Html頁面通過請求調用本地IP:Port時觸發監聽。Apps在將當前Html的Cookie和移動設備標識物發回服務端時，即實現了本次PC/Mobile Html頁面的Cookie和移動設備的互相綁定。

具體實現方案之多端通信技術方案

各模塊細節
1.Native App(移動端的app)：
1).跟隨主服務常駐內存，在收到當前網絡環境為Wifi事件後，啟動HttpServer。
(當前網絡切換成3G/2G等網絡時關閉HttpServer)。

以上這步我們叫做注冊:啟動移動端的HttpServer的時候，我們會將移動設備的ip地址(內網地址)發送到指定的後台Server上

2).收到從Web來的http請求後，往Server發送綁定請求，這時候就將移動端的IMEI和HTML中的Cookie一起上傳到指定的Server上
例如：
http://serverhost/?cookie=123213&imei=31233213123
以上這步我們叫做一次綁定的完成操作

以為我們是在移動端開始一個HttpServer的，所以要考慮一些額外的因素，比如耗電量
風險控制：使用灰度測試規則，並使用開關限制功能。
功耗風險：經過三台設備測試，電量消耗忽略不計（具體CPU使用時間在統計）。

2.Web JS：
1).加載頁面加載後先從CDN加載一個靜態的JS到此頁面。

2).靜態JS再請求Server 獲取一段動態JS用以做本地Ping。
(如果此IP已有N次獲取，則考慮>N的節點是一個大型公共網絡，則把此公共IP加入黑名單，不再返回動態JS)

3).獲得動態JS後直接Ping本地的HttpServer。
(Ping的IP/Port會隨著動態JS一起下發)

這裡我們是在Html頁面中使用JS腳本來處理傳遞Cookie給移動端的功能。

3.Bridge Server：
1).Sever選型：Node.js
同時考慮到開發效率，性能，和client的JS的契合度。
Node.js單台16核服務器，4節點，QPS經測試能到6k-8k。
較適合短頻非阻塞的請求。

2).數據存儲：Redis
考慮到NativeApp的外網IP時效性，以及對於短頻請求的快速應答。
以外網IP為Key，各個IP為Value。每天清理一次外網IP。
存儲格式：{外網IP：{NativeApp IP/Port, .........}}

3).移動端所需要的接口
接口一：Native App 對於本外網IP的注冊的請求。
接口二：Navtive App的綁定請求。

具體原理圖：

上面講解了一下技術的實現方案，下面我們就來看一下，具體的實現技術

首先來看移動端的，我們需要建立一個HttpServer

我們可能知道在PC端建立一個Server很簡單，直接使用Tomcat服務器就可以了，但是我們移動端不可能去搭建一個服務器的，那麼我們該怎麼辦呢？我們可以在網上搜索一下關於如何在手機中搭建一個WebServce，我們可以看到Apache已經幫我們做好了這件事了，他提供了一個jar，有相應的api，同時還有一種技術就是老外有個人寫好了一個類：NanoHttpd，我們只需要看懂這個類，然後自己在編寫一個類，繼承這個類即可，因為這個類是抽象的。這兩種搭建的Server原理都是很簡單的，就是建立一個Socket連接，這個和Tomcat是一樣的，只是他們將這種操作進行優化處理了，那麼我們首先來看一下Apache給我們提供的這個HttpServer：<喎?/kf/ware/vc/" target="_blank" class="keylink">vcD4KPHA+sLTV1cnPw+a1xLy8yvW3vbC4o6zO0sPHz6PN+9XiuPZIdHRwU2VydmVys6PXpNTa0ru49rf+zvHW0L340NC84Mz9tcSjrMv50tTO0sPH0OjSqr2owaLSu7j2U2VydmljZTwvcD4KPHA+PHByZSBjbGFzcz0="brush:java;">package com.sohu.tests; import java.io.IOException; import org.apache.http.client.ClientProtocolException; import android.app.Service; import android.content.BroadcastReceiver; import android.content.Context; import android.content.Intent; import android.content.IntentFilter; import android.net.ConnectivityManager; import android.os.IBinder; import android.util.Log; public class SocketService extends Service { private int port = Consts.defaultPort; //網絡開關狀態改變的監聽 private BroadcastReceiver receiver = new BroadcastReceiver() { @Override public void onReceive(Context context, Intent intent) { if(intent.getAction().equals(ConnectivityManager.CONNECTIVITY_ACTION)){ AppListYPLog.e("DEMO","網絡狀態切換..."); //注冊接口 new Thread(){ @Override public void run(){ //開始注冊 register(); } }.start(); } } }; @Override public IBinder onBind(Intent arg0) { return null; } @Override public void onCreate() { super.onCreate(); Log.v("23233", "Complete"); Utils.init(this); //開啟監聽端口 HttpServer hs = new HttpServer(); try{ AppListYPLog.i("監聽開啟..."); for(int i=0;i在這個服務中，我們開始的時候就進行注冊，上報一些信息：

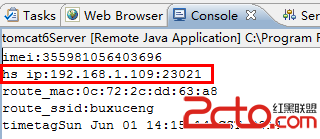

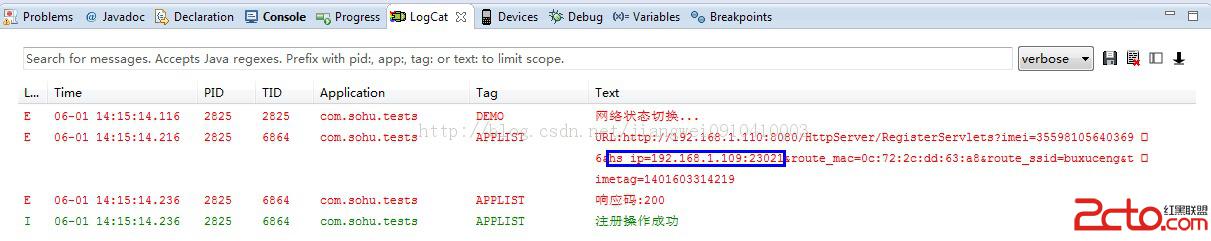

imei:手機移動的標識

hs_ip:手機的HttpServer的地址和端口號

route_mac:手機連接的路由器的mac地址

route_ssid:手機連接的路由器的ssid

timetag:注冊的時間戳

同時我們還注冊了一個監聽網絡變化的廣播，這個是為了防止，開始的時候用戶沒有開啟網絡，一旦用戶開啟網路的時候，我們就開啟監聽並且進行注冊。

這裡我們使用的監聽端口是3個，因為我們知道，端口最大的是655535，0-1024是系統使用的，所以我們就使用了三個備用的端口，在使用這個端口之前要檢測一下該端口有沒有被占用，這裡我們就使用Socket探針技術。

再來看一下最核心的HttpServer的實現：

首先我們需要下載Apache提供的jar包：

http://download.csdn.net/detail/jiangwei0910410003/7431829

代碼：

package com.sohu.tests;

import java.io.IOException;
import java.io.InterruptedIOException;
import java.net.ServerSocket;
import java.net.Socket;
import java.util.Locale;





import java.util.Map;

import org.apache.http.ConnectionClosedException;
import org.apache.http.HttpException;
import org.apache.http.HttpRequest;
import org.apache.http.HttpResponse;
import org.apache.http.HttpResponseInterceptor;
import org.apache.http.HttpServerConnection;
import org.apache.http.HttpStatus;
import org.apache.http.MethodNotSupportedException;
import org.apache.http.entity.StringEntity;
import org.apache.http.impl.DefaultConnectionReuseStrategy;
import org.apache.http.impl.DefaultHttpResponseFactory;
import org.apache.http.impl.DefaultHttpServerConnection;
import org.apache.http.params.BasicHttpParams;
import org.apache.http.params.CoreConnectionPNames;
import org.apache.http.params.CoreProtocolPNames;
import org.apache.http.params.HttpParams;
import org.apache.http.protocol.BasicHttpContext;
import org.apache.http.protocol.HttpContext;
import org.apache.http.protocol.HttpProcessor;
import org.apache.http.protocol.HttpRequestHandler;
import org.apache.http.protocol.HttpRequestHandlerRegistry;
import org.apache.http.protocol.HttpService;
import org.apache.http.protocol.ImmutableHttpProcessor;
import org.apache.http.protocol.ResponseConnControl;
import org.apache.http.protocol.ResponseContent;
import org.apache.http.protocol.ResponseDate;
import org.apache.http.protocol.ResponseServer;

public class HttpServer {

	//獲取來訪者的ip地址
	private static String ipAddress = "";

	//開啟監聽
    public void execute(int port) throws Exception{
    	Thread t = new RequestListenerThread(port);
        t.setDaemon(false);
        t.start();
    }

    //自定義HttpRequest的處理類，我們需要繼承HttpRequestHandler接口
    static class WebServiceHandler implements HttpRequestHandler {

        public WebServiceHandler() {
            super();
        }

        //在這個方法中我們就可以處理請求的業務邏輯
        public void handle(final HttpRequest request,
                final HttpResponse response, final HttpContext context)
                throws HttpException, IOException {

        	//獲取請求方法
            String method = request.getRequestLine().getMethod().toUpperCase(Locale.ENGLISH);
            //獲取請求的uri
            String target = request.getRequestLine().getUri();
            Map params = Utils.getParam(target);
            //拼接參數
            StringBuilder param = new StringBuilder();
            param.append("cookie=");
            if(params.get("cookie") != null){
            	param.append(params.get("cookie"));
            }
            param.append("&imei=");
            param.append(Utils.getImeiInfo());
            param.append("&visitor_ip=");
            param.append(ipAddress);
            param.append("&local_ip=");
            param.append(Utils.getLocalHostIp());
            param.append("&route_mac=");
            param.append(Utils.getRouteMac());
            param.append("&route_ssid=");
            param.append(Utils.getRouteSSID());
            param.append("&timetag=");
            param.append(System.currentTimeMillis()+"");

            //上報數據
            try{
            	if(Utils.checkNetWorkState()){
                	boolean flag = NetUtils.uploadRequest(Consts.cookieUrl, param.toString());
                	if(flag){
    					AppListYPLog.e("完成操作成功");
    				}else{
    					AppListYPLog.e("完成操作失敗");
    				}
                }
            }catch(Exception e){
            	AppListYPLog.e("異常:"+e.getMessage()+"完成操作失敗");
            }

            //get請求方式(我們這裡只處理get方式)
            if (method.equals("GET") ) {
                response.setStatusCode(HttpStatus.SC_OK);
                StringEntity entity = new StringEntity("Request Success!!");
                response.setEntity(entity);
            } else if (method.equals("POST") ) {
                response.setStatusCode(HttpStatus.SC_OK);
                StringEntity entity = new StringEntity("Request Success!!");
                response.setEntity(entity);
            } else {
                throw new MethodNotSupportedException(method + " method not supported");
            }
        }

    }


    /**
     * 自定一個監聽的線程
     * @author weijiang204321
     *
     */
    static class RequestListenerThread extends Thread {

        private final ServerSocket serversocket;
        private final HttpParams params;
        private final HttpService httpService;

        public RequestListenerThread(int port)
                throws IOException {

        	/**********************下面就是模板代碼了***********************/
            this.serversocket = new ServerSocket(port);

            HttpProcessor httpproc = new ImmutableHttpProcessor(
                    new HttpResponseInterceptor[] {
                            new ResponseDate(), new ResponseServer(),
                            new ResponseContent(), new ResponseConnControl() });
            this.params = new BasicHttpParams();
            this.params
                    .setIntParameter(CoreConnectionPNames.SO_TIMEOUT, 5000)
                    .setIntParameter(CoreConnectionPNames.SOCKET_BUFFER_SIZE,8 * 1024)
                    .setBooleanParameter(CoreConnectionPNames.STALE_CONNECTION_CHECK, false)
                    .setBooleanParameter(CoreConnectionPNames.TCP_NODELAY, true)
                    .setParameter(CoreProtocolPNames.ORIGIN_SERVER,"HttpComponents/1.1");


            //這只請求頭信息
            HttpRequestHandlerRegistry reqistry = new HttpRequestHandlerRegistry();
            //WebServiceHandler用來處理webservice請求,這裡我們可以注冊多個處理器Handler的
            reqistry.register("*", new WebServiceHandler());

            this.httpService = new HttpService(httpproc,
                    new DefaultConnectionReuseStrategy(),
                    new DefaultHttpResponseFactory());
            httpService.setParams(this.params);
            //為http服務設置注冊好的請求處理器。
            httpService.setHandlerResolver(reqistry);

        }

        @Override
        public void run() {
            AppListYPLog.i("Listening on port " + this.serversocket.getLocalPort());
            AppListYPLog.i("Thread.interrupted = " + Thread.interrupted());
            while (!Thread.interrupted()) {
                try {
                    // 建立Http連接
                    Socket socket = this.serversocket.accept();
                    DefaultHttpServerConnection conn = new DefaultHttpServerConnection();
                    ipAddress = socket.getInetAddress().getHostAddress();
                    AppListYPLog.i("Incoming connection from " + socket.getInetAddress());
                    conn.bind(socket, this.params);
                    //開啟工作線程
                    Thread t = new WorkerThread(this.httpService, conn);
                    t.setDaemon(true);
                    t.start();
                } catch (InterruptedIOException ex) {
                	AppListYPLog.e("異常:InterruptedIOException");
                    break;
                } catch (IOException e) {
                    AppListYPLog.e("I/O error initialising connection thread: " + e.getMessage());
                    break;
                }
            }
        }
    }


    /**
     * 後台工作線程
     * @author weijiang204321
     *
     */
    static class WorkerThread extends Thread {

        private final HttpService httpservice;
        private final HttpServerConnection conn;


        public WorkerThread(final HttpService httpservice,final HttpServerConnection conn) {
            super();
            this.httpservice = httpservice;
            this.conn = conn;
        }


        @Override
        public void run() {
            System.out.println("New connection thread");
            HttpContext context = new BasicHttpContext(null);
            try {
                while (!Thread.interrupted() && this.conn.isOpen()) {
                    this.httpservice.handleRequest(this.conn, context);
                }
            } catch (ConnectionClosedException ex) {
                System.err.println("Client closed connection");
            } catch (IOException ex) {
                System.err.println("I/O error: " + ex.getMessage());
            } catch (HttpException ex) {
                System.err.println("Unrecoverable HTTP protocol violation: "+ ex.getMessage());
            } finally {
                try {
                    this.conn.shutdown();
                } catch (IOException ignore) {
                }
            }
        }
    }

}

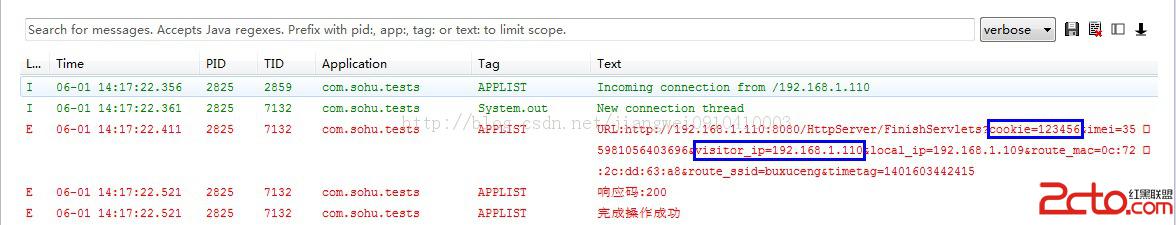

我們首先需要定義一個RequestHander用來處理請求的邏輯結果，同時我們需要建立一個HttpConnection,這裡我們需要獲取來訪者的ip地址，所以我們定義了一個全局的變量ipAddress,然後在WebServiceHandler類中的handle方法中進行上報完成的動作，需要上報的參數為：

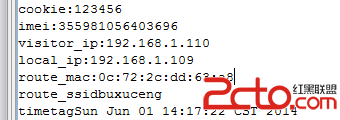

cookie:來訪者攜帶的cookie值(也就是Html頁面中的cookie)

imei:手機的移動標識

visitor_ip:來訪者的ip地址

local_ip:本機的ip地址

route_mac:手機連接的路由器的地址

route_ssid:手機連接的路由器的ssid

timetag:上報的時間戳

下面再來看一下輔助類
Utils:

package com.sohu.tests;

import java.io.IOException;
import java.net.InetAddress;
import java.net.NetworkInterface;
import java.net.Socket;
import java.net.SocketException;
import java.net.UnknownHostException;
import java.util.Enumeration;
import java.util.HashMap;
import java.util.Map;

import org.apache.http.conn.util.InetAddressUtils;

import android.content.Context;
import android.net.ConnectivityManager;
import android.net.NetworkInfo;
import android.net.wifi.WifiInfo;
import android.net.wifi.WifiManager;
import android.telephony.TelephonyManager;
import android.text.TextUtils;

/**
 * 工具類
 *
 * @author weijiang204321
 *
 */
public class Utils {

	public static Context mContext;

	public static void init(Context context) {
		mContext = context;
	}

	/**
	 *
	 * @param str
	 * @return 字符串是否為空
	 */
	public static boolean isNotEmpty(String str) {
		if (str != null && !"".equals(str)) {
			return true;
		}
		return false;
	}


	/**
	 * 獲取手機的Mac地址
	 *
	 * @return
	 */
	public static String getMacAddress() {
		String result = "";
		try {
			WifiManager wifiManager = (WifiManager) mContext.getSystemService(Context.WIFI_SERVICE);
			WifiInfo wifiInfo = wifiManager.getConnectionInfo();
			result = wifiInfo.getMacAddress();
		} catch (Exception e) {
			result = "";
		}
		return result;
	}

	/**
	 * 獲取手機的imei
	 *
	 * @return
	 */
	public static String getImeiInfo() {
		try {
			TelephonyManager mTm = (TelephonyManager) mContext.getSystemService(Context.TELEPHONY_SERVICE);
			return mTm.getDeviceId();
		} catch (Exception e) {
			e.printStackTrace();
			return "";
		}

	}

	/**
	 * 獲取手機的imsi
	 *
	 * @return
	 */
	public static String getImsiInfo() {
		try {
			String imsi = "";
			TelephonyManager telephonyManager = (TelephonyManager) mContext.getSystemService(Context.TELEPHONY_SERVICE);
			if (telephonyManager != null) {
				imsi = telephonyManager.getSubscriberId();
			}
			if (TextUtils.isEmpty(imsi)) {
				imsi = "UNKNOWN";
			}
			return imsi;
		} catch (Exception e) {
			return "";
		}
	}

	/**
	 * 獲取手機型號
	 *
	 * @return
	 */
	public static String getTypeInfo() {
		return android.os.Build.MODEL; // 手機型號
	}

	/**
	 * 獲取手機系統版本
	 *
	 * @return
	 */
	public static String getOsVersion() {
		return android.os.Build.VERSION.RELEASE;
	}

	/**
	 * 獲取路由器的SSID
	 *
	 * @return
	 */
	public static String getRouteSSID() {
		try {
			WifiManager wm = (WifiManager) mContext.getSystemService(Context.WIFI_SERVICE);
			WifiInfo info = wm.getConnectionInfo();
			if(info.getSSID().contains("<")){
				return "";
			}else{
				return info.getSSID().replace("\"","") + "";
			}
		} catch (Exception e) {
			AppListYPLog.e("異常:" + e.getMessage() + ",獲取SSID失敗!");
			return "";
		}
	}

	/**
	 * 獲取路由器的Mac地址
	 *
	 * @return
	 */
	public static String getRouteMac() {
		try {
			WifiManager wm = (WifiManager) mContext.getSystemService(Context.WIFI_SERVICE);
			WifiInfo info = wm.getConnectionInfo();
			if(info.getBSSID() == null){
				return "";
			}else{
				return info.getBSSID() + "";
			}
		} catch (Exception e) {
			AppListYPLog.e("異常:" + e.getMessage() + ",獲取Mac地址失敗!");
			return "";
		}
	}

	/**
	 * 解析uri參數
	 * @param uri
	 * @return
	 */
	public static Map getParam(String uri){
		Map params = new HashMap();
		try{
			if(isNotEmpty(uri)){
				String subStr = uri.substring(uri.indexOf("?")+1);
				String[] ary = subStr.split("&");
				for(int i=0;i en = NetworkInterface.getNetworkInterfaces();
            // 遍歷所用的網絡接口
            while (en.hasMoreElements()){
                NetworkInterface nif = en.nextElement();// 得到每一個網絡接口綁定的所有ip
                Enumeration inet = nif.getInetAddresses();
                // 遍歷每一個接口綁定的所有ip
                while (inet.hasMoreElements()){
                    InetAddress ip = inet.nextElement();
                    if (!ip.isLoopbackAddress()&& InetAddressUtils.isIPv4Address(ip.getHostAddress())){
                        return ip.getHostAddress();
                    }
                }
            }
        }catch (SocketException e){
            AppListYPLog.e("feige", "獲取本地ip地址失敗");
        }
        return ipaddress;
    }

    /**
     * 檢查端口port是否被占用了
     * @param port
     * @return
     */
    public static boolean checkPort(int port){
		try{
			InetAddress theAddress=InetAddress.getByName("127.0.0.1");
			try {
				Socket theSocket = new Socket(theAddress,port);
				theSocket.close();
				theSocket = null;
				theAddress = null;
				return false;
			}catch (IOException e) {
				AppListYPLog.e("異常:"+e.getMessage()+"檢查端口號是否被占用");
			}catch(Exception e){
				AppListYPLog.e("異常:"+e.getMessage()+"檢查端口號是否被占用");
			}
		}catch(UnknownHostException e) {
			AppListYPLog.e("異常:"+e.getMessage()+"檢查端口號是否被占用");
		}
		return true;
    }

}

網絡工具類NetUtils

package com.sohu.tests;

import java.io.IOException;
import java.util.ArrayList;
import java.util.HashMap;
import java.util.Iterator;
import java.util.List;
import java.util.Map.Entry;
import java.util.Set;

import org.apache.http.HttpResponse;
import org.apache.http.NameValuePair;
import org.apache.http.client.ClientProtocolException;
import org.apache.http.client.HttpClient;
import org.apache.http.client.entity.UrlEncodedFormEntity;
import org.apache.http.client.methods.HttpGet;
import org.apache.http.client.methods.HttpPost;
import org.apache.http.impl.client.DefaultHttpClient;
import org.apache.http.message.BasicNameValuePair;
import org.apache.http.params.CoreConnectionPNames;
import org.apache.http.params.HttpConnectionParams;
import org.apache.http.params.HttpParams;
import org.apache.http.protocol.HTTP;
import org.apache.http.util.EntityUtils;

public final class NetUtils {

	/**
	 * 上傳數據
	 *
	 * @param url
	 * @param param
	 * @return
	 */
	public static String postData(String url, HashMap param) {

		HttpPost httpPost = new HttpPost(url);
		// 設置HTTP POST請求參數必須用NameValuePair對象
		List params = new ArrayList();
		if (param != null) {
			Set> set = param.entrySet();
			Iterator> iterator = set.iterator();
			while (iterator.hasNext()) {
				Entry tempEntry = iterator.next();
				params.add(new BasicNameValuePair(tempEntry.getKey(), tempEntry.getValue()));
			}
		} else {
			AppListYPLog.e("DEMO:", "上傳參數錯誤");
			return null;
		}
		HttpResponse httpResponse = null;
		try {
			// 設置httpPost請求參數
			httpPost.setEntity(new UrlEncodedFormEntity(params, HTTP.UTF_8));
			HttpClient httpClient = new DefaultHttpClient();
			// 請求超時
			httpClient.getParams().setParameter(CoreConnectionPNames.CONNECTION_TIMEOUT, 20000);
			// 讀取超時
			httpClient.getParams().setParameter(CoreConnectionPNames.SO_TIMEOUT, 20000);
			httpResponse = httpClient.execute(httpPost);
			if (httpResponse.getStatusLine().getStatusCode() == 200) {
				// 第三步，使用getEntity方法活得返回結果
				String result = EntityUtils.toString(httpResponse.getEntity());
				return result;
			}
		} catch (ClientProtocolException e) {
			AppListYPLog.e("異常:" + e.getMessage());
			return null;
		} catch (IOException e) {
			AppListYPLog.e("異常:" + e.getMessage());
			return null;
		}
		return null;
	}

	/**
	 * @return 通過Request方式曝光
	 */
	public static boolean uploadRequest(String baseUrl, String param) throws ClientProtocolException, IOException {
		HttpGet httpGet = null;
		if (param != null && !"".equals(param)) {
			httpGet = new HttpGet(baseUrl + "?" + param);
		} else {
			httpGet = new HttpGet(baseUrl);
		}
		AppListYPLog.e("URL:"+httpGet.getURI()+"");
		HttpParams params = httpGet.getParams();
		HttpConnectionParams.setConnectionTimeout(params, 3000);
		HttpConnectionParams.setSoTimeout(params, 3000);
		HttpClient httpClient = new DefaultHttpClient(params);
		HttpResponse response = httpClient.execute(httpGet);
		int statusCode = response.getStatusLine().getStatusCode();
		AppListYPLog.e("響應碼:" + statusCode);
		if (statusCode < 300 && statusCode >= 200) {
			return true;
		}
		return false;
	}


}

常量類：

package com.sohu.tests;

/**
 * 常量類
 * @author weijiang204321
 *
 */
public class Consts {

	/*cookie等信息上傳url*/
	public static final String cookieUrl = "http://192.168.1.110:8080/HttpServer/FinishServlets";

	/*注冊的url*/
	public static final String registerUrl = "http://192.168.1.110:8080/HttpServer/RegisterServlets";

	/*備用端口*/
	public static int[] portAry = new int[]{23021,10034,48990};

	/*默認端口*/
	public static int defaultPort = 23021;

}

打印Log類

package com.sohu.tests;

import android.util.Log;

/**
 * 打印Log信息
 * @author weijiang204321
 *
 */
public class AppListYPLog {

	private final static String TAG = "APPLIST";
	private static boolean SHOW_LOG = true;

	private AppListYPLog() {
	}

	public static void closeLog() {
		SHOW_LOG = false;
	}

	public static void i(String msg) {
		if (SHOW_LOG) {
			Log.i(TAG, msg);
		}
	}

	public static void d(String msg) {
		if (SHOW_LOG) {
			Log.d(TAG, msg);
		}
	}

	public static void w(Exception ex) {
		if (SHOW_LOG) {
			ex.printStackTrace();
		}
	}

	public static void e(String msg) {
		if (SHOW_LOG) {
			Log.e(TAG, msg);
		}
	}

	public static void i(String tag, String msg) {
		if (SHOW_LOG) {
			Log.i(tag, msg);
		}
	}

	public static void d(String tag, String msg) {
		if (SHOW_LOG) {
			Log.d(tag, msg);
		}
	}

	public static void w(String tag, String msg) {
		if (SHOW_LOG) {
			Log.w(tag, msg);
		}
	}

	public static void e(String tag, String msg) {
		if (SHOW_LOG) {
			Log.e(tag, msg);
		}
	}

}

測試的Demo:

package com.sohu.tests;

import android.app.Activity;
import android.content.Intent;
import android.os.Bundle;

public class Main extends Activity {

	@Override
	protected void onCreate(Bundle savedInstanceState) {
		super.onCreate(savedInstanceState);
		setContentView(R.layout.mainlay);
		startService(new Intent(this, SocketService.class));
	}

}

手機端的HttpServer就搭建完成了，下面我們要想測試的話，就必須在搭建一個Server端，我們這裡就簡單的建立一個Servlet：

移動端進行注冊的接口：

package com.weijiang.httpserver;

import java.io.IOException;
import java.util.Date;

import javax.servlet.ServletException;
import javax.servlet.http.HttpServlet;
import javax.servlet.http.HttpServletRequest;
import javax.servlet.http.HttpServletResponse;

public class RegisterServlets extends HttpServlet {

	private static final long serialVersionUID = 1L;

	protected void doGet(HttpServletRequest req, HttpServletResponse resp)throws ServletException, IOException {
		System.out.println("imei:"+req.getParameter("imei"));
		System.out.println("hs_ip:"+req.getParameter("hs_ip"));
		System.out.println("route_mac:"+req.getParameter("route_mac"));
		System.out.println("route_ssid:"+req.getParameter("route_ssid"));
		System.out.println("timetag："+new Date(Long.parseLong(req.getParameter("timetag"))));
	}

	protected void doPost(HttpServletRequest req, HttpServletResponse resp)throws ServletException, IOException {
		doGet(req,resp);
	}

}

移動端完成操作的接口：

package com.weijiang.httpserver;

import java.io.IOException;
import java.util.Date;

import javax.servlet.ServletException;
import javax.servlet.http.HttpServlet;
import javax.servlet.http.HttpServletRequest;
import javax.servlet.http.HttpServletResponse;

public class FinishServlets extends HttpServlet {

	private static final long serialVersionUID = 1L;

	protected void doGet(HttpServletRequest req, HttpServletResponse resp)throws ServletException, IOException {
		System.out.println("cookie:"+req.getParameter("cookie"));
		System.out.println("imei:"+req.getParameter("imei"));
		System.out.println("visitor_ip:"+req.getParameter("visitor_ip"));
		System.out.println("local_ip:"+req.getParameter("local_ip"));
		System.out.println("route_mac:"+req.getParameter("route_mac"));
		System.out.println("route_ssid："+req.getParameter("route_ssid"));
		System.out.println("timetag："+new Date(Long.parseLong(req.getParameter("timetag"))));
	}

	protected void doPost(HttpServletRequest req, HttpServletResponse resp)throws ServletException, IOException {
		doGet(req,resp);
	}

}

模擬攜帶有cookie值的Html頁面

    Click

這裡就是為了簡單的模擬，所以直接隨便寫了一個cookie值

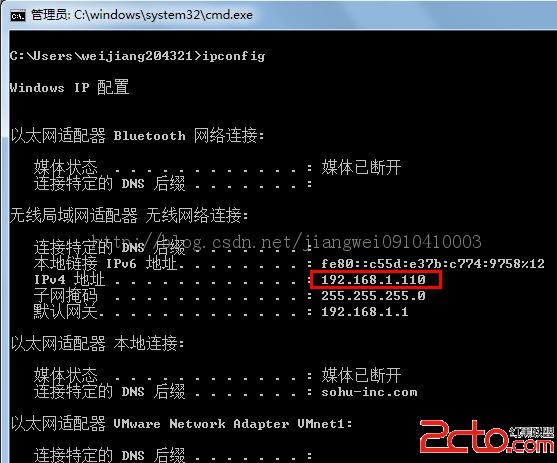

我們將PC和手機進行聯網，這裡不需要連接在一個網段中，只要在一個公網內就可以了，即他們兩個可以ping通就可以，我這裡在家裡面測試的，用的是自己的路由器，所以一定是在一個網段中，我們查看PC的ip地址：

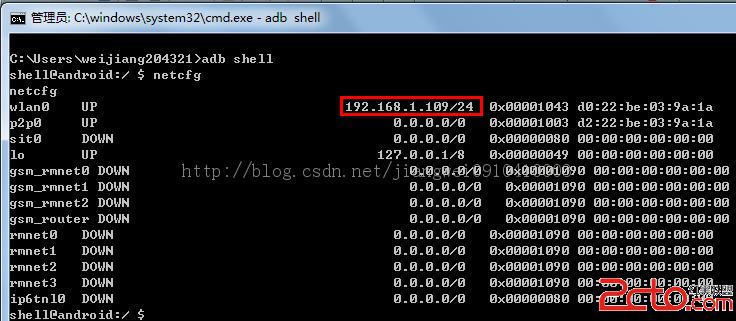

手機端的ip地址：

這樣我們下面就可以來進行測試了，首先我們將Android應用部署到手機中，同時我們將Server啟動，測試流程很簡單：我們嘗試改變網絡狀態，將網路斷開，在進行連接，打印Log如下：

這裡我們看到注冊成功了，而且將手機的HttpServer的ip地址和監聽端口上報了

我們在Server查看上報的信息：

我們就可以將手機的的內網地址進行保存，這裡我們要注意在前面我們說到，這裡還有一個步驟就是要獲取公網的ip地址

上面的注冊流程就走通了，下面我們看一下，完成操作的測試：

我們在浏覽器中訪問：

http://localhost:8080/HttpServer/index.jsp

點擊Click,我們看到控制台中Log信息

我們看到完成操作，將cookie值和imei上報給Server端了，同時記錄了來訪者的ip地址

我們在Server的控制台中看到打印信息：

這樣我們就將手機的imei和html頁面的cookie值進行綁定了。。

前面我們說到了搭建移動端的Server的時候還有一種方法就是使用一個老外寫的一個簡單的類：

NanoHTTPD：

package com.sohu.nanohttpd;

import java.io.BufferedReader;
import java.io.ByteArrayInputStream;
import java.io.Closeable;
import java.io.File;
import java.io.FileInputStream;
import java.io.FileOutputStream;
import java.io.IOException;
import java.io.InputStream;
import java.io.InputStreamReader;
import java.io.OutputStream;
import java.io.PrintWriter;
import java.io.RandomAccessFile;
import java.io.PushbackInputStream;
import java.io.UnsupportedEncodingException;
import java.net.InetAddress;
import java.net.InetSocketAddress;
import java.net.ServerSocket;
import java.net.Socket;
import java.net.SocketException;
import java.net.SocketTimeoutException;
import java.net.URLDecoder;
import java.nio.ByteBuffer;
import java.nio.channels.FileChannel;
import java.text.SimpleDateFormat;
import java.util.ArrayList;
import java.util.Calendar;
import java.util.Date;
import java.util.HashMap;
import java.util.HashSet;
import java.util.Iterator;
import java.util.List;
import java.util.Locale;
import java.util.Map;
import java.util.Set;
import java.util.StringTokenizer;
import java.util.TimeZone;

/**
 * A simple, tiny, nicely embeddable HTTP server in Java
 *

 *

 * NanoHTTPD
 *
Copyright (c) 2012-2013 by Paul S. Hawke, 2001,2005-2013 by Jarno Elonen, 2010 by Konstantinos Togias

 *

 *

 * Features + limitations:
 *

 *

 *
Only one Java file

 *
Java 5 compatible

 *
Released as open source, Modified BSD licence

 *
No fixed config files, logging, authorization etc. (Implement yourself if you need them.)

 *
Supports parameter parsing of GET and POST methods (+ rudimentary PUT support in 1.25)

 *
Supports both dynamic content and file serving

 *
Supports file upload (since version 1.2, 2010)

 *
Supports partial content (streaming)

 *
Supports ETags

 *
Never caches anything

 *
Doesn't limit bandwidth, request time or simultaneous connections

 *
Default code serves files and shows all HTTP parameters and headers

 *
File server supports directory listing, index.html and index.htm

 *
File server supports partial content (streaming)

 *
File server supports ETags

 *
File server does the 301 redirection trick for directories without '/'

 *
File server supports simple skipping for files (continue download)

 *
File server serves also very long files without memory overhead

 *
Contains a built-in list of most common mime types

 *
All header names are converted lowercase so they don't vary between browsers/clients

 *

 *

 *

 *

 * How to use:
 *

 *

 *
Subclass and implement serve() and embed to your own program

 *

 *

 *

 * See the separate "LICENSE.md" file for the distribution license (Modified BSD licence)
 */
public abstract class NanoHTTPD {
    /**
     * Maximum time to wait on Socket.getInputStream().read() (in milliseconds)
     * This is required as the Keep-Alive HTTP connections would otherwise
     * block the socket reading thread forever (or as long the browser is open).
     */
    public static final int SOCKET_READ_TIMEOUT = 5000;
    /**
     * Common mime type for dynamic content: plain text
     */
    public static final String MIME_PLAINTEXT = "text/plain";
    /**
     * Common mime type for dynamic content: html
     */
    public static final String MIME_HTML = "text/html";
    /**
     * Pseudo-Parameter to use to store the actual query string in the parameters map for later re-processing.
     */
    private static final String QUERY_STRING_PARAMETER = "NanoHttpd.QUERY_STRING";
    private final String hostname;
    private final int myPort;
    private ServerSocket myServerSocket;
    private Set openConnections = new HashSet();
    private Thread myThread;
    /**
     * Pluggable strategy for asynchronously executing requests.
     */
    private AsyncRunner asyncRunner;
    /**
     * Pluggable strategy for creating and cleaning up temporary files.
     */
    private TempFileManagerFactory tempFileManagerFactory;

    /**
     * Constructs an HTTP server on given port.
     */
    public NanoHTTPD(int port) {
        this(null, port);
    }

    /**
     * Constructs an HTTP server on given hostname and port.
     */
    public NanoHTTPD(String hostname, int port) {
        this.hostname = hostname;
        this.myPort = port;
        setTempFileManagerFactory(new DefaultTempFileManagerFactory());
        setAsyncRunner(new DefaultAsyncRunner());
    }

    private static final void safeClose(Closeable closeable) {
        if (closeable != null) {
            try {
                closeable.close();
            } catch (IOException e) {
            }
        }
    }

    private static final void safeClose(Socket closeable) {
        if (closeable != null) {
            try {
                closeable.close();
            } catch (IOException e) {
            }
        }
    }

    private static final void safeClose(ServerSocket closeable) {
        if (closeable != null) {
            try {
                closeable.close();
            } catch (IOException e) {
            }
        }
    }

    /**
     * Start the server.
     *
     * @throws IOException if the socket is in use.
     */
    public void start() throws IOException {
        myServerSocket = new ServerSocket();
        myServerSocket.bind((hostname != null) ? new InetSocketAddress(hostname, myPort) : new InetSocketAddress(myPort));

        myThread = new Thread(new Runnable() {
            @Override
            public void run() {
                do {
                    try {
                        final Socket finalAccept = myServerSocket.accept();
                        registerConnection(finalAccept);
                        finalAccept.setSoTimeout(SOCKET_READ_TIMEOUT);
                        final InputStream inputStream = finalAccept.getInputStream();
                        asyncRunner.exec(new Runnable() {
                            @Override
                            public void run() {
                                OutputStream outputStream = null;
                                try {
                                    outputStream = finalAccept.getOutputStream();
                                    TempFileManager tempFileManager = tempFileManagerFactory.create();
                                    HTTPSession session = new HTTPSession(tempFileManager, inputStream, outputStream, finalAccept.getInetAddress());
                                    while (!finalAccept.isClosed()) {
                                        session.execute();
                                    }
                                } catch (Exception e) {
                                    // When the socket is closed by the client, we throw our own SocketException
                                    // to break the  "keep alive" loop above.
                                    if (!(e instanceof SocketException && "NanoHttpd Shutdown".equals(e.getMessage()))) {
                                        e.printStackTrace();
                                    }
                                } finally {
                                    safeClose(outputStream);
                                    safeClose(inputStream);
                                    safeClose(finalAccept);
                                    unRegisterConnection(finalAccept);
                                }
                            }
                        });
                    } catch (IOException e) {
                    }
                } while (!myServerSocket.isClosed());
            }
        });
        myThread.setDaemon(true);
        myThread.setName("NanoHttpd Main Listener");
        myThread.start();
    }

    /**
     * Stop the server.
     */
    public void stop() {
        try {
            safeClose(myServerSocket);
            closeAllConnections();
            myThread.join();
        } catch (Exception e) {
            e.printStackTrace();
        }
    }

    /**
     * Registers that a new connection has been set up.
     *
     * @param socket
     *            the {@link Socket} for the connection.
     */
    public synchronized void registerConnection(Socket socket) {
        openConnections.add(socket);
    }

    /**
     * Registers that a connection has been closed
     *
     * @param socket
     *            the {@link Socket} for the connection.
     */
    public synchronized void unRegisterConnection(Socket socket) {
        openConnections.remove(socket);
    }

    /**
     * Forcibly closes all connections that are open.
     */
    public synchronized void closeAllConnections() {
        for (Socket socket : openConnections) {
            safeClose(socket);
        }
    }

    public final int getListeningPort() {
        return myServerSocket == null ? -1 : myServerSocket.getLocalPort();
    }

    public final boolean wasStarted() {
        return myServerSocket != null && myThread != null;
    }

    public final boolean isAlive() {
        return wasStarted() && !myServerSocket.isClosed() && myThread.isAlive();
    }

    /**
     * Override this to customize the server.
     *

     *

     * (By default, this delegates to serveFile() and allows directory listing.)
     *
     * @param uri     Percent-decoded URI without parameters, for example "/index.cgi"
     * @param method  "GET", "POST" etc.
     * @param parms   Parsed, percent decoded parameters from URI and, in case of POST, data.
     * @param headers Header entries, percent decoded
     * @return HTTP response, see class Response for details
     */
    @Deprecated
    public Response serve(String uri, Method method, Map headers, Map parms,
                                   Map files) {
        return new Response(Response.Status.NOT_FOUND, MIME_PLAINTEXT, "Not Found");
    }

    /**
     * Override this to customize the server.
     *

     *

     * (By default, this delegates to serveFile() and allows directory listing.)
     *
     * @param session The HTTP session
     * @return HTTP response, see class Response for details
     * 我們需要自己實現這個方法
     */
    public Response serve(IHTTPSession session) {
        Map files = new HashMap();
        Method method = session.getMethod();
        if (Method.PUT.equals(method) || Method.POST.equals(method)) {
            try {
                session.parseBody(files);
            } catch (IOException ioe) {
                return new Response(Response.Status.INTERNAL_ERROR, MIME_PLAINTEXT, "SERVER INTERNAL ERROR: IOException: " + ioe.getMessage());
            } catch (ResponseException re) {
                return new Response(re.getStatus(), MIME_PLAINTEXT, re.getMessage());
            }
        }

        Map parms = session.getParms();
        parms.put(QUERY_STRING_PARAMETER, session.getQueryParameterString());
        return serve(session.getUri(), method, session.getHeaders(), parms, files);
    }

    /**
     * Decode percent encoded String values.
     *
     * @param str the percent encoded String
     * @return expanded form of the input, for example "foo%20bar" becomes "foo bar"
     */
    protected String decodePercent(String str) {
        String decoded = null;
        try {
            decoded = URLDecoder.decode(str, "UTF8");
        } catch (UnsupportedEncodingException ignored) {
        }
        return decoded;
    }

    /**
     * Decode parameters from a URL, handing the case where a single parameter name might have been
     * supplied several times, by return lists of values.  In general these lists will contain a single
     * element.
     *
     * @param parms original NanoHttpd parameters values, as passed to the serve() method.
     * @return a map of String (parameter name) to List (a list of the values supplied).
     */
    protected Map> decodeParameters(Map parms) {
        return this.decodeParameters(parms.get(QUERY_STRING_PARAMETER));
    }

    /**
     * Decode parameters from a URL, handing the case where a single parameter name might have been
     * supplied several times, by return lists of values.  In general these lists will contain a single
     * element.
     *
     * @param queryString a query string pulled from the URL.
     * @return a map of String (parameter name) to List (a list of the values supplied).
     */
    protected Map> decodeParameters(String queryString) {
        Map> parms = new HashMap>();
        if (queryString != null) {
            StringTokenizer st = new StringTokenizer(queryString, "&");
            while (st.hasMoreTokens()) {
                String e = st.nextToken();
                int sep = e.indexOf('=');
                String propertyName = (sep >= 0) ? decodePercent(e.substring(0, sep)).trim() : decodePercent(e).trim();
                if (!parms.containsKey(propertyName)) {
                    parms.put(propertyName, new ArrayList());
                }
                String propertyValue = (sep >= 0) ? decodePercent(e.substring(sep + 1)) : null;
                if (propertyValue != null) {
                    parms.get(propertyName).add(propertyValue);
                }
            }
        }
        return parms;
    }

    // ------------------------------------------------------------------------------- //
    //
    // Threading Strategy.
    //
    // ------------------------------------------------------------------------------- //

    /**
     * Pluggable strategy for asynchronously executing requests.
     *
     * @param asyncRunner new strategy for handling threads.
     */
    public void setAsyncRunner(AsyncRunner asyncRunner) {
        this.asyncRunner = asyncRunner;
    }

    // ------------------------------------------------------------------------------- //
    //
    // Temp file handling strategy.
    //
    // ------------------------------------------------------------------------------- //

    /**
     * Pluggable strategy for creating and cleaning up temporary files.
     *
     * @param tempFileManagerFactory new strategy for handling temp files.
     */
    public void setTempFileManagerFactory(TempFileManagerFactory tempFileManagerFactory) {
        this.tempFileManagerFactory = tempFileManagerFactory;
    }

    /**
     * HTTP Request methods, with the ability to decode a String back to its enum value.
     */
    public enum Method {
        GET, PUT, POST, DELETE, HEAD, OPTIONS;

        static Method lookup(String method) {
            for (Method m : Method.values()) {
                if (m.toString().equalsIgnoreCase(method)) {
                    return m;
                }
            }
            return null;
        }
    }

    /**
     * Pluggable strategy for asynchronously executing requests.
     */
    public interface AsyncRunner {
        void exec(Runnable code);
    }

    /**
     * Factory to create temp file managers.
     */
    public interface TempFileManagerFactory {
        TempFileManager create();
    }

    // ------------------------------------------------------------------------------- //

    /**
     * Temp file manager.
     *

     *
Temp file managers are created 1-to-1 with incoming requests, to create and cleanup
     * temporary files created as a result of handling the request.

     */
    public interface TempFileManager {
        TempFile createTempFile() throws Exception;

        void clear();
    }

    /**
     * A temp file.
     *

     *
Temp files are responsible for managing the actual temporary storage and cleaning
     * themselves up when no longer needed.

     */
    public interface TempFile {
        OutputStream open() throws Exception;

        void delete() throws Exception;

        String getName();
    }

    /**
     * Default threading strategy for NanoHttpd.
     *

     *
By default, the server spawns a new Thread for every incoming request.  These are set
     * to daemon status, and named according to the request number.  The name is
     * useful when profiling the application.

     */
    public static class DefaultAsyncRunner implements AsyncRunner {
        private long requestCount;

        @Override
        public void exec(Runnable code) {
            ++requestCount;
            Thread t = new Thread(code);
            t.setDaemon(true);
            t.setName("NanoHttpd Request Processor (#" + requestCount + ")");
            t.start();
        }
    }

    /**
     * Default strategy for creating and cleaning up temporary files.
     *

     *
This class stores its files in the standard location (that is,
     * wherever java.io.tmpdir points to).  Files are added
     * to an internal list, and deleted when no longer needed (that is,
     * when clear() is invoked at the end of processing a
     * request).

     */
    public static class DefaultTempFileManager implements TempFileManager {
        private final String tmpdir;
        private final List tempFiles;

        public DefaultTempFileManager() {
            tmpdir = System.getProperty("java.io.tmpdir");
            tempFiles = new ArrayList();
        }

        @Override
        public TempFile createTempFile() throws Exception {
            DefaultTempFile tempFile = new DefaultTempFile(tmpdir);
            tempFiles.add(tempFile);
            return tempFile;
        }

        @Override
        public void clear() {
            for (TempFile file : tempFiles) {
                try {
                    file.delete();
                } catch (Exception ignored) {
                }
            }
            tempFiles.clear();
        }
    }

    /**
     * Default strategy for creating and cleaning up temporary files.
     *

     *
By default, files are created by File.createTempFile() in
     * the directory specified.

     */
    public static class DefaultTempFile implements TempFile {
        private File file;
        private OutputStream fstream;

        public DefaultTempFile(String tempdir) throws IOException {
            file = File.createTempFile("NanoHTTPD-", "", new File(tempdir));
            fstream = new FileOutputStream(file);
        }

        @Override
        public OutputStream open() throws Exception {
            return fstream;
        }

        @Override
        public void delete() throws Exception {
            safeClose(fstream);
            file.delete();
        }

        @Override
        public String getName() {
            return file.getAbsolutePath();
        }
    }

    /**
     * HTTP response. Return one of these from serve().
     */
    public static class Response {
        /**
         * HTTP status code after processing, e.g. "200 OK", HTTP_OK
         */
        private Status status;
        /**
         * MIME type of content, e.g. "text/html"
         */
        private String mimeType;
        /**
         * Data of the response, may be null.
         */
        private InputStream data;
        /**
         * Headers for the HTTP response. Use addHeader() to add lines.
         */
        private Map header = new HashMap();
        /**
         * The request method that spawned this response.
         */
        private Method requestMethod;
        /**
         * Use chunkedTransfer
         */
        private boolean chunkedTransfer;

        /**
         * Default constructor: response = HTTP_OK, mime = MIME_HTML and your supplied message
         */
        public Response(String msg) {
            this(Status.OK, MIME_HTML, msg);
        }

        /**
         * Basic constructor.
         */
        public Response(Status status, String mimeType, InputStream data) {
            this.status = status;
            this.mimeType = mimeType;
            this.data = data;
        }

        /**
         * Convenience method that makes an InputStream out of given text.
         */
        public Response(Status status, String mimeType, String txt) {
            this.status = status;
            this.mimeType = mimeType;
            try {
                this.data = txt != null ? new ByteArrayInputStream(txt.getBytes("UTF-8")) : null;
            } catch (java.io.UnsupportedEncodingException uee) {
                uee.printStackTrace();
            }
        }

        /**
         * Adds given line to the header.
         */
        public void addHeader(String name, String value) {
            header.put(name, value);
        }

        /**
         * Sends given response to the socket.
         */
        private void send(OutputStream outputStream) {
            String mime = mimeType;
            SimpleDateFormat gmtFrmt = new SimpleDateFormat("E, d MMM yyyy HH:mm:ss 'GMT'", Locale.US);
            gmtFrmt.setTimeZone(TimeZone.getTimeZone("GMT"));

            try {
                if (status == null) {
                    throw new Error("sendResponse(): Status can't be null.");
                }
                PrintWriter pw = new PrintWriter(outputStream);
                pw.print("HTTP/1.1 " + status.getDescription() + " \r\n");

                if (mime != null) {
                    pw.print("Content-Type: " + mime + "\r\n");
                }

                if (header == null || header.get("Date") == null) {
                    pw.print("Date: " + gmtFrmt.format(new Date()) + "\r\n");
                }

                if (header != null) {
                    for (String key : header.keySet()) {
                        String value = header.get(key);
                        pw.print(key + ": " + value + "\r\n");
                    }
                }

                pw.print("Connection: keep-alive\r\n");

                if (requestMethod != Method.HEAD && chunkedTransfer) {
                    sendAsChunked(outputStream, pw);
                } else {
                    sendAsFixedLength(outputStream, pw);
                }
                outputStream.flush();
                safeClose(data);
            } catch (IOException ioe) {
                // Couldn't write? No can do.
            }
        }

        private void sendAsChunked(OutputStream outputStream, PrintWriter pw) throws IOException {
            pw.print("Transfer-Encoding: chunked\r\n");
            pw.print("\r\n");
            pw.flush();
            int BUFFER_SIZE = 16 * 1024;
            byte[] CRLF = "\r\n".getBytes();
            byte[] buff = new byte[BUFFER_SIZE];
            int read;
            while ((read = data.read(buff)) > 0) {
                outputStream.write(String.format("%x\r\n", read).getBytes());
                outputStream.write(buff, 0, read);
                outputStream.write(CRLF);
            }
            outputStream.write(String.format("0\r\n\r\n").getBytes());
        }

        private void sendAsFixedLength(OutputStream outputStream, PrintWriter pw) throws IOException {
            int pending = data != null ? data.available() : 0; // This is to support partial sends, see serveFile()
            pw.print("Content-Length: "+pending+"\r\n");

            pw.print("\r\n");
            pw.flush();

            if (requestMethod != Method.HEAD && data != null) {
                int BUFFER_SIZE = 16 * 1024;
                byte[] buff = new byte[BUFFER_SIZE];
                while (pending > 0) {
                    int read = data.read(buff, 0, ((pending > BUFFER_SIZE) ? BUFFER_SIZE : pending));
                    if (read <= 0) {
                        break;
                    }
                    outputStream.write(buff, 0, read);

                    pending -= read;
                }
            }
        }

        public Status getStatus() {
            return status;
        }

        public void setStatus(Status status) {
            this.status = status;
        }

        public String getMimeType() {
            return mimeType;
        }

        public void setMimeType(String mimeType) {
            this.mimeType = mimeType;
        }

        public InputStream getData() {
            return data;
        }

        public void setData(InputStream data) {
            this.data = data;
        }

        public Method getRequestMethod() {
            return requestMethod;
        }

        public void setRequestMethod(Method requestMethod) {
            this.requestMethod = requestMethod;
        }

        public void setChunkedTransfer(boolean chunkedTransfer) {
            this.chunkedTransfer = chunkedTransfer;
        }

        /**
         * Some HTTP response status codes
         */
        public enum Status {
            OK(200, "OK"), CREATED(201, "Created"), ACCEPTED(202, "Accepted"), NO_CONTENT(204, "No Content"), PARTIAL_CONTENT(206, "Partial Content"), REDIRECT(301,
                "Moved Permanently"), NOT_MODIFIED(304, "Not Modified"), BAD_REQUEST(400, "Bad Request"), UNAUTHORIZED(401,
                "Unauthorized"), FORBIDDEN(403, "Forbidden"), NOT_FOUND(404, "Not Found"), METHOD_NOT_ALLOWED(405, "Method Not Allowed"), RANGE_NOT_SATISFIABLE(416,
                "Requested Range Not Satisfiable"), INTERNAL_ERROR(500, "Internal Server Error");
            private final int requestStatus;
            private final String description;

            Status(int requestStatus, String description) {
                this.requestStatus = requestStatus;
                this.description = description;
            }

            public int getRequestStatus() {
                return this.requestStatus;
            }

            public String getDescription() {
                return "" + this.requestStatus + " " + description;
            }
        }
    }

    public static final class ResponseException extends Exception {

        private final Response.Status status;

        public ResponseException(Response.Status status, String message) {
            super(message);
            this.status = status;
        }

        public ResponseException(Response.Status status, String message, Exception e) {
            super(message, e);
            this.status = status;
        }

        public Response.Status getStatus() {
            return status;
        }
    }

    /**
     * Default strategy for creating and cleaning up temporary files.
     */
    private class DefaultTempFileManagerFactory implements TempFileManagerFactory {
        @Override
        public TempFileManager create() {
            return new DefaultTempFileManager();
        }
    }

    /**
     * Handles one session, i.e. parses the HTTP request and returns the response.
     */
    public interface IHTTPSession {
        void execute() throws IOException;

        Map getParms();

        Map getHeaders();

        /**
         * @return the path part of the URL.
         */
        String getUri();

        String getQueryParameterString();

        Method getMethod();

        InputStream getInputStream();

        CookieHandler getCookies();

        /**
         * Adds the files in the request body to the files map.
         * @arg files - map to modify
         */
        void parseBody(Map files) throws IOException, ResponseException;
    }

    protected class HTTPSession implements IHTTPSession {
        public static final int BUFSIZE = 8192;
        private final TempFileManager tempFileManager;
        private final OutputStream outputStream;
        private PushbackInputStream inputStream;
        private int splitbyte;
        private int rlen;
        private String uri;
        private Method method;
        private Map parms;
        private Map headers;
        private CookieHandler cookies;
        private String queryParameterString;

        public HTTPSession(TempFileManager tempFileManager, InputStream inputStream, OutputStream outputStream) {
            this.tempFileManager = tempFileManager;
            this.inputStream = new PushbackInputStream(inputStream, BUFSIZE);
            this.outputStream = outputStream;
        }

        public HTTPSession(TempFileManager tempFileManager, InputStream inputStream, OutputStream outputStream, InetAddress inetAddress) {
            this.tempFileManager = tempFileManager;
            this.inputStream = new PushbackInputStream(inputStream, BUFSIZE);
            this.outputStream = outputStream;
            String remoteIp = inetAddress.isLoopbackAddress() || inetAddress.isAnyLocalAddress() ? "127.0.0.1" : inetAddress.getHostAddress().toString();
            headers = new HashMap();

            headers.put("remote-addr", remoteIp);
            headers.put("http-client-ip", remoteIp);
        }

        @Override
        public void execute() throws IOException {
            try {
                /* Read the first 8192 bytes.
                   The full header should fit in here.
                   Apache's default header limit is 8KB.
                   Do NOT assume that a single read will get the entire header at once!
                   header的最大長度為8192bytes，所以這裡設置BUFSIZE為8192bytes
                */
                byte[] buf = new byte[BUFSIZE];
                splitbyte = 0;
                rlen = 0;//總共的長度
                {
                    int read = -1;//每次讀取的長度
                    try {
                        read = inputStream.read(buf, 0, BUFSIZE);
                    } catch (Exception e) {
                        safeClose(inputStream);
                        safeClose(outputStream);
                        throw new SocketException("NanoHttpd Shutdown");
                    }
                    if (read == -1) {
                        // socket was been closed
                        safeClose(inputStream);
                        safeClose(outputStream);
                        throw new SocketException("NanoHttpd Shutdown");
                    }
                    while (read > 0) {
                        rlen += read;
                        splitbyte = findHeaderEnd(buf, rlen);
                        if (splitbyte > 0)//如果返回0則說明沒有找到
                            break;
                        read = inputStream.read(buf, rlen, BUFSIZE - rlen);
                    }
                }
                //如果讀多了，則將多余的部分重新寫到流裡面
                if (splitbyte < rlen) {
                    inputStream.unread(buf, splitbyte, rlen - splitbyte);
                }

                parms = new HashMap();
                if(null == headers) {
                    headers = new HashMap();
                }

                // Create a BufferedReader for parsing the header.
                BufferedReader hin = new BufferedReader(new InputStreamReader(new ByteArrayInputStream(buf, 0, rlen)));

                // Decode the header into parms and header java properties
                Map pre = new HashMap();
                decodeHeader(hin, pre, parms, headers);
                /**
                 * 取出客戶端請求的方式：GET/POST
                 */
                method = Method.lookup(pre.get("method"));
                if (method == null) {
                    throw new ResponseException(Response.Status.BAD_REQUEST, "BAD REQUEST: Syntax error.");
                }
                //請求的連接
                uri = pre.get("uri");

                cookies = new CookieHandler(headers);

                /*
                 *  Ok, now do the serve()
                 *  解析
                 */
                Response r = serve(this);
                if (r == null) {
                    throw new ResponseException(Response.Status.INTERNAL_ERROR, "SERVER INTERNAL ERROR: Serve() returned a null response.");
                } else {
                    cookies.unloadQueue(r);
                    //響應客戶端信息
                    r.setRequestMethod(method);
                    r.send(outputStream);
                }
            } catch (SocketException e) {
                // throw it out to close socket object (finalAccept)
                throw e;
            } catch (SocketTimeoutException ste) {
                throw ste;
            } catch (IOException ioe) {
                Response r = new Response(Response.Status.INTERNAL_ERROR, MIME_PLAINTEXT, "SERVER INTERNAL ERROR: IOException: " + ioe.getMessage());
                r.send(outputStream);
                safeClose(outputStream);
            } catch (ResponseException re) {
                Response r = new Response(re.getStatus(), MIME_PLAINTEXT, re.getMessage());
                r.send(outputStream);
                safeClose(outputStream);
            } finally {
                tempFileManager.clear();
            }
        }

        @Override
        public void parseBody(Map files) throws IOException, ResponseException {
            RandomAccessFile randomAccessFile = null;
            BufferedReader in = null;
            try {
                //創建臨時文件
                randomAccessFile = getTmpBucket();

                long size;
                if (headers.containsKey("content-length")) {
                    size = Integer.parseInt(headers.get("content-length"));
                } else if (splitbyte < rlen) {
                    size = rlen - splitbyte;
                } else {
                    size = 0;
                }

                /*
                 *  Now read all the body and write it to f
                 *  將流的內容寫到臨時文件中
                 */
                byte[] buf = new byte[512];
                while (rlen >= 0 && size > 0) {
                    rlen = inputStream.read(buf, 0, (int)Math.min(size, 512));
                    size -= rlen;
                    if (rlen > 0) {
                        randomAccessFile.write(buf, 0, rlen);
                    }
                }

                // Get the raw body as a byte []
                ByteBuffer fbuf = randomAccessFile.getChannel().map(FileChannel.MapMode.READ_ONLY, 0, randomAccessFile.length());
                randomAccessFile.seek(0);//重新定位到臨時文件的開始位置

                // Create a BufferedReader for easily reading it as string.
                InputStream bin = new FileInputStream(randomAccessFile.getFD());
                in = new BufferedReader(new InputStreamReader(bin));

                // If the method is POST, there may be parameters
                // in data section, too, read it:
                if (Method.POST.equals(method)) {
                    String contentType = "";
                    String contentTypeHeader = headers.get("content-type");

                    StringTokenizer st = null;
                    if (contentTypeHeader != null) {
                        st = new StringTokenizer(contentTypeHeader, ",; ");
                        if (st.hasMoreTokens()) {
                            contentType = st.nextToken();
                        }
                    }
                    //表單提交，文件上傳類型
                    if ("multipart/form-data".equalsIgnoreCase(contentType)) {
                        // Handle multipart/form-data
                        if (!st.hasMoreTokens()) {
                            throw new ResponseException(Response.Status.BAD_REQUEST, "BAD REQUEST: Content type is multipart/form-data but boundary missing. Usage: GET /example/file.html");
                        }

                        String boundaryStartString = "boundary=";
                        int boundaryContentStart = contentTypeHeader.indexOf(boundaryStartString) + boundaryStartString.length();
                        String boundary = contentTypeHeader.substring(boundaryContentStart, contentTypeHeader.length());
                        if (boundary.startsWith("\"") && boundary.endsWith("\"")) {
                            boundary = boundary.substring(1, boundary.length() - 1);
                        }
                        //fbuf裡面包含body的內容
                        decodeMultipartData(boundary, fbuf, in, parms, files);
                    } else {
                        // Handle application/x-www-form-urlencoded
                        String postLine = "";
                        StringBuilder postLineBuffer = new StringBuilder();
                        char pbuf[] = new char[512];
                        int read = in.read(pbuf);
                        while (read >= 0 && !postLine.endsWith("\r\n")) {
                            postLine = String.valueOf(pbuf, 0, read);
                            postLineBuffer.append(postLine);
                            read = in.read(pbuf);
                        }
                        postLine = postLineBuffer.toString().trim();
                        decodeParms(postLine, parms);
                    }
                } else if (Method.PUT.equals(method)) {
                    String content = saveTmpFile(fbuf, 0, fbuf.limit());
                    files.put("content", content);
                }
            } finally {
                safeClose(randomAccessFile);
                safeClose(in);
            }
        }

        /**
         * Decodes the sent headers and loads the data into Key/value pairs
         */
        private void decodeHeader(BufferedReader in, Map pre, Map parms, Map headers)
            throws ResponseException {
            try {
                // Read the request line GET / HTTP/1.1
                String inLine = in.readLine();
                if (inLine == null) {
                    return;
                }
                //分隔inLine用 \t\n\r\f
                StringTokenizer st = new StringTokenizer(inLine);
                if (!st.hasMoreTokens()) {
                    throw new ResponseException(Response.Status.BAD_REQUEST, "BAD REQUEST: Syntax error. Usage: GET /example/file.html");
                }
                String method = st.nextToken();
                pre.put("method", method);
                if (!st.hasMoreTokens()) {
                    throw new ResponseException(Response.Status.BAD_REQUEST, "BAD REQUEST: Missing URI. Usage: GET /example/file.html");
                }

                String uri = st.nextToken();
                /*
                 *  Decode parameters from the URI
                 *  以"?" 來判斷是否有參數
                 */
                int qmi = uri.indexOf('?');
                if (qmi >= 0) {//說明有參數，調用decodeParms將參數解析到parms中
                    decodeParms(uri.substring(qmi + 1), parms);
                    uri = decodePercent(uri.substring(0, qmi));
                } else {
                    uri = decodePercent(uri);
                }
                // If there's another token, it's protocol version,
                // followed by HTTP headers. Ignore version but parse headers.
                // NOTE: this now forces header names lowercase since they are
                // case insensitive and vary by client.
                if (st.hasMoreTokens()) {
                    String line = in.readLine();
                    while (line != null && line.trim().length() > 0) {
                        int p = line.indexOf(':');
                        if (p >= 0)
                            headers.put(line.substring(0, p).trim().toLowerCase(Locale.US), line.substring(p + 1).trim());
                        line = in.readLine();
                    }
                }
                pre.put("uri", uri);
            } catch (IOException ioe) {
                throw new ResponseException(Response.Status.INTERNAL_ERROR, "SERVER INTERNAL ERROR: IOException: " + ioe.getMessage(), ioe);
            }
        }

        /**
         * Decodes the Multipart Body data and put it into Key/Value pairs.
         * @param boundary
         * @param fbuf
         * @param in
         * @param parms header頭裡面的參數
         * @param files  支持多文件上傳功能
         * @throws ResponseException
         */
        private void decodeMultipartData(String boundary, ByteBuffer fbuf, BufferedReader in, Map parms,
                                         Map files) throws ResponseException {
            try {
                //根據boundary獲取分割線與內容的間隔位置
                int[] bpositions = getBoundaryPositions(fbuf, boundary.getBytes());
                int boundarycount = 2;//源碼為1，如果是上傳單個文件會有問題
                String mpline = in.readLine();
                while (mpline != null) {
                    if (!mpline.contains(boundary)) {
                        throw new ResponseException(Response.Status.BAD_REQUEST, "BAD REQUEST: Content type is multipart/form-data but next chunk does not start with boundary. Usage: GET /example/file.html");
                    }
                    boundarycount++;
                    Map item = new HashMap();
                    mpline = in.readLine();
                    while (mpline != null && mpline.trim().length() > 0) {
                        int p = mpline.indexOf(':');
                        if (p != -1) {
                            item.put(mpline.substring(0, p).trim().toLowerCase(Locale.US), mpline.substring(p + 1).trim());
                        }
                        mpline = in.readLine();
                    }
                    if (mpline != null) {
                        String contentDisposition = item.get("content-disposition");
                        if (contentDisposition == null) {
                            throw new ResponseException(Response.Status.BAD_REQUEST, "BAD REQUEST: Content type is multipart/form-data but no content-disposition info found. Usage: GET /example/file.html");
                        }
                        StringTokenizer st = new StringTokenizer(contentDisposition, "; ");
                        Map disposition = new HashMap();
                        while (st.hasMoreTokens()) {
                            String token = st.nextToken();
                            int p = token.indexOf('=');
                            if (p != -1) {
                                disposition.put(token.substring(0, p).trim().toLowerCase(Locale.US), token.substring(p + 1).trim());
                            }
                        }
                        String pname = disposition.get("name");
                        pname = pname.substring(1, pname.length() - 1);

                        String value = "";
                        if (item.get("content-type") == null) {
                            while (mpline != null && !mpline.contains(boundary)) {
                                mpline = in.readLine();
                                if (mpline != null) {
                                    int d = mpline.indexOf(boundary);
                                    if (d == -1) {
                                        value += mpline;
                                    } else {
                                        value += mpline.substring(0, d - 2);
                                    }
                                }
                            }
                        } else {
                            if (boundarycount > bpositions.length) {
                                throw new ResponseException(Response.Status.INTERNAL_ERROR, "Error processing request");
                            }
                            int offset = stripMultipartHeaders(fbuf, bpositions[boundarycount - 2]);
                            //創建一個臨時文件，然後保存內容，這個函數我們也需要重寫setTempFileManagerFactory
                            String path = saveTmpFile(fbuf, offset, bpositions[boundarycount - 1] - offset - 4);
                            files.put(pname, path);
                            value = disposition.get("filename");
                            value = value.substring(1, value.length() - 1);
                            do {
                                mpline = in.readLine();
                            } while (mpline != null && !mpline.contains(boundary));
                        }
                        parms.put(pname, value);
                    }
                }
            } catch (IOException ioe) {
                throw new ResponseException(Response.Status.INTERNAL_ERROR, "SERVER INTERNAL ERROR: IOException: " + ioe.getMessage(), ioe);
            }
        }

        /**
         * Find byte index separating header from body. It must be the last byte of the first two sequential new lines.
         * 找到head和body的分界點，兩個回車換行
         */
        private int findHeaderEnd(final byte[] buf, int rlen) {
            int splitbyte = 0;
            while (splitbyte + 3 < rlen) {
                if (buf[splitbyte] == '\r' && buf[splitbyte + 1] == '\n' && buf[splitbyte + 2] == '\r' && buf[splitbyte + 3] == '\n') {
                    return splitbyte + 4;
                }
                splitbyte++;
            }
            return 0;
        }

        /**
         * Find the byte positions where multipart boundaries start.
         * @param b
         * @param boundary
         * @return
         */
        private int[] getBoundaryPositions(ByteBuffer b, byte[] boundary) {
            int matchcount = 0;
            int matchbyte = -1;
            List matchbytes = new ArrayList();
            for (int i = 0; i < b.limit(); i++) {
                if (b.get(i) == boundary[matchcount]) {
                    if (matchcount == 0)
                        matchbyte = i;
                    matchcount++;
                    if (matchcount == boundary.length) {
                        matchbytes.add(matchbyte);
                        matchcount = 0;
                        matchbyte = -1;
                    }
                } else {
                    i -= matchcount;
                    matchcount = 0;
                    matchbyte = -1;
                }
            }
            int[] ret = new int[matchbytes.size()];
            for (int i = 0; i < ret.length; i++) {
                ret[i] = matchbytes.get(i);
            }
            return ret;
        }

        /**
         * Retrieves the content of a sent file and saves it to a temporary file. The full path to the saved file is returned.
         */
        private String saveTmpFile(ByteBuffer b, int offset, int len) {
            String path = "";
            if (len > 0) {
                FileOutputStream fileOutputStream = null;
                try {
                    //這個地方的tempFileManager需要我們setTempFileManagerFactory
                    TempFile tempFile = tempFileManager.createTempFile();
                    ByteBuffer src = b.duplicate();
                    fileOutputStream = new FileOutputStream(tempFile.getName());
                    FileChannel dest = fileOutputStream.getChannel();
                    src.position(offset).limit(offset + len);
                    dest.write(src.slice());
                    path = tempFile.getName();
                } catch (Exception e) { // Catch exception if any
                    System.err.println("Error: " + e.getMessage());
                } finally {
                    safeClose(fileOutputStream);
                }
            }
            return path;
        }

        private RandomAccessFile getTmpBucket() {
            try {
                TempFile tempFile = tempFileManager.createTempFile();
                return new RandomAccessFile(tempFile.getName(), "rw");
            } catch (Exception e) {
                System.err.println("Error: " + e.getMessage());
            }
            return null;
        }

        /**
         * It returns the offset separating multipart file headers from the file's data.
         */
        private int stripMultipartHeaders(ByteBuffer b, int offset) {
            int i;
            for (i = offset; i < b.limit(); i++) {
                if (b.get(i) == '\r' && b.get(++i) == '\n' && b.get(++i) == '\r' && b.get(++i) == '\n') {
                    break;
                }
            }
            return i + 1;
        }

        /**
         * Decodes parameters in percent-encoded URI-format ( e.g. "name=Jack%20Daniels&pass=Single%20Malt" ) and
         * adds them to given Map. NOTE: this doesn't support multiple identical keys due to the simplicity of Map.
         */
        private void decodeParms(String parms, Map p) {
            if (parms == null) {
                queryParameterString = "";
                return;
            }

            queryParameterString = parms;
            //使用&來分隔參數
            StringTokenizer st = new StringTokenizer(parms, "&");
            while (st.hasMoreTokens()) {
                String e = st.nextToken();
                int sep = e.indexOf('=');
                if (sep >= 0) {
                    /*
                     * 這裡使用decodePercent來解析，防止參數裡面帶有中文
                     * 比如“張傑”那麼浏覽器會寫成%E5%BC%A0%E6%9D%B0
                     */
                    p.put(decodePercent(e.substring(0, sep)).trim(),
                        decodePercent(e.substring(sep + 1)));
                } else {
                    p.put(decodePercent(e).trim(), "");
                }
            }
        }

        @Override
        public final Map getParms() {
            return parms;
        }

        public String getQueryParameterString() {
            return queryParameterString;
        }

        @Override
        public final Map getHeaders() {
            return headers;
        }

        @Override
        public final String getUri() {
            return uri;
        }

        @Override
        public final Method getMethod() {
            return method;
        }

        @Override
        public final InputStream getInputStream() {
            return inputStream;
        }

        @Override
        public CookieHandler getCookies() {
            return cookies;
        }
    }

    public static class Cookie {
        private String n, v, e;

        public Cookie(String name, String value, String expires) {
            n = name;
            v = value;
            e = expires;
        }

        public Cookie(String name, String value) {
            this(name, value, 30);
        }

        public Cookie(String name, String value, int numDays) {
            n = name;
            v = value;
            e = getHTTPTime(numDays);
        }

        public String getHTTPHeader() {
            String fmt = "%s=%s; expires=%s";
            return String.format(fmt, n, v, e);
        }

        public static String getHTTPTime(int days) {
            Calendar calendar = Calendar.getInstance();
            SimpleDateFormat dateFormat = new SimpleDateFormat("EEE, dd MMM yyyy HH:mm:ss z", Locale.US);
            dateFormat.setTimeZone(TimeZone.getTimeZone("GMT"));
            calendar.add(Calendar.DAY_OF_MONTH, days);
            return dateFormat.format(calendar.getTime());
        }
    }

    /**
     * Provides rudimentary support for cookies.
     * Doesn't support 'path', 'secure' nor 'httpOnly'.
     * Feel free to improve it and/or add unsupported features.
     *
     * @author LordFokas
     */
    public class CookieHandler implements Iterable {
        private HashMap cookies = new HashMap();
        private ArrayList queue = new ArrayList();

        public CookieHandler(Map httpHeaders) {
            String raw = httpHeaders.get("cookie");
            if (raw != null) {
                String[] tokens = raw.split(";");
                for (String token : tokens) {
                    String[] data = token.trim().split("=");
                    if (data.length == 2) {
                        cookies.put(data[0], data[1]);
                    }
                }
            }
        }

        @Override public Iterator iterator() {
            return cookies.keySet().iterator();
        }

        /**
         * Read a cookie from the HTTP Headers.
         *
         * @param name The cookie's name.
         * @return The cookie's value if it exists, null otherwise.
         */
        public String read(String name) {
            return cookies.get(name);
        }

        /**
         * Sets a cookie.
         *
         * @param name    The cookie's name.
         * @param value   The cookie's value.
         * @param expires How many days until the cookie expires.
         */
        public void set(String name, String value, int expires) {
            queue.add(new Cookie(name, value, Cookie.getHTTPTime(expires)));
        }

        public void set(Cookie cookie) {
            queue.add(cookie);
        }

        /**
         * Set a cookie with an expiration date from a month ago, effectively deleting it on the client side.
         *
         * @param name The cookie name.
         */
        public void delete(String name) {
            set(name, "-delete-", -30);
        }

        /**
         * Internally used by the webserver to add all queued cookies into the Response's HTTP Headers.
         *
         * @param response The Response object to which headers the queued cookies will be added.
         */
        public void unloadQueue(Response response) {
            for (Cookie cookie : queue) {
                response.addHeader("Set-Cookie", cookie.getHTTPHeader());
            }
        }
    }
}

我們測試的時候需要自己定義的類：

package com.sohu.nanohttpd;

import android.app.Activity;
import android.os.Bundle;
import android.util.Log;

public class MainActivity extends Activity {

	@Override
	protected void onCreate(Bundle savedInstanceState) {
		super.onCreate(savedInstanceState);
		setContentView(R.layout.activity_main);

		NanoHTTPD nanoHttpd = new MyNanoHTTPD("127.0.0.1",23456);
		try{
			nanoHttpd.start();
		}catch(Exception e){
			e.printStackTrace();
		}

		Log.e("DEMO",nanoHttpd.isAlive()+"");

	}

}

class MyNanoHTTPD extends NanoHTTPD{

	public MyNanoHTTPD(int port) {
		super(port);
	}

	public MyNanoHTTPD(String hostName,int port){
		super(hostName,port);
	}

	 public Response serve(IHTTPSession session) {
		 Method method = session.getMethod();
		 Log.e("DEMO","Method:"+method.toString());
		 if(NanoHTTPD.Method.GET.equals(method)){
			 //get方式
			 String queryParams = session.getQueryParameterString();
			 Log.e("DEMO","params:"+queryParams);
		 }else if(NanoHTTPD.Method.POST.equals(method)){
			 //post方式
		 }
		 return super.serve(session);
	 }


}

這裡只是做了一下拓展知識，兩種方式搭建都可以的，但是明顯Apache的功能強大一點。。

測試項目的下載地址：

Android測試項目HttpServer下載地址

http://download.csdn.net/detail/jiangwei0910410003/7432533

PC端的Server測試項目HttpServer下載地址

http://download.csdn.net/detail/jiangwei0910410003/7432537

Android測試項目NanoHTTPD下載地址

http://download.csdn.net/detail/jiangwei0910410003/7432595

總結：上面就是將PC端的Cookie和移動端的imei進行綁定的操作，這種操作的價值是很大的，未來如果用戶在家裡面進行上網的話，我們就可以將PC端和移動端進行緊密耦合在一起，相當於一個整體。。這樣我們對用戶的行為就更加了解了。。
