自定義ZXing二維碼掃描界面並解決取景框拉伸等問題，zxing拉伸

自定義ZXing二維碼掃描界面並解決取景框拉伸等問題，zxing拉伸

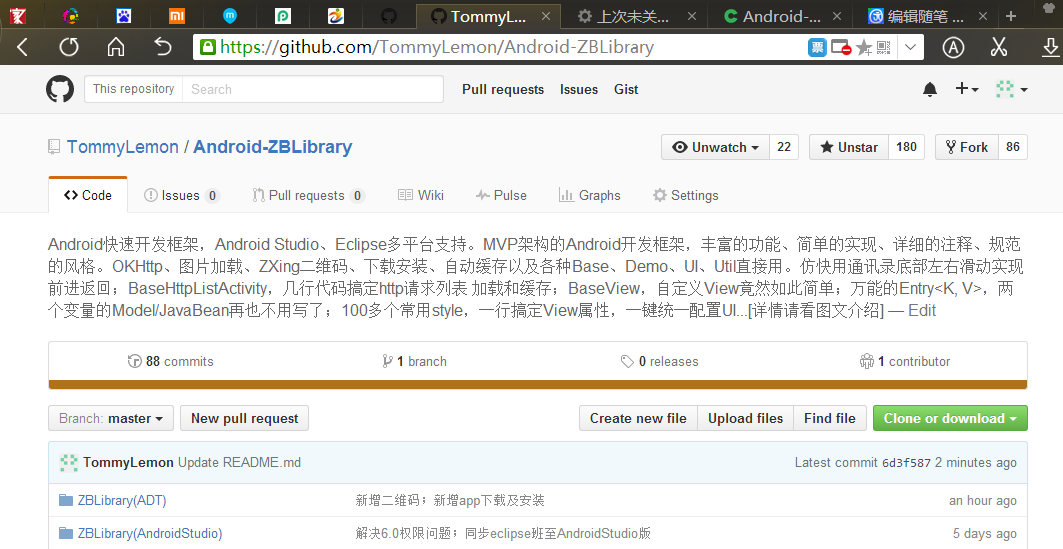

先看效果

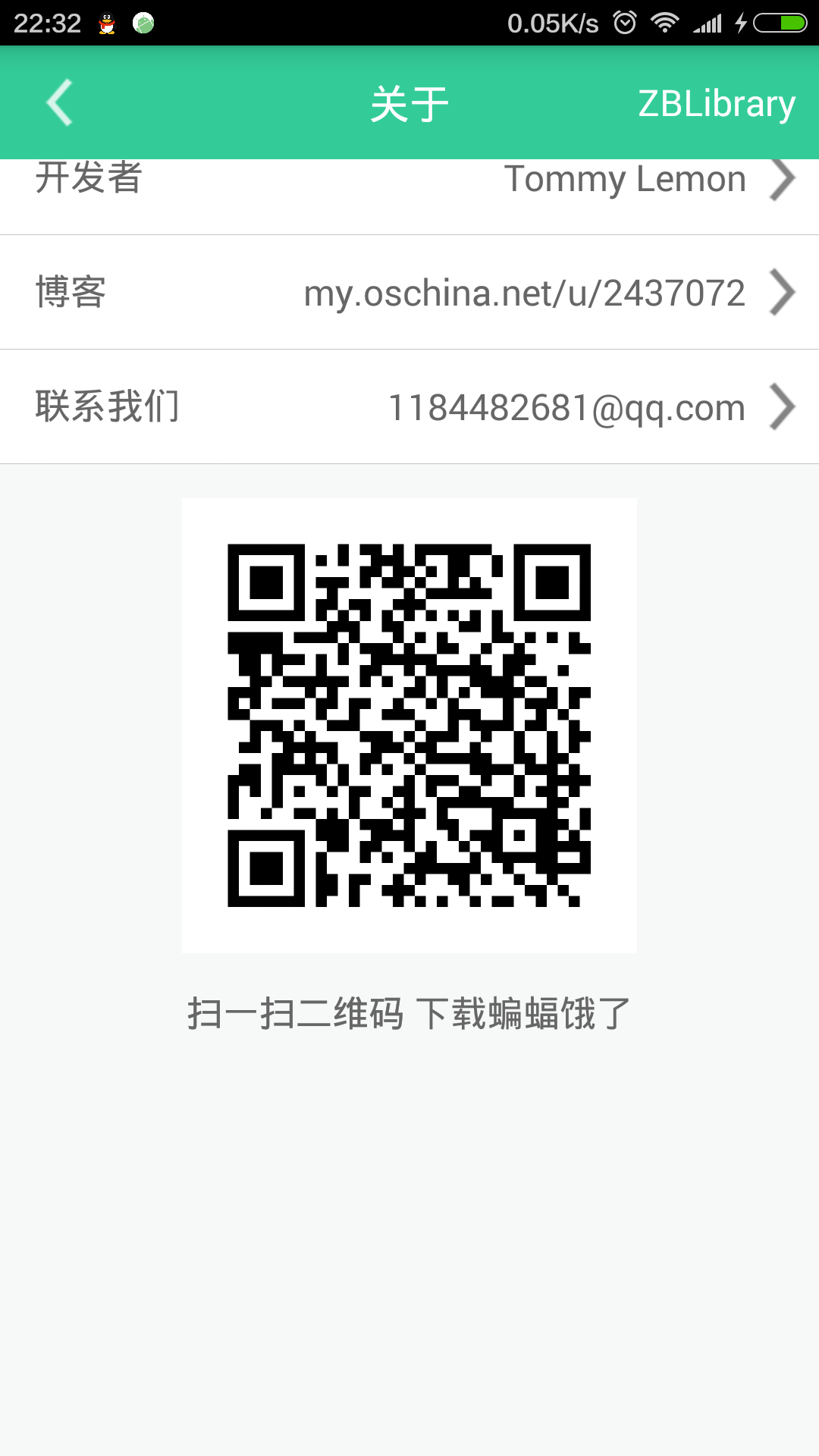

掃描內容是下面這張，二維碼是用zxing庫生成的

由於改了好幾個類，還是去年的事都忘得差不多了，所以只能上這個類的代碼了，主要就是改了這個CaptureActivity.java

  1 package com.zxing.activity;
  2
  3 import java.io.IOException;
  4 import java.util.Vector;
  5
  6 import android.app.Activity;
  7 import android.content.Intent;
  8 import android.content.res.AssetFileDescriptor;
  9 import android.graphics.Bitmap;
 10 import android.media.AudioManager;
 11 import android.media.MediaPlayer;
 12 import android.media.MediaPlayer.OnCompletionListener;
 13 import android.os.Handler;
 14 import android.os.Vibrator;
 15 import android.view.SurfaceHolder;
 16 import android.view.SurfaceHolder.Callback;
 17 import android.view.SurfaceView;
 18 import android.widget.Toast;
 19
 20 import com.ericssonlabs.R;
 21 import com.google.zxing.BarcodeFormat;
 22 import com.google.zxing.Result;
 23 import com.zxing.camera.CameraManager;
 24 import com.zxing.decoding.CaptureActivityHandler;
 25 import com.zxing.decoding.CaptureActivityHandler.DecodeCallback;
 26 import com.zxing.decoding.InactivityTimer;
 27 import com.zxing.view.ViewfinderView;
 28 /**
 29  * Initial the camera
 30  * @author Ryan.Tang
 31  * @modifier Lemon
 32  * @use extends CaptureActivity並且在setContentView方法後調用init方法
 33  */
 34 public abstract class CaptureActivity extends Activity implements Callback, DecodeCallback {
 35     //    private static final String TAG = "CaptureActivity";
 36
 37     protected Activity context;
 38     protected SurfaceView surfaceView;
 39     protected ViewfinderView viewfinderView;
 40     /**初始化，必須在setContentView之後
 41      * @param context
 42      * @param viewfinderView
 43      */
 44     protected void init(Activity context, SurfaceView surfaceView, ViewfinderView viewfinderView) {
 45         this.context = context;
 46         this.surfaceView = surfaceView;
 47         this.viewfinderView = viewfinderView;
 48
 49         CameraManager.init(getApplication());
 50
 51         hasSurface = false;
 52         inactivityTimer = new InactivityTimer(this);
 53     }
 54
 55
 56     private CaptureActivityHandler handler;
 57     private boolean hasSurface;
 58     private Vector<BarcodeFormat> decodeFormats;
 59     private String characterSet;
 60     private InactivityTimer inactivityTimer;
 61     private MediaPlayer mediaPlayer;
 62     private boolean playBeep;
 63     private static final float BEEP_VOLUME = 0.10f;
 64     private boolean vibrate;
 65
 66
 67     @Override
 68     protected void onResume() {
 69         super.onResume();
 70         SurfaceHolder surfaceHolder = surfaceView.getHolder();
 71         if (hasSurface) {
 72             initCamera(surfaceHolder);
 73         } else {
 74             surfaceHolder.addCallback(this);
 75             surfaceHolder.setType(SurfaceHolder.SURFACE_TYPE_PUSH_BUFFERS);
 76         }
 77         decodeFormats = null;
 78         characterSet = null;
 79
 80         playBeep = true;
 81         AudioManager audioService = (AudioManager) getSystemService(AUDIO_SERVICE);
 82         if (audioService.getRingerMode() != AudioManager.RINGER_MODE_NORMAL) {
 83             playBeep = false;
 84         }
 85         initBeepSound();
 86         vibrate = true;
 87     }
 88
 89     @Override
 90     protected void onPause() {
 91         super.onPause();
 92         if (handler != null) {
 93             handler.quitSynchronously();
 94             handler = null;
 95         }
 96         CameraManager.get().closeDriver();
 97     }
 98
 99     @Override
100     protected void onDestroy() {
101         inactivityTimer.shutdown();
102         super.onDestroy();
103     }
104
105
106     public static final String RESULT_QRCODE_STRING = "RESULT_QRCODE_STRING";
107     /**
108      * Handler scan result
109      * @param result
110      * @param barcode
111      */
112     public void handleDecode(Result result, Bitmap barcode) {
113         inactivityTimer.onActivity();
114         playBeepSoundAndVibrate();
115         String resultString = result.getText();
116         //FIXME
117         if (resultString.equals("")) {
118             Toast.makeText(CaptureActivity.this, "Scan failed!", Toast.LENGTH_SHORT).show();
119         }
120
121         setResult(RESULT_OK, new Intent().putExtra(RESULT_QRCODE_STRING, resultString));
122         finish();
123     }
124
125     private void initCamera(SurfaceHolder surfaceHolder) {
126         try {
127             CameraManager.get().openDriver(surfaceHolder);
128         } catch (IOException ioe) {
129             return;
130         } catch (RuntimeException e) {
131             return;
132         }
133         if (handler == null) {
134             handler = new CaptureActivityHandler(this, decodeFormats,
135                     characterSet, viewfinderView, this);
136         }
137     }
138
139     @Override
140     public void drawViewfinder() {
141         viewfinderView.drawViewfinder();
142     }
143
144
145     @Override
146     public void surfaceChanged(SurfaceHolder holder, int format, int width,
147             int height) {
148
149     }
150
151     @Override
152     public void surfaceCreated(SurfaceHolder holder) {
153         if (!hasSurface) {
154             hasSurface = true;
155             initCamera(holder);
156         }
157
158     }
159
160     @Override
161     public void surfaceDestroyed(SurfaceHolder holder) {
162         hasSurface = false;
163
164     }
165
166
167     public Handler getHandler() {
168         return handler;
169     }
170
171
172     private void initBeepSound() {
173         if (playBeep && mediaPlayer == null) {
174             // The volume on STREAM_SYSTEM is not adjustable, and users found it
175             // too loud,
176             // so we now play on the music stream.
177             setVolumeControlStream(AudioManager.STREAM_MUSIC);
178             mediaPlayer = new MediaPlayer();
179             mediaPlayer.setAudioStreamType(AudioManager.STREAM_MUSIC);
180             mediaPlayer.setOnCompletionListener(beepListener);
181
182             AssetFileDescriptor file = getResources().openRawResourceFd(
183                     R.raw.beep);
184             try {
185                 mediaPlayer.setDataSource(file.getFileDescriptor(),
186                         file.getStartOffset(), file.getLength());
187                 file.close();
188                 mediaPlayer.setVolume(BEEP_VOLUME, BEEP_VOLUME);
189                 mediaPlayer.prepare();
190             } catch (IOException e) {
191                 mediaPlayer = null;
192             }
193         }
194     }
195
196     private static final long VIBRATE_DURATION = 200L;
197
198     private void playBeepSoundAndVibrate() {
199         if (playBeep && mediaPlayer != null) {
200             mediaPlayer.start();
201         }
202         if (vibrate) {
203             Vibrator vibrator = (Vibrator) getSystemService(VIBRATOR_SERVICE);
204             vibrator.vibrate(VIBRATE_DURATION);
205         }
206     }
207
208     /**
209      * When the beep has finished playing, rewind to queue up another one.
210      */
211     private final OnCompletionListener beepListener = new OnCompletionListener() {
212         public void onCompletion(MediaPlayer mediaPlayer) {
213             mediaPlayer.seekTo(0);
214         }
215     };
216
217 }

使用方法： 新建一個Activity繼承CaptureActivity並且在setContentView方法後調用init方法即可。
示例：

CameraScanActivity.java

  1 package zuo.biao.activity;
  2
  3 import zuo.biao.R;
  4 import zuo.biao.library.interfaces.OnBottomDragListener;
  5 import zuo.biao.util.ActivityUtil;
  6 import android.content.Context;
  7 import android.content.Intent;
  8 import android.os.Bundle;
  9 import android.view.SurfaceHolder.Callback;
 10 import android.view.SurfaceView;
 11 import android.view.View;
 12 import android.view.View.OnClickListener;
 13
 14 import com.zxing.activity.CaptureActivity;
 15 import com.zxing.camera.CameraManager;
 16 import com.zxing.view.ViewfinderView;
 17
 18 /**掃描二維碼Activity
 19  * @author Lemon
 20  * @use 參考zuo.biao.library.ModelActivity
 21  */
 22 public class CameraScanActivity extends CaptureActivity implements Callback, OnClickListener, OnBottomDragListener {
 23     public static final String TAG = "CameraScanActivity";
 24
 25     //啟動方法<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<
 26
 27     /**啟動這個Activity的Intent
 28      * @param context
 29      * @param title
 30      * @return
 31      */
 32     public static Intent createIntent(Context context) {
 33         return new Intent(context, CameraScanActivity.class);
 34     }
 35
 36     //啟動方法>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>
 37
 38
 39
 40     @Override
 41     protected void onCreate(Bundle savedInstanceState) {
 42         super.onCreate(savedInstanceState);
 43         setContentView(R.layout.camera_scan_activity);
 44         init(this, (SurfaceView) findViewById(R.id.svCameraScan), (ViewfinderView) findViewById(R.id.vfvCameraScan));
 45
 46         //功能歸類分區方法，必須調用<<<<<<<<<<
 47         initView();
 48         initData();
 49         initListener();
 50         //功能歸類分區方法，必須調用>>>>>>>>>>
 51
 52     }
 53
 54
 55     //UI顯示區(操作UI，但不存在數據獲取或處理代碼，也不存在事件監聽代碼)<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<
 56
 57     public void initView() {//必須調用
 58
 59     }
 60
 61
 62
 63     //UI顯示區(操作UI，但不存在數據獲取或處理代碼，也不存在事件監聽代碼)>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>
 64
 65
 66
 67
 68
 69
 70
 71
 72
 73
 74     //data數據區(存在數據獲取或處理代碼，但不存在事件監聽代碼)<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<
 75
 76     public void initData() {//必須調用
 77
 78     }
 79
 80
 81     //data數據區(存在數據獲取或處理代碼，但不存在事件監聽代碼)>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>
 82
 83
 84
 85
 86
 87
 88
 89
 90     //listener事件監聽區(只要存在事件監聽代碼就是)<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<
 91
 92     public void initListener() {//必須調用
 93
 94         findViewById(R.id.tvCameraScanReturn).setOnClickListener(this);
 95         findViewById(R.id.ivCameraScanReturn).setOnClickListener(this);
 96         findViewById(R.id.ivCameraScanLight).setOnClickListener(this);
 97         findViewById(R.id.ivCameraScanMyQRCode).setOnClickListener(this);
 98     }
 99
100     //系統自帶監聽方法<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<
101
102     @Override
103     public void onDragBottom(boolean rightToLeft) {
104         if (rightToLeft) {
105
106             return;
107         }
108
109         finish();
110     }
111
112     @Override
113     public void onClick(View v) {
114         switch (v.getId()) {
115         case R.id.tvCameraScanReturn:
116         case R.id.ivCameraScanReturn:
117             onDragBottom(false);
118             break;
119         case R.id.ivCameraScanLight:
120             switchLight(! isOpen);
121             break;
122         case R.id.ivCameraScanMyQRCode:
123             //
124             break;
125         default:
126             break;
127         }
128     }
129
130
131     private boolean isOpen = false;
132     /**打開或關閉閃關燈
133      * @param open
134      */
135     private void switchLight(boolean open) {
136         if (open == isOpen) {
137             return;
138         }
139         isOpen = CameraManager.get().switchLight(open);
140     }
141
142
143     //類相關監聽<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<
144
145
146     //類相關監聽>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>
147
148     //系統自帶監聽方法>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>
149
150
151     //listener事件監聽區(只要存在事件監聽代碼就是)>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>
152
153
154
155
156
157
158
159
160     //內部類,盡量少用<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<
161
162
163
164     //內部類,盡量少用>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>
165
166 }

CameraScanActivity布局文件camera_scan_activity.xml

  1 <?xml version="1.0" encoding="utf-8"?>
  2 <FrameLayout xmlns:android="http://schemas.android.com/apk/res/android"
  3      >
  4
  5     <SurfaceView
  6         android:id="@+id/svCameraScan"
  7         android:layout_width="wrap_content"
  8         android:layout_height="wrap_content"
  9         android:layout_gravity="center" />
 10
 11     <!-- 必須在最底層，且不能指定寬高，否則掃描讀取很難實現 -->
 12     <com.zxing.view.ViewfinderView
 13         android:id="@+id/vfvCameraScan"
 14         android:layout_width="match_parent"
 15         android:layout_height="match_parent" />
 16
 17     <LinearLayout
 18
 19         android:baselineAligned="false" >
 20
 21         <RelativeLayout
 22
 23             android:background="@color/white_alpha" >
 24
 25             <TextView
 26                 android:id="@+id/tvCameraScanReturn"
 27
 28                 android:text="          " />
 29
 30             <TextView
 31
 32                 android:layout_centerHorizontal="true"
 33                 android:text="掃一掃" />
 34         </RelativeLayout>
 35
 36         <LinearLayout
 37
 38             android:layout_gravity="center_horizontal"
 39             android:layout_weight="1" >
 40
 41             <TextView
 42
 43                 android:layout_margin="30dp"
 44                 android:text="@string/camera_scan_remind" />
 45         </LinearLayout>
 46
 47         <LinearLayout
 48
 49             android:layout_gravity="bottom"
 50             android:background="@color/white_alpha"
 51             android:gravity="center" >
 52
 53             <LinearLayout
 54
 55                 android:layout_margin="12dp"
 56                 android:paddingBottom="4dp"
 57                 android:paddingLeft="12dp"
 58                 android:paddingRight="12dp"
 59                 android:paddingTop="4dp" >
 60
 61                 <ImageView
 62                     android:id="@+id/ivCameraScanReturn"
 63
 64                     android:background="@drawable/cilcle_gray_to_white"
 65                     android:padding="12dp"
 66                     android:src="@drawable/back_black_light" />
 67
 68                 <TextView
 69
 70                     android:layout_marginTop="4dp"
 71                     android:text="返回" />
 72             </LinearLayout>
 73
 74             <LinearLayout
 75
 76                 android:layout_margin="12dp"
 77                 android:paddingBottom="4dp"
 78                 android:paddingLeft="12dp"
 79                 android:paddingRight="12dp"
 80                 android:paddingTop="4dp" >
 81
 82                 <ImageView
 83                     android:id="@+id/ivCameraScanLight"
 84
 85                     android:background="@drawable/cilcle_gray_to_white"
 86                     android:padding="12dp"
 87                     android:src="@drawable/flash_light" />
 88
 89                 <TextView
 90
 91                     android:layout_marginTop="4dp"
 92                     android:text="開燈/關燈" />
 93             </LinearLayout>
 94
 95             <LinearLayout
 96
 97                 android:layout_margin="12dp"
 98                 android:paddingBottom="4dp"
 99                 android:paddingLeft="12dp"
100                 android:paddingRight="12dp"
101                 android:paddingTop="4dp" >
102
103                 <ImageView
104                     android:id="@+id/ivCameraScanMyQRCode"
105
106                     android:background="@drawable/cilcle_gray_to_white"
107                     android:padding="12dp"
108                     android:src="@drawable/qrcode" />
109
110                 <TextView
111
112                     android:layout_marginTop="4dp"
113                     android:text="我的名片" />
114             </LinearLayout>
115         </LinearLayout>
116     </LinearLayout>
117
118 </FrameLayout>

布局文件因為使用了ZBLibrary中的一些style，color等，只有這個layout的話會出現一些錯誤。自己新建一個layout文件並把ViewfinderView放到最外層布局文件內就行了。當然下載好下面附上的源碼就沒這問題了。

對了，記得在AndroidManifest.xml中加上這些權限：

    <uses-permission android:name="android.permission.CAMERA" />

    <uses-feature android:name="android.hardware.camera" />

    <uses-feature android:name="android.hardware.camera.autofocus" />

    <uses-permission android:name="android.permission.FLASHLIGHT" />

附源碼(含使用方法)

GitHub源碼      https://github.com/TommyLemon/Android-ZBLibrary

開源中國源碼    http://git.oschina.net/Lemon19950301/Android-ZBLibrary
