Android 自定義 View 繪圖基礎

View的測量

控件的測量可以說是固定寫法，原生的View只支持EXACTLY的測量模式，我們自定義的控件可以重寫onMeasure方法

@Override
protected void onMeasure(int widthMeasureSpec, int heightMeasureSpec) {
    setMeasuredDimension(getMeasuredSize(widthMeasureSpec), getMeasuredSize(heightMeasureSpec));
}

onMeasure方法給我們返回的widthMeasureSpec和heightMeasureSpec，我們並不能直接拿過來使用，需要使用MeasureSpec類進行解析，來獲取測量後的具體值。

首先需要獲取測量模式

MeasureSpec.getMode(measureSpec)
```
getMode方法返回是測量的模式，有以下3種類型：
- MeasureSpec.EXACTLY : 精確值模式（指定值/match_parent）
- MeasureSpec.AT_MOST : 最大值模式（wrap_content）
- MeasureSpec.UNSPECIFIED : 不指定大小的測量模式（一般用不上）
獲取到了測量模式以後，獲取測量後的大小
``` java
MeasureSpec.getSize(measureSpec)

根據上面的意思，可以封裝我們的getMeasuredSize方法

// 默認大小
private static final int DEFAULT_SIZE = 200;
/**
 * 獲取測量後的大小
 *
 * @param measureSpec measureSpec
 * @return measuredSize
 */
private int getMeasuredSize(int measureSpec) {
    switch (MeasureSpec.getMode(measureSpec)) {
        case MeasureSpec.EXACTLY: // 精確值模式（指定值/match_parent）
            Log.i(TAG, "getMeasuredSize: 精確值模式");
            return MeasureSpec.getSize(measureSpec);
        case MeasureSpec.AT_MOST: // 最大值模式（wrap_content）
            Log.i(TAG, "getMeasuredSize: 最大值模式");
            return Math.min(DEFAULT_SIZE, MeasureSpec.getSize(measureSpec));
        case MeasureSpec.UNSPECIFIED: // 不指定大小的測量模式
            return DEFAULT_SIZE;
        default:
            return DEFAULT_SIZE;
    }
}

現在我們自定義的View就支持自定義的大小了，包括match_parent、wrap_content、具體值。

View的繪制

畫筆屬性

創建畫筆

Paint paint = new Paint();

方法 描述 舉例 public void setAntiAlias(boolean aa) 設置畫筆鋸齒效果 true 無鋸齒效果 public void setColor(@ColorInt int color) 設置畫筆顏色 public void setARGB(int a, int r, int g, int b) 設置畫筆的A、R、G、B值 public void setAlpha(int a) 設置畫筆的Alpha值 public void setTextSize(float textSize) 設置字體的尺寸 public void setStyle(Style style) 設置畫筆的風格（空心或實心） paint.setStyle(Paint.Style.STROKE);// 空心 paint.setStyle(Paint.Style.FILL); // 實心 public void setStrokeWidth(float width) 設置空心邊框的寬度

Shader

BitmapShader, ComposeShader, LinearGradient, RadialGradient, SweepGradient

點

/**
 * Helper for drawPoints() for drawing a single point.
 */
public void drawPoint(float x, float y, @NonNull Paint paint)

canvas.drawPoint(10, 10, paint);

直線

繪制一條直線

/**
 * Draw a line segment with the specified start and stop x,y coordinates,
 * using the specified paint.
 *
 * <p>Note that since a line is always "framed", the Style is ignored in the paint.</p>
 *
 * <p>Degenerate lines (length is 0) will not be drawn.</p>
 *
 * @param startX The x-coordinate of the start point of the line
 * @param startY The y-coordinate of the start point of the line
 * @param paint  The paint used to draw the line
 */
public void drawLine(float startX, float startY, float stopX, float stopY, @NonNull Paint paint)

繪制多條直線

public void drawLines(@Size(multiple=4) @NonNull float[] pts, @NonNull Paint paint)

矩形

/**
 * Draw the specified Rect using the specified paint. The rectangle will
 * be filled or framed based on the Style in the paint.
 *
 * @param left   The left side of the rectangle to be drawn
 * @param top    The top side of the rectangle to be drawn
 * @param right  The right side of the rectangle to be drawn
 * @param bottom The bottom side of the rectangle to be drawn
 * @param paint  The paint used to draw the rect
 */
public void drawRect(float left, float top, float right, float bottom, @NonNull Paint paint)

canvas.drawRect(100, 100, 200, 200, paint);

圓角矩形

/**
 * Draw the specified round-rect using the specified paint. The roundrect
 * will be filled or framed based on the Style in the paint.
 *
 * @param rx    The x-radius of the oval used to round the corners
 * @param ry    The y-radius of the oval used to round the corners
 * @param paint The paint used to draw the roundRect
 */
public void drawRoundRect(float left, float top, float right, float bottom, float rx, float ry, @NonNull Paint paint)

canvas.drawRoundRect(100, 100, 200, 200, 20, 20, paint);

圓

/**
 * Draw the specified circle using the specified paint. If radius is <= 0,
 * then nothing will be drawn. The circle will be filled or framed based
 * on the Style in the paint.
 *
 * @param cx     The x-coordinate of the center of the cirle to be drawn
 * @param cy     The y-coordinate of the center of the cirle to be drawn
 * @param radius The radius of the cirle to be drawn
 * @param paint  The paint used to draw the circle
 */
public void drawCircle(float cx, float cy, float radius, @NonNull Paint paint)

// 畫圓

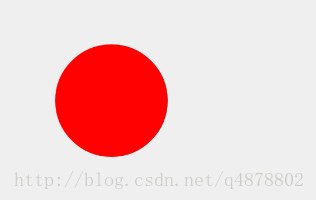

canvas.drawCircle(200, 200, 100, paint);

扇形

/**
 * <p>Draw the specified arc, which will be scaled to fit inside the
 * specified oval.</p>
 *
 * <p>If the start angle is negative or >= 360, the start angle is treated
 * as start angle modulo 360.</p>
 *
 * <p>If the sweep angle is >= 360, then the oval is drawn
 * completely. Note that this differs slightly from SkPath::arcTo, which
 * treats the sweep angle modulo 360. If the sweep angle is negative,
 * the sweep angle is treated as sweep angle modulo 360</p>
 *
 * <p>The arc is drawn clockwise. An angle of 0 degrees correspond to the
 * geometric angle of 0 degrees (3 o'clock on a watch.)</p>
 *
 * @param startAngle Starting angle (in degrees) where the arc begins
 * @param sweepAngle Sweep angle (in degrees) measured clockwise
 * @param useCenter If true, include the center of the oval in the arc, and
                    close it if it is being stroked. This will draw a wedge
 * @param paint      The paint used to draw the arc
 */
public void drawArc(float left, float top, float right, float bottom, float startAngle, float sweepAngle, boolean useCenter, @NonNull Paint paint)

// 扇形 起始角度0度 旋轉角度120度
canvas.drawArc(100, 100, 200, 200, 0, 120, true, paint);

弧形

扇形通過調整屬性，可以實現弧形的效果，首先畫筆設置成空心

// 空心
paint.setStyle(Paint.Style.STROKE);

設置畫扇形的useCenter參數為false

// 弧形 起始角度0度 旋轉角度120度
canvas.drawArc(100, 100, 200, 200, 0, 120, false, paint);

橢圓

/**
 * Draw the specified oval using the specified paint. The oval will be
 * filled or framed based on the Style in the paint.
 */
public void drawOval(float left, float top, float right, float bottom, @NonNull Paint paint)

// 橢圓

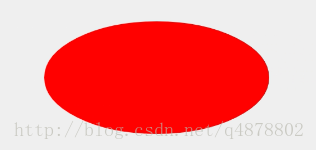

canvas.drawOval(100, 100, 500, 300, paint);

文字

/**
 * Draw the text, with origin at (x,y), using the specified paint. The
 * origin is interpreted based on the Align setting in the paint.
 *
 * @param text  The text to be drawn
 * @param x     The x-coordinate of the origin of the text being drawn
 * @param y     The y-coordinate of the baseline of the text being drawn
 * @param paint The paint used for the text (e.g. color, size, style)
 */
public void drawText(@NonNull String text, float x, float y, @NonNull Paint paint)

// 文字
paint.setTextSize(30);
paint.setColor(Color.BLACK);
canvas.drawText("KongQingwei", 100, 100, paint);

在指定位置顯示每個字符

/**
 * Draw the text in the array, with each character's origin specified by
 * the pos array.
 *
 * @param text  The text to be drawn
 * @param pos   Array of [x,y] positions, used to position each character
 * @param paint The paint used for the text (e.g. color, size, style)
 *
 * @deprecated This method does not support glyph composition and decomposition and
 * should therefore not be used to render complex scripts. It also doesn't
 * handle supplementary characters (eg emoji).
 */
@Deprecated
public void drawPosText(@NonNull String text, @NonNull @Size(multiple=2) float[] pos, @NonNull Paint paint)

canvas.drawPosText("KongQingwei", new float[]{
        30,30,
        60,60,
        90,90,
        120,120,
        150,150,
        180,180,
        210,210,
        240,240,
        270,270,
        300,300,
        330,330
}, paint);

繪制路徑

可以自定義畫出想要的任意圖形

五角星

/**
 * Draw the specified path using the specified paint. The path will be
 * filled or framed based on the Style in the paint.
 *
 * @param path  The path to be drawn
 * @param paint The paint used to draw the path
 */
public void drawPath(@NonNull Path path, @NonNull Paint paint)

Path path = new Path();
path.moveTo(0,100);
path.lineTo(250,300);
path.lineTo(150,0);
path.lineTo(50,300);
path.lineTo(300,100);
path.lineTo(0,100);
canvas.drawPath(path,paint);

空心

paint.setStyle(Paint.Style.STROKE);

圖形裁剪

以上面的實心五角星為例，以五角星的中心為圓心，裁剪出一個半徑為100的圓形

/**
    * Modify the current clip with the specified path.
 *
 * @param path The path to operate on the current clip
 * @param op   How the clip is modified
 * @return     true if the resulting is non-empty
 */
public boolean clipPath(@NonNull Path path, @NonNull Region.Op op)

// 裁剪一個圓形
Path path = new Path();
path.reset();
path.addCircle(150, 150, 100, Path.Direction.CCW);
canvas.clipPath(path, Region.Op.INTERSECT);
// canvas.save();
// 畫五角星
path.reset();
path.moveTo(0,100);
path.lineTo(250,300);
path.lineTo(150,0);
path.lineTo(50,300);
path.lineTo(300,100);
path.lineTo(0,100);
canvas.drawPath(path,paint);

Region.Op 描述 樣式 INTERSECT 裁剪內部交集 DIFFERENCE 外部
