最常用和最難用的Android控件ListView

ListView允許用戶通過手指上下滑動的方式將屏幕外的數據滾動到屏幕內,同時屏幕上原有的數據則會滾動出屏幕.

1. ListView的簡單用法
首先新建一個ListViewTest項目,然後修改activity_main.xml代碼.

<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
  android:layout_height="match_parent"
  android:layout_width="match_parent">
 <ListView
  android:id="@+id/list_view"
  android:layout_width="match_parent"
  android:layout_height="match_parent"></ListView>
</LinearLayout>

為ListView指定一個id,然後將寬度和高度都修改為match_parent,這樣ListView就占據了整個布局的空間.

ListView布局

接下來修改MainActivity中的代碼.

public class MainActivity extends Activity {
 private String[] data = {"Apple","Banana","Orange","Watermelon",
   "Pear","Grape","Pineapple","Strawberry","Cherry","Mango"};
 @Override
 protected void onCreate(Bundle savedInstanceState) {
  super.onCreate(savedInstanceState);
  setContentView(R.layout.activity_main);
  //先創建適配器,並且把內容放入去.
  ArrayAdapter<String> adapter = new ArrayAdapter<String>
  (MainActivity.this, android.R.layout.simple_list_item_1,data);
  ListView listView = (ListView) findViewById(R.id.list_view);
  //調用ListView的對象把適配器傳進去.
  listView.setAdapter(adapter);
 }


}

數組中的數據是無法直接傳遞給ListView的,我們需要借助適配器來完成,其中最好用的是ArrayAdapter它可以通過泛型來指定要添加的數據類型,然後在構造函數中把要適配的數據傳入即可.注意我們使用了android.R.layout.simple_list_item_1作為ListView的子項布局的id,以及要適配的數據.

最後,我們要調用ListView的SetAdapter()方法,將構造好的適配器對象傳遞進去,這樣ListView和數據之間的關聯就建立完成了.

ListView與數據關聯

2. 定制ListView的界面
接著定義一個實體類,作為ListView適配器的適配類型,新建類Fruit,需要准備一組圖片.

public class Fruit {

 private String name;

 private int imageId;

 public Fruit(String name, int imageId) {
  this.name = name;
  this.imageId = imageId;
 }

 public String getName() {
  return name;
 }

 public int getImageId() {
  return imageId;
 }

}

Fruit類中只有兩個字段,name表示水果的名字,imageId表示水果對應圖片的資源id.

然後需要為ListView的子項指定一個我們自定義的布局,在layout目錄下新建fruit_item.xml

<?xml version="1.0" encoding="utf-8"?>
<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
 android:layout_width="match_parent"
 android:layout_height="match_parent" >

 <ImageView
  android:id="@+id/fruit_image"
  android:layout_width="wrap_content"
  android:layout_height="wrap_content" />

 <TextView
  android:id="@+id/fruit_name"
  android:layout_width="wrap_content"
  android:layout_height="wrap_content"
  android:layout_gravity="center"
  android:layout_marginLeft="10dip" />

</LinearLayout>

在這個布局裡,我們定義了一個ImageView用於顯示水果的圖片,又定義了一個TextView用於顯示水果的名稱.

接下來需要創建一個自定義的適配器,這個適配器繼承自ArrayAdapter,並將泛型指定為Fruit類.新建類FruitAdapter,代碼如下:

public class FruitAdapter extends ArrayAdapter<Fruit> {

 private int resourceId;

 public FruitAdapter(Context context, int textViewResourceId,
   List<Fruit> objects) {
  super(context, textViewResourceId, objects);
  resourceId = textViewResourceId;
 }

 @Override
 public View getView(int position, View convertView, ViewGroup parent) {
  Fruit fruit = getItem(position);
  View view = LayoutInflater.from(getContext()).inflate(resourceId, null);
  ImageView fruitImage = (ImageView) view.findViewById(R.id.fruit_image);
  TextView fruitName = (TextView) view.findViewById(R.id.fruit_name);
  fruitImage.setImageResource(fruit.getImageId());
  fruitName.setText(fruit.getName());
  return view;
 }

}

FruitAdapter重寫了父類的一組構造函數,用於將上下文,ListView子項布局的id和數據都傳遞進來.另外又重寫了getView()方法,首先通過getItem()方法得到當前項的Fruit的實例,然後使用LayoutInflater來為這個子項加載我們傳入的布局,接著調用View的fndViewById()方法分別獲取到ImageView和TextView的實例,並分別調用它們的setImageResource和setText方法來設置顯示的圖片和文字,最好將布局返回.

下面修改MainActivity中的代碼,如下所示:

public class MainActivity extends Activity {

 private List<Fruit> fruitList = new ArrayList<Fruit>();

 @Override
 protected void onCreate(Bundle savedInstanceState) {
  super.onCreate(savedInstanceState);
  setContentView(R.layout.activity_main);
  initFruits();
  FruitAdapter adapter = new FruitAdapter(MainActivity.this,
    R.layout.fruit_item, fruitList);
  ListView listView = (ListView) findViewById(R.id.list_view);
  listView.setAdapter(adapter);

 }

 private void initFruits() {
  Fruit apple = new Fruit("Apple", R.drawable.apple_pic);
  fruitList.add(apple);
  Fruit banana = new Fruit("Banana", R.drawable.banana_pic);
  fruitList.add(banana);
  Fruit orange = new Fruit("Orange", R.drawable.orange_pic);
  fruitList.add(orange);
  Fruit watermelon = new Fruit("Watermelon", R.drawable.watermelon_pic);
  fruitList.add(watermelon);
  Fruit pear = new Fruit("Pear", R.drawable.pear_pic);
  fruitList.add(pear);
  Fruit grape = new Fruit("Grape", R.drawable.grape_pic);
  fruitList.add(grape);
  Fruit pineapple = new Fruit("Pineapple", R.drawable.pineapple_pic);
  fruitList.add(pineapple);
  Fruit strawberry = new Fruit("Strawberry", R.drawable.strawberry_pic);
  fruitList.add(strawberry);
  Fruit cherry = new Fruit("Cherry", R.drawable.cherry_pic);
  fruitList.add(cherry);
  Fruit mango = new Fruit("Mango", R.drawable.mango_pic);
  fruitList.add(mango);
 }

}

可以看到,這裡添加了一個initFruits()方法,用於初始化所有水果的數據,在Fruit類構造函數將水果的名字和對應圖片id傳入,然後把創建好的對象添加到水果列表中,接著我們再onCreate()方法中創建了FruitAdapter對象,並將FruitAdapter作為適配器傳遞給ListView.

3. 提升ListView的運行效率
因為在FruitAdapter的getView()方法中每次都將布局重新加載了一次,當ListView快速滾動的時候就會成為性能的阻礙.

public class FruitAdapter extends ArrayAdapter<Fruit> {

 private int resourceId;

 public FruitAdapter(Context context, int textViewResourceId,
   List<Fruit> objects) {
  super(context, textViewResourceId, objects);
  resourceId = textViewResourceId;
 }

 @Override
 public View getView(int position, View convertView, ViewGroup parent) {
  Fruit fruit = getItem(position); // 獲取當前項的Fruit實例
  View view;
  if (convertView == null) {
   view = LayoutInflater.from(getContext()).inflate(resourceId, null);
  } else {
   view = convertView;
  }
  ImageView fruitImage = (ImageView) view.findViewById(R.id.fruit_image);
  TextView fruitName = (TextView) view.findViewById(R.id.fruit_name);
  fruitImage.setImageResource(fruit.getImageId());
  fruitName.setText(fruit.getName());
  return view;
 }

}

所以,我們再getView()方法中進行了判斷,如果convertView為空,則使用LayoutInflater去加載布局,如果不為空則直接對convertView進行重用.

每次在getView()方法中還是會調用View的findViewById()方法來獲取一次控件的實例,我們還可以借助一個ViewHolder來對這部分性能進行優化,修改FruitAdapter`中的代碼,如下所示:

public class FruitAdapter extends ArrayAdapter<Fruit> {

 private int resourceId;

 public FruitAdapter(Context context, int textViewResourceId,
   List<Fruit> objects) {
  super(context, textViewResourceId, objects);
  resourceId = textViewResourceId;
 }

 @Override
 public View getView(int position, View convertView, ViewGroup parent) {
  Fruit fruit = getItem(position);
  View view;
  ViewHolder viewHolder;
  if (convertView == null) {
   view = LayoutInflater.from(getContext()).inflate(resourceId, null);
   viewHolder = new ViewHolder();
   viewHolder.fruitImage = (ImageView) view.findViewById(R.id.fruit_image);
   viewHolder.fruitName = (TextView) view.findViewById(R.id.fruit_name);
   view.setTag(viewHolder);
  } else {
   view = convertView;
   viewHolder = (ViewHolder) view.getTag();
  }
  viewHolder.fruitImage.setImageResource(fruit.getImageId());
  viewHolder.fruitName.setText(fruit.getName());
  return view;
 }

 class ViewHolder {

  ImageView fruitImage;

  TextView fruitName;

 }

}

我們新建了一個內部類ViewHolder,用於對控件的實例進行緩存.當convertView為空的時候,創建一個ViewHolder對象,並將控件的實例都存放在ViewHolder裡,然後調用View的SetTag()方法,將ViewHolder對象存儲在View中.當convertView不為空的時候則調用View的getTag()方法,把ViewHolder重新取出.這樣所有控件的實例都緩存在ViewHolder裡,就沒有必要每次都通過findViewById()方法來獲取控件實例了.

4. ListView的點擊事件

  listView.setOnItemClickListener(new OnItemClickListener() {
   @Override
   public void onItemClick(AdapterView<?> parent, View view,
     int position, long id) {
    Fruit fruit = fruitList.get(position);
    Toast.makeText(MainActivity.this, fruit.getName(),
      Toast.LENGTH_SHORT).show();
   }
  });

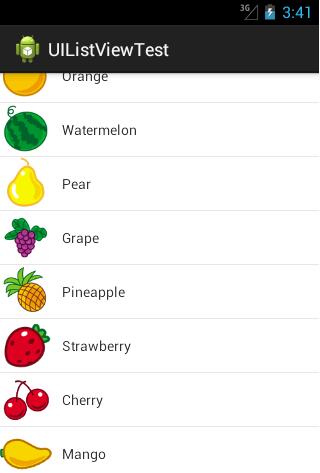

最終效果圖：

5. 總結

先在布局中加入ListView控件
然後自定義適配器,這個適配器繼承自ArrayAdapter
初始化數據,把數據傳入自定義適配器
然後將適配器傳遞給ListView.
