Android開發框架之自定義ZXing二維碼掃描界面並解決取景框拉伸問題

先給大家展示下效果圖：

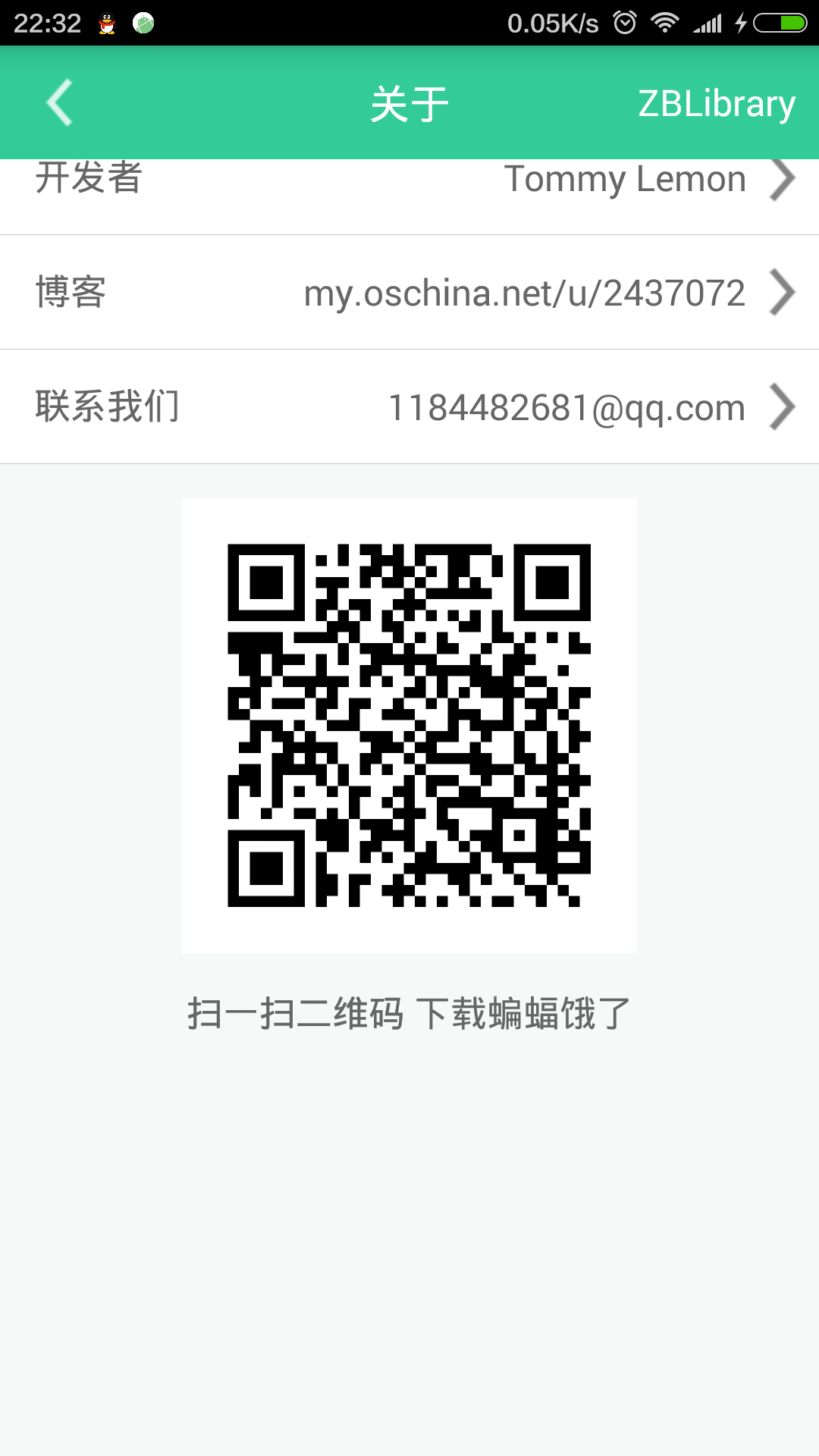

掃描內容是下面這張，二維碼是用zxing庫生成的

由於改了好幾個類，還是去年的事都忘得差不多了，所以只能上這個類的代碼了，主要就是改了這個CaptureActivity.java

package com.zxing.activity;
import java.io.IOException;
import java.util.Vector;
import android.app.Activity;
import android.content.Intent;
import android.content.res.AssetFileDescriptor;
import android.graphics.Bitmap;
import android.media.AudioManager;
import android.media.MediaPlayer;
import android.media.MediaPlayer.OnCompletionListener;
import android.os.Handler;
import android.os.Vibrator;
import android.view.SurfaceHolder;
import android.view.SurfaceHolder.Callback;
import android.view.SurfaceView;
import android.widget.Toast;
import com.ericssonlabs.R;
import com.google.zxing.BarcodeFormat;
import com.google.zxing.Result;
import com.zxing.camera.CameraManager;
import com.zxing.decoding.CaptureActivityHandler;
import com.zxing.decoding.CaptureActivityHandler.DecodeCallback;
import com.zxing.decoding.InactivityTimer;
import com.zxing.view.ViewfinderView;
/**
* Initial the camera
* @author Ryan.Tang
* @modifier Lemon
* @use extends CaptureActivity並且在setContentView方法後調用init方法
*/
public abstract class CaptureActivity extends Activity implements Callback, DecodeCallback {
// private static final String TAG = "CaptureActivity";
protected Activity context;
protected SurfaceView surfaceView;
protected ViewfinderView viewfinderView;
/**初始化，必須在setContentView之後
* @param context
* @param viewfinderView
*/
protected void init(Activity context, SurfaceView surfaceView, ViewfinderView viewfinderView) {
this.context = context;
this.surfaceView = surfaceView;
this.viewfinderView = viewfinderView;
CameraManager.init(getApplication());
hasSurface = false;
inactivityTimer = new InactivityTimer(this);
}
private CaptureActivityHandler handler;
private boolean hasSurface;
private Vector<BarcodeFormat> decodeFormats;
private String characterSet;
private InactivityTimer inactivityTimer;
private MediaPlayer mediaPlayer;
private boolean playBeep;
private static final float BEEP_VOLUME = .f;
private boolean vibrate;
@Override
protected void onResume() {
super.onResume();
SurfaceHolder surfaceHolder = surfaceView.getHolder();
if (hasSurface) {
initCamera(surfaceHolder);
} else {
surfaceHolder.addCallback(this);
surfaceHolder.setType(SurfaceHolder.SURFACE_TYPE_PUSH_BUFFERS);
}
decodeFormats = null;
characterSet = null;
playBeep = true;
AudioManager audioService = (AudioManager) getSystemService(AUDIO_SERVICE);
if (audioService.getRingerMode() != AudioManager.RINGER_MODE_NORMAL) {
playBeep = false;
}
initBeepSound();
vibrate = true;
}
@Override
protected void onPause() {
super.onPause();
if (handler != null) {
handler.quitSynchronously();
handler = null;
}
CameraManager.get().closeDriver();
}
@Override
protected void onDestroy() {
inactivityTimer.shutdown();
super.onDestroy();
}
public static final String RESULT_QRCODE_STRING = "RESULT_QRCODE_STRING";
/**
* Handler scan result
* @param result
* @param barcode
*/
public void handleDecode(Result result, Bitmap barcode) {
inactivityTimer.onActivity();
playBeepSoundAndVibrate();
String resultString = result.getText();
//FIXME
if (resultString.equals("")) {
Toast.makeText(CaptureActivity.this, "Scan failed!", Toast.LENGTH_SHORT).show();
}
setResult(RESULT_OK, new Intent().putExtra(RESULT_QRCODE_STRING, resultString));
finish();
}
private void initCamera(SurfaceHolder surfaceHolder) {
try {
CameraManager.get().openDriver(surfaceHolder);
} catch (IOException ioe) {
return;
} catch (RuntimeException e) {
return;
}
if (handler == null) {
handler = new CaptureActivityHandler(this, decodeFormats,
characterSet, viewfinderView, this);
}
}
@Override
public void drawViewfinder() {
viewfinderView.drawViewfinder();
}
@Override
public void surfaceChanged(SurfaceHolder holder, int format, int width,
int height) {
}
@Override
public void surfaceCreated(SurfaceHolder holder) {
if (!hasSurface) {
hasSurface = true;
initCamera(holder);
}
}
@Override
public void surfaceDestroyed(SurfaceHolder holder) {
hasSurface = false;
}
public Handler getHandler() {
return handler;
}
private void initBeepSound() {
if (playBeep && mediaPlayer == null) {
// The volume on STREAM_SYSTEM is not adjustable, and users found it
// too loud,
// so we now play on the music stream.
setVolumeControlStream(AudioManager.STREAM_MUSIC);
mediaPlayer = new MediaPlayer();
mediaPlayer.setAudioStreamType(AudioManager.STREAM_MUSIC);
mediaPlayer.setOnCompletionListener(beepListener);
AssetFileDescriptor file = getResources().openRawResourceFd(
R.raw.beep);
try {
mediaPlayer.setDataSource(file.getFileDescriptor(),
file.getStartOffset(), file.getLength());
file.close();
mediaPlayer.setVolume(BEEP_VOLUME, BEEP_VOLUME);
mediaPlayer.prepare();
} catch (IOException e) {
mediaPlayer = null;
}
}
}
private static final long VIBRATE_DURATION = L;
private void playBeepSoundAndVibrate() {
if (playBeep && mediaPlayer != null) {
mediaPlayer.start();
}
if (vibrate) {
Vibrator vibrator = (Vibrator) getSystemService(VIBRATOR_SERVICE);
vibrator.vibrate(VIBRATE_DURATION);
}
}
/**
* When the beep has finished playing, rewind to queue up another one.
*/
private final OnCompletionListener beepListener = new OnCompletionListener() {
public void onCompletion(MediaPlayer mediaPlayer) {
mediaPlayer.seekTo();
}
};
}

使用方法： 新建一個Activity繼承CaptureActivity並且在setContentView方法後調用init方法即可。
示例：

CameraScanActivity.java

package zuo.biao.activity;
import zuo.biao.R;
import zuo.biao.library.interfaces.OnBottomDragListener;
import zuo.biao.util.ActivityUtil;
import android.content.Context;
import android.content.Intent;
import android.os.Bundle;
import android.view.SurfaceHolder.Callback;
import android.view.SurfaceView;
import android.view.View;
import android.view.View.OnClickListener;
import com.zxing.activity.CaptureActivity;
import com.zxing.camera.CameraManager;
import com.zxing.view.ViewfinderView;
/**掃描二維碼Activity
* @author Lemon
* @use 參考zuo.biao.library.ModelActivity
*/
public class CameraScanActivity extends CaptureActivity implements Callback, OnClickListener, OnBottomDragListener {
public static final String TAG = "CameraScanActivity";
//啟動方法<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<
/**啟動這個Activity的Intent
* @param context
* @param title
* @return
*/
public static Intent createIntent(Context context) {
return new Intent(context, CameraScanActivity.class);
}
//啟動方法>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>
@Override
protected void onCreate(Bundle savedInstanceState) {
super.onCreate(savedInstanceState);
setContentView(R.layout.camera_scan_activity);
init(this, (SurfaceView) findViewById(R.id.svCameraScan), (ViewfinderView) findViewById(R.id.vfvCameraScan));
//功能歸類分區方法，必須調用<<<<<<<<<<
initView();
initData();
initListener();
//功能歸類分區方法，必須調用>>>>>>>>>>
}
//UI顯示區(操作UI，但不存在數據獲取或處理代碼，也不存在事件監聽代碼)<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<
public void initView() {//必須調用
}
//UI顯示區(操作UI，但不存在數據獲取或處理代碼，也不存在事件監聽代碼)>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>
//data數據區(存在數據獲取或處理代碼，但不存在事件監聽代碼)<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<
public void initData() {//必須調用
}
//data數據區(存在數據獲取或處理代碼，但不存在事件監聽代碼)>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>
//listener事件監聽區(只要存在事件監聽代碼就是)<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<
public void initListener() {//必須調用
findViewById(R.id.tvCameraScanReturn).setOnClickListener(this);
findViewById(R.id.ivCameraScanReturn).setOnClickListener(this);
findViewById(R.id.ivCameraScanLight).setOnClickListener(this);
findViewById(R.id.ivCameraScanMyQRCode).setOnClickListener(this);
}
//系統自帶監聽方法<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<
@Override
public void onDragBottom(boolean rightToLeft) {
if (rightToLeft) {
return;
}
finish();
}
@Override
public void onClick(View v) {
switch (v.getId()) {
case R.id.tvCameraScanReturn:
case R.id.ivCameraScanReturn:
onDragBottom(false);
break;
case R.id.ivCameraScanLight:
switchLight(! isOpen);
break;
case R.id.ivCameraScanMyQRCode:
//
break;
default:
break;
}
}
private boolean isOpen = false;
/**打開或關閉閃關燈
* @param open
*/
private void switchLight(boolean open) {
if (open == isOpen) {
return;
}
isOpen = CameraManager.get().switchLight(open);
}
//類相關監聽<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<
//類相關監聽>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>
//系統自帶監聽方法>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>
//listener事件監聽區(只要存在事件監聽代碼就是)>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>
//內部類,盡量少用<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<<
//內部類,盡量少用>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>
}

CameraScanActivity布局文件camera_scan_activity.xml

<?xml version="." encoding="utf-"?>
<FrameLayout xmlns:android="http://schemas.android.com/apk/res/android"
 >
<SurfaceView
android:id="@+id/svCameraScan"
android:layout_width="wrap_content"
android:layout_height="wrap_content"
android:layout_gravity="center" />
<!-- 必須在最底層，且不能指定寬高，否則掃描讀取很難實現 -->
<com.zxing.view.ViewfinderView
android:id="@+id/vfvCameraScan"
android:layout_width="match_parent"
android:layout_height="match_parent" />
<LinearLayout

android:baselineAligned="false" >
<RelativeLayout

android:background="@color/white_alpha" >
<TextView
android:id="@+id/tvCameraScanReturn"

android:text=" " />
<TextView

android:layout_centerHorizontal="true"
android:text="掃一掃" />
</RelativeLayout>
<LinearLayout

android:layout_gravity="center_horizontal"
android:layout_weight="" >
<TextView

android:layout_margin="dp"
android:text="@string/camera_scan_remind" />
</LinearLayout>
<LinearLayout

android:layout_gravity="bottom"
android:background="@color/white_alpha"
android:gravity="center" >
<LinearLayout

android:layout_margin="dp"
android:paddingBottom="dp"
android:paddingLeft="dp"
android:paddingRight="dp"
android:paddingTop="dp" >
<ImageView
android:id="@+id/ivCameraScanReturn"

android:background="@drawable/cilcle_gray_to_white"
android:padding="dp"
android:src="@drawable/back_black_light" />
<TextView

android:layout_marginTop="dp"
android:text="返回" />
</LinearLayout>
<LinearLayout

android:layout_margin="dp"
android:paddingBottom="dp"
android:paddingLeft="dp"
android:paddingRight="dp"
android:paddingTop="dp" >
<ImageView
android:id="@+id/ivCameraScanLight"

android:background="@drawable/cilcle_gray_to_white"
android:padding="dp"
android:src="@drawable/flash_light" />
<TextView

android:layout_marginTop="dp"
android:text="開燈/關燈" />
</LinearLayout>
<LinearLayout

android:layout_margin="dp"
android:paddingBottom="dp"
android:paddingLeft="dp"
android:paddingRight="dp"
android:paddingTop="dp" >
<ImageView
android:id="@+id/ivCameraScanMyQRCode"

android:background="@drawable/cilcle_gray_to_white"
android:padding="dp"
android:src="@drawable/qrcode" />
<TextView

android:layout_marginTop="dp"
android:text="我的名片" />
</LinearLayout>
</LinearLayout>
</LinearLayout>
</FrameLayout>

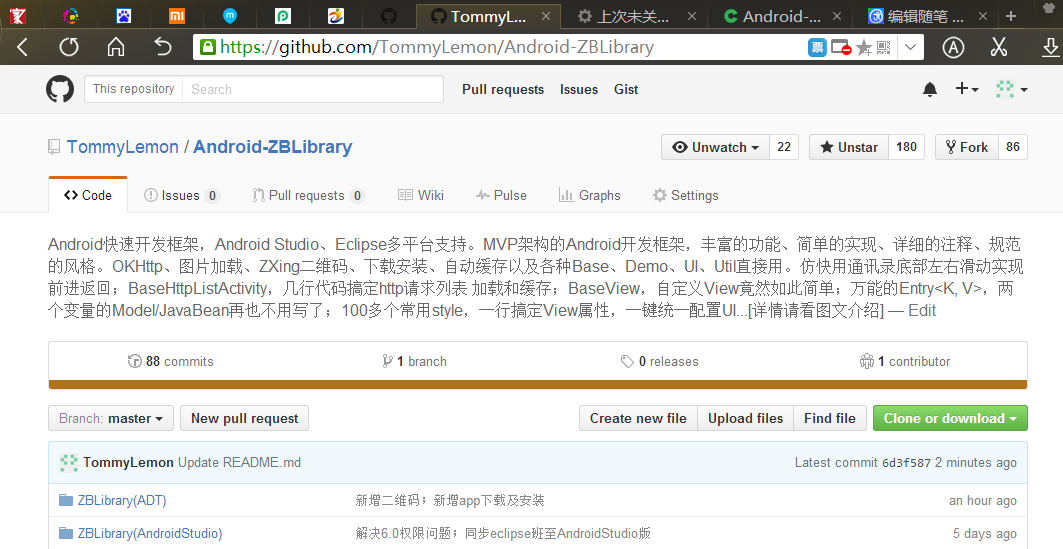

布局文件因為使用了ZBLibrary中的一些style，color等，只有這個layout的話會出現一些錯誤。自己新建一個layout文件並把ViewfinderView放到最外層布局文件內就行了。當然下載好下面附上的源碼就沒這問題了。

對了，記得在AndroidManifest.xml中加上這些權限：

<uses-permission android:name="android.permission.CAMERA" />
<uses-feature android:name="android.hardware.camera" />
<uses-feature android:name="android.hardware.camera.autofocus" />
<uses-permission android:name="android.permission.FLASHLIGHT" />

附源碼(含使用方法)

GitHub源碼      https://github.com/TommyLemon/Android-ZBLibrary

開源中國源碼    http://git.oschina.net/Lemon19950301/Android-ZBLibrary

關於Android開發框架之自定義ZXing二維碼掃描界面並解決取景框拉伸問題就給大家介紹到這裡，以上內容有點長，希望大家能耐心看完，有任何問題歡迎給我留言，小編會及時回復大家的，在此也非常感謝大家對本站網站的支持！
