Android中SwipeBack實現右滑返回效果

現在有很多App支持右滑返回，比如知乎，效果比較贊。

於是自己對Activity和Fragment進行了繼承，派生出SwipeBackActivity和SwipeBackFragment，用於對這種效果的實現，也就是只要繼承這兩個類就可以了。

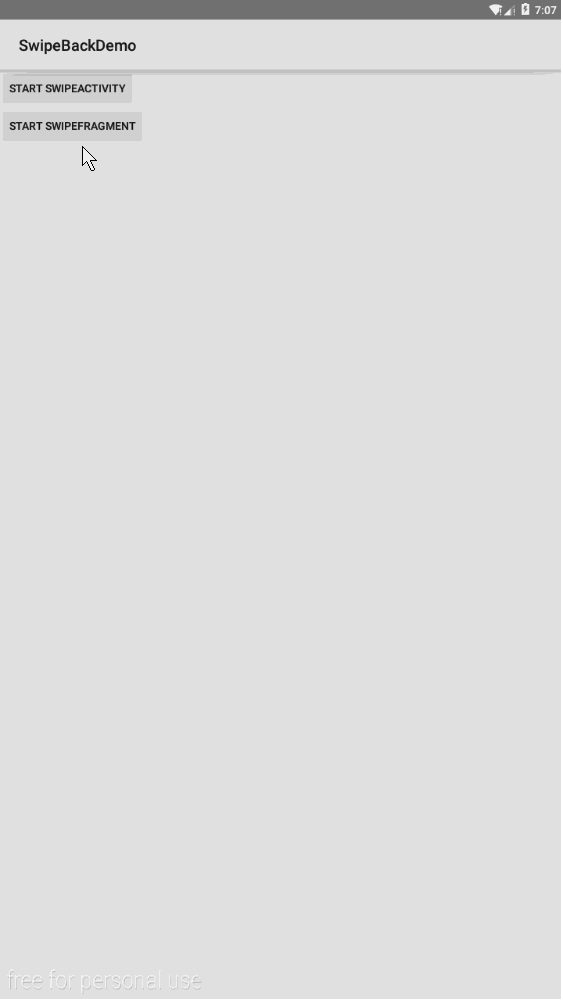

效果如下

• Activity

Fragment

Frgament的效果實現比Activity稍微簡單，因為Activity要考慮到dectorView。

支持滑動的控件SwipeLayout,核心思路就是把原有的控件添加到支持滑動的控件中，SwipeLayout要注意計算手勢速度，源碼如下：

package com.ui.jerry.swipebackdemo;

import android.content.Context;
import android.util.AttributeSet;
import android.util.Log;
import android.view.LayoutInflater;
import android.view.MotionEvent;
import android.view.VelocityTracker;
import android.view.View;
import android.view.ViewConfiguration;
import android.view.ViewGroup;
import android.widget.LinearLayout;
import android.widget.Scroller;
import android.widget.Toast;


public class SwipeLayout extends LinearLayout {
  public static final String TAG = "SwipeLayout";

  private View mEmptyView;
  private View mContentView;

  private int mLeftEdge;
  private int mWidth;
  private int mMaxScrollX;

  private Scroller mScroller;
  private VelocityTracker mVelocityTracker = null;
  private int mMaxFlingVelocity;
  private int mLastX;

  ViewGroup.LayoutParams childParams = new ViewGroup.LayoutParams(ViewGroup.LayoutParams.MATCH_PARENT, ViewGroup.LayoutParams.MATCH_PARENT);

  private Context mContext;
  public static final int DURATION = 1500;  //滿屏滑動時間
  public static final int OPEN_ANIM_DURATION = 1000;
  public static int SNAP_VELOCITY = 600; //最小的滑動速率

  private OnFinishListener mOnFinishListener;

  public SwipeLayout(Context context) {
    this(context, null);
  }

  public SwipeLayout(Context context, AttributeSet attrs) {
    super(context, attrs);

    mContext = context;
    init();
  }

  public void setOnFinishListener(OnFinishListener mOnFinishListener) {
    this.mOnFinishListener = mOnFinishListener;
  }

  void init() {
    mScroller = new Scroller(mContext);
    mMaxFlingVelocity = ViewConfiguration.get(mContext).getScaledMaximumFlingVelocity();

    mWidth = DisplayUtils.getScreenWidth(mContext) * 2;
    mMaxScrollX = mWidth / 2;
    mLeftEdge = mMaxScrollX - mMaxScrollX / 3;

    setOrientation(LinearLayout.HORIZONTAL);

    childParams.width = DisplayUtils.getScreenWidth(mContext);

    mEmptyView = LayoutInflater.from(mContext).inflate(R.layout.view_translate, null);

    addView(mEmptyView, childParams);
  }

  public void setContentView(View contentView) {
    if (mContentView != null) {
      removeView(mContentView);
    }
    mContentView = contentView;
    addView(contentView, childParams);

    postDelayed(new Runnable() {
      @Override
      public void run() {
        openActivityAnimation();
      }
    }, 200);
  }

  /**
   * 獲取速度追蹤器
   *
   * @return
   */
  private VelocityTracker getVelocityTracker() {
    if (mVelocityTracker == null) {
      mVelocityTracker = VelocityTracker.obtain();
    }
    return mVelocityTracker;
  }

  /**
   * 回收速度追蹤器
   */
  private void recycleVelocityTracker() {
    if (mVelocityTracker != null) {
      mVelocityTracker.clear();
      mVelocityTracker.recycle();
      mVelocityTracker = null;
    }
  }


  @Override
  public boolean onTouchEvent(MotionEvent ev) {
    //1.獲取速度追蹤器
    getVelocityTracker();
    //2.將當前事件納入到追蹤器中
    mVelocityTracker.addMovement(ev);

    int pointId = -1;

    switch (ev.getAction()) {
      case MotionEvent.ACTION_DOWN:
        //如果屏幕的動畫還沒結束，你就按下了，我們就結束上一次動畫，即開始這次新ACTION_DOWN的動畫
//        clearScrollHis();
        mLastX = (int) ev.getX();
        pointId = ev.getPointerId(0);
        break;
      case MotionEvent.ACTION_MOVE:
        int nextScrollX = (int) (mLastX - ev.getX() + getScrollX());

        if (scrollTo(nextScrollX)) {
          mLastX = (int) ev.getX();
        }
        break;
      case MotionEvent.ACTION_CANCEL:
      case MotionEvent.ACTION_UP:
        //3.計算當前速度
        mVelocityTracker.computeCurrentVelocity(1000, mMaxFlingVelocity);
        //獲取x y方向上的速度
        float vX = mVelocityTracker.getXVelocity(pointId);

        Log.i(TAG, "mVelocityX:" + vX);

        //大於某個速率 直接滑動
        if (vX > SNAP_VELOCITY) {
          scrollToLeft();
        } else if (vX < -SNAP_VELOCITY) {
          scrollToRight();
        } else {
          snapToDestation();
        }


        //4.回收速度追蹤器
        recycleVelocityTracker();
        break;
    }
    return true;
  }

  private void openActivityAnimation() {
    clearScrollHis();
    mScroller.startScroll(getScrollX(), 0, mMaxScrollX - getScrollX(), 0, OPEN_ANIM_DURATION);
    invalidate();//這裡必須調用invalidate()才能保證computeScroll()會被調用，否則不一定會刷新界面，看不到滾動效果
  }

  public void closeActivityAnimation() {
    clearScrollHis();
    mScroller.startScroll(getScrollX(), 0, -getScrollX(), 0, OPEN_ANIM_DURATION);
    invalidate();//這裡必須調用invalidate()才能保證computeScroll()會被調用，否則不一定會刷新界面，看不到滾動效果
  }

  private void clearScrollHis() {
    if (mScroller != null) {
      if (!mScroller.isFinished()) {
        mScroller.abortAnimation();
      }
    }
  }

  /**
   * 根據現在的滾動位置判斷
   */
  private void snapToDestation() {
    int scrollX = getScrollX();
    if (scrollX > 0 && scrollX <= mLeftEdge) {
      smoothScrollTo(0);
    } else if (scrollX > mLeftEdge) {
      smoothScrollTo(mMaxScrollX);
    }
  }

  /**
   * 直接滾動
   *
   * @param x
   * @return
   */
  public boolean scrollTo(int x) {
    if (x < 0) {
      scrollTo(0, 0);
    } else if (x > mMaxScrollX) {
      scrollTo(mMaxScrollX, 0);
    } else {
      scrollTo(x, 0);
    }
    return true;
  }

  public void scrollToRight() {
    smoothScrollTo(mMaxScrollX);
  }

  public void scrollToLeft() {
    smoothScrollTo(0);
  }

  @Override
  protected void onScrollChanged(int l, int t, int oldl, int oldt) {
    super.onScrollChanged(l, t, oldl, oldt);

    Log.d(TAG, "left:" + l);

    if (l == 0) {
      Log.d(TAG, "OnFinish");

      Toast.makeText(mContext, "Finished", Toast.LENGTH_SHORT).show();

      if(mOnFinishListener!=null){
        mOnFinishListener.onFinish();
      }
    }
  }

  public void smoothScrollTo(int fx) {
    if (fx < 0) {
      smoothScrollTo(0, 0);
    } else if (fx > mMaxScrollX) {
      smoothScrollTo(mMaxScrollX, 0);
    } else {
      smoothScrollTo(fx, 0);
    }
  }

  //  //調用此方法滾動到目標位置
  public void smoothScrollTo(int fx, int fy) {
    int dx = fx - getScrollX();
    int dy = fy - getScrollY();
    smoothScrollBy(dx, dy);
  }

  //調用此方法設置滾動的相對偏移
  public void smoothScrollBy(int dx, int dy) {

    //設置mScroller的滾動偏移量
    mScroller.startScroll(getScrollX(), 0, dx, dy, Math.abs(dx * DURATION / mMaxScrollX));
    invalidate();//這裡必須調用invalidate()才能保證computeScroll()會被調用，否則不一定會刷新界面，看不到滾動效果
  }

  @Override
  public void computeScroll() {

    //先判斷mScroller滾動是否完成
    if (mScroller.computeScrollOffset()) {

      //這裡調用View的scrollTo()完成實際的滾動
      scrollTo(mScroller.getCurrX(), mScroller.getCurrY());

      //必須調用該方法，否則不一定能看到滾動效果
      postInvalidate();
    }
    super.computeScroll();
  }

  /**
   * fragment或者activity 結束的接口
   */
  public interface OnFinishListener{
    void onFinish();
  }
}

以上就是本文的全部內容，希望對大家的學習有所幫助。
