Android營造雪花和雨滴浪漫效果

編輯：關於Android編程

本文在實現雪花效果的基礎上，根據漫天飛舞雪花，實現下雨天場景的效果，使用eclipse android 版本，具體內容如下

雪花效果圖：

具體代碼：

1、漫天飛舞的雪花主要代碼
SnowView

<span >package com.ex</span>ample.snowflake.view;

import android.content.Context;
import android.graphics.Canvas;
import android.graphics.Color;
import android.graphics.Paint;
import android.util.AttributeSet;
import android.view.View;

/**
 * 雪花視圖, DELAY時間重繪, 繪制NUM_SNOWFLAKES個雪花
 */
public class SnowView extends View {

 private static final int NUM_SNOWFLAKES = 150; // 雪花數量
 private static final int DELAY = 5; // 延遲
 private SnowFlake[] mSnowFlakes; // 雪花

 public SnowView(Context context) {
 super(context);
 }

 public SnowView(Context context, AttributeSet attrs) {
 super(context, attrs);
 }

 public SnowView(Context context, AttributeSet attrs, int defStyleAttr) {
 super(context, attrs, defStyleAttr);
 }

 @Override
 protected void onSizeChanged(int w, int h, int oldw, int oldh) {
 super.onSizeChanged(w, h, oldw, oldh);
 if (w != oldw || h != oldh) {
  initSnow(w, h);
 }
 }

 private void initSnow(int width, int height) {
 Paint paint = new Paint(Paint.ANTI_ALIAS_FLAG); // 抗鋸齒
 paint.setColor(Color.WHITE); // 白色雪花
 paint.setStyle(Paint.Style.FILL); // 填充;
 mSnowFlakes = new SnowFlake[NUM_SNOWFLAKES];
 //mSnowFlakes所有的雪花都生成放到這裡面
 for (int i = 0; i < NUM_SNOWFLAKES; ++i) {
  mSnowFlakes[i] = SnowFlake.create(width, height, paint);
 }
 }

 @Override
 protected void onDraw(Canvas canvas) {
 super.onDraw(canvas);
 //for返回SnowFlake
 for (SnowFlake s : mSnowFlakes) {
  //然後進行繪制
  s.draw(canvas);
 }
 // 隔一段時間重繪一次, 動畫效果
 getHandler().postDelayed(runnable, DELAY);
 }

 // 重繪線程
 private Runnable runnable = new Runnable() {
 @Override
 public void run() {
  //自動刷新
  invalidate();
 }
 };
}

SnowFlake

package com.example.snowflake.view;

import com.example.snowflake.RandomGenerator;

import android.graphics.Canvas;
import android.graphics.Paint;
import android.graphics.Point;

/**
 * 雪花的類, 移動, 移出屏幕會重新設置位置.
 */
public class SnowFlake {
 // 雪花的角度
 private static final float ANGE_RANGE = 0.1f; // 角度范圍
 private static final float HALF_ANGLE_RANGE = ANGE_RANGE / 2f; // 一般的角度
 private static final float HALF_PI = (float) Math.PI / 2f; // 半PI
 private static final float ANGLE_SEED = 25f; // 角度隨機種子
 private static final float ANGLE_DIVISOR = 10000f;
 // 雪花的移動速度
 private static final float INCREMENT_LOWER = 2f;
 private static final float INCREMENT_UPPER = 4f;

 // 雪花的大小
 private static final float FLAKE_SIZE_LOWER = 7f;
 private static final float FLAKE_SIZE_UPPER = 20f;

 private final RandomGenerator mRandom; // 隨機控制器
 private final Point mPosition; // 雪花位置
 private float mAngle; // 角度
 private final float mIncrement; // 雪花的速度
 private final float mFlakeSize; // 雪花的大小
 private final Paint mPaint; // 畫筆

 private SnowFlake(RandomGenerator random, Point position, float angle, float increment, float flakeSize, Paint paint) {
 mRandom = random;
 mPosition = position;
 mIncrement = increment;
 mFlakeSize = flakeSize;
 mPaint = paint;
 mAngle = angle;
 }

 public static SnowFlake create(int width, int height, Paint paint) {
 RandomGenerator random = new RandomGenerator();
 int x = random.getRandom(width);
 int y = random.getRandom(height);
 Point position = new Point(x, y);
 float angle = random.getRandom(ANGLE_SEED) / ANGLE_SEED * ANGE_RANGE + HALF_PI - HALF_ANGLE_RANGE;
 float increment = random.getRandom(INCREMENT_LOWER, INCREMENT_UPPER);
 float flakeSize = random.getRandom(FLAKE_SIZE_LOWER, FLAKE_SIZE_UPPER);
 return new SnowFlake(random, position, angle, increment, flakeSize, paint);
 }

 // 繪制雪花
 public void draw(Canvas canvas) {
 int width = canvas.getWidth();
 int height = canvas.getHeight();
 move(width, height);
 canvas.drawCircle(mPosition.x, mPosition.y, mFlakeSize, mPaint);
 }

 // 移動雪花
 private void move(int width, int height) {
 //x水平方向，那麼需要晃動，主要設置這個值就可以，現在取消晃動了
 //如果 mPosition.x不加上後面那個值，就不會晃動了
 double x = mPosition.x + (mIncrement * Math.cos(mAngle));
 //y是豎直方向，就是下落
 double y = mPosition.y + (mIncrement * Math.sin(mAngle));

 mAngle += mRandom.getRandom(-ANGLE_SEED, ANGLE_SEED) / ANGLE_DIVISOR;
 //這個是設置雪花位置，如果在很短時間內刷新一次，就是連起來的動畫效果
 mPosition.set((int) x, (int) y);

 // 移除屏幕, 重新開始
 if (!isInside(width, height)) {
  // 重置雪花
  reset(width);
 }
 }

 // 判斷是否在其中
 private boolean isInside(int width, int height) {
 int x = mPosition.x;
 int y = mPosition.y;
 return x > mFlakeSize -5 && x + mFlakeSize <= width && y >= -mFlakeSize - 1 && y - mFlakeSize < height;
 }

 // 重置雪花
 private void reset(int width) {
 mPosition.x = mRandom.getRandom(width);
 mPosition.y = (int) (-mFlakeSize - 1); // 最上面
 mAngle = mRandom.getRandom(ANGLE_SEED) / ANGLE_SEED * ANGE_RANGE + HALF_PI - HALF_ANGLE_RANGE;
 }
}

2、實現下雨天效果代碼
RainView

package com.example.raindrop.view;

import com.example.raindrop.R;

import android.content.Context;
import android.graphics.Canvas;
import android.graphics.Paint;
import android.util.AttributeSet;
import android.view.View;

/**
 * 雨滴視圖, DELAY時間重繪, 繪制NUM_SNOWFLAKES個雨滴
 */
public class RainView extends View {

 private static final int NUM_SNOWFLAKES = 150; // 雨滴數量
 private static final int DELAY = 5; // 延遲
 private RainFlake[] mSnowFlakes; // 雨滴

 public RainView(Context context) {
 super(context);
 }

 public RainView(Context context, AttributeSet attrs) {
 super(context, attrs);
 }

 public RainView(Context context, AttributeSet attrs, int defStyleAttr) {
 super(context, attrs, defStyleAttr);
 }

 @Override
 protected void onSizeChanged(int w, int h, int oldw, int oldh) {
 super.onSizeChanged(w, h, oldw, oldh);
 if (w != oldw || h != oldh) {
  initSnow(w, h);
 }
 }

 private void initSnow(int width, int height) {
 Paint paint = new Paint(Paint.ANTI_ALIAS_FLAG); // 抗鋸齒
 paint.setColor(getResources().getColor(R.color.colorWater)); // 雨滴的顏色
 paint.setStyle(Paint.Style.FILL); // 填充;
 mSnowFlakes = new RainFlake[NUM_SNOWFLAKES];
 //mSnowFlakes所有的雨滴都生成放到這裡面
 for (int i = 0; i < NUM_SNOWFLAKES; ++i) {
  mSnowFlakes[i] = RainFlake.create(width, height, paint);
 }
 }

 @Override
 protected void onDraw(Canvas canvas) {
 super.onDraw(canvas);
 //for返回SnowFlake
 for (RainFlake s : mSnowFlakes) {
  //然後進行繪制
  s.draw(canvas);
 }
 // 隔一段時間重繪一次, 動畫效果
 getHandler().postDelayed(runnable, DELAY);
 }

 // 重繪線程
 private Runnable runnable = new Runnable() {
 @Override
 public void run() {
  //自動刷新
  invalidate();
 }
 };
}

RainFlake

package com.example.raindrop.view;

import com.example.raindrop.RandomGenerator;

import android.graphics.Canvas;
import android.graphics.Paint;

/**
 * 雨滴的類, 移動, 移出屏幕會重新設置位置.
 */
public class RainFlake {

 // 雨滴的移動速度
 private static final float INCREMENT_LOWER = 6f;
 private static final float INCREMENT_UPPER = 8f;

 // 雨滴的大小
 private static final float FLAKE_SIZE_LOWER = 2f;
 private static final float FLAKE_SIZE_UPPER = 5f;

 private final float mIncrement; // 雨滴的速度
 private final float mFlakeSize; // 雨滴的大小
 private final Paint mPaint; // 畫筆

 private Line mLine; // 雨滴

 private RandomGenerator mRandom;

 private RainFlake(RandomGenerator random,Line line, float increment, float flakeSize, Paint paint) {
 mRandom = random;
 mLine = line;
 mIncrement = increment;
 mFlakeSize = flakeSize;
 mPaint = paint;
 }

 //生成雨滴
 public static RainFlake create(int width, int height, Paint paint) {
 RandomGenerator random = new RandomGenerator();
 int [] nline;
 nline = random.getLine(width, height);

 Line line = new Line(nline[0], nline[1], nline[2], nline[3]);
 float increment = random.getRandom(INCREMENT_LOWER, INCREMENT_UPPER);
 float flakeSize = random.getRandom(FLAKE_SIZE_LOWER, FLAKE_SIZE_UPPER);
 return new RainFlake(random,line, increment, flakeSize, paint);
 }

 // 繪制雨滴
 public void draw(Canvas canvas) {
 int width = canvas.getWidth();
 int height = canvas.getHeight();
 drawLine(canvas, width, height);
 }

 /**
 * 改成線條，類似於雨滴效果
 * @param canvas
 * @param width
 * @param height
 */
 private void drawLine(Canvas canvas, int width, int height) {
 //設置線寬
 mPaint.setStrokeWidth(mFlakeSize);
 //y是豎直方向，就是下落
 double y1 = mLine.y1 + (mIncrement * Math.sin(1.5));
 double y2 = mLine.y2 + (mIncrement * Math.sin(1.5));

 //這個是設置雨滴位置，如果在很短時間內刷新一次，就是連起來的動畫效果
 mLine.set(mLine.x1,(int) y1,mLine.x2 ,(int) y2);

 if (!isInsideLine(height)) {
  resetLine(width,height);
 }

 canvas.drawLine(mLine.x1, mLine.y1, mLine.x2, mLine.y2, mPaint);
 }

 // 判斷是否在其中
 private boolean isInsideLine(int height) {
 return mLine.y1 < height && mLine.y2 < height;
 }

 // 重置雨滴
 private void resetLine(int width, int height) {
 int [] nline;
 nline = mRandom.getLine(width, height);
 mLine.x1 = nline[0];
 mLine.y1 = nline[1];
 mLine.x2 = nline[2];
 mLine.y2 = nline[3];
 }

}

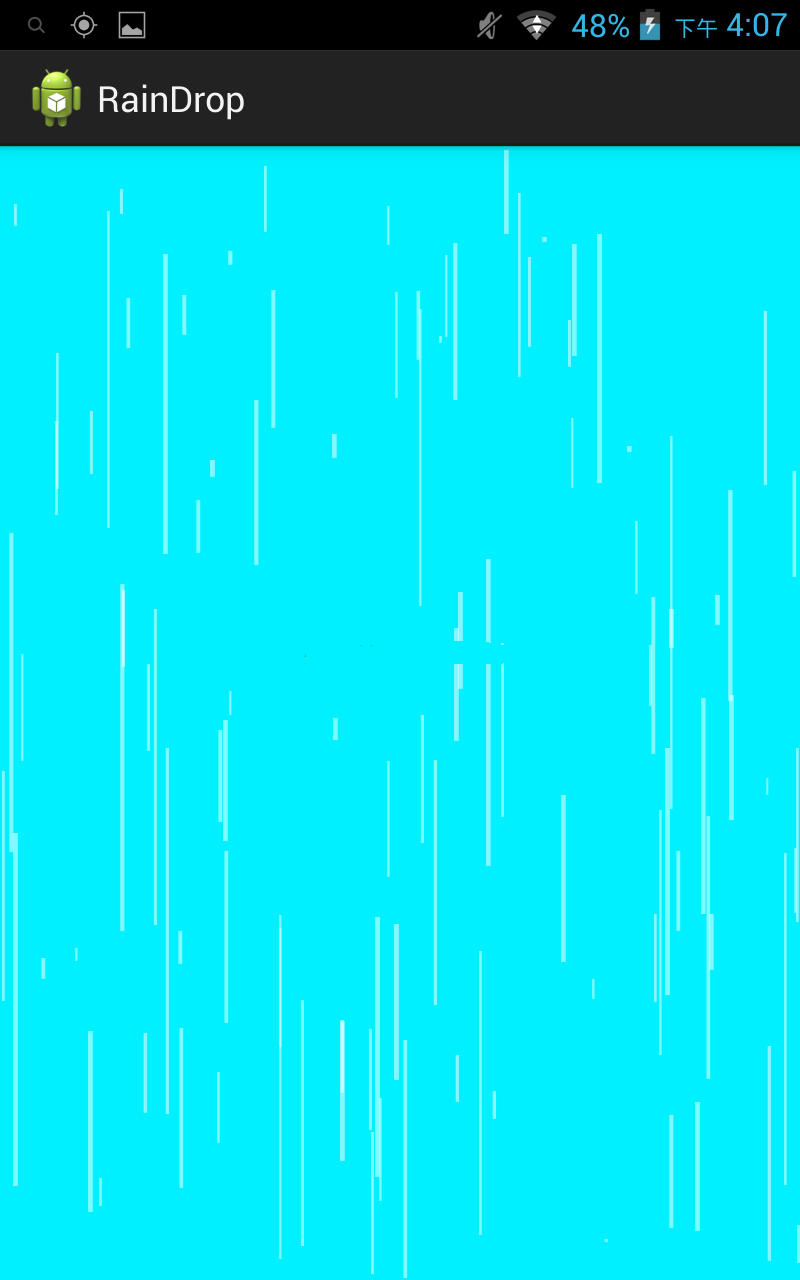

雨滴效果圖：

以上就是本文的全部內容，幫助大家輕松實現浪漫的雪花雨滴效果，大家可以把效果運用到自己的項目中，希望大家喜歡。
