Android編程下拉菜單spinner用法小結(附2則示例)

本文較為詳細的總結分析了Android編程下拉菜單spinner用法。分享給大家供大家參考，具體如下：

Spinner控件也是一種列表類型的控件，它的繼承關系如下：

java.lang.Object
   ↳ android.view.View
     ↳ android.view.ViewGroup
       ↳ android.widget.AdapterView<Textends android.widget.Adapter>
         ↳ android.widget.AbsSpinner
          ↳ android.widget.Spinner

android.widget.Spinner繼承了android.view.ViewGroup類。

在Android的UI開發中，Spinner(下拉列表)總是可以用到的，一個簡單的自定義Spinner制作我們只需要記住這重要的五步，一個Spinner就可以應用而生了。

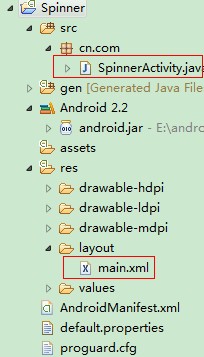

(1)新建一個android工程，名稱為Spinner。同時建一個Activity，名稱為SpinnerActivity。

(2)修改res/layout/main.xml

<?xml version="1.0" encoding="utf-8"?>
<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
 android:orientation="vertical"
 android:layout_width="fill_parent"
 android:layout_height="fill_parent"
 >
 <TextView
 android:id = "@+id/TextView_city"
 android:layout_width = "wrap_content"
 android:layout_height = "wrap_content"
 android:text = "所在城市："
 />
 <!-- 定義一個城市信息下拉菜單-->
 <Spinner
 android:id = "@+id/Spinner_city"
 android:layout_width = "wrap_content"
 android:layout_height ="wrap_content" >
 </Spinner >
</LinearLayout>

(3)SpinnerActivity.java 代碼

package cn.com;
import java.util.ArrayList;
import java.util.List;
import android.app.Activity;
import android.os.Bundle;
import android.view.MotionEvent;
import android.view.View;
import android.widget.AdapterView;
import android.widget.ArrayAdapter;
import android.widget.Spinner;
import android.widget.TextView;
public class SpinnerActivity extends Activity {
 /** Called when the activity is first created. */
 private List<String> list = new ArrayList<String>();
 private TextView myTextView;
 private Spinner mySpinner;
 private ArrayAdapter<String> adapter;
 @Override
 public void onCreate(Bundle savedInstanceState) {
 super.onCreate(savedInstanceState);
 setContentView(R.layout.main);
 //第一步：添加一個下拉列表項的list，這裡添加的項就是下拉列表的菜單項
 list.add("北京");
 list.add("上海");
 list.add("深圳");
 list.add("福州");
 list.add("廈門");
 myTextView = (TextView)findViewById(R.id.TextView_city);
 mySpinner = (Spinner)findViewById(R.id.Spinner_city);
 //第二步：為下拉列表定義一個適配器，這裡就用到裡前面定義的list。
 adapter = new ArrayAdapter<String>(this,android.R.layout.simple_spinner_item, list);
 //第三步：為適配器設置下拉列表下拉時的菜單樣式。
 adapter.setDropDownViewResource(android.R.layout.simple_spinner_dropdown_item);
 //第四步：將適配器添加到下拉列表上
 mySpinner.setAdapter(adapter);
 //第五步：為下拉列表設置各種事件的響應，這個事響應菜單被選中
 mySpinner.setOnItemSelectedListener(new Spinner.OnItemSelectedListener(){
  public void onItemSelected(AdapterView<?> arg0, View arg1, int arg2, long arg3) {
  // TODO Auto-generated method stub
  /* 將所選mySpinner 的值帶入myTextView 中*/
  myTextView.setText("您選擇的是："+ adapter.getItem(arg2));
  /* 將mySpinner 顯示*/
  arg0.setVisibility(View.VISIBLE);
  }
  public void onNothingSelected(AdapterView<?> arg0) {
  // TODO Auto-generated method stub
  myTextView.setText("NONE");
  arg0.setVisibility(View.VISIBLE);
  }
 });
 /*下拉菜單彈出的內容選項觸屏事件處理*/
 mySpinner.setOnTouchListener(new Spinner.OnTouchListener(){
  public boolean onTouch(View v, MotionEvent event) {
  // TODO Auto-generated method stub
  /**
   *
   */
  return false;
  }
 });
 /*下拉菜單彈出的內容選項焦點改變事件處理*/
 mySpinner.setOnFocusChangeListener(new Spinner.OnFocusChangeListener(){
 public void onFocusChange(View v, boolean hasFocus) {
  // TODO Auto-generated method stub
 }
 });
 }
}

運行結果如下圖所示：

補充：Spinner控件用法示例2則

用法1：

<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
 xmlns:tools="http://schemas.android.com/tools"
 android:id="@+id/container"
 android:orientation="vertical"
 android:layout_width="fill_parent"
 android:layout_height="fill_parent"
 tools:context="com.example.mars_2100_spinner.MainActivity"
 tools:ignore="MergeRootFrame" >
<Spinner android:layout_width="fill_parent"
 android:layout_height="wrap_content"
 android:id="@+id/SpinnerId"/>
</LinearLayout>

package com.example.mars_2100_spinner;
import android.support.v7.app.ActionBarActivity;
import android.support.v7.app.ActionBar;
import android.support.v4.app.Fragment;
import android.os.Bundle;
import android.view.LayoutInflater;
import android.view.Menu;
import android.view.MenuItem;
import android.view.View;
import android.view.ViewGroup;
import android.widget.AdapterView;
import android.widget.ArrayAdapter;
import android.widget.Spinner;
import android.widget.Toast;
import android.os.Build;
public class MainActivity extends ActionBarActivity {
 private static final String[] m_arr = {"第一組","第二組","第三組"};
 @Override
 protected void onCreate(Bundle savedInstanceState) {
 super.onCreate(savedInstanceState);
 setContentView(R.layout.activity_main);
 Spinner _spin = (Spinner)findViewById(R.id.SpinnerId);
 ArrayAdapter<String> ada = new ArrayAdapter<String>(this, android.R.layout.simple_spinner_item, m_arr);
 ada.setDropDownViewResource(android.R.layout.simple_spinner_dropdown_item);
 _spin.setAdapter(ada);
 _spin.setOnItemSelectedListener(new Spinner.OnItemSelectedListener(){
  public void onItemSelected(AdapterView<?> arg0, View arg1, int arg2, long arg3){
  dispToast("選擇的是"+m_arr[arg2]);
  arg0.setVisibility(View.VISIBLE);
  }
  public void onNothingSelected(AdapterView<?> arg0){
  //
  }
 });
 /*if (savedInstanceState == null) {
  getSupportFragmentManager().beginTransaction().add(R.id.container, new PlaceholderFragment()).commit();
 }*/
 }
 public void dispToast(String str){
 Toast.makeText(this, str, Toast.LENGTH_SHORT).show();
 }
 @Override
 public boolean onCreateOptionsMenu(Menu menu) {
 // Inflate the menu; this adds items to the action bar if it is present.
 getMenuInflater().inflate(R.menu.main, menu);
 return true;
 }
 @Override
 public boolean onOptionsItemSelected(MenuItem item) {
 // Handle action bar item clicks here. The action bar will
 // automatically handle clicks on the Home/Up button, so long
 // as you specify a parent activity in AndroidManifest.xml.
 int id = item.getItemId();
 if (id == R.id.action_settings) {
  return true;
 }
 return super.onOptionsItemSelected(item);
 }
 /**
 * A placeholder fragment containing a simple view.
 */
 public static class PlaceholderFragment extends Fragment {
 public PlaceholderFragment() {
 }
 @Override
 public View onCreateView(LayoutInflater inflater, ViewGroup container, Bundle savedInstanceState) {
  View rootView = inflater.inflate(R.layout.fragment_main, container, false);
  return rootView;
 }
 }
}

用法2：

<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
 xmlns:tools="http://schemas.android.com/tools"
 android:id="@+id/container"
 android:orientation="vertical"
 android:layout_width="fill_parent"
 android:layout_height="fill_parent"
 tools:context="com.example.mars_2100_spinner.MainActivity"
 tools:ignore="MergeRootFrame" >
<Spinner android:layout_width="fill_parent"
 android:layout_height="wrap_content"
 android:id="@+id/SpinnerId2"/>
<TextView android:id="@+id/textView1"
 android:layout_width="fill_parent"
 android:layout_height="wrap_content"/>
<Spinner android:layout_width="fill_parent"
 android:layout_height="wrap_content"
 android:id="@+id/SpinnerId3"/>
<TextView android:id="@+id/textView2"
 android:layout_width="fill_parent"
 android:layout_height="wrap_content"/>
</LinearLayout>

package com.example.mars_2100_spinner;
import android.support.v7.app.ActionBarActivity;
import android.support.v7.app.ActionBar;
import android.support.v4.app.Fragment;
import android.app.Activity;
import android.os.Bundle;
import android.view.LayoutInflater;
import android.view.Menu;
import android.view.MenuItem;
import android.view.View;
import android.view.ViewGroup;
import android.widget.AdapterView;
import android.widget.AdapterView.OnItemSelectedListener;
import android.widget.ArrayAdapter;
import android.widget.Spinner;
import android.widget.TextView;
import android.os.Build;
public class Main02Activity extends Activity {
 static final String[] CONSTELLATIONS = new String[] { "白羊座", "金牛座", "雙子座", "巨蟹座", "獅子座", "處女座", "天枰座", "天蠍座", "射手座", "魔蠍座", "水瓶座", "雙魚座" };
 @Override
 protected void onCreate(Bundle savedInstanceState) {
 super.onCreate(savedInstanceState);
 setContentView(R.layout.activity_main02);
 final TextView txt2 = (TextView) findViewById(R.id.textView1);
 Spinner s1 = (Spinner) findViewById(R.id.SpinnerId2);
 final ArrayAdapter<CharSequence> adapter = ArrayAdapter.createFromResource(this, R.array.planets_array, android.R.layout.simple_spinner_item);
 adapter.setDropDownViewResource(android.R.layout.simple_spinner_dropdown_item);
 s1.setAdapter(adapter);
 s1.setPrompt("測試");
 s1.setOnItemSelectedListener(new OnItemSelectedListener() {
  @Override
  public void onItemSelected(AdapterView<?> parent, View view, int position, long id) {
  txt2.setText(adapter.getItem(position).toString());
  }
  @Override
  public void onNothingSelected(AdapterView<?> parent) {
  txt2.setText("沒選中的");
  }
 });
 final TextView txt4 = (TextView) findViewById(R.id.textView2);
 Spinner s2 = (Spinner) findViewById(R.id.SpinnerId3);
 ArrayAdapter<CharSequence> adapterC = new ArrayAdapter<CharSequence>(this, android.R.layout.simple_spinner_item, CONSTELLATIONS);
 adapterC.setDropDownViewResource(android.R.layout.simple_spinner_item);
 s2.setAdapter(adapterC);
 s2.setOnItemSelectedListener(new OnItemSelectedListener() {
  public void onItemSelected(AdapterView<?> parent, View view, int position, long id) {
  txt4.setText(CONSTELLATIONS[position]);
  }
  public void onNothingSelected(AdapterView<?> parent) {
  txt4.setText("沒選中的");
  }
 });
 }
 @Override
 public boolean onCreateOptionsMenu(Menu menu) {
 // Inflate the menu; this adds items to the action bar if it is present.
 getMenuInflater().inflate(R.menu.main02, menu);
 return true;
 }
 @Override
 public boolean onOptionsItemSelected(MenuItem item) {
 // Handle action bar item clicks here. The action bar will
 // automatically handle clicks on the Home/Up button, so long
 // as you specify a parent activity in AndroidManifest.xml.
 int id = item.getItemId();
 if (id == R.id.action_settings) {
  return true;
 }
 return super.onOptionsItemSelected(item);
 }
 /**
 * A placeholder fragment containing a simple view.
 */
 public static class PlaceholderFragment extends Fragment {
 public PlaceholderFragment() {
 }
 @Override
 public View onCreateView(LayoutInflater inflater, ViewGroup container, Bundle savedInstanceState) {
  View rootView = inflater.inflate(R.layout.fragment_main02, container, false);
  return rootView;
 }
 }
}

<?xml version="1.0" encoding="utf-8"?>
<resources>
 <string name="app_name">Mars_2100_Spinner</string>
 <string name="hello_world">Hello world!</string>
 <string name="action_settings">Settings</string>
 <string-array name="planets_array">
 <item>Mercury</item>
 <item>Venus</item>
 <item>Earth</item>
 <item>Mars</item>
 <item>Jupiter</item>
 <item>Saturn</item>
 <item>Uranus</item>
 <item>Neptune</item>
 </string-array>
 <string name="title_activity_main02">Main02Activity</string>
</resources>

希望本文所述對大家Android程序設計有所幫助。
