Android -自定義外賣訂單流程

最近在做項目的時候，有個功能是訂單流程每個階段的時間段，這個和購物或者外賣的時候的下單、接單、配送類似！請看下圖

剛開始的做的時候，沒有想過自定義還是按照之前的想法，ui作圖根據狀態替換圖片之類的，後面做著做著感覺好煩，而且這個為了以後方便人調用之類的，所以開始自定義封裝！

分析：
1：總共有五個狀態，已支付、已接單、等待配送、已簽收、待評價

這五個點根據屏幕五等分，每個圓心按照比例相加畫大空心圓和小的實心圓。

2：畫實線和虛線，根據五等分的比例算出每兩個相鄰的圓之間的x

長度，左右兩邊分別加2和減2（留出縫隙處理），這樣就可以畫出

實線和虛線（實線和虛線根據數據來處理）虛線處理稍微復雜一點，見代碼注解

3：現在畫時間和狀態，這裡需要居中處理，剛開始的沒有處理，導致字體和圓心沒有垂直居中！具體的處理的方法代碼有明確說明

給出自定義類:

package org.yidont.ylife.send.view;


import android.content.Context;
import android.graphics.Canvas;
import android.graphics.Color;
import android.graphics.DashPathEffect;
import android.graphics.Paint;
import android.graphics.Path;
import android.graphics.PathEffect;
import android.graphics.Rect;
import android.util.AttributeSet;
import android.view.View;

import org.yidont.ylife.send.R;
import org.yidont.ylife.send.bean.OrderStatusDescribeInfo;

import java.util.ArrayList;
import java.util.List;


/**
 * Created by li4236 on 16/6/21.
 * li4236@aliyun.com
 */
public class CustomRoundTrue extends View {


    private final Paint paint;
    private final Context context;

    public CustomRoundTrue(Context context) {

        // TODO Auto-generated constructor stub
        this(context, null);
    }

    public CustomRoundTrue(Context context, AttributeSet attrs) {
        super(context, attrs);
        // TODO Auto-generated constructor stub
        this.context = context;
        this.paint = new Paint();
        this.paint.setAntiAlias(true); //消除鋸齒
        this.paint.setStyle(Paint.Style.FILL); //繪制空心圓
    }

//    int number = 5;

    int radius = 30;//圓的半徑

    int vivio = 4;//控制顯示多少個實心圓

//    int state = 2;//控制底部文字顯示

    float mFloat[];

    @Override
    protected void onDraw(Canvas canvas) {
        // TODO Auto-generated method stub
        //平分控件的高度,每段的高度

        radius = dip2px(15);
        int height =getHeight() / 2;

        //平分寬度十等分
        int width = getWidth() / (5 * 2);

        //畫虛線的設置////////start///////////

        int cc = 2 * width - 2 * radius - 4;//計算虛線或者實線的寬度 ，-4是因為左右兩邊圓各自留出2的距離 查看99和100行

        mFloat = new float[cc / 2];

        for (int i = 0; i < cc / 2; i++) {
            mFloat[i] = 3;//虛線的寬度初始化
        }

        //畫虛線的大小////////end///////////


        //1 畫最上層的圓///////////////start//////////////
        int circleY = height - radius - radius / 2;

        for (int i = 0; i < mornal.size(); i++) {

            OrderStatusDescribeInfo info = mornal.get(i);

            int circleX = width + i * 2 * width;
            this.paint.setARGB(255, 153, 153, 153);
            this.paint.setStrokeWidth(2);

            if (info.getStatus().equals("0")) { //畫虛圓

                canvas.drawCircle(circleX, circleY, radius, this.paint);
            } else { //畫實圓
                drawReal(circleX, circleY, canvas);
            }


        }


        boolean really = false;
        for (int j = 0; j < mornal.size()-1; j++) { //畫線

            really = true;

            int n = j+1;
            if (n < mornal.size())
            {
                OrderStatusDescribeInfo info1 = mornal.get(n);
                if (info1.getStatus().equals("0"))//獲取下一個數據是空的
                    really = false;
            }

            int lineX = width + j * 2 * width + radius + 2; //+2是為了留出縫隙
            int lineX1 = (width + j * 2 * width) + 2 * width - radius - 2;//-2是為了留出縫隙

            if (!really) { //畫虛線

                Paint paint = new Paint();
                paint.setStyle(Paint.Style.STROKE);
                paint.setColor(Color.DKGRAY);
                Path path = new Path();
                path.moveTo(lineX, circleY);//起點 x/y
                path.lineTo(lineX1, circleY);//終點 x/y
                PathEffect effects = new DashPathEffect(mFloat, 1);//虛線數組
                paint.setPathEffect(effects);
                canvas.drawPath(path, paint);

            } else {//畫實線

                this.paint.setARGB(255, 255, 108, 0);
                canvas.drawLine(lineX, circleY, lineX1, circleY, paint);
            }


        }


        //1 畫最上層的圓///////////////end//////////////

        //2 畫最下層的文字///////////////start//////////////


        int txtY = height + radius;//第一行文字的Y高度

        Paint mPaintLines = new Paint(Paint.ANTI_ALIAS_FLAG);
        mPaintLines.setStrokeWidth(3);
        mPaintLines.setTextSize(dip2px(14));
        mPaintLines.setTextAlign(Paint.Align.LEFT);

        Rect rect = new Rect();

        for (int i = 0; i < mornal.size(); i++) {

            OrderStatusDescribeInfo info = mornal.get(i);

            int lineX = width + i * 2 * width;//每個字符串x坐標

            mPaintLines.getTextBounds(info.getText(), 0, 1, rect);//可以獲取字體寬高

            float awayY2 = txtY + rect.height() + radius / 2;//底層文字y高度計算


            if (info.getStatus().equals("1")) {//需要顯示的時間和文字

                //畫時間
                mPaintLines.setColor(getResources().getColor(R.color.send_time));

                mPaintLines.getTextBounds(info.getTime(), 0, info.getTime().length(), rect);
                canvas.drawText(info.getTime(), lineX - rect.width() / 2, txtY, mPaintLines);

                //畫送貨的狀態
                mPaintLines.setColor(getResources().getColor(R.color.send_state));
                mPaintLines.getTextBounds(info.getText(), 0, info.getText().length(), rect);
                canvas.drawText(info.getText(), lineX - rect.width() / 2, awayY2, mPaintLines);

            } else {

                //單個送貨的狀態
                mPaintLines.setColor(getResources().getColor(R.color.send_state_gray));
                mPaintLines.getTextBounds(info.getText(), 0, info.getText().length(), rect);
                canvas.drawText(info.getText(), lineX - rect.width() / 2, awayY2, mPaintLines);

//                //單個送貨的狀態    ======= 居中顯示
//                mPaintLines.setColor(getResources().getColor(R.color.send_state_gray));
//                mPaintLines.getTextBounds(info.getText(), 0, info.getText().length(), rect);
//
//                float awayY = awayY2 / 2 + height / 2 + rect.height() / 2;//設置字體垂直居中計算高度
//                canvas.drawText(info.getText(), lineX - rect.width() / 2, awayY, mPaintLines);

            }

        }


        //2 畫最下層的文字///////////////end//////////////

        super.onDraw(canvas);
    }


    public void drawReal(int x, int y, Canvas canvas) {
//        繪制外圓
        this.paint.setARGB(255, 255, 108, 0);
        this.paint.setStrokeWidth(2);
        canvas.drawCircle(x, y, radius, this.paint);


        //繪制圓環
        this.paint.setColor(Color.WHITE);
//        this.paint.setStrokeWidth(ringWidth);
        canvas.drawCircle(x, y, radius - 3, this.paint);


        //繪制內圓
        this.paint.setARGB(255, 255, 108, 0);
        this.paint.setStrokeWidth(2);
        canvas.drawCircle(x, y, radius / 3, this.paint);
    }

    /**
     * 根據手機的分辨率從 dp 的單位 轉成為 px(像素)
     */
    public int dip2px( float dpValue) {
        final float scale = context.getResources().getDisplayMetrics().density;
        return (int) (dpValue * scale + 0.5f);
    }

    public List mornal = new ArrayList<>();

    public void setMornal(List mornal) {
        this.mornal = mornal;

        vivio = mornal.size();//控制顯示多少個實心圓

        invalidate();
    }
}

實體類：

package org.yidont.ylife.send.bean;

/**
 * Created by li4236 on 16/7/28.
 * li4236@aliyun.com
 */
public class OrderStatusDescribeInfo {


    private String status;
    private String time;
    private String text;

    public String getStatus() {
        return status;
    }

    public void setStatus(String status) {
        this.status = status;
    }

    public String getTime() {
        return time;
    }

    public void setTime(String time) {
        this.time = time;
    }

    public String getText() {
        return text;
    }

    public void setText(String text) {
        this.text = text;
    }
}

布局使用：

使用方法：

 CustomRoundTrue    mRoundTrue = (CustomRoundTrue) findViewById(R.id.send_round);

        List mornal = new ArrayList<>();

        mRoundTrue.setMornal(mornal);

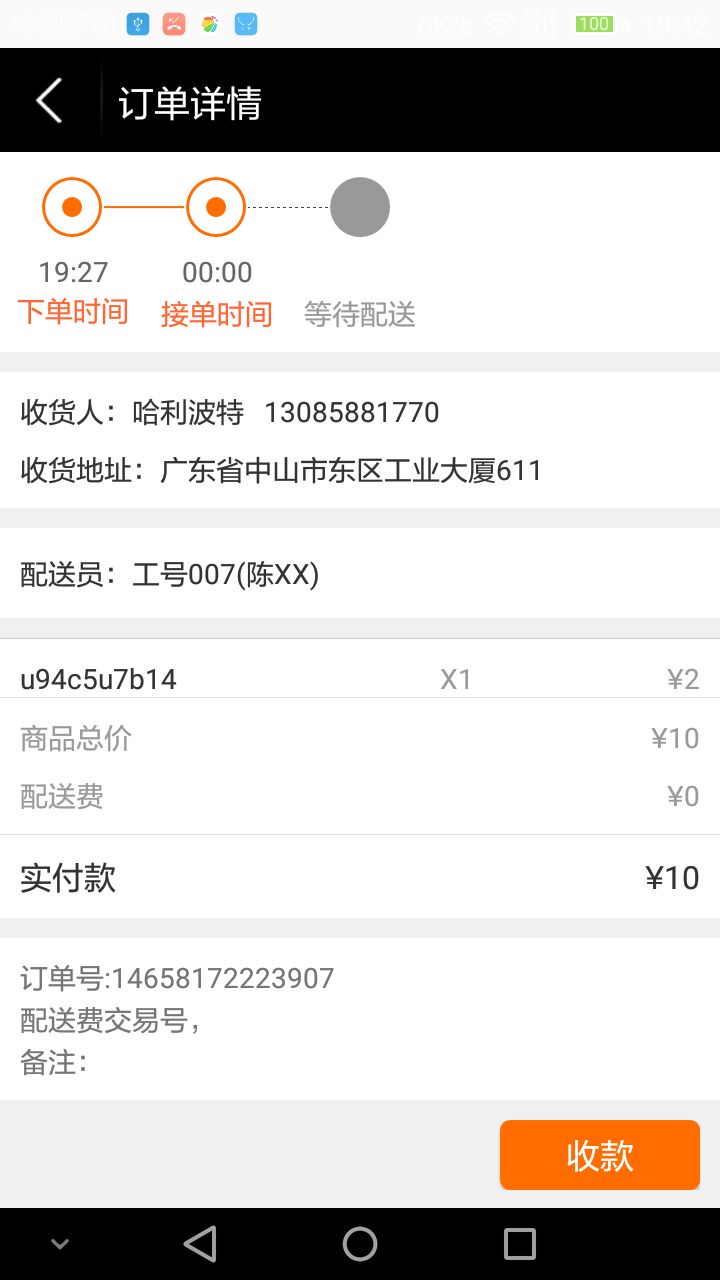

實際項目效果圖
