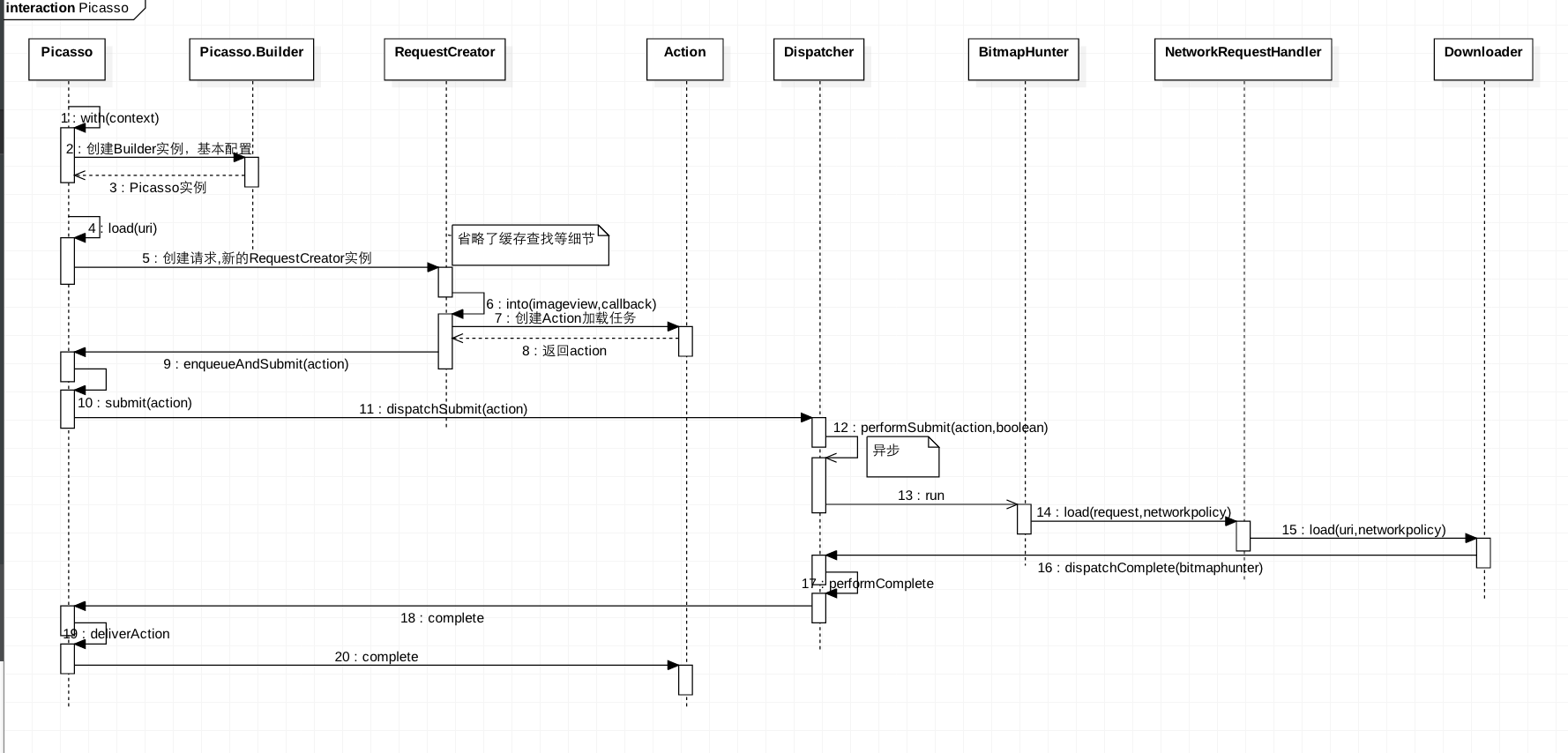

整體架構

Picasso中的核心類包括Picasso、Dispatcher、BitmapHunter、RequestHandler、Request、Action、Cache 等.Picasso類是一個負責圖片下載、變換、緩存的管理器,當它收到一個圖片下載請求的時候，它會創建Request並提交給Dispatcher, Dispatcher會尋找對應的處理器RequestHandler,並將請求與該處理器一起提交給線程池執行,圖片獲取成功後，最終會交給 PicassoDrawable顯示到Target上。<喎?/kf/ware/vc/" target="_blank" class="keylink">vcD4NCjxwPtK71cXNvMasvNPU2L/J0tS31s6q0tTPwry4sr06PC9wPg0KPHByZSBjbGFzcz0="brush:java;"> 創建->入隊->執行->解碼->變換->批處理->完成->分發->顯示(可選)

源碼分析

先看下Picasso的最簡單用法

Picasso.with(this).load("url").into(imageView);

with()方法的實現

Picasso類是整個圖片加載器的入口，負責初始化各個模塊，配置相關參數等等。 使用了單例模式。

  public static Picasso with(Context context) {
    if (singleton == null) {
      synchronized (Picasso.class) {
        if (singleton == null) {
          singleton = new Builder(context).build();
        }
      }
    }
    return singleton;
  }

維護一個Picasso的單例,如果還未實例化就通過new Builder(context).build()創建一個singleton並返回,我們繼續看Builder類的實現。

/** Create the {@link Picasso} instance. */
    public Picasso build() {
      Context context = this.context;

      if (downloader == null) {
        downloader = Utils.createDefaultDownloader(context);
      }
      if (cache == null) {
        cache = new LruCache(context);
      }
      if (service == null) {
        service = new PicassoExecutorService();
      }
      if (transformer == null) {
        transformer = RequestTransformer.IDENTITY;
      }

      Stats stats = new Stats(cache);

      Dispatcher dispatcher = new Dispatcher(context, service, HANDLER, downloader, cache, stats);

      return new Picasso(context, dispatcher, cache, listener, transformer, requestHandlers, stats,
          defaultBitmapConfig, indicatorsEnabled, loggingEnabled);
    }
  }

此方法做了如下基本配置:
1. 使用默認的緩存策略，內存緩存基於LruCache,磁盤緩存基於http緩存,HttpResponseCache
2. 創建默認的下載器
3. 創建默認的線程池(3個worker線程)
4. 創建默認的Transformer,這個Transformer什麼事情也不干，只負責轉發請求
5. 創建默認的監控器(Stats),用於統計緩存命中率、下載時長等等
6. 創建默認的處理器集合,即RequestHandlers.它們分別會處理不同的加載請求
7. Picasso的構造器

下面開始介紹builder初始化的一些內容。

Downloader

如果用戶沒有自定義的話，那將使用默認downloader
Picasso#Builder#build()

downloader = Utils.createDefaultDownloader(context);

Utils#createDefaultDownloader

static Downloader createDefaultDownloader(Context context) {
    try {
      Class.forName("com.squareup.okhttp.OkHttpClient");
      return OkHttpLoaderCreator.create(context);
    } catch (ClassNotFoundException ignored) {
    }
    return new UrlConnectionDownloader(context);
  }

首先反射下，看有沒有依賴okhttp，如果依賴的話，那就使用OkHttpClient喽，否則就使用默認的HttpUrlConnection了。
注:其實從4.4開始，okhttp已經作為HttpUrlConnection的實現引擎了。

Utils#createDefaultCacheDir

private static final String PICASSO_CACHE = "picasso-cache";
  static File createDefaultCacheDir(Context context) {
    File cache = new File(context.getApplicationContext().getCacheDir(), PICASSO_CACHE);
    if (!cache.exists()) {
      //noinspection ResultOfMethodCallIgnored
      cache.mkdirs();
    }
    return cache;
  }

通過getCacheDir方法獲取緩存路徑建立文件名為“picasso-cache”的Picasso的緩存文件。

Cache

緩存默認使用LRU算法，即least-recently used，近期最少使用算法。
使用可用內存堆的1/7（15%）作為圖片緩存。

  static int calculateMemoryCacheSize(Context context) {
    ActivityManager am = getService(context, ACTIVITY_SERVICE);
    boolean largeHeap = (context.getApplicationInfo().flags & FLAG_LARGE_HEAP) != 0;
    int memoryClass = am.getMemoryClass();
    if (largeHeap && SDK_INT >= HONEYCOMB) {
      memoryClass = ActivityManagerHoneycomb.getLargeMemoryClass(am);
    }
    // Target ~15% of the available heap.
    return 1024 * 1024 * memoryClass / 7;
  }

ExecutorService

PicassoExecutorService實現Picasso線程池，構造函數中實例化工作隊列和線程工廠。

默認的線程數是3條

private static final int DEFAULT_THREAD_COUNT = 3;

同時也可以根據不同網絡進行修改，wifi下是4個線程，4g下是3個，3g下是2個，而2g網只有一個線程，具體是通過在Dispatcher中注冊了監聽網絡變化的廣播接收者。（這個方法介紹dispatcher時候講）

void adjustThreadCount(NetworkInfo info) {
    if (info == null || !info.isConnectedOrConnecting()) {
      setThreadCount(DEFAULT_THREAD_COUNT);
      return;
    }
    switch (info.getType()) {
      case ConnectivityManager.TYPE_WIFI:
      case ConnectivityManager.TYPE_WIMAX:
      case ConnectivityManager.TYPE_ETHERNET:
        setThreadCount(4);
        break;
      case ConnectivityManager.TYPE_MOBILE:
        switch (info.getSubtype()) {
          case TelephonyManager.NETWORK_TYPE_LTE:  // 4G
          case TelephonyManager.NETWORK_TYPE_HSPAP:
          case TelephonyManager.NETWORK_TYPE_EHRPD:
            setThreadCount(3);
            break;
          case TelephonyManager.NETWORK_TYPE_UMTS: // 3G
          case TelephonyManager.NETWORK_TYPE_CDMA:
          case TelephonyManager.NETWORK_TYPE_EVDO_0:
          case TelephonyManager.NETWORK_TYPE_EVDO_A:
          case TelephonyManager.NETWORK_TYPE_EVDO_B:
            setThreadCount(2);
            break;
          case TelephonyManager.NETWORK_TYPE_GPRS: // 2G
          case TelephonyManager.NETWORK_TYPE_EDGE:
            setThreadCount(1);
            break;
          default:
            setThreadCount(DEFAULT_THREAD_COUNT);
        }
        break;
      default:
        setThreadCount(DEFAULT_THREAD_COUNT);
    }
  }

RequestTransformer

主要是對RequestCreator創建的Request進行轉換，默認對Request對象不做處理。

Stats

通過Stat標記緩存的狀態（命中數、未命中數、總大小、平均大小、下載次數等）

Dispatcher

每一個Dispatcher都需要關聯線程池(service)、下載器(downloader)、主線程的Handler(HANDLER)、緩存(cache)、 監控器(stats).

      Dispatcher dispatcher = new Dispatcher(context, service, HANDLER, downloader, cache, stats);

關於dispatcher內同涉及到下面的知識點，所有dispatcher的講解會穿插在下面的內容中。

Picasso的構造方法

Picasso的構造方法裡除了對這些對象的賦值以及創建一些新的對象,例如清理線程等等.最重要的是初始化了requestHandlers

int builtInHandlers = 7; // Adjust this as internal handlers are added or removed.
    int extraCount = (extraRequestHandlers != null ? extraRequestHandlers.size() : 0);
    List allRequestHandlers =
        new ArrayList(builtInHandlers + extraCount);

    // ResourceRequestHandler needs to be the first in the list to avoid
    // forcing other RequestHandlers to perform null checks on request.uri
    // to cover the (request.resourceId != 0) case.
    allRequestHandlers.add(new ResourceRequestHandler(context));
    if (extraRequestHandlers != null) {
      allRequestHandlers.addAll(extraRequestHandlers);
    }
    allRequestHandlers.add(new ContactsPhotoRequestHandler(context));
    allRequestHandlers.add(new MediaStoreRequestHandler(context));
    allRequestHandlers.add(new ContentStreamRequestHandler(context));
    allRequestHandlers.add(new AssetRequestHandler(context));
    allRequestHandlers.add(new FileRequestHandler(context));
    allRequestHandlers.add(new NetworkRequestHandler(dispatcher.downloader, stats));
    requestHandlers = Collections.unmodifiableList(allRequestHandlers);

可以看到除了添加我們可以自定義的extraRequestHandlers,另外添加了7個RequestHandler分別用來處理加載不同來源的資源,可以是網絡、file、assert、contactsphoto等地方加載圖片.這裡使用了一個ArrayList來存放這些RequestHandler。

load()方法

Picasso的load方法支持以下4種：

  public RequestCreator load(Uri uri) {
    return new RequestCreator(this, uri, 0);
  }

  public RequestCreator load(String path) {
    if (path == null) {
      return new RequestCreator(this, null, 0);
    }
    if (path.trim().length() == 0) {
      throw new IllegalArgumentException("Path must not be empty.");
    }
    return load(Uri.parse(path));
  }

  public RequestCreator load(File file) {
    if (file == null) {
      return new RequestCreator(this, null, 0);
    }
    return load(Uri.fromFile(file));
  }

  public RequestCreator load(int resourceId) {
    if (resourceId == 0) {
      throw new IllegalArgumentException("Resource ID must not be zero.");
    }
    return new RequestCreator(this, null, resourceId);
  }

在Picasso的load()方法裡我們可以傳入String,Uri或者File對象,但是其最終都是返回一個RequestCreator對象。
再來看看RequestCreator的構造方法:

 RequestCreator(Picasso picasso, Uri uri, int resourceId) {
    if (picasso.shutdown) {
      throw new IllegalStateException(
          "Picasso instance already shut down. Cannot submit new requests.");
    }
    this.picasso = picasso;
    this.data = new Request.Builder(uri, resourceId, picasso.defaultBitmapConfig);
  }

RequestCreator從名字就可以知道這是一個封裝請求的類,請求在Picasso中被抽象成Request。RequestCreator類提供了很多方法，比較常用的比如placeholder、error、tag、fit、resize、centerCrop、centerInside、rotate、fetch、transform等。
由於可配置項太多，所以Request也使用了Builder模式。

into()方法

當然RequestCreator也提供了into這個最重要的方法。
into方法有多種重載，因為Picasso不僅僅可以將圖片加載到ImageView上，還可以加載到Target或者RemoteView上.
這裡選取imageView作為分析對象,該方法代碼如下：

 public void into(ImageView target, Callback callback) {
    long started = System.nanoTime();
    //檢查是否在主線程中執行
    /*
     *用了這個判斷Looper.getMainLooper().getThread() ==Thread.currentThread()
     */
    checkMain();

    if (target == null) {
      throw new IllegalArgumentException("Target must not be null.");
    }
    //檢查uri或者resID是否等於null
    if (!data.hasImage()) {
      //如果沒有設置當然取消請求
      picasso.cancelRequest(target);
      //是否需要設置placeholder
      if (setPlaceholder) {
        setPlaceholder(target, getPlaceholderDrawable());
      }
      return;
    }
    //是否調用了fit()
    if (deferred) {
      if (data.hasSize()) {
        throw new IllegalStateException("Fit cannot be used with resize.");
      }
      //既然要適應ImageView，肯定需要拿到ImageView大小
      int width = target.getWidth();
      int height = target.getHeight();
      //如果圖片的寬高等於0，則用placeholder圖片
      if (width == 0 || height == 0) {
        if (setPlaceholder) {
          setPlaceholder(target, getPlaceholderDrawable());
        }
        picasso.defer(target, new DeferredRequestCreator(this, target, callback));
        return;
      }
      data.resize(width, height);
    }
    //創建request
    Request request = createRequest(started);
    String requestKey = createKey(request);

    //是否需要在緩存裡面先查找
    if (shouldReadFromMemoryCache(memoryPolicy)) {
      Bitmap bitmap = picasso.quickMemoryCacheCheck(requestKey);
      //有緩存
      if (bitmap != null) {
        picasso.cancelRequest(target);
        setBitmap(target, picasso.context, bitmap, MEMORY, noFade, picasso.indicatorsEnabled);
        if (picasso.loggingEnabled) {
          log(OWNER_MAIN, VERB_COMPLETED, request.plainId(), "from " + MEMORY);
        }
        if (callback != null) {
          callback.onSuccess();
        }
        return;
      }
    }

    //無緩存，那就創建Action，將任務交給dispatcher
    if (setPlaceholder) {
      setPlaceholder(target, getPlaceholderDrawable());
    }

    Action action =
        new ImageViewAction(picasso, target, request, memoryPolicy, networkPolicy, errorResId,
            errorDrawable, requestKey, tag, callback, noFade);

    picasso.enqueueAndSubmit(action);
  }

注釋寫的很清楚了，into方法會先從緩存裡面查找圖片，如果找不到的話，則會創建Action即一個加載任務，交給Dispatcher執行。

那我們就來看看picasso.enqueueAndSubmit方法做了什麼。

picasso.enqueueAndSubmit

  void enqueueAndSubmit(Action action) {
    Object target = action.getTarget();
    if (target != null && targetToAction.get(target) != action) {
      // This will also check we are on the main thread.
      cancelExistingRequest(target);
      targetToAction.put(target, action);
    }
    submit(action);
  }
  void submit(Action action) {
    dispatcher.dispatchSubmit(action);
  }

它會先從action任務上拿到對應target，也就是imageView，然後從weakHashMap中通過這個imageView索引到對應的action，如果 發現這個action跟傳進來的action不一樣的話，那就取消掉之前的加載任務。最後將當前加載任務submit。

submit的方法調用的是dispatcher的dispatchSubmit方法。這個dispatcher就是上文中在Picasso的Builder()裡面初始化的那個Dispatcher對象。
那又要回到Dispatcher這個類裡面看dispatchSubmit這個方法了。

void dispatchSubmit(Action action) {
    handler.sendMessage(handler.obtainMessage(REQUEST_SUBMIT, action));
  }

這裡是發了一個消息給Dispatcher的handler，這個handler是DispatcherHandler的對象，

this.handler = new DispatcherHandler(dispatcherThread.getLooper(), this);

而dispatcherThread則是一個HandlerThread，從代碼中可以看出，這個handler的消息處理是在子線程進行的!這樣就可以避免阻塞主線程的消息隊列了!

好，接著上面的話題handler收到這個REQUEST_SUBMIT之後，調用了方法 dispatcher.performSubmit(action);

dispatcher.performSubmit

void performSubmit(Action action, boolean dismissFailed) {
    //此任務是否被暫停
    if (pausedTags.contains(action.getTag())) {
      pausedActions.put(action.getTarget(), action);
      if (action.getPicasso().loggingEnabled) {
        log(OWNER_DISPATCHER, VERB_PAUSED, action.request.logId(),
            "because tag '" + action.getTag() + "' is paused");
      }
      return;
    }
    //首先創建了一個BitmapHunter,它繼承自Runnable,可以被線程池調用
    BitmapHunter hunter = hunterMap.get(action.getKey());
    if (hunter != null) {
      hunter.attach(action);
      return;
    }
    //線程池是否關閉
    if (service.isShutdown()) {
      if (action.getPicasso().loggingEnabled) {
        log(OWNER_DISPATCHER, VERB_IGNORED, action.request.logId(), "because shut down");
      }
      return;
    }
    //還記得在Picasso的構造器中創建了若干RequestHandler嗎,
    //在這裡，forRequest方法會遍歷這些requestHandler，看誰可以處理當前請求，
    //如果發現了，那就創建BitmapHandler,並把這個requestHandler傳進去
    hunter = forRequest(action.getPicasso(), this, cache, stats, action);
    //通過service執行hunter並返回一個future對象
    hunter.future = service.submit(hunter);
    //將hunter添加到hunterMap中
    hunterMap.put(action.getKey(), hunter);
    if (dismissFailed) {
      failedActions.remove(action.getTarget());
    }

    if (action.getPicasso().loggingEnabled) {
      log(OWNER_DISPATCHER, VERB_ENQUEUED, action.request.logId());
    }
  }

上面代碼裡面已經加過了注釋，但是forRequest這個方法還是要講一下。它依次調用requestHandlers裡RequestHandler的canHandleRequest()方法來確定這個request能被哪個RequestHandler執行,找到對應的RequestHandler後就創建BitmapHunter對象並返回.再回到performSubmit()方法裡,通過service.submit(hunter)執行了hunter,hunter實現了Runnable接口,所以run()方法就會被執行。

下面又要跟一下hunter的run方法

BitmapHunter的run()方法

@Override public void run() {
    try {
      updateThreadName(data);

      if (picasso.loggingEnabled) {
        log(OWNER_HUNTER, VERB_EXECUTING, getLogIdsForHunter(this));
      }

      result = hunt();

      if (result == null) {
        dispatcher.dispatchFailed(this);
      } else {
        dispatcher.dispatchComplete(this);
      }
    } catch (Downloader.ResponseException e) {
      if (!e.localCacheOnly || e.responseCode != 504) {
        exception = e;
      }
      dispatcher.dispatchFailed(this);
    } catch (NetworkRequestHandler.ContentLengthException e) {
      exception = e;
      dispatcher.dispatchRetry(this);
    } catch (IOException e) {
      exception = e;
      dispatcher.dispatchRetry(this);
    } catch (OutOfMemoryError e) {
      StringWriter writer = new StringWriter();
      stats.createSnapshot().dump(new PrintWriter(writer));
      exception = new RuntimeException(writer.toString(), e);
      dispatcher.dispatchFailed(this);
    } catch (Exception e) {
      exception = e;
      dispatcher.dispatchFailed(this);
    } finally {
      Thread.currentThread().setName(Utils.THREAD_IDLE_NAME);
    }
  }

一堆catch語句分別捕捉不同的異常然後上報給dispatcher進行處理，主要代碼當然是 hunt()這個方法。

hunt()方法

Bitmap hunt() throws IOException {
    Bitmap bitmap = null;
    //依然先從緩存拿
    if (shouldReadFromMemoryCache(memoryPolicy)) {
      bitmap = cache.get(key);
      if (bitmap != null) {
        stats.dispatchCacheHit();
        loadedFrom = MEMORY;
        if (picasso.loggingEnabled) {
          log(OWNER_HUNTER, VERB_DECODED, data.logId(), "from cache");
        }
        return bitmap;
      }
    }
    //緩存沒有的話，再調用requestHandler.load
    data.networkPolicy = retryCount == 0 ? NetworkPolicy.OFFLINE.index : networkPolicy;
    //拿到結果
    RequestHandler.Result result = requestHandler.load(data, networkPolicy);
    if (result != null) {
      loadedFrom = result.getLoadedFrom();
      exifRotation = result.getExifOrientation();
      //從結果中拿bitmap
      bitmap = result.getBitmap();

      // If there was no Bitmap then we need to decode it from the stream.
      if (bitmap == null) {
        InputStream is = result.getStream();
        try {
          //壓縮
          bitmap = decodeStream(is, data);
        } finally {
          Utils.closeQuietly(is);
        }
      }
    }

    if (bitmap != null) {
      if (picasso.loggingEnabled) {
        log(OWNER_HUNTER, VERB_DECODED, data.logId());
      }
      stats.dispatchBitmapDecoded(bitmap);
      //如果需要圖片Transformation
      if (data.needsTransformation() || exifRotation != 0) {
      //這裡使用了一個全局鎖DECODE_LOCK來保證同一個時刻僅僅有一個圖片正在處理
        synchronized (DECODE_LOCK) {
          if (data.needsMatrixTransform() || exifRotation != 0) {
            bitmap = transformResult(data, bitmap, exifRotation);
            if (picasso.loggingEnabled) {
              log(OWNER_HUNTER, VERB_TRANSFORMED, data.logId());
            }
          }
          if (data.hasCustomTransformations()) {
            bitmap = applyCustomTransformations(data.transformations, bitmap);
            if (picasso.loggingEnabled) {
              log(OWNER_HUNTER, VERB_TRANSFORMED, data.logId(), "from custom transformations");
            }
          }
        }
        if (bitmap != null) {
          stats.dispatchBitmapTransformed(bitmap);
        }
      }
    }

    return bitmap;
  }

這個裡面要分析的當然是requestHandler的load方法了。還記得Picasso的構造方法裡面的那7中RequestHandler嗎？這裡的load方法也要看現在選擇的是那個RequestHandler對象。
這裡我們就拿網絡請求這個NetworkRequestHandler來作介紹。

RequestHandler的load方法

@Override public Result load(Request request, int networkPolicy) throws IOException {
    //這個download一開始介紹過了，是否依賴okhttp
    //如果依賴的話，那就使用OkHttpClient，否則就使用默認的HttpUrlConnection了
    Response response = downloader.load(request.uri, request.networkPolicy);
    if (response == null) {
      return null;
    }
    //判斷是從緩存還是網絡拿的
    Picasso.LoadedFrom loadedFrom = response.cached ? DISK : NETWORK;

    Bitmap bitmap = response.getBitmap();
    if (bitmap != null) {
      return new Result(bitmap, loadedFrom);
    }
    //如果是從網絡返回的，那麼拿到的是流對象
    InputStream is = response.getInputStream();
    if (is == null) {
      return null;
    }
    // Sometimes response content length is zero when requests are being replayed. Haven't found
    // root cause to this but retrying the request seems safe to do so.
    if (loadedFrom == DISK && response.getContentLength() == 0) {
      Utils.closeQuietly(is);
      throw new ContentLengthException("Received response with 0 content-length header.");
    }
    if (loadedFrom == NETWORK && response.getContentLength() > 0) {
      stats.dispatchDownloadFinished(response.getContentLength());
    }
    //將結果封裝返回
    return new Result(is, loadedFrom);
  }

好了，這裡已經獲取到結果了，現在我們再回到BitmapHunter的run()方法，在獲取到result之後，

result = hunt();

      if (result == null) {
        dispatcher.dispatchFailed(this);
      } else {
        dispatcher.dispatchComplete(this);
      }

接下來是dispatcher裡面的方法調用了，dispatchComplete–>performComplete–>batch–>performBatchComplete–>發送信息給主線程（Picasso這個類）。
這裡有一點要注意的，就是performComplete這個函數裡面，對於load下來的文件，有一個寫入cache的操作。

if (shouldWriteToMemoryCache(hunter.getMemoryPolicy())) {
      cache.set(hunter.getKey(), hunter.getResult());
    }

主線程mainThreadHandler處理：

 case HUNTER_BATCH_COMPLETE: {
          @SuppressWarnings("unchecked") List batch = (List) msg.obj;
          //noinspection ForLoopReplaceableByForEach
          for (int i = 0, n = batch.size(); i < n; i++) {
            BitmapHunter hunter = batch.get(i);
            hunter.picasso.complete(hunter);
          }
          break;
        }

下面的流程是這樣的：
hunter.picasso.complete(hunter)–>deliverAction–>action.complete(result, from);
這裡，如果是ImageView的話，那就是ImageViewAction的complete方法。

@Override public void complete(Bitmap result, Picasso.LoadedFrom from) {
    if (result == null) {
      throw new AssertionError(
          String.format("Attempted to complete action with no result!\n%s", this));
    }

    ImageView target = this.target.get();
    if (target == null) {
      return;
    }

    Context context = picasso.context;
    boolean indicatorsEnabled = picasso.indicatorsEnabled;
    PicassoDrawable.setBitmap(target, context, result, from, noFade, indicatorsEnabled);

    if (callback != null) {
      callback.onSuccess();
    }
  }

圖片最終通過PicassoDrawable.setBitmap()方法被設置到ImageView上.
這個PicassoDrawable提供了fade動畫.
最終以一張時序圖收尾


文章同步到github：Picasso源碼分析
