先來說說我遇到的問題，這次測試使用的布局文件是：

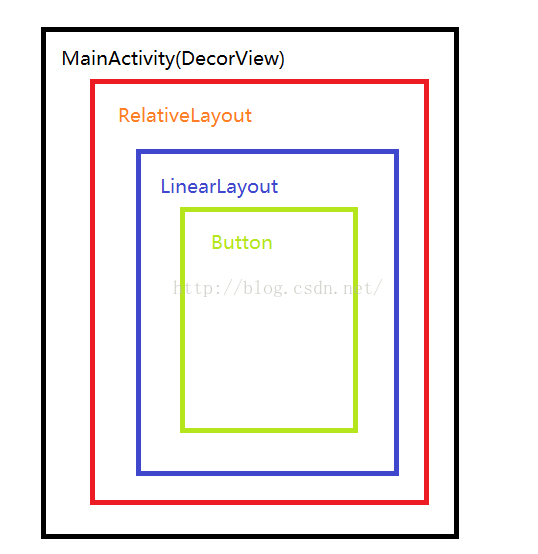

也就是說布局圖是醬紫的：
具體就是我在MyRelativeLayout中攔截了MOVE事件，在MyLinearLayout中攔截並且消費了DOWN事件，也就是說我僅僅修改了MyRelativeLayout$onInterceptTouchEvent中case條件為MOVE的部分以及MyLinearLayout$onInterceptTouchEvent中case條件為DOWN的部分和MyLinearLayout$onTouchEvent中case條件為DOWN的部分；
最後查看Logcat輸出：
06-28 09:09:25.237: I/System.out(1643): MainActivity--->dispatchTouchEvent--->ACTION_DOWN 06-28 09:09:25.237: I/System.out(1643): MyRelativeLayout--->dispatchTouchEvent--->ACTION_DOWN 06-28 09:09:25.237: I/System.out(1643): MyRelativeLayout--->onInterceptTouchEvent--->ACTION_DOWN 06-28 09:09:25.237: I/System.out(1643): MyRelativeLayout--->onInterceptTouchEvent--->ACTION_DOWN--->false 06-28 09:09:25.237: I/System.out(1643): MyLinearLayout--->dispatchTouchEvent--->ACTION_DOWN 06-28 09:09:25.237: I/System.out(1643): MyLinearLayout--->onInterceptTouchEvent--->ACTION_DOWN 06-28 09:09:25.237: I/System.out(1643): MyLinearLayout--->onInterceptTouchEvent--->ACTION_DOWN--->true 06-28 09:09:25.246: I/System.out(1643): MyLinearLayout--->onTouchEvent--->ACTION_DOWN 06-28 09:09:25.246: I/System.out(1643): MyLinearLayout--->onTouchEvent--->ACTION_DOWN--->true 06-28 09:09:25.246: I/System.out(1643): MyLinearLayout--->dispatchTouchEvent--->ACTION_DOWN--->true 06-28 09:09:25.246: I/System.out(1643): MyRelativeLayout--->dispatchTouchEvent--->ACTION_DOWN--->true 06-28 09:09:25.246: I/System.out(1643): MainActivity--->dispatchTouchEvent--->ACTION_DOWN--->true 06-28 09:09:25.326: I/System.out(1643): MainActivity--->dispatchTouchEvent--->ACTION_MOVE 06-28 09:09:25.326: I/System.out(1643): MyRelativeLayout--->dispatchTouchEvent--->ACTION_MOVE 06-28 09:09:25.326: I/System.out(1643): MyRelativeLayout--->onInterceptTouchEvent--->ACTION_MOVE 06-28 09:09:25.326: I/System.out(1643): MyRelativeLayout--->onInterceptTouchEvent--->ACTION_MOVE--->true 06-28 09:09:25.326: I/System.out(1643): MyLinearLayout--->dispatchTouchEvent--->ACTION_CANCEL 06-28 09:09:25.326: I/System.out(1643): MyLinearLayout--->dispatchTouchEvent--->ACTION_CANCEL--->false 06-28 09:09:25.326: I/System.out(1643): MyRelativeLayout--->dispatchTouchEvent--->ACTION_MOVE--->false 06-28 09:09:25.326: I/System.out(1643): MainActivity--->onTouchEvent--->ACTION_MOVE 06-28 09:09:25.326: I/System.out(1643): MainActivity--->onTouchEvent--->ACTION_MOVE--->false 06-28 09:09:25.326: I/System.out(1643): MainActivity--->dispatchTouchEvent--->ACTION_MOVE--->false 06-28 09:09:25.336: I/System.out(1643): MainActivity--->dispatchTouchEvent--->ACTION_MOVE 06-28 09:09:25.336: I/System.out(1643): MyRelativeLayout--->dispatchTouchEvent--->ACTION_MOVE 06-28 09:09:25.336: I/System.out(1643): MyRelativeLayout--->onTouchEvent--->ACTION_MOVE 06-28 09:09:25.336: I/System.out(1643): MyRelativeLayout--->onTouchEvent--->ACTION_MOVE--->false 06-28 09:09:25.336: I/System.out(1643): MyRelativeLayout--->dispatchTouchEvent--->ACTION_MOVE--->false 06-28 09:09:25.336: I/System.out(1643): MainActivity--->onTouchEvent--->ACTION_MOVE 06-28 09:09:25.336: I/System.out(1643): MainActivity--->onTouchEvent--->ACTION_MOVE--->false 06-28 09:09:25.336: I/System.out(1643): MainActivity--->dispatchTouchEvent--->ACTION_MOVE--->false 06-28 09:09:25.412: I/System.out(1643): MainActivity--->dispatchTouchEvent--->ACTION_UP 06-28 09:09:25.416: I/System.out(1643): MyRelativeLayout--->dispatchTouchEvent--->ACTION_UP 06-28 09:09:25.416: I/System.out(1643): MyRelativeLayout--->onTouchEvent--->ACTION_UP 06-28 09:09:25.416: I/System.out(1643): MyRelativeLayout--->onTouchEvent--->ACTION_UP--->false 06-28 09:09:25.416: I/System.out(1643): MyRelativeLayout--->dispatchTouchEvent--->ACTION_UP--->false 06-28 09:09:25.416: I/System.out(1643): MainActivity--->onTouchEvent--->ACTION_UP 06-28 09:09:25.416: I/System.out(1643): MainActivity--->onTouchEvent--->ACTION_UP--->false 06-28 09:09:25.416: I/System.out(1643): MainActivity--->dispatchTouchEvent--->ACTION_UP--->false
下面我們來分析下具體的輸出過程
為了便於分析，先來貼出此測試過程中用到的部分源碼：
ViewGroup$dispatchTouchEvent
@Override
public boolean dispatchTouchEvent(MotionEvent ev) {
if (mInputEventConsistencyVerifier != null) {
mInputEventConsistencyVerifier.onTouchEvent(ev, 1);
}
boolean handled = false;
if (onFilterTouchEventForSecurity(ev)) {
final int action = ev.getAction();
final int actionMasked = action & MotionEvent.ACTION_MASK;
// Handle an initial down.
if (actionMasked == MotionEvent.ACTION_DOWN) {
// Throw away all previous state when starting a new touch gesture.
// The framework may have dropped the up or cancel event for the previous gesture
// due to an app switch, ANR, or some other state change.
cancelAndClearTouchTargets(ev);
resetTouchState();
}
// Check for interception.
final boolean intercepted;
if (actionMasked == MotionEvent.ACTION_DOWN
|| mFirstTouchTarget != null) {
final boolean disallowIntercept = (mGroupFlags & FLAG_DISALLOW_INTERCEPT) != 0;
if (!disallowIntercept) {
intercepted = onInterceptTouchEvent(ev);
ev.setAction(action); // restore action in case it was changed
} else {
intercepted = false;
}
} else {
// There are no touch targets and this action is not an initial down
// so this view group continues to intercept touches.
intercepted = true;
}
// Check for cancelation.
final boolean canceled = resetCancelNextUpFlag(this)
|| actionMasked == MotionEvent.ACTION_CANCEL;
// Update list of touch targets for pointer down, if needed.
final boolean split = (mGroupFlags & FLAG_SPLIT_MOTION_EVENTS) != 0;
TouchTarget newTouchTarget = null;
boolean alreadyDispatchedToNewTouchTarget = false;
if (!canceled && !intercepted) {
if (actionMasked == MotionEvent.ACTION_DOWN
|| (split && actionMasked == MotionEvent.ACTION_POINTER_DOWN)
|| actionMasked == MotionEvent.ACTION_HOVER_MOVE) {
final int actionIndex = ev.getActionIndex(); // always 0 for down
final int idBitsToAssign = split ? 1 << ev.getPointerId(actionIndex)
: TouchTarget.ALL_POINTER_IDS;
// Clean up earlier touch targets for this pointer id in case they
// have become out of sync.
removePointersFromTouchTargets(idBitsToAssign);
final int childrenCount = mChildrenCount;
if (newTouchTarget == null && childrenCount != 0) {
final float x = ev.getX(actionIndex);
final float y = ev.getY(actionIndex);
// Find a child that can receive the event.
// Scan children from front to back.
final View[] children = mChildren;
final boolean customOrder = isChildrenDrawingOrderEnabled();
for (int i = childrenCount - 1; i >= 0; i--) {
final int childIndex = customOrder ?
getChildDrawingOrder(childrenCount, i) : i;
final View child = children[childIndex];
if (!canViewReceivePointerEvents(child)
|| !isTransformedTouchPointInView(x, y, child, null)) {
continue;
}
newTouchTarget = getTouchTarget(child);
if (newTouchTarget != null) {
// Child is already receiving touch within its bounds.
// Give it the new pointer in addition to the ones it is handling.
newTouchTarget.pointerIdBits |= idBitsToAssign;
break;
}
resetCancelNextUpFlag(child);
if (dispatchTransformedTouchEvent(ev, false, child, idBitsToAssign)) {
// Child wants to receive touch within its bounds.
mLastTouchDownTime = ev.getDownTime();
mLastTouchDownIndex = childIndex;
mLastTouchDownX = ev.getX();
mLastTouchDownY = ev.getY();
newTouchTarget = addTouchTarget(child, idBitsToAssign);
alreadyDispatchedToNewTouchTarget = true;
break;
}
}
}
if (newTouchTarget == null && mFirstTouchTarget != null) {
// Did not find a child to receive the event.
// Assign the pointer to the least recently added target.
newTouchTarget = mFirstTouchTarget;
while (newTouchTarget.next != null) {
newTouchTarget = newTouchTarget.next;
}
newTouchTarget.pointerIdBits |= idBitsToAssign;
}
}
}
// Dispatch to touch targets.
if (mFirstTouchTarget == null) {
// No touch targets so treat this as an ordinary view.
handled = dispatchTransformedTouchEvent(ev, canceled, null,
TouchTarget.ALL_POINTER_IDS);
} else {
// Dispatch to touch targets, excluding the new touch target if we already
// dispatched to it. Cancel touch targets if necessary.
TouchTarget predecessor = null;
TouchTarget target = mFirstTouchTarget;
while (target != null) {
final TouchTarget next = target.next;
if (alreadyDispatchedToNewTouchTarget && target == newTouchTarget) {
handled = true;
} else {
final boolean cancelChild = resetCancelNextUpFlag(target.child)
|| intercepted;
if (dispatchTransformedTouchEvent(ev, cancelChild,
target.child, target.pointerIdBits)) {
handled = true;
}
if (cancelChild) {
if (predecessor == null) {
mFirstTouchTarget = next;
} else {
predecessor.next = next;
}
target.recycle();
target = next;
continue;
}
}
predecessor = target;
target = next;
}
}
// Update list of touch targets for pointer up or cancel, if needed.
if (canceled
|| actionMasked == MotionEvent.ACTION_UP
|| actionMasked == MotionEvent.ACTION_HOVER_MOVE) {
resetTouchState();
} else if (split && actionMasked == MotionEvent.ACTION_POINTER_UP) {
final int actionIndex = ev.getActionIndex();
final int idBitsToRemove = 1 << ev.getPointerId(actionIndex);
removePointersFromTouchTargets(idBitsToRemove);
}
}
if (!handled && mInputEventConsistencyVerifier != null) {
mInputEventConsistencyVerifier.onUnhandledEvent(ev, 1);
}
return handled;
}
ViewGroup$dispatchTransformedTouchEvent
private boolean dispatchTransformedTouchEvent(MotionEvent event, boolean cancel,
View child, int desiredPointerIdBits) {
final boolean handled;
// Canceling motions is a special case. We don't need to perform any transformations
// or filtering. The important part is the action, not the contents.
final int oldAction = event.getAction();
if (cancel || oldAction == MotionEvent.ACTION_CANCEL) {
event.setAction(MotionEvent.ACTION_CANCEL);
if (child == null) {
handled = super.dispatchTouchEvent(event);
} else {
handled = child.dispatchTouchEvent(event);
}
event.setAction(oldAction);
return handled;
}
// Calculate the number of pointers to deliver.
final int oldPointerIdBits = event.getPointerIdBits();
final int newPointerIdBits = oldPointerIdBits & desiredPointerIdBits;
// If for some reason we ended up in an inconsistent state where it looks like we
// might produce a motion event with no pointers in it, then drop the event.
if (newPointerIdBits == 0) {
return false;
}
// If the number of pointers is the same and we don't need to perform any fancy
// irreversible transformations, then we can reuse the motion event for this
// dispatch as long as we are careful to revert any changes we make.
// Otherwise we need to make a copy.
final MotionEvent transformedEvent;
if (newPointerIdBits == oldPointerIdBits) {
if (child == null || child.hasIdentityMatrix()) {
if (child == null) {
handled = super.dispatchTouchEvent(event);
} else {
final float offsetX = mScrollX - child.mLeft;
final float offsetY = mScrollY - child.mTop;
event.offsetLocation(offsetX, offsetY);
handled = child.dispatchTouchEvent(event);
event.offsetLocation(-offsetX, -offsetY);
}
return handled;
}
transformedEvent = MotionEvent.obtain(event);
} else {
transformedEvent = event.split(newPointerIdBits);
}
// Perform any necessary transformations and dispatch.
if (child == null) {
handled = super.dispatchTouchEvent(transformedEvent);
} else {
final float offsetX = mScrollX - child.mLeft;
final float offsetY = mScrollY - child.mTop;
transformedEvent.offsetLocation(offsetX, offsetY);
if (! child.hasIdentityMatrix()) {
transformedEvent.transform(child.getInverseMatrix());
}
handled = child.dispatchTouchEvent(transformedEvent);
}
// Done.
transformedEvent.recycle();
return handled;
}
具體分析過程：
注意：分發順序是：Activity----->ViewGroup----->View
消費順序是：View------>ViewGroup----->Activity
View中的事件方法執行流程是：dispatchTouchEvent----->onTouchEvent
ViewGroup中的事件方法執行流程是：dispatchTouchEvent----->onInterceptTouchEvent----->onTouchEvent
(1)先來看DOWN事件部分：
事件首先傳遞到MainActivity，調用它的dispatchTouchEvent分發到他的子View(MyRelativeLayout上)，因為是DOWN事件，滿足ViewGroup$dispatchTouchEvent源碼的第23行if語句的第一個條件，進入if語句塊中，因為我們並沒有調用requestDisallowInterceptTouchEvent來干預事件的分發過程，所以會執行第27行的onInterceptTouchEvent方法，我們的測試中MyRelativeLayout沒有攔截DOWN事件，因而該方法默認返回值是false賦給intercepted，所以你有了Logcat第4行的輸出，接著執行第46行，滿足if語句條件，進入if語句塊中，這個裡面比較關鍵的代碼是第85行的dispatchTransformedTouchEvent方法，這個方法會遞歸的處理當前View的子View，所以你會發現Logcat第11行MyRelativeLayout的dispatchTouchEvent方法才算真正結束，這裡只需要知道第91行會調用addTouchTarget方法，該方法會在其子View的分發事件(dispatchTouchEvent)返回true的情況下執行，在它裡面會給mFirstTouchTarget賦值即可，因為MyRelativeLayout子View是MyLinearLayout，所以執行MyLinearLayout的dispatchTouchEvent方法，接著執行MyLinearLayout的onInterceptTouchEvent方法，因為MyLinearLayout攔截了DOWN事件，因而onInterceptTouchEvent返回true，那麼這時候ViewGroup$dispatchTouchEvent的第46---108行代碼將不再執行，因為此時mFirstTouchTarget還是null的，所以會執行第111行的if語句塊，調用dispatchTransformedTouchEvent方法，傳入的第三個參數是null，查看ViewGroup$dispatchTransformedTouchEvent源碼的第11行，發現他會執行super的dispatchTouchEvent方法，因為我們沒有為MyLinearLayout設置onTouch監聽事件，所以他直接執行了onTouchEvent方法，並且我們消費了這個DOWN事件，所以有了Logcat第9行的輸出，接下來就是遞歸返回過程了，即Logcat第10--12行的輸出部分；
(2)接下來分析第一次MOVE事件
和上面一樣，事件首先到了MainActivity，調用他的dispatchTouchEvent方法進行分發，接著事件分發到了MyRelativeLayout上面，調用他的dispatchTouchEvent方法，因為第一次DOWN事件中，我們已經將mFirstTouchTarget的值設置為非null，所以ViewGroup$dispatchTouchEvent方法走到第23行的時候仍然滿足if判斷條件，執行第27行的onInterceptTouchEvent方法，所以有了第15行的Logcat輸出，因為我們在MyRelativeLayout中攔截了MOVE事件，所以intercepted的值將會被賦值為true，因而ViewGroup$dispatchTouchEvent的第46--108行的代碼將不會執行，到了第111行判斷mFirstTouchTarget不為null，執行else語句部分，這裡比較關鍵的在於第125行，因為此時的intercepted值為true，所以cancelChild值將為true，在執行第127行dispatchTransformedTouchEvent的時候將cancelChild值傳入，查看ViewGroup$dispatchTransformedTouchEvent的源碼第9行，你會發現他執行了ACTION_CANCEL，所以出現了我們Logcat輸出的第17/18行，因而第127行的if條件內容將為false，所以handled的值此時仍然是false，因為cancelChild值是true，所以執行第131行，並且此時的predecessor等於null，因而修改mFirstTouchTarget的值為next，這裡就比較重要了，此處的next是null，為什麼呢？因為之前mFirstTouchTarget的值是MyLinearLayout，雖然MyLinearLayout有子View(MyButton)，但是MyLinearLayout把DOWN時間消費了，所以MyButton根本就沒有加入到事件處理的鏈表中，所以對mFirstTouchTarget的值進行了修改，ViewGroup$dispatchTouchEvent的第148--161行不再會修改handled的值，那麼我們可以認為MyRelativeLayout的dispatchTouchEvent方法執行結束，因為此時事件還沒有被消費，那麼只能由MainActivity來進行處理了，所以有了Logcat第20--22行的輸出；
(3)接下來分析第二次以後的MOVE事件
同樣事件首先由MainActivity的dispatchTouchEvent分發到MyRelativeLayout上，執行他的dispatchTouchEvent方法，這時候判斷ViewGroup$dispatchTouchEvent第23行的if語句部分，發現部門組條件，那麼會執行第35行的else語句部分，設置intercepted的值為true，同樣的不會執行第46--108行部分，在判斷第111行的mFirstTouchTarget是否為null時，滿足條件，執行dispatchTransformedTouchEvent方法，傳入的第3個參數是null，那麼會執行super的dispatchTouchEvent方法，這屬於View的事件分發過程，同樣我們沒有為MyRelativeLayout設置onTouch方法，所以他會直接執行onTouchEvent方法，所以有了Logcat第25行的輸出，接下來在onTouchEvent執行結束之後返回false，因為我們沒有在MyRelativeLayout中消費MOVE事件，因為該事件沒有處理完，因而會回傳給MainActivity來進行處理；
(4)接下來就是UP事件了：
UP事件的分析和第二次以後的MOVE事件過程一致，就不再贅述了；
從上面的分析中，我們可以得出結論：
某一個View一旦決定攔截，那麼這個事件序列以後的部分只能由他來處理，前提條件是以後的事件是可以到達該View的，就像上面的例子，DOWN事件是由MyLinearLayout來攔截消費的，但是MOVE事件卻不是他處理的，原因在於MyRelativeLayout對MOVE事件進行了攔截，事件根本就不會到達MyLinearLayout；
