快速集成android實現listview的字母A-Z排序,界面側邊字母索引

Android手機字母A-Z排序側邊索引是非常常見的功能,在此提供快速集成框架.教你用Android studio工具一分鐘搞定這個效果.

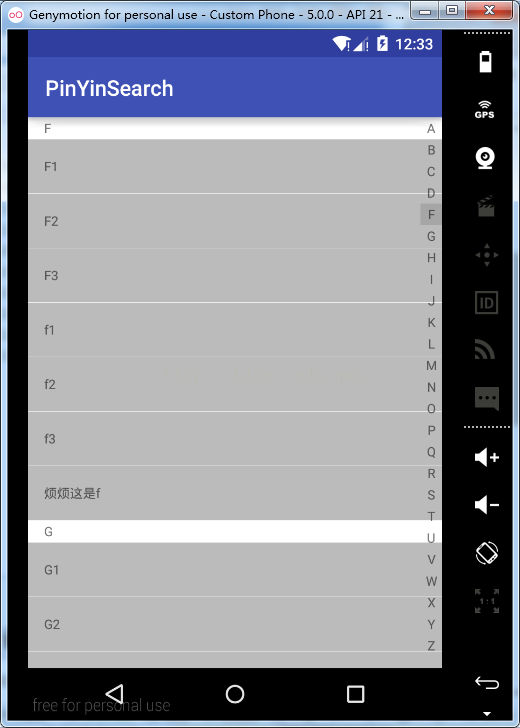

實現效果:

以及點擊F跳轉效果



第一步庫包導入實現拼音檢索功能



-------拼音檢索詳細見:



compile 'com.github.promeg:tinypinyin:1.0.0'// ~80KB同步後後面會下載80k的文件,就可以使用



-------測試一下:



public void go1(View view){//按鈕go1點擊測試
    String str="界面側邊ABc字母檢索";
   for (char c:str.toCharArray()){
        System.out.println("檢索返回:"+Pinyin.toPinyin(c));//如果c為漢字，則返回大寫拼音；如果c不是漢字，則返回String.valueOf(c)
        System.out.println("如果c為漢字,則返回true,否則返回false:"+Pinyin.isChinese(c));
    }
}

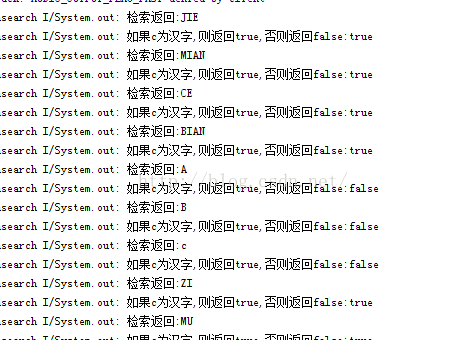

結果效果:

第二步構建代碼:   1.適配器LvRithtItemAdapter類

public class LvRightItemAdapter extends BaseAdapter { private List mEntities; private Activity context; private LayoutInflater layoutInflater; public LvRightItemAdapter(Activity context,List entities) { this.context = context; this.mEntities = entities; this.layoutInflater = LayoutInflater.from(context); } @Override public int getCount() { return mEntities.size(); } @Override public DataEntity getItem(int position) { return mEntities.get(position); } @Override public long getItemId(int position) { return position; } @Override public View getView(int position, View convertView, ViewGroup parent) { if (convertView == null) { convertView = layoutInflater.inflate(R.layout.lv_right_item, parent,false); ViewHolder viewHolder = new ViewHolder(); viewHolder.tvLvRightItem = (TextView) convertView.findViewById(R.id.tv_lv_right_item); convertView.setTag(viewHolder); } initializeViews((DataEntity)getItem(position), (ViewHolder) convertView.getTag()); return convertView; } private void initializeViews(DataEntity entity, ViewHolder holder) { //TODO implement holder.tvLvRightItem.setText(String.valueOf(entity.getChar_First())); } protected class ViewHolder { private TextView tvLvRightItem; } }

2.自定義MyExpandAdapter代碼(這個類只是把沒用到的ExpandableListAdapter復寫方法存放在這):



public abstract class MyExpandAdapter implements ExpandableListAdapter{ //用抽象方法把下拉子菜單的不用的方法集中在這裡,方便觀看 //抽象出接口,回調方法,用方法繼承就可以定義子菜單 @Override public void registerDataSetObserver(DataSetObserver observer) { } @Override public void unregisterDataSetObserver(DataSetObserver observer) { } @Override public Object getGroup(int groupPosition) { return null; } @Override public Object getChild(int groupPosition, int childPosition) { return null; } @Override public long getGroupId(int groupPosition) { return 0; } @Override public long getChildId(int groupPosition, int childPosition) { return 0; } @Override public boolean hasStableIds() { return false; } @Override public boolean isChildSelectable(int groupPosition, int childPosition) { return false; } @Override public boolean areAllItemsEnabled() { return false; } @Override public boolean isEmpty() { return false; } @Override public void onGroupExpanded(int groupPosition) { } @Override public void onGroupCollapsed(int groupPosition) { } @Override public long getCombinedChildId(long groupId, long childId) { return 0; } @Override public long getCombinedGroupId(long groupId) { return 0; } }

3.精簡的下拉子菜單自定義SimpleExpAdapter適配器類

public class SimpleExpAdapter extends MyExpandAdapter{
    private List mDataEntities;   //列表數據存放的集合
    private Activity mActivity;
    private LayoutInflater mLayoutInflater;  //布局渲染成一個view

    public SimpleExpAdapter(List dataEntities, Activity activity){
        mDataEntities = dataEntities;
        mActivity = activity;
        mLayoutInflater=mActivity.getLayoutInflater();
    }

    @Override
    public int getGroupCount() {
        return mDataEntities.size();
    }

    @Override
    public int getChildrenCount(int groupPosition) {
        return mDataEntities.get(groupPosition).getDatas().size();
    }

    @Override
    public View getGroupView(int groupPosition, boolean isExpanded, View convertView, ViewGroup parent) {
        ViewHolder viewHolder=null;
        if (convertView==null){
            viewHolder=new ViewHolder();
            convertView=mLayoutInflater.inflate(R.layout.exlv_item_group,parent,false);
            viewHolder.mTextView= (TextView) convertView.findViewById(R.id.tv_exlv_group);
            convertView.setTag(viewHolder);
        }else {
            viewHolder= (ViewHolder) convertView.getTag();
        }
        viewHolder.mTextView.setText(String.valueOf(mDataEntities.get(groupPosition).getChar_First()));//適配器設置列表數據
        return convertView;
    }

    @Override
    public View getChildView(int groupPosition, int childPosition, boolean isLastChild, View convertView, ViewGroup parent) {
        ViewHolder viewHolder=null;
        if (convertView==null){
            viewHolder=new ViewHolder();
            convertView=mLayoutInflater.inflate(R.layout.exlv_item_child,parent,false);
            viewHolder.mTextView= (TextView) convertView.findViewById(R.id.tv_exlv_child);
            convertView.setTag(viewHolder);
        }else{
            viewHolder= (ViewHolder) convertView.getTag();
        }
        viewHolder.mTextView.setText(mDataEntities.get(groupPosition).getDatas().get(childPosition));
        return convertView;
    }
    class ViewHolder{//item放置的控件
        TextView mTextView;
    }
}

4.數據邏輯控制dao包:

public class DataDao { private List mDataEntities=new ArrayList<>(); public void add(String data){ char data_first=data.toUpperCase().charAt(0); //將首個字母轉換為大寫字母 if (Pinyin.isChinese(data_first)){ //如果首個字母是中文,則獲取漢字首個字母的大寫 data_first= Pinyin.toPinyin(data_first).charAt(0); } //確保取得大寫的唯一首字母,然後繼續執行 for (DataEntity dataEntity:mDataEntities){ if (dataEntity.isSameFirst(data_first)){ dataEntity.addData(data); return; } } DataEntity dataEntity=new DataEntity(); dataEntity.setChar_First(data_first); dataEntity.addData(data); mDataEntities.add(dataEntity); Collections.sort(mDataEntities); } public List getDataEntities() { System.out.println(mDataEntities.toString()); return mDataEntities; } }

5.封裝列表數據類:

public class DataEntity implements Comparable{
    private char mChar_First;   //定義首字母
    private List mDatas=new ArrayList<>();
   public  boolean isSameFirst(char des){//判斷是否與傳入的des相等
        return des==this.mChar_First;
    }
    public void addData(String data){
        mDatas.add(data);
        Collections.sort(mDatas);  //排列首字母相同的列表數據
        System.out.println(mDatas.toString());
    }
    @Override
    public int compareTo(DataEntity another) {
        return this.mChar_First-another.getChar_First();
    }
    public List getDatas() {  //存放同首字母的列表數據
        return mDatas;
    }
   public char getChar_First() {
        return mChar_First;
    }
    public void setChar_First(char char_First) {
        mChar_First = char_First;
    }
   @Override
    public String toString() {
        return "DataEntity{" +
                "mChar_First=" + mChar_First +
                ", mDatas=" + mDatas +
                '}';
    }
}

6顯示的activity界面類(數據直接在addlistdatas()方法中添加):

public class MainActivity extends AppCompatActivity {
    ExpandableListView mExlv;
    DataDao mDataDao=new DataDao();
    ListView mLvRight; //右側的字母欄
    @Override
    protected void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.activity_main);
        initView();
        addListdatas();//填充列表假數據測試,失敗經驗:數據不能再setadapter之後進行
        initListener();
   }
    public void initListener(){
        mExlv.setAdapter(new SimpleExpAdapter(mDataDao.getDataEntities(), this));
        //全都展開不能回縮
        for (int i = 0; i < mDataDao.getDataEntities().size(); i++) {
            mExlv.expandGroup(i);
        }
        mExlv.setOnGroupClickListener(new ExpandableListView.OnGroupClickListener() {
            @Override
            public boolean onGroupClick(ExpandableListView parent, View v, int groupPosition, long id) {
                return true;
            }
        });
        mLvRight.setAdapter(new LvRightItemAdapter(this,mDataDao.getDataEntities()));
        mLvRight.setOnItemClickListener(new AdapterView.OnItemClickListener() {
            @Override
            public void onItemClick(AdapterView parent, View view, int position, long id) {
                mExlv.setSelectedGroup(position);

            }
        });
    }
    public void initView(){
        mExlv= (ExpandableListView) findViewById(R.id.exlv);
        mLvRight= (ListView) findViewById(R.id.lv_right);


    }
//    public void go1(View view){   //字母檢索
//        String str="界面側邊ABc字母檢索";
//        for (char c:str.toCharArray()){
//            System.out.println("檢索返回:"+Pinyin.toPinyin(c));//如果c為漢字，則返回大寫拼音；如果c不是漢字，則返回String.valueOf(c)
//            System.out.println("如果c為漢字,則返回true,否則返回false:"+Pinyin.isChinese(c));
//        }
//    }
    public void addListdatas(){
        mDataDao.add("拜拜這是b");
        mDataDao.add("啊啊這是a");
        mDataDao.add("啧啧這是z");
        mDataDao.add("煩煩這是f");
        mDataDao.add("哥哥這是g");
        mDataDao.add("哈哈這是h");
        mDataDao.add("看看這是k");
        mDataDao.add("啊拜這是ab");
        for(int i='a';i<'z';i++){
            if (i=='e'||i=='h'){
                continue;
            }
            mDataDao.add((char) i + "1");
            mDataDao.add((char) i + "2");
            mDataDao.add((char) i + "3");
        }
        for (int i = 'A'; i <= 'Z'; i++) {
            if (i == 'E' || i == 'H') {
                continue;
            }
            mDataDao.add((char) i + "1");
            mDataDao.add((char) i + "2");
            mDataDao.add((char) i + "3");
        }
   }

第三步xml界面的構建:

1.activity界面的實現:

2.exlv_item_child自定義適配器布局(可以根據自己想法更改界面顯示)

3.exlv_item_group自定義適配器布局(可以根據自己想法更改界面顯示)

4.lv_right_item自定義listview適配器布局(可以根據自己想法更改界面顯示)

最後原理總結:
-----原理解析 概括:字符串放入 集合 中進行排序 分層結構: A: a開頭名字數據 子菜單名字(字符串排序:Collections.sort(數據)); 所有數據(如電話名字) B:b開頭名字數據 子菜單名字(字符串排序:Collections.sort(數據)); C: c開頭數據數據 子菜單名字(字符串排序:Collections.sort(數據)); ..... 在ASll碼表中字母大小寫位置

-----------implement方法構建精簡的下拉子菜單適配器.
  注意:用抽象類的方法,讓我們想要的適配器實現需要的復寫的方法



--------列表數據形式:
