Android之ListView設置

編輯：關於Android編程

Android開發中，我們常使用到ListView視圖，下面介紹ListView的幾種使用方法。



主界面

首先，在主界面上添加幾個按鈕，用於界面跳轉。

界面布局：



源碼：





package com.example.listviewdemo;

import android.os.Bundle;
import android.view.View;
import android.app.Activity;
import android.content.Intent;

public class MainActivity extends Activity
{
	@Override
	protected void onCreate(Bundle savedInstanceState)
	{
		super.onCreate(savedInstanceState);
		setContentView(R.layout.activity_main);
	}

	public void Button1(View v)
	{
		Intent intent = new Intent();
		intent.setClass(MainActivity.this, Activity01.class);
		startActivity(intent);
	}

	public void Button2(View v)
	{
		Intent intent = new Intent();
		intent.setClass(MainActivity.this, Activity02.class);
		startActivity(intent);
	}

	public void Button3(View v)
	{
		Intent intent = new Intent();
		intent.setClass(MainActivity.this, Activity03.class);
		startActivity(intent);
	}

	public void Button4(View v)
	{
		Intent intent = new Intent();
		intent.setClass(MainActivity.this, SimpleList.class);
		startActivity(intent);
	}

	public void Button5(View v)
	{
		Intent intent = new Intent();
		intent.setClass(MainActivity.this, TitleList.class);
		startActivity(intent);
	}

	public void Button6(View v)
	{
		Intent intent = new Intent();
		intent.setClass(MainActivity.this, IconList.class);
		startActivity(intent);
	}

	public void Button7(View v)
	{
		Intent intent = new Intent();
		intent.setClass(MainActivity.this, ColorList.class);
		startActivity(intent);
	}

	public void Button8(View v)
	{
		Intent intent = new Intent();
		intent.setClass(MainActivity.this, ArrayList.class);
		startActivity(intent);
	}

	public void Button9(View v)
	{
		Intent intent = new Intent();
		intent.setClass(MainActivity.this, MyTest.class);
		startActivity(intent);
	}
}

效果：



\



使用ListView設置界面



package com.example.listviewdemo;

import java.util.ArrayList;
import java.util.List;

import android.app.Activity;
import android.os.Bundle;
import android.widget.ArrayAdapter;
import android.widget.ListView;

public class Activity01 extends Activity
{
	private ListView listView;

	@Override
	protected void onCreate(Bundle savedInstanceState)
	{
		super.onCreate(savedInstanceState);

		listView = new ListView(this);
        listView.setAdapter(new ArrayAdapter(this, android.R.layout.simple_expandable_list_item_1,getData()));
        setContentView(listView);
	}

	private List getData(){

        List data = new ArrayList();
        data.add("測試數據1");
        data.add("測試數據2");
        data.add("測試數據3");
        data.add("測試數據4");

        return data;
    }
}

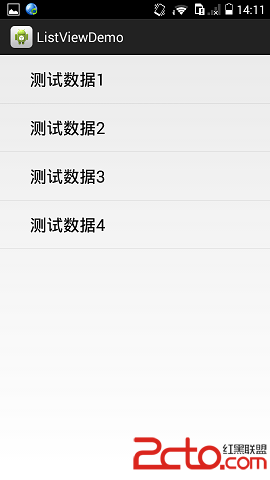

效果



\



使用SimpleAdapter設置界面



package com.example.listviewdemo;

import java.util.ArrayList;
import java.util.HashMap;
import java.util.List;
import java.util.Map;

import android.app.ListActivity;
import android.os.Bundle;
import android.widget.SimpleAdapter;

public class Activity02 extends ListActivity
{

	@Override
	protected void onCreate(Bundle savedInstanceState)
	{
		super.onCreate(savedInstanceState);

		SimpleAdapter adapter = new SimpleAdapter(this,getData(),R.layout.vlist,
                new String[]{"title","info","img"},
                new int[]{R.id.title,R.id.info,R.id.img});
        setListAdapter(adapter);
	}

	private List> getData() {
        List> list = new ArrayList>();

        Map map = new HashMap();
        map.put("title", "標題1");
        map.put("info", "內容1");
        map.put("img", R.drawable.icon_marka);
        list.add(map);

        map = new HashMap();
        map.put("title", "標題2");
        map.put("info", "內容2");
        map.put("img", R.drawable.icon_markb);
        list.add(map);

        map = new HashMap();
        map.put("title", "標題3");
        map.put("info", "內容3");
        map.put("img", R.drawable.icon_markc);
        list.add(map);

        return list;
    }
}





vlist布局

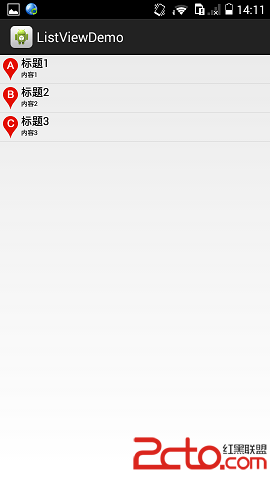

效果

\



使用MyAdapter設置界面



package com.example.listviewdemo;

import java.util.ArrayList;
import java.util.HashMap;
import java.util.List;
import java.util.Map;

import android.app.AlertDialog;
import android.app.ListActivity;
import android.content.Context;
import android.content.DialogInterface;
import android.os.Bundle;
import android.view.LayoutInflater;
import android.view.View;
import android.view.ViewGroup;
import android.widget.BaseAdapter;
import android.widget.Button;
import android.widget.ImageView;
import android.widget.ListView;
import android.widget.TextView;
import android.widget.Toast;

public class Activity03 extends ListActivity
{
	private List> mData;

	@Override
	protected void onCreate(Bundle savedInstanceState)
	{
		super.onCreate(savedInstanceState);

		mData = getData();
        MyAdapter adapter = new MyAdapter(this);
        setListAdapter(adapter);
	}

	private List> getData() {
        List> list = new ArrayList>();

        Map map = new HashMap();
        map.put("title", "標題1");
        map.put("info", "內容1");
        map.put("img", R.drawable.icon_marka);
        list.add(map);

        map = new HashMap();
        map.put("title", "標題2");
        map.put("info", "內容2");
        map.put("img", R.drawable.icon_markb);
        list.add(map);

        map = new HashMap();
        map.put("title", "標題3");
        map.put("info", "內容3");
        map.put("img", R.drawable.icon_markc);
        list.add(map);

        return list;
    }

    @Override
    protected void onListItemClick(ListView l, View v, int position, long id)
    {
    	String string = "click" + (String)mData.get(position).get("title");
    	Toast.makeText(this, string, Toast.LENGTH_SHORT).show();
    }

    public void showInfo()
    {
        new AlertDialog.Builder(this)
        .setTitle("我的listview")
        .setMessage("介紹...")
        .setPositiveButton("確定", new DialogInterface.OnClickListener()
        {
            @Override
            public void onClick(DialogInterface dialog, int which)
            {
            }
        })
        .show();
    }

    public final class ViewHolder
    {
        public ImageView img;
        public TextView title;
        public TextView info;
        public Button viewBtn;
    }

    public class MyAdapter extends BaseAdapter
    {
        private LayoutInflater mInflater;

        public MyAdapter(Context context)
        {
            this.mInflater = LayoutInflater.from(context);
        }

        @Override
        public int getCount()
        {
            return mData.size();
        }

        @Override
        public Object getItem(int arg0)
        {
            return null;
        }

        @Override
        public long getItemId(int arg0)
        {
            return 0;
        }

        @Override
        public View getView(int position, View convertView, ViewGroup parent)
        {
            ViewHolder holder = null;
            if (convertView == null)
            {
                holder=new ViewHolder();

                convertView = mInflater.inflate(R.layout.vlist2, null);
                holder.img = (ImageView)convertView.findViewById(R.id.img);
                holder.title = (TextView)convertView.findViewById(R.id.title);
                holder.info = (TextView)convertView.findViewById(R.id.info);
                holder.viewBtn = (Button)convertView.findViewById(R.id.view_btn);
                convertView.setTag(holder);
            }
            else
            {
                holder = (ViewHolder)convertView.getTag();
            }

            holder.img.setBackgroundResource((Integer)mData.get(position).get("img"));
            holder.title.setText((String)mData.get(position).get("title"));
            holder.info.setText((String)mData.get(position).get("info"));

            holder.viewBtn.setOnClickListener(new View.OnClickListener()
            {
                @Override
                public void onClick(View v)
                {
                    showInfo();
                }
            });

            return convertView;
        }
    }
}

vlist2布局

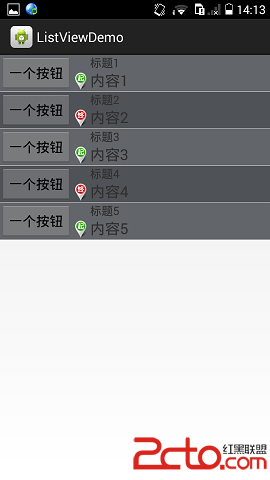

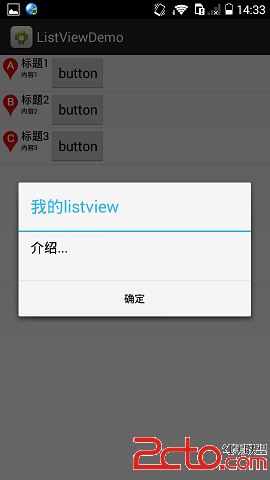

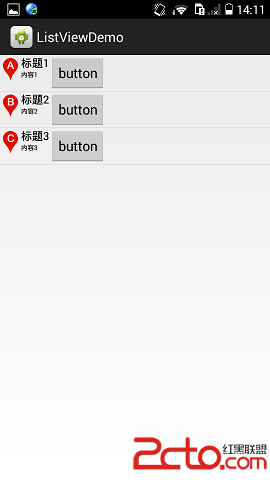

效果



\ \ \



使用ListActivity設置一行內容界面

package com.example.listviewdemo;

import android.app.ListActivity;
import android.os.Bundle;
import android.view.View;
import android.widget.AdapterView;
import android.widget.ArrayAdapter;
import android.widget.ListView;
import android.widget.Toast;
import android.widget.AdapterView.OnItemClickListener;

public class SimpleList extends ListActivity
{
	private String[] mListStr = {"標題1：內容1","標題2：內容2","標題3：內容3","標題4：內容4"};
    ListView mListView = null;

	@Override
	protected void onCreate(Bundle savedInstanceState)
	{
		super.onCreate(savedInstanceState);

		mListView = getListView();
		setListAdapter(new ArrayAdapter(this,android.R.layout.simple_list_item_1, mListStr));
		mListView.setOnItemClickListener(new OnItemClickListener()
		{
		    @Override
		    public void onItemClick(AdapterView adapterView, View view, int position,long id)
		    {
		    	Toast.makeText(SimpleList.this,"您選擇了" + mListStr[position], Toast.LENGTH_LONG).show();
		    }
		});
	}
}

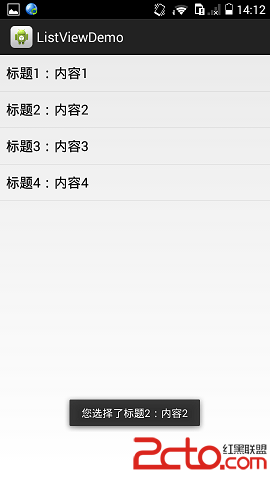

效果

\ \



使用ListActivity設置兩行內容界面



package com.example.listviewdemo;

import java.util.ArrayList;
import java.util.HashMap;
import java.util.Map;

import android.app.ListActivity;
import android.os.Bundle;
import android.view.View;
import android.widget.AdapterView;
import android.widget.ListView;
import android.widget.SimpleAdapter;
import android.widget.Toast;
import android.widget.AdapterView.OnItemClickListener;

public class TitleList extends ListActivity
{
	private String[] mListTitle = { "標題1", "標題2", "標題3", "標題4", "標題5"};
    private String[] mListStr = { "內容1", "內容2", "內容3", "內容4", "內容5" };
    ListView mListView = null;
    ArrayList> mData= new ArrayList>();

	@Override
	protected void onCreate(Bundle savedInstanceState)
	{
		super.onCreate(savedInstanceState);

		mListView = getListView();
		int lengh = mListTitle.length;
		for(int i =0; i < lengh; i++)
		{
		    Map item = new HashMap();
		    item.put("title", mListTitle[i]);
		    item.put("text", mListStr[i]);
		    mData.add(item);
		}

		SimpleAdapter adapter = new SimpleAdapter(this,mData,android.R.layout.simple_list_item_2,
				new String[]{"title","text"},new int[]{android.R.id.text1,android.R.id.text2});
		setListAdapter(adapter);
		mListView.setOnItemClickListener(new OnItemClickListener()
		{
		    @Override
		    public void onItemClick(AdapterView adapterView, View view, int position,long id)
		    {
		    	Toast.makeText(TitleList.this,"您選擇了標題：" + mListTitle[position] + "內容："+mListStr[position], Toast.LENGTH_LONG).show();
		    }
		});
	}
}

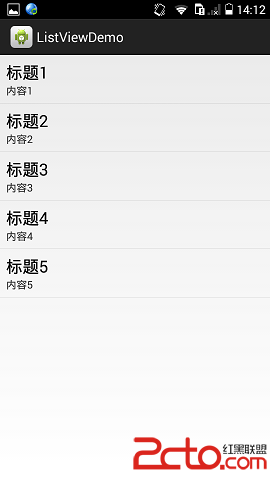

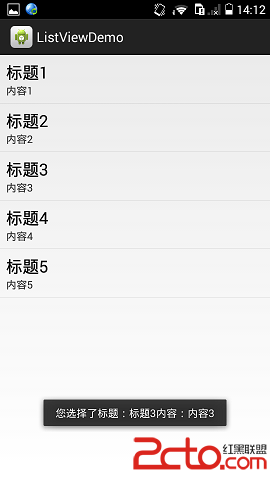

效果



\ \



使用ListActivity設置圖標和兩行內容界面



package com.example.listviewdemo;

import java.util.ArrayList;
import java.util.HashMap;
import java.util.Map;

import android.app.ListActivity;
import android.os.Bundle;
import android.view.View;
import android.widget.AdapterView;
import android.widget.ListView;
import android.widget.SimpleAdapter;
import android.widget.Toast;
import android.widget.AdapterView.OnItemClickListener;

public class IconList extends ListActivity
{
	private String[] mListTitle = { "標題1", "標題2", "標題3", "標題4", "標題5"};
    private String[] mListStr = { "內容1", "內容2", "內容3", "內容4", "內容5" };
    ListView mListView = null;
    ArrayList> mData= new ArrayList>();

	@Override
	protected void onCreate(Bundle savedInstanceState)
	{
		super.onCreate(savedInstanceState);

		mListView = getListView();
		int lengh = mListTitle.length;
		for(int i =0; i < lengh; i++)
		{
		    Map item = new HashMap();
		    item.put("image", R.drawable.ic_launcher);
		    item.put("title", mListTitle[i]);
		    item.put("text", mListStr[i]);
		    mData.add(item);
		}
		SimpleAdapter adapter = new SimpleAdapter(this,mData,R.layout.iconlist,
			new String[]{"image","title","text"},new int[]{R.id.image,R.id.title,R.id.text});
	    setListAdapter(adapter);
		mListView.setOnItemClickListener(new OnItemClickListener()
		{
		    @Override
		    public void onItemClick(AdapterView adapterView, View view, int position,long id)
		    {
		    	Toast.makeText(IconList.this,"您選擇了標題：" + mListTitle[position] + "內容："+mListStr[position], Toast.LENGTH_LONG).show();
		    }
		});
	}
}

iconlist布局

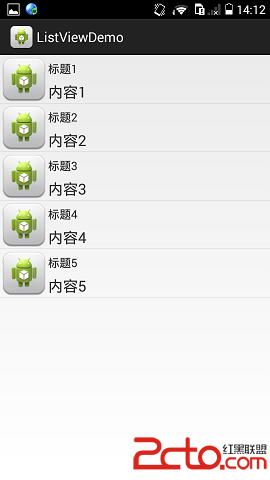

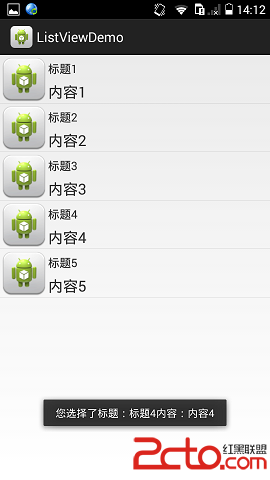

效果



\ \

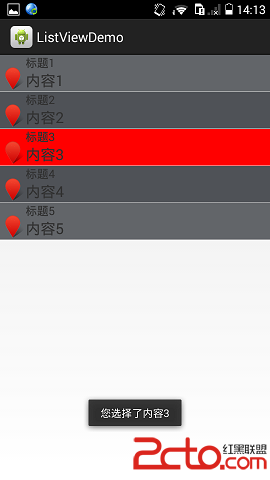

使用ListActivity設置背景圖標文字效果



package com.example.listviewdemo;

import android.app.ListActivity;
import android.content.Context;
import android.graphics.Color;
import android.os.Bundle;
import android.view.LayoutInflater;
import android.view.View;
import android.view.ViewGroup;
import android.widget.AdapterView;
import android.widget.BaseAdapter;
import android.widget.ImageView;
import android.widget.ListView;
import android.widget.TextView;
import android.widget.Toast;
import android.widget.AdapterView.OnItemClickListener;

public class ColorList extends ListActivity
{
	private String[] mListTitle = { "標題1", "標題2", "標題3", "標題4", "標題5"};
    private String[] mListStr = { "內容1", "內容2", "內容3", "內容4", "內容5" };
    ListView mListView = null;
    MyListAdapter myAdapter = null;

	@Override
	protected void onCreate(Bundle savedInstanceState)
	{
		super.onCreate(savedInstanceState);

		mListView = getListView();
		myAdapter = new MyListAdapter(this);
		setListAdapter(myAdapter);
		mListView.setOnItemClickListener(new OnItemClickListener()
		{
		    @Override
		    public void onItemClick(AdapterView adapterView, View view, int position,long id)
		    {
				View v=adapterView.getChildAt(position);
				v.setBackgroundColor(Color.RED);
				Toast.makeText(ColorList.this,"您選擇了" + mListStr[position], Toast.LENGTH_LONG).show();
		    }
		});
	}

	class MyListAdapter extends BaseAdapter
	{
		private int[] colors = new int[] { 0xff626569, 0xff4f5257 };
		public MyListAdapter(Context context)
		{
		    mContext = context;
		}

		public int getCount()
		{
		    return mListStr.length;
		}

		@Override
		public boolean areAllItemsEnabled()
		{
		    return false;
		}

		public Object getItem(int position)
		{
		    return position;
		}

		public long getItemId(int position)
		{
		    return position;
		}

		public View getView(int position, View convertView, ViewGroup parent)
		{
		    ImageView iamge = null;
		    TextView title = null;
		    TextView text = null;
		    if (convertView == null)
		    {
				convertView = LayoutInflater.from(mContext).inflate(R.layout.colorlist, null);
				iamge = (ImageView) convertView.findViewById(R.id.color_image);
				title =(TextView) convertView.findViewById(R.id.color_title);
				text= (TextView) convertView.findViewById(R.id.color_text);
		    }
		    int colorPos = position % colors.length;
		    convertView.setBackgroundColor(colors[colorPos]);
		    title.setText(mListTitle[position]);
		    text.setText(mListStr[position]);
		    iamge.setImageResource(R.drawable.icon_gcoding);
		    return convertView;
		}

		private Context mContext;
	}
}

colorlist布局

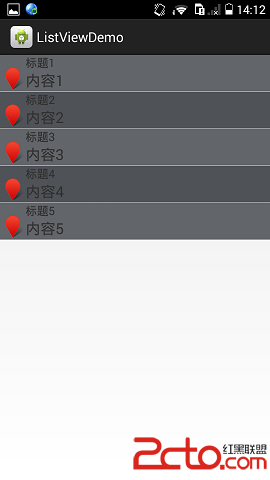

效果



\ \



使用ListActivity設置背景按鈕圖標文字效果



package com.example.listviewdemo;

import android.app.ListActivity;
import android.content.Context;
import android.os.Bundle;
import android.view.LayoutInflater;
import android.view.View;
import android.view.ViewGroup;
import android.view.View.OnClickListener;
import android.widget.ArrayAdapter;
import android.widget.Button;
import android.widget.ImageView;
import android.widget.ListView;
import android.widget.TextView;
import android.widget.Toast;

public class ArrayList extends ListActivity
{
	private String[] mListTitle = { "標題1", "標題2", "標題3", "標題4", "標題5"};
    private String[] mListStr = { "內容1", "內容2", "內容3", "內容4", "內容5" };
    ListView mListView = null;
    MyListAdapter myAdapter = null;
    ArrayList arrayList = null;

	@Override
	protected void onCreate(Bundle savedInstanceState)
	{
		super.onCreate(savedInstanceState);

		arrayList = this;
		mListView = getListView();
		myAdapter = new MyListAdapter(this,R.layout.arraylist);
		setListAdapter(myAdapter);
	}

	public class MyListAdapter extends ArrayAdapter

arraylist布局





效果



\ \ \



使用ListView設置界面跳轉

第一個界面



package com.example.listviewdemo;

import android.app.Activity;
import android.content.Intent;
import android.os.Bundle;
import android.view.View;
import android.view.ViewGroup;
import android.widget.AdapterView;
import android.widget.BaseAdapter;
import android.widget.ListView;
import android.widget.TextView;
import android.widget.AdapterView.OnItemClickListener;

public class MyTest extends Activity
{
	private ListView listView;

	@Override
	protected void onCreate(Bundle savedInstanceState)
	{
		super.onCreate(savedInstanceState);

		listView = new ListView(this);
        listView.setAdapter(new DemoListAdapter());
        setContentView(listView);

        listView.setOnItemClickListener(new OnItemClickListener() {
        	@Override
		    public void onItemClick(AdapterView adapterView, View view, int position,long id)
			{
        		onListItemClick(position);
			}
		});
	}

	void onListItemClick(int index)
	{
		Intent intent = null;
		intent = new Intent(this,demos[index].demoClass);
		startActivity(intent);
	}

	private static final DemoInfo[] demos = {
		new DemoInfo(R.string.title1, R.string.content1, MyTest2.class),
		new DemoInfo(R.string.title2, R.string.content2, MyTest2.class),
		new DemoInfo(R.string.title3, R.string.content3, MyTest2.class),
		};

	private class DemoListAdapter extends BaseAdapter
	{
		public DemoListAdapter()
		{
			super();
		}

		@Override
		public View getView(int position, View convertView, ViewGroup parent)
		{
			convertView = View.inflate(MyTest.this, R.layout.list, null);
			TextView title = (TextView)convertView.findViewById(R.id.title);
			TextView desc = (TextView)convertView.findViewById(R.id.info);
			title.setText(demos[position].title);
			desc.setText(demos[position].desc);
			return convertView;
		}

		@Override
		public int getCount()
		{
			return demos.length;
		}

		@Override
		public Object getItem(int position)
		{
			return demos[position];
		}

		@Override
		public long getItemId(int position)
		{
			return position;
		}
	}

	private static class DemoInfo
	{
		private final int title;
		private final int desc;
		private final Class demoClass;

		public DemoInfo(int title, int desc, Class demoClass)
		{
			this.title = title;
			this.desc = desc;
			this.demoClass = demoClass;
		}
	}
}

第二個界面





package com.example.listviewdemo;

import android.app.Activity;
import android.os.Bundle;
import android.view.View;

public class MyTest2 extends Activity
{
	@Override
	protected void onCreate(Bundle savedInstanceState)
	{
		super.onCreate(savedInstanceState);

		View view = new View(this);
		setContentView(view);
	}
}

list布局

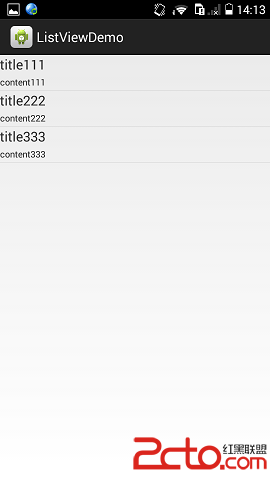

效果



\ \



  1. 上一頁:
  2. 下一頁:
關於Android編程
Android編程入門Android技術基礎Android資訊關於Android編程Android開發Android開發環境Android開發實例
相關文章
熱門文章
linux & android平台XGA分辨率玩捕魚游戲屏閃解決方法 Android：基於百度雲推送的聊天系統 詳解Android App中的AsyncTask異步任務執行方式 Android app性能優化解決卡慢頓之布局優化 Android Button 樣式 圓角 Android實現IOS相機滑動控件
詳解Android控件之DatePicker、TimePicker探究

一、DatePicker繼承自FrameLayout類，日期選擇控件的主
Android多點觸摸交互處理

安卓手機中，多點觸摸是是最基本的操作，下面就使用程序進行演示多點觸摸操作
Android打造屬於自己的時間鐘表

1、概述本文主要講解的是如何自定義一個時間鐘表，通過簡單的練習可以簡單學
Android studio 中文亂碼問題解決

針對剛安裝好的Android studio, 比如import工程時，你
閱讀排行版
Copyright © Android教程網 All Rights Reserved
