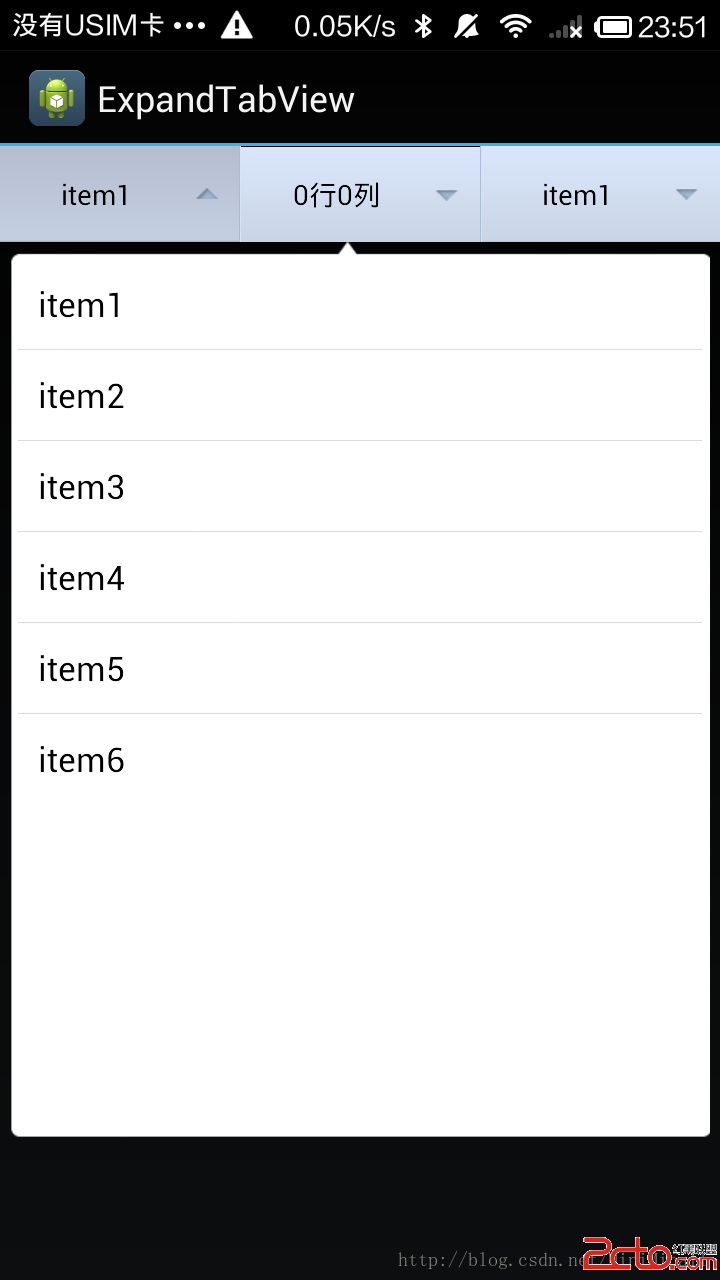

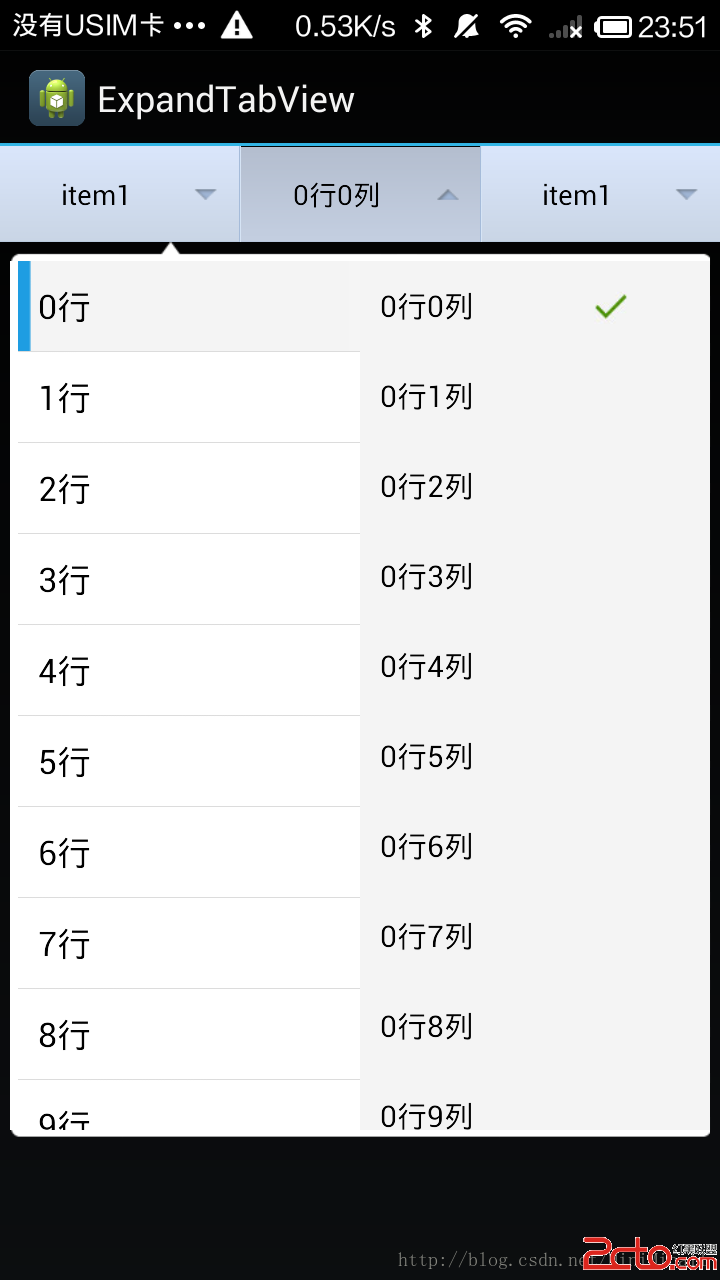

我們在常用的電商或者旅游APP中，例如美團，手機淘寶等等，都能夠看的到有那種下拉式的二級列表菜單。具體如圖所示：
上面兩張圖就是美團的一個二級列表菜單的一個展示。我相信很多人都想開發一個跟它一樣的功能放到自己的APP中。好，接下來我們就開始動手，解決它。
<喎?/kf/ware/vc/" target="_blank" class="keylink">vcD4KPGgyPjGjrL3hubm31s72PC9oMj4KPHA+ytfPyKOsztLDx7j4s/bV4rj2z8LAtLLLtaXQ6NKqtcTX6b2ooaPO0sPH08PP37/yzbzAtLfWzvahozwvcD4KPHA+PGltZyBzcmM9"/uploadfile/Collfiles/20140923/2014092309051719.jpg" width="600" alt="\">
1）如上圖所示，最外圍的是一個Activity，頂部包含了一個View的容器，這個容器主要是裝載ToggleButton來實現諸如美團裡面的“美食，全城，理我最近，刷選”這一行。這一行一點就會彈出對應的下來菜單。
2）下拉菜單是如何實現的呢？，這裡我們利用了PopupWindow來實現這一彈出式窗口。然後我們在彈出式窗口裡面再定義我們的下來列表項，是單列還是二級菜單，都是由裡面來定。
3）不同的菜單，需要一級或者需要二級，在這裡根據我的需求而變動。我們在PopupWindow上面加一個自定義的LeftView，或者是MiddleView，RightView。主要是一個ToggleButton，你彈出一個窗口，你就定制一個窗口。
3）視圖裡面嵌入ListView，就形成了列表項。
好分析就到上面為止，接下來我們一步步的說明實現。

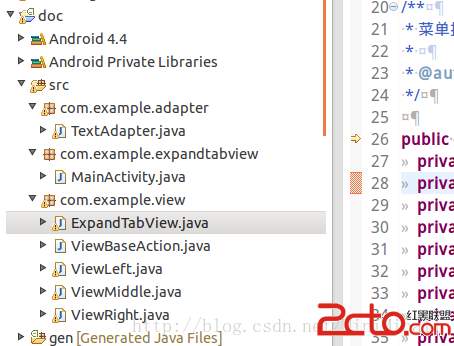

本項目的項目結構如圖所示：
1） Adapter。適配器，主要是為ListView提供數據適配的。
2）MainActivity。主活動頁面。
3）ExpandTabView。本項目的核心類，它包含ToggleButton容器和PopupWindow，是控制彈出窗口的核心類。
4）ViewLeft,ViewMiddle,ViewRight。是彈出裡面嵌套的類，實現不同的列表菜單。
package com.example.expandtabview;
import java.util.ArrayList;
import android.app.Activity;
import android.os.Bundle;
import android.util.Log;
import android.view.View;
import android.widget.Toast;
import com.example.view.ExpandTabView;
import com.example.view.ViewLeft;
import com.example.view.ViewMiddle;
import com.example.view.ViewRight;
public class MainActivity extends Activity {
private static final String TAG = "MainActivity";
private ExpandTabView expandTabView;
private ArrayList mViewArray = new ArrayList();
private ViewLeft viewLeft;
private ViewMiddle viewMiddle;
private ViewRight viewRight;
@Override
protected void onCreate(Bundle savedInstanceState) {
super.onCreate(savedInstanceState);
setContentView(R.layout.activity_main);
initView();
initVaule();
initListener();
}
private void initView() {
Log.d(TAG,"initView");
expandTabView = (ExpandTabView) findViewById(R.id.expandtab_view);
viewLeft = new ViewLeft(this);
viewMiddle = new ViewMiddle(this);
viewRight = new ViewRight(this);
}
private void initVaule() {
Log.d(TAG,"initValue");
mViewArray.add(viewLeft);
mViewArray.add(viewMiddle);
mViewArray.add(viewRight);
ArrayList mTextArray = new ArrayList();
mTextArray.add("距離");
mTextArray.add("區域");
mTextArray.add("距離");
expandTabView.setValue(mTextArray, mViewArray);//將三個下拉列表設置進去
expandTabView.setTitle(viewLeft.getShowText(), 0);
expandTabView.setTitle(viewMiddle.getShowText(), 1);
expandTabView.setTitle(viewRight.getShowText(), 2);
}
private void initListener() {
Log.d(TAG,"initListener");
viewLeft.setOnSelectListener(new ViewLeft.OnSelectListener() {
@Override
public void getValue(String distance, String showText) {
Log.d("ViewLeft", "OnSelectListener, getValue");
onRefresh(viewLeft, showText);
}
});
viewMiddle.setOnSelectListener(new ViewMiddle.OnSelectListener() {
@Override
public void getValue(String showText) {
Log.d("ViewMiddle","OnSelectListener, getValue");
onRefresh(viewMiddle,showText);
}
});
viewRight.setOnSelectListener(new ViewRight.OnSelectListener() {
@Override
public void getValue(String distance, String showText) {
Log.d("ViewRight","OnSelectListener, getValue");
onRefresh(viewRight, showText);
}
});
}
private void onRefresh(View view, String showText) {
Log.d(TAG,"onRefresh,view:"+view+",showText:"+showText);
expandTabView.onPressBack();
int position = getPositon(view);
if (position >= 0 && !expandTabView.getTitle(position).equals(showText)) {
expandTabView.setTitle(showText, position);
}
Toast.makeText(MainActivity.this, showText, Toast.LENGTH_SHORT).show();
}
private int getPositon(View tView) {
Log.d(TAG,"getPosition");
for (int i = 0; i < mViewArray.size(); i++) {
if (mViewArray.get(i) == tView) {
return i;
}
}
return -1;
}
@Override
public void onBackPressed() {
if (!expandTabView.onPressBack()) {
finish();
}
}
}
最主要就是如何處理當我們點擊這些ToggleButton的時候要彈出或者收起這些PopupWindow。
package com.example.view;
import java.util.ArrayList;
import com.example.expandtabview.R;
import android.app.Activity;
import android.content.Context;
import android.util.AttributeSet;
import android.util.Log;
import android.view.LayoutInflater;
import android.view.View;
import android.widget.LinearLayout;
import android.widget.PopupWindow;
import android.widget.PopupWindow.OnDismissListener;
import android.widget.RelativeLayout;
import android.widget.TextView;
import android.widget.ToggleButton;
/**
* 菜單控件頭部，封裝了下拉動畫，動態生成頭部按鈕個數
*
* @author zengjinlong
*/
public class ExpandTabView extends LinearLayout implements OnDismissListener {
private static final String TAG = "ExpandTabView";
private ToggleButton selectedButton;
private ArrayList mTextArray = new ArrayList();
private ArrayList mViewArray = new ArrayList();
private ArrayList mToggleButton = new ArrayList();
private Context mContext;
private final int SMALL = 0;
private int displayWidth;
private int displayHeight;
private PopupWindow popupWindow;
private int selectPosition;
public ExpandTabView(Context context) {
super(context);
init(context);
}
public ExpandTabView(Context context, AttributeSet attrs) {
super(context, attrs);
init(context);
}
/**
* 根據選擇的位置設置tabitem顯示的值
*/
public void setTitle(String valueText, int position) {
if (position < mToggleButton.size()) {
mToggleButton.get(position).setText(valueText);
}
}
public void setTitle(String title){
}
/**
* 根據選擇的位置獲取tabitem顯示的值
*/
public String getTitle(int position) {
if (position < mToggleButton.size() && mToggleButton.get(position).getText() != null) {
return mToggleButton.get(position).getText().toString();
}
return "";
}
/**
* 設置tabitem的個數和初始值
* @param textArray 標題數組
* @param viewArray 控件數組
*/
public void setValue(ArrayList textArray, ArrayList viewArray) {
if (mContext == null) {
return;
}
LayoutInflater inflater = (LayoutInflater) mContext.getSystemService(Context.LAYOUT_INFLATER_SERVICE);
Log.d(TAG,"setValue");
mTextArray = textArray;
for (int i = 0; i < viewArray.size(); i++) {
final RelativeLayout r = new RelativeLayout(mContext);
int maxHeight = (int) (displayHeight * 0.7);
RelativeLayout.LayoutParams rl = new RelativeLayout.LayoutParams(RelativeLayout.LayoutParams.MATCH_PARENT, maxHeight);
rl.leftMargin = 10;
rl.rightMargin = 10;
r.addView(viewArray.get(i), rl);
mViewArray.add(r);
r.setTag(SMALL);
ToggleButton tButton = (ToggleButton) inflater.inflate(R.layout.toggle_button, this, false);
addView(tButton);
View line = new TextView(mContext);
line.setBackgroundResource(R.drawable.choosebar_line);
if (i < viewArray.size() - 1) {
LinearLayout.LayoutParams lp = new LinearLayout.LayoutParams(2, LinearLayout.LayoutParams.MATCH_PARENT);
addView(line, lp);
}
mToggleButton.add(tButton);
tButton.setTag(i);
tButton.setText(mTextArray.get(i));
r.setOnClickListener(new OnClickListener() {
@Override
public void onClick(View v) {
Log.d("RelativeLayout","view:"+v);
onPressBack();
}
});
r.setBackgroundColor(mContext.getResources().getColor(R.color.popup_main_background));
tButton.setOnClickListener(new OnClickListener() {
@Override
public void onClick(View view) {
Log.d("tButton","setOnClickListener(l)");
// initPopupWindow();
ToggleButton tButton = (ToggleButton) view;
if (selectedButton != null && selectedButton != tButton) {
selectedButton.setChecked(false);
}
selectedButton = tButton;
selectPosition = (Integer) selectedButton.getTag();
startAnimation();
if (mOnButtonClickListener != null && tButton.isChecked()) {
mOnButtonClickListener.onClick(selectPosition);
}
}
});
}// for..
}
private void startAnimation() {
Log.d(TAG,"startAnimation");
if (popupWindow == null) {
Log.d(TAG,"startAnimation(),new popupWindow now");
popupWindow = new PopupWindow(mViewArray.get(selectPosition), displayWidth, displayHeight);
popupWindow.setAnimationStyle(R.style.PopupWindowAnimation);
popupWindow.setFocusable(false);
popupWindow.setOutsideTouchable(true);
}
Log.d(TAG,"startAnimation(),selectedButton:"+selectedButton+",isChecked:"+selectedButton.isChecked()+
",popupWindow.isShowing:"+popupWindow.isShowing());
if (selectedButton.isChecked()) {
if (!popupWindow.isShowing()) {
showPopup(selectPosition);
} else {
popupWindow.setOnDismissListener(this);
popupWindow.dismiss();
hideView();
}
} else {
if (popupWindow.isShowing()) {
popupWindow.dismiss();
hideView();
}
}
}
private void showPopup(int position) {
View tView = mViewArray.get(selectPosition).getChildAt(0);
if (tView instanceof ViewBaseAction) {
ViewBaseAction f = (ViewBaseAction) tView;
f.show();
}
if (popupWindow.getContentView() != mViewArray.get(position)) {
popupWindow.setContentView(mViewArray.get(position));
}
popupWindow.showAsDropDown(this, 0, 0);
}
/**
* 如果菜單成展開狀態，則讓菜單收回去
*/
public boolean onPressBack() {
Log.d(TAG,"onPressBack");
if (popupWindow != null && popupWindow.isShowing()) {
popupWindow.dismiss();
hideView();
if (selectedButton != null) {
selectedButton.setChecked(false);
}
return true;
} else {
return false;
}
}
private void hideView() {
Log.d(TAG, "hide()");
View tView = mViewArray.get(selectPosition).getChildAt(0);
if (tView instanceof ViewBaseAction) {
ViewBaseAction f = (ViewBaseAction) tView;
f.hide();
}
}
private void init(Context context) {
mContext = context;
displayWidth = ((Activity) mContext).getWindowManager().getDefaultDisplay().getWidth();
displayHeight = ((Activity) mContext).getWindowManager().getDefaultDisplay().getHeight();
setOrientation(LinearLayout.HORIZONTAL);
}
@Override
public void onDismiss() {
Log.d(TAG,"onDismiss,selectPosition:"+selectPosition);
showPopup(selectPosition);
popupWindow.setOnDismissListener(null);
}
private OnButtonClickListener mOnButtonClickListener;
/**
* 設置tabitem的點擊監聽事件
*/
public void setOnButtonClickListener(OnButtonClickListener l) {
mOnButtonClickListener = l;
}
/**
* 自定義tabitem點擊回調接口
*/
public interface OnButtonClickListener {
public void onClick(int selectPosition);
}
}
其中的一個示例，其他兩個就不列舉了
package com.example.view;
import com.example.adapter.TextAdapter;
import com.example.expandtabview.R;
import android.content.Context;
import android.util.AttributeSet;
import android.view.LayoutInflater;
import android.view.View;
import android.widget.ListView;
import android.widget.RelativeLayout;
import android.widget.Toast;
public class ViewLeft extends RelativeLayout implements ViewBaseAction{
private static final String TAG = "ViewLeft";
private ListView mListView;
private final String[] items = new String[] { "item1", "item2", "item3", "item4", "item5", "item6" };//顯示字段
private final String[] itemsVaule = new String[] { "1", "2", "3", "4", "5", "6" };//隱藏id
private OnSelectListener mOnSelectListener;
private TextAdapter adapter;
private String mDistance;
private String showText = "item1";
private Context mContext;
public String getShowText() {
return showText;
}
public ViewLeft(Context context) {
super(context);
init(context);
}
public ViewLeft(Context context, AttributeSet attrs, int defStyle) {
super(context, attrs, defStyle);
init(context);
}
public ViewLeft(Context context, AttributeSet attrs) {
super(context, attrs);
init(context);
}
private void init(Context context) {
mContext = context;
LayoutInflater inflater = (LayoutInflater) context.getSystemService(Context.LAYOUT_INFLATER_SERVICE);
inflater.inflate(R.layout.view_distance, this, true);
setBackgroundDrawable(getResources().getDrawable(R.drawable.choosearea_bg_mid));
mListView = (ListView) findViewById(R.id.listView);
adapter = new TextAdapter(context, items, R.drawable.choose_item_right, R.drawable.choose_eara_item_selector);
adapter.setTextSize(17);
if (mDistance != null) {
for (int i = 0; i < itemsVaule.length; i++) {
if (itemsVaule[i].equals(mDistance)) {
adapter.setSelectedPositionNoNotify(i);
showText = items[i];
break;
}
}
}
mListView.setAdapter(adapter);
adapter.setOnItemClickListener(new TextAdapter.OnItemClickListener() {
@Override
public void onItemClick(View view, int position) {
if (mOnSelectListener != null) {
showText = items[position];
mOnSelectListener.getValue(itemsVaule[position], items[position]);
}
}
});
}
public void setOnSelectListener(OnSelectListener onSelectListener) {
mOnSelectListener = onSelectListener;
}
public interface OnSelectListener {
public void getValue(String distance, String showText);
}
@Override
public void hide() {
}
@Override
public void show() {
}
}
好，今天就到這裡。。希望有用。
Android Tab -- 使用ViewPager、PagerTitleStrip/PagerTabStrip來實現
效果：滑動切換；點擊標簽切換。 代碼：https://github.com/ldb-github/Layout_Tab1、使用ViewPager和PagerTa
我是如何從零開始自學Android到一萬月薪的
本篇文章致那些從零開始學 Android 的或者正要學習還沒有勇氣出發的人， 希望通過我的經歷能夠讓你在學習的道路中堅持下來。我的第一份工作畢業之際通過學校的校招找到了一
Android Gson使用入門及GsonFormat插件的使用
Gson 是 Google 官方提供的用來在 Java 對象和 JSON 之間進行互相轉換的Java類庫。我之前在使用Eclipse開發Android的時候，並沒有經常使
android使用webview登錄，獲取session傳遞到httpclient小例子
前幾天完成了一個客戶端小功能，使用html頁面登錄， 拿到cookie之後，傳遞給httpclient完成業務邏輯的訪問，現在把基本的流程整理記錄一下。 首先來一張a
