Android - JNI靜態(static)加載OpenCV

JNI靜態(static)加載OpenCV

本文地址: http://blog.csdn.net/caroline_wendy

步驟:

1. 准備OpenCV-Android庫

復制OpenCV的sdk至工作文件夾.

下載OpenCV的最新android-sdk: OpenCV-2.4.9-android-sdk;

把其中的sdk文件夾, 復制到工作目錄; sdk文件夾裡包含native, java, etc. 三個文件夾.

2. 加載OpenCV-Android庫

導入(import)工作目錄的java文件夾, 設置為當前項目的庫.

[項目名]右鍵點擊->Android->Add Library->選擇添加的庫. 即可. 不需要選擇Is Library.

3. 創建JniClient類.

包含需要使用的方法(method), 可以多個.<喎?/kf/ware/vc/" target="_blank" class="keylink">vcD48cD48L3A+PHByZSBjbGFzcz0="brush:java;">/** * */ package com.example.hellomyjni; /** * @author Administrator * */ public class JniClient { static public native String sayName(); static public native int[] grayImage(int[] pixels, int w, int h); }

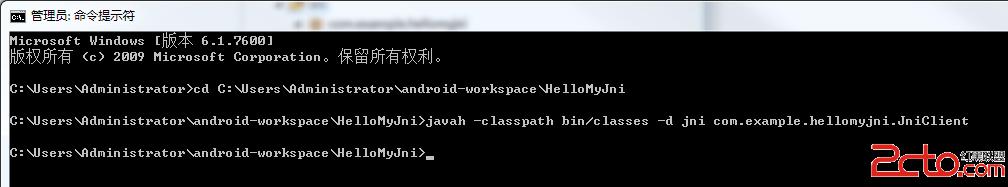

使用命令行, 生成頭文件.

進入項目文件夾, 生成JNI的頭文件, 使用命令:

"javah -classpath bin/classes -d jni com.example.hellomyjni.JniClient"

或javah -classpath D:/eclipse-android/android-sdk/platforms/android-17/android.jar;bin/classes -d jni com.example.mycamera.CartoonifierView

包含Android庫.

命令解析:

javah 生成頭文件;

-classpath 使用類的位置(bin/classes), 都是.class文件;

-d jni 需要生成JNI的類(com.example.hellomyjni.JniClient), 包括[package].[classname].

其余參考: http://blog.csdn.net/caroline_wendy/article/details/39032551

4. 修改JNI配置文件

需要在jni文件夾內創建Application.mk, 主要負責C++標准的使用(APP_STL), 和需要編譯的庫.

APP_STL := gnustl_static
APP_CPPFLAGS := -frtti -fexceptions
APP_ABI := armeabi-v7a

LOCAL_PATH := $(call my-dir)

include $(CLEAR_VARS)

#OPENCV_LIB_TYPE:=STATIC
OPENCV_INSTALL_MODULES:=on

include C:/Users/Administrator/android-workspace/opencv-sdk/native/jni/OpenCV.mk

LOCAL_MODULE    := HelloMyJni
LOCAL_SRC_FILES := HelloMyJni.cpp
LOCAL_LDLIBS +=  -llog -ldl
#LOCAL_C_INCLUDES += ./
LOCAL_SRC_FILES += ./sayname.cpp

include $(BUILD_SHARED_LIBRARY)

5. JNI函數

#include
#include

using namespace cv;

#include "com_example_hellomyjni_JniClient.h"

#include "sayname.h"

JNIEXPORT jstring JNICALL Java_com_example_hellomyjni_JniClient_sayName
  (JNIEnv *env, jclass) {
	string str = sayname();
	return env->NewStringUTF(str.c_str());
}

JNIEXPORT jintArray JNICALL Java_com_example_hellomyjni_JniClient_grayImage
  (JNIEnv *env, jclass, jintArray buf, jint w, jint h ) {

	jint *cbuf;
	cbuf = env->GetIntArrayElements(buf, false);
	if (cbuf == NULL) {
		return 0;
	}

	Mat imgData(h, w, CV_8UC4, (unsigned char*) cbuf);

	uchar* ptr = imgData.ptr(0);
	for (int i = 0; i < w * h; i++) {
		int grayScale = (int) (ptr[4 * i + 2] * 0.299 + ptr[4 * i + 1] * 0.587
				+ ptr[4 * i + 0] * 0.114);
		ptr[4 * i + 1] = grayScale;
		ptr[4 * i + 2] = grayScale;
		ptr[4 * i + 0] = grayScale;
	}

	int size = w * h;
	jintArray result = env->NewIntArray(size);
	env->SetIntArrayRegion(result, 0, size, cbuf);
	env->ReleaseIntArrayElements(buf, cbuf, 0);
	return result;
}

6. 修改MainActivity

調用JNI的函數.

package com.example.hellomyjni;

import org.opencv.android.OpenCVLoader;

import android.app.Activity;
import android.graphics.Bitmap;
import android.graphics.BitmapFactory;
import android.graphics.Bitmap.Config;
import android.os.Bundle;
import android.view.Menu;
import android.view.MenuItem;
import android.widget.ImageView;
import android.widget.TextView;

public class MainActivity extends Activity{

	private ImageView iv;
	private Bitmap bmp;

	@Override
	protected void onCreate(Bundle savedInstanceState) {
		super.onCreate(savedInstanceState);
		setContentView(R.layout.activity_main);

		TextView tv = (TextView) findViewById(R.id.text_view);

		tv.setText(JniClient.sayName()); //recall JNI

		iv = (ImageView) findViewById(R.id.image_view);
		bmp = BitmapFactory.decodeResource(getResources(), R.drawable.shoes);
		int w = bmp.getWidth();
		int h = bmp.getHeight();
		int[] pixels = new int[w * h];
		bmp.getPixels(pixels, 0, w, 0, 0, w, h);

		int[] resultInt = JniClient.grayImage(pixels, w, h); //recall JNI

		Bitmap resultImg = Bitmap.createBitmap(w, h, Config.ARGB_8888);
		resultImg.setPixels(resultInt, 0, w, 0, 0, w, h);
		iv.setImageBitmap(resultImg);

	}

	@Override
	public boolean onCreateOptionsMenu(Menu menu) {
		// Inflate the menu; this adds items to the action bar if it is present.
		getMenuInflater().inflate(R.menu.main, menu);
		return true;
	}

	@Override
	public boolean onOptionsItemSelected(MenuItem item) {
		// Handle action bar item clicks here. The action bar will
		// automatically handle clicks on the Home/Up button, so long
		// as you specify a parent activity in AndroidManifest.xml.
		int id = item.getItemId();
		if (id == R.id.action_settings) {
			return true;
		}
		return super.onOptionsItemSelected(item);
	}

	static {
		if (!OpenCVLoader.initDebug()) {
	    } else {
	        System.loadLibrary("HelloMyJni");
	    }
	}
}

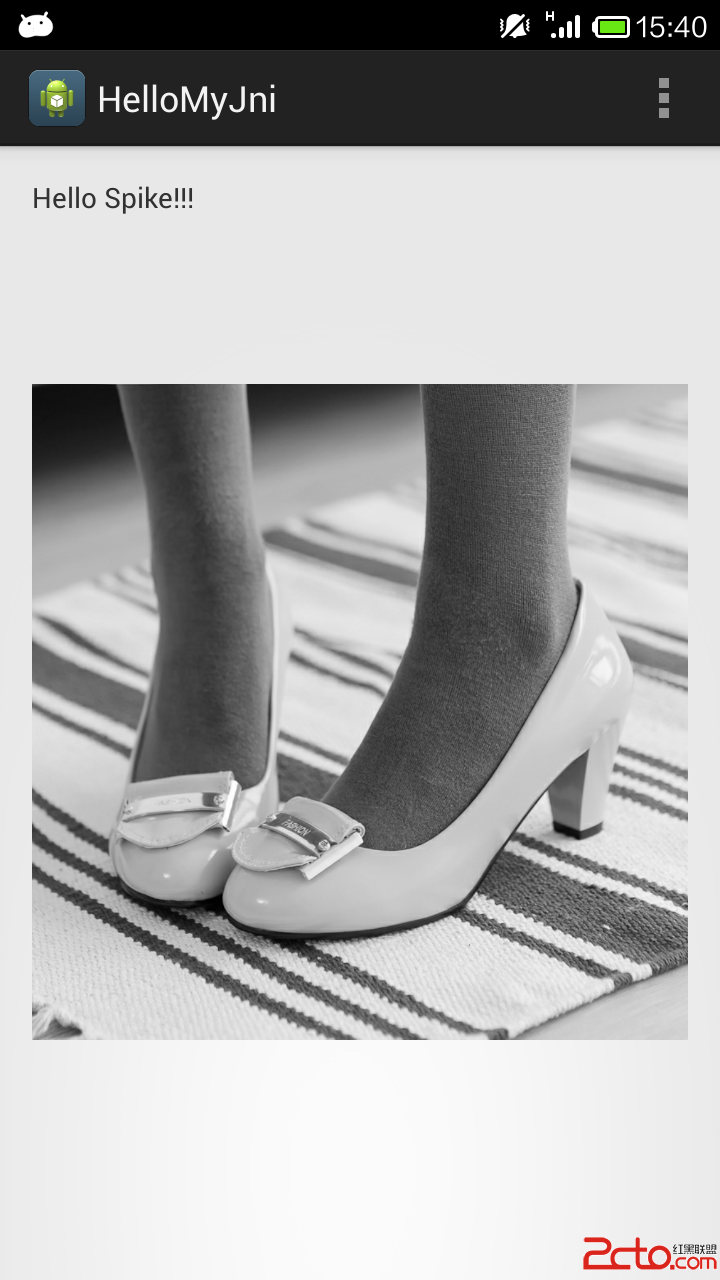

7. 輸出
