Android 利用ExpandableListView顯示和查詢仿QQ分組列表用戶信息

在我們的項目開發過程中，經常會對用戶的信息進行分組，即通過組來顯示用戶的信息，同時通過一定的查詢條件來顯示查詢後的相關用戶信息，並且通過顏色選擇器來設置列表信息的背景顏色。

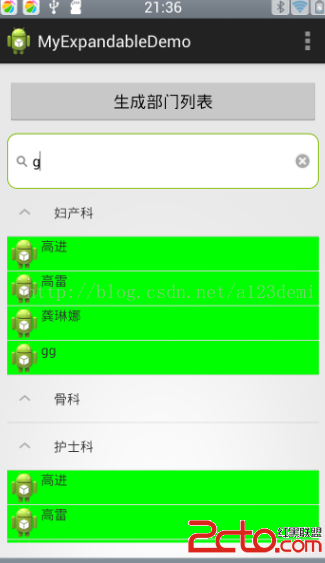

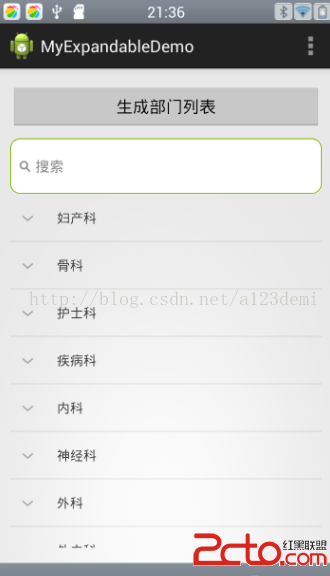

下面來看看項目運行後的效果圖以及代碼結構圖：

下面通過代碼來實現整個效果。

1.主界面布局activity_main.xml

2.自定義的ClearEditText的搜索框CliearEditText.java

package com.example.myexpandabledemo;
import android.content.Context;
import android.graphics.drawable.Drawable;
import android.text.Editable;
import android.text.TextWatcher;
import android.util.AttributeSet;
import android.view.MotionEvent;
import android.view.View;
import android.view.View.OnFocusChangeListener;
import android.view.animation.Animation;
import android.view.animation.CycleInterpolator;
import android.view.animation.TranslateAnimation;
import android.widget.EditText;


public class ClearEditText extends EditText implements
        OnFocusChangeListener, TextWatcher {
	/**
	 * 刪除按鈕的引用
	 */
    private Drawable mClearDrawable;

    public ClearEditText(Context context) {
    	this(context, null);
    }

    public ClearEditText(Context context, AttributeSet attrs) {
    	//這裡構造方法也很重要，不加這個很多屬性不能再XML裡面定義
    	this(context, attrs, android.R.attr.editTextStyle);
    }

    public ClearEditText(Context context, AttributeSet attrs, int defStyle) {
        super(context, attrs, defStyle);
        init();
    }


    private void init() {
    	//獲取EditText的DrawableRight,假如沒有設置我們就使用默認的圖片
    	mClearDrawable = getCompoundDrawables()[2];
        if (mClearDrawable == null) {
        	mClearDrawable = getResources()
                    .getDrawable(R.drawable.emotionstore_progresscancelbtn);
        }
        mClearDrawable.setBounds(0, 0, mClearDrawable.getIntrinsicWidth(), mClearDrawable.getIntrinsicHeight());
        setClearIconVisible(false);
        setOnFocusChangeListener(this);
        addTextChangedListener(this);
    }


    /**
     * 因為我們不能直接給EditText設置點擊事件，所以我們用記住我們按下的位置來模擬點擊事件
     * 當我們按下的位置 在  EditText的寬度 - 圖標到控件右邊的間距 - 圖標的寬度  和
     * EditText的寬度 - 圖標到控件右邊的間距之間我們就算點擊了圖標，豎直方向沒有考慮
     */
    @Override
    public boolean onTouchEvent(MotionEvent event) {
        if (getCompoundDrawables()[2] != null) {
            if (event.getAction() == MotionEvent.ACTION_UP) {
            	boolean touchable = event.getX() > (getWidth()
                        - getPaddingRight() - mClearDrawable.getIntrinsicWidth())
                        && (event.getX() < ((getWidth() - getPaddingRight())));
                if (touchable) {
                    this.setText();
                }
            }
        }

        return super.onTouchEvent(event);
    }

    /**
     * 當ClearEditText焦點發生變化的時候，判斷裡面字符串長度設置清除圖標的顯示與隱藏
     */
    @Override
    public void onFocusChange(View v, boolean hasFocus) {
        if (hasFocus) {
            setClearIconVisible(getText().length() > 0);
        } else {
            setClearIconVisible(false);
        }
    }


    /**
     * 設置清除圖標的顯示與隱藏，調用setCompoundDrawables為EditText繪制上去
     * @param visible
     */
    protected void setClearIconVisible(boolean visible) {
        Drawable right = visible ? mClearDrawable : null;
        setCompoundDrawables(getCompoundDrawables()[0],
                getCompoundDrawables()[1], right, getCompoundDrawables()[3]);
    }


    /**
     * 當輸入框裡面內容發生變化的時候回調的方法
     */
    @Override
    public void onTextChanged(CharSequence s, int start, int count,
            int after) {
        setClearIconVisible(s.length() > 0);
    }

    @Override
    public void beforeTextChanged(CharSequence s, int start, int count,
            int after) {

    }

    @Override
    public void afterTextChanged(Editable s) {

    }


    /**
     * 設置晃動動畫
     */
    public void setShakeAnimation(){
    	this.setAnimation(shakeAnimation(5));
    }


    /**
     * 晃動動畫
     * @param counts 1秒鐘晃動多少下
     * @return
     */
    public static Animation shakeAnimation(int counts){
    	Animation translateAnimation = new TranslateAnimation(0, 10, 0, 0);
    	translateAnimation.setInterpolator(new CycleInterpolator(counts));
    	translateAnimation.setDuration(1000);
    	return translateAnimation;
    }


}

搜索框顏色選擇器：

3.漢字拼音排序所需要的漢字轉拼音：CharacterParser.java

package com.example.myexpandabledemo;

/**
 * Java漢字轉換為拼音
 *
 */
public class CharacterParser {
	private static int[] pyvalue = new int[] {-20319, -20317, -20304, -20295, -20292, -20283, -20265, -20257, -20242, -20230, -20051, -20036, -20032,
			-20026, -20002, -19990, -19986, -19982, -19976, -19805, -19784, -19775, -19774, -19763, -19756, -19751, -19746, -19741, -19739, -19728,
			-19725, -19715, -19540, -19531, -19525, -19515, -19500, -19484, -19479, -19467, -19289, -19288, -19281, -19275, -19270, -19263, -19261,
			-19249, -19243, -19242, -19238, -19235, -19227, -19224, -19218, -19212, -19038, -19023, -19018, -19006, -19003, -18996, -18977, -18961,
			-18952, -18783, -18774, -18773, -18763, -18756, -18741, -18735, -18731, -18722, -18710, -18697, -18696, -18526, -18518, -18501, -18490,
			-18478, -18463, -18448, -18447, -18446, -18239, -18237, -18231, -18220, -18211, -18201, -18184, -18183, -18181, -18012, -17997, -17988,
			-17970, -17964, -17961, -17950, -17947, -17931, -17928, -17922, -17759, -17752, -17733, -17730, -17721, -17703, -17701, -17697, -17692,
			-17683, -17676, -17496, -17487, -17482, -17468, -17454, -17433, -17427, -17417, -17202, -17185, -16983, -16970, -16942, -16915, -16733,
			-16708, -16706, -16689, -16664, -16657, -16647, -16474, -16470, -16465, -16459, -16452, -16448, -16433, -16429, -16427, -16423, -16419,
			-16412, -16407, -16403, -16401, -16393, -16220, -16216, -16212, -16205, -16202, -16187, -16180, -16171, -16169, -16158, -16155, -15959,
			-15958, -15944, -15933, -15920, -15915, -15903, -15889, -15878, -15707, -15701, -15681, -15667, -15661, -15659, -15652, -15640, -15631,
			-15625, -15454, -15448, -15436, -15435, -15419, -15416, -15408, -15394, -15385, -15377, -15375, -15369, -15363, -15362, -15183, -15180,
			-15165, -15158, -15153, -15150, -15149, -15144, -15143, -15141, -15140, -15139, -15128, -15121, -15119, -15117, -15110, -15109, -14941,
			-14937, -14933, -14930, -14929, -14928, -14926, -14922, -14921, -14914, -14908, -14902, -14894, -14889, -14882, -14873, -14871, -14857,
			-14678, -14674, -14670, -14668, -14663, -14654, -14645, -14630, -14594, -14429, -14407, -14399, -14384, -14379, -14368, -14355, -14353,
			-14345, -14170, -14159, -14151, -14149, -14145, -14140, -14137, -14135, -14125, -14123, -14122, -14112, -14109, -14099, -14097, -14094,
			-14092, -14090, -14087, -14083, -13917, -13914, -13910, -13907, -13906, -13905, -13896, -13894, -13878, -13870, -13859, -13847, -13831,
			-13658, -13611, -13601, -13406, -13404, -13400, -13398, -13395, -13391, -13387, -13383, -13367, -13359, -13356, -13343, -13340, -13329,
			-13326, -13318, -13147, -13138, -13120, -13107, -13096, -13095, -13091, -13076, -13068, -13063, -13060, -12888, -12875, -12871, -12860,
			-12858, -12852, -12849, -12838, -12831, -12829, -12812, -12802, -12607, -12597, -12594, -12585, -12556, -12359, -12346, -12320, -12300,
			-12120, -12099, -12089, -12074, -12067, -12058, -12039, -11867, -11861, -11847, -11831, -11798, -11781, -11604, -11589, -11536, -11358,
			-11340, -11339, -11324, -11303, -11097, -11077, -11067, -11055, -11052, -11045, -11041, -11038, -11024, -11020, -11019, -11018, -11014,
			-10838, -10832, -10815, -10800, -10790, -10780, -10764, -10587, -10544, -10533, -10519, -10331, -10329, -10328, -10322, -10315, -10309,
			-10307, -10296, -10281, -10274, -10270, -10262, -10260, -10256, -10254};
	public static String[] pystr = new String[] {a, ai, an, ang, ao, ba, bai, ban, bang, bao, bei, ben, beng, bi, bian,
			biao, bie, bin, bing, bo, bu, ca, cai, can, cang, cao, ce, ceng, cha, chai, chan, chang, chao, che,
			chen, cheng, chi, chong, chou, chu, chuai, chuan, chuang, chui, chun, chuo, ci, cong, cou, cu, cuan,
			cui, cun, cuo, da, dai, dan, dang, dao, de, deng, di, dian, diao, die, ding, diu, dong, dou, du,
			duan, dui, dun, duo, e, en, er, fa, fan, fang, fei, fen, feng, fo, fou, fu, ga, gai, gan, gang,
			gao, ge, gei, gen, geng, gong, gou, gu, gua, guai, guan, guang, gui, gun, guo, ha, hai, han, hang,
			hao, he, hei, hen, heng, hong, hou, hu, hua, huai, huan, huang, hui, hun, huo, ji, jia, jian,
			jiang, jiao, jie, jin, jing, jiong, jiu, ju, juan, jue, jun, ka, kai, kan, kang, kao, ke, ken,
			keng, kong, kou, ku, kua, kuai, kuan, kuang, kui, kun, kuo, la, lai, lan, lang, lao, le, lei, leng,
			li, lia, lian, liang, liao, lie, lin, ling, liu, long, lou, lu, lv, luan, lue, lun, luo, ma, mai,
			man, mang, mao, me, mei, men, meng, mi, mian, miao, mie, min, ming, miu, mo, mou, mu, na, nai,
			nan, nang, nao, ne, nei, nen, neng, ni, nian, niang, niao, nie, nin, ning, niu, nong, nu, nv, nuan,
			nue, nuo, o, ou, pa, pai, pan, pang, pao, pei, pen, peng, pi, pian, piao, pie, pin, ping, po, pu,
			qi, qia, qian, qiang, qiao, qie, qin, qing, qiong, qiu, qu, quan, que, qun, ran, rang, rao, re,
			ren, reng, ri, rong, rou, ru, ruan, rui, run, ruo, sa, sai, san, sang, sao, se, sen, seng, sha,
			shai, shan, shang, shao, she, shen, sheng, shi, shou, shu, shua, shuai, shuan, shuang, shui, shun,
			shuo, si, song, sou, su, suan, sui, sun, suo, ta, tai, tan, tang, tao, te, teng, ti, tian, tiao,
			tie, ting, tong, tou, tu, tuan, tui, tun, tuo, wa, wai, wan, wang, wei, wen, weng, wo, wu, xi,
			xia, xian, xiang, xiao, xie, xin, xing, xiong, xiu, xu, xuan, xue, xun, ya, yan, yang, yao, ye, yi,
			yin, ying, yo, yong, you, yu, yuan, yue, yun, za, zai, zan, zang, zao, ze, zei, zen, zeng, zha,
			zhai, zhan, zhang, zhao, zhe, zhen, zheng, zhi, zhong, zhou, zhu, zhua, zhuai, zhuan, zhuang, zhui,
			zhun, zhuo, zi, zong, zou, zu, zuan, zui, zun, zuo};
	private StringBuilder buffer;
	private String resource;
	private static CharacterParser characterParser = new CharacterParser();

	public static CharacterParser getInstance() {
		return characterParser;
	}

	public String getResource() {
		return resource;
	}

	public void setResource(String resource) {
		this.resource = resource;
	}

	/** * 漢字轉成ASCII碼 * * @param chs * @return */
	private int getChsAscii(String chs) {
		int asc = 0;
		try {
			byte[] bytes = chs.getBytes(gb2312);
			if (bytes == null || bytes.length > 2 || bytes.length <= 0) {
				throw new RuntimeException(illegal resource string);
			}
			if (bytes.length == 1) {
				asc = bytes[0];
			}
			if (bytes.length == 2) {
				int hightByte = 256 + bytes[0];
				int lowByte = 256 + bytes[1];
				asc = (256 * hightByte + lowByte) - 256 * 256;
			}
		} catch (Exception e) {
			System.out.println(ERROR:ChineseSpelling.class-getChsAscii(String chs) + e);
		}
		return asc;
	}

	/** * 單字解析 * * @param str * @return */
	public String convert(String str) {
		String result = null;
		int ascii = getChsAscii(str);
		if (ascii > 0 && ascii < 160) {
			result = String.valueOf((char) ascii);
		} else {
			for (int i = (pyvalue.length - 1); i >= 0; i--) {
				if (pyvalue[i] <= ascii) {
					result = pystr[i];
					break;
				}
			}
		}
		return result;
	}

	/** * 詞組解析 * * @param chs * @return */
	public String getSelling(String chs) {
		String key, value;
		buffer = new StringBuilder();
		for (int i = 0; i < chs.length(); i++) {
			key = chs.substring(i, i + 1);
			if (key.getBytes().length >= 2) {
				value = (String) convert(key);
				if (value == null) {
					value = unknown;
				}
			} else {
				value = key;
			}
			buffer.append(value);
		}
		return buffer.toString();
	}

	public String getSpelling() {
		return this.getSelling(this.getResource());
	}

}

package com.example.myexpandabledemo;

import java.util.Comparator;

public class PinyinComparator implements Comparator {

	public int compare(GroupMemberBean o1, GroupMemberBean o2) {
		if (o1.getSortLetters().equals(@)
				|| o2.getSortLetters().equals(#)) {
			return -1;
		} else if (o1.getSortLetters().equals(#)
				|| o2.getSortLetters().equals(@)) {
			return 1;
		} else {
			return o1.getSortLetters().compareTo(o2.getSortLetters());
		}
	}

}

package com.example.myexpandabledemo;

public class GroupMemberBean {

	private String name;   //顯示的數據
	private String sortLetters;  //顯示數據拼音的首字母

	public String getName() {
		return name;
	}
	public void setName(String name) {
		this.name = name;
	}
	public String getSortLetters() {
		return sortLetters;
	}
	public void setSortLetters(String sortLetters) {
		this.sortLetters = sortLetters;
	}
}

package com.example.myexpandabledemo;

import java.util.List;

import android.content.Context;
import android.view.LayoutInflater;
import android.view.View;
import android.view.View.OnClickListener;
import android.view.ViewGroup;
import android.widget.BaseExpandableListAdapter;
import android.widget.ImageView;
import android.widget.LinearLayout;
import android.widget.TextView;
import android.widget.Toast;

public class MyExpandableAdapter extends BaseExpandableListAdapter {

	private Context mContext;
	private List mGroup;
	private List> mChild;
	private LayoutInflater mInflater;
	public MyExpandableAdapter(Context mContext,List mGroup,List> mChild){
		this.mContext = mContext;
		this.mGroup = mGroup;
		this.mChild = mChild;
		this.mInflater = (LayoutInflater) mContext.getSystemService(Context.LAYOUT_INFLATER_SERVICE);
	}
	/**
	 * 當ListView數據發生變化時,調用此方法來更新ListView
	 *
	 * @param list
	 */
	public void updateListView(List mGroup,List> mChild) {
		this.mGroup = mGroup;
		this.mChild = mChild;
		notifyDataSetChanged();
	}

	@Override
	public int getGroupCount() {
		// TODO Auto-generated method stub
		return mGroup.size();
	}

	@Override
	public int getChildrenCount(int groupPosition) {
		// TODO Auto-generated method stub
		return mChild.get(groupPosition).size();
	}

	@Override
	public Object getGroup(int groupPosition) {
		// TODO Auto-generated method stub
		return mGroup.get(groupPosition);
	}

	@Override
	public Object getChild(int groupPosition, int childPosition) {
		// TODO Auto-generated method stub
		return mChild.get(groupPosition).get(childPosition);
	}

	@Override
	public long getGroupId(int groupPosition) {
		// TODO Auto-generated method stub
		return groupPosition;
	}

	@Override
	public long getChildId(int groupPosition, int childPosition) {
		// TODO Auto-generated method stub
		return childPosition;
	}

	@Override
	public boolean hasStableIds() {
		// TODO Auto-generated method stub
		return false;
	}

	@Override
	public View getGroupView(int groupPosition, boolean isExpanded,
			View convertView, ViewGroup parent) {
		// TODO Auto-generated method stub
		GroupHolderView groupHolderView;
		if(convertView == null){
			groupHolderView = new GroupHolderView();
			convertView = (View) mInflater.inflate(R.layout.activity_group, null);
			groupHolderView.groupTv = (TextView) convertView.findViewById(R.id.my_group_tv);
			convertView.setTag(groupHolderView);
		}else{
			groupHolderView = (GroupHolderView) convertView.getTag();
		}
		groupHolderView.groupTv.setText(mGroup.get(groupPosition).getName());
		return convertView;
	}

	@Override
	public View getChildView(final int groupPosition, final int childPosition,
			boolean isLastChild, View convertView, ViewGroup parent) {
		// TODO Auto-generated method stub

		ChildHolderView childHolderView;
		if(convertView == null){
			childHolderView = new ChildHolderView();
			convertView = (View) mInflater.inflate(R.layout.activity_child, null);
			childHolderView.childIv = (ImageView) convertView.findViewById(R.id.my_child_iv);
			childHolderView.childTv = (TextView) convertView.findViewById(R.id.my_child_tv);
			childHolderView.childLl = (LinearLayout) convertView.findViewById(R.id.my_child_ll);
			convertView.setTag(childHolderView);
		}else{
			childHolderView = (ChildHolderView) convertView.getTag();
		}
		childHolderView.childTv.setText(mChild.get(groupPosition).get(childPosition).getName());
		childHolderView.childLl.setOnClickListener(new OnClickListener(){

			@Override
			public void onClick(View v) {
				// TODO Auto-generated method stub
				Toast.makeText(mContext, group: + mGroup.get(groupPosition).getName() + ->child: + mChild.get(groupPosition).get(childPosition).getName(), Toast.LENGTH_SHORT).show();
			}
		});

		return convertView;
	}

	@Override
	public boolean isChildSelectable(int groupPosition, int childPosition) {
		// TODO Auto-generated method stub
		return false;
	}

	class GroupHolderView{
		TextView groupTv;
	}

	class ChildHolderView{
		ImageView childIv;
		TextView childTv;
		LinearLayout childLl;
	}

}

分析：

GroupHolderView:用於顯示組信息

ChildHolderView:用於顯示組下成員信息。包括一個LinearLayout,一個ImageView,一個TextVIew

private List mGroup; 包含組的所有List信息
private List> mChild;包含所有的組下成員信息


	public void updateListView(List mGroup,List> mChild) {
		this.mGroup = mGroup;
		this.mChild = mChild;
		notifyDataSetChanged();
	}

7.GroupHolderView類所對應的activity_group.xml

9.顏色選擇器my_child_selector.xml

package com.example.myexpandabledemo;

import java.util.ArrayList;
import java.util.Collections;
import java.util.List;

import android.app.Activity;
import android.os.Bundle;
import android.text.Editable;
import android.text.TextUtils;
import android.text.TextWatcher;
import android.view.Menu;
import android.view.MenuItem;
import android.view.View;
import android.view.View.OnClickListener;
import android.widget.Button;
import android.widget.ExpandableListView;
import android.widget.TextView;

public class MainActivity extends Activity {

	private Button myBtn;
	private ExpandableListView myExpandLv;
	private ClearEditText myClearEt;
	private TextView noSearchResultTv;
	private MyExpandableAdapter myAdapter;

	private List groupBeanList;
	private List> childBeanList = new ArrayList>();
	/**
	 * 漢字轉換成拼音的類
	 */
	private CharacterParser characterParser;
	/**
	 * 根據拼音來排列ListView裡面的數據類
	 */
	private PinyinComparator pinyinComparator;

	@Override
	protected void onCreate(Bundle savedInstanceState) {
		super.onCreate(savedInstanceState);
		setContentView(R.layout.activity_main);

		init();
	}

	private void init() {
		noSearchResultTv = (TextView)this.findViewById(R.id.no_search_result_tv);
		myExpandLv = (ExpandableListView) this.findViewById(R.id.my_expand_lv);

		// 實例化漢字轉拼音類
		characterParser = CharacterParser.getInstance();

		pinyinComparator = new PinyinComparator();

		groupBeanList = filledData(this.getResources().getStringArray(
				R.array.depart));
		List tempOne = filledData(this.getResources()
				.getStringArray(R.array.child_one));
		List tempTwo = filledData(this.getResources()
				.getStringArray(R.array.child_two));

		// 根據a-z進行排序源數據
		Collections.sort(groupBeanList, pinyinComparator);

		Collections.sort(tempOne, pinyinComparator);
		Collections.sort(tempTwo, pinyinComparator);

		for (int i = 0; i < groupBeanList.size(); i++) {
			if (i % 2 == 0) {
				childBeanList.add(tempOne);
			} else {
				childBeanList.add(tempTwo);
			}
		}

		//用於生成列表信息
		myBtn = (Button) this.findViewById(R.id.my_btn);
		myBtn.setOnClickListener(new OnClickListener() {

			@Override
			public void onClick(View v) {
				// TODO Auto-generated method stub
				myAdapter = new MyExpandableAdapter(MainActivity.this,
						groupBeanList, childBeanList);
				myExpandLv.setAdapter(myAdapter);
				myExpandLv.expandGroup(0);
			}

		});

		myClearEt = (ClearEditText) this.findViewById(R.id.filter_edit);

		myClearEt.addTextChangedListener(new TextWatcher() {

			@Override
			public void beforeTextChanged(CharSequence s, int start, int count,
					int after) {
				// TODO Auto-generated method stub

			}

			@Override
			public void onTextChanged(CharSequence s, int start, int before,
					int count) {
				// TODO Auto-generated method stub
				filterData(s.toString());
			}

			@Override
			public void afterTextChanged(Editable s) {
				// TODO Auto-generated method stub

			}
		});
	}

	@Override
	public boolean onCreateOptionsMenu(Menu menu) {

		// Inflate the menu; this adds items to the action bar if it is present.
		getMenuInflater().inflate(R.menu.main, menu);
		return true;
	}

	@Override
	public boolean onOptionsItemSelected(MenuItem item) {
		// Handle action bar item clicks here. The action bar will
		// automatically handle clicks on the Home/Up button, so long
		// as you specify a parent activity in AndroidManifest.xml.
		int id = item.getItemId();
		if (id == R.id.action_settings) {
			return true;
		}
		return super.onOptionsItemSelected(item);
	}

	/**
	 * 為ListView填充數據
	 *
	 * @param date
	 * @return
	 */
	private List filledData(String[] date) {
		List mSortList = new ArrayList();

		for (int i = 0; i < date.length; i++) {
			GroupMemberBean sortModel = new GroupMemberBean();
			sortModel.setName(date[i]);
			// 漢字轉換成拼音
			String pinyin = characterParser.getSelling(date[i]);
			String sortString = pinyin.substring(0, 1).toUpperCase();

			// 正則表達式，判斷首字母是否是英文字母
			if (sortString.matches([A-Z])) {
				sortModel.setSortLetters(sortString.toUpperCase());
			} else {
				sortModel.setSortLetters(#);
			}

			mSortList.add(sortModel);
		}
		return mSortList;

	}

	/**
	 * 根據輸入框中的值來過濾數據並更新ListView
	 *
	 * @param filterStr
	 */
	private void filterData(String filterStr) {
		List groupFilterList = new ArrayList();
		List tempFilterList;
		List> childFilterList = new ArrayList>();

		if (TextUtils.isEmpty(filterStr)) {
			groupFilterList = groupBeanList;
			childFilterList = childBeanList;
			noSearchResultTv.setVisibility(View.GONE);
		} else {
			groupFilterList.clear();
			childFilterList.clear();
			for (int i = 0; i < groupBeanList.size(); i++) {
				//標記departGroup是否加入元素
				boolean isAddGroup = false;
				tempFilterList = new ArrayList();
				GroupMemberBean sortModel = groupBeanList.get(i);
				String name = sortModel.getName();
				// depart有字符直接加入
				if (name.indexOf(filterStr.toString()) != -1
						|| characterParser.getSelling(name).startsWith(
								filterStr.toString())) {
					if (!groupFilterList.contains(sortModel)) {
						groupFilterList.add(sortModel);
						isAddGroup = true;
					}
				}

				for (int j = 0; j < childBeanList.get(i).size(); j++) {
					GroupMemberBean sortChildModel = childBeanList.get(i)
							.get(j);
					String childName = sortChildModel.getName();
					// child有字符直接加入，其父也加入
					if (childName.indexOf(filterStr.toString()) != -1
							|| characterParser.getSelling(childName)
									.startsWith(filterStr.toString())) {
						tempFilterList.add(sortChildModel);
						if (!groupFilterList.contains(groupBeanList.get(i))) {
							groupFilterList.add(groupBeanList.get(i));
							isAddGroup = true;
						}
					}

				}
				Collections.sort(tempFilterList, pinyinComparator);
				if (isAddGroup) {
					childFilterList.add(tempFilterList);
				}
			}

			// 根據a-z進行排序
			Collections.sort(groupBeanList, pinyinComparator);
		}

		if (myAdapter != null) {
			myAdapter.updateListView(groupFilterList, childFilterList);

			if (TextUtils.isEmpty(filterStr)) {
				for (int i = 0; i < groupFilterList.size(); i++) {
					if (i == 0) {
						myExpandLv.expandGroup(i);
						continue;
					}
					myExpandLv.collapseGroup(i);
				}
			} else {
				//搜索的結果全部展開
				for (int i = 0; i < groupFilterList.size(); i++) {
					myExpandLv.expandGroup(i);
				}
			}
		}

		//如果查詢的結果為0時，顯示為搜索到結果的提示
		if(groupFilterList.size() == 0){
			noSearchResultTv.setVisibility(View.VISIBLE);
		}else{
			noSearchResultTv.setVisibility(View.GONE);
		}
	}
}

		myBtn.setOnClickListener(new OnClickListener() {

			@Override
			public void onClick(View v) {
				// TODO Auto-generated method stub
				myAdapter = new MyExpandableAdapter(MainActivity.this,
						groupBeanList, childBeanList);
				myExpandLv.setAdapter(myAdapter);
				myExpandLv.expandGroup(0);
			}

		});

private List filledData(String[] date)

private void filterData(String filterStr) {
