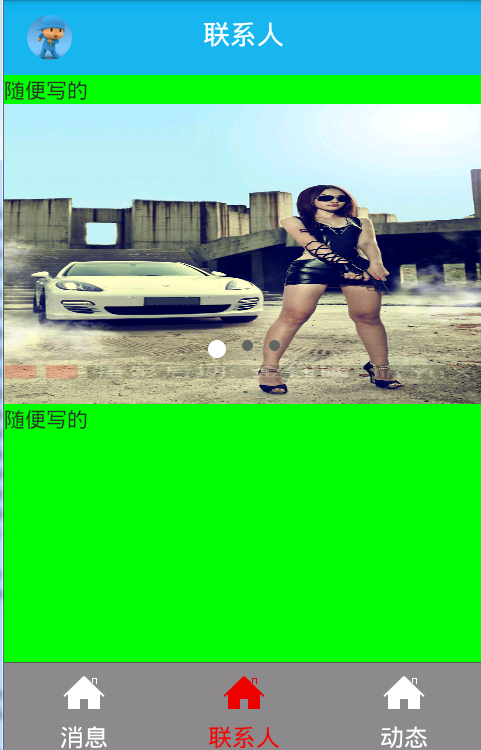

如下圖是側滑的效果圖





實現的功能主要是用ViewDragHelper，用ViewDragHelper來自定義一個側滑面板來實現側滑

如下是自定義的側滑面板

  1 package com.demo.sb.widget;
  2
  3 import com.nineoldandroids.view.ViewHelper;
  4
  5 import android.content.Context;
  6 import android.graphics.Color;
  7 import android.graphics.PorterDuff.Mode;
  8 import android.support.v4.view.ViewCompat;
  9 import android.support.v4.widget.ViewDragHelper;
 10 import android.util.AttributeSet;
 11 import android.util.Log;
 12 import android.view.MotionEvent;
 13 import android.view.View;
 14 import android.view.ViewGroup;
 15 import android.widget.FrameLayout;
 16
 17 /**
 18  * 側滑面板
 19  *
 20  * @author Administrator
 21  *
 22  */
 23 public class DragLayout extends FrameLayout {
 24
 25     private ViewDragHelper mDragHelper;
 26     private ViewGroup mLeftContent;
 27     private ViewGroup mMainContent;
 28
 29     private Status mStatus = Status.Close;
 30     private OnDragStatusChangeListener mListener;
 31
 32     /**
 33      * 狀態枚舉
 34      */
 35     public static enum Status {
 36         Close, Open, Draging;
 37     }
 38
 39     public interface OnDragStatusChangeListener {
 40         void onClose();
 41
 42         void onOpen();
 43
 44         void onDraging(float percent);
 45     }
 46
 47     public Status getStatus() {
 48         return mStatus;
 49     }
 50
 51     public void setStatus(Status mStatus) {
 52         this.mStatus = mStatus;
 53     }
 54
 55     public void setDragStatusListener(OnDragStatusChangeListener mListener) {
 56         this.mListener = mListener;
 57     }
 58
 59     public DragLayout(Context context) {
 60         this(context, null);
 61         // TODO Auto-generated constructor stub
 62     }
 63
 64     public DragLayout(Context context, AttributeSet attrs) {
 65         this(context, attrs, 0);
 66         // TODO Auto-generated constructor stub
 67     }
 68
 69     public DragLayout(Context context, AttributeSet attrs, int defStyle) {
 70         super(context, attrs, defStyle);
 71         // TODO Auto-generated constructor stub
 72         /**
 73          * a . 初始化(通過靜態的方法)
 74          */
 75         mDragHelper = ViewDragHelper.create(this, mCallback);
 76     }
 77
 78     /**
 79      * c. 重寫Callback的事件
 80      */
 81     ViewDragHelper.Callback mCallback = new ViewDragHelper.Callback() {
 82         /**
 83          * 1. 根據返回結果決定當前的child是否可以拖拽 child 當前被拖拽的View pointerId 區分多點觸摸的id
 84          */
 85         @Override
 86         public boolean tryCaptureView(View child, int pointerId) {
 87             Log.d("jiejie", "tryCaptureView: " + child);
 88             return true;// 都可以嘗試被拖拽
 89             // return child == mMainContent;//只有主程序的View可以被拖拽
 90         }
 91
 92         public void onViewCaptured(View capturedChild, int activePointerId) {
 93             // 當capturedChild被捕獲時，調用
 94             Log.d("jiejie", "onViewCaptured: " + capturedChild);
 95         }
 96
 97         public int getViewHorizontalDragRange(View child) {
 98             // 返回拖拽的范圍，不對拖拽進行真正的限制。僅僅決定了動畫的執行速度
 99             return mRange;
100         }
101
102         /**
103          * 2. 根據建議值 修正將要移動到的(橫向)位置(重要) 此時還沒有真正移動
104          */
105         public int clampViewPositionHorizontal(View child, int left, int dx) {
106             Log.d("jiejie", "clampViewPositionHorizontal: " + left);
107             if (child == mMainContent) {
108                 left = fixLeft(left);
109             }
110             return left;
111         }
112
113         /**
114          * 3. 當View位置改變的時候，處理要做的事情(更新狀態, 伴隨動畫, 重繪界面) 此時，View已經發生了位置的改變
115          * changedView 改變位置的View left 新的左邊值 dx 水平方向變化量
116          */
117         public void onViewPositionChanged(View changedView, int left, int top,
118                 int dx, int dy) {
119             super.onViewPositionChanged(changedView, left, top, dx, dy);
120             Log.d("jiejie", "onViewPositionChanged: " + "left:" + left
121                     + " dx: " + dx);
122             int newLeft = left;
123             if (changedView == mLeftContent) {
124                 // 把當前變化量專遞給mMainContent
125                 newLeft = mMainContent.getLeft() + dx;
126             }
127             // 進行修正
128             newLeft = fixLeft(newLeft);
129
130             if (changedView == mLeftContent) {
131                 // 當左面板移動之後，再強制放回去
132                 mLeftContent.layout(0, 0, 0 + mWidth, 0 + mHeight);
133                 mMainContent.layout(newLeft, 0, newLeft + mWidth, 0 + mHeight);
134             }
135
136             /**
137              * 更新狀態時設置動畫(也可以不設置，不設置的話則默認平滑的狀態,也可以省很多代碼) 設置左面板和主面板，背景的動畫
138              */
139             dispatchDragEvent(newLeft);
140
141             // 為了兼容低版本，每次修改值之後，進行重繪
142             invalidate();
143         }
144
145         /**
146          * 4. 當View被釋放的時候，處理的事情(執行動畫) View releasedChild 被釋放的子View float xvel
147          * 水平方向的速度，向右為正 float yvel 豎直方向的速度， 向下為正
148          */
149         public void onViewReleased(View releasedChild, float xvel, float yvel) {
150             Log.d("jiejie", "onViewReleased: " + "xvel: " + xvel + "yvel: "
151                     + yvel);
152             super.onViewReleased(releasedChild, xvel, yvel);
153             // 判斷執行 關閉/開啟
154             // 先考慮所有開啟的情況，剩下的就是都是關閉的情況
155             if (xvel == 0 && mMainContent.getLeft() > (mRange / 2.0f)) {
156                 open();
157             } else if (xvel > 0) {
158                 open();
159             } else {
160                 chose();
161             }
162         }
163
164         public void onViewDragStateChanged(int state) {
165             super.onViewDragStateChanged(state);
166         }
167     };
168
169     /**
170      * 根據范圍修正左邊值
171      *
172      * @param left
173      * @return
174      */
175     private int fixLeft(int left) {
176         if (left < 0) {
177             return 0;
178         } else if (left > mRange) {
179             return mRange;
180         }
181         return left;
182     }
183
184     /**
185      * 執行動畫
186      *
187      * @param newLeft
188      */
189     protected void dispatchDragEvent(int newLeft) {
190         // TODO Auto-generated method stub
191         float percent = newLeft * 1.0f / mRange;
192         Log.d("jiejie", "percent: " + percent);
193         if (mListener != null) {
194             mListener.onDraging(percent);
195         }
196
197         // 更新狀態，執行回調
198         Status preStatus = mStatus;
199         mStatus = updateStatus(percent);
200
201         if (mStatus != preStatus) {
202             // 狀態發生變化
203             if (mStatus == Status.Close) {
204                 // 當前變為關閉狀態
205                 if (mListener != null) {
206                     mListener.onClose();
207                 }
208             } else if (mStatus == Status.Open) {
209                 if (mListener != null) {
210                     mListener.onOpen();
211                 }
212             }
213         }
214
215         // 伴隨動畫
216         animViews(percent);
217     }
218
219     private Status updateStatus(float percent) {
220         if (percent == 0f) {
221             return Status.Close;
222         } else if (percent == 1.0f) {
223             return Status.Open;
224         }
225         return Status.Draging;
226     }
227
228     private void animViews(float percent) {
229         // TODO Auto-generated method stub
230         /**
231          * >1.左面板：縮放動畫，平移動畫，透明度動畫 縮放動畫0.0 - > 1.0 >> 0.5f -> 1.0f >>>
232          * 0.5f*percent+0.5f mLeftContent.setScaleX(0.5f + 0.5f * percent);
233          * mLeftContent.setScaleY(0.5f + 0.5f * percent);
234          */
235         // mLeftContent.setScaleY(0.5f + 0.5f * percent);
236         // mLeftContent.setScaleX(0.5f + 0.5f * percent);
237         ViewHelper.setScaleX(mLeftContent, evaluate(percent, 0.5f, 1.0f));
238         ViewHelper.setScaleY(mLeftContent, 0.5f + 0.5f * percent);
239         // 平移動畫：-mWidth / 2.0 f - > 0.0f
240         ViewHelper.setTranslationX(mLeftContent,
241                 evaluate(percent, -mWidth / 2.0f, 0));
242         // 透明度: 0.5 -> 1.0f
243         ViewHelper.setAlpha(mLeftContent, evaluate(percent, 0.5f, 1.0f));
244
245         /**
246          * >2. 主面板：縮放動畫
247          */
248         // 1.0f -> 0.8f
249         ViewHelper.setScaleX(mMainContent, evaluate(percent, 1.0f, 0.8f));
250         ViewHelper.setScaleY(mMainContent, evaluate(percent, 1.0f, 0.8f));
251
252         /**
253          * >3. 背景動畫: 亮度變化(顏色變化)
254          */
255         getBackground()
256                 .setColorFilter(
257                         (Integer) evaluateColor(percent, Color.BLACK,
258                                 Color.TRANSPARENT), Mode.SRC_OVER);
259     }
260
261     /**
262      * 估值器
263      *
264      * @param fraction
265      * @param startValue
266      * @param endValue
267      * @return
268      */
269     public Float evaluate(float fraction, Number startValue, Number endValue) {
270         float startFloat = startValue.floatValue();
271         return startFloat + fraction * (endValue.floatValue() - startFloat);
272     }
273
274     /**
275      * 顏色變化過度
276      *
277      * @param fraction
278      * @param startValue
279      * @param endValue
280      * @return
281      */
282     public Object evaluateColor(float fraction, Object startValue,
283             Object endValue) {
284         int startInt = (Integer) startValue;
285         int startA = (startInt >> 24) & 0xff;
286         int startR = (startInt >> 16) & 0xff;
287         int startG = (startInt >> 8) & 0xff;
288         int startB = startInt & 0xff;
289
290         int endInt = (Integer) endValue;
291         int endA = (endInt >> 24) & 0xff;
292         int endR = (endInt >> 16) & 0xff;
293         int endG = (endInt >> 8) & 0xff;
294         int endB = endInt & 0xff;
295
296         return (int) ((startA + (int) (fraction * (endA - startA))) << 24)
297                 | (int) ((startR + (int) (fraction * (endR - startR))) << 16)
298                 | (int) ((startG + (int) (fraction * (endG - startG))) << 8)
299                 | (int) ((startB + (int) (fraction * (endB - startB))));
300     }
301
302     @Override
303     public void computeScroll() {
304         // TODO Auto-generated method stub
305         super.computeScroll();
306         // 2. 持續平滑動畫(高頻率調用)
307         if (mDragHelper.continueSettling(true)) {
308             // 如果返回true，動畫還需要繼續執行
309             ViewCompat.postInvalidateOnAnimation(this);
310         }
311     }
312
313     // public void chose() {
314     // // TODO Auto-generated method stub
315     // chose(true);
316     // }
317     public void chose() {
318         // TODO Auto-generated method stub
319         chose(true);
320     }
321
322     /**
323      * 關閉
324      *
325      * @param b
326      */
327     public void chose(boolean isSmooth) {
328         // TODO Auto-generated method stub
329         int finalLeft = 0;
330         // 1. 觸發一個平滑動畫
331         if (isSmooth) {
332             if (mDragHelper.smoothSlideViewTo(mMainContent, finalLeft, 0)) {
333                 // 返回true代表還沒有移動到指定位置，需要刷新界面
334                 // 參數傳this(child所在的ViewGroup)
335                 ViewCompat.postInvalidateOnAnimation(this);
336             }
337         } else {
338             mMainContent.layout(finalLeft, 0, finalLeft + mWidth, 0 + mHeight);
339         }
340     }
341
342     public void open() {
343         // TODO Auto-generated method stub
344         open(true);
345     }
346
347     /**
348      * 開啟
349      *
350      * @param b
351      */
352     public void open(boolean isSmooth) {
353         // TODO Auto-generated method stub
354         int finalLeft = mRange;
355         if (isSmooth) {
356             // 1. 觸發一個平滑動畫
357             if (mDragHelper.smoothSlideViewTo(mMainContent, finalLeft, 0)) {
358                 // 返回true代表還沒有移動到指定位置，需要刷新界面
359                 // 參數this(child所在的ViewGroup)
360                 ViewCompat.postInvalidateOnAnimation(this);
361             }
362         } else {
363             mMainContent.layout(finalLeft, 0, finalLeft + mWidth, 0 + mHeight);
364         }
365     }
366
367     /**
368      * b. 專遞觸摸事件
369      */
370     public boolean onInterceptTouchEvent(MotionEvent ev) {
371         // 傳遞給mDragHandler
372         return mDragHelper.shouldInterceptTouchEvent(ev);
373     };
374
375     @Override
376     public boolean onTouchEvent(MotionEvent event) {
377         // TODO Auto-generated method stub
378         try {
379             mDragHelper.processTouchEvent(event);
380         } catch (Exception e) {
381             e.printStackTrace();
382         }
383         // 返回true，持續接收事件
384         return true;
385     }
386
387     /**
388      * 當View中所有的子控件 均被映射成xml後觸發
389      */
390     @Override
391     protected void onFinishInflate() {
392         // TODO Auto-generated method stub
393         super.onFinishInflate();
394         if (getChildCount() < 2) {
395             throw new IllegalAccessError(
396                     "布局至少有2個孩子. Your ViewGroup must have 2 children at least");
397         }
398         if (!(getChildAt(0) instanceof ViewGroup && getChildAt(1) instanceof ViewGroup)) {
399             throw new IllegalArgumentException(
400                     "子View必須是ViewGroup的子類. Your children must be an instance of ViewGroup");
401         }
402         mLeftContent = (ViewGroup) getChildAt(0);
403         mMainContent = (ViewGroup) getChildAt(1);
404     }
405
406     /**
407      * 當view的大小發生變化時觸發
408      */
409     private int mRange;
410     private int mHeight;
411     private int mWidth;
412
413     @Override
414     protected void onSizeChanged(int w, int h, int oldw, int oldh) {
415         // 當尺寸有變化的時候調用
416         super.onSizeChanged(w, h, oldw, oldh);
417         mHeight = getMeasuredHeight();
418         mWidth = getMeasuredWidth();
419         mRange = (int) (mWidth * 0.6f);
420     }
421
422 }

如下是主程序代碼

  1 package com.demo.sb.main;
  2
  3 import com.demo.sb.mainfram.TentcentOneFragment;
  4 import com.demo.sb.mainfram.TentcentThreeFragment;
  5 import com.demo.sb.mainfram.TentcentTwoFragment;
  6 import com.demo.sb.utils.Utils;
  7 import com.demo.sb.widget.DragLayout;
  8 import com.demo.sb.widget.DragLayout.OnDragStatusChangeListener;
  9 import com.demo.sb.widget.MyListLinearLayout;
 10 import com.demo.suibian.R;
 11 import com.nineoldandroids.animation.ObjectAnimator;
 12 import com.nineoldandroids.view.ViewHelper;
 13
 14 import android.os.Bundle;
 15 import android.support.v4.app.FragmentActivity;
 16 import android.support.v4.app.FragmentManager;
 17 import android.support.v4.app.FragmentTransaction;
 18 import android.view.View;
 19 import android.view.Window;
 20 import android.view.animation.CycleInterpolator;
 21 import android.widget.ImageView;
 22 import android.widget.RadioGroup;
 23 import android.widget.RadioGroup.OnCheckedChangeListener;
 24 import android.widget.TextView;
 25
 26 /**
 27  * 側滑菜單
 28  *
 29  * @author Administrator
 30  *
 31  */
 32 public class Activity_Tencent extends FragmentActivity {
 33
 34     private RadioGroup rg_tencent_mian;
 35     // private FrameLayout fl_tencent_content;
 36     private ImageView iv_header;
 37     private TextView tv_header;
 38
 39     private TentcentOneFragment oneFragment;
 40     private TentcentTwoFragment twoFragment;
 41     private TentcentThreeFragment threeFragment;
 42     private static DragLayout mDragLayout;
 43
 44     @Override
 45     protected void onCreate(Bundle savedInstanceState) {
 46         // TODO Auto-generated method stub
 47         super.onCreate(savedInstanceState);
 48         requestWindowFeature(Window.FEATURE_NO_TITLE);
 49         setContentView(R.layout.activity_tencent);
 50
 51         initView();
 52         initData();
 53
 54     }
 55
 56     private void initView() {
 57         // TODO Auto-generated method stub
 58         rg_tencent_mian = (RadioGroup) findViewById(R.id.rg_tencent_mian);
 59         iv_header = (ImageView) findViewById(R.id.iv_header);
 60         tv_header = (TextView) findViewById(R.id.tv_header);
 61         MyListLinearLayout mLayout = (MyListLinearLayout) findViewById(R.id.mll);
 62         mDragLayout = (DragLayout) findViewById(R.id.dl);
 63         // 設置引用
 64         mLayout.setDraglayout(mDragLayout);
 65
 66         mDragLayout.setDragStatusListener(new OnDragStatusChangeListener() {
 67
 68             @Override
 69             public void onOpen() {
 70                 // TODO Auto-generated method stub
 71                 Utils.showToast(Activity_Tencent.this, "onOpen");
 72             }
 73
 74             @Override
 75             public void onDraging(float percent) {
 76                 // TODO Auto-generated method stub
 77                 // 跟新圖標的透明度
 78                 // 1.0 -> 0.0
 79                 ViewHelper.setAlpha(iv_header, 1 - percent);
 80             }
 81
 82             @Override
 83             public void onClose() {
 84                 // TODO Auto-generated method stub
 85                 Utils.showToast(Activity_Tencent.this, "onClose");
 86                 // 讓圖片開會晃動
 87                 ObjectAnimator mAnim = ObjectAnimator.ofFloat(iv_header,
 88                         "translationX", 15.0f);
 89                 mAnim.setInterpolator(new CycleInterpolator(4));
 90                 mAnim.setDuration(500);
 91                 mAnim.start();
 92             }
 93         });
 94
 95         iv_header.setOnClickListener(new View.OnClickListener() {
 96
 97             @Override
 98             public void onClick(View arg0) {
 99                 // TODO Auto-generated method stub
100                 mDragLayout.open(true);
101             }
102         });
103     }
104
105     private void initData() {
106         // TODO Auto-generated method stub
107         rg_tencent_mian.check(R.id.rb_tencent_one);
108
109         oneFragment = new TentcentOneFragment();
110         twoFragment = new TentcentTwoFragment();
111         threeFragment = new TentcentThreeFragment();
112         // 獲取fragment管理器
113         FragmentManager fragmentManager = getSupportFragmentManager();
114         // 打開事務
115         FragmentTransaction transaction = fragmentManager.beginTransaction();
116         // 把內容顯示到幀布局中
117         transaction.add(R.id.fl_tencent_content, oneFragment);
118         transaction.add(R.id.fl_tencent_content, twoFragment);
119         transaction.add(R.id.fl_tencent_content, threeFragment);
120         transaction.show(oneFragment).hide(twoFragment).hide(threeFragment);
121         // 提交
122         transaction.commit();
123         tv_header.setText("head");
124
125         rg_tencent_mian
126                 .setOnCheckedChangeListener(new OnCheckedChangeListener() {
127
128                     @Override
129                     public void onCheckedChanged(RadioGroup arg0, int arg1) {
130                         // TODO Auto-generated method stub
131                         switch (arg1) {
132                         case R.id.rb_tencent_one:
133                             tv_header.setText("head");
134                             getSupportFragmentManager().beginTransaction()
135                                     .show(oneFragment).hide(twoFragment)
136                                     .hide(threeFragment).commit();
137                             break;
138                         case R.id.rb_tencent_two:
139                             tv_header.setText("聯系人");
140                             getSupportFragmentManager().beginTransaction()
141                                     .show(twoFragment).hide(oneFragment)
142                                     .hide(threeFragment).commit();
143                             break;
144                         case R.id.rb_tencent_three:
145                             tv_header.setText("動態");
146                             getSupportFragmentManager().beginTransaction()
147                                     .show(threeFragment).hide(oneFragment)
148                                     .hide(twoFragment).commit();
149                             break;
150                         default:
151                             break;
152                         }
153                     }
154                 });
155     }
156
157 }

主程序的布局xml為

<?xml version="1.0" encoding="utf-8"?> <com.demo.sb.widget.DragLayout xmlns:android="http://schemas.android.com/apk/res/android" android:id="@+id/dl" android:layout_width="match_parent" android:layout_height="match_parent" android:background="@drawable/bg" > <LinearLayout android:layout_width="match_parent" android:layout_height="match_parent" android:background="#50ff" android:orientation="vertical" android:paddingBottom="50dp" android:paddingLeft="10dp" android:paddingRight="50dp" android:paddingTop="50dp" > <ImageView android:layout_width="50dp" android:layout_height="50dp" android:contentDescription="@null" android:src="@drawable/head" /> </LinearLayout> <com.demo.sb.widget.MyListLinearLayout android:id="@+id/mll" android:layout_width="match_parent" android:layout_height="match_parent" android:background="#fff" android:orientation="vertical" > <RelativeLayout android:layout_width="match_parent" android:layout_height="50dp" android:background="#18B6EF" android:gravity="center_vertical" > <ImageView android:id="@+id/iv_header" android:layout_width="30dp" android:layout_height="30dp" android:layout_marginLeft="15dp" android:contentDescription="@null" android:src="@drawable/head" /> <TextView android:id="@+id/tv_header" android:layout_width="wrap_content" android:layout_height="wrap_content" android:gravity="center" android:layout_centerHorizontal="true" android:textColor="#fff" android:textSize="18sp" android:text="" /> </RelativeLayout> <FrameLayout android:id="@+id/fl_tencent_content" android:layout_width="match_parent" android:layout_height="0dp" android:layout_weight="1" /> <RadioGroup android:id="@+id/rg_tencent_mian" android:layout_width="match_parent" android:layout_height="wrap_content" android:background="@drawable/bottom_tab_bg" android:orientation="horizontal" > <RadioButton android:id="@+id/rb_tencent_one" android:layout_width="0dp" android:layout_height="wrap_content" android:layout_gravity="center_vertical" android:layout_weight="1" android:button="@null" android:drawablePadding="3dp" android:drawableTop="@drawable/btn_tab_home_selector" android:gravity="center" android:text="消息" android:textColor="@drawable/btn_tab_text_selector" /> <RadioButton android:id="@+id/rb_tencent_two" android:layout_width="0dp" android:layout_height="wrap_content" android:layout_gravity="center_vertical" android:layout_weight="1" android:button="@null" android:drawablePadding="3dp" android:drawableTop="@drawable/btn_tab_home_selector" android:gravity="center" android:text="聯系人" android:textColor="@drawable/btn_tab_text_selector" /> <RadioButton android:id="@+id/rb_tencent_three" android:layout_width="0dp" android:layout_height="wrap_content" android:layout_gravity="center_vertical" android:layout_weight="1" android:button="@null" android:drawablePadding="3dp" android:drawableTop="@drawable/btn_tab_home_selector" android:gravity="center" android:text="動態" android:textColor="@drawable/btn_tab_text_selector" /> </RadioGroup> </com.demo.sb.widget.MyListLinearLayout> </com.demo.sb.widget.DragLayout> View Code

主界面是用繼承的FragmentActivity來實現下面3個按鈕的點擊事件，其中第一個Fragment（TentcentOneFragment）內只有個ListView

當停在側滑界面時，ListView不能進行上下滑動

TentcentOneFragment的代碼和xml布局

package com.demo.sb.mainfram; import com.demo.suibian.R; import android.os.Bundle; import android.support.v4.app.Fragment; import android.view.LayoutInflater; import android.view.View; import android.view.ViewGroup; import android.widget.BaseAdapter; import android.widget.ListView; import android.widget.TextView; public class TentcentOneFragment extends Fragment { private ListView mListView; @Override public View onCreateView(LayoutInflater inflater, ViewGroup container, Bundle savedInstanceState) { // TODO Auto-generated method stub return inflater.inflate(R.layout.tentcentonefragment, null, false); } @Override public void onActivityCreated(Bundle savedInstanceState) { // TODO Auto-generated method stub super.onActivityCreated(savedInstanceState); mListView = (ListView) getActivity().findViewById(R.id.lv_one_listview); mListView.setAdapter(new MyListAdapter()); } private int[] con = { 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13 }; private String[] name = { "第一人", "第二人", "第三人", "第四人", "第五人", "第六人", "第七人", "第八人", "第九人", "第十人", "第十一人", "第十二人", "第十三人" }; private class MyListAdapter extends BaseAdapter { @Override public int getCount() { // TODO Auto-generated method stub return name.length; } @Override public String getItem(int arg0) { // TODO Auto-generated method stub return name[arg0]; } @Override public long getItemId(int arg0) { // TODO Auto-generated method stub return arg0; } @Override public View getView(int arg0, View arg1, ViewGroup arg2) { // TODO Auto-generated method stub ViewHolder holder; if (arg1 == null) { arg1 = View.inflate(getActivity(), R.layout.item_onelist, null); holder = new ViewHolder(); holder.tv_name = (TextView) arg1.findViewById(R.id.item_name); holder.tv_fight = (TextView) arg1.findViewById(R.id.item_fight); arg1.setTag(holder); } else { holder = (ViewHolder) arg1.getTag(); } holder.tv_name.setText("名字：" + getItem(arg0)); holder.tv_fight.setText("戰斗力：" + con[arg0]); return arg1; } } static class ViewHolder { TextView tv_name; TextView tv_fight; } } View Code <?xml version="1.0" encoding="utf-8"?> <LinearLayout xmlns:android="http://schemas.android.com/apk/res/android" android:layout_width="match_parent" android:layout_height="match_parent" android:background="#fff" android:orientation="vertical" > <ListView android:id="@+id/lv_one_listview" android:layout_width="match_parent" android:layout_height="match_parent" /> </LinearLayout> View Code

第二個Fragment（TentcentTwoFragment）內只有個ViewPager可以進行左右滑動不過還是有點問題

package com.demo.sb.mainfram; import java.util.ArrayList; import com.demo.suibian.R; import android.os.Bundle; import android.support.v4.app.Fragment; import android.support.v4.view.PagerAdapter; import android.support.v4.view.ViewPager; import android.support.v4.view.ViewPager.OnPageChangeListener; import android.view.LayoutInflater; import android.view.View; import android.view.ViewGroup; import android.widget.ImageView; import android.widget.LinearLayout; public class TentcentTwoFragment extends Fragment { private LinearLayout ll_two_group;// 引導圓點的父控件 private ViewPager mViewPager; private ImageView[] diandian;//ViewPager上的點點 private static final int[] mImageIds = new int[] { R.drawable.c, R.drawable.a, R.drawable.d }; private ArrayList<ImageView> mImageViewList; @Override public View onCreateView(LayoutInflater inflater, ViewGroup container, Bundle savedInstanceState) { // TODO Auto-generated method stub return inflater.inflate(R.layout.tentcenttwofragment, null, false); } @Override public void onActivityCreated(Bundle savedInstanceState) { // TODO Auto-generated method stub super.onActivityCreated(savedInstanceState); initView(); } private void initView() { // TODO Auto-generated method stub mViewPager = (ViewPager) getActivity().findViewById( R.id.vp_tentwo_viewpager); ll_two_group = (LinearLayout) getActivity().findViewById( R.id.ll_two_group); initViewPager(); mViewPager.setAdapter(new GuideAdapter()); mViewPager.setCurrentItem(0); mViewPager.setOnPageChangeListener(new GuidePagerListener()); } private void initViewPager() { // TODO Auto-generated method stub // 初始化引導的3個界面 mImageViewList = new ArrayList<ImageView>(); for (int i = 0; i < mImageIds.length; i++) { ImageView imageView = new ImageView(getActivity()); imageView.setBackgroundResource(mImageIds[i]); mImageViewList.add(imageView); } diandian = new ImageView[mImageIds.length]; for (int i = 0; i < mImageIds.length; i++) { //循環加入點點圖片組 diandian[i] = new ImageView(getActivity()); if( i== 0){ diandian[i].setImageResource(R.drawable.point_selecte); }else { diandian[i].setImageResource(R.drawable.point_normal); } diandian[i].setPadding(8, 8, 8, 8); ll_two_group.addView(diandian[i]); } // // 初始化引導頁的小圓點 // for (int i = 0; i < mImageIds.length; i++) { // View point = new View(getActivity()); // point.setBackgroundResource(R.drawable.point_normal); // LinearLayout.LayoutParams params = new LinearLayout.LayoutParams( // 10, 10); // if (i > 0) { // params.leftMargin = 10;// 設置圓點的間隔 // } // point.setLayoutParams(params);// 設置圓點的大小 // ll_two_group.addView(point); // } // } class GuideAdapter extends PagerAdapter { @Override public int getCount() { // TODO Auto-generated method stub return mImageIds.length; //return Integer.MAX_VALUE; } @Override public boolean isViewFromObject(View arg0, Object arg1) { // TODO Auto-generated method stub return arg0 == arg1; } @Override public Object instantiateItem(ViewGroup container, int position) { // TODO Auto-generated method stub container.addView(mImageViewList.get(position)); return mImageViewList.get(position); // container.addView(mImageViewList.get(position%mImageViewList.size())); // return mImageViewList.get(position%mImageViewList.size()); } @Override public void destroyItem(ViewGroup container, int position, Object object) { // TODO Auto-generated method stub container.removeView((View) object); //container.removeView(mImageViewList.get(position%mImageViewList.size())); } } /** * ViewPager 的滑動監聽 * * @author Administrator * */ class GuidePagerListener implements OnPageChangeListener { // 操作屏幕時發生變化 @Override public void onPageScrollStateChanged(int arg0) { // TODO Auto-generated method stub } // 屏幕滾動過程中不斷被調用 @Override public void onPageScrolled(int arg0, float arg1, int arg2) { // TODO Auto-generated method stub // int len = (int) (mPointWidth * arg1) + arg0 * mPointWidth; // System.out.println(len); // // 獲取當前紅色點的布局參數 // RelativeLayout.LayoutParams params = (RelativeLayout.LayoutParams) view_two_point // .getLayoutParams(); // params.leftMargin = len;// 設置左邊距 // view_two_point.setLayoutParams(params);// 重新給小紅點設置布局參數 } // 哪個頁面被選中 position就是當前滑動到的頁面 @Override public void onPageSelected(int position) { // TODO Auto-generated method stub System.out.println("第幾個頁面" + position +" "+ position%mImageViewList.size()); for (int i = 0; i < mImageIds.length; i++) { diandian[position].setImageResource(R.drawable.point_selecte); if(i != position){ diandian[i].setImageResource(R.drawable.point_normal); } } } } } View Code 1 <?xml version="1.0" encoding="utf-8"?> 2 <LinearLayout xmlns:android="http://schemas.android.com/apk/res/android" 3 android:layout_width="match_parent" 4 android:layout_height="match_parent" 5 android:background="#0f0" 6 android:orientation="vertical" > 7 8 <TextView 9 android:layout_width="wrap_content" 10 android:layout_height="wrap_content" 11 android:text="@string/app_name" /> 12 13 <RelativeLayout 14 android:layout_width="match_parent" 15 android:layout_height="200dp" > 16 17 <com.demo.sb.widget.MyViewPager 18 android:id="@+id/vp_tentwo_viewpager" 19 android:layout_width="match_parent" 20 android:layout_height="match_parent" /> 21 22 <RelativeLayout 23 android:layout_width="wrap_content" 24 android:layout_height="wrap_content" 25 android:layout_alignParentBottom="true" 26 android:layout_centerHorizontal="true" 27 android:layout_marginBottom="25dp" > 28 29 <LinearLayout 30 android:id="@+id/ll_two_group" 31 android:layout_width="wrap_content" 32 android:layout_height="wrap_content" 33 android:orientation="horizontal" /> 34 </RelativeLayout> 35 </RelativeLayout> 36 37 <TextView 38 android:layout_width="match_parent" 39 android:layout_height="wrap_content" 40 android:text="@string/app_name" /> 41 42 </LinearLayout> View Code

下面是2個工具類

第一個是自定義的線性布局可以當側滑界面打開時，讓ListView不能進行滑動

1 package com.demo.sb.widget; 2 3 import com.demo.sb.widget.DragLayout.Status; 4 5 import android.content.Context; 6 import android.util.AttributeSet; 7 import android.view.MotionEvent; 8 import android.widget.LinearLayout; 9 10 public class MyListLinearLayout extends LinearLayout { 11 12 private DragLayout mDragLayout; 13 public MyListLinearLayout(Context context) { 14 super(context); 15 // TODO Auto-generated constructor stub 16 } 17 18 public MyListLinearLayout(Context context, AttributeSet attrs) { 19 super(context, attrs); 20 // TODO Auto-generated constructor stub 21 } 22 23 // public MyListLinearLayout(Context context, AttributeSet attrs, int defStyle) { 24 // super(context, attrs, defStyle); 25 // // TODO Auto-generated constructor stub 26 // } 27 28 public void setDraglayout(DragLayout mDragLayout){ 29 this.mDragLayout = mDragLayout; 30 } 31 32 @Override 33 public boolean onInterceptTouchEvent(MotionEvent ev) { 34 // TODO Auto-generated method stub 35 if(mDragLayout.getStatus() == Status.Close){ 36 return super.onInterceptTouchEvent(ev); 37 38 }else { 39 return true; 40 } 41 } 42 43 @Override 44 public boolean onTouchEvent(MotionEvent event) { 45 // TODO Auto-generated method stub 46 if(mDragLayout.getStatus() == Status.Close){ 47 return super.onTouchEvent(event); 48 49 }else { 50 if(event.getAction() == MotionEvent.ACTION_UP){ 51 mDragLayout.chose();; 52 } 53 return true; 54 } 55 } 56 } View Code

第二個是dp和px 的轉化還有自定義Toast的設置比較常用

 1 package com.demo.sb.utils;
 2
 3 import android.content.Context;
 4 import android.widget.Toast;
 5
 6 public class DensityUtil {
 7
 8     /**
 9      * 根據手機的分辨率從dip的單位轉為px(像素)
10      */
11     public static int dip2px(Context context, float dp) {
12         float density = context.getResources().getDisplayMetrics().density;
13         int px = (int) (dp * density + 0.5f);// 4.9->5 4.4->4
14         return px;
15     }
16     /**
17      * 根據手機的分辨率從px(像素)的單位轉化成dip
18      * @param ctx
19      * @param px
20      * @return
21      */
22     public static float px2dip(Context ctx, int px) {
23         float density = ctx.getResources().getDisplayMetrics().density;
24         float dp = px / (density + 0.5f);
25
26         return dp;
27     }
28
29     /**
30      * 自定義吐司
31      *
32      */
33     public static Toast mToast;
34     public static void showToast(Context mContext, String msg) {
35         if (mToast == null) {
36             mToast = Toast.makeText(mContext, "", Toast.LENGTH_SHORT);
37         }
38         mToast.setText(msg);
39         mToast.show();
40     }
41 }
