Android創建與解析XML（三）——詳解Sax方式

1. Sax概述

SAX是一種占用內存少且解析速度快的解析器，它采用的是事件啟動，不需要解析完整個文檔，而是按照內容順序看文檔某個部分是否符合xml語法，如果符合就觸發相應的事件，所謂的事件就是些回調方法（callback），這些方法 定義在ContentHandler中，下面是其主要方法：

startDocument（）：當遇到文檔的時候就觸發這個事件 調用這個方法 可以在其中做些預處理工作，如：申請對象資源

endDocument（）：當結束文檔的時候就觸發這個事件 調用這個方法 可以在其中做些善後工作，如：釋放申請的對象資源

startElement（String namespaceURI, String localName, String qName, Attributes atts）：當遇開始標簽的時候就會觸發這個方法。

endElement（String uri, String localName, String name）：當遇到結束標簽時觸發這個事件，調用此法可以做些善後工作。

charachers（char [] ch, int start, int length）：當遇到xml內容時觸發這個方法，用new String(ch,start,length)可以接受內容。

Sax方式創建XML，應用了標准xml構造器 javax.xml.transform.sax.TransformerHandler 事件來創建 XML 文檔，需要導入以下內容

javax.xml.transform

• javax.xml.transform.sax.SAXTransformerFactory;
• javax.xml.transform.sax.TransformerHandler;
• javax.xml.transform.Transformer;
• javax.xml.transform.TransformerConfigurationException;
• javax.xml.transform.TransformerFactoryConfigurationError;
• javax.xml.transform.OutputKeys;
• javax.xml.transform.stream.StreamResult;
• javax.xml.transform.sax.SAXTransformerFactory;

javax.xml.parsers

• javax.xml.parsers.SAXParser;
• javax.xml.parsers.SAXParserFactory;
• javax.xml.parsers.FactoryConfigurationError;
• javax.xml.parsers.ParserConfigurationException;

org.xml.sax

• org.xml.sax.Attributes;
• org.xml.sax.SAXException;
• org.xml.sax.helpers.AttributesImpl;
• org.xml.sax.helpers.DefaultHandler;

Sax 創建和解析 XML 的效果圖：

2、Sax 創建 XML

首先，SAXTransformerFactory.newInstance() 創建一個工廠實例 factory

接著，factory.newTransformerHandler() 獲取 TransformerHandler 的 handler 對象

然後，通過 handler 事件創建handler.getTransformer()、 handler.setResult(result)，以及 startDocument()、startElement、characters、endElement、endDocument()等

/** Sax方式，創建 XML */
public String saxCreateXML(){
  StringWriter xmlWriter = new StringWriter();

  Person []persons = new Person[3];    // 創建節點Person對象
  persons[0] = new Person(1, "sunboy_2050", "http://blogcsdnnet/sunboy_2050");
  persons[1] = new Person(2, "baidu", "http://wwwbaiducom");
  persons[2] = new Person(3, "google", "http://wwwgooglecom");

  try {
    SAXTransformerFactory factory = (SAXTransformerFactory)SAXTransformerFactorynewInstance();
    TransformerHandler handler = factorynewTransformerHandler();

    Transformer transformer = handlergetTransformer();   // 設置xml屬性
    transformersetOutputProperty(OutputKeysINDENT, "yes");
    transformersetOutputProperty(OutputKeysENCODING, "utf-8");
    transformersetOutputProperty(OutputKeysVERSION, "0");

    StreamResult result = new StreamResult(xmlWriter);   // 保存創建的xml
    handlersetResult(result);

    handlerstartDocument();
    AttributesImpl attr = new AttributesImpl();

    attrclear();
    attraddAttribute("", "", "author", "", "homer");
    attraddAttribute("", "", "date", "", "2012-04-27");
    handlerstartElement("", "", "root", attr);

    int personsLen = personslength;
    for(int i=0; i<personsLen; i++){
      attrclear();
      handlerstartElement("", "", "person", attr);

      attrclear();
      handlerstartElement("", "", "id", attr);
      String id = persons[i]getId() + "";
      handlercharacters(idtoCharArray(), 0, idlength());
      handlerendElement("", "", "id");

      attrclear();
      handlerstartElement("", "", "name", attr);
      String name = persons[i]getName();
      handlercharacters(nametoCharArray(), 0, namelength());
      handlerendElement("", "", "name");

      attrclear();
      handlerstartElement("", "", "blog", attr);
      String blog = persons[i]getBlog();
      handlercharacters(blogtoCharArray(), 0, bloglength());
      handlerendElement("", "", "blog");

      handlerendElement("", "", "person");
    }

    handlerendElement("", "", "root");
    handlerendDocument();

  } catch (TransformerFactoryConfigurationError e) {   // SAXTransformerFactorynewInstance
    eprintStackTrace();
  } catch (TransformerConfigurationException e) {     // factorynewTransformerHandler
    eprintStackTrace();
  } catch (IllegalArgumentException e) {   // transformersetOutputProperty
    eprintStackTrace();
  } catch (SAXException e) {   // handlerstartDocument
    eprintStackTrace();
  } catch (Exception e) {
    eprintStackTrace();
  }

  savedXML(fileName, xmlWritertoString());
  return xmlWritertoString();
}

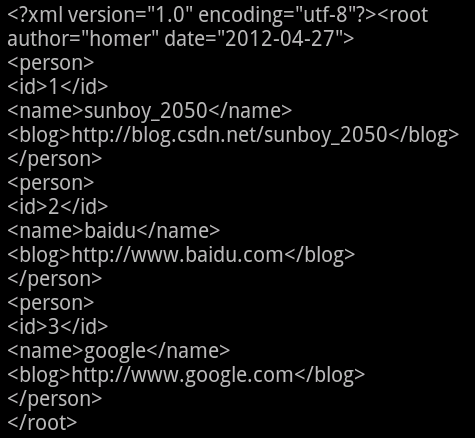

運行結果：

3、Sax解析XML


  /** Sax方式，解析 XML */
  public String saxResolveXML(){
    StringWriter xmlWriter = new StringWriter();

    InputStream is = readXML(fileName);
    try {
      SAXParserFactory factory = SAXParserFactorynewInstance();
      SAXParser saxParser = factorynewSAXParser();

      PersonHandler handler = new PersonHandler();  // person處理Handler
      saxParserparse(is, handler);          // handler解析xml

      // 獲取解析的xml
      String xmlHeader = handlergetXMLHeader();
      xmlWriterappend(xmlHeader);

      List<Person> personsList = handlergetPersons();
      int personsLen = personsListsize();
      for(int i=0; i<personsLen; i++){
        xmlWriterappend(personsListget(i)toString())append("\n");
      }

    } catch (FactoryConfigurationError e) {     // SAXParserFactorynewInstance
      eprintStackTrace();
    } catch (ParserConfigurationException e) {   // factorynewSAXParser
      eprintStackTrace();
    } catch (SAXException e) {     // factorynewSAXParser
      eprintStackTrace();
    } catch (IllegalArgumentException e) {   // saxParserparse
      eprintStackTrace();
    } catch (IOException e) {      // saxParserparse
      eprintStackTrace();
    } catch (Exception e) {
      eprintStackTrace();
    }

    return xmlWritertoString();
  }

  /** Handler處理類 */
  private final class PersonHandler extends DefaultHandler{
    private List<Person> personsList = null; // 保存person
    private Person person = null;
    private StringBuffer xmlHeader;       // 保存xml頭部信息
    private String tag = null;     // xml Element

    /** 返回解析的xml頭部信息 */
    public String getXMLHeader(){
      return xmlHeadertoString();
    }

    /** 返回解析的Person實例數組 */
    public List<Person> getPersons(){
      return personsList;
    }

    @Override
    public void startDocument() throws SAXException{
      superstartDocument();
      personsList = new ArrayList<Person>();
      xmlHeader = new StringBuffer();
    }

    @Override
    public void startElement(String uri, String localName, String qName, Attributes attributes) throws SAXException{
      superstartElement(uri, localName, qName, attributes);
      if("root"equals(localName)) {
        String attrAuthor = attributesgetValue(0);
        String attrDate = attributesgetValue(1);
        xmlHeaderappend("root")append("\t\t");
        xmlHeaderappend(attrAuthor)append("\t");
        xmlHeaderappend(attrDate)append("\n");
      } else if("person"equals(localName)) {
        person = new Person();
      }
      tag = localName;
    }

    @Override
    public void characters(char[] ch, int start, int length) throws SAXException {
      supercharacters(ch, start, length);
      if (null != tag) {
        String value = new String(ch, start, length);
        Systemoutprintln("value = " + value);
        if ("id"equals(tag)) {
          personsetId(new Integer(value));
        } else if ("name"equals(tag)) {
          personsetName(value);
        } else if ("blog"equals(tag)) {
          personsetBlog(value);
        }
      }
    }

    @Override
    public void endElement(String uri, String localName, String qName) throws SAXException {
      if("person"equals(qName)) {
        personsListadd(person);
        person = null;
      }
      tag = null;
      superendElement(uri, localName, qName);
    }

    @Override
    public void endDocument() throws SAXException{
//     personsList = null;
      superendDocument();
    }
  }

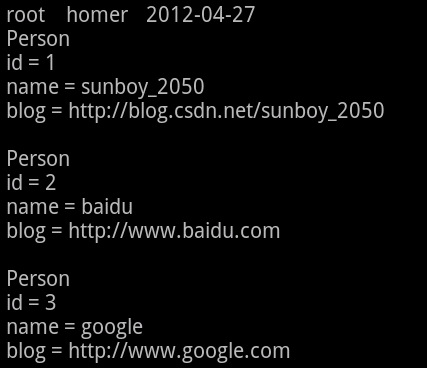

運行結果：

4、Person類

請參見前文Android 創建與解析XML（二）—— Dom方式 【4、Person類】
