Android 自定義Dialog 實例

開發中經常需要請求網絡獲取數據，我們在請求網絡到得到數據時當中需要等待一些時間，為了增加用戶體驗，我們一般會用一個Dialog來提示用戶我們在加載網絡數據。

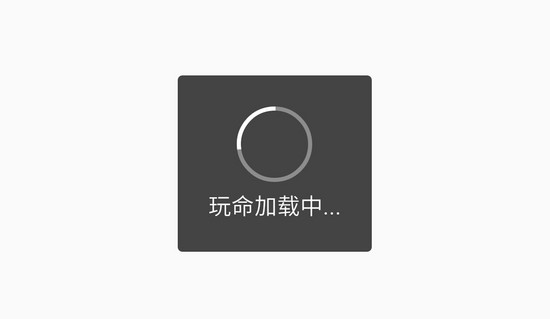

今天我們來實現如下效果的加載中Dialog。

從圖中我們可以看到要這個Dialog是圖片還有文字組成的，(不過我這裡使用代碼實現的，沒有用圖片)，以下是這個加載圖形的代碼：

public class LVCircularRing extends View {

private float mWidth = 0f;
private float mPadding = 0f;
private float startAngle = 0f;
private Paint mPaint;

public LVCircularRing(Context context) {
 this(context, null);
}

public LVCircularRing(Context context, AttributeSet attrs) {
 this(context, attrs, 0);
}

public LVCircularRing(Context context, AttributeSet attrs, int defStyleAttr) {
 super(context, attrs, defStyleAttr);
 initPaint();
}

@Override
protected void onMeasure(int widthMeasureSpec, int heightMeasureSpec) {
 super.onMeasure(widthMeasureSpec, heightMeasureSpec);

 if (getMeasuredWidth() > getHeight())
  mWidth = getMeasuredHeight();
 else
  mWidth = getMeasuredWidth();
 mPadding = 5;
}

@Override
protected void onDraw(Canvas canvas) {
 super.onDraw(canvas);

 mPaint.setColor(Color.argb(100, 255, 255, 255));
 canvas.drawCircle(mWidth / 2, mWidth / 2, mWidth / 2 - mPadding, mPaint);
 mPaint.setColor(Color.WHITE);
 RectF rectF = new RectF(mPadding, mPadding, mWidth - mPadding, mWidth - mPadding);
 canvas.drawArc(rectF, startAngle, 100
   , false, mPaint);//第四個參數是否顯示半徑

}


private void initPaint() {
 mPaint = new Paint();
 mPaint.setAntiAlias(true);
 mPaint.setStyle(Paint.Style.STROKE);
 mPaint.setColor(Color.WHITE);
 mPaint.setStrokeWidth(8);
}

public void startAnim() {
 stopAnim();
 startViewAnim(0f, 1f, 1000);
}

public void stopAnim() {
 if (valueAnimator != null) {
  clearAnimation();
  valueAnimator.setRepeatCount(1);
  valueAnimator.cancel();
  valueAnimator.end();
 }
}

ValueAnimator valueAnimator;

private ValueAnimator startViewAnim(float startF, final float endF, long time) {
 valueAnimator = ValueAnimator.ofFloat(startF, endF);

 valueAnimator.setDuration(time);
 valueAnimator.setInterpolator(new LinearInterpolator());
 valueAnimator.setRepeatCount(ValueAnimator.INFINITE);//無限循環
 valueAnimator.setRepeatMode(ValueAnimator.RESTART);//

 valueAnimator.addUpdateListener(new ValueAnimator.AnimatorUpdateListener() {
  @Override
  public void onAnimationUpdate(ValueAnimator valueAnimator) {

   float value = (float) valueAnimator.getAnimatedValue();
   startAngle = 360 * value;

   invalidate();
  }
 });
 valueAnimator.addListener(new AnimatorListenerAdapter() {
  @Override
  public void onAnimationEnd(Animator animation) {
   super.onAnimationEnd(animation);
  }
 });
 if (!valueAnimator.isRunning()) {
  valueAnimator.start();
 }

 return valueAnimator;
}
}

 Dialog 代碼：

public class LoadingDialog {
LVCircularRing mLoadingView;
Dialog mLoadingDialog;

public LoadingDialog(Context context,String msg) {
 // 首先得到整個View
 View view = LayoutInflater.from(context).inflate(
   R.layout.loading_dialog_view, null);
 // 獲取整個布局
 LinearLayout layout = (LinearLayout) view.findViewById(R.id.dialog_view);
 // 頁面中的LoadingView
 mLoadingView = (LVCircularRing) view.findViewById(R.id.lv_circularring);
 // 頁面中顯示文本
 TextView loadingText = (TextView) view.findViewById(R.id.loading_text);
 // 顯示文本
 loadingText.setText(msg);
 // 創建自定義樣式的Dialog
 mLoadingDialog = new Dialog(context, R.style.loading_dialog);
 // 設置返回鍵無效
 mLoadingDialog.setCancelable(false);
 mLoadingDialog.setContentView(layout, new LinearLayout.LayoutParams(
   LinearLayout.LayoutParams.MATCH_PARENT,
   LinearLayout.LayoutParams.MATCH_PARENT));
}

public void show(){
 mLoadingDialog.show();
 mLoadingView.startAnim();
}

public void close(){
 if (mLoadingDialog!=null) {
  mLoadingView.stopAnim();
  mLoadingDialog.dismiss();
  mLoadingDialog=null;
 }
}
}

 布局文件loading_dialog_view 代碼：

<?xml version="1.0" encoding="utf-8"?>
<LinearLayout
xmlns:android="http://schemas.android.com/apk/res/android"
android:id="@+id/dialog_view"
android:layout_width="match_parent"
android:layout_height="match_parent"
android:gravity="center"
android:background="@drawable/dialog_bg"
android:padding="20dp"
android:orientation="vertical">

<com.ye.daqiapp.ui.widget.loading.LVCircularRing
 android:id="@+id/lv_circularring"
 android:layout_width="50dp"
 android:layout_height="50dp"/>

<TextView
 android:id="@+id/loading_text"
 android:layout_width="wrap_content"
 android:layout_height="wrap_content"
 android:textColor="#ffffff"
 android:layout_marginTop="5dp"
 android:textSize="15sp"/>

</LinearLayout>

 Dialog中Style代碼：

<style name="loading_dialog" parent="android:style/Theme.Dialog">
 <item name="android:windowFrame">@null</item>
 <item name="android:windowNoTitle">true</item>
 <item name="android:windowBackground">@android:color/transparent</item>
 <item name="android:windowIsFloating">true</item>
 <item name="android:backgroundDimEnabled">false</item>
 <item name="android:windowContentOverlay">@null</item>
</style>

 背景dialog_bg 代碼：

<?xml version="1.0" encoding="utf-8"?>
<shape xmlns:android="http://schemas.android.com/apk/res/android">
<!-- 內部顏色 -->
<solid android:color="#444444" />

<!-- 圓角的幅度 -->
<corners
 android:bottomLeftRadius="3dp"
 android:bottomRightRadius="3dp"
 android:topLeftRadius="3dp"
 android:topRightRadius="3dp" />
</shape>

 如何使用：在需要使用的地方初始化Dialog:

LoadingDialog dialog=new LoadingDialog(context,"玩命加載中...");
//顯示Dialog
dialog.show();
//關閉Dialog
dialog.close();

以上是對Android Dialog 重寫的小示例，有需要的朋友可以參考下。
