為Android Studio編寫自定義Gradle插件的教程

Google已經建議Android開發全部轉向Android Studio開發，Android Studio 是使用gradle編譯、打包的，那麼問題來了，gradle可是有一堆東西...，為了徹底了解gradle，今天就來學習下如何寫自己的gradle插件（當然插件源碼是使用groovy寫的），先看如下代碼目錄：

如上圖所示，plugin目錄是插件源碼目錄，sample是用來測試插件的。

1、在目錄plugin/src/main/groovy/com/micky/gradle/下新建插件類MyCustomPlugin.groovy

package com.micky.gradle;

import org.gradle.api.*;

class MyCustomPlugin implements Plugin<Project> {
  void apply(Project project) {
    project.task('myTask') << {
      println "Hi this is micky's plugin"
    }
  }
}

看看Plugin的源碼，其實就是一接口

public interface Plugin<T> {
  /**
   * Apply this plugin to the given target object.
   *
   * @param target The target object
   */
  void apply(T target);
}

2、在目錄plugin/src/main/resources/META-INF/gradle-plugins/下創建文件com.micky.mycustom.properties用來指定插件實現類

implementation-class=com.micky.gradle.MyCustomPlugin



   特別注意下：文件名“com.micky.mycustom”即是以後我們在使用插件時的apply plugin 'java' 的java，這裡我也是折騰了半天才得出的結果，坑啊。

3、一般情況下，我們還需要指定插件項目名稱，在plugin目錄下新建settings.gradle

rootProject.name='gradle-micky'



4、萬事具備，就差編譯了，編譯需要在plugin目錄下新建build.gradle

apply plugin: 'groovy'
apply plugin: 'maven'

dependencies {
  compile gradleApi()
  compile localGroovy()
}

repositories {
  mavenCentral()
}

group='com.micky'
version='1.0.0'

uploadArchives {
  repositories {
    mavenDeployer {
      repository(url: uri('../repo'))
    }
  }
}

在這個腳本裡使用groovy插件編譯groovy源碼，聲明gradleAPI作為即時編譯依賴，apply plugin: 'maven' 是用來創建一個插件jar文件並且存儲在本地maven庫裡，本地maven庫即我們在腳本裡創建的"../repo"目錄
執行命令:

gradle uploadArchives

5、以上4個步驟已經編譯插件並上傳到了本地庫中，接下來就看看怎麼使用插件，在sample目錄下，新建build.gradle

buildscript {
  repositories {
    maven {
      url uri('../repo')
    }
  }

  dependencies {
    classpath group: 'com.micky',
      name: 'gradle-micky',
      version: '1.0.0'
  }
}

apply plugin: 'com.micky.mycustom'

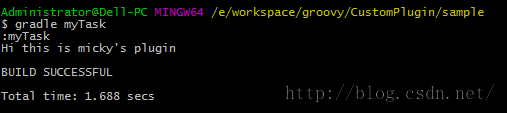

6、執行命令

myTask即我們在MyCustomPlugin.groovy代碼中創建的任務。

7、自定義Task

（1）copy一份改名CustomPluginTask

在plugin\src\main\groovy\com\micky\gradle目錄創建源文件 MyCustomTask.groovy

package com.micky.gradle;

import org.gradle.api.DefaultTask
import org.gradle.api.tasks.TaskAction

class MyCustomTask extends DefaultTask {
  @TaskAction
  void output() {
    println "Hello this is my custom task output"
  }
}

（2）修改MyCustomPlugin.groovy

package com.micky.gradle;

import org.gradle.api.*;

class MyCustomPlugin implements Plugin<Project> {
  void apply(Project project) {
    project.task('customTask', type: MyCustomTask)
  }
}

（3）修改plugin目錄下的build.gradle，修改版本號

apply plugin: 'groovy'
apply plugin: 'maven'

dependencies {
  compile gradleApi()
  compile localGroovy()
}

repositories {
  mavenCentral()
}

group='com.micky'
version='1.0.1'

uploadArchives {
  repositories {
    mavenDeployer {
      repository(url: uri('../repo'))
    }
  }
}

執行gradle uploadArchives 編譯插件包

（4）sample目錄下的build.gradle

buildscript {
  repositories {
    maven {
      url uri('../repo')
    }
  }

  dependencies {
    classpath group: 'com.micky',
      name: 'gradle-micky',
      version: '1.0.1'
  }
}
apply plugin: 'com.micky.mycustom'

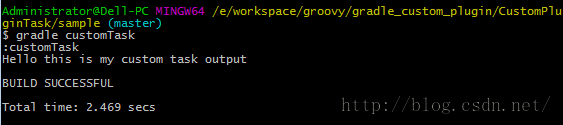

執行gradle customTask 結果如下：

8、向Plugin Task 傳遞參數
（1）拷貝一份上面的代碼，改名為CustomPluginTaskWithParam，修改plugin\src\main\groovy\com\micky\gradle\MyCustomPlugin.groovy

package com.micky.gradle;

import org.gradle.api.*;

class MyCustomPluginExtension {
  def message = "From MyCustomPluginExtention"
  def sender = "MyCustomPluin"
}

class MyCustomPlugin implements Plugin<Project> {
  void apply(Project project) {
    project.extensions.create('myArgs', MyCustomPluginExtension)
    project.task('customTask', type: MyCustomTask)
  }
}

（2）修改plugin\src\main\groovy\com\micky\gradle\MyCustomTask.groovy

package com.micky.gradle;

import org.gradle.api.DefaultTask
import org.gradle.api.tasks.TaskAction

class MyCustomTask extends DefaultTask {
  @TaskAction
  void output() {
    println "Sender is ${project.myArgs.sender},\nmessage: ${project.myArgs.message}"
  }
}


（3）修改plugin/build.gradle

apply plugin: 'groovy'
apply plugin: 'maven'

dependencies {
  compile gradleApi()
  compile localGroovy()
}

repositories {
  mavenCentral()
}

group='com.micky'
version='1.0.2'

uploadArchives {
  repositories {
    mavenDeployer {
      repository(url: uri('../repo'))
    }
  }
}

        執行gradle uploadArchives 編譯插件包

（4）修改sample/build.gradle

buildscript {
  repositories {
    maven {
      url uri('../repo')
    }
  }

  dependencies {
    classpath group: 'com.micky',
      name: 'gradle-micky',
      version: '1.0.2'
  }
}

apply plugin: 'com.micky.mycustom'

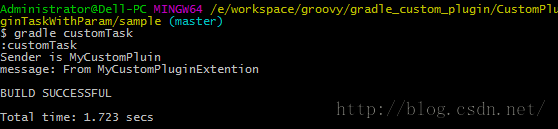

（5）執行gradle customTask，結果如下：

（6）在gradle文件配置參數

buildscript {
  repositories {
    maven {
      url uri('../repo')
    }
  }

  dependencies {
    classpath group: 'com.micky',
      name: 'gradle-micky',
      version: '1.0.2'
  }
}

apply plugin: 'com.micky.mycustom'

myArgs {
  sender='Micky Liu'
  message='Gradle is so simple.'
}


（7）執行gradle customTask，結果如下：

8、向Plugin Task 傳遞嵌套試復雜參數
（1）拷貝一份上面的代碼，改名為CustomPluginTaskWithNestParam，修改plugin\src\main\groovy\com\micky\gradle\MyCustomPlugin.groovy

package com.micky.gradle;

import org.gradle.api.*;

class MyNestPluginExtension {
  def receiver = "Kate Zhou"
  def email = "KateZhou@gmail.com"
}

class MyCustomPluginExtension {
  def message = "From MyCustomPluginExtention"
  def sender = "MyCustomPluin"
}

class MyCustomPlugin implements Plugin<Project> {
  void apply(Project project) {
    project.extensions.create('myArgs', MyCustomPluginExtension)
    project.myArgs.extensions.create('nestArgs', MyNestPluginExtension)
    project.task('customTask', type: MyCustomTask)
  }
}

（2）修改MyCustomPlugin.groovy

package com.micky.gradle;

import org.gradle.api.DefaultTask
import org.gradle.api.tasks.TaskAction

class MyCustomTask extends DefaultTask {
  @TaskAction
  void output() {
    println "Sender is ${project.myArgs.sender} \nmessage: ${project.myArgs.message}"
    println "Receiver is ${project.myArgs.nestArgs.receiver} \nemail: ${project.myArgs.nestArgs.email}"
  }
}



（3）修改plugin/build.gradle

apply plugin: 'groovy'
apply plugin: 'maven'

dependencies {
  compile gradleApi()
  compile localGroovy()
}

repositories {
  mavenCentral()
}

group='com.micky'
version='1.0.3'

uploadArchives {
  repositories {
    mavenDeployer {
      repository(url: uri('../repo'))
    }
  }
}

（4）執行gradle uploadArchives 編譯插件包
（5）修改sample/build.gradle

buildscript {
  repositories {
    maven {
      url uri('../repo')
    }
  }

  dependencies {
    classpath group: 'com.micky',
      name: 'gradle-micky',
      version: '1.0.3'
  }
}

apply plugin: 'com.micky.mycustom'

myArgs {
  sender='Micky Liu'
  message='Gradle is so simple.'
}


（6）執行執行gradle customTask，結果如下：

（7）在gradle文件配置參數

buildscript {
  repositories {
    maven {
      url uri('../repo')
    }
  }

  dependencies {
    classpath group: 'com.micky',
      name: 'gradle-micky',
      version: '1.0.3'
  }
}

apply plugin: 'com.micky.mycustom'

myArgs {
  sender='Micky Liu'
  message='Gradle is so simple.'
  nestArgs {
    receiver='David Chen'
    email='David@126.com'
  }

}

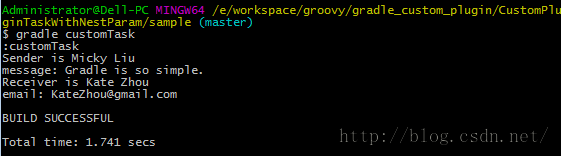

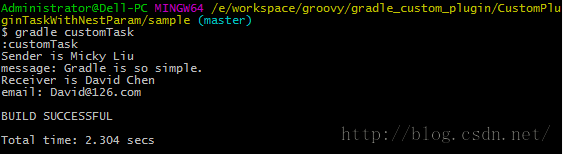

（8）執行gradle customTask，結果如下：

  源碼地址：https://github.com/mickyliu945/GradleCustomPlugin
